an MBraun UniLab Glovebox. Solvents were dried and degassed with
an MBraun SPS800 solvent-purification system. THF and diethyl
ether were stored over molecular sieves (3 Å). n-Hexane was stored
over a potassium mirror. 1,2-Dimethoxyethane was stirred over K/
benzophenone, distilled, and stored over molecular sieves (3 Å). All
chemicals were purchased from commercial suppliers and used as
received, if not stated otherwise. [Li2(dme)2{Fe(η4-cod)2}],53 KC8,54
DippBIAN,55 [(DippBIAN)FeBr2],56 and [K([18]c-6)(thf)2][Fe(η4-
C14H10)2]27 were prepared according to literature procedures.
Instruments. CHN analyses were recorded by the analytical
department of the University of Regensburg with a Micro Vario Cube
(Elementar). ESI-MS spectra carried out by the analytical department
of the University of Regensburg, Agilent Q-TOF 6549 UHD. Melting
points were measured on samples in sealed capillaries on a Stuart
SMP10 melting point apparatus. UV−vis spectra were recorded on an
Ocean Optics Flame spectrometer (Varian Cary 50 Spectropho-
tometer) in a Quartz cuvette with a layer thickness of 1 cm at room
temperature with a concentration of 1 × 10−4 to 1 × 10−6 M. 1H, 11B,
13C{1H}, and 19F NMR spectra in solutions were recorded on Bruker
Avance 300 and BrukerAvance 400 if not stated otherwise. Chemical
shifts are given relative to solvents resonances in the tetramethylsilane
(1H, 13C), BF3·OEt2 (11B), CFCl3 (19F) scale. The following
abbreviations have been used for multiplicities: s = singlet, d =
doublet, t = triplet, q = quartet, sept = septet, m = multiplet, dd =
doublet of doublet, dt = doublet of triplet.

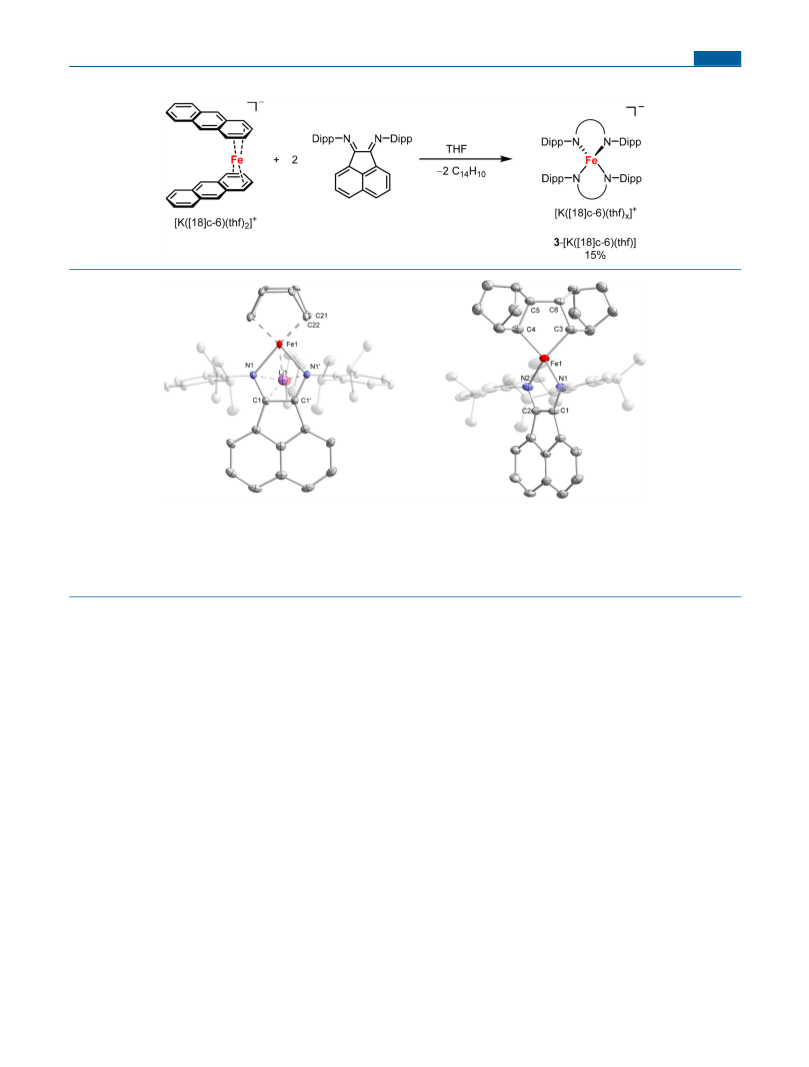

Single-Crystal X-ray Crystallography. The single-crystal X-ray
diffraction (XRD) data were recorded on an Agilent Super Nova
diffractometer with an Atlas CCD detector. Microfocus Cu Kα
radiation (λ = 1.54184 Å) was used in each measurement. Empirical
multiscan and analytical absorption corrections62 were applied to the
data. The structures were solved with SHELXT63 and least-squares
refinements on F2 were carried out with SHELXL.64 The program
package Olex265 was used. Crystal data for 1-[Li(thf)], 2-[K([2.2.2]-
cryptand)(thf)3], and 3-[K([18]c-6)(thf)] are given in section 4
below.
Synthesis of [K([18]c-6)(thf)0.5][(DippBIAN)Fe(η4-cod)] (1-[K([18]c-
6)(thf)0.5]). 1,5-Cyclooctadiene (1.0 mL, 8.1 mmol, 5.8 equiv.) was
added to a solution of [(DippBIAN)FeBr2] (1.0 g, 1.4 mmol, 1.0
equiv.) in 100 mL of THF. The solution was cooled to −60 °C and
KC8 (0.6 g, 4.4 mmol, 3.15 equiv.) was added in portions over 5 min
and then slowly warmed to ambient temperature. Meanwhile, the
solution turned yellow-brownish. After stirring overnight at ambient
temperature, the resulting suspension was filtered and [18]c-6 (0.37 g,
1.4 mmol, 1.0 equiv.) in 15 mL of THF was added. The solution was
concentrated to 80 mL of THF, layered with 80 mL of n-hexane and
stored at −10 °C. Brown-green block shaped crystals were formed
within a few days. [K([18]c-6)(thf)0.5][(DippBIAN)Fe(η4-cod)] (1-
[K([18]c-6)(thf)0.5]) was isolated in 78% yield by decanting the
solvent and drying the remaining crystalline solid in vacuo. Crystals
suitable for single-crystal X-ray crystallography were obtained by
recrystallization from THF/n-hexane. Yield: 1.09 g (1.086 mmol,
Cyclic Voltammetry. Cyclic voltammetry experiments were
performed in a single-compartment cell inside a nitrogen-filled
glovebox using a CH Instruments CH1600E potentiostat. The cell
was equipped with a platinum disc working electrode (2 mm
diameter) polished with 0.05 μm alumina paste, a platinum wire
counter electrode, and an Ag/AgNO3 reference electrode. The
supporting electrolyte, tetra-n-butylammonium hexafluorophosphate,
was dried in vacuo at 110 °C for 3 days. All redox potentials are
reported vs the ferrocenium/ferrocene (Fc+/Fc) couple.
1
78%). Melting point: T > 70 °C: decomposition to a black oil. H
NMR (400.13 MHz, 300 K, THF-d8): δ [ppm]: 8.63 (m, Int 1), 4.77
(br s, Int 0.7), 4.35 (br s, Int 1), 3.51 (br s, overlap with THF-d8, Int
12.5), 2.18 (br s, Int 3.3), 1.29 (br s, Int 1.7), 0.89 (br s, Int 1), 0.43
(br s, Int 2.5), − 16.2 (br s). EPR: Measured in MeTHF glass at 20 K.
Microwave frequency, 9.37466 GHz; modulation amplitude, 4.000 G;
power, 0.6325 mV. The experimental spectrum could be fitted with
the following parameters for an S = 1/2 system on a nucleus with a
nuclear spin of 0. g1 = 2.217, g2 = 2.095, g3 = 2.005, W1 = 10, W2 = 11,
and W3 = 13. UV−vis (THF): λmax/nm (ε/L mol−1 cm−1) = 294
(21 000), 408 (12 000), 697 (5000). CHN analysis found (calcd.) for
C56H76N2KFeO6·(C4H8O)0.5: C, 69.78 (69.37); H, 7.82 (8.03); N,
2.47 (2.79). Magnetic moment (Evans NMR method in THF-d8−a1t
EPR Spectroscopy. The experimental X-band EPR spectra was
recorded on a Bruker EMX spectrometer (Bruker BioSpin
Rheinstetten) equipped with a He temperature-control cryostat
system (Oxford Instruments). The g values were calculated with the
ORCA software package57 at the B3LYP58/def2-TZVP59 level of
theory. The spectra of 1−3 were analyzed and simulated using the
W95EPR program of Prof. Frank Neese or EasySpin (easyspin.org).60
298 K): μeff = 2.0(1) μB. 57Fe Moßbauer spectrum: δ = 0.23 mm s ;
̈
|ΔEQ| = 2.26 mm s−1.
57
57
Fe Mossbauer Spectroscopy. Fe Mossbauer spectra were
Synthesis of [Li(thf){(DippBIAN)Fe(η4-cod)}] (1-[Li(thf)]). DippBIAN
(75.2 mg, 0.15 mmol, 1.5 equiv.) was dissolved in 2 mL of THF and
added dropwise as cooled (−30 °C) solution to a −30 °C cold
solution of [Li2(dme)2{Fe(η4-cod)2] (46.7 mg, 0.10 mmol, 1.0
equiv.) in 2 mL of THF (Note: the dissolved ferrate contains some
black particles). The olive-green solution turned dark brown and was
warmed up to room temperature and stirred for 24 h. The solvent was
evaporated and residue extracted with 20 mL n-hexane and filtered.
Dark green-brown crystals were obtained by slow evaporation at room
temperature and isolated by decanting the mother liquor and dried in
̈
̈
recorded with a 57Co source in a Rh matrix using an alternating
̈
constant acceleration Wissel Mossbauer spectrometer operated in the
transmission mode and equipped with a Janis closed cycle helium
cryostat. Isomer shifts are given relative to Fe metal at ambient
temperature. Simulation of the experimental data was performed with
the Mfit program using Lorentzian line doublets.61
Magnetic Susceptibility Measurements. Temperature-depend-
ent magnetic susceptibility measurements were carried out with a
Quantum-Design MPMS-XL-5 or with a MPMS3 SQUID magneto-
meter in the range from 295 (or 300) to 2.0 K at a magnetic field of
0.5 T. The powdered samples were contained in a polypropylene or
polycarbonate capsule and fixed in a nonmagnetic straw. Each raw
data file for the measured magnetic moment was corrected for the
diamagnetic contribution of the sample holder. The molar
susceptibility data were corrected for the diamagnetic contribution.
Experimental data for 2-[K([18]c-6)(thf)2] and 32-[K([18]c-6)(thf)]
were modeled with the julX program using a fitting procedure to the
appropriate spin Hamiltonian for Zeeman splitting and zero-field
splitting, eq 1.
1
vacuo. Yield: 40.8 mg (0.055 mmol, 55%). H NMR (400.13 MHz,
300 K, THF-d8): δ [ppm]: 8.73 (br s), 7.20 (br s), 6.92 (br s), 6.07
(br s), 5.82 (br s), 5.50 (br s), 5.17−4.04 (m), 3.04−2.02 (m), 1.39−
0.82 (m), 0.41 (br s), − 0.98 (br s). CHN analysis found (calcd.) for
C48H60N2LiFeO: C, 76.57 (77.51); H, 7.88 (8.13); N, 3.55 (3.77).
Synthesis of [K([18]c-6)(thf)2][(DippBIAN)Fe(C14H16)] (2-[K([18]c-
6)(thf)2]). [(DippBIAN)FeBr2] (506 mg, 0.71 mmol, 1.0 equiv.) and
2,5-norbornadiene (1.4 mL, 13.8 mmol, 19.4 equiv.) were dissolved in
10 mL THF and cooled to −70 °C. Potassium graphite (KC8, 304
mg, 2.25 mmol, 3.2 equiv.) was added in small portions. The color
changed from orange-brown to deep green. The reaction mixture was
warmed to room temperature and stirred overnight. The suspension
was filtered and [18]c-6 (187 mg, 0.71 mmol, 1.0 equiv.) in 5 mL of
THF was added to the filtrate. The solution was reduced to 10 mL
and layered with 25 mL of n-hexane. Dark-green crystals of [K([18]c-
6)(thf)2][(DippBIAN)Fe(C14H16)] (2-[K([18]c-6)(thf)2]) were
formed within 1 day, isolated, and dried in vacuo. Recrystallization
from THF/n-hexane afforded crystals that were suitable for single-
crystal X-ray crystallography. The same reaction was conducted with
Ä
Å
Å
Å
Å
2
z
1
3
̂
̂
⃗
⃗
H = μ BS + D S − S(S + 1)
Å
Å
B
Å
(1)
Å
Ç
For 2-[K([18]c-6)(thf)2], the temperature-independent paramagnet-
ism (TIP = 650 × 10−6 cm3 mol−1) was included.
Quantum Chemical Calculations. DFT and CASSCF calcu-
lations were performed using the ORCA program package.57 See the
N
