Discovery of multicomponent heterogeneous catalysts via admixture screening: PdBiTe catalysts for aerobic oxidative esterification of primary alcohols

Article abstract of DOI:10.1021/jacs.6b12722

In the present study, we demonstrate the utility of "admixture screening" for the discovery of new multicomponent heterogeneous Pd catalyst compositions that are highly effective for aerobic oxidative methyl esterification of primary alcohols. The identification of possible catalysts for this reaction was initiated by the screening of simple binary and ternary admixtures of Pd/charcoal in combination with one or two metal and/or metalloid components as the catalyst. This approach permitted rapid evaluation of over 400 admixture combinations for the oxidative methyl esterification of 1-octanol at 60°C in methanol. Product yields from these reactions varied widely, ranging from 2% to 88%. The highest yields were observed with Bi-, Te-, and Pb-based additives, and particularly from those containing both Bi and Te. Validation of the results was achieved by preparing specific PdBiTe catalyst formulations via a wet-impregnation method, followed by application of response surface methodology to identify the optimal Pd-Bi-Te catalyst stoichiometry. This approach revealed two very effective catalyst compositions: PdBi_0.47Te_0.09/C (PBT-1) and PdBi_0.35Te_0.23/C (PBT-2). The former catalyst was used in batch aerobic oxidation reactions with different primary alcohols and shown to be compatible with substrates bearing heterocycle and halide substituents. The methyl ester products were obtained in >90% yield in nearly all cases. Implementation of the PBT-2 catalyst in a continuous-flow packed-bed reactor achieved nearly 60 000 turnovers with no apparent loss of catalytic activity.

Full text of DOI:10.1021/jacs.6b12722

Subscriber access provided by UNIV OF CALIFORNIA SAN DIEGO LIBRARIES
Article
Discovery of Multicomponent Heterogeneous Catalysts
via Admixture Screening: PdBiTe Catalysts for
Aerobic Oxidative Esterification of Primary Alcohols
David S. Mannel, Maaz S. Ahmed, Thatcher W Root, and Shannon S. Stahl
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.6b12722 • Publication Date (Web): 06 Jan 2017
Downloaded from http://pubs.acs.org on January 8, 2017
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Journal of the American Chemical Society is published by the American Chemical
Society. 1155 Sixteenth Street N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Discovery of Multicomponent Heterogeneous
Catalysts via Admixture Screening: PdBiTe
Catalysts for Aerobic Oxidative Esterification of
Primary Alcohols
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
a
b
a,
b,
David S. Mannel , Maaz S. Ahmed , Thatcher W. Root *, and Shannon S. Stahl *
a
b
Department of Chemical and Biological Engineering and Department of Chemistry,
University of Wisconsin-Madison, Madison Wisconsin, 53706
RECEIVED DATE
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
Abstract.
In the present study, we demonstrate the utility of "admixture screening" for the discovery of
new multicomponent heterogeneous Pd catalyst compositions that are highly effective for
aerobic oxidative methyl esterification of primary alcohols. The identification of possible
catalysts for this reaction was initiated by the screening of simple binary and ternary admixtures
of Pd/charcoal in combination with one or two metal and/or metalloid components as the

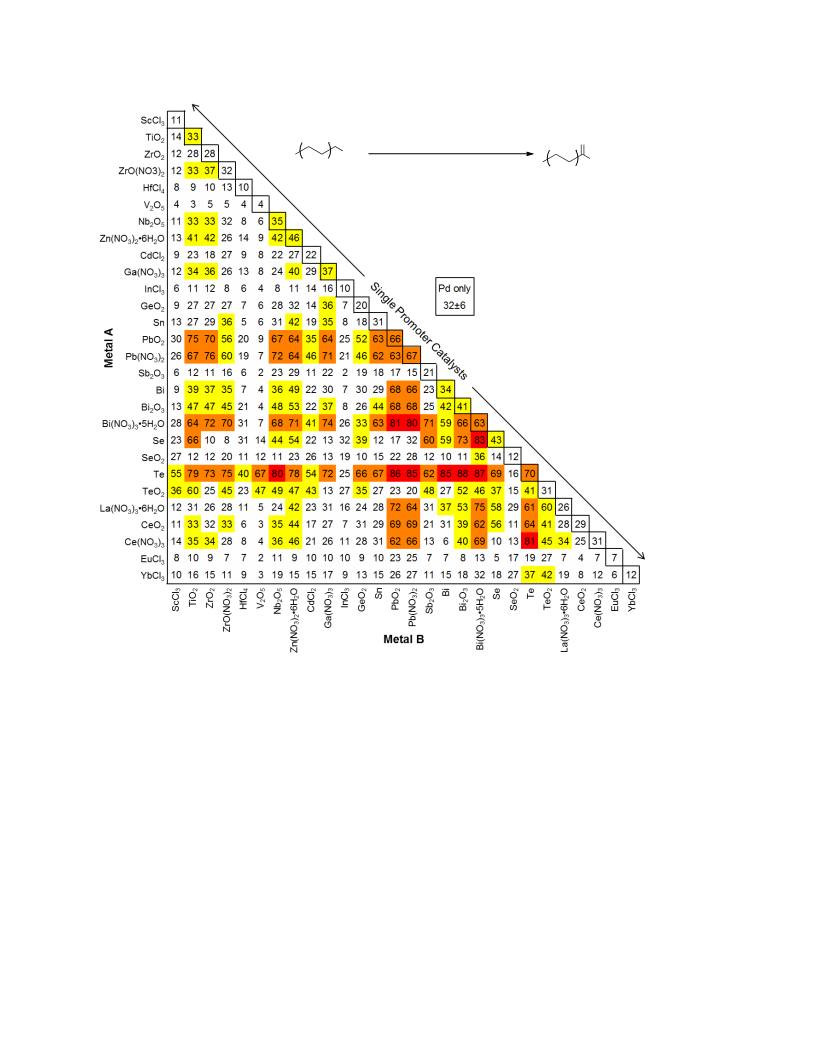

catalyst. This approach permitted rapid evaluation of over 400 admixture combinations for the
oxidative methyl esterification of 1-octanol at 60 °C in methanol. Product yields from these
reactions varied widely, ranging from 2–88%. The highest yields were observed with Bi-, Te and
Pb-based additives, and particularly from those containing both Bi and Te. Validation of the
results was achieved by preparing specific PdBiTe catalyst formulations via a wet-impregnation

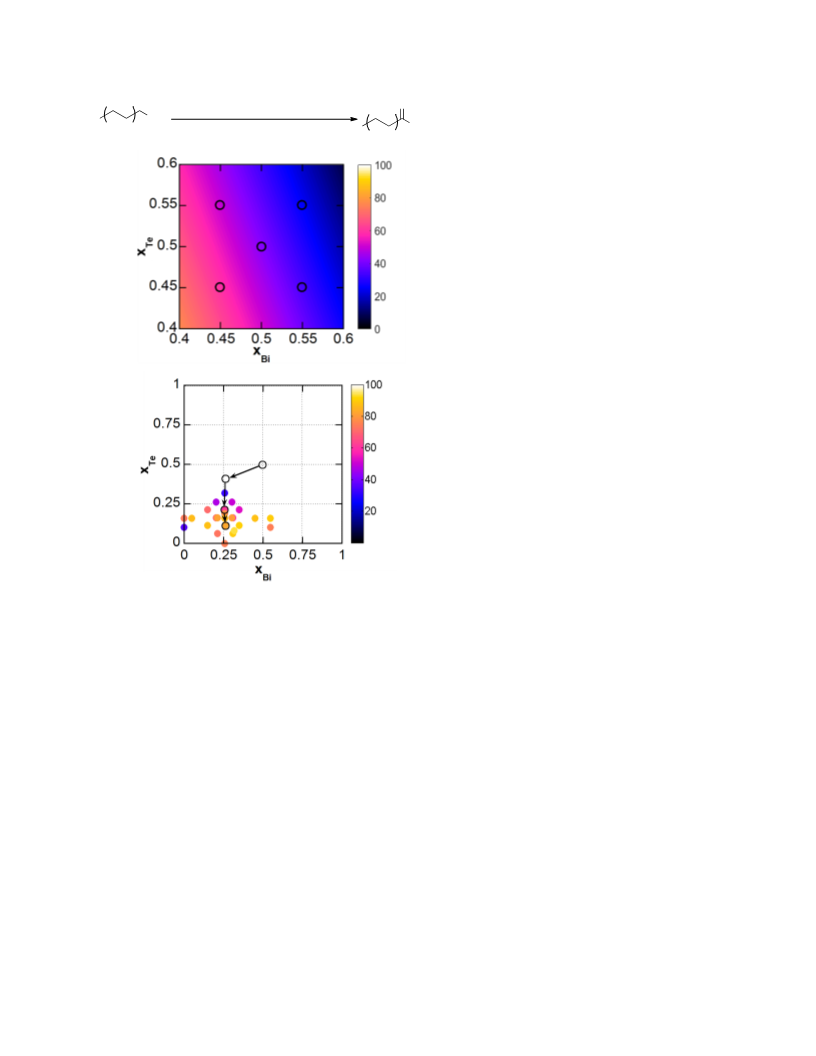

method, followed by application of response surface methodology to identify the optimal Pd-Bi-
Te catalyst stoichiometry. This approach revealed two very effective catalyst compositions:
PdBi Te /C (PBT-1) and PdBi Te /C (PBT-2). The former catalyst was used in batch
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
0
.47
0.09
0.35
0.23

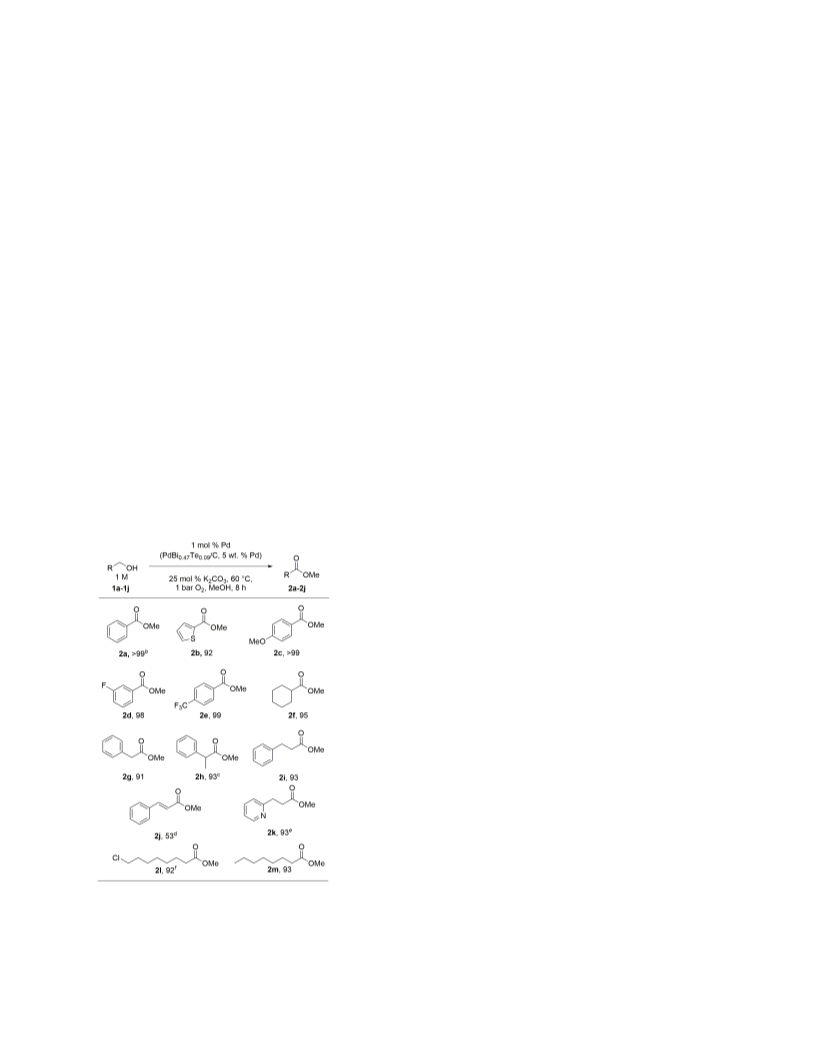

aerobic oxidation reactions with different primary alcohols and shown to be compatible with
substrates bearing heterocycle and halide substituents. The methyl ester products were obtained
in >90% yield in nearly all cases. Implementation of the PBT-2 catalyst in a continuous-flow

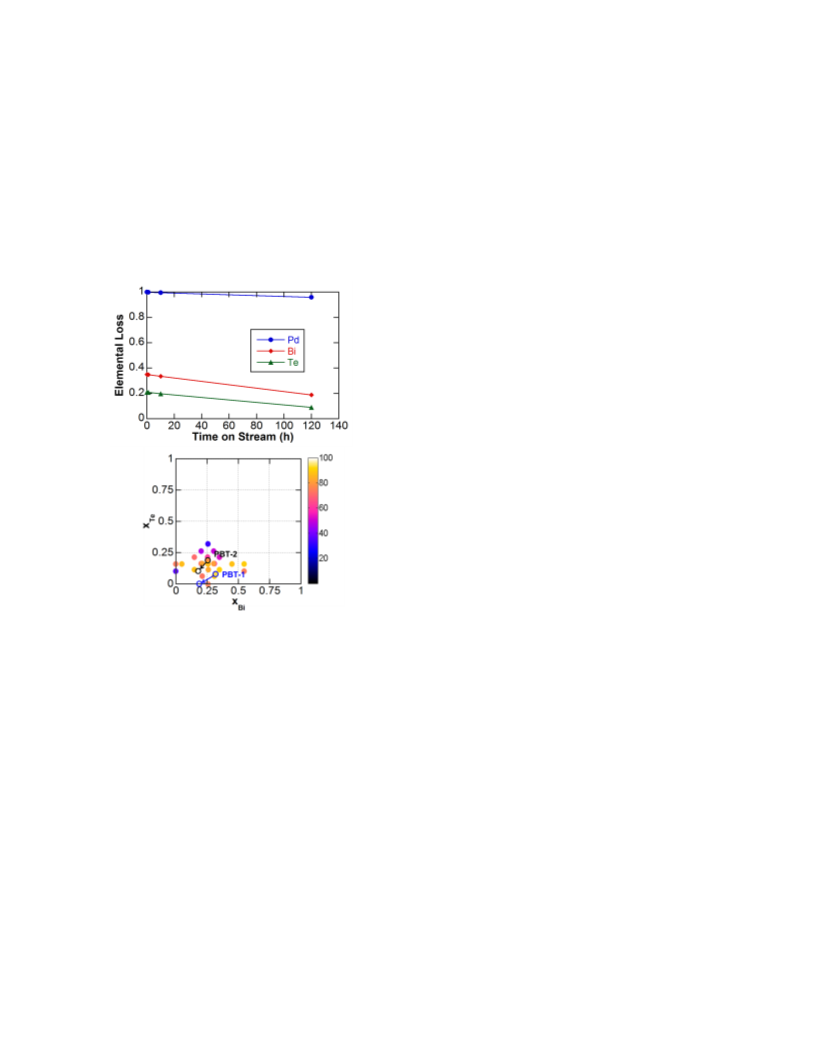

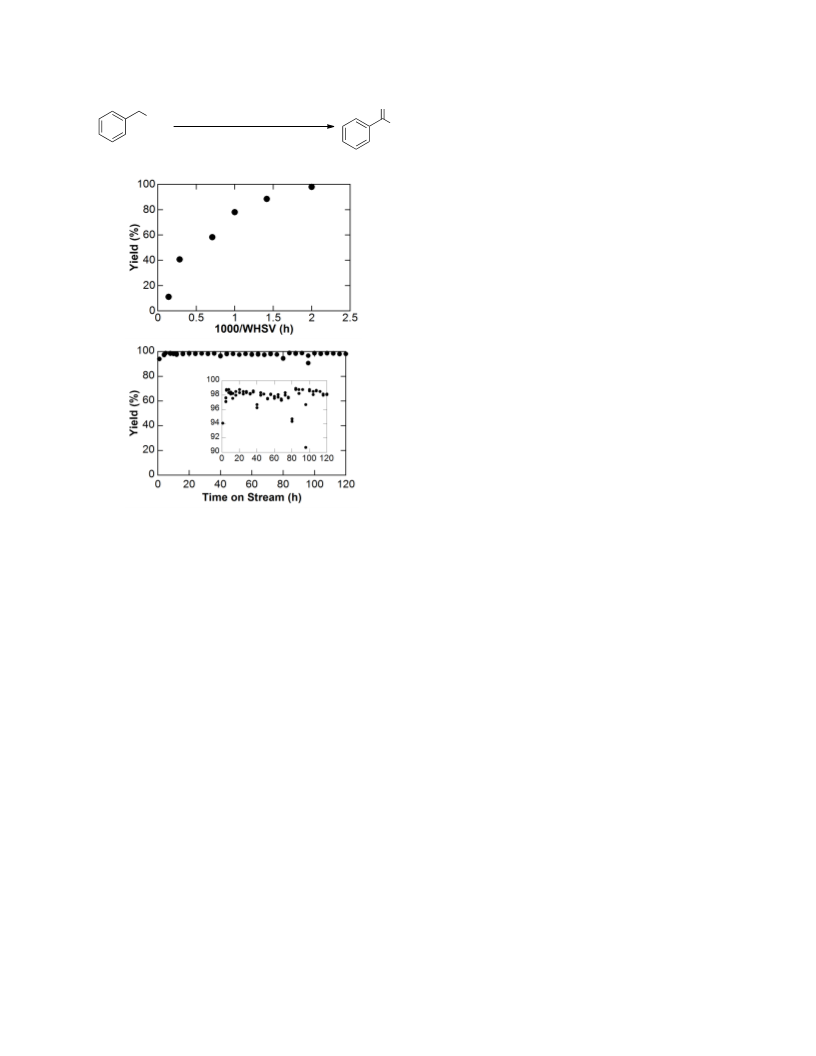

packed-bed reactor achieved nearly 60,000 turnovers with no apparent loss of catalytic activity.
2
ACS Paragon Plus Environment

Page 3 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Introduction.
Heterogeneous catalysts offer numerous potential advantages over homogeneous catalysts for
1
the industrial synthesis of organic chemicals. Their thermal stability and ease of catalyst
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
immobilization (e.g., in fixed-bed or other reactor configurations) are particularly advantageous
for high-temperature, gas-phase and large-volume continuous processes in the commodity
chemical industry. Contemporary heterogeneous catalyst development efforts are especially
focused on such applications. Heterogeneous catalysts also have benefits for lower-volume
production of pharmaceuticals and fine chemicals; however, the development of catalysts that
exhibit the broad functional group tolerance needed in applications of this type has been the
focus of much less attention. One potential barrier to progress in this area is that the synthetic
organic and organometallic chemistry background of many researchers within the
pharmaceutical and related industries provides little or no training in the synthesis or
characterization of heterogeneous catalysts and materials. Experimental strategies that lower the
barrier to heterogeneous catalyst discovery and development could significantly expand the
application of heterogeneous catalysts in these industries.
Heterogeneous catalysts for organic chemical processes are commonly composed of an
active metal dispersed on a support material, such as high-surface-area carbon, a metal oxide, or
other inorganic material. Many catalysts also feature "promoters" that modulate the activity or
2
selectivity of the metal catalyst. A prominent example is Lindlar's catalyst for partial reduction
of alkynes to alkenes, which consists of CaCO -supported Pd in combination with Pb and
3
quinoline as selective modifiers or poisons to prevent full reduction of the alkyne to the saturated
3
C–C bond. Heterogeneous catalysts are commonly prepared through the deposition of the active
metal and promoters onto a support via one of numerous possible methods, including
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
4
impregnation, adsorption, precipitation, or ion exchange. Additional washing, drying, and
calcination steps are typically incorporated as intermediate or final steps to prepare the ultimate
catalyst. The diverse methods for heterogeneous catalyst preparation can be labor- and/or time-
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
5-7
intensive, but even more relevant to the present context, the protocols are outside of the
experimental vernacular of organic chemists and related users of heterogeneous catalysts.
The present study takes inspiration from the field of homogeneous catalysis to demonstrate a
method for discovery and development of heterogeneous catalysts that could facilitate the
contribution of non-specialists to this field. In the field of homogeneous catalysis, many catalysts
are prepared in situ via simple combination of different catalyst components, such as a metal salt,
ancillary ligand, and an acid, base or other additive. This approach is commonly employed both
for the discovery of new homogeneous catalysts and catalytic reactions and as a user-friendly
method for performance of catalytic reactions in organic chemistry. We anticipated that certain
heterogeneous catalyst compositions could be generated in a similar manner. An important
precedent for this concept is evident in the use of heterogeneous Ni (Raney Nickel), Pd, or Pt
catalysts for asymmetric hydrogenation of carbonyl compounds, whereby the catalyst is modified
8
,9
in situ by inclusion of tartaric acid or cinchona alkaloids in the reaction mixture.
The present study addresses the development of heterogeneous catalysts for selective aerobic
oxidation of alcohols, specifically, the oxidative methyl esterification of primary alcohols.
Heterogeneous Pd and Pt catalysts have been studied extensively for aerobic oxidation of
1
0
primary and secondary alcohols to carboxylic acids, ketones, and aldehydes. The incorporation
of one or more promoters derived from the early transition metals, lanthanides, and/or main
11
group elements often enhances the catalyst activity and selectivity. The origin of the promoter
effects is often not fully understood, but previous studies implicate contributions ranging from
4
ACS Paragon Plus Environment

Page 5 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
13a,k-m
selective blocking of catalyst sites that promote side reactions
to the formation of
1
3c,h,i
synergistic catalyst/promoter active sites that enhance catalyst performance.
Promoters may
form surface alloys or intermetallic structures that exhibit different activity relative to the pure-
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
13d,g,p
metal catalyst or hinder agglomeration of metal nanoparticles.
In addition, some promoters
are believed to mediate adsorption and dissociation of O , thereby protecting the catalytic metal
2
1
3f,k-m
surface from over-oxidation.
The diverse roles of individual promoters and the potential for
synergistic interactions between promoters complicate the rational design of new heterogeneous
catalysts of this type, but they also represent an important modular feature of the catalysts that
may be altered to optimize catalyst performance, similar to the manner in which ancillary ligands
or acid/base additives may be used to modulate the activity and/or selectivity of homogeneous
catalysts. Here, we describe a readily accessible "admixture screening" method that streamlines
the assessment and identification of effective heterogeneous catalyst/promoter combinations. We
further show that catalysts discovered by this method serve as useful starting points for the
development of robust multicomponent catalysts suitable for implementation in a continuous
flow process relevant to pharmaceutical or other specialty chemical applications. These
principles are illustrated in the development of heterogeneous Pd/Bi/Te catalysts for oxidative
methyl esterification of primary alcohols, including those bearing heterocycles and halide
substituents.
Results and Discussion.
1
2
13
Context and Preliminary Results. Previous studies by us and others have investigated
homogeneous Pd catalysts for aerobic oxidation of alcohols to aldehydes and ketones. Whereas
numerous useful catalysts have been identified for these two-electron oxidation reactions,
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
development of analogous homogeneous catalysts for four-electron oxidation of primary
1
4
alcohols to carboxylic acids and esters has been less successful. In contrast, heterogeneous
5
catalysts show significant promise for the latter applications. The oxidative cross-coupling of
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
primary alcohols with methanol is a particularly useful transformation that provides a means to
reverse the polarity of nucleophilic primary alcohols into electrophilic methyl esters (Scheme 1).
Scheme 1. Generic Pathway for the Aerobic Oxidation of Alcohols to Methyl Esters.
O
+ 1/2 O2
H O
+ 1/2 O , MeOH
2
R
OH
R
O
R
OMe
-
-H O
2
2
Gas-phase oxidative methyl esterification of aliphatic alcohols has been demonstrated with Au-
1
5
16
17
based catalysts, and liquid-phase precedents have been achieved with supported Ag and Au,
1
8
19
polymer-incarcerated mixed noble-metal nanoparticles, and heterogeneous cobalt catalysts.
Precedents for heterogeneous Pd catalysts for the oxidation of primary alcohols to carboxylic
1
1d-g,i,j,n-p
acids
suggested to us that related catalysts could be highly effective for oxidative methyl
esterification and may show good compatibility with alcohols bearing diverse functional groups.
These catalysts often incorporate main-group promoters that enhance the catalytic performance.
For example, Wedemeyer and coworkers demonstrated that Bi(NO ) could be added to Pd- and
3 3
Pt-on-charcoal catalysts to increase the yields of phenoxyacetic acids in the aerobic oxidation of
2
0
the 2-phenoxyethanol. In a recent preliminary study, we found that Pd/charcoal (5 wt. %) is an
effective catalyst for methyl esterification of a variety of primary alcohols when Bi(NO ) (5 mol
3
3
21
%
) and Te metal (2.5 mol %) are included as co-catalysts in the batch reaction mixtures. This
admixture catalyst system exhibited excellent activity and functional-group compatibility.
6
ACS Paragon Plus Environment

Page 7 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Admixture Screening Studies. The heterogeneous catalyst system just noted is poorly
defined: the sources of promoters, Bi(NO ) and Te, exhibit poor solubility in the methanol
3 3
solvent, no reduction or calcination steps were included to promote formation of a robust
catalyst, and the nature of the interactions between the promoters and the heterogeneous Pd
catalyst was not characterized. In spite of these complexities and uncertainties, the promising
results raised the possibility that simple catalyst admixtures could be used in primary screening
studies in liquid phase to discover new heterogeneous catalysts.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In order to test the utility of admixture screening, we selected 28 different additives as
possible promoters, consisting of main-group, transition-metal and rare-earth sources in
elemental, oxide, or salt formulations. In several cases, different forms of an element were tested
[
e.g., Bi, Bi(NO ) , and Bi O ]. Pd/charcoal (5 wt. %) was combined with one or two of these
3 3 2 3
components in a 1:1 or 1:1:1 molar ratio, respectively, and the diverse admixtures were tested as
catalysts for aerobic oxidative methyl esterification of 1-octanol in methanol at 60 °C. 1-Octanol
was selected for testing because aliphatic alcohols tend to be significantly more difficult to
oxidize relative to benzylic alcohols. Overall, 406 unique admixtures, with 231 different
elemental combinations, were tested as catalysts for the reaction, and the results are depicted in
Figure 1.
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
1
mol % Pd (5 wt. % Pd/Charcoal
1 mol % metal A
O
1
mol % metal B
OH
3
OMe
KOMe (1 equiv.), 60 °C
3
1 bar O , MeOH, 12 h
2
1
M
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Figure 1. Admixture screening data (methyl octanoate yields) obtained from the aerobic
oxidation of 1-octanol with heterogeneous catalysts composed of Pd/charcaol in combination
with one or two additives. Color code reflects methyl octanoate yields: below that obtained with
Pd alone (white), above Pd alone (yellow), > 60% (orange), and ≥ 80% (red).
Pd/charcoal itself shows modest activity for oxidation of 1-octanol under the reaction
conditions, affording methyl octanoate in 32% yield, and the additives exhibit both poisoning
and promoting effects on the catalyst, with yields ranging from 2–88%. The most effective
8
ACS Paragon Plus Environment

Page 9 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
single-component promoters observed in these studies (diagonal edge of Figure 1) derive from
sources of the main-group elements, Bi, Pb, and Te. Two-promoter combinations containing
these elements exhibit even higher yields (orange and red entries in Figure 1). Some of the
additives inhibit catalytic activity (e.g. HfCl and V O ), while a number of others have little or
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
4
2
5
no effect on the reaction (e.g. Sn, CeO ). Overall, the highest yields were observed when Bi- or
2
Pb-based additives were combined with elemental Te as a second additive.
It is reasonable to expect that the "admixture screening" approach used here, like many other
primary screening approaches, exhibits false-negatives. For example, the lack of effort to prepare
specific catalyst formulations could miss active compositions among additives that are too
insoluble to interact chemically with Pd in an admixture suspension. This limitation is offset,
however, by the simplicity/accessibility of the method and, more importantly, by the number of
successful "hits" observed from the method. Many of the component mixtures exhibit
significantly enhanced activity relative to the Pd/charcoal benchmark. The successful admixtures
represent convenient catalyst systems that may be use in laboratory-scale synthetic applications,
but they also serve as important starting points for development of robust catalyst formulations
for large-scale applications. As catalysts composed of Pd, Bi and Te were the most effective
admixtures, these elements were selected to pursue the latter goal, as elaborated below.
Synthesis and Optimization of PdBi Te /C Heterogeneous Catalysts. Catalysts containing
x
y
well-defined elemental compositions were prepared via wet-impregnation of Pd/C with Bi and
Te precursors. Bi(NO ) and TeCl were dissolved in an aqueous solution of dilute HCl and
3
3
4
HNO and added to a suspension of Pd/C in water. Excess formaldehyde (37 wt. % in water) was
3
added to this mixture to reduce the promoters that had adsorbed onto the Pd/C catalyst. The
catalysts were then filtered, washed with excess water, and dried in a vacuum oven prior to use.
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
ICP-AES analysis of the catalysts indicated that all of the Bi and Te used in the impregnation
step were retained in the final catalyst, and SEM-EDX analysis showed that the promoters were
predominantly co-localized with Pd on the carbon support (see Supporting Information).
PdBiTe catalysts prepared by this method were tested in the oxidative methyl esterification
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
2
2
23,24
of 1-octanol with K CO as the base, and response surface methodology
was used to
optimize the Bi and Te stoichiometry in the catalyst. A catalyst composed of a Pd:Bi:Te ratio of
:1:1 was used as a starting point, and four surrounding compositions were used to determine the
2
3
1
gradient associated with Bi and Te mole fraction leading to improved activity (Figure 2A). The
path of steepest ascent was followed over four iterations to a catalyst consisting of PdBi Te ,
0
.33
0.15
after which a number of compositions in this region were prepared to identify the best
2
5
catalyst(s). The results did not show a sharp peak for the optimal catalyst; rather, a relatively
broad of range of catalyst compositions led to high yields of methyl octanoate (Figure 2B). Two
of the best catalyst compositions, PdBi Te (PBT-1) and PdBi Te (PBT-2) were carried
0
.47
0.09
0.35
0.23
forward for further investigation.
Reaction time-courses for the oxidative methyl esterification of 1-octanol were monitored to
assess the activity of the PBT-1 and PBT-2 catalysts relative to the previously reported
admixture catalyst, which consists of 1 mol % Pd/charcoal (5 wt %), 5 mol % Bi(NO ) , 2.5 mol
3
3
%
Te. Catalysts incorporating only Bi or Te (in the mole-fractions associated with PBT-2), as
well as Pd/C alone, were tested for comparison (Figure 3). Pd/C shows negligible activity under
the reaction conditions (Figure 3, purple diamonds), while incorporation of Bi or Te leads to
1
0
ACS Paragon Plus Environment

Page 11 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
O
1
mol % Pd (PdBi Te /C, 5 wt. % Pd)
x
y
OH
3
M
OMe
2
5 mol % K CO , 60 °C
2
3
3
1
1
bar O , MeOH, 12 h
2
A.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
B.
Figure 2. Response-surface-methodology data for PdBiTe catalyst optimization in the oxidative
methyl esterification of 1-octanol, with a color gradient reflecting the yield of methyl octanoate
under the conditions indicated in the equation. (A) Catalyst composition starting points for
determination of the path of steepest ascent towards higher yields. (B) Iterative path followed
over three steps of catalyst optimization, starting at a 1:1:1 Pd:Bi:Te ratio (open circles), and
catalyst activity data for PdBiTe compositions in the region of highest activity (colored circles).
1
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 12 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
O
1
mol % Pd (PdBi Te /C, 5 wt. % Pd)
x y
OH
3
M
OMe
2
5 mol % K CO , 60 °C
2
3
3
1
1 bar O , MeOH
2
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Figure 3. Reaction time-courses comparing the activity of the different catalysts for the
oxidative methyl esterification of 1-octanol. PBT-1 = PdBi Te ; PBT-2 = PdBi Te ;
0.47
0.09
0.35
0.23
Admixture = 1 mol % Pd/charcoal (5 wt %), 5 mol % Bi(NO ) , 2.5 mol % Te.
3
3
considerable improvement in performance (Figure 3, green circles and orange squares,
respectively). Catalysts incorporating both Bi and Te, including PBT-1, PBT-2 and the
admixture (Figure 3, black diamonds, red triangles, and inverted blue triangles, respectively),
show further improvement in activity over the single-promoter catalysts, with PBT-1 giving the
best results. The synergy evident between Bi and Te was confirmed by showing that simply
increasing the quantity of Bi or Te in single-promoter catalyst did not improve the catalyst
performance (see Table S4 in the Supporting Information).
Batch Reaction Data with PdBiTe Catalysts. The previously reported PdBiTe admixture
2
1
catalyst tolerates a wide range of functional groups, and in order to compare the performance of
the newly formulated PBT-1 catalyst, thirteen representative primary alcohols, including those
with heterocycles and halide-containing functional groups, were tested in batch reactions at 1
mol % Pd loading (Scheme 2). The majority of substrates underwent oxidation to the
corresponding methyl ester in >90% yield within 8 h. One exception is cinnamyl alcohol 2j,
1
2
ACS Paragon Plus Environment

Page 13 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
which undergoes competive hydrogen-transfer reduction of the alkene, resembling previously
9
c,21
reported observations.
Benzylic alcohols are considerably more reactive than aliphatic
alcohols, and benzyl alcohol 1a afforded the methyl ester in near-quantitative yield (>99%) in 2
h with only 0.1 mol % PBT-1. The data show that PBT-1 exhibits a scope that closely resembles
the admixture catalyst, while improving the product yields (up to 16%) and reactions rates
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(approx. two-fold) under comparable conditions for a number of the alcohols.
Both PBT-1 and PBT-2 retained good activity upon recycling in the oxidation of benzyl
alcohol and 1-octanol (Figure 4). The reactions were stopped at incomplete conversion in order
to increase the sensitivity of the tests to changes in catalyst activity. PBT-1 showed a small
a
Scheme 2. Scope of Aerobic Alcohol Esterification System with PBT-1.
a
1
b
Reactions carried out on 1 mmol scale; H NMR yields with trimethoxybenzene as internal standard. 0.1 mol% Pd,
c
d
e
f
2
h. 16 h. 25 °C. 2 mol% Pd. 5 mol% Pd.
1
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 14 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
PdBiTe
5 mol % K CO , 60 °C
O
R
OH
1 M
2
R
OMe
2
3
1
bar O , MeOH, 1 h
2
A. Benzyl Alcohol
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
B. 1-Octanol
Figure 4. Batch recycling of PBT-1 and PBT-2 catalysts in the oxidative methyl esterification of
benzyl alcohol (A) and 1-octanol (B). Catalyst loading: 0.1 mol % Pd for benzyl alcohol; 1 mol
%
Pd for 1-octanol.
decrease in yield for cycles 4-6 relative to cycles 1-3, but otherwise showed steady performance.
PBT-2 exhibited modest improvement in performance during the recycle tests. Possible
complications associated with these types of experiments (e.g., mechanical losses in catalyst
recovery) make us hesitant to draw definitive conclusions from the small changes, however, and
in order to carry out a more rigorous assessment of the catalyst stability, we investigated the
performance of PBT-1 and PBT-2 under continuous process conditions.
Continuous Process Data with PdBiTe Catalysts. The performance of the PdBiTe catalysts
under continuous process conditions was assessed by incorporating the catalyst into a packed-
2
6
bed reactor (Scheme 3). A solution of the primary alcohol was mixed with a diluted O /N gas
2
2
1
4
ACS Paragon Plus Environment

Page 15 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
stream at a tee junction, and the gas-liquid mixture was fed into a packed bed reactor containing
the catalyst. After exiting the reactor, the gas and liquids were separated and the product was
collected. The progress of the reaction was monitored by taking aliquots from a sample
collection port and performing GC analysis.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 3. Schematic Diagram of the Flow Reactor.
Initial testing of 1-octanol oxidation with the PdBiTe catalysts revealed a complication that
was not evident from the batch reactions. The yield of methyl octanoate reached a plateau at
~
80%, and no improvement was realized by varying the liquid and gas flow rates, O pressure,
2
and 1-octanol concentration. These results prompted us to search for potential catalyst poisons.
Octyl aldehyde (3) is an expected intermediate in the esterification reaction, and when it was
tested as a substrate, the reaction led to complete conversion of the aldehyde but only ~50%
selectivity for methyl octanoate. Aldol condensation products 4 and 5 were identified as by-
products and accounted for the remaining mass balance (eq 1). Subsequent studies showed that
2
7
these aldol products strongly inhibit oxidation of 1-octanol.
1
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 16 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
O
OMe
O
3
flow conditions
O
O
(1)
3
OMe
3
3
3
4
5
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
While both alcohol oxidation and aldol condensation are promoted by Brønsted bases, we
speculated that the aldol reaction could be minimized by using a lower concentration of K CO .
2
3
This hypothesis was validated, as shown in Table 1, by using a four-fold lower K CO3
2
concentration. Under these conditions, an excellent yield of methyl octanoate (96%) could be
2
8
obtained.
Table 1. Optimization of Flow Conditions to Achieve High Steady-State Yields in the Aerobic
Oxidation of 1-Octanol.
O
PBT-1 (390 mg)
OH
3
OMe
6
0 °C, K CO , MeOH
3
2
3
0.25 M
0
.54 bar O2 (6 bar 9% O in N )
2
2
8:1 mol O :mol substrate
2
a
-1
Yield (%)b
Entry
[K CO ] (mM) WHSV (h )
2
3
1
2
3
4
62.5
10.6
10.6
10.6
2.66
79
82
72
96
31.3
15.6
15.6
a
b
Weight hourly space velocity = mg alcohol/(mg Pd·hr). Determined by GC vs an internal standard.
Background oxidation of the methanol solvent to methyl formate is a possible side-reaction
of the methanol solvent, but only minimal methyl formate was observed during of 1-octanol in
-
1
the flow reactor. Over 350 mg of the PBT-1 catalyst at a WHSV of 12 h (0.25 M 1-octanol,
0
.015 M K CO , 0.54 bar O (9% O in N ), 8:1 mol O :mol substrate, 60 °C), the [HCOOMe]
2
3
2
2
2
2
was found to be ≤2 mM. We are currently exploring the mechanistic basis for the low reactivity
of methanol in the oxidative homocoupling reaction.
1
6
ACS Paragon Plus Environment

Page 17 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
As observed under batch reaction conditions, the PdBiTe catalysts exhibit much higher
activity for the oxidation of benzyl alcohol to methyl benzoate than for the oxidation of 1-
octanol. These faster rates facilitated testing of the catalyst performance during extended use.
Long-term assessment of the PBT-1 catalyst for benzyl alcohol oxidation revealed a steady
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
-
1
decrease in catalyst activity during a 33 h test at a WHSV of 760 h (Figure 5, blue circles). In
-
1
contrast, the PBT-2 catalyst showed excellent long-term stability over 43 h at a WHSV of 700 h
(
Figure 5, red diamonds). Further testing was therefore carried out with PBT-2, and a scan of
different flow rates showed that methyl benzoate reached near quantitative yields at a WHSV of
-1
5
00 h (Figure 6A). With these conditions, no decrease in the product yield was observed after
nearly 60,000 catalytic turnovers (Figure 6B).
PBT-1 (WHSV = 760 h-1)
O
or PBT-2 (WHSV = 700 h-1)
OH
0.5 M
OMe
2
5 mol % K CO , MeOH, 60 °C
2
3
0
.54 bar O (9% O in N )
2 2 2
8
:1 mol O :mol substrate
2
Figure 5. Long-term testing of PBT-1 and PBT-2 catalysts under continuous conditions for the
oxidative methyl esterification of benzyl alcohol.
1
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 18 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
O
OH
0.5 M
PBT-2
5 mol % K CO , MeOH, 60 °C
OMe
2
2
3
0
.54 bar O (9% O in N )
2 2 2
8:1 mol O :mol substrate
2
A.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
B.
Figure 6. Oxidative methyl esterification of benzyl alcohol under continuous-flow conditions
with the PBT-2 catalyst. (A) Assessment of different flow rates to identify the optimal WHSV
-1
and (B) long-term testing of the PBT-2 catalyst at a WHSV of 500 h .
The reactor effluent from the extended run with the PBT-2 catalyst was analyzed by ICP-
AES to determine the extent of leaching of the different catalyst components: Pd, Bi, and Te
(
Table S3), and the final product solution contained less than one part-per-million of the three
elements: 0.025, 0.20, and 0.10 ppm of Pd, Bi and Te, respectively. Even with this low level of
leaching, the high turnover numbers led to modest changes in the catalyst composition during the
course of the reaction (Figure 7A). During the experiment shown in Figure 6B, the leaching
resulted in a change of the PBT-2 catalyst from a stoichiometry of PdBi Te to PdBi Te ,
0.35
0.21
0.21
0.12
on the basis of ICP-AES analysis of the catalyst before and after the reaction (Figure 7B, black
circles). A similar analysis of the PBT-1 catalyst used in the long-term flow run revealed no
1
8
ACS Paragon Plus Environment

Page 19 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
detectable levels of Te remaining in the catalyst after the reaction (Figure 7B, blue circles).
These observations account for the different performance of PBT-1 and PBT-2 during
continuous operation. PBT-2 starts with higher mole-fraction of Te, and the catalyst composition
remains in the region of high activity, despite partial leaching, whereas a similar leaching rate
with PBT-1 results in complete depletion of the Te component.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A.
B.
Figure 7. Elemental leaching studies: (A) Loss of Pd, Bi and Te from the PBT-2 catalyst during
continuous oxidative methyl esterification of benzyl alcohol (cf. Figure 6B). (B) Change in PBT-
1 and PBT-2 catalyst compositions during long-term oxidation of benzyl alcohol, mapped onto
the catalyst activity plot shown in Figure 2B.
Analysis of the reaction rate at different temperatures (50–80 °C) under flow conditions
provided the basis for Arrhenius analysis of PBT-2-catalyzed oxidation of benzyl alcohol (Figure
8
), which revealed that the reaction exhibits an activation energy of 79 kJ/mol and a pre-
1
2
-1
-1
exponential of 1.1 x 10 s . These values correspond to a turnover frequency of 1,600 h at the
reaction temperature of 60 °C typically used in our study. The large pre-exponential term is
1
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 20 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
29
consistent with a surface-mediated rate-limiting step involving bound substrate. More thorough
mechanistic studies are the focus of ongoing work, but the Arrhenius parameters may be
compared to data obtained with a AuPd/TiO catalyst, which is one of the most active known
2
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
30
heterogeneous catalysts for alcohol oxidation. The activation energy for the oxidation of benzyl
8
-1
alcohol with the AuPd/TiO catalyst is 56 kJ/mol and has a pre-exponential of 1.5 x 10 s . The
2
AuPd catalyst was only investigated at elevated temperatures (100–160 °C); however, at a
benchmark temperature of 100 °C for both catalysts, the calculated TOFs correspond to 33,000
-
1
-1
h for PdBiTe (PBT-2) and 8000 h for AuPd (TOF values reflect the rate on a per Pd and
Au+Pd atom basis, respectively).
O
PBT-2 (4.6 mg)
OH
.5 M
OMe
2
5 mol % K CO , MeOH
2
3
0
0
.54 bar O (9% O in N )
2 2 2
8
:1 mol O :mol substrate
WHSV = 3,500 h-1
2
12 -1
Figure 8. Arrhenius plot of ln(k) vs 1000/T. Fitted parameters: A = 1.1 x 10 s , E = 79 ± 8.3
a
kJ/mol.
Conclusion
In summary, this study demonstrates a promising new approach for the discovery of novel
heterogeneous catalysts. New Pd-based catalyst compositions were identified via the liquid-
phase screening of simple admixtures of commercially available components, including
Pd/charcoal and various possible promoters in their elemental, oxide, or salt formulations. The
2
0
ACS Paragon Plus Environment

Page 21 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
screening data revealed a number of highly promising compositions that provided a foundation
for subsequent development and optimization of more-precise heterogeneous catalyst
formulations. These efforts led to two highly effective PdBiTe catalysts that show excellent
activity for the oxidative methyl esterification of diverse primary alcohols. One of these, with a
composition of PdBi Te /C (PBT-2), was shown to have good stability and excellent
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
0
.35
0.21
performance under continuous flow conditions in a packed-bed reactor, and it represents the
most active liquid-phase oxidative esterification catalyst reported to date. More-rigorous
characterization of the catalysts described herein, together with mechanistic analysis of the
reactions, are the focus of ongoing work and will be reported in due course.
The admixture screening method used here resembles methods commonly used for the
discovery and optimization of homogeneous catalysts. For example, use of unmodified Pd/C as a
starting point is analogous to the use of a homogeneous transition-metal salt, such as Pd(OAc)2
or PdCl , which is known or expected to have some baseline catalytic activity for a reaction of
2
interest. Addition of Bi, Te, and other potential promoter sources is analogous to the screening of
ancillary ligands and other additives in homogeneous catalytic reaction mixtures in an effort to
modulate the activity, selectivity, and/or stability of the transition-metal salt. The effectiveness of
admixture screening for heterogeneous catalyst discovery will undoubtedly vary for different
metal catalysts and/or classes of promoters. Nevertheless, the results of the present study suggest
that similar tactics could be used to streamline the discovery of heterogeneous catalysts for many
other applications. Representative reactions of interest in our ongoing studies include the
oxidative coupling of alcohols and amines to prepare nitriles and carboxamides. Moreover, the
admixture screening method elaborated herein should be accessible to researchers with varied
backgrounds, including those with no training or expertise in heterogeneous catalyst synthesis
2
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 22 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
and formulation. This feature has potential to enable many organic chemists and other non-
specialist researchers to contribute to the field of heterogeneous catalysis.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Methods
General Considerations. Commercially available reagents and solvent were obtained from
commercial sources and used as received. No precautions were taken to exclude air or water
1
from the solvent or reaction mixtures. H NMR spectra were recorded on a Varian MercuryPlus
300 MHz spectrometer. SEM-EDX particle images and elemental analyses were performed using
a LEO SUPRA 55 VP scanning electron microscope (SEM) coupled with a Thermo-Fischer
Noran System 7 energy dispersive X-ray spectroscopy (EDX) detector.
Procedure for the Admixture Screening of Catalysts in Batch. 2 M KOMe in MeOH (0.5
mL) was added to 20 x 150 mm culture tube containing 21.3 mg of 5 wt. % Pd/Charcoal (1 mol
% Pd) and 1 mol % of Metal A and Metal B (cf. Figure 1). The culture tube was then placed on a
4
8 well orbital shaker and agitated under 1 atm O for 30 min while heating to 60 °C. Once the
2
reaction temperature was reached, the headspace was purged with O , and the substrate was
2
added as a 2 M solution in MeOH (0.5 mL) containing 0.2 M mesitylene as an internal standard
(I.S.). After 12 hours, the post reaction solution was injected onto a GC to determine product and
reactant concentrations. 48 reactions were carried out in parallel on the same orbital shaker, and
each set of 48 had one reaction tube containing just Pd/Charcoal as a control.
Catalyst Preparation. 500 mg of 5 wt. % Pd/C (obtained from Sigma Aldrich: product
number 276707) was mixed with 15 mL of DI water. Bi(NO ) •5H O and [TeCl ] were
3
3
2
4 4
dissolved in a mixture of 1 M HCl (1 mL) and conc. HNO (0.1 mL) and added to the catalyst
3
suspension. The Pd/C and dissolved Bi and Te salts were mixed at 50 °C for 3 h. After 3 h, 500
2
2
ACS Paragon Plus Environment

Page 23 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
µL of a 30 % NaOH solution was added to make the mixture alkaline. 200 µL of 37 %
formaldehyde was then added and the mixture was heated to 80 °C under N for 16 h. The
2
catalyst was then filtered and washed with water (~500 mL) until neutral. The catalyst was then
dried under vacuum at 70 °C for 20 hours to afford the final catalyst.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
GC Method and Retention Times. GC analyses were performed using a DB-Wax column
(
Length = 30 m, i.d. = 0.25 mm) installed in a Shimadzu GC-17A equipped with a flame-
ionization detector. An 11 min GC method was used consisting of a 1 min hold at 70 °C, ramp at
0 °C/min from 70 °C to 200 °C (6.5 min), and a 3.5 min hold at 200 °C. The injector and
2
detector were held at 225 °C and the column flow was 1.5 mL/min of He with a split ratio of 20.
Retention times were as follows: benzyl alcohol (7.7 min), benzaldehyde (5.7 min), methyl
benzoate (6.3 min), 1-octanol (5.7 min), octyl aldehyde (4.0 min), methyl octanoate (4.7 min),
and mesitylene (3.7 min).
Procedure for the Batch Reaction Oxidation of Alcohols. MeOH (0.5 mL) was added to
2
0 x 150 mm culture tube containing 21.3 mg of PBT-2 (1 mol % Pd) and 34.6 mg K CO (25
2 3
mol %) and was then placed on a 48 well orbital shaker and agitated under 1 atm O for 30 min
2
while heating to 60 °C. Once the reaction temperature was reached, the headspace was purged
with O , and the substrate was added as a 2 M solution in MeOH (0.5 mL) containing 0.2 M
2
mesitylene as an internal standard (I.S.). The post reaction solution was injected onto a GC to
determine product and reactant concentrations. The catalyst was recovered by filtration or
centrifugation.
Procedure for the Batch Recycling of the Catalyst. Upon completion of a reaction cycle,
the test tube containing the reaction mixture was centrifuged at 1000 rpm for 5 min. The
supernatant was decanted and the solid material was rinsed with fresh MeOH by resuspending
2
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 24 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
the catalyst, centrifuging the mixture at 1000 rpm for 5 min, followed by decanting the
supernatant. Fresh K CO was added and a new reaction was performed by using the procedure
2
3
for the batch reaction oxidation of alcohols described above.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Preparation of the Packed-Bed Reactor. The packed bed reactor was made from a stainless
steel tube 0.25” o.d. x 3” with 1 cm of glass wool inside a Swagelok fitting with a 200 mesh
stainless steel screen. Powdered catalyst (0.4 g PBT-2) was added, leaving 1 cm of open space
for more glass wool to be retained by another 200-mesh stainless steel screen and a Swagelok
fitting.
Procedure for Alcohol Oxidation under Flow Conditions. A solution of 5 M benzyl
alcohol and 1 M mesitylene in MeOH was added to a 260 mL syringe pump (Teledyne ISCO
2
60D), and 0.138 M K CO in MeOH was added to a second 260 mL syringe pump. The flow
2 3
rate of the second pump was set to 9 times that of the pump containing alcohol to afford a final
liquid solution of 0.5 M benzyl alcohol, 0.1 M mesitylene, and 0.125 M K CO in MeOH. A
2
3
cylinder of 9 % O in N was regulated down to 15 bar and the gas flow rate was controlled by a
2
2
mass flow controller with a O to substrate molar ratio of 8:1. The gas and liquids were mixed in
2
two 1/8” tees and sent through a heated zone, after which they passed through the packed bed
reactor (PBR) in an up-flow configuration. The preheated zone and packed-bed reactor were
submerged in ethylene glycol heat transfer fluid maintained at 60 °C. The weight hourly space
velocity (WHSV) was controlled by adjusting the gas and liquid flow rates to the appropriate
level. Aliquots of the reaction mixture (100-500 µL) could be removed through a small tee for
GC analysis, and the remaining liquid and gas were separated using a large tee with the liquids
collected out the bottom using a level gauge and the gases vented out the top through a pressure
relief valve. The pressure relief valve controls the reaction pressure and was maintained at 6 bar.
2
4
ACS Paragon Plus Environment

Page 25 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
ICP-AES Analysis of the Catalyst. The catalyst (25 mg PBT-2) was added to a crucible and
heated at 450 °C/min to 900 °C and held at this temperature for 2 hours. After cooling, the
crucible was filled with aqua regia and heated on a hot plate to the boiling point. After 3 hours,
the aqua regia was collected in a 100 mL volumetric flask and diluted up to 100 mL using 9 %
HCl. The solution was analyzed on a Perkin Elmer Instruments Optima 2000 DV ICP AES.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Acknowledgements. Financial support for this work was provided by the Dow Chemical
Company. We thank Joanne Redford for assistance in the identification of aldol condensation
products, Jamie Chen for help with the XRD and SEM-EDX data acquisition, Jesaiah King for
running the experiment to identify methyl formate, and Adam Powell for insightful discussions
on the admixture catalyst. We also benefitted from and appreciate helpful discussions with Drs.
Anna Davis, Jack Kruper, Andre Argenton, and Ted Calverley from Dow Chemical Company.
Supporting Information Available. Additional screening tables and catalyst characterization
data. This material is available free of charge via the Internet at http://pubs.acs.org.
Corresponding Author
*
E-mail: thatcher@engr.wisc.edu, stahl@chem.wisc.edu
References
(
1) Fine Chemicals through Heterogeneous Catalysis, Sheldon, R. A.; van Bekkum, H., Eds.;
Wiley-VCH: Weinheim, 2001.
(2) Catalyst Handbook, Twigg, M. V., Ed.; Wolfe Publishing Ltd: Frome, 1989.
2
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 26 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
(
3) (a) Lindlar, H. Helv. Chim. Acta 1952, 35, 446-450. (b) Lindlar, H.; Dubuis, R. Org. Synth.
1
973, 5, 880-883.
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
(
4) (a) Stiles, A. B. In Chemical Industries; Marcel Dekker: New York, 1983; Vol. 14. (b)
nd
Bartholomew, C. H.; Farrauto, R. J. Fundamentals of Industrial Catalytic Processes, 2 edition.;
John Wiley & Sons, Hoboken, NJ, 2006.
(
5) Major advances have been made over the past two decades in the development of high-
throughput methods that can significantly improve the pace of heterogeneous catalyst discovery.
Methods for parallel catalyst synthesis and/or preparation of compositionally diverse catalyst
arrays (e.g., via ink-jet printing or chemical-vapor deposition) have been complemented by the
development of high-throughput reactors and analytical equipment, and data management and
analysis tools (e.g., genetic algorithms, artificial neural networks). Moreover, several companies,
such as hte GmbH and Avantium (and, formerly, Symyx Technologies), specialize in the
application of these techniques. The reviews and primary articles in refs. 6 and 7 document these
advances.
(
6) For reviews, see: (a) Jandeleit, B.; Schaefer, D. J.; Powers, T. S.; Turner H. W.; Weinberg,
W. H. Angew. Chem., Int. Ed. 1999, 38, 2494-2532. (b) Senkan, S. Angew. Chem., Int. Ed. 2001,
0, 312-329. (c) Maier, W. F.; Stöwe, K.; Sieg, S. Angew. Chem., Int. Ed. 2007, 46, 6016-6067.
4
(d) Modern Applications of High Throughput R&D in Heterogeneous Catalysis; Hagemeyer, A.;
Volpe, A. F., Eds.; Bentham: Sharjah, U.A.E., 2014, DOI: 10.2174/97816080587231140101.
(
7) For leading primary references, see: (a) Xiang X. -D.; Sun X.; Briceño, G.; Lou, Y.; Wang,
K.-A.; Chang, H.; Wallace-Freedman, W. G.; Chen, S.-W.; Schultz, P. G. Science 1995, 268,
1
2
738-1740. (b) Holzwarth, A.; Schmidt, H. -W.; Maier, W. F. Angew. Chem., Int. Ed. 1998, 37,
644-2647. (c) Thomas, S.; Hoffmann, C.; Ruthe, S.; Schmidt, H.-W.; Schüth, F. Appl. Catal. A
2
6
ACS Paragon Plus Environment

Page 27 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
2
001, 220, 253-264. (d) Liu, Y.; Cong, P.; Doolen, R. D.; Guan, S.; Markov, V.; Woo, L.; Zeyß,
S.; Dingerdissen, U. Appl. Catal., A Gen. 2003, 254, 59-66. (e) Guram, A.; Hagemeyer, A.;
Lugmair, C. G.; Turner, H. W.; Volpe, A. F., Jr.; Weinberg, W. H.; Yaccato, K. Adv. Synth.
Catal. 2004, 346, 215-230. (f) Yamada, Y.; Kobayashi, T. J. Jpn. Petrol. Inst. 2006, 49, 157-167.
(8) For reviews, see: (a) Studer, M.; Blaser, H.-U.; Exner, C. Adv. Synth. Catal. 2003, 345, 45-
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
6
5. (b) Mallat, T.; Orglmeister, E.; Baiker, A. Chem. Rev. 2007, 107, 4863-4890.
(
9) For representative primary references, see: (a) Blaser, H. -U.; Jalett, H. P.; Wiehl, J. J. Mol.
Catal. 1991, 68, 215-222. (b) Pfaltz, A.; Heinz, T. Top. Catal. 1997, 4, 229-239. (c) Künzle, N.;
Szabo, A.; Schürch, M.; Wang, G.; Mallat, T.; Baiker, A. Chem. Commun. 1998, 13, 1377-1378.
(10) For reviews, see: (a) Besson, M.; Gallezot, P. Catal. Today, 2000, 57, 127-141. (b) Mallat,
T.; Baiker, A. Appl. Catal. A: Gen., 2000, 200, 3-22. (c) Mallat, T.; Baiker, A. Chem. Rev. 2004,
1
04, 3037−3058. (d) Vinod, C. P.; Wilson, K.; Lee, A. F. J. Chem. Technol. Biotechnol. 2011,
86, 161-171.
11) For representative primary references, see: (a) Angerstein-Kozlowska, H.; MacDougall, B.;
(
Conway, B. E. J. Electrochem. Soc. 1973, 120, 756-766. (b) Aoshima, A.; Suzuki, Y.;
Yamamatsu, S.; Yamaguchi, T. U.S. Patent 4,518,796, May 21, 1985. (c) Smits, P. C. C.; Kuster,
B. F. M.; van der Wiele, K.; van der Baan, H. S. Appl. Catal. 1987, 33, 83-96. (d) Tsujino, T.;
Ohigashi, S.; Sugiyama, S.; Kawashiro, K.; Hayashi, H. J. Mol. Catal. 1992, 71, 25–35. (e)
Kimura, H.; Kimura, A.; Kokubo, I.; Wakisaka, T.; Mitsuda, Y. Appl. Catal. A: Gen. 1993, 95,
1
43-169. (f) Besson, M.; Lahmer, F.; Gallezot, P.; Fuertes, P.; Flèche, G. J. Catal. 1995, 152,
116-121. (g) Wenkin, M.; Touillaux, R.; Ruiz, P.; Delmon, B.; Devillers, M. Appl. Catal. A:
Gen. 1996, 148, 181-199. (h) Fordham, P.; Besson, M.; Gallezot, P. Catal. Lett. 1997, 46, 195-
2
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 28 of 31
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
1
1
5
1
99. (i) Wenkin, M.; Ruiz, P.; Delmon, B.; Devillers, M. J. Mol. Catal. A. Chem. 2002, 180,
41-159. (j) Anderson, R.; Griffin, K.; Johnston, P.; Alsters, P. L. Adv. Synth. Catal. 2003, 345,
17–523. (k) Keresszegi, C.; Mallat, T.; Grunwaldt, J. -D.; Baiker, A. J. Catal. 2004, 225, 138-
46. (l) Mondelli, C.; Ferri, D.; Grunwaldt, J. -D.; Krumeich, F.; Mangold, S.; Psaro, R.; Baiker,
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
A. J. Catal. 2007, 252, 77-87. (m) Mondelli, C.; Grunwaldt, J. -D.; Ferri, D.; Baiker, A. Phys.
Chem. Chem. Phys. 2010, 12, 5307-5316. (n) Fan, A.; Jaenicke, S.; Chuah, G.-K. Org. Biomol.
Chem. 2011, 9, 7720-7726. (o) Frassoldati, A.; Pinel, C.; Besson, M. Catal. Today 2011, 173,
81–88. (p) Witońska, I.; Frajtak, M.; Karski, S. Appl. Catal. A: Gen. 2011, 401, 73–82. (q)
Bowman, R. K.; Brown, A. D.; Cobb, J. H.; Eaddy, J. F.; Hatcher, M. A.; Leivers, M. R.; Miller,
J. F.; Mitchell, M. B.; Patterson, D. E.; Toczko, M. A.; Xie, S. J. Org. Chem. 2013, 78, 11680-
1
1690.
12) For leading references, see: (a) Steinhoff, B. A.; Guzei, I. A.; Stahl S. S. J. Am. Chem. Soc.
2004, 126, 11268-11278. (b) Steinhoff, B. A.; Stahl, S. S. J. Am. Chem. Soc. 2006, 128, 4348-
(
4
1
355. (c) Ye, X.; Johnson, M. D.; Diao, T.; Yates, M. H.; Stahl, S. S. Green Chem. 2010, 12,
180-1186.
(13) For reviews, see: (a) Sheldon, R. A.; Arends, I. W. C. E.; Brink, G.-J., T.; Dijksman, A. Acc.
Chem. Res. 2002, 35, 774-781. (b) Zhan, B.-Z.; Thompson, A. Tetrahedron 2004, 60,
2
917−2935. (c) Stahl, S. S. Angew. Chem., Int. Ed. 2004, 43, 3400-3420. (d) Schultz, M. J.;
Sigman, M. S. Tetrahedron 2006, 62, 8227−8241. (e) Parmeggiani, C.; Cardona, F. Green Chem.
012, 14, 547−564.
2
(14) Precedents for the oxidative esterification of benzylic alcohols were reported recently: (a)
Gowrisankar, S.; Neumann, H.; Beller, M. Angew. Chem., Int. Ed. 2011, 50, 5139-5143. (b) Liu,
C.; Wang, J.; Meng, L.; Deng, Y.; Li, Y.; Lei, A. Angew. Chem., Int. Ed. 2011, 50, 5144-5148.
2
8
ACS Paragon Plus Environment

Page 29 of 31
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
(
15) Rodriguez-Reyes, J. C. F.; Siler, C. G. F.; Liu, W.; Tkatchenko, A.; Friend, C. M.; Madix,
R. J. J. Am. Chem. Soc. 2014, 136, 13333-13340.
16) Salam, N.; Banerjee, B.; Roy, A. S.; Mondal, P.; Roy, S.; Bhaumik, A.; Islam, S. M. Appl.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(
Catal. A: Gen. 2014, 477, 184-194.
(17) (a) Su, F.-Z.; Ni, J.; Sun, H.; Cao, Y.; He, H.-Y.; Fan, K.-N. Chem. Eur. J. 2008, 14, 7131-
7
135. (b) Chng, L. L.; Yang, J.; Ying, J. Y. ChemSusChem 2015, 8, 1916-1925.
(
18) Kaizuka, K.; Miyamura, H.; Kobayashi, S. J. Am. Chem. Soc. 2010, 132, 15096-15098.
(19) (a) Jagadeesh, R. V.; Junge, H.; Pohl, M.-M.; Radnik, J.; Brückner, A.; Beller, M. J. Am.
Chem. Soc. 2013, 135, 10776-10782. (b) Zhong, W.; Liu, H.; Bai, C.; Liao, S.; Li, Y. ACS Catal.
2
015, 5, 1850-1856.
(
(
20) Fiege H.; Wedemeyer K. Angew. Chem. Int. Ed. 1981, 20, 783-784.
21) Powell, A. B.; Stahl, S. S. Org. Lett. 2013, 15, 5072-5075.
(22) KOMe and K CO have been shown previously to work nearly equally well with admixture
2
3
catalysts (see ref. 21) and the PBT-2 catalyst. Separate studies also showed that the effect of the
base is not dependent on the alkali-metal counter ion; potassium salts were chosen for their
availability and ease of use.
(
23) (a) Box G. E. P. and Wilson K. B. J. R. Stat. Soc.: Ser. B 1951, 13, 1-45. (b) Myers, R. H.;
Montgomery, D. C.; Anderson-Cook, C. M. Response Surface Methodology: Process and
Product Optimization Using Designed Experiments; John Wiley & Sons: Hoboken, NJ, 2016.
(
24) For a recent example of RSM applied to chemistry see: García-Cabeza, A. L.; Ray, L. P.;
Marín-Barrios, R; Ortega, M. J.; Moreno-Dorado, F. J.; Guerra, F. M.; Massanet, G. M. Org.
Process Res. Dev. 2014, 19, 1162.
(
25) See Section 2 in Supporting Information for additional catalyst optimization data.
2
9
ACS Paragon Plus Environment
