Aerobic Oxidation of Xylose to Xylaric acid in Water over Pt Catalysts
Sunitha Sadula and Basudeb Saha*
Catalysis Center for Energy Innovation and Department of Chemical and Biomolecular
Engineering, University of Delaware, Newark, Delaware 19716, USA
Corresponding author’s email: bsaha@udel.edu
Abstract
Energy-efficient catalytic conversion of biomass intermediates to functional chemicals can
enable bio-products viable. Herein, we report an efficient and low temperature aerobic oxidation
of xylose to xylaric acid, a promising bio-based chemical for the production of glutaric acid, over
commercial catalysts in water. Among several heterogeneous catalysts investigated, Pt/C exhibits
the best activity. Systematic variation of reaction parameters in the pH range of 2.5 to 10
suggests that the reaction is fast at higher temperatures but high C-C scission of intermediate C5-
oxidized products to low carbon carboxylic acids undermines xylaric acid selectivity. The C-C
cleavage is also high in basic solution. The oxidation at neutral pH and 60 C achieves the
highest xylaric acid yield (64%). O2 pressure and Pt-amount have significant influence on the
reactivity. Decarboxylation of short chain carboxylic acids results in formation of CO2, causing
some carbon loss; however such decarboxylation is slow in the presence of xylose. The catalyst
retained comparable activity, in terms of product selectivity, after five cycles with no sign of Pt
leaching.
Introduction
Platform chemicals are building blocks for many chemical end products, polymers,
medicine, household and industrial consumable goods, building materials and others. Currently,
most building block chemicals are obtained from conventional carbon sources, and cause over
1
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
10,000 million metric tons of carbon emissions as per 2010 report.[1] Bio-based platform
chemicals are widely accepted as promising feedstock or end products to improve future energy
security, minimize conventional carbon utilization, and reduce greenhouse gas emissions.
Glutaric acid (GA) is one such platform chemical,[2] which has applications in fine chemicals,
agricultural products, medicine and architecture[3]. GA is an essential ingredient for polyvinyl
chloride (PVC), polyester, polyamide, resin, synthetic rubber and more.[4] Currently, GA is
obtained as a byproduct from adipic acid (AA) production process in which petroleum-based KA
oil (a mixture of cyclohexanone and cyclohexanol) is used as the starting material.[5] [6] For
example, DuPont process extracts 2% GA from its AA process.[6] Currently, GA production and
supply are constrained by the production scale of AA and its market demand. Thus, a standalone
GA manufacturing process is desirable.
Scheme 1: Schematic illustration for xylose conversation to glutaric acid (GA). HDO =
hydrodeoxygenation.
Xylose oxidized xylaric acid could be a potential building block for standalone
production of GA (Scheme 1). The catalytic oxidation of biomass intermediates to renewable
diacids, e.g., 2,5-furandicarboxylic acid (FDCA)[7, 8] and glucaric acid[9-11] has been reported by
us and others. These diacids have been commercialized by Avantium, BASF, Rennovia, Rivertop
Renewable, BioAmber and others because of their strong market demand.
2
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
Similar to FDCA and glucaric acid, xylaric acid has also been identified as one of the top
ten value added chemicals.[2] In addition, its precursor, xylose, can be easily extracted from
lignocellulosic biomass. However, the research and commercialization activities on xylose
oxidation to xylaric acid are very limited. About half a century ago, xylose oxidation with nitric
acid reported 44% xylaric acid yield.[12] Highly exothermic reaction conditions and NOX gas
release are some drawbacks in the nitric acid mediated oxidation. Recently, oxygen has been
used as a co-oxidant with nitric acid for xylose oxidation.[13] Venema et al.[14] reported aerobic
oxidation of xylose using a Pt catalyst at low xylose loading (2.5 wt%) and a constant pH of 9.
Rennovia Inc. used a Pt/silica catalyst (4 wt% Pt) to achieve 29% xylaric acid at 90 °C and 5
bar oxygen for 8 h.[15] The later reaction was conducted on a micro-liter scale in a 96 well-
reactor system which was not reproduced on a reasonable laboratory scale. In addition, the
effects of reaction temperature, O2 pressure, reaction time and pH on the oxidation of xylose and
product selectivity were not studied.
In contrast to poor yield of xylaric acid, xylose oxidation to xylonic acid, an intermediate
oxidation product with one carboxylic acid group (Scheme S1; vide infra), is more selective. For
example, Pruesse et al. reported 99% selectivity of xylonic acid at 78% conversion of xylose
with a Au catalyst[16] under basic pH (pH 9). High selectivity of xylonic acid has also been
reported in aerobic oxidation of xylose with metallic Cu[17] and chlorine.[18] Electrocatalytic
oxidation of xylose with Pt and Au electrodes formed xylonic acid and xylitol in alkaline
solutions.[19]
Building on our prior study of efficient glucose oxidation to glucaric acid in water,[9]
herein we report the results of xylose oxidation with activated carbon, SiO2 and Al2O3 supported
Pt, Pd, Rh and Cu catalysts in acidic, basic and neutral solutions. The Pt/C catalyst exhibits the
3
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
highest selectivity to xylaric acid yield (64%). Xylonic acid oxidation is slower than xylose
oxidation. Several low carbon carboxylic acids are formed via C–C bond scission of C5
carboxylic acids and the C–C scission depends on the temperature, O2 pressure, Pt loading and
pH.
Experimental Section
Materials. Pt/C (5 wt% Pt), Pt/Al2O3 (5 wt% Pt), Rh/C (5 wt% Rh), Pd/C (5 wt% Pd) and Cu/C
(5 wt% Cu) were purchased from Sigma-Aldrich. Pt/SiO2 (5 wt% Pt) was purchased from Strem
Chemicals. All catalysts were used as purchased. Xylose (>99% purity) was purchased from
Sigma-Aldrich. Standard samples (lithum xylonate, oxalic acid, tartaric acid, glyceric acid,
glycolic acid, lactic acid) for HPLC method development and calibration were purchased from
Sigma-Aldrich and were used as received. Xylaric acid disodium salt was purchased from
Omicron Biochemicals. DI water was used for preparation of all solutions.
Catalysts characterization. Pulse CO chemisorption was performed on an Altamira AM-200ip
instrument. Before CO chemisorption, the sample was treated with He at 120 °C and then cooled
down to 30 °C. Pulses of CO in a He carrier gas were injected at 30 °C. The signal was
monitored by using a thermal conductivity detector (TCD). Surface areas of the catalysts were
calculated from N2 physisorption data, measured at −196 °C on a Micromeritics 3Flex Surface
Characterization Analyzer, using the Brunauer–Emmett–Teller (BET) equation. Barrett–Joyner–
Halenda (BJH) desorption was used to estimate pore volumes and pore sizes. Before N2
physisorption, the samples were degassed under vacuum at 80 °C overnight.
Oxidation reaction. Aerobic oxidation of xylose or other substrates were carried out in a 100
mL Parr reactor (model number 4793), equipped with a thermocouple for measuring the actual
temperature of the reaction mixture, pressure gauge, rupture disk and pressure relieve valve. In
4
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
typical experiments, the reactor was loaded with 20 mL of an aqueous solution of 10 wt% xylose
(2 g; 13.3 mmol) and calculated amount of catalyst. After adding a magnetic bar to the reactor,
it was sealed, pressurized with oxygen (grade 4.4), purged three times and then pressurized to the
desired pressure. The pressurized reactor was placed in a band heater and heated to desired
temperature at the heating rate of 10 °C/ min. The solution was stirred at a constant rate of 800
rpm using the magnetic bar. Upon reaction for a set time, the reactor was cooled down in an ice
bath and depressurized by releasing the relieve valve. Aqueous 5M H2SO4 and 2M NaOH
solutions were used to adjust the initial pH of the solutions. Unless otherwise mentioned, initial
reaction rates for xylose and xylonic acid oxidation were calculated at about 15% conversion.
The following equations were used for calculations of conversion, selectivity and yield.
Conversion (%)
Selectivity (%)
100
100
Yield (%)
100
Carbon balance given for each reaction is the sum of carbon moles of products detected by
HPLC and carbon moles of unconverted xylose.
Product analysis. The product solutions were filtered and diluted 10-fold in DI water for
analysis on a HPLC (Waters model e2695) equipped with an Agilent Hi-Plex H column and a
refractive index (RI) detector (Waters 2414) as well as a photodiode array (PDA) detector
(Waters 2998). The column compartment temperature was set to 75 °C. An aqueous solution of
8.5 mM H2SO4 was used as a mobile phase at a flow rate of 0.1 mL/min. Organic acid and
unknown peaks (e.g. keto-xylaric acid) were identified using a LC-MS (Agilent 6120).
Quantification of xylose, xylaric acid, xylonic acid and other C-C cleaved organic acids was
5
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
based on their respective pre-calibrated plots of peak areas vs. concentrations using standard
samples. Xylaric acid and tartaric acid peaks were not well separated in the chromatogram
collected using the PDA detector. Thus, these two peaks were deconvoluted (Figure S1) using
origin software. Similarly xylose and xylonic acid peaks were not well separated in the
chromatogram collected using the RI detector. These two peaks were also deconvoluted to obtain
their accurate peak areas. At high xylose conversion, xylonic acid peak of the chromatogram
collected using the PDA detector was well separated and distinguished, and hence this peak area
was subtracted from the total xylose and xylonic acid peak area of the chromatogram collected
using the RI detector to obtain unconverted xylose. The accuracy of this method was validated
by injecting mixtures of known concentrations of xylose and xylonic acid standards. Keto-
xylaric acid was not quantified because of lack of an authentic commercial standard sample to
develop a calibration plot. The product solutions were also analyzed using a Wavelength
Dispersive X-ray Fluorescence (WDXRF) Spectrometer (Rigaku Supermini200) and a pH meter
(Fisher Scientific accumet Basic AB15) to measure metals leaching and acidity of the solutions
during oxidation.
Results and discussion
Initially, we screened several heterogeneous catalysts containing different metals and
supports to evaluate their catalytic performance for xylose oxidation (Figure 1). Two blank
experiments were also performed; one without any catalyst and another with activated carbon
support (without any metal loading). These experiments were conducted at low temperature and
O2 pressure (60 °C and 2 bar O2) to slow down the reaction, especially for Pt catalysts, so the
initial rates can be calculated at low xylose conversion. Figure 1 shows Pt/C is the most effective
6
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
(initial rate = 21.4 mmol g-1 h-1). The effectiveness of the catalysts, in terms of initial rates,
decreases in the order of Pt/C > Pt/Al2O3 (12.4) > Pt/SiO2 (7.1) > Rh/C (2.5) > Pd/C (1.5). Ru/C
and Cu/C are ineffective. Turn of frequencies (TOFs) of Pt/C, Pt/Al2O3 and Pt/SiO2 are
compared in Figure S2. Xylose oxidation with a Cu catalyst was also ineffective in a prior
report.[17] Because of high activity of the Pt/C catalyst, it was chosen for further investigation.
25
20
15
10
5
0
Catalysts
Figure 1. Comparison of initial rates of xylose oxidation over different heterogeneous catalysts.
Reaction conditions: 10 wt% xylose, 60 °C, 2 bar O2 and xylose/metal (mol/mol) = 54. Initial
rates were calculated at 15% xylose conversion.
The oxidation with the Pt/C catalyst at 14 bar O2 and 80 °C is fast in the beginning,
achieving 81% xylonic acid selectivity at 76% xylose conversion within 30 min (Table S1 and
Figure 2a and Figure S3). Xylonic acid is then slowly oxidized to xylaric acid (Scheme S1),
similar to glucose oxidation to glucaric acid.[9] Other products (OP) such as oxalic, tartaric,
glycolic and glyceric acids are also formed as the reaction progressed. The stack plots of HPLC
chromatograms in Figure S1 show a decrease in xylonic acid peak intensity with an increase in
peak intensity of xylaric acid and OP. Similar C-C scission of glucose oxidized products to low
7
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
carbon carboxylic acids has been reported.[9, 11] Selectivity of xylaric acid, xylonic acid and OP
reached 40%, 29% and 14%, respectively, in 10 h (Table S1). Tartaric (7%) and glycolic (6%)
acids are the major short chain carboxylic acids, consistent with a prior report by Venema et
al.[14] The aldehyde group oxidation of xylose to xylonic acid is faster than the alcoholic group
oxidation of xylonic acid to xylaric acid. Similar observation has been reported for glucose and
5-hydroxymethylfurfural (HMF) oxidation.[7, 9, 20, 21] The reaction for a prolonged time (15 h)
achieves higher xylaric acid selectivity (50%); however, the C-C scission leading to formation of
OP (22%) also enhanced. Total carbon balance is within 92-71% (Table S1). Unquantified keto-
xylaric acid and small fractions of other products undetected by HPLC could account for carbon
mass loss. Figure 2b shows a decrease in pH of the solution with time due to formation of xylaric
acid, which is a little stronger acid (pKa = 2.79) than xylonic acid (pKa = 3.39).[22, 23]
3.0
(b)
100
80
60
40
20
0
(a)
2.8
2.6
2.4
2.2
2.0
1.8
Xylose conversion
Xylonic acid
Xylaric acid
Carbon balance
Others
0
2
4
6
8
10
0
2
4
6
8
10
Reaction Time (h)
Reaction Time (h)
Figure 2. Xylose oxidation profile over Pt/C in water as a function of reaction time: (a)
conversion of xylose and selectivity of oxidation products. Carbon balance is the sum of carbon
moles of products detected by HPLC and carbon moles of unconverted xylose. Other products
(OP) are oxalic acid, tartaric acid, glycolic acid and glyceric acid (Table S1). The results for first
3 h of reaction are given in Figure S3. (b) pH profile of the solution during progression of
8
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
oxidation. Reaction conditions: 10 wt% xylose, 20 mL H2O, 0.96 g Pt/C catalyst (xylose/Pt
molar ratio 54), 14 bar O2, 80 °C, initial pH 6.8.
The effect of pH. To investigate the effect of pH on xylose oxidation, we varied initial pH of the
solution from 2.5 to 10. The reaction time at each pH was also varied from 1 h to 15 h. The
results in Figure 3 (Table S2) show xylose conversions in acidic (pH 2.5) and basic (pH 10)
solutions are slightly higher (>95%) than that in neutral solution (pH 6.8) for reaction time of 1
h, while the conversions are comparable when the reactions were carried out for a longer time.
Xylonic and xylaric acids selectivity at pH 6.8 and 10 are slightly better than that at pH 2.5
(Table S2). For the reaction time of 15 h, xylaric acid selectivity at pH 6.8 is better than those in
acidic and basic solutions. The selectivity of OP increases from acidic to basic pH, suggesting
the C-C scission is favored as the pH value of the solution increased. The carbon loss is higher in
acidic solution than those in neutral and basic solutions (Table S2), which is likely due to the
formation of other oxidation products in acidic medium or acid catalyzed oligomerization of
carboxylic species, which are undetected by HPLC and HPLC-MS and consistent with our prior
observation.[9] A pH drop from 10 to 2.5 occurs within 1 h due to the formation of acidic
carboxylic acid species (Figure S4a). Similarly, pH of a reaction solution of initial pH of 2.5
drops to 2.0 within the same reaction time scale. (Figure S4b)
9
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem

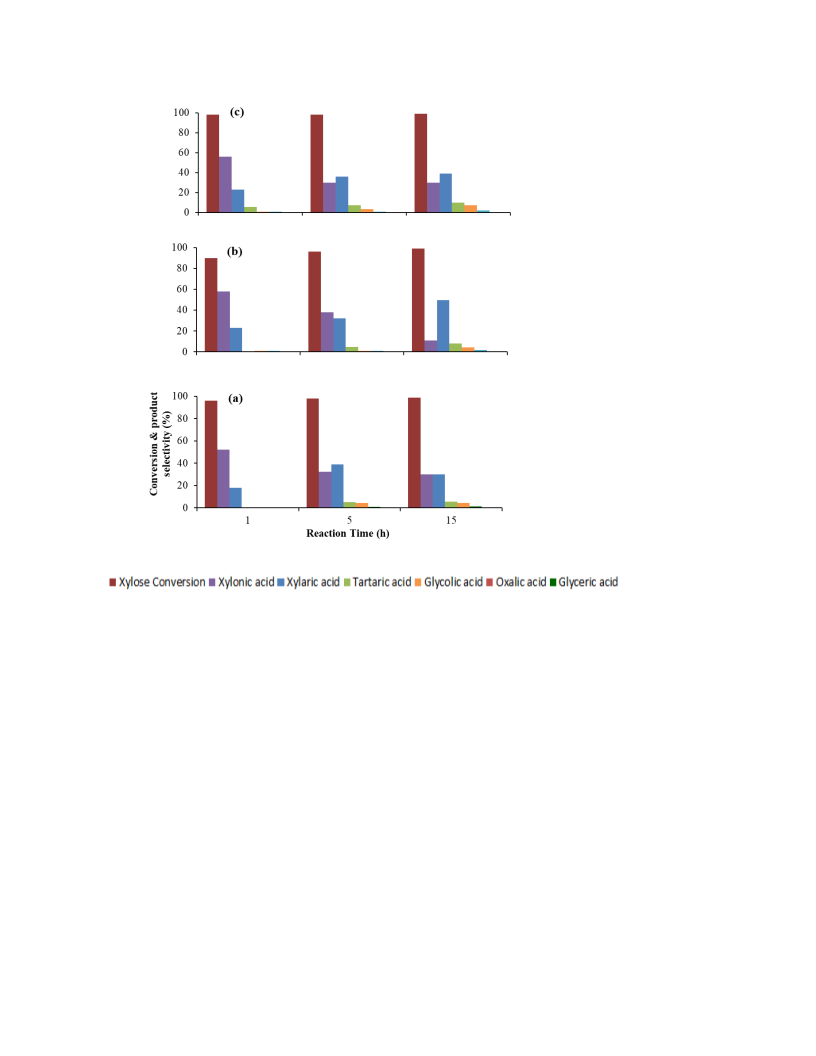

Figure 3. The effect of initial pH on xylose conversion and product selectivity; (a) pH 2.5, (b)
pH 6.8 and (c) pH 10. Reaction conditions: 10 wt% xylose, 20 mL H2O, 0.96 g Pt/C catalyst
(xylose/Pt molar ratio = 54), 14 bar O2, 80 °C, initial pH of the solution was adjusted by adding
5 M H2SO4 and 2 M NaOH. Detailed results are given in Table S1.
A control experiment of pure xylonic acid oxidation gives keto-xylaric, glycolic, glyceric
oxalic and tartaric acids, besides xylaric acid. Formation of such low carbon products via retro-
aldol C-C scission has been reported.[9, 14, 20, 24, 25] Keto-xylaric acid is likely formed via
isomerization of xyluronic acid, which is an intermediate oxidation product of xylaric acid
10
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
(Scheme S1). A prior report showed tartronic acid was also formed along with tartaric, glycolic
and oxalic acids from xylonic acid in basic solution (pH 9),[14] which we have not observed.
Glycolic and glyceric acids could also be formed from oxidation of C-C cleaved products
(glycolaldehyde and glyceraldehydes) of xylose (Scheme 2). Small amount of oxalic acid is
likely formed from oxidation of glycolic acid.[20] Tartaric acid is the second major oxidation
product of xylose after xylaric and xylonic acids, which is also obtained from oxidation of pure
xylonic acid. We believe xylose oxidized xylonic acid isomerizes to xyluronic acid, which then
decarboxylates to tartaraldehyde and carbon dioxide. Tartaraldehyde is then oxidized to tartaric
acid. We observed carbon dioxide formation during oxidation of xylose, pure xylonic acid and
other short chain carboxylic acids (tartaric, glycolic and oxalic acids) which makes this argument
convincing (Table S3). Carbon dioxide also accounts for low carbon balance in detected oxidized
products (Figure S5). At low concentrations of tartaric or glycolic acids that were formed during
oxidation of xylose alone, they are quantitatively converted to CO2. However, when xylose and
glycolic acid or tartaric acid mixture was used as substrate, there are unconverted glycolic or
tartaric acid in the solution, suggesting decarboxylation of tartaric acid or glycolic acid could be
slow because of surface coverage by xylaric acid or xylonic acid. Prior studies on
decarboxylation of glycerol over platinum and cobalt catalysts,[20, 25-27] or complete conversion
oxalic acid to carbon dioxide on a platinum catalyst[28] agree with our observation. On the basis
of above discussion, we propose a plausible reaction pathway in Scheme 2.
11
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
Scheme 2: Proposed reaction pathways for xylose oxidation to observed products. Blue color
represents observed products.
The effects of O2 pressure, reaction temperature and Pt concentration. The effects of O2
pressure, reaction temperature, and Pt concentrations were studied on xylose oxidation. The
reaction time was varied from 1 h to 15 h at three different O2 pressures (2, 6 and 14 bar). Xylose
conversion at 2 bar O2 is lower than those of 6 bar and 14 bar (Figure 4a). The conversions are
comparable at 6 and 14 bars, with a slight variation along the reaction time. Xylaric acid
selectivity at 14 bar O2 is better than that at 6 bar O2 throughout the reaction time while the
selectivity is significantly lower at 2 bar O2 (Figure 4b), which could be due to slow oxidation of
12
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
xylonic acid and hence its accumulation in the solution. The selectivity of OP increases with
increasing O2 pressure, indicating higher O2 pressure promotes C-C cleavage.
100
100
(b)
14 bar
6 bar
2 bar
80
60
40
20
0
80
60
40
20
0
(a)
14 bar
6 bar
2 bar
XA
XA
XA
OP
OP
OP
0
3
6
9
12
15
0
3
6
9
12
15
Reaction Time (h)
Reaction Time (h)
Figure 4. The effect of O2 pressure on xylose oxidation: (a) xylose conversion and (b) selectivity
of xylaric acid and OP. XA and OP stand for xylaric acid and other products (oxalic acid, tartaric
acid, glyceric acid and glycolic acids). Reaction conditions: 10 wt% xylose, 20 mL H2O, 0.96 g
Pt/C catalyst (xylose/Pt molar ratio 54), 80 °C and initial pH 6.8.
Next we varied reaction temperature from 60 °C to 100 °C at a fixed O2 pressure of 6 bar and
xylose to Pt molar ratio of 54. The reaction at 60 °C is slow in the beginning (Figure 5a). The
reactions at other three temperatures (80 °C, 90 °C and 100 °C) have a slight difference in xylose
conversion up to 4 h. Xylonic acid formation is fast in the temperature range of 80 °C – 100 C,
however its subsequent oxidation to xylaric acid is facile at higher temperatures, resulting in
lower selectivity of xylonic acid 90 °C and 100 °C (Figure 5b). Xylonic acid oxidation is
significantly slow at 60 C, which attributes to very slow formation of xylaric acid at this
temperature in comparison with higher temperatures (Figure 5c). Xylaric acid formation curves
follow similar trend at 80 °C – 100 C; however, its selectivity decreased as temperature
increased, owing to C-C cleavage to low carbon acids at higher temperatures, consistent with the
13
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
results in Figure 5d showing higher selectivity of OP at higher temperatures. In contrast, xylaric
acid selectivity at 60 °C increased exponentially with the reaction time due to formation of least
amount of OP (<2%). When compared with our prior report of glucose oxidation with the Pt/C
catalyst,[9] xylose oxidation achieves higher xylaric acid selectivity at lower temperature and O2
pressure, which is likely due to the following reasons: (1) faster xylose oxidation than glucose, as
reported previously[29], and (2) low C-C cleavage at lower temperature and O2 pressure.
(a)
100
80
60
40
20
0
100
80
60
40
20
0
60C
80C
90C
100C
(b)
60C
80C
90C
100C
0
5
10
15
0
5
10
15
Reaction Time (h)
Reaction Time (h)
100
80
60
40
20
0
100
(c)
(d)
60C
80C
90C
100C
60C
80C
90C
100C
80
60
40
20
0
0
5
10
15
0
5
10
15
Reaction Time (h)
Reaction Time (h)
Figure 5. Xylose oxidation profiles at 60 °C, 80 °C, 90 °C and 100 °C; (a) xylose conversion, (b)
xylonic acid selectivity, (c) xylaric acid selectivity and (d) other product selectivity. Other
products are oxalic acid, tartaric acid, glyceric acid and glycolic acids. Reaction conditions: 10
wt% xylose, 20 mL H2O, 0.96 g Pt/C catalyst (xylose/Pt molar ratio 54), 6 bar O2 and initial pH
6.8.
14
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
The dependence of xylose oxidation on the xylose/Pt molar ratio in the range of 27 to 106
was studied at 60 °C and 6 bar O2 for 10 h (Table 1). The results show a decrease in xylaric acid
selectivity from 43% to 20% as the Pt amount decreased (xylose/Pt ratio increased from 27 to
54) while xylonic acid selectivity decreased from 31% to 53% at quantitative xylose conversion.
Slow oxidation of xylonic acid at xylose/Pt ratio of 54 results in its high accumulation of xylonic
acid. Upon further decreasing the Pt loading (increasing xylose/Pt molar ratio to 116), only 10%
xylaric acid selectivity is observed at 83% xylose conversion. Noteworthy, xylonic acid
selectivity in the later reaction is comparable to the reaction carried out at xylose/Pt molar ratio
of 54, indicating xylonic acid oxidation rates at xylose/Pt ratio of 54 and 116 could be
comparable, but formation of other oxidation products (other than OP), which are undetected by
HPLC, might be the reason for lower xylaric acid selectivity at the ratio of 116. Carbon balance
at xylose/Pt ratio of 54 and 116 are lower than that at xylose/Pt ratio of 27, which confirms
formation of other undetected oxidation products.
Table 1. Effect of Platinum concentration on xylose oxidation over Pt/C catalyst.
Entry
Xylose/Pt Conversion
Selectivity (%)
Xylaric
acid
Carbon
balance
(%)
Xylonic
acid
OPa
3
(mol/mol)
(%)
1
2
3
27
54
99
31
43
88
99
53
47
20
10
0.1
0
73
74
116
83
a Other products include tartaric acid and oxalic acid. Reaction conditions: 5 wt% xylose in entry
1, 10 wt% xylose in entry 2, 20 wt% xylose in entry 3, 20 mL H2O, 0.96 g Pt/C, 60 °C, 6 bar O2,
initial pH 6.8 and 10 h reaction time.
15
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
Mechanism of xylose oxidation. It has been observed that xylose conversion to xylaric acid
occurs via rapid oxidation of the aldehyde group of xylose and much slower oxidation of the –
CH2OH group of xyloinc acid. Mechanistic investigation of xylose oxidation is very limited. The
mechanism of HMF oxidation, which has similar functional groups (–OH, –CHO) as xylose, to
FDCA has been reported in basic and base-free solutions.[30-32], [33-35] In basic solution, the
oxidation of the aldehyde group of HMF occurs by rapid and reversible hydration to a geminal
diol, followed by a hydrogen transfer to the metal surface, thus forming a carboxylic acid, 2-
hydroxymethyl-5-furancarboxylic acid (HMFC). The –CH2OH group of HMFC is then oxidized
via (oxidative) dehydrogenation to aldehyde, followed by similar hydration and hydrogen
transfer of the aldehyde to carboxylic acid, FDCA. The Pt-catalyzed oxidation of HMF in base-
free condition also followed similar mechanism through active participation of water.[35, 36]
Xylose with similar functional groups (-OH, -CHO) as HMF is expected to follow the similar
oxidation mechanism of HMF (Scheme S2).
To rationalize slow gluconic oxidation in our prior study, which showed similar oxidation
behavior as xylose and xylonic acid, we have estimated the free energy of adsorption of various
oxidized species of glucose.[9] The calculation suggested that the C=O group interacts more
strongly than the alcoholic group; thus glucaric acid adsorbed more strongly than open chain
glucose and gluconic acid. Similarly, xylaric acid, adsorbed strongly on the surface than xylsoe
and xylonic acid, could block the active sites as it is formed and hence slow the reaction down.
We propose that the oxidation of xyloinc acid is slow due to the (oxidative) dehydrogenation of –
CH2OH to –CHO is slow. This dehydrogenation step is not necessary for xylose oxidation to
xyloinc acid.
16
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
Recyclability of Pt/C. To check the stability of Pt/C, we reused the catalyst for 5 cycles. After
each cycle, the catalyst was recovered by filtration, washed thoroughly with water, dried and
reused for the next cycle. The results in Figure 6 show the catalyst retained comparable activity,
in terms of product selectivity, in the 5th cycle. CO uptake and surface properties (pore volume
and pre size) of the catalyst after the 5th cycle are comparable to the fresh catalyst (Figure S6).
WDXRF of product solutions did not show any presence of Pt, indicating no Pt leaching during
oxidation.[9] To further understand the structural changes, we have carried out XRD analysis of
the catalyst before and after the reaction. The characteristic diffraction peaks of Pt [111], [200],
[220], [311] at 2θ values of 39.9, 46.5, 67.8 and 81.2° respectively are present in the recovered
catalyst after the 5th cycle (Figure S7).
100
80
Glycolic acid
Glyceric acid
Tartaric acid
Oxalic acid
60
Xylaric acid
Xylonic acid
40
20
0
1
2
3
4
5
Catalyst cycles
Figure 6. Recycling studies of the Pt/C catalyst for xylose oxidation. Reaction conditions: 10
wt% xylose, 20 mL H2O, 0.96 g Pt/C catalyst (xylose/Pt molar ratio 54), 6 bar O2, 60 C and 20
h, initial pH 6.8.
Conclusions
17
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
We studied aerobic oxidation of xylose to xylaric acid using activated carbon, SiO2 and Al2O3
supported Pt, Pd, Rh and Cu catalysts in acidic, basic and neutral solutions. The Pt/C catalyst is
the most effective of these in terms of initial rate as well as xylaric acid selectivity. Xylose
oxidation to xylonic acid is fast while xylonic acid oxidation is slow due to the (oxidative)
dehydrogenation of the –CH2OH group to –CHO is slow. The reaction in base-free water
achieves the best xylaric acid selectivity. Higher temperatures, higher O2 pressure and higher pH
cause C-C cleavage of C5 species to short chain carboxylic acids, resulting in lower xylaric acid
selectivity. A maximum of 64% xylaric acid selectivity at quantitative conversion of xylose is
achieved at an initial pH of 6.8, 60 °C, 6 bar O2 and xylose/Pt molar ratio of 54. A plausible
reaction pathway is proposed based on the product distribution. The catalyst is stable with
comparable performance in the 5th cycle.
Acknowledgements
This work was supported as part of the Catalysis Center for Energy Innovation, an Energy
Frontier Research Center funded by the U. S. Department of Energy, Office of Science, Office of
Basic Energy Sciences under Award Number DE-SC0001004. The authors acknowledge the
Advanced Materials Characterization Laboratory at the University of Delaware for providing
WDXRF and BET surface area analysis facilities.
References
[1] Global Greenhouse Gas Emissions Data, U.S. Environmental Protection Agency.
https://www.epa.gov/ghgemissions/global-greenhouse-gas-emissions-data.
[2] T. Werpy, G. Petersen in Top Value Added Chemicals from Biomass: Volume 1 - Results of
Screening for Potential Candidates from Sugars and Synthetic Gas, Vol. (Ed.^Eds.: Editor), U.S.
Department of Energy, City, 2004.
[3] R. W. Johnson, Pollock, C. M., & Cantrell, R. R., Dicarboxylic acids, Wiley, 1993.
18
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
[4] M. Besson, F. Gauthard, B. Horvath, P. Gallezot The Journal of Physical Chemistry B. 2005,
109, 2461-2467.
[5] A. Castellan, J. C. J. Bart, S. Cavallaro Catalysis Today. 1991, 9, 237-254.
[6] A. Tullo Chemical & Engineering News. 2002, 80, 13-13.
[7] B. Saha, S. Dutta, M. M. Abu-Omar Catalysis Science & Technology. 2012, 2, 79-81.
[8] B. Saha, D. Gupta, M. M. Abu-Omar, A. Modak, A. Bhaumik Journal of Catalysis. 2013,
299, 316-320.
[9] J. Lee, B. Saha, D. G. Vlachos Green Chemistry. 2016, 18, 3815-3822.
[10] I. A. Grigor'eva, S. S. Chernaya, S. R. Trusov Russian Journal of Applied Chemistry. 2001,
74, 2021-2026.
[11] X. Jin, M. Zhao, J. Shen, W. Yan, L. He, P. S. Thapa, S. Ren, B. Subramaniam, R. V.
Chaudhari Journal of Catalysis. 2015, 330, 323-329.
[12] C. E. Cantrell, D. E. Kiely, G. J. Abruscato, J. M. Riordan The Journal of Organic
Chemistry. 1977, 42, 3562-3567.
[13] D. E. Kiely, K. R. Hash Sr in Method of Oxidization Using Nitric Acid, Vol. (Ed.^Eds.:
Editor), Google Patents, City, 2010.
[14] F. R. Venema, J. A. Peters, H. van Bekkum Journal of molecular catalysis. 1992, 77, 75-85.
[15] T. R. Boussie, E. L. Dias, Z. M. Fresco, V. J. Murphy in Production of glutaric acid and
derivatives from carbohydrate-containing materials, Vol. (Ed.^Eds.: Editor), Google Patents,
City, 2014.
[16] W. Bonrath, J. Fischesser Berndt, A. Haji Begli, J. Kowalczyk (Südzucker) DE. 2009,
10319917.
[17] R. Van der Weijden, J. Mahabir, A. Abbadi, M. Reuter Hydrometallurgy. 2002, 64, 131-
146.
[18] T. Ericsson, O. SAMUELSON Acta Chem. Scand. B. 1975, 29.
[19] A. Jokic, N. Ristic, M. Jaksic, M. Spasojevic, N. Krstajic Journal of applied
Electrochemistry. 1991, 21, 321-326.
[20] X. Jin, M. Zhao, M. Vora, J. Shen, C. Zeng, W. Yan, P. S. Thapa, B. Subramaniam, R. V.
Chaudhari Industrial & Engineering Chemistry Research. 2016, 55, 2932-2945.
[21] O. Casanova, S. Iborra, A. Corma ChemSusChem. 2009, 2, 1138-1144.
[22] h. w. h. c. The Human Metabolome Database in, Vol. (Eds.: Editor), City.
19
This article is protected by copyright. All rights reserved.

10.1002/cssc.201800494
ChemSusChem
[23] in Instant cheminformatics solutions. http://chemicalize.com/#/calculation, Vol. (Ed.^Eds.:
Editor), City.
[24] X. Jin, M. Zhao, J. Shen, W. Yan, L. He, P. S. Thapa, S. Ren, B. Subramaniam, R. V.
Chaudhari Journal of Catalysis. 2015, 330, 323-329.
[25] X. Jin, M. Zhao, C. Zeng, W. Yan, Z. Song, P. Thapa, B. Subramaniam, R. Chaudhari Acs
Catalysis. 2016, 6, 4576-4583.
[26] E. Sproge, S. Chornaja, K. Dubencovs, S. Zhizhkun, V. Kampars, V. Serga, L. Kulikova, E.
Palcevskis Journal of the Serbian Chemical Society. 2013, 78, 1359-1372.
[27] W. Hu, B. Lowry, A. Varma Applied Catalysis B: Environmental. 2011, 106, 123-132.
[28] P. Gallezot, N. Laurain, P. Isnard Applied Catalysis B: Environmental. 1996, 9, L11-L17.
[29] K. Heyns, H. Paulsen Advances in carbohydrate chemistry. 1963, 17, 169-221.
[30] E. Taarning, I. S. Nielsen, K. Egeblad, R. Madsen, C. H. Christensen ChemSusChem. 2008,
1, 75-78.
[31] O. Casanova, S. Iborra, A. Corma ChemSusChem. 2009, 2, 1138-1144.
[32] Y. Y. Gorbanev, S. K. Klitgaard, J. M. Woodley, C. H. Christensen, A. Riisager
ChemSusChem. 2009, 2, 672-675.
[33] B. N. Zope, D. D. Hibbitts, M. Neurock, R. J. Davis Science. 2010, 330, 74-78.
[34] S. E. Davis, B. N. Zope, R. J. Davis Green Chemistry. 2012, 14, 143-147.
[35] S. E. Davis, A. D. Benavidez, R. W. Gosselink, J. H. Bitter, K. P. d. Jong, A. K. Datye, R. J.
Davis Journal of Molecular Catalysis A: Chemical. 2014, 388-389, 123-132.
[36] T. Mallat, A. Baiker Catalysis Today. 1994, 19, 247-283.
20
This article is protected by copyright. All rights reserved.
