Collaboration of Ni, polyoxometalates and layered double hydroxides: synthesis, characterization, electrochemical and mechanism investigations as nano-catalyst in the Heck coupling reaction

Article abstract of DOI:10.1007/s11164-018-3557-z

Nickel (Ni) nanoparticles were immobilized on the surface of magnetic MgAl layered double hydroxide intercalated 10-molybdo-2-vanadophosphate (Fe–MgAl/Mo₁₀V₂–Ni) for the first time. The presence of Ni nanoparticles onthe high-surface area Fe–MgAl LDH structure in the presence of Mo₁₀V₂ makes this catalyst an ideal option in terms of efficiency and selectivity for Heck coupling reaction. Synergic effects of Mo₁₀V₂ and Ni were investigated by an electrochemical technique. Increasing of the ECSA of the catalyst compared to Fe–Mg–Al–Ni leads to enhancement of the catalytic activity and proves the synergic effect. A new catalytic mechanism was introduced for this kind of reaction. The resulting structure and its catalytic behavior were characterized by FT-IR, XRD, ICP-AES, TEM, SEM, EDX, EBSD, XPS, BET, VSM, CV, LSV and zeta potential analyses. More importantly, Fe–MgAl/Mo₁₀V₂–Ni can easily be separated from the reaction mixture using an external magnet and reused for at least four successive runs without any substantial reduction in its catalytic activity.

Full text of DOI:10.1007/s11164-018-3557-z

Research on Chemical Intermediates
https://doi.org/10.1007/s11164-018-3557-z(0123456789(). -, vo
l
0
1
2
3
4
5
6
7
8
9
(
)
.
-
v
o
l
V
)
Collaboration of Ni, polyoxometalates and layered double
hydroxides: synthesis, characterization, electrochemical
and mechanism investigations as nano-catalyst in the Heck
coupling reaction
Ezzat Rafiee1,2 Masoud Kahrizi1
•
Received: 3 May 2018 / Accepted: 9 August 2018
Ó Springer Nature B.V. 2018
Abstract
Nickel (Ni) nanoparticles were immobilized on the surface of magnetic MgAl
layered double hydroxide intercalated 10-molybdo-2-vanadophosphate (Fe–MgAl/
Mo10V2–Ni) for the first time. The presence of Ni nanoparticles onthe high-surface
area Fe–MgAl LDH structure in the presence of Mo10V2 makes this catalyst an ideal
option in terms of efficiency and selectivity for Heck coupling reaction. Synergic
effects of Mo10V2 and Ni were investigated by an electrochemical technique.
Increasing of the ECSA of the catalyst compared to Fe–Mg–Al–Ni leads to
enhancement of the catalytic activity and proves the synergic effect. A new catalytic
mechanism was introduced for this kind of reaction. The resulting structure and its
catalytic behavior were characterized by FT-IR, XRD, ICP-AES, TEM, SEM, EDX,
EBSD, XPS, BET, VSM, CV, LSV and zeta potential analyses. More importantly,
Fe–MgAl/Mo10V2–Ni can easily be separated from the reaction mixture using an
external magnet and reused for at least four successive runs without any substantial
reduction in its catalytic activity.
Keywords Polyoxometalate Á Layered double hydroxide Á Cyclic voltammetry Á
Magnetic nano-catalyst Á Heck reaction
&
Ezzat Rafiee
e.rafiei@razi.ac.ir; Ezzat_rafiee@yahoo.com
1
2
Faculty of Chemistry, Razi University, Kermanshah 67149, Iran
Institute of Nano Science and Nano Technology, Razi University, Kermanshah 67149, Iran
123

E. Rafiee, M. Kahrizi
Introduction
The palladium (Pd) catalyzed coupling of aryl halides and olefins, known as the
Heck reaction is a well-established methodology in modern organic synthesis [1–4].
The coupling products find important applications in different fields of material
science such as bioactive compounds, preparation of materials and natural products
[5, 6]. Despite the merit of using Pd-based catalysts in the Heck reactions, these
types of coupling reactions suffer from major problems, such as using the expensive
species as a catalyst, which prevent the industrial development of this catalytic
reaction. Also, the use of ligand and base can impose more expense and causes
toxicity in these systems.
One of the best ways to address these problems is replacing the Pd-based
catalysts by more affordable species. Among the inexpensive transition metals,
nickel (Ni) can be an ideal alternative for Pd in the Heck coupling reactions as it is
about 500 times cheaper than Pd. Ni also shows faster oxidative addition and more
facile olefin insertion compared to Pd [7]. However, the number of attempts to
develop a Ni-based catalyst in the Heck coupling reaction are very few [8–10].
Although there are many benefits in the use of Ni catalysts, the homogeneous Ni-
based catalysis has significant drawbacks, including environmental pollution, low
catalyst stability and possible toxicity caused by residual metal species, which have
impeded their large-scale application in industry. To overcome these problems,
chemists have investigated the employment of heterogeneous Ni species [11, 12].
Immobilization of Ni nanoparticles on solid structures such as layered double
hydroxides (LDHs) can provide many features in the catalytic properties of the
catalyst. LDHs are composed of cationic M(II)1-xM(III)x(OH)x2? layers which are
neutralized with anionic x/nAn-ÁzH2O parts [13]. The layers with positive charge
include the edge-shared metal M(II) and M(III) hydroxide octahedra, which are
accompanied by a negative charge of anions located inside and on the surface of the
lamellae. This protocol provides a high-surface area catalyst which directly affects
the efficiency and selectivity of LDH-based catalysts [13–17].
A novel approach is putting up the Fe3O4 nanoparticles in LDH structures which
can be easily recovered from the reaction media using an external magnet. This
feature addresses the isolation and recycling problems faced by many catalytic
systems. The Fe3O4-LDH system can be formed in a composite-like structure and
has been demonstrated to be feasible for catalytic applications [18, 19]. Also, LDHs
can provide ‘‘flexible’’ confining spaces that can be adjusted by changing the size
and arrangement of guest molecules. The flexible interlayer space can accommodate
polyoxometalates (POMs) [20, 21] which can be used as an effective co-catalyst in
coupling reactions [22–26].
Nowadays, POMs have found a lot of interest in coupling reactions and growing
research has been performed on the use of them in this field of organic reactions
¨
[25–28]. POMs with a Bronsted acid property and electron transfer ability can act as
a strong activator for reactants and regenerators of the catalyst in the coupling
reactions.
123

Collaboration of Ni, polyoxometalates and layered double…
Previously, POMs and metal catalysts have been used in separate catalytic
structures in carbon–carbon coupling reactions [22, 24, 29]. In continuation of our
studies on the development of practical and environmentally friendly procedures for
carbon–carbon coupling reactions [22–24, 30], the applicability of a recyclable
heterogeneous catalyst, Ni immobilized on an Fe–MgAl LDH structure intercalated
with 10-molybdovanado phosphate (Fe–MgAl/Mo10V2–Ni) for a Heck reaction,
was investigated. This catalyst exhibited a remarkable activity and the system
tolerates a wide variety of olefin and aryl halide compounds with good to excellent
yields of the desired products.
Experimental
General remarks
All the material including reagents and solvents were commercially available and
purchased from Fluka, Merck, and Aldrich. A transmission electron microscopy
(TEM) analysis was performed using a TEM microscope (Philips CM 120 kV;
Netherlands). X-ray diffraction (XRD) patterns were obtained on an Inel French,
EQUINOX 3000 model X-ray diffractometer using Cu–Ka radiation. Scanning
electron microscopy (SEM)/electron backscatter diffraction microscopy (EBSD)
was performed using an SU3500 microscope with scanning range from 0 to 20 keV.
Electron dispersive X-ray (EDX) measurements were performed with an IXRF
model 550i attached to the SEM. SEM-EBSD/EDX samples were prepared by
coating solid particles into a conductive layer. Fourier-transform infrared
spectroscopy (FT-IR) was recorded with KBr pellets using a Bruker ALPHA FT-
IR spectrometer. X-ray photoelectron spectroscopy (XPS) was recorded with a
Kratos Analytical Axis Ultra, with monochromatic aluminum and magnesium with
an X-ray source of 1.4866 and 1.2536 keV and a concentric hemispherical analyzer
(CHA). A take-off angle of 90° was used on a spot size of 700 lm 350 lm. The
instrument has an Ultra-High Vacuum. Thermogravimetric analysis (TGA) was
carried out using a thermal gravimetric analysis instrument (Shimadzu TA-60WS-
TGA-50/50H) with a flow rate of 30 mL min-1 and a heating rate of 10 °C min-1 in
air. The magnetic property of Fe–MgAl/Mo10V2–Ni was measured using a BHV-55
(Riken, Japan) vibrating sample magnetometer. The Ni and Mo contents were
measured using inductively coupled plasma atomic emission spectroscopy (ICP-
AES) on a Spectro Ciros CCD spectrometer. Zeta potentials were measured with a
Nano ZS90 zeta sizer analyzer (Malvern, UK) with 0.001 mol L-1 NaNO3
electrolyte. The pore volume and specific surface area determination were studied
by Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) methods,
respectively, by use of a Quantachrome Autosorb-1C-VP analyzer. Prior to the
measurements, the samples were degassed at 100 °C for 6 h. The electrochemical
behavior of the catalyst was measured using a computer-controlled m-Autolab
modular electrochemical system (SAMA500 ElectroAnalyzer). Thin layer chro-
matography (TLC) on pre-coated silica gel Fluorescent 254 nm (0.2 mm) on
123

E. Rafiee, M. Kahrizi
aluminum plates was used to indicate the reaction progress. The cross-coupling
1
products were characterized by their H NMR spectra [30].
Preparation of Fe3O4 nanoparticles
Typically, 4.3 g FeCl2Á4H2O (21.6 mmol) and 11.6 g FeCl3.6H2O (43.0 mmol)
were mixed with 350 mL of deionized water under N2 atmosphere. The resulting
solution was heated to 80 °C while stirring, vigorously. Then, 20 mL of 25%
NH4OH was quickly added to the solution. The resulting dispersion was vigorously
stirred for 5 min, and then the black precipitate was collected using a magnet and
washed frequently with deionized water and ethanol, then dried under vacuum.
Preparation of Fe–MgAl LDH
Firstly, Fe3O4 (0.3 g) was ultrasonically dispersed into 150 mL solvent (Vmethanol/
Vwater = 1/1) for 20 min to obtain a uniform dispersion. A 100 mL alkaline
solution (0.32 g Na2CO3 (3.0 mmol), 0.48 g NaOH (12.0 mmol)) was added drop-
wise into the dispersion until pH ca. 10.0 and kept for 5 min, then a 100 mL
solution of 1.02 g Mg(NO3)2Á6H2O (4.0 mmol) and 0.5 g Al(NO3)3Á9H2O
(1.34 mmol) was added to the previous dispersion and the pH of the above mixture
was adjusted to 9.5–10.0. The obtained slurry dispersion was stirred for 5 min
followed by separation with an external magnet and washing with deionized water
and ethanol, and dried at 60 °C overnight, giving the product Fe–MgAl LDH.
Preparation of Fe–MgAl–Ni
Fe–MgAl–Ni was prepared by the deposition–precipitation procedure as follows. A
255 mL NiCl2Á6H2O aqueous solution (0.008 M) was positioned in an 80 °C water
bath. Then, 0.5 g Fe–MgAl LDH was added into this solution under vigorous
stirring for 1 h, and the pH of the dispersion was adjusted to 8.0 by 0.1 M NaOH.
The resulting slurry was recovered by magnetic separation, followed by washing
with deionized water and ethanol, and dried at 60 °C for 24 h to produce Fe–MgAl–
Ni.
Preparation of Fe–MgAl/Mo10V2–Ni
Preparation of Fe–MgAl/Mo10V2–Ni was carried out using an anion exchange
process. Under N2 atmosphere, 0.16 g Mo10V2 (0.092 mmol) was added to 10 mL
of an Fe–MgAl–Ni dispersion (0.3 g). The mixture was kept under N2 and refluxed
at 90 °C for 10 h. The resulting solid was filtered and washed with boiling water
and hot ethanol three times, and then dried under vacuum.
Electrochemical investigations
The modified carbon paste electrodes (CPE) were prepared by thoroughly mixing
powder graphite, Fe–MgAl/Mo10V2–Ni, and paraffin oil until a paste was obtained.
123

Collaboration of Ni, polyoxometalates and layered double…
The resulting paste was put into the tip of a micropipette (4 cm long, 0.01 cm
diameter) with Cu wire used as an electrical connection. Each time an experiment
was performed, the electrode was refreshed by polishing it on a weighing paper. To
investigate the electrochemical features of Fe–MgAl/Mo10V2–Ni, the prepared
electrode was inserted into a three-electrode chemical cell composed of a saturated
calomel electrode and a platinum counter electrode. All the electrochemical
measurements were recorded in a phosphate buffer solution of pH = 7 (PBS) as a
supporting electrolyte and under different scan rates.
General procedure for the Heck coupling reaction
For the Heck coupling reaction, a mixture of aryl halide (4.0 mmol), styrene
(4.0 mmol), tetrabutylammonium bromide, TBAB (4.0 mmol), Fe–MgAl/Mo10V2–
Ni (0.03 g) and 5 mL dimethyl formamide (DMF) was charged to the reaction tube.
The resulting mixture was refluxed at 120 °C under dry N2 atmosphere for an
appropriate time. The progress of the reaction was monitored by TLC. Upon
completion of the reaction, the reaction mixture was then cooled to room
temperature and Fe–MgAl/Mo10V2–Ni was separated by a magnet, washed with
diethyl ether (2 9 10 mL), and then dried under vacuum for reuse. The residual
mixture was extracted by CH2Cl2 (3 9 20 mL), and the combined organic layers
were dried over MgSO4. The solvent was evaporated and the crude products were
1
characterized by H NMR spectroscopy [30].
Results and discussion
In the present work, Fe–MgAl/Mo10V2–Ni was used as an efficient nano-catalyst in
the Heck coupling reaction under base and ligand-free conditions. Simultaneous use
of Ni, Mo10V2 and MgAl LDH in the catalyst structure provides high-surface area
bases for Ni nanoparticles, activates the substrates and facilitates the reductive
elimination step in the catalytic cycle of the Heck reaction. The synthetic route for
the synthesis of the designed heterogeneous catalyst is presented in Scheme 1.
The XRD patterns of Fe3O4, Mo10V2, Fe–MgAl LDH, Fe–MgAl–Ni and Fe–
MgAl/Mo10V2–Ni are presented in Fig. 1. In the XRD pattern of Fe3O4 (curve a),
all the diffraction peaks can be attributed to cubic-phase Fe3O4 {JCPDS-019-0629}.
The (220), (311), (400), (422), (511) and (440) reflections of typical Fe3O4 indicate
the high crystallinity of the Fe3O4 nanoparticles. In order to show the presence of
Mo10V2 in our catalyst, the XRD pattern of the Mo10V2 (curve b) is presented. After
addition of MgAl LDH layer to the catalyst structure, the diffraction pattern of the
resulting material (curve c) shows sharp absorption reflections for the (003), (006),
(105) and (018) planes, which are characteristic of the MgAl LDH structure in
addition to the Fe3O4 reflections. The sharp and distinctive reflections at 2h = 11.2°
and 23.9° are attributed to the (003) and (006) diffraction planes of MgAl LDHs,
respectively.
The XRD pattern of the resulting Fe–MgAl/Mo10V2–Ni nano-structure (curve e)
exhibits the reflections of a Fe3O4 and LDH phases. In addition, the curve e, after
123

E. Rafiee, M. Kahrizi

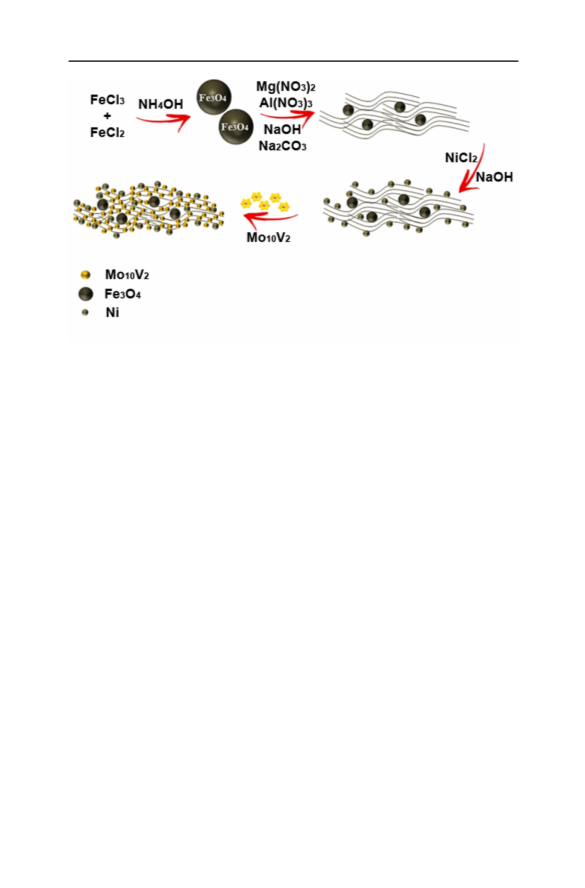

Scheme 1 Schematic preparation route of Fe–MgAl/Mo10V2–Ni
the anion exchange and Ni immobilization processes, shows the presence of Mo10V2
anions in the MgAl LDH structure, and Ni nanoparticles on the surface of the LDH.
The Ni(0) crystals in the catalyst have the crystalline structure with reflections
appearing at 44.92°, 51.13° and 76.23° corresponding to the (111), (200) and (220)
planes, respectively, of the face-centered cubic structure of the Ni nanoparticles
{JCPDS-01-1260}.
The synthesized catalyst possesses a layered structure around the Fe3O4
nanoparticles. The layers have an irregular hexagonal morphology which resemble
crumpled paper surrounding the magnetic nanoparticles (Fig. 2a). SEM images of
the catalyst show the immobilization of Ni nanoparticles on the LDH structures
(Fig. 2a, c). The SEM images of Fe–MgAl/Mo10V2–Ni demonstrated that the
presence of LDHs provides a high-surface area structure which plays an important
role in the high efficiency and selectivity. Using the EBSD micrograph, the presence
of different substances in the catalyst framework was determined. The EBSD image
of Fe–MgAl/Mo10V2–Ni shows the sorted form of Ni(0), Fe3O4 and LDH
components in the catalyst structure (Fig. 2d). The mapping analysis indicates that
the Ni nanoparticles are deposited on the surface of the layered structure of MgAl
LDH and that the Fe3O4 nanoparticles are distributed throughout the whole LDH
structure.
The EDX analysis was also performed to study the elemental composition of the
catalyst. The EDX pattern of the catalyst shows major peaks of Mg, Al, Fe, Mo, V
and Ni. The results obtained from the EDX analysis confirm the presence of MgAl
LDH, Mo10V2 and Ni nanoparticles in the structure of the synthesized catalyst
(Fig. 2m). In agreement with the EDX-elemental analysis of Fe–MgAl/Mo10V2–Ni,
the amount of Ni in the Fe–MgAl/Mo10V2–Ni structure was 8.28 wt%, which was
determined using the ICP-AES measurement. Also, according to the obtained
results from ICP-AES measurement, the content of Mo was 15.64 wt%, which
indicated that the amount of Mo10V2 in the Fe–MgAl/Mo10V2–Ni structure was
123

Collaboration of Ni, polyoxometalates and layered double…

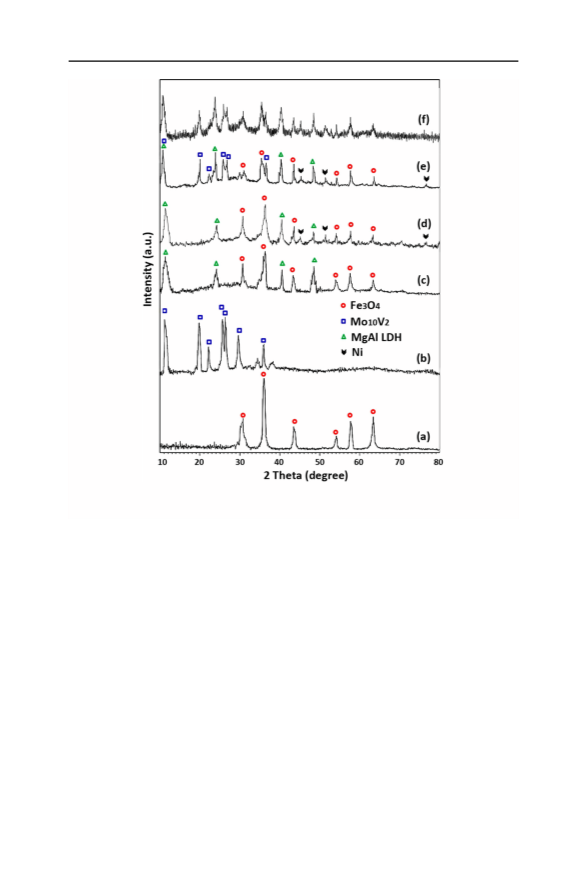

Fig. 1 XRD patterns of: (a) Fe3O4, (b) Mo10V2, (c) Fe–MgAl LDH and (d) Fe–MgAl–Ni, (e) Fe–MgAl/
Mo10V2–Ni and (f) recovered Fe–MgAl/Mo10V2–Ni
28.32 wt%. The reason for the discrepancy between the obtained results from the
EDX-elemental analysis and the ICP-AES measurements is that the EDX-elemental
analysis results are based on content evaluation of surface elements, while the ICP-
AES technique measures the total amount of molybdenum in the catalyst structure.
For more investigation on the morphology of Fe–MgAl/Mo10V2–Ni, TEM
images were recorded and, as expected, clearly confirm the obtained results from the
SEM technique (Fig. 3).
The low-magnification image of the layered structure of the catalyst shows dark
spots which are attributed to the presence of Ni and Fe3O4 nanoparticles in the LDH
structure. The high-magnification image clearly reveals the layered structures
around the Fe3O4 nanoparticles and the distribution of the Ni nanoparticles on the
surface of the layers. the Fe3O4 and Ni nanoparticles are approximately spherical
with diameters below 20 nm.
The FT-IR spectra of Fe3O4, Fe–MgAl LDH, Mo10V2 and Fe–MgAl/Mo10V2–Ni
are presented in Fig. 4. In the FT-IR spectrum of Fe3O4 (curve a), the band at
1640 cm-1 is attributed to the OH stretching vibration due to the existence of
123

E. Rafiee, M. Kahrizi

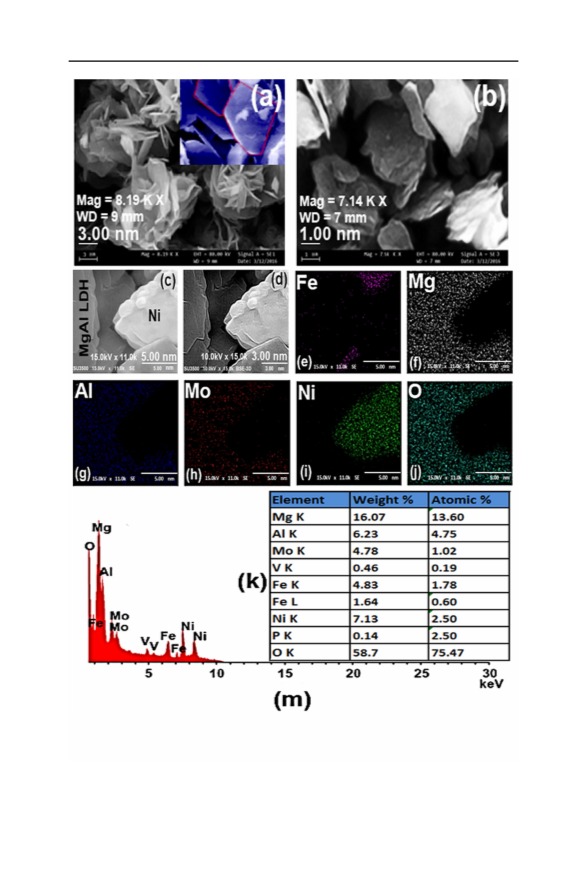

Fig. 2 SEM images of a, c fresh Fe–MgAl/Mo10V2–Ni, b recovered Fe–MgAl/Mo10V2–Ni, d EBSD
image of Fe–MgAl/Mo10V2–Ni e–j mapping results of Fe–MgAl/Mo10V2–Ni k elemental analysis of Fe–
MgAl/Mo10V2–Ni and m EDX results of Fe–MgAl/Mo10V2–Ni
123

Collaboration of Ni, polyoxometalates and layered double…
Fig. 3 TEM images of Fe–MgAl/Mo10V2–Ni
Fig. 4 FT-IR spectra of:
(a) Fe3O4, (b) Fe–MgAl LDH,
(c) Mo10V2, (d) Fe–MgAl/
Mo10V2–Ni and (e) recovered
Fe–MgAl/Mo10V2–Ni
123

E. Rafiee, M. Kahrizi
surface hydroxyl and H2O. For Fe3O4, Fe–MgAl LDH and Fe–MgAl/Mo10V2–Ni,
absorption peaks at about 580 cm-1 are ascribed to the Fe–O vibration from the
magnetite phase [31]. In the FT-IR spectrum of Fe–MgAl LDH, in addition to Fe3O4
characteristic peaks, the absorption bands at 423 and 518 cm-1 that are attributed to
the M–O vibration modes of LDH structure were observed (curve b). The FT-IR
spectra of Fe–MgAl/Mo10V2–Ni, in addition to the Fe3O4 peaks at 588 cm-1 and
LDH characteristic peaks at 405 and 514 cm-1, displays the features of a Keggin-
type structure at 1135, 1013, 908 and 754 cm-,1 which are in agreement with the
results reported previously (curve d) [22]. Also, the peak at 1380 cm-1 due to the
carbonate band disappears in the Fe–MgAl/Mo10V2–Ni sample, suggesting that the
anion exchange was completed.
In order to investigate the magnetic property of Fe–MgAl/Mo10V2–Ni, a
vibrating sample magnetometery (VSM) measurement was performed at 298 K.
The magnetization saturated up to 46 emu g-1 at an applied field of 8500 Oe
reveals the superparamagnetic behavior at room temperature (Fig. 5). This high
magnetic property of Fe–MgAl/Mo10V2–Ni facilitates the recovery of the catalyst
from the reaction media.
Zeta potentials of Fe–MgAl LDH, Fe–MgAl–Ni and Fe–MgAl/Mo10V2–Ni in the
dispersion are positive, and distributed from 26 to 76 (Fe–MgAl LDH), 38 to 81
(Fe–MgAl–Ni) and 13 to 51 mV (Fe–MgAl/Mo10V2–Ni). The average zeta
potentials given by the instrument are 57, 61 and 30 mV for Fe–MgAl LDH, Fe–
MgAl–Ni and Fe–MgAl/Mo10V2–Ni, respectively. The positive zeta potential of the
LDH structures is in principle attributed to the structural positive charge and the
electric double layer on the LDH surface. Although the interior charges of LDHs are
fully screened by the interlayer anions, the surface structural charges are not fully
balanced by the adsorbed surface anions because the surface-adsorbed anions can
desert the electric double layer on the surface of LDHs, and thus the LDH particles
5-
have a surface positive charge. In general, since Mo10V2
is more strongly
2-
adsorbed on the surface than CO3 and OH-, and increases the density of the
negative charge on the surface, the MgAl LDH and Fe–MgAl–Ni particles show a
smaller zeta potential than Fe–MgAl/Mo10V2–Ni. Ni nanoparticles as an electron
Fig. 5 VSM magnetization curve of Fe–MgAl/Mo10V2–Ni
123

Collaboration of Ni, polyoxometalates and layered double…
conductor have a positive surface charge, then, due to the increase of the density of
the positive charge on the LDH surfaces, the zeta potential of MgAl LDH particles
after deposition of Ni nanoparticles shifted to higher potentials because of the
reduction of anions on the surface of the LDHs (Fig. 6).
The surface chemical states of the active sites in Fe–MgAl/Mo10V2–Ni were
investigated using XPS analysis with a typical wide energy scan (Fig. 7). The XPS
spectra indicated that the Ni(0), MgAl LDH and Mo10V2 are present on the surface
of Fe–MgAl/Mo10V2–Ni (Fig. 7a). The MgAl ratio of the catalyst was evaluated
from the integral peak area as 2.64, which demonstrates the obtained results from
EDX-elemental analysis.
Moreover, the presence of two peaks appearing at 525.1 and 515.7 eV, which are
assigned to V2p1/2 and V2p3/2 and adjunctive ones appearing at 526.9 and 517.1 eV,
illustrate the existence of V5? and V4? species, respectively [32]. Based on the
above results, Mo10V2 can dramatically affect the charge state of Ni nanoparticles,
promoting the formation of V4? and Ni2? species, which is a beneficial species to
catalyze the oxidation reactions (Fig. 7b). Also, there are two peaks at 853.2 and
869.8 eV which correspond to Ni2p1/2 and Ni2p3/2 accompanyed by two weak peaks
II
2p1=2
II
at 858.7 and 873.7 eV belonging to Ni
and Ni
, respectively (Fig. 7c).
2p3=2
According to the obtained results from these analyses, there is a small amount of
Ni2? on the surface of this catalyst, which could be caused by the electron transfer
between Ni(0) and Mo10V2 or the formation of Ni–O species. A 0.5-eV shift to
higher binding energy with respect to the neutral form of Ni(0) for the Fe–MgAl/
Mo10V2–Ni indicates a decrease in the electron density of Ni(0), which confirms the
electron transfer from Ni(0) to Mo10V2 species. Also, the appearance of peaks at
711.1 and 724.2 eV show the Fe3O4 nanoparticles on the surface of the catalyst. It
has been previously reported that Fe2p3/2 for Fe3O4 does not have a satellite peak
[33, 34], and this absence has been confirmed in the present study (Fig. 7d).

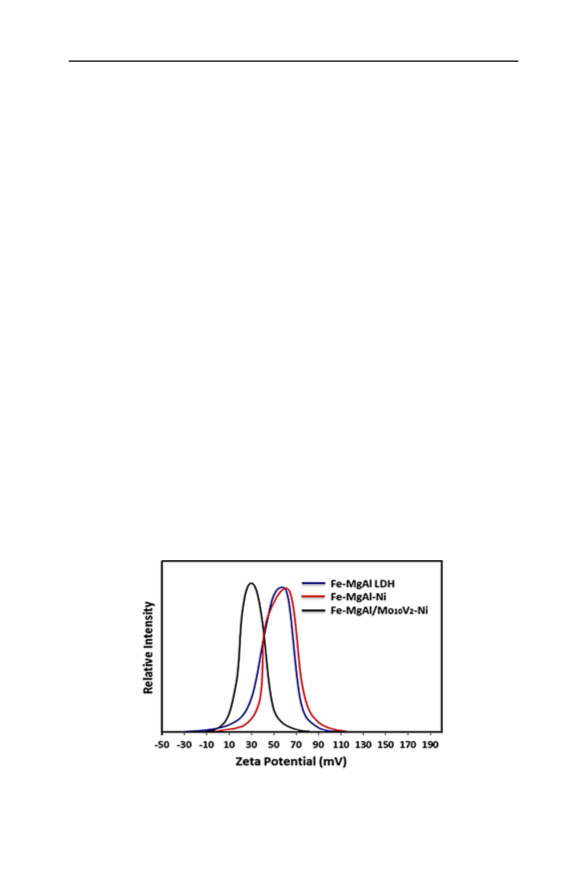

Fig. 6 Zeta potential distribution of Fe–MgAl LDH, Fe–MgAl–Ni and Fe–MgAl/Mo10V2–Ni
nanoparticles
123

E. Rafiee, M. Kahrizi
Fig. 7 XPS analysis of a Fe–MgAl/Mo10V2–Ni with wide energy scan; high-resolution XPS spectra of
b 2p region of V, c 2p region of Ni, d 2p region of Fe and e 3d region of Mo
Fig. 8 Isotherm and pore distribution curves of a Fe–MgAl–Ni and b Fe–MgAl/Mo10V2–Ni, based on the
BET and BJH methods, respectively
The physical surface features of Fe–MgAl–Ni and Fe–MgAl/Mo10V2–Ni were
investigated using the N2 adsorption–desorption isotherm and the related pore
distribution curves (Fig. 8). Both of the mentioned structures show a type IV
isotherm related to the mesoporous materials which indicates the presence of nano-
voids in the Fe–MgAl–Ni and Fe–MgAl/Mo10V2–Ni structures. It was observed that
the presence of Mo10V2 in the Fe–MgAl/Mo10V2–Ni structure significantly
increases the surface area. The corresponding specific surface areas of Fe–MgAl–
Ni and Fe–MgAl/Mo10V2–Ni are about 6.44 and 87.5 m2 g-1, respectively.
Also, BJH pore size distribution of Fe–MgAl/Mo10V2–Ni exhibit a narrow
mesopore size distribution centered at 13.7 nm which is higher than Fe–MgAl–Ni
(7.6 nm). The pore volumes of Fe–MgAl–Ni and Fe–MgAl/Mo10V2–Ni were
measured at about 0.073 and 0.256 cm3 g-1, respectively, by BJH analysis. Fe–
MgAl/Mo10V2–Ni indicates high BET surface area with the large pore volume
superior to most of the reported porous POM hybrids paired with organic or
inorganic parts (e.g., triammonium cations) [35], ionic liquids [36, 37], and zinc
phosphate [38, 39], even surpassing poly(ionic liquid)-supported POMs [40] and
123

Collaboration of Ni, polyoxometalates and layered double…
comparable to the specific surface areas (85–156 m2 g-1) for the conventional
micro/mesoporous NH4 and Cs? salts of POMs [41].
?
In order to show the structural stability of the catalyst, TGA has been performed
on Fe–MgAl/Mo10V2–Ni (Fig. 9). Three mass loss steps occurred with an increase
of the temperature. The first mass loss step in the range of 30–280 °C is ascribed to
the elimination of water molecules absorbed on the surface and interlayer space of
Fe–MgAl/Mo10V2–Ni (11.45 wt%). This step is composed of simultaneous
elimination of crystalline and participant water. The second mass loss step at
280–480 °C is attributed to lamellar hydroxyl group loss (dehydroxylation) as well
as anions loss (6.94 wt%). Also, partial mass gain in the range of 480–540 °C
indicated that Ni nanoparticles begin to be oxidized into metal oxides. The third
mass loss of 2.30 wt% at 540–1000 °C corresponds to decomposition of the Mo10V2
anions [42].
The electrocatalytic behaviors of Fe–MgAl–Ni, Mo10V2 and Fe–MgAl/Mo10V2–
Ni were investigated in 0.1 M PBS by cyclic voltammetry (CV). According to the
obtained results from the comparison of the cyclic curves of Fe–MgAl–Ni and Fe–
MgAl/Mo10V2–Ni, the presence of Mo10V2 not only significantly enhanced the
oxidation peak current of Fe–MgAl–Ni but also decreased its oxidation peak
potential from 0.41 to 0.39 V, suggesting that the electrochemical oxidation
strength of Fe–MgAl–Ni was increased by the presence of Mo10V2 after the anion
exchange process (Fig. 10). Also, the transfer of electrons from Ni(0) to Mo10V2
significantly enhanced the oxidation peak current of Fe–MgAl–Ni. The increase in
the oxidation peak current of Fe–MgAl–Ni shows the increment of the concentra-
tion of electroactive Ni species at the electrode–solution interface which are
generated by the presence of Mo10V2.
The linear sweep voltammetry (LSV) curves of Fe–MgAl LDH, Fe–MgAl–Ni
and Fe–MgAl/Mo10V2–Ni are presented in Fig. 11a. The onset potentials were
measured to be 424.83, 416.22 and 398.73 mV for Fe–MgAl LDH, Fe–MgAl–Ni
Fig. 9 TGA curve of Fe–MgAl/Mo10V2–Ni
123

E. Rafiee, M. Kahrizi

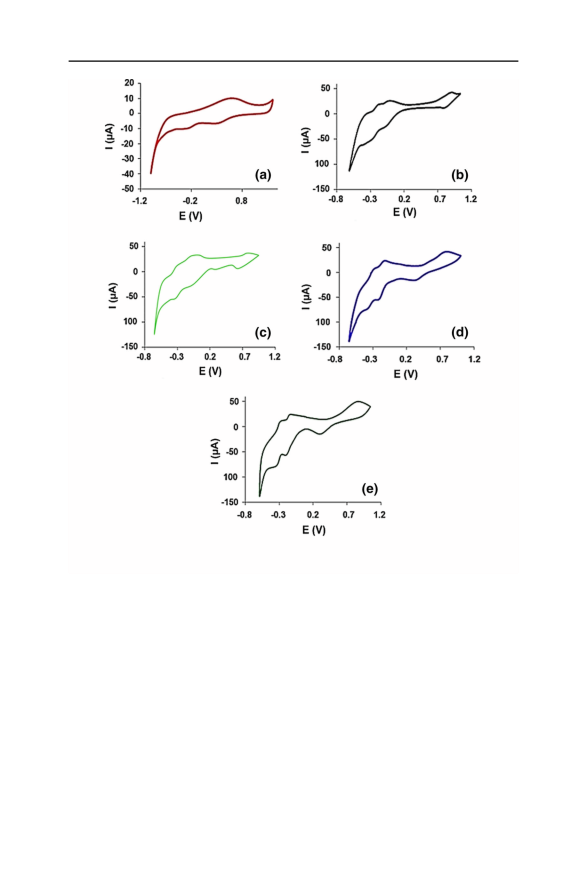

Fig. 10 Cyclic voltammograms of a Fe–MgAl–Ni, b Mo10V2, c Fe–MgAl/Mo10V2 d Fe–MgAl/Mo10V2–
Ni and e recovered Fe–MgAl/Mo10V2–Ni CPE in PBS, 100 mV s-1
and Fe–MgAl/Mo10V2–Ni, respectively. The comparison of these LSV curves
reveals that the Fe–MgAl/Mo10V2–Ni shows lower onset potential and higher
limited current density. On the basis of the obtained data from the electrocatalytic
experiments, it can be shown that the electron transfer between Mo10V2 and Ni
species greatly helps to enhance the electrocatalytic activity of Fe–MgAl–Ni in the
Heck coupling reactions.
The improvement in catalytic kinetic of the catalyst is also comparably
investigated using Tafel slopes (Fig. 11b). Fe–MgAl/Mo10V2–Ni offers a lower
Tafel slope of 51 mV dec-1, smaller than those of Fe–MgAl–Ni (59 mV dec-1
)
and Fe–MgAl LDH (63 mV dec-1). This smaller Tafel slope value for the Fe–
MgAl/Mo10V2–Ni catalyst results in a further enhancement toward catalytic
activity. In other words, the lowered Tafel slope indicates that electron transfer
123

Collaboration of Ni, polyoxometalates and layered double…

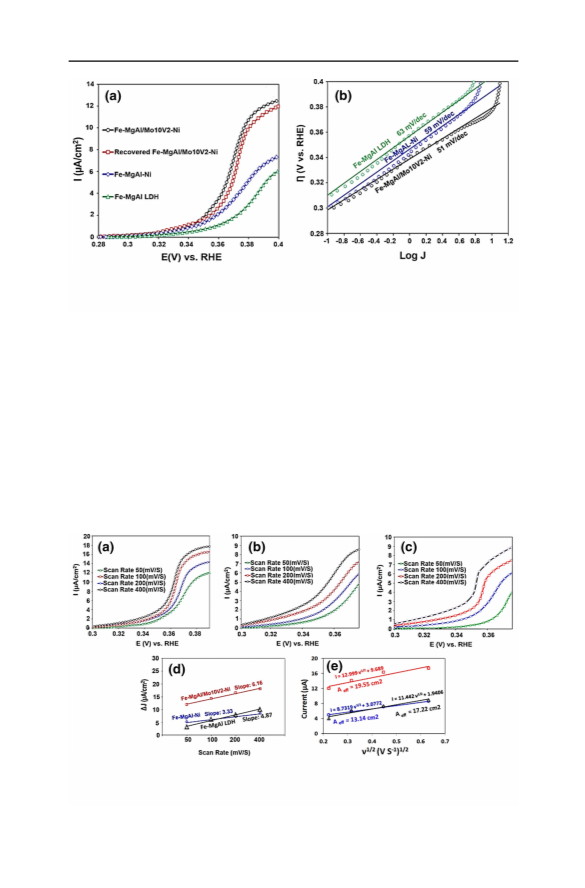

Fig. 11 a LSV curves of Fe–MgAl LDH, Fe–MgAl–Ni, Fe–MgAl/Mo10V2–Ni and recovered Fe–MgAl/
Mo10V2–Ni, recorded at in PBS, 100 mV s-1, b Tafel plots of Fe–MgAl–Ni and Fe–MgAl/Mo10V2–Ni
derived from the corresponding LSV curves
becomes more achievable on Fe–MgAl/Mo10V2–Ni compared with Fe–MgAl LDH
or Fe–MgAl–Ni.
Electrochemical active surface area (ECSA) is a valuable factor for catalysts in
electrochemical reactions. Increase of ECSA of the catalyst often leads to
enhancement of the catalytic activity. In order to probe the ECSA of Fe–MgAl/
Mo10V2–Ni, the LSV curves of the catalyst, Fe–MgAl–Ni and Fe–MgAl LDH in
PBS under different scan rates were investigated. By plotting the limiting current in
the LSV curves of Fe–MgAl/Mo10V2–Ni and Fe–MgAl–Ni against the scan rate, the
linear slope can be used to represent the attributed ECSA.
The ECSA of Fe–MgAl/Mo10V2–Ni is 6.16, while Fe–MgAl–Ni and Fe–MgAl
LDH have lower linear slopes, which indicate that the presence of Mo10V2 in the
Fig. 12 LSV curves of a Fe–MgAl/Mo10V2–Ni, b Fe–MgAl–Ni, and c Fe–MgAl LDH in PBS under
different scan rates, d the limiting current against the scan rate, and e the relationship between the peak
current and the square root of the scan rate fitted by the Randles–Sevcik equation
123

E. Rafiee, M. Kahrizi
catalyst structure, in addition to the improvement of the electrocatalytic behavior of
the catalyst, provides higher electroactive surface centers in the catalyst structure
(Fig. 12d). Also, the effective area of the Fe–MgAl/Mo10V2–Ni, Fe–MgAl–Ni and
Fe–MgAl LDH (Aeff cm2) were estimated by the Randles–Sevcik equation:
À
Á
Ipa
¼
2:69 Â 105 n2=3AeffD1=2m1=2C0
where D and C0 are the diffusion coefficient and bulk concentration of the redox
probe, respectively. The other symbols have their usual meanings. LSV experiments
under different scan rates were performed with the Fe–MgAl/Mo10V2–Ni, Fe–
MgAl–Ni and Fe–MgAl LDH CPE immersed in PBS. In the range of the scan rate,
the current varies linearly with the square root of the scan rate. Here, the slope of
Randles–Sevcik plots is proportional to the active surface area (Fig. 12e).
In the next step of our investigation, the catalytic activity of Fe–MgAl/Mo10V2–
Ni in the Heck coupling reactions was evaluated. In order to probe the best reaction
conditions, the reaction of bromobenzene (4 mmol) and styrene (4 mmol) in the
presence of tetrabutylammonium bromide (TBAB) at 120 °C under ligand and base-
free conditions was chosen as a model reaction.
In the absence of the catalyst, the reaction did not proceed at all and the starting
materials remained intact after 24 h (Table 1, entry 1). To establish the best reaction
conditions, the effects of various solvents, such as H2O, dimethyl acetamide
(DMAc) and DMF, have been studied (Table 1, entries 2–4). DMF at 120 °C was
found to be the choice in terms of the efficiency of the reaction (entry 2). Next, the
amount of Fe–MgAl/Mo10V2–Ni was examined, and it seems that 0.03 g of Fe–
MgAl/Mo10V2–Ni was sufficient to drive the reaction in 86% yield. Using less Fe–
MgAl/Mo10V2–Ni led to a lower yield even with extended reaction time. Also,
further increasing the catalyst quantity showed no significant improvement in the
yield or reaction time. Therefore, 0.03 g of the catalyst was chosen as the optimum
amount of Fe–MgAl/Mo10V2–Ni for further reactions.
The scope and generality of use of Fe–MgAl/Mo10V2–Ni were explored with
respect to various aryl halides and styrene. All products were obtained in good to
excellent yields under the optimized conditions (Table 2).
Table 1 Optimization of Heck
coupling reaction conditions
Entry
Fe–MgAl/Mo10V2–Ni (g)
Solvent
Yield (%)a
1
2
3
4
5
6
7
–
DMF
DMF
H2O
–
0.01 g
0.01 g
0.01 g
0.02 g
0.03 g
0.04 g
63
8
DMAc
DMF
DMF
DMF
39
71
86
88
Reaction conditions: styrene (4 mmol), bromobenzene (4 mmol),
TBAB (4 mmol), 24 h and at 120 °C
aIsolated yield
123

Collaboration of Ni, polyoxometalates and layered double…
Table 2 Heck reaction of
various aryl halides with styrene
Entry
Aryl halide
Time (h)
9
Yield (%)a, b
86
1
2
3
8
92
74
12
4
12
71
5
6
8
93
68
16
7
9
86
8
9
12
24
79
56
Reaction conditions: styrene (4 mmol), aryl halide (4 mmol), TBAB
(4 mmol) at 120 °C
aIsolated yield
bIdentification of the products was ascertained by NMR analysis
According to the obtained results from Table 2, each aryl halide containing
electron-withdrawing or electron-releasing groups reacts efficiently with styrene for
the generation of the corresponding products. Electronic effects on the aromatic ring
of aryl halides have a significant influence on the reaction efficiency. Those
containing electron-withdrawing groups give the desired products in higher yields
(entries 2 and 5), but aryl halides bearing electron-releasing groups give the targets
in comparatively lower yields (entries 3, 4 and 6). To our surprise, condensation of
chlorobenzene with styrene affords the respective product in a moderate yield (entry
9).
123

E. Rafiee, M. Kahrizi

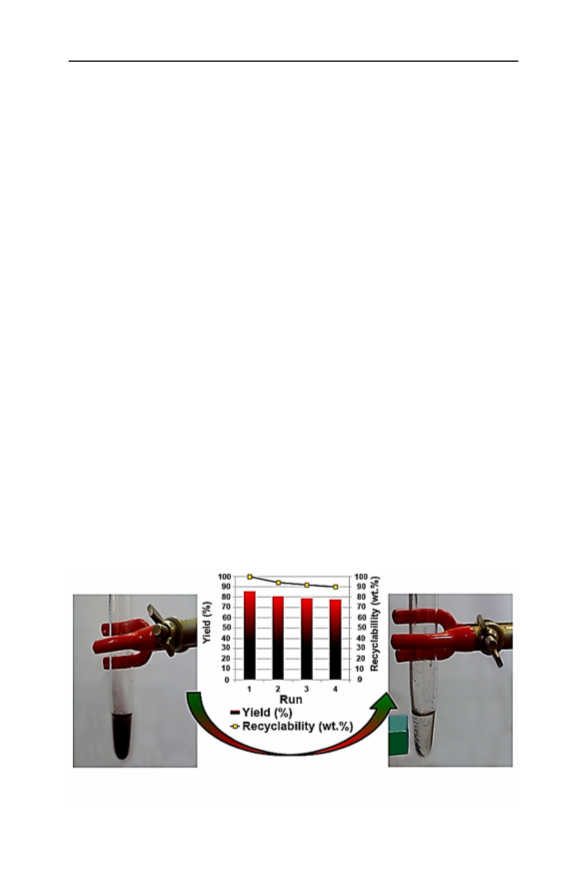

Reusability of Fe–MgAl/Mo10V2–Ni makes the Heck coupling reaction more
economical. After each run, the catalyst was separated using an external magnet,
washed with a suitable solvent and dried, as described in the ‘‘Experimental’’
section. The catalyst revealed a remarkable activity and was reused up to at least
four consecutive cycles without a measurable reduction in the catalytic activity of
the catalyst. In the fourth reaction run of the model reaction, the yield of the
products decreased from 86 (yield of the first run) to 78% (Fig. 13).
Recyclability of the Fe–MgAl/Mo10V2–Ni was evaluated under the optimized
conditions shown in Table 2. At the end of the fourth reaction run, 90 wt% of the
catalyst (compared with the amount of the fresh catalyst used in the first run) was
recovered (Fig. 13). In addition, the structural variations of Fe–MgAl/Mo10V2–Ni
after the recovery process were investigated using XRD, SEM and FT-IR
techniques. According to the obtained results, the structural features of the catalyst
were retained after reuse (Figs. 1e, 2b, 4e). Also, the electrochemical behavior of
the catalyst after the first run was probed using CV and LSV measurements. The
cyclic and linear sweep voltammograms of the recovered Fe–MgAl/Mo10V2–Ni
showed no significant changes in electrocatalytic properties (Figs. 10d, 11a).
A plausible mechanism for the Heck coupling reaction catalyzed by Fe–MgAl/
Mo10V2–Ni is proposed in Scheme 2. In a first step, the C–X bond activation of an
aryl halide (X = Br, Cl) affected by Mo10V2 occurs and then is oxidatively added to
the Ni atoms. Next, Ni forms a p complex with the alkene, and then the alkene
insertion in the Ni–Ar bond takes place. In continuance, a new Ni-alkene p complex
forms in a b-hydride elimination step. Finally, this complex is destroyed and the
desired product released. Also, the Ni(0) species regenerates by reductive
elimination of the Ni(II) compound using the electron transfer ability of Mo10V2
species. In this step, the elimination of HX from the Ni(II) facilitates the proton
affinity of Mo10V2 ions.
According to the electrochemical results, the presence of Mo10V2 facilitates the
electron transfer ability of nickel in the catalytic cycle, both in oxidative addition
and reductive elimination steps. Addenda metals in POMs are present in their
Fig. 13 Reusability of Fe–MgAl/Mo10V2–Ni in the model reaction after 24 h reaction time and catalyst
recovery process
123

Collaboration of Ni, polyoxometalates and layered double…
Scheme 2 Proposed mechanism for the Heck reaction catalyzed by Fe–MgAl/Mo10V2–Ni
highest oxidation state, typically in d0 or d1 electronic configurations. Thus, metal
centers are willing to accept external electrons because of their empty valence shell.
Fully oxidized addenda atoms usually have formal charges between ? 4 and ? 6.
This number could vary by the state of reduction of the molecules. Even though they
are negatively charged, reductions are common. The low-lying empty d-type
orbitals of the addenda atoms can accept numerous electrons with no major changes
in their geometry. These extra electrons, located in d-metal orbitals, are called blue
electrons (Scheme 2, reduced Mo10V2). This phenomenon is easier in POMs
containing Mo and/or V compared with W ones, because these ions are easily
reduced [43]. Further research is under investigation in our laboratory.
Conclusion
In the present study, the first example of Ni immobilized on an Fe–MgAl LDH
structure with Mo10V2 anions for use as an efficient and recyclable catalyst in the
Heck coupling reaction has been reported. The key tool to maximize the
performance of this catalyst is the use of Mo10V2 in the LDH structure. The
presence of Mo10V2 is essential for obtaining high performance of the catalyst; most
probably, it can activate precursors of the reaction and facilitate transfer of the
electrons to or from the Ni species in the catalytic cycle. Characterization of the
123

E. Rafiee, M. Kahrizi
prepared catalyst was investigated by FT-IR, XRD, ICP-AES, TEM, SEM, EDX,
EBSD, XPS, BET, VSM, CV, LSV and zeta potential techniques. LSV and CV
show a synergic effect between Mo10V2 and nickel nanoparticles. Increasing of
ECSA of the catalyst compared to the Fe–Mg–Al–Ni leads to enhancement of the
catalytic activity and proves the synergic effect. Investigation of the magnetic
properties of the catalyst exhibits superparamagnetic behavior, which suggests that
Fe–MgAl/Mo10V2–Ni can easily recover from the reaction media. In addition, the
structure, catalytic activity and electrochemical behavior of the catalyst after the
reaction was probed using SEM, XRD, FT-IR, CV and LSV analyses and were
retained unchanged. Further studies on extending the application of this type of
catalytic system in coupling reactions are ongoing in our laboratory.
Acknowledgement The authors thank the Razi University Research Council and Iran National Science
Foundation (INSF) for support of this work.
References
1. R.F. Heck, J. Nolley Jr, J. Org. Chem. 37, 2320 (1972)
2. I.P. Beletskaya, A.V. Cheprakov, Chem. Rev. 100, 3009 (2000)
¨
3. W.A. Herrmann, C. Brossmer, K. Ofele, C.P. Reisinger, T. Priermeier, M. Beller, H. Fischer, Angew.
Chem. Int. Ed. Eng. 34, 1844 (1995)
4. J. Mo, L. Xu, J. Ruan, S. Liu, J. Xiao, Chem. Commun. 34, 3591 (2006)
5. I.P. Beletskaya, A.V. Cheprakov, in Handbook of Organopalladium Chemistry for Organic Synthesis,
(John Wiley & Sons, Inc., Hoboken, United Stat of America, 2002), p. 2955. https://doi.org/10.1002/
0471212466.ch143.
6. M. Oestreich, The Mizoroki-Heck Reaction (Wiley, New York, 2009)
7. B.-L. Lin, L. Liu, Y. Fu, S.-W. Luo, Q. Chen, Q.-X. Guo, Organometallics 23, 2114 (2004)
8. N. Nowrouzi, M. Zarei, Tetrahedron 71, 7847 (2015)
9. A. Houdayer, R. Schneider, D. Billaud, J. Ghanbaja, J. Lambert, Synth. Met. 151, 165 (2005)
10. S. Ma, H. Wang, K. Gao, F. Zhao, J. Mol. Catal. A Chem. 248, 17 (2006)
11. B.H. Lipshutz, S. Tasler, W. Chrisman, B. Spliethoff, B. Tesche, J. Org. Chem. 68, 1177 (2003)
12. B.M. Bhanage, F. Zhao, M. Shirai, M. Arai, Catal. Lett. 54, 195 (1998)
13. J. Han, Y. Dou, M. Wei, D.G. Evans, X. Duan, Angew. Chem. Int. Ed. 49, 2171 (2010)
14. S. Miyata, Clays Clay Miner. 31, 305 (1983)
15. P. Dutta, M. Puri, Phys. Chem. 93, 376 (1989)
16. L.M. Parker, N.B. Milestone, R.H. Newman, Ind. Eng. Chem. Res. 34, 1196 (1995)
`
17. F. Cavani, F. Trifiro, A. Vaccari, Catal. Today 11, 173 (1991)
18. H. Zhang, R. Qi, D.G. Evans, X. Duan, J. Solid State Chem. 177, 772 (2004)
19. L. Li, Y. Feng, Y. Li, W. Zhao, J. Shi, Angew. Chem. 121, 6002 (2009)
20. Y. Guo, D. Li, C. Hu, Y. Wang, E. Wang, Int. J. Inorg. Mater. 3, 347 (2001)
21. Y. Watanabe, K. Yamamoto, T. Tatsumi, J. Mol. Catal. A Chem. 145, 281 (1999)
22. E. Rafiee, M. Kahrizi, J. Mol. Liq. 218, 625 (2016)
23. E. Rafiee, M. Kahrizi, Res. Chem. Intermed. 42, 1125 (2016)
24. E. Rafiee, M. Kahrizi, M. Joshaghani, P.G.-S. Abadi, Res. Chem. Intermed. 42, 5573 (2016)
25. V. Kogan, Z. Aizenshtat, R. Popovitz-Biro, R. Neumann, Org. Lett. 4, 3529 (2002)
26. A. Corma, S. Iborra, F. Llabres i Xamena, R. Monton, J. Calvino, C. Prestipino, J. Phys. Chem. C
114, 8828 (2010)
27. S. Berardi, M. Carraro, M. Iglesias, A. Sartorel, G. Scorrano, M. Albrecht, M. Bonchio, Chem. Eur. J.
16, 10662 (2010)
28. M.M. Lorion, B. Matt, S. Alves, A. Proust, G. Poli, J. Oble, G. Izzet, Chem. Eur. J. 19, 12607 (2013)
29. E. Rafiee, M. Kahrizi, Res. Chem. Intermed. 43, 6665 (2017)
30. E. Rafiee, A. Ataei, S. Nadri, M. Joshaghani, S. Eavani, Inorg. Chim. Acta 409, 302 (2014)
123

Collaboration of Ni, polyoxometalates and layered double…
31. M. Yamaura, R. Camilo, L. Sampaio, M. Macedo, M. Nakamura, H. Toma, J. Magn. Magn. Mater.
279, 210 (2004)
32. G. Chen, Y. Zhou, X. Wang, J. Li, S. Xue, Y. Liu, Q. Wang, J. Wang, Sci. Rep. 5, 11236 (2015)
33. M. Muhler, R. Schlo¨gl, G. Ertl, J. Catal. 138, 413 (1992)
34. D.D. Hawn, B.M. DeKoven, Surf. Interface Anal. 10, 63 (1987)
35. M.V. Vasylyev, R. Neumann, J. Am. Chem. Soc. 126, 884 (2004)
36. G. Chen, Y. Zhou, P. Zhao, Z. Long, J. Wang, ChemPlusChem 78, 561 (2013)
37. G. Chen, Y. Zhou, Z. Long, X. Wang, J. Li, J. Wang, A.C.S. Appl, Mater. Interfaces 6, 4438 (2014)
38. S. Uchida, S. Hikichi, T. Akatsuka, T. Tanaka, R. Kawamoto, A. Lesbani, Y. Nakagawa, K. Uehara,
N. Mizuno, Chem. Mater. 19, 4694 (2007)
39. A.C. Kalita, C. Roch-Marchal, R. Murugavel, Dalton Trans. 42, 9755 (2013)
40. C. Gao, G. Chen, X. Wang, J. Li, Y. Zhou, J. Wang, Chem. Commun. 51, 4969 (2015)
41. K. Inumaru, Catal. Surv. Asia 10, 151 (2006)
42. Y. Jia, S. Zhao, Y.-F. Song, Appl. Catal. A Gen. 487, 172 (2014)
43. I.K. Song, M.A. Barteau, J. Mol. Catal. A Chem. 212, 229 (2004)
123
