6
8
Y.-H. Chang et al. / Journal of Molecular Catalysis A: Chemical 412 (2016) 67–77
is tunable via adjusting the ratio of Fe2+/Fe3+ in the incorporated
iron oxide. By elimination of hydrogen peroxide in the photocat-
alytic reaction and control of the selectivity in photocatalytic route,
the novel prepared FIT is a practical solution for the treatment of
environmental organic pollutants.
FIT-2–24 h, Fig. 1(b), the heterogeneous iron oxide domains are
clearly incorporated on the surface of TiO2 nanoparticle. The
selected area electron diffraction (SAED) of FIT-2–24 h is a ring
pattern, meaning that FIT-2–24 h has a short-range crystalline
structure (on the nano-scale) [11,12]. In the energy dispersive X-
ray spectrum (EDX) of TEM for Fig. 1(a), two Ti peaks, (4.51 keV
(
7
K␣), 4.93 keV (K)), and three Fe peaks (0.7 keV (L␣), 6.39 keV (K␣),
.06 keV (K)) are identified in FIT-1–24 h [14,15]. The gross atomic
2
. Experimental
ratio of Fe/Ti is < 5% in FIT-1–24 h. The same characterization pro-
cedure is employed for FIT-2 (Fe/Ti < 10%) and FIT-3 (Fe/Ti < 25%).
(
a) Chemicals
Iron(III) acetylacetonate (Fe(C5H7O ) , IAA) was obtained from
2
3
(
II) Powder XRD and Raman spectra
Sigma–Aldrich, Titanium(IV) butoxide (TBO) were purchased from
Fluka. Tetra-n-propylammonium bromide (TPAB) was got from Alfa
Aesar. Reagent-grade ethylene glycol (EG, 99% Showa) was used
without any further purification. HPLC grade methanol and reagent
grade ethanol were obtained from Sigma–Aldrich, and were used
as supplied.
The gradual changes in the composition and the variations in
crystallinity of FIT are monitored by powder X-ray diffraction (P-
XRD). The FIT samples used for P-XRD are collected at the 24th h.
These samples are denoted as FIT-1, FIT-2, and FIT-3 for clarity
purpose.
◦
The P-XRD of FIT-1 is given in Fig. 2(a). In the region of 10–80
(
b) Synthesis and characterization of FIT
(
(
two theta), nine peaks match the (1 0 1), (0 0 4), (2 0 0), (1 0 5),
2 1 1), (2 0 4), (1 1 6), (2 2 0), and (2 1 5) of anatase TiO2 [16a]. In
The FIT photocatalyst was synthesized by the reaction of IAA,
addition, one peak matches (1 2 1) of brookite TiO2 [16b]. The
diffraction pattern shows that the main domain of FIT-1–24 h
remains anatase TiO2 structure. On the other hand, the iron oxide
TBO, and template TPAB in EG. A typical synthesis route for mole
ratio of IAA:TBO = 0.1:1 is described as follows. TPAB 2.0 g, a lim-
iting reagent, was mixed with 30 mL EG in a tri-neck bottle. The
mixture was stirred for 20 min to dissolve the template TPAB com-
pletely in EG. The starting reagents IAA (0.207 g) was added into the
EG/TPAB solvent. The temperature of solution was raised slowly
(Fe O ) matrix is not evident in the P-XRD of FIT-1. A similar result
3 4
of P-XRD pattern is observed in the P-XRD of FIT-2, and FIT-3.
The Raman spectrum is employed to investigate the incorpora-
tion behavior of iron oxide in TiO . Two samples, FIT-1 and FIT-3,
are selected for Raman study. In FIT-1, six peaks, 144 cm (Eg),
1
6
amount of iron oxide in FIT-1 is too little to be detected in Raman
spectrum. In FIT-3, one new peak, 281 cm is observed, which is
assigned to E1g of ␣-Fe O , Fig. 2(c) [18]. The six TiO anatase peaks
do not show any obvious shift in locations. The TiO anatase domain
2
◦
from room temperature to refluxing temperature (180–190 C)
−
1
with a standard stirring speed of 250 rpm. After 20 min, the color
of solution turned to clear. TBO (2.0 mL) was added into the clear
solution. The color of the mixture was slowly changed from clear
to orange–brown after 20 min refluxing. The orange–brown color
remained for more than 48 h. The first aliquot withdrawal (3 mL)
was taken at the 4th h. Each withdraw was washed twice with
0 mL of ethanol, and then transferred in 10 mL DI water to remove
template residue. The final orange–brown precipitate was dried as
a powder for further investigation.
− −1 −1 −1
1
97 cm (Eg), 399 cm (B1g), 515 cm (A1g), 519 cm (B1g), and
−
1
39 cm (Eg), match the TiO2 anatase structure, Fig. 2(b) [17]. The
−
1
2
3
2
2
1
obviously remains in FIT. The results agree with the data of P-XRD.
(III) X-ray photo-emission spectra (XPS)
3
. Results
The quantitative atomic ratios of Fe/Ti for FIT-1, FIT-2, and
FIT-3 composite photocatalysts are measured by X-ray photo-
emission spectra ( XPS). The region-wise XPS scan of FIT-1 is
provided in Fig. 3, from 750 eV to 440 eV. Following a correction
for sample charging, the binding energy (BE) values for TiO2 are Ti
3
.1. Characterization of FIT nanoparticles
The different amount of atomic ration of Fe/Ti from FIT-1
(
Fe/Ti < 5%), FIT-2, (5% < Fe/Ti < 15%), to (FIT-3, 15% < Fe/Ti < 30%)
2
3
s = 566.0 eV, Ti 2p1/2 = 465 eV, Ti 2p3/2 = 458.8 eV, Ti 3s = 63.1 eV, Ti
p = 37.8 eV, and O 1s = 529.9 eV, O 2s = 23.0 eV. The BE values for
were prepared for the study. The rate of growth of FIT nanocrystal-
lites is highly dependent on the competition between titania and
iron oxide crystalline seeds [12–15]. The partial positive charge on
titanium (+0.63) in TBO is higher than that of iron (+0.46) in IAA
iron oxide are Fe 2p1/2 = 724 eV, and Fe 2p3/2 = 708.8 eV. These data
are in agreement with the values reported in the literature [19]. The
elemental microanalysis data show that the atomic ratio (Fe/Ti) of
Fe (1.13%)/Ti (31.97%) in FIT-1 is 3.53%. In FIT-2 samples, the Fe/Ti
ratio of Fe (2.57%)/Ti (31.18%) is 8.24%. In the FIT-3 samples, the
atomic ratio of Fe (6.18%)/Ti (29.76%) is 20.79%.
The commercial software, XPSPEAK 4.0, was acquired for the
peak deconvolution. The selected peak was Fe 2p3/2 of XPS mea-
sured for FIT. The Shirley baseline subtraction method was applied
[
11,12]. Therefore, the nucleophilic attack between EG and TBO
is earlier than that of EG and IAA. In addition, because the TBO
has the advantage in concentration, the growing speed of titania
crystallites is much larger than that of iron clusters.
(
I) TEM and EDX of TEM
before the peak deconvolution. The blow-up section for Fe 2p3/2
,
The TEM and high-resolution TEM (HR-TEM) images of FIT sam-
from 705 eV to 718 eV, has a broad band of interest. Theoretically,
each component peak corresponds to a typical binding energy.
ples were used to study the crystallinity and detailed composition
of these nanoparticles. A typical TEM image of FIT-1 collected at

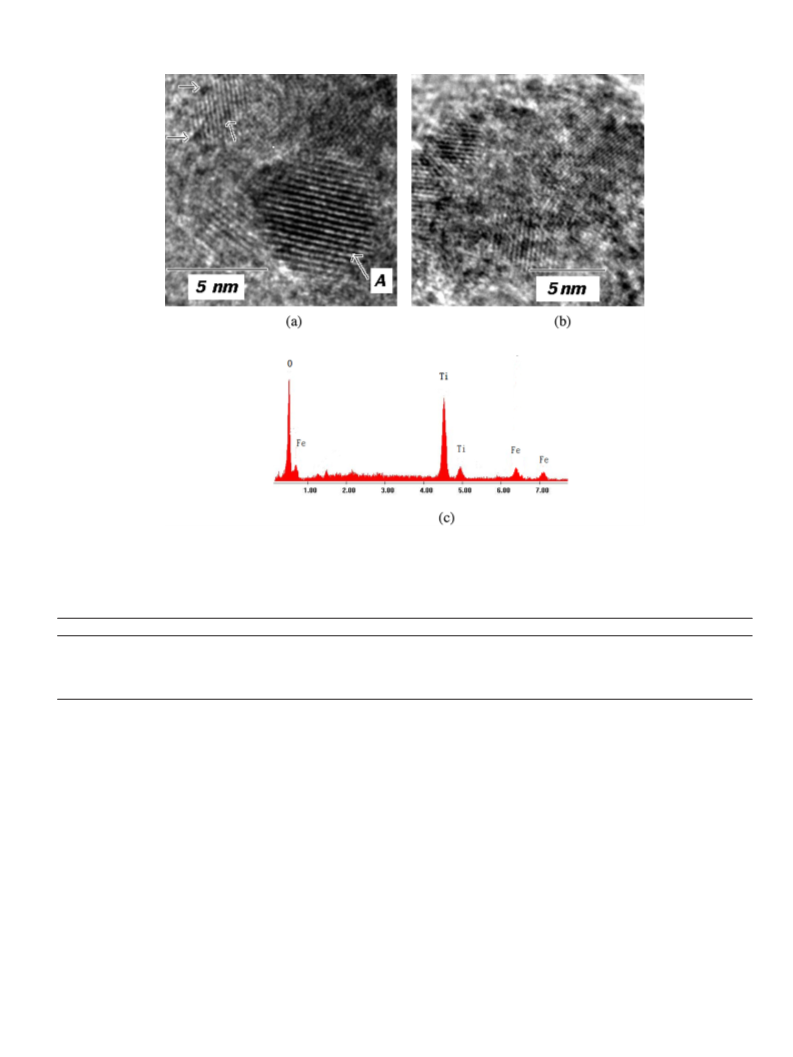

the 24th h, denoted as FIT-1–24 h, is given in Fig. 1(a). The prod-
After the deconvolution work, an iron 2p3 peak was judged to
/2
have two component peaks, P1 (Fe3+), P2 (Fe ) and two satellite
2+
◦
peaks, S1 and S2, to reach the minimum X2 value, given in Fig. 4
uct is calcinated at 400 C for 1 h to remove EG. The size of iron
3+
oxide observed in this micrograph is smaller than 0.6 nm, marked
by short arrows at upper left corner of Fig. 1(a). The titania part is
well grown to be crystalline and the diameter is larger than 5 nm.
The d-spacing of lattice fringes (0.305 nm), marked by A, matches
[13–15,21,22]. The binding energy assigned for peak P1 (Fe ) is
around 710.33–710.70 eV. For peak P2 (Fe2+), the binding energy
is in the range of 708.47–708.80 eV. The atomic ratio of Fe2+/Fe
can be calculated precisely. The detail deconvoluted data and theX2
values are provided in Table 1.
3+
the (1 0 1) crystal phases of anatase TiO . In the TEM image for
2
