Radical-Type Reactivity of Metalla[1.1.1]propellanes of Group 14:
Syntheses, Structures, and Reduction Chemistry of Transition
Metal-Terminated Bicyclo[1.1.1]pentastannanes
Dominik Nied, Eberhard Matern, Helga Berberich, Marco Neumaier, and Frank Breher*
Institute of Inorganic Chemistry, Karlsruhe Institute of Technology (KIT), Engesserstrasse 15,
76131 Karlsruhe, Germany
Received August 11, 2010
Two selected metalla[1.1.1]propellanes of group 14, Sn5Dep6 (1) and Ge5Mes6 (2) (Dep = 2,6-
Et2C6H3, Mes = 2,4,6-Me3C6H2), were reacted with [FeCp(CO)2]2 and [RuCp(CO)2]2. While 2 did
not show any reaction with [FeCp(CO)2]2 or did not lead to any isolable product in the case of
1
[RuCp(CO)2]2, the tin propellane 1 quantitatively (monitored by H NMR) afforded the first
transition metal-terminated bicyclo[1.1.1]pentastannanes, [{MCp(CO)2}2{μ-Sn5Dep6}] (M=Fe (3),
Ru=(4)), in 68% (3) and 66% (4) isolated yield. This behavior confirms the radical-type reactivity of
metalla[1.1.1]propellanes, in this case 1. The title compounds 3 and 4 have been characterized in detail
using various methods. X-ray structure analyses corroborated that the two ligand-free bridgehead tin
atoms within the Sn5 scaffold are bonded to the transition metal fragments. Electrochemical studies
revealed the reduction chemistry of 3 and 4 in THF solutions to be very interesting. A detailed
preparative and electrochemical study, including the isolation and characterization of the mono-
substituted cobaltocenium salt [CoCp*2]þ[{FeCp(CO)2}{Sn5Dep6}]- (5), elucidated a complex
redox cycle consisting of a cascade of bond-breaking and bond-making processes.
Introduction
all-carbon [1.1.1]propellane5 has attracted renewed interest,
from both experimentalists6 and theoreticians.7 For the
heavier congeners of carbon, however, the situation is even
more complicated.3,8 They were shown to be fundamentally
different from their carbon counterparts.3,9 Several quantum
chemical calculations4 on these heavy metalla[1.1.1]-
propellanes [E5R6] (E = Si, Ge, Sn; Chart 1) predicted some
biradical character of the ground state and that “it would be
misleading to represent the structure by drawing a line
between the bridgehead atoms”.4a Clearly, the inherent
singlet ground state of these species points toward noticeable
Propellane molecules1 intrigue chemists for a number of
reasons, not at least because their core structures resemble
“eponymous macroscopic propellers”.2 In particular, the
question about the interaction between the bridgehead
atoms in propellanes has been extensively discussed in the
literature.3,4 All efforts are mainly directed toward clarifying
fundamental aspects of the nature of the interaction
between the “inverted” bridgehead atoms. Even the simplest
Eb Eb interactions, but it appears that this interaction is
*To whom correspondence should be addressed. Fax: þ49 721 608 70
21. Tel: þ49 721 608 48 55. E-mail: breher@kit.de.
3 3 3
perturbed to such an extent (“stretched bonds”) that quantum
chemistry provides evidence for some biradicaloid10 charac-
teristics. This nicely illustrates the continuous nature11 of
the conversion of an ordinary closed-shell molecule into
a biradicaloid and eventually into a “perfect” biradical12 by
(1) Wiberg, K. B. Chem. Rev. 1989, 89, 975.
(2) Yeston, J. Science 2009, 323, 563.
(3) Breher, F. Coord. Chem. Rev. 2007, 251, 1007.
(4) (a) Schleyer, P.; von, R.; Janoschek, R. Angew. Chem. 1987, 99,
1312; Angew. Chem., Int. Ed. 1987, 26, 1267. (b) Schoeller, W. W.;
Dabisch, T.; Busch, T. Inorg. Chem. 1987, 26, 4383. (c) Nagase, S.; Kudo,
T. Organometallics 1987, 6, 2456. (d) Nagase, S.; Kudo, T. Organometallics
1988, 7, 2534. (e) Nagase, S. Polyhedron 1991, 10, 1299. (f) Gordon, M. S.;
Nguyen, K. A.; Carroll, M. T. Polyhedron 1991, 10, 1247. (g) Tsumuraya, T.;
Batcheller, S. A.; Masamune, S. Angew. Chem. 1991, 103, 916; Angew.
Chem., Int. Ed. 1991, 30, 902. (h) Gallego-Planas, N.; Whitehead, M. A.
J. Mol. Struct. (THEOCHEM) 1992, 260, 419. (i) Gallego-Planas, N.;
Whitehead, M. A. J. Mol. Struct. (THEOCHEM) 1997, 391, 51. (j) Holder,
A. J.; Earley, C. W. J. Mol. Struct. (THEOCHEM) 1993, 281, 131.
(5) (a) Wiberg, K. B.; Walker, F. H. J. Am. Chem. Soc. 1982, 104,
5239. (b) Semmler, K.; Szeimies, G.; Belzner, J. J. Am. Chem. Soc. 1985,
107, 6410. (c) Levin, M. D.; Kaszynski, P.; Michl, J. Chem. Rev. 2000, 100,
169.
€
(8) (a) Grutzmacher, H.; Breher, F. Angew. Chem. 2002, 114, 4178;
Angew. Chem., Int. Ed. 2002, 41, 4006. (b) Karni, M.; Apeloig, Y.; Kapp,
J.; Schleyer, P. von, R. In The Chemistry of Organic Silicon Compounds,
Vol. 3; Rappoport, Z.; Apeloig, Y., Eds.; Wiley: Chichester, 2001.
(9) (a) Power, P. P. Nature 2010, 463, 171. (b) Chivers, T.; Konu, J.
Comm. Inorg. Chem. 2009, 30, 131.
(10) “A biradicaloid is a closed shell species derived from a singlet
biradical by a weak interaction between the radical centers.” Dewar,
M. J. S.; Healy, E. F. Chem. Phys. Lett. 1987, 141, 521.
ꢀ ꢁ
ꢁ
ꢁ
(11) Bonacic-Koutecky, V.; Koutecky, J.; Michl, J. Angew. Chem.
1987, 99, 216.; Angew. Chem., Int. Ed. Engl. 1987, 26, 170.
€
(6) (a) Messerschmidt, M.; Scheins, S.; Grubert, L.; Patzel, M.;
(12) (a) Borden, W. T. In Enzyclopedia of Computational Chemistry;
Schleyer, P. v. R., Ed.; Wiley: New York, 1998; p 708. (b) Biradicals; Borden,
W. T., Ed.; Wiley: New York, 1982. (c) Berson, J. A. Acc. Chem. Res. 1997,
30, 238. (d) Dougherty, D. A. Acc. Chem. Res. 1991, 24, 88. (e) Salem, L.;
Rowland, C. Angew. Chem. 1972, 84, 86; Angew. Chem., Int. Ed. 1972, 11,
92; (f) Borden, W. T.; Iwamura, H.; Berson, J. A. Acc. Chem. Res. 1994,
27, 109. (g) Rajca, A. Chem. Rev. 1994, 94, 871.
Szeimies, G.; Paulmann, C.; Luger, P. Angew. Chem. 2005, 117, 3993;
Angew. Chem., Int. Ed. 2005, 44, 3925. (b) Coppens, P. Angew. Chem.
2005, 117, 6970; Angew. Chem., Int. Ed. 2005, 44, 6810.
(7) (a) Wu, W.; Gu, J.; Song, J.; Shaik, S.; Hiberty, P. C. Angew.
Chem. 2009, 121, 1435; Angew. Chem., Int. Ed. 2009, 48, 1407. (b) Shaik,
S.; Danovich, D.; Wu, W.; Hiberty, P. C. Nat. Chem. 2009, 1, 443.
r
pubs.acs.org/Organometallics
Published on Web 10/11/2010
2010 American Chemical Society

Article
Organometallics, Vol. 29, No. 22, 2010 6029

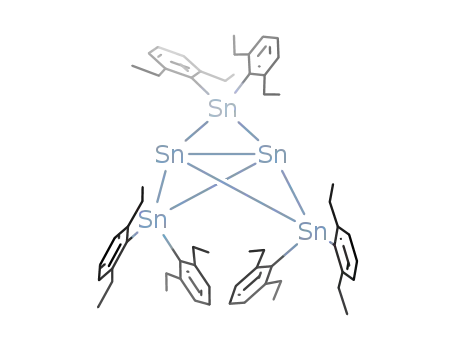

Chart 1
