O-carboxymethyl chitosan supported heterogeneous palladium and Ni catalysts for heck reaction

Article abstract of DOI:10.3390/molecules22010150

Two polymer catalysts (Pd-OCMCS and Ni-OCMCS) with good reusability were synthesized by coordinating Pd and Ni onto O-carboxymethyl chitosan (OCMCS). The chemical structure and thermal stability of prepared catalysts were determined by Fourier transform infrared (FT-IR) spectra, Energy Dispersive Spectrometer (EDS)analysis, X-ray diffraction (XRD), and thermogravimetric analyzer (TG-DTG), and the analysis results showed that the Pd and Ni ions coordinated onto the OCMCS and formed a ligand with the -COOH group, amino groups, and -OH group on the OCMCS, and the EDS and Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES) analysis results showed that the loading amounts of Pd and Ni were approximately 8.3% and 8.9%, respectively. In the Heck reaction between aryl halides and n-butyl acrylate catalyzed by the prepared catalyst, the test results showed that the product yield followed the order of aryl iodide > aryl bromide > aryl chloride. Additionally, the product yield for the aryl iodide and aryl bromide could reach up to 99% and 96%, respectively. Moreover, the electron-withdrawing and electron-donating property of the group on the aryl also affected the product yield, and the product yield for aryl halides with electron-withdrawing group p-NO₂, p-CH₃CO, and p-CHO was higher than that with electron-donating group p-CH₃.

Full text of DOI:10.3390/molecules22010150

molecules
Article
O-Carboxymethyl Chitosan Supported
Heterogeneous Palladium and Ni Catalysts for
Heck Reaction
Dongjun Lv 1,2,* and Mingjie Zhang 1,
*
1
Department of Chemistry, School of Science, Tianjin University, Tianjin 300354, China
Shandong YuHong New Pigment Co., Ltd., Dezhou 253000, China
Correspondence: lvdongjun@tju.edu.cn (D.L.); mjzhangtju@163.com (M.Z.);
Tel.: +86-534-2342-259 (D.L.); +86-133-1207-6671 (M.Z.)
2
*
Academic Editor: Derek J. McPhee
Received: 23 December 2016; Accepted: 12 January 2017; Published: 18 January 2017
Abstract: Two polymer catalysts (Pd-OCMCS and Ni-OCMCS) with good reusability were
synthesized by coordinating Pd and Ni onto O-carboxymethyl chitosan (OCMCS). The chemical
structure and thermal stability of prepared catalysts were determined by Fourier transform infrared
(FT-IR) spectra, Energy Dispersive Spectrometer (EDS)analysis, X-ray diffraction (XRD), and
thermogravimetric analyzer (TG-DTG), and the analysis results showed that the Pd and Ni ions
coordinated onto the OCMCS and formed a ligand with the –COOH group, amino groups, and –OH
group on the OCMCS, and the EDS and Inductively Coupled Plasma Optical Emission Spectrometry
(ICP-OES) analysis results showed that the loading amounts of Pd and Ni were approximately 8.3%
and 8.9%, respectively. In the Heck reaction between aryl halides and n-butyl acrylate catalyzed
by the prepared catalyst, the test results showed that the product yield followed the order of aryl
iodide > aryl bromide > aryl chloride. Additionally, the product yield for the aryl iodide and aryl
bromide could reach up to 99% and 96%, respectively. Moreover, the electron-withdrawing and
electron-donating property of the group on the aryl also affected the product yield, and the product
yield for aryl halides with electron-withdrawing group p-NO2, p-CH3CO, and p-CHO was higher
than that with electron-donating group p-CH3.
Keywords: O-carboxymethyl chitosan; biopolymer-supported catalyst; Pd-OCMCS; Ni-OCMCS;
heck reaction
1. Introduction
Heck cross-coupling is an important method for carbon–carbon bond synthesis, and has greatly
attracted more and more attention for its wide application in the synthesis of dyes, medicines,
natural products, pesticides, perfumes, cinnamic acid derivatives, and new polymer materials [
The palladium-catalyzed Mizoroki–Heck cross-coupling reaction represents one of the most valuable
methods for carbon–carbon bond formation in organic synthesis [ ]. However, its usage is limited in
1–5].
6,7
homogeneous reaction systems due to the difficulties in the separation of the product and catalyst from
the reaction mixture and the recycling of catalyst. In order to overcome the aforementioned drawbacks,
the heterogenization of catalysts has been studied extensively [4,8,9].
Bio-based polymers have attracted worldwide attention because of their potential biomedical
applications, and have served as catalyst carriers in chemical reactions [10
derivatives have highly efficient polymer ligands due to their good metal binding properties [13
–
12]. Chitosan and its
14].
,
Khaled D. Khalil et al. [15] synthesized chitosan-grafted-poly(4-vinylpyridine) beads for Michael
additions, and it was a recyclable, environmentally friendly biocatalyst. Hardy et al. [16] synthesized
chitosan Schiff bases, prepared a Pd(II) complex, and investigated its catalytic activity in Heck and
Molecules 2017, 22, 150; doi:10.3390/molecules22010150
www.mdpi.com/journal/molecules

Molecules 2017, 22, 150
2 of 10
Suzuki reactions. Talat Baran et al. [17] prepared Cu(II) and Pd(II) complexes with water soluble
O-carboxymethyl chitosan (OCMCS) Schiff bases, and they assumed that these biopolymer-based Cu(II)
and Pd(II) complexes could be widely used in different fields, such as catalytic activity improvement,
DNA cleaving, and antibacterial and anticancer research.
In the C–C bond-forming reactions, palladium-based catalysts are the optimal choice due to their
high catalytic activity. However, the application of palladium-based catalysts is limited because of
their high cost, and people’s attention has turned to nickel-based catalysts with low cost. In some
coupling reactions cases, nickel-based catalysts showed higher catalytic activity than palladium-based
catalysts [18,19]. Currently, functional chitosan-based materials containing nickel have aroused high
interest in the fields of organic catalysis [20]. A.S. Portnyagin et al. [21] investigated Ni2+ complexes
with chitosan and its N-heterocyclic derivatives with density functional theory (DFT), and they found
that the nitrogen atoms in chitosan and its N-heterocyclic derivatives played a governing role in Ni2+
binding. Antony et al. [22] fabricated a new class of bidentate (N, O) Schiff base ligand (L) derived
from the functional biopolymer (chitosan) and 1,2-diphenylethanedione in a 1:1 mole ratio, and they
utilized the ligand to synthesize new first-row transition metal complexes of Cu(II), Co(II), and Ni(II).
Herein, we prepared two polymer catalysts by coordinating Pd and Ni onto O-carboxymethyl
chitosan (OCMCS). The chemical structure and thermal stability of the prepared catalysts were
determined by Fourier transform infrared (FT-IR) spectra, X-ray diffraction (XRD), Energy Dispersive
Spectrometer (EDS) analysis, and thermogravimetric analyzer (TG-DTG), and the catalytic activity of
the prepared catalyst in Heck reaction between aryl halides and n-butyl acrylate was tested.
2. Results
2.1. FT-IR Spectra
FT-IR spectra were used to determine which functional groups in OCMCS coordinated with the
two metals, palladium and nickel, and the results are shown in Figure 1.

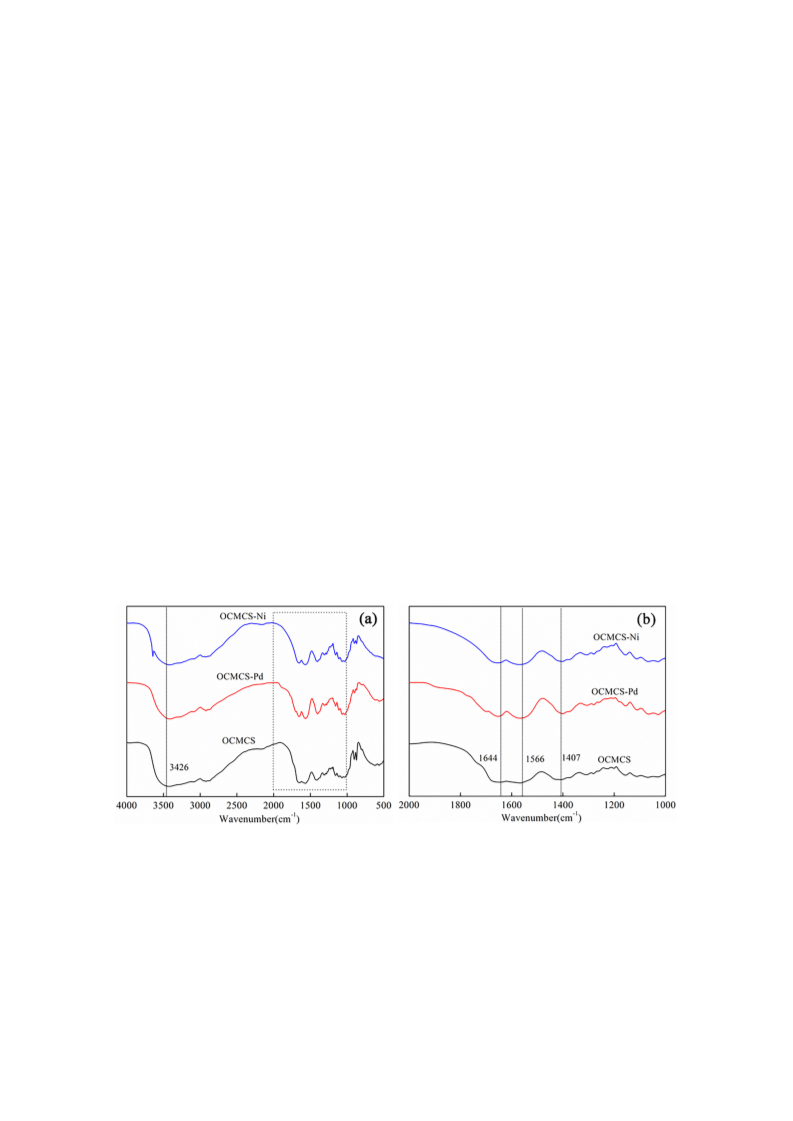

Figure 1. FT-IR spectra of O-carboxymethyl chitosan (OCMCS, black line), OCMCS-Pd (red line),
−1
OCMCS-Ni (blue line) in the wavenumber range of 500–4000 cm
1000–2000 cm (b).
(a
); and the wavenumber range of
−1
−1
In the curve of OCMCS, the characteristic adsorption peaks at 1407 and 1644 cm correspond to
the symmetric and asymmetrical stretching bands of carboxylate anion, and the second adsorption
peak (1644 cm−1) overlaps with the N–H bend. In order to investigate the interaction between Pd
and Ni ions and OCMCS, infrared spectroscopy in the wavenumber range 1000–2000 cm−1 was
observed on a large scale, and the results are shown in Figure 1b. It could be seen that in the spectrum
of OCMCS-Pd and OCMCS-Ni, the asymmetric C=O stretching vibration peak shifted to 1654 and

Molecules 2017, 22, 150
3 of 10
1650 cm−1, respectively, and C–O symmetric stretching absorption peak were shifted to 1401 and
1403 cm−1, respectively. Thus, it could be concluded that in OCMCS-Pd and OCMCS-Ni, the Pd and
Ni ions bind to the carboxylate groups of OCMCS.
Similarly, the characteristic peaks at 1566 cm−−11 belonged to the stretching vibration abs−o1rption
peak of N–H in the –NH2 group shifted to 1561 cm in the curve of OCMCS-Pd and 1568 cm in the
curve of OCMCS-Ni, and the characteristic peaks at 3426 cm−1 belonged to the stretching vibration
absorption peak of O–H in the –OH group shifted to 3415 cm−1 in the curve of OCMCS-Pd and
3418 cm−1 in the curve of OCMCS-Ni. As stated above, in the prepared OCMCS-Pd and OCMCS-Ni
catalysts, the palladium and nickel ions also bind to the –NH2 and –OH groups in OCMCS.
2.2. Thermal Analysis
Thermal stability of the prepared OCMCS-Pd and OCMCS-Ni catalyst were tested by TG–DTG
measurements under Ar atmosphere, and the results are shown in Figure 2. It can be seen from the
DTG curves of OCMCS-Pd and OCMCS-Ni that their exothermic peaks were recorded at 290 ◦C and
293 ◦C, respectively, suggesting that the prepared catalyst showed a high thermally stability, and that
they could be utilized in the C–C coupling reactions [17].

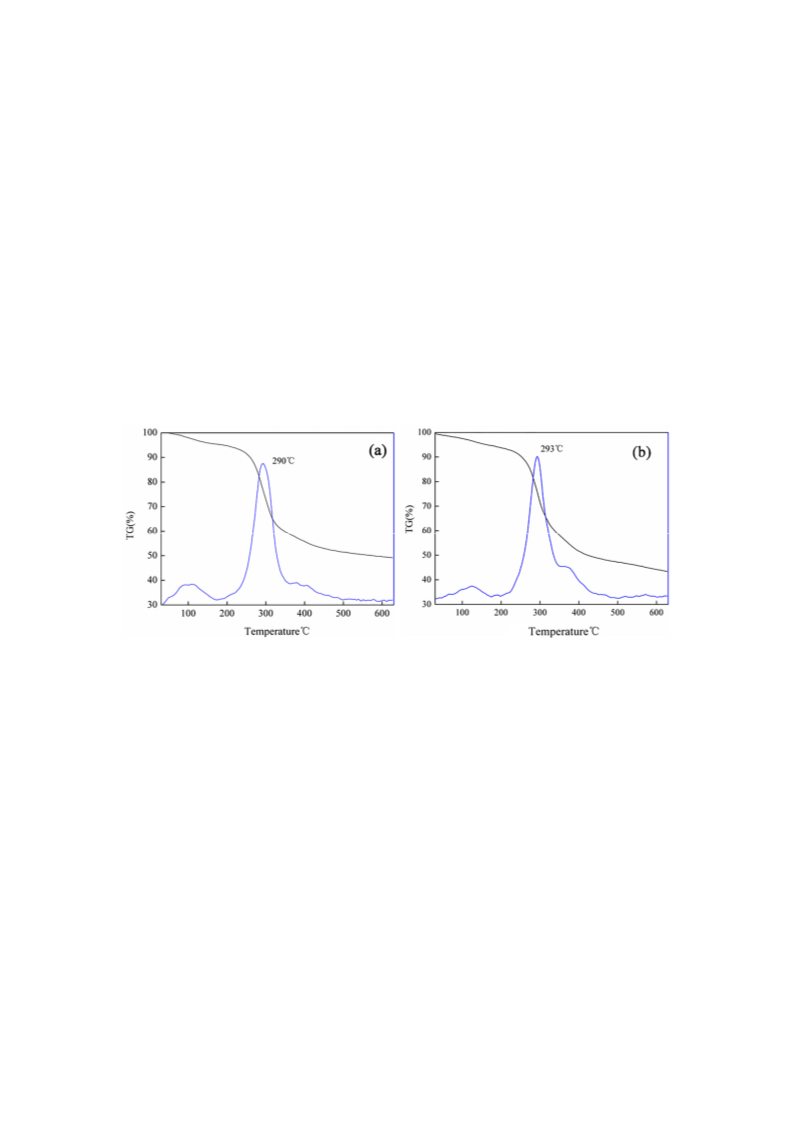

Figure 2. TG/DTG spectra of (a) OCMCS-Pd and (b) OCMCS-Ni.
2.3. XRD Analysis
The prepared catalyst and OCMCS were characterized by X-ray diffraction (XRD), and the results
are shown in Figure 3. An obvious diffraction peak at 2θ
= 20.1◦ was observed in the OCMCS
pattern. By comparison, it could be seen that, in the prepared catalyst, the diffraction peak of OCMCS
showed a decrease in its diffraction intensity as well as a peak broadening phenomenon, caused by the
formation of coordinated ligands between OCMCS and palladium/nickel ions mentioned in the FT-IR
analysis [22
–
24]. In addition, in the XRD patterns of the prepared catalyst, new diffraction p◦eaks at
◦
◦
2θ = 28.4◦, 40.5 in the pattern of Pd-OCMCS (Figure 3b) and new diffraction peaks at 2
θ = 33.2 , 38.1
in the pattern of Ni-OCMCS (Figure 3c) were observed, implying that the Pd and Ni ions exist in a
crystalline state on the OCMCS [25].
Moreover, according to the following equation, it could be calculated that the OCMCS-Ni catalyst
showed higher crystallinity values than the OCMCS-Pd catalyst [26].
Crystalline index (%) = [(I110 − Iam)/I110] × 100
In which the I110 was the maximum intensity at 20◦ and Iam was the intensity of amorphous
diffraction at 16◦.

Molecules 2017, 22, 150
4 of 10

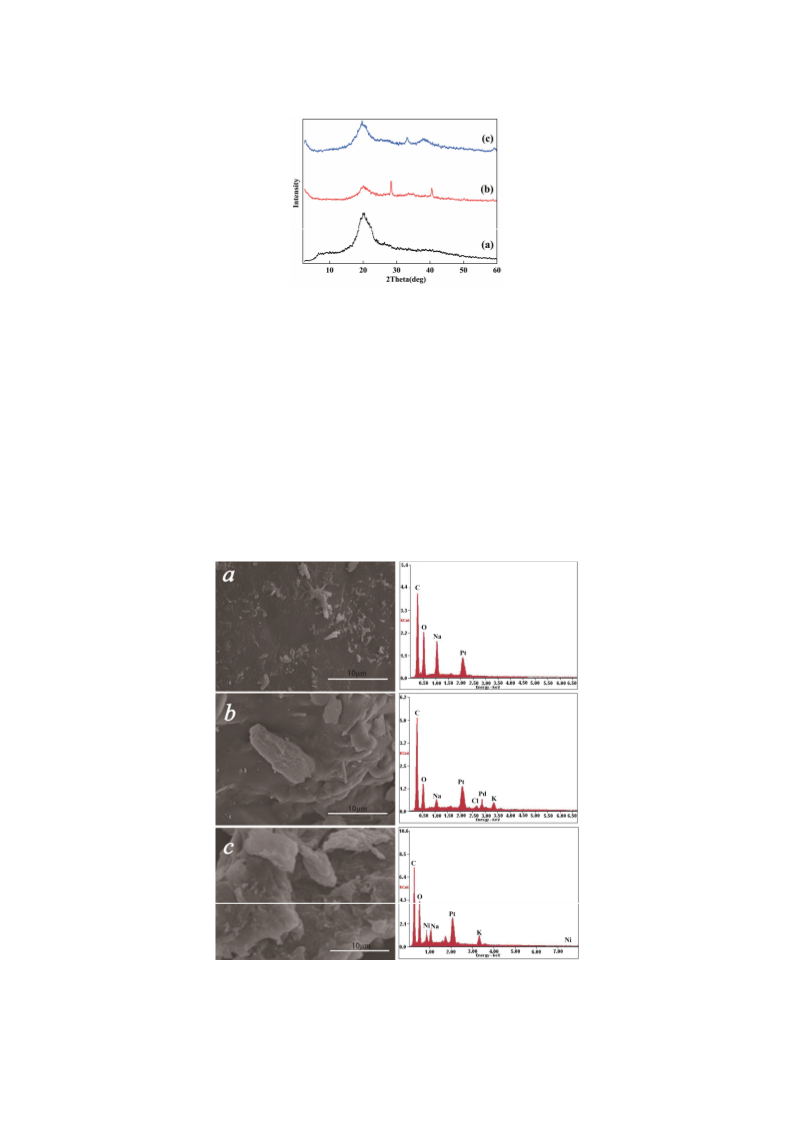

Figure 3. Powder X-ray diffraction diagrams of (a) OCMCS; (b) OCMCS-Pd; and (c) OCMCS-Ni.
2.4. SEM–EDS Analysis
The morphology of OCMCS and prepared catalyst were characterized by SEM, and the results are
shown in Figure 4. It could be found that the morphologies and particle size of prepared OCMCS-Pd
and OCMCS-Ni catalysts were completely different from those of OCMCS, and the prepared catalysts
had more regular morphologies. As mentioned in the FT-IR analysis results, the Pd and Ni ions
bind to OCMCS through the –COOH, –NH2, and –OH groups, which resulted in a change of the
morphology of OCMCS [27]. The EDS spectra were recorded in order to further confirm the presence
of the Pd and Ni ions in the prepared catalyst, and it was obvious that the presence of the Pd element
in OCMCS-Pd and the Ni element in OCMCS-Ni was determined. Additionally, their loading amount
was determined using ICP-OES spectra, and the results showed that the loading amounts of Pd and
Ni were approximately 8.3% and 8.9%, respectively.
Figure 4. Scanning electron microscopy pictures and SEM/EDS spectra of (
(c) OCMCS-Ni.
a) OCMCS; (b) OCMCS-Pd;

Molecules 2017, 22, 150
5 of 10
2.5. Catalytic Studies
2.5.1. Heck Cross-Coupling Reactions
The catalytic activities of the prepared OCMCS-Pd and OCMCS-Ni catalysts were tested by the
Heck cross-coupling reactions between various substituted aryl halides and n-butyl acrylate, and the
results are shown in Tables 1 and 2. For aryl halides in which the ring was substituted by different
halogens, the activity of the halides in reactions catalyzed by OCMCS-Pd and OCMCS-Ni followed the
order of iodide > bromide > chloride.
In reactions with aryl iodides and aryl bromides, product yields of up to 99% and 96%, respectively,
were obtained (Table 1, entries 3 and 7). However, the highest yield obtained in reactions of aryl
chlorides was only 51% (Table 1, entry 8).
For the same aryl halides, the OCMCS-Pd showed a higher catalytic activity than OCMCS-Ni.
As shown in Tables 1 and 2, in reactions of aryl chlorides with catalyst OCMCS-Pd, product yields
of up to 51% could be obtained (Table 1, entry 8). However, in the presence of catalyst OCMCS-Ni,
the same aryl chlorides did not react at all under the same reaction conditions (Table 2, entries 8
and 9). It was also found that the electronic properties of aryl halide substituents influenced the yields
of the products. It may be seen from Tables 1 and 2 that product yields were higher when the aryl
halides contained electron-withdrawing substituents (e.g., p-NO2, p-CH3CO and p-CHO) than when
they contain electron-donating substituents (e.g., p-CH3); i.e., the catalytic activity was higher when
aryl halides containing electron-withdrawing substituents were used. It could be seen from Table 1
(entries 8 and 9) that the withdrawing group p-NO2 improved the product yield of chlorobenzene
catalyzed by OCMCS-Pd by 45%.
Table 1. Heck reaction of aryl halides and n-butyl acrylate catalyzed by OCMCS-Pd a.
Yield b (%)
Entry
ArX
Product
1
98
2
94
3
4
99
89
O
nBu
O
5
94
O

Molecules 2017, 22, 150
6 of 10
Table 1. Cont.
Yield b (%)
Entry
ArX
Product
6
7
93
96
8
9
51
6
a
Reaction conditions: aryl halides (1.0 mmol), n-butyl acrylate (1.1 mmol); OCMCS-Pd (0.02 mmol Pd),
N,N-dimethylformamide (DMF) (5.0 mL) at 140 ◦C for 12.0 h; b The reaction yields were determined by GC-MS
analysis of the crude reaction product.
Table 2. Heck reaction of aryl halides and n-butyl acrylate catalyzed by OCMCS-Ni a.
Yield b/%
Entry
ArX
Product
1
94
2
86
3
4
88
67
O
nBu
O
5
79
O

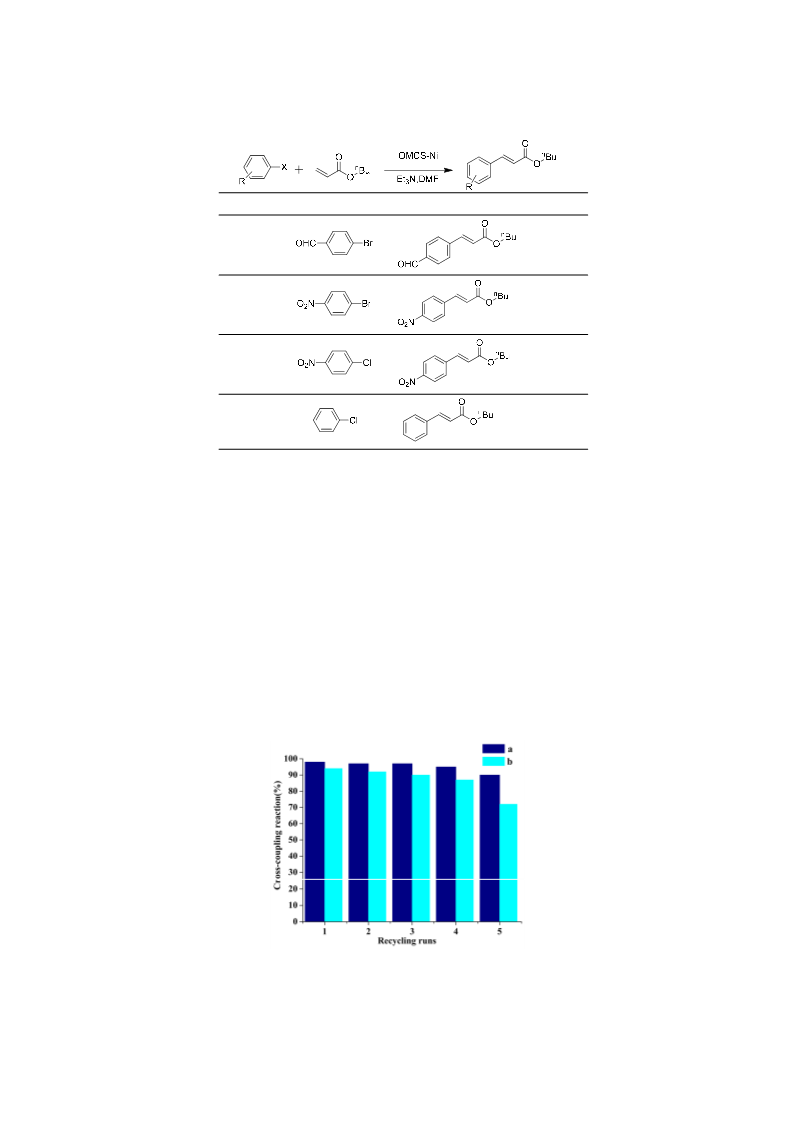

Molecules 2017, 22, 150
7 of 10
Table 2. Cont.
Yield b/%
Entry
ArX
Product
6
72
7
87
8
9
-
-
a
Reaction conditions: aryl halides (1.0 mmol), n-butyl acrylate (1.1 mmol); OCMCS-Ni (0.04 mmol Ni),
DMF (5.0 mL) at 140 ◦C for 12.0 h; The reaction yields were determined by GC-MS analysis of the crude
b
reaction product.
2.5.2. Reusability of Catalysts
After Heck reaction of iodobenzene and n-butyl acrylate, the prepared catalysts were recycled by
simple filtration, washing with ethanol, and oven drying, and then the leaking amount of Pd and Ni
ions in the filtrate and the catalytic activity of recycled catalyst were tested to evaluate the reusability
of prepared catalysts, and the results are shown in Figure 5. Firstly, the results of Inductively Coupled
Plasma Optical Emission Spectrometry (ICP-OES) analysis showed that the leaking amount of Pd
and Ni ions in the filtrate containing the products were only 0.021 and 0.052 mg/kg, respectively,
suggesting that the Pd and Ni were well immobilized on the OCMCS. Secondly, it could be seen
from Figure 5 that after recycling the OCMCS-Pd and OCMCS-Ni five times, they still showed high
cross-coupling reaction activity, and the cross-coupling reactions for OCMCS-Pd and OCMCS-Ni were
still over 90% and 72%, suggesting that the prepared catalyst showed good reusability.
Figure 5. Dependence of the cross-coupling yield on the recycling run with the recovered
(a) OCMCS-Pd and (b) OCMCS-Ni catalysts.

Molecules 2017, 22, 150
8 of 10
3. Discussion
In this paper, two polymer catalysts were synthesized by coordinating Pd and Ni onto the
O-carboxymethyl chitosan (OCMCS). The FT-IR spectral analysis results showed that the Pd and Ni
ions coordinated to OCMCS via the carboxyl, amino, and hydroxyl groups [14]. The thermal analysis
results showed that the links formed between carboxymethyl chitosan and the metals in the prepared
catalysts have good thermal stability, and hence the catalysts could be utilized in the C–C coupling
reactions. The EDS analysis and ICP-OES analysis results showed that the loading amount of Pd and
Ni on the prepared catalysts were approximately 8.3% and 8.9%, respectively.
The test results of the Heck reaction between aryl halides and n-butyl acrylate catalyzed by
the prepared catalyst showed that the product yield was affected by the halogen species and the
electron-withdrawing and electron-donating property of groups on the aryl. The product yield for the
aryl iodide and aryl bromide could reach up to 99% and 96%, respectively, and the product yields for
the aryl halides with electron-withdrawing groups p-NO2, p-CH3CO, and p-CHO were higher than
that with electron-donating group p-CH3. After reaction, the ICP-OES analysis results showed that the
leaking amount of Pd and Ni ions during the reaction was only 0.021 and 0.052 mg/kg. Additionally,
the prepared OCMCS-Pd and OCMCS-Ni catalysts still showed 90% and 72% reaction activity after
five times recycling, suggesting that the prepared catalyst possessed good reusability.
4. Materials and Methods
4.1. Materials
Aryl halides were obtained from Shanghai Yuanye Bio-Technology Co., Ltd. (Shanghai, China).
Palladium chloride, nickelous acetate, N,N-dimethylformamide, and butyl acrylate were obtained
from Shanghai Aladdin Bio-Chem technology Co., Ltd. (Shanghai, China). O-Carboxymethyl chitosan
(OCMCS) was purchased from Shanghai Dibo Chemical Technology Co., Ltd. (Shanghai, China).
4.2. Physical Measurements
The FT-IR spectra of samples were performed on a FT-IR spectrophotometer (Nicolet I5 America).
The thermal stability of the prepared catalyst was analyzed by a thermogravimetric analyzer
(NETZSCH STA 449F3, Selb, Germany) under an argon atmosphere at a heating rate of 10 ◦C min−1
.
·
The level of crystallinity of the prepared catalysts and OCMCS was analyzed by X-ray diffraction
(XRD, MiniFlex 600, Rigaku, Tokyo, Japan) under a 2
scan angle from 2.5◦ to 60◦. The surface
θ
morphologies of the samples were examined using field emission scanning electron microscope
(S-4800, Hitachi, Tokyo, Japan), and their EDS spectra were determined by EDAX-Metek. In addition,
the loading amounts of Pd and Ni on OCMCS were determined with a plasma optical emission
spectrometer (Optima 8000, PerkinElmer, Waltham, MA, USA).
4.3. Synthesis of OCMCS-Pd and OCMCS-Ni
Firstly, the PdCl2 and C4H6NiO4 aqueous solutions were prepared by the following procedure:
the PdCl2 (0.35 g) and HCl (0.5 g) were dissolved in 10 mL water and stirred for 1 h at room temperature
to obtain a complete aqueous solution. Then, the nickel acetate tetrahydrate (1.24 g) was dissolved in
30 mL water.
Secondly, the OCMCS-Pd catalyst was synthesized. At room temperature, the O-carboxymethyl
chitosan (OCMCS, 1.97 g) was added into a KOH aqueous solution (0.4 g KOH, 40 mL water) and
stirred at 60 ◦C for 1 h. Then, the prepared water soluble PdCl2 aqueous sol◦ution was added over
30 min to react with OCMCS for 12 h, and the reaction temperature was 60 C. Then, the reaction
solution was poured into a round-bottomed flask, and the water was removed with a rotary evaporator
to obtain the concentrated solution. After cooling to room temperature, the ethanol was added into the
concentrated solution to give a precipitate. The mixture was filtered, washed with ethanol, and dried
at 60 ◦C in an oven to give the Pd-OCMCS catalyst.

Molecules 2017, 22, 150
9 of 10
The OCMCS-Ni catalyst was synthesized according to the above procedure, but 2.63 g of OCMCS
and 50 g of water were used instead.
4.4. General Procedure for the Heck Reaction
In a typical reaction, the aryl halides (1 mmol), n-butyl acrylate (1.1 mmol), Et3N (1.5 mmol),
and the prepared catalyst were added into the reaction vessel charged with N,N-dimethylformamide
◦
(DMF, 5 mL), and then the reaction mixture was heated to 140 C for 12 h. After the completion
of the reaction, the mixture was cooled down to room temperature and filtered. The filtered
cake was washed with ethanol and vacuum dried for reuse. The filtrate was analyzed by a gas
chromatograph-mass spectrometer (GC-MS, QP2010Plus, Shimadzu, Kyoto, Japan) to determine the
yield of biaryl compound.
Author Contributions: D.L. and M.Z. conceived and designed the experiments. D.L. performed the experiments.
D.L. and M.Z. analyzed the data. All the authors discussed and planned the paper. D.L. and M.Z drafted
the manuscript.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Atla, S.B.; Kelkar, A.A.; Puranik, V.G.; Bensch, W.; Chaudhari, R.V. NC palladacycles in the Heck arylation of
ethylene: Synthesis, structure and their reactivity. J. Organomet. Chem. 2009, 694, 683–690. [CrossRef]
Tsai, C.J.; Chen, Y. Luminescent poly(p-phenylenevinylene) with 4-methylcoumarin side groups: Synthesis,
optical properties and photo-crosslinking behaviors. React. Funct. Polym. 2006, 66, 1327–1335. [CrossRef]
Mikroyannidis, J.A.; Damouras, P.A.; Maragos, V.G. Synthesis, photophysics and electroluminescence of
new vinylene-copolymers with 2,4,6-triphenylpyridine kinked segments along the main chain. Eur. Polym. J.
2009, 45, 284–294. [CrossRef]
4.
5.
6.
7.
8.
9.
Polshettiwar, V.; Molnár, Á. Silica-supported Pd catalysts for Heck coupling reactions. Tetrahedron 2007, 63,
6949–6976. [CrossRef]
Yin, L.; Liebscher, J. Carbon-carbon coupling reactions catalyzed by heterogeneous palladium catalysts.
Chem. Rev. 2007, 107, 133–173. [CrossRef] [PubMed]
Beletskaya, I.P.; Cheprakov, A.V. The Heck reaction as a sharpening stone of palladium catalysis. Chem. Rev.
2000, 100, 3009–3066. [CrossRef] [PubMed]
Casey, M.; Lawless, J.; Shirran, C. The Heck reaction: Mechanistic insights and novel ligands. Polyhedron
2000, 19, 517–520. [CrossRef]
Polshettiwar, V.; Len, C.; Fihri, A. Silica-supported palladium: Sustainable catalysts for cross-coupling
reactions. Coord. Chem. Rev. 2009, 253, 2599–2626. [CrossRef]
Alonso, F.; Yus, M. Heterogeneous catalytic homocoupling of terminal alkynes. ACS Catal. 2012, 2, 1441–1451.
[CrossRef]
10. Wight, A.P.; Davis, M.E. Design and preparation of organic-inorganic hybrid catalysts. Chem. Rev. 2002, 102,
3589–3614. [CrossRef] [PubMed]
11. Ying, J.Y.; Mehnert, C.P.; Wong, M.S. Synthesis and applications of supramolecular-templated mesoporous
materials. Angew. Chem. Int. Ed. 1999, 38, 56–77. [CrossRef]
12. Brunel, D.; Blanc, A.C.; Galarneau, A.; Fajula, F. New trends in the design of supported catalysts on
mesoporoussilicas and their applications in fine chemicals. Catal. Today 2002, 73, 139–152. [CrossRef]
13. El-Sherbiny, I.M. Synthesis, characterization and metal uptake capacity of a new carboxymethyl chitosan
derivative. Eur. Polym. J. 2009, 45, 199–210. [CrossRef]
14. Pestov, A.; Bratskaya, S.; Pestov, A.; Bratskaya, S. Chitosan and its derivatives as highly efficient polymer
ligands. Molecules 2016, 21, 330. [CrossRef] [PubMed]
15. Khalil, K.D.; Almatar, H.M. Chitosan based heterogeneous catalyses: Chitosan-grafted-poly(4-vinylpyridne)
as an efficient catalyst for michael additions and alkylpyridazinyl carbonitrile oxidation. Molecules 2013, 18,
5288–5305. [CrossRef] [PubMed]
16. Hardy, J.J.E.; Hubert, S.; Macquarrie, D.J.; Wilson, A.J. Chitosan-based heterogeneous catalysts for Suzuki
and Heck reactions. Green Chem. 2004, 6, 53–56. [CrossRef]

Molecules 2017, 22, 150
10 of 10
17. Baran, T.; Mentes¸, A. Cu(II) and Pd(II) complexes of water soluble O-carboxymethyl chitosan Schiff bases:
Synthesis, characterization. Int. J. Biol. Macromol. 2015, 79, 542–554. [CrossRef] [PubMed]
18. Han, F.S. Transition-metal-catalyzed Suzuki-Miyaura cross-coupling reactions: A remarkable advance from
palladium to nickel catalysts. Chem. Soc. Rev. 2013, 42, 5270–5298. [CrossRef] [PubMed]
19. Yamaguchi, J.; Muto, K.; Itami, K. Recent progress in nickel-catalyzed biaryl coupling. Eur. J. Org. Chem.
2013, 18, 19–30. [CrossRef]
20. Hassaninejad-Darzi, S.K. A novel, effective and low cost catalyst for formaldehyde electrooxidation based
on nickel ions dispersed onto chitosan-modified carbon paste electrode for fuel cell. J. Electroceram. 2014, 33,
252–263. [CrossRef]
21. Portnyagin, A.S.; Bratskaya, S.Y.; Pestov, A.V.; Voit, A.V. Binding Ni(II) ions to chitosan and its N-heterocyclic
derivatives: Density functional theory investigation. Comput. Theor. Chem. 2015, 1069, 4–10. [CrossRef]
22. Antony, R.; Manickam, S.T.D.; Saravanan, K.; Karuppasamy, K.; Balakumar, S. Synthesis, spectroscopic
and catalytic studies of Cu(II), Co(II) and Ni(II) complexes immobilized on Schiff base modified chitosan.
J. Mol. Struct. 2013, 1050, 53–60. [CrossRef]
23. Baran, T.; Mentes¸, A.; Arslan, H. Synthesis and characterization of water soluble O-carboxymethyl chitosan
Schiff bases and Cu(II) complexes. Int. J. Biol. Macromol. 2015, 72, 94–103. [CrossRef] [PubMed]
24. Wang, L.-X.; Wang, Z.-W.; Wang, G.-S.; Lin, X.-D.; Ren, J.-G. Catalytic performance of chitosan-Schiff base
supported Pd/Co bimetallic catalyst for acrylamide with phenyl halide. Polym. Adv. Technol. 2010, 21,
244–249.
25. Yi, S.S.; Lee, D.H.; Sin, E.; Lee, Y.-S. Chitosan-supported palladium (0) catalyst for microwave-prompted
Suzuki cross-coupling reaction in water. Tetrahedron Lett. 2007, 48, 6771–6775. [CrossRef]
26. Baran, T.; Açıksöz, E.; Mentes¸, A. Carboxymethyl chitosan Schiff base supported heterogeneous palladium(II)
catalysts for Suzuki cross-coupling reaction. J. Mol. Catal. A-Chem. 2015, 407, 47–52. [CrossRef]
27. Demetgül, C. Synthesis of the ketimine of chitosan and 4,6-diacetylresorcinol, and study of the catalase-like
activity of its copper chelate. Carbohydr. Polym. 2012, 89, 354–361. [CrossRef] [PubMed]
Sample Availability: Not available.
©
2017 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC-BY) license (http://creativecommons.org/licenses/by/4.0/).
