A Ni(II) ferromagnet with mixed pyridine-3,5-dicarboxylate-1,4-bis(imidazol-l-yl)butane heterobridges exhibiting long-range ordering and hysteresis loop

Article abstract of DOI:10.1016/j.inoche.2016.04.023

A rare Ni-ferromagnet [Ni(pdc)(bib)]·2H₂O (H₂pdc = pyridine-3,5-dicarboxylic acid, bib = 1,4-bis (imidazol-l-yl)butane) has been prepared, which possesses a 3D supramolecular network based on (3,5)-connected helical-armed 2D layers. Interestingly, at high temperature (> 12.7 K), 1 exhibits a weak ferromagnetism, whereas at low temperature, it shows unusual long-range ordering (LRO) behaviors combining spin canting and hysteresis loop.

Full text of DOI:10.1016/j.inoche.2016.04.023

Inorganic Chemistry Communications 69 (2016) 31–34
Contents lists available at ScienceDirect
Inorganic Chemistry Communications
journal homepage: www.elsevier.com/locate/inoche
Short communication
A Ni(II) ferromagnet with mixed
pyridine-3,5-dicarboxylate-1,4-bis(imidazol-l-yl)butane heterobridges
exhibiting long-range ordering and hysteresis loop
a,b
a
a
a
a,
b,
Min-Le Han , Xue-Qian Wu , Guo-Wang Xu , Guo-Xuan Wen , Dong-Sheng Li ⁎, Lu-Fang Ma ⁎
a
College of Materials and Chemical Engineering, Hubei Provincial Collaborative Innovation Center for New Energy Microgrid, Key Laboratory of Inorganic Nonmetallic Crystalline and Energy
Conversion Materials, China Three Gorges University, Yichang 443002, PR China
b
College of Chemistry and Chemical Engineering, Henan Key Laboratory of Function-Oriented Porous Materials, Luoyang Normal University, Luoyang 471022, PR China
a r t i c l e i n f o
a b s t r a c t
Article history:
A rare Ni-ferromagnet [Ni(pdc)(bib)]·2H O (H pdc = pyridine-3,5-dicarboxylic acid, bib = 1,4-bis (imidazol-l-yl)
2
2
Received 20 March 2016
Received in revised form 17 April 2016
Accepted 21 April 2016
butane) has been prepared, which possesses a 3D supramolecular network based on (3,5)-connected helical-
armed 2D layers. Interestingly, at high temperature (N12.7 K), 1 exhibits a weak ferromagnetism, whereas at
low temperature, it shows unusual long-range ordering (LRO) behaviors combining spin canting and hysteresis
loop.
Available online 22 April 2016
Crown Copyright © 2016 Published by Elsevier B.V. All rights reserved.
Keywords:
Ni -CPs
II
Pyridine-3,5-dicarboxylic acid
1,4-bis(imidazol-l-yl)butane
Magnetic property
Coordination polymers (CPs) based on parmagnetic metal ions
exhibiting extended structures are of intense current interest in the
field of molecular magnetism and materials chemistry due to their
various structural topologies and potential applications as functional
materials [1–5]. These materials have also offered great opportunities
to better understand fundamental magnetic phenomena, such as long-
range ordering (LRO), spin canting, metamagnetism, anisotropy, relax-
ation dynamics, and so on [6]. As far as LRO is concerned, some complex
and exotic behaviors have been revealed in molecular systems, for
example, the combination of magnetic properties and other functions
by the carboxylate group can transmit the magnetic coupling in differ-
ent degrees, and the coordination of the pyridyl and carboxylate groups
in these ligands may result in extended frameworks [10–14].
Meanwhile, the design, syntheses and applications of metal-organic
hybrid materials based on mixed-ligands (multicarboxylate and flexible
N-donor ligands) also have so far attracted unparalleled attention in
research [15–17]. The flexibility of N-donor ligands can adopt different
conformations and thus lead to distinct symmetries during the self-
assembly process [18]. As part of our investigations on the structural
diversity, magnetism properties of metal-organic hybrid materials
[7]. The key factors in the design and synthesis of these CPs with desir-
2
based on mixed-ligands, herein, pyridine-3,5-dicarboxylic acid (H pdc)
able properties and expected structures are mainly focused on the
appropriate selection of nodes (metal ions or metal-including clusters)
and spacers (organic ligands) [8]. When organic ligands coupled with
a parmagnetic metal ion, these ligands may cite peculiar magnetic
behaviors e.g. (anti)ferromagnetism, magnetoelectricity and multi-
ferroicity [9]. Among organic ligands, multidentate ligands containing
carboxylate and a pyridyl group, such as nicotinate, isonicotinate, and
pyridine-dicarboxylate, have been frequently used in the preparation
of magnetic materials, because the various coordination modes adopted
and 1,4-bis(imidazol-l-yl)butane (bib) were selected as a bridging ligand
and reacted with Ni(II) ions, giving rise to a new metal-organic hybrid
materials, namely [Ni(pdc)(bib)]·2H
properties were also investigated and discussed in detail.
Reaction of H pdc with bib and Ni(II) acetate at 140 °C for 3 days
2
O (1). Moreover, their magnetic
2
under hydrothermal conditions generates green crystalline product 1
[19]. The compositions were confirmed by elemental analysis and IR
spectra, and powder X-ray diffraction. Single crystal X-ray diffraction
study [20] reveals that complex 1 crystallizes in a monoclinic system
1
with space group P2 /n and has a 3-D supramolecular framework
work based on 2-D layers. All Ni sites are six-coordinated with a
distorted octahedron geometry by three carboxylate-oxygen atoms
⁎
Corresponding authors at: College of Materials and Chemical Engineering, China Three
O1, O2 and O3#1, symmetry code: #1, −x + 1, y, z) from two pdc2
−
,
(
Gorges University, Yichang 443002, PR China.
E-mail addresses: lidongsheng1@126.com (D.-S. Li), mazhuxp@126.com (L.-F. Ma).
one nitrogen atom (N1#2, symmetry code: #2, −x + 1/2, y + 1/2,
http://dx.doi.org/10.1016/j.inoche.2016.04.023
1387-7003/Crown Copyright © 2016 Published by Elsevier B.V. All rights reserved.

32
M.-L. Han et al. / Inorganic Chemistry Communications 69 (2016) 31–34
−
z + 1/2.) from pdc2−, and two trans-nitrogen atoms (N2 and N5#2)
from two bib ligands with the angle of N2-Ni1-N5#2 of 175.7° (Fig. S1,
Supporting Information). The pdc2 ligand adopts a (κ -κ )-(κ )-(κ )-
-bridge linking three Ni(II) ions to form a 2D layer, moreover, the
bib ligand with TGG conformation (T = trans, G = gauche) bridge
Ni(II) ions to generate a 2 helical chain along [010] axis with the
−
1
1
1
1
μ
3
1
pitch of 12.5 Å, which decorate the 2D layer at two sides in an outward
fashion, resulting in a interesting helical-armed 2D network. Analysis
of the network topology of 1 reveals that each Ni(II) center acts as a
2
−
5
-connected node to connect three pdc ligands and two bib spacers.
2
−
And the pdc ligands serve as the 3-connected nodes. Thus, a (3,5)-
connected network with the point symbol of (3·5 )(3 ·5 ·6 ·7) is
constituted (Fig. S2, Supporting Information ). There are evident inter-
2
2
3
4
†
molecular π⋯π stacking interactions between the adjacent imidazol
ring of the adjacent 2D layers with co-facial distances of 3.66 and
3
.78 Å (Fig. 1), which extend these 2D with ABAB stacking fashions to
−1
M M

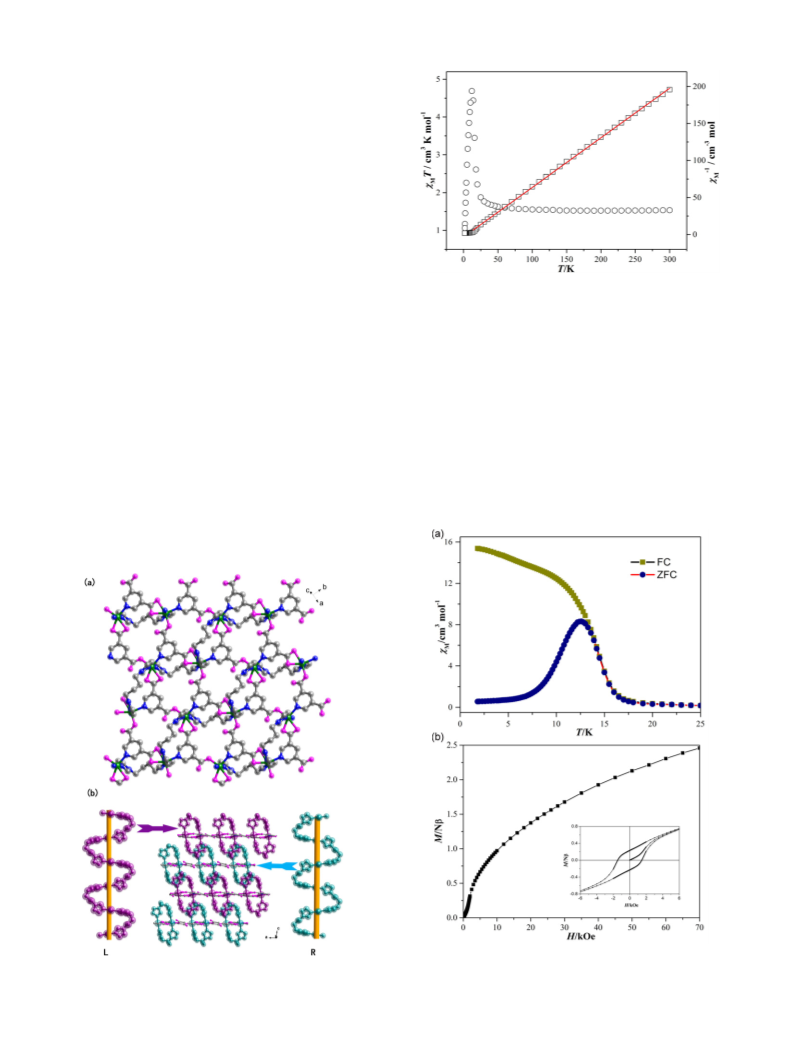

Fig. 2. Temperature dependence of χ T and χ for 1. Open points are the experimental
build final 3-D supramolecular framework (Fig. 1).
data, and the solid line represents the best fit obtained from the Curie-Weiss law.
Phase purities of the bulky materials of 1 were confirmed by powder
†
X-ray diffraction (PXRD) patterns (see Fig. S3, SI ). The experimental
and simulated PXRD patterns agree well with each other, confirming
interactions between the adjacent Ni(II) ions. Upon further cooling to
the good phase purity. Additionally, the thermogravimetric analysis of
M M
2 K, χ T decreases quickly. The steep declines in χ T at low tempera-
1
was carried out under an air atmosphere (Fig. S4, Supporting
ture clearly indicate that a kind of spontaneous magnetization emerges.
This phenomenon in a ferromagnetic system could be attributed to
weak antiferromagnetism, owing to spin canting: the antiferromagnetic
coupled spins from different sublattices are not parallel, but canted
to each other, and the resulting net moments are correlated in a
antiferromagnetic-like fashion and develop into LRO below the critical
temperature.
To characterize the low-temperature behaviors of 1, FC (field-
cooled) and ZFC (zero-field-cooled) magnetization measurements
were performed under 50 Oe (Fig. 3a). The ZFC magnetization shows
†
Information ). The first weight lost of 7.8% was observed from 115 °C
to 198 °C corresponding to the lost of free water molecules (calcd.
8
final residue of 24.2% is close to the calculated 24.6% based on NiO.
The temperature-dependent magnetic susceptibilities were mea-
sured on polycrystalline samples of 1 at 1000 Oe in the range of 1.8–
.0%). Then pyrolysis of the sample occurred from 325 to 490 °C. The
−
1
3
00 K in Fig. 2. For 1, the value of χ
which is larger than the spin-only value (1.0 cm mol
for a magnetically isolated Ni(II) ion. The χ T value increases gradually
upon cooling to ca. 35 K. Below this temperature, χ T value increases
abruptly to a maximum of 4.69 cm3 mol ·K at 12.7 K. Above 15 K,
the temperature dependence of 1/χ obeys the Curie-Weiss law with
M
T at 300 K is 1.54 cm mol
K,
−
1
K) expected
M
M
−1
M
−
1
C = 1.49 cm K mol and θ = 4.91 K, revealing dominant ferromagnetic
Fig. 3. (a) Low temperature dependence of the magnetic susceptibility (χ) for 1 measured
under zero field cooling (ZFC) and field cooling (FC) conditions. (b) Field-dependent
magnetization for 1 measured at 2.0 K. Insert: M versus H hysteresis loops for 1.
Fig. 1. (a) 2D layer in 1. (b) 3D supramolecular structure of 1 and R- and L-handed helical
chains.

M.-L. Han et al. / Inorganic Chemistry Communications 69 (2016) 31–34
33
a peak at 12 K and diverges from the FC magnetization at about 13 K.
This kind of divergence further confirms a LRO of ferromagnetic
components. These data can be found in the supporting file. Supple-
mentary data to this article can be found online at http://dx.doi.org/
10.1016/j.inoche.2016.04.023.
interactions. In addition, the critical temperature (T
by the positions of the negative peak on the derivative dM/dT (M =
magnetization) of FC data [7e], is 14.2 K. The T value is confirmed by
c
), determined
c
References
the observation that the ZFC and FC curves merged at 50 Oe at 14.0 K.
For 1, the initial ZFC magnetization is very weak, increases very slowly
upon warming up to 12.5 K, and then undergoes a rapid increase
[
1] (a) M.-H. Zeng, Z. Yin, Y.-X. Tan, W.-X. Zhang, Y.-P. He, M. Kurmoo, Nanoporous
cobalt(II) MOF exhibiting four magnetic ground states and changes in gas
sorption upon post-synthetic modification, J. Am. Chem. Soc. 136 (2014)
c
merge into FC curves at T .
4680–4688;
The temperature dependences of the ac susceptibilities obtained
(
b) M.-L. Han, Y.-P. Duan, D.-S. Li, H.-B. Wang, J. Zhao, Y.-Y. Wang, Positional isomeric
tunable two Co(II) 6-connected 3-D frameworks with pentanuclear to binuclear
units: structures, ion-exchange and magnetic properties, Dalton Trans. 43 (2014)
under zero direct current (dc) field and 5 Oe ac field at frequencies 1,
††
1
0, 100, and 1000 Hz for 1 (Fig. S5, Supporting Information ). Both in-
phase (χ ′) and out-of-phase components (χ ″) of the susceptibilities
exhibit maxima at about 14 K, close to the T value, and the maximum
position is independent of frequency. This confirms the occurrence of
ferromagnetic-like LRO. It is noted that the χ ′ peaks at 1, 10, 100,
15450–15456;
M
M
(c) D.-S. Li, Y.-P. Wu, J. Zhao, J. Zhang, J.Y. Lu, Metal-organic frameworks based upon
c
non-zeotype 4-coonected topology, Coord. Chem. Rev. 261 (2014) 1–27;
(d) D.-F. Weng, Z.-M. Wang, S. Gao, Framework-structured weak ferromagnets,
Chem. Soc. Rev. 40 (2011) 3157–3181.
M
[
5 8
2] (a) D.-S. Li, J. Zhao, Y.-P. Wu, B. Liu, L. Bai, K. Zou, M. Du, Co /Co -cluster-based
and 1000 Hz are unsymmetrical in shape, with the low temperature
sides showing some dependence upon the frequency (it is less apprecia-
coordination polymers showing high-connected self-penetrating networks:
syntheses, crystal structures, and magnetic properties, Inorg. Chem. 52 (2013)
8091–8098;
ble in χ
tion process.
Further information comes from the field-dependent isothermal
M
″ curves). This indicates the presence of some dynamic relaxa-
(
b) Q. Yue, N.-N. Wang, S.-Y. Guo, L.-L. Liang, E.-Q. Gao, Homochiral and heterochiral
Mn(II) coordination frameworks: spontaneous resolution dependent on
dipyridyl ligands, Dalton Trans. 45 (2016) 1335–1338;
(
c) C. Zhang, M. Zhang, L. Qin, H. Zheng, Crystal structures and spectroscopic
properties of metal-organic frameworks based on rigid ligands with flexible
functional groups, Cryst. Growth Des. 14 (2014) 491–499.
magnetization measurements (Fig. 3b). For 1, the initial M(H) curve
exhibits the sigmoid shape typical of metamagnetism, which is often
observed in layer or chain systems with anisotropy and competing
interactions [21]. The slow increase of magnetization in the low field
region (0–1.7 kOe) suggests the AF ordering of the spin-canted layers,
and the rapid rise in the 1.7–3.3 kOe region indicates that the interlayer
AF ordering can be broken up by the applied field generate a WF state
in which the spin-canted layers are F-ordered [7e]. The critical field
for the AF-to-F transition at 2 K was estimated to be 2.0 kOe, at which
the dM/dH curve exhibits a maximum. At 2 K, 1 exhibits hysteresis
loops, related to the anisotropy of Ni(II) ion. Compound 1 behaves as
a hard magnet with a coercive field of 1.7 kOe and a remnant magneti-
[3] (a) X.-L. Zhao, W.-Y. Sun, The organic ligands with mixed N-/O-donors used in
construction of functional metal-organic frameworks, CrystEngComm 16
(
2014) 3247–3258;
III
FeIII
2
(
(
b) H. Li, W. Shi, Z. Niu, J.-M. Zhou, G. Xiong, L.-L. Li, P. Cheng, Remarkable Ln
3
clusters with magnetocaloric effect and slow magnetic relaxation, Dalton Trans.
44 (2015) 468–471;
II
c) L.-F. Ma, M.-L. Han, J.-H. Qin, L.-Y. Wang, M. Du, Mn coordination polymers
based on Bi-, Tri-, and tetranuclear and polymeric chain building units: crystal
structures and magnetic properties, Inorg. Chem. 51 (2012) 9431–9442.
[4] (a) T. Gong, X. Yang, Q. Sui, F.-G. Xi, E.-Q. Gao, Magnetic and photochromic proper-
ties of a manganese(II) metal-zwitterionic coordination polymer, Inorg. Chem.
55 (2016) 96–103;
(b) D. Sarma, P. Mahata, S. Natarajan, P. Panissod, G. Rogez, M. Drillon, Synthesis,
3 2 n
zation of 0.24 Nβ. [Ni(4,4′-bipy)(N ) ] , (4,4′-bipy = 4,4′-bipyridine),
also exhibits a weak ferromagnetism, and shows LRO behaviors
combining spin canting and hysteresis loop at low temperature
structure, and magnetic properties of a new eight-connected metal-organic
framework (MOF) based on Co clusters, Inorg. Chem. 51 (2012) 4495–4501;
4
c) H.-S. Lu, L. Bai, W.-W. Xiong, P. Li, J. Ding, G. Zhang, T. Wu, Y. Zhao, J.-M. Lee, Y.
Yang, B. Geng, Q. Zhang, Surfactant media to grow new crystalline cobalt 1,3,5-
benzenetricarboxylate metal-organic frameworks, Inorg. Chem. 53 (2014)
(
[
2 2 2
22]. While Ni(dca) (Mepyz) ·H O, (dca = dicyanamide, Mepyz =
8529–8537.
methylpyrazine), also exhibits a weak ferromagnetism, and LRO behav-
iors is not observed [23].
[
5] (a) L.-C. Gui, X.-J. Wang, Q.-L. Ni, M. Wang, F.-P. Liang, H.-H. Zou, Nanospheric
4+
[
M
20(OH)12(maleate)12(Me
J. Am. Chem. Soc. 134 (2012) 852–854;
(b) E. Freire, M. Quintero, D. Vega, R. Baggio, Crystal structure and magnetic proper-
ties of two new zoledronate complexes: a Mn dimer [Mn(II)(H Zol) ·(H O)
and a Fe15 molecular cluster [Fe(III)15(Hzol)10(H Zol) (H O)12(Cl :(H O) )·
Cl ·(H O) ] (where H Zol: C H N O P is zoledronic acid), Inorg. Chim. Acta
2
NH)12
]
h
clusters (M_Co, Ni) with O symmetry,
In conclusion, we have described the structures and magnetic
properties of a new Ni-pyridine-3,5-dicarboxylicate-compound 1
that possesses a 3D supramolecular network based on (3,5)-
connected helical-armed 2D layers. Interestingly, 1 exhibits a weak
ferromagnetism at high temperature (N12.7 K), whereas at low tem-
perature, it shows unusual LRO behaviors combining spin canting
3
2
2
2
]
2
2
2
4
2
2
7
2
65
4
5 10 2 7 2
394 (2013) 229–236;
(
c) D.-K. Cao, M.-J. Liu, J. Huang, S.-S. Bao, L.-M. Zheng, Cobalt and manganese
diphosphonates with one-, two-, and three-dimensional structures and field-
induced magnetic transitions, Inorg. Chem. 50 (2011) 2278–2287.
(
weak antiferromagnetism) and hysteresis loop. The successful
synthesis of 1 not only enriches the existing field of pyridine-3,5-
dicarboxylicate-complexes but also opens possibilities for synthesiz-
ing other novel metallic complexes using different appropriate pre-
cursors and co-ligands.
[6] (a) D. Gatteschi, R. Sessoli, Quantum tunneling of magnetization and related phe-
nomena in molecular materials, Angew. Chem. Int. Ed. 42 (2003) 268–297;
(b) O. Kahn, Molecular Magnetism, New York, VCH, 1993.
[
7] (a) O. Sato, J. Tao, Y.-Z. Zhang, Control of magnetic properties through external
stimuli, Angew. Chem. Int. Ed. 46 (2007) 2152–2187;
b) E. Coronado, P. Day, Magnetic molecular conductors, Chem. Rev. 104 (2004)
(
5
419–5448;
Acknowledgment
(
c) D. Maspoch, D. Ruiz-Molina, K. Wurst, N. Domingo, M. Cavallini, F. Biscarini, J.
Tejada, C. Rovira, J. Veciana, A nanoporous molecular magnet with reversible
solvent-induced mechanical and magnetic properties, Nat. Mater. 2 (2003)
This work was financially supported by the NSF of China (nos:
190–195;
2
1373122, 21301106, 51572152 and 51502155), the NSF of Hubei
(
(
d) E.-Q. Gao, S.-Q. Bai, Z.-M. Wang, C.-H. Yan, Two-dimensional homochiral
manganese(II)-azido frameworks incorporating an achiral ligand: partial spon-
taneous resolution and weak ferromagnetism, J. Am. Chem. Soc. 125 (2003)
Province of China (no. 2014CFB277).
4
984–4985;
Appendix A. Supplementary data
e) E.-Q. Gao, P.-P. Liu, Y.-Q. Wang, Q. Yue, Q.-L. Wang, Complex long-range
magnetic ordering behaviors in anisotropic cobalt(II)-azide multilayer systems,
Chem. Eur. J. 15 (2009) 1217–1226.
CCDC 1465211 contains the supplementary crystallographic data for
[
8] (a) Q. Chen, M.-H. Zeng, Y.-L. Zhou, H.-H. Zou, M. Kurmoo, Hydrogen-bonded
1. The data can be obtained free of charge via http://www.ccdc.cam.ac.
II
dicubane Co
7
single-molecule-magnet coordinated by in situ solvothermally
un/conts/retrieving.html, or from the Cambridge Crystallographic
Data Centre, 12 Union Road, Cambridges CB2 1EZ, UK; fax: (+44)
generated 1,2-bis(8-hydroxyquinolin-2-yl)ethane-1,2-diol arranged in a
trefoil, Chem. Mater. 22 (2010) 2114–2119;
(
b) L. Qin, Z.-J. Wang, T. Wang, H.-G. Zheng, J.-X. Chen, Coligand-directed syn-
thesis of five Co(II)/Ni(II) coordination polymers with a neutral tetradentate
ligand: syntheses, crystal structures, and properties, Dalton Trans. 43 (2014)
12528–12535;
1
223-336-033; or e-mail: deposit@ccdc.cam.ac.uk. Selected bond
lengths and angles for 1. Additional structural figures, PXRD patterns,
TGA curves for complex 1. Temperature dependent AC susceptibility

3
4
M.-L. Han et al. / Inorganic Chemistry Communications 69 (2016) 31–34
c) L.-C. Gui, X.-J. Wang, Q.-L. Ni, M. Wang, F.-P. Liang, H.-H. Zou, Nanospheric (b) M.-L. Han, Y.-P. Duan, D.-S. Li, G.-W. Xu, Y.-P. Wu, J. Zhao, A series of divalent
(
(
4
+
[
M
20(OH)12(maleate)12(Me
J. Am. Chem. Soc. 134 (2012) 852–854;
d) M. Kalisz, R.A.A. Cassaro, M.A. Novak, M. Andruh, H.S. Amorim, M.G.F. Vaz,
2
NH)12
]
clusters (M_Co, Ni) with O
h
symmetry,
metal coordination polymers based on isomeric tetracarboxylic acids: synthesis,
structures and magnetic properties, Dalton Trans. 43 (2014) 17519–17527;
(c) L. Ma, X. Wang, D. Deng, F. Luo, B. Ji, J. Zhang, Five porous zinc(II) coordination
polymers functionalized with amide groups: cooperative and size-selective
catalysis, J. Mater. Chem. A 3 (2015) 20210–20217.
II
II
A two-dimensional Cu -Mn heterometallic coordination polymer: structure
determination using synchrotron X-ray powder diffraction and magnetic
properties, CrystEngComm 17 (2015) 7423–7429.
[16] (a) M.-L. Han, X.-H. Chang, X. Feng, L.-F. Ma, L.-Y. Wang, Temperature and pH
driven self-assembly of Zn(II) coordination polymers: crystal structures, supra-
molecular isomerism, and photoluminescence, CrystEngComm 16 (2014)
1687–1695;
[
9] (a) L. Cañadillas-Delgado, O. Fabelo, J.A. Rodríguez-Velamazán, M.-H. Lemée-
Cailleau, S.A. Mason, E. Pardo, F. Lloret, J.-P. Zhao, X.-H. Bu, V. Simonet, C.V.
Colin, J. Rodríguez-Carvajal, The role of order-disorder transitions in the quest
for molecular multiferroics: structural and magnetic neutron studies of a
mixed iron(II)-iron(III) formate framework, J. Am. Chem. Soc. 134 (2012)
(b) J. Wang, X. Zhu, Y.-F. Cui, B.-L. Li, H.-Y. Li, A polythreading coordination array
formed from 2D grid networks and 1D chains, CrystEngComm 13 (2011)
3342–3344;
19772–19781;
(
(
(
b) O. Fabelo, L. Cañadillas-Delgado, J. Pasán, F.S. Delgado, F. Lloret, J. Cano, M. Julve,
C. Ruiz-Pérez, Study of the influence of the bridge on the magnetic coupling in
cobalt(II) complexes, Inorg. Chem. 48 (2009) 11342–11351;
c) F. Su, L. Lu, S. Feng, M. Zhu, Z. Gao, Y. Dong, Synthesis, structures and magnetic
properties in 3d-electron-rich isostructural complexes based on chains with sole
syn-anti carboxylate bridges, Dalton Trans. 44 (2015) 7213–7222;
(c) J. Zhao, W.-W. Dong, Y.-P. Wu, Y.-N. Wang, C. Wang, D.-S. Li, Q.-C. Zhang, Two
(3,6)-connected porous metal–organic frameworks based on linear trinuclear
[Co (COO) ] and paddlewheel dinuclear [Cu (COO) ] SBUs: gas adsorption,
3 6 2 4
photocatalytic behaviour, and magnetic properties, J. Mater. Chem. A 3 (2015)
6962–6969.
[17] (a) Z.-X. Xu, Y.-L. Ma, Y. Xiao, L. Zhang, J. Zhang, A series of homochiral helical
metal–organic frameworks based on proline derivatives, Cryst. Growth Des.
15 (2015) 5901–5909;
d) G. Rousse, G. Radtke, Y. Klein, H. Ahouari, Long-range antiferromagnetic order in
malonate-based on compounds Na
2 2 3 4 2 2
M(H C O ) ·2H O (M_Mn, Fe, Co, Ni),
Dalton Trans. (2016), http://dx.doi.org/10.1039/c5dt04527d.
10] (a) Y.-X. Tan, Y.-P. He, M. Wang, J. Zhang, A water-stable zeolite-like metal-organic
(b) M.-L. Han, L. Bai, P. Tang, X.-Q. Wu, J. Zhao, D.-S. Li, Y.-Y. Wang, Biphenyl-
2,4,6,3′,5′-pentacarboxylic acid as a tecton for six new Co(II) coordination
polymers: pH and N-donor ligand-dependent assemblies, structure diversities
and magnetic properties, Dalton Trans. 44 (2015) 14673–14686;
(c) L. Bai, H.-B. Wang, D.-S. Li, Y.-P. Wu, J. Zhao, L.-F. Ma, A new penta-carboxylate
[
framework for selective separation of organic dyes, RSC Adv. 4 (2014)
1480–1483;
(
(
b) F.-C. Liu, Y.-F. Zeng, J.-R. Li, X.-H. Bu, H.-J. Zhang, J. Ribas, Novel 3-D framework
nickel(II) complex with azide, nicotinic acid, and nicotinate1− as coligands:
hydrothermal synthesis, structure, and magnetic properties, Inorg. Chem. 44
II
and N-donor ligand co-regulate 3D Co -MOF with tcj/hc topology: synthesis,
structure and magnetic property, Inorg. Chem. Commun. 44 (2014) 188–190;
(d) J. Zhao, D.-S. Li, X.-J. Ke, B. Liu, K. Zou, H.-M. Hu, Auxiliary ligand-directed
structural variation from 2D → 3D polythreaded net to 3-fold interpenetrating
3D pillar-layered framework: syntheses, crystal structures and magnetic prop-
erties, Dalton Trans. 41 (2012) 2560–2563.
(
2005) 7298–7300;
c) P. Teo, L.L. Koh, T.S.A. Hor, Oligo- and polymeric Pd(II) and Pt(II) using pyridyl
carboxylate spacers for topology control, Inorg. Chem. 47 (2008) 6464–6474.
11] (a) W. Chen, H.-M. Yuan, J.-Y. Wang, Z.-Y. Liu, J.-J. Xu, M. Yang, J.-S. Chen, Synthesis,
structure, and photoeletronic effects of a uranium-zinc-organic coordination
polymer containing infinite metal oxide sheets, J. Am. Chem. Soc. 125 (2003)
[
[18] (a) Z.-Q. Yu, M. Pan, J.-J. Jiang, Z.-M. Liu, C.-Y. Su, Anion modulated structural diver-
sification in the assembly of Cd(II) complexes based on a balance-like dipodal
ligand, Cryst. Growth Des. 12 (2012) 2389–2396;
9266–9267;
(
b) C.-P. Li, J.-M. Wu, M. Du, Exceptional crystallization diversity and solid-state
(b) M. Pan, C.-Y. Su, Coordination assembly of Borromean structures, CrystEngComm
II
conversions of Cd coordination frameworks with 5-bromonicotinate directed
16 (2014) 7847–7859;
by solvent media, Chem. Eur. J. 18 (2012) 12437–12445;
(c) C. Yan, Y.-Z. Fan, L. Chen, M. Pan, L.-Y. Zhang, J.-J. Jiang, C.-Y. Su, Time controlled
structural/packing transformation and tunable luminescence of Cd(II)-chloride-
triBZ-ntb coordination assemblies: an experimental and theoretical exploration,
CrystEngComm 17 (2015) 546–552.
(
c) Q. Yang, J.-P. Zhao, W.-C. Song, X.-H. Bu, Two azido-bridged cobalt(II) coordina-
tion polymers with nicotinate co-ligand: synthesis, structures and magnetic
properties, Dalton Trans. 41 (2012) 6272–6276.
[
12] (a) J.-J. Hou, R. Zhang, Y.-L. Qin, X.-M. Zhang, From (3,6)-connected kgd, chiral
anh to (3,8)-connected tfz-d nets in low nuclear metal cluster-based networks
with triangular pyridinedicarboxylate ligand, Cryst. Growth Des. 13 (2013)
[19] Preparation of [Ni(pdc)(bib)]·2H
2
O (1). A mixture of H
2
pdc (0.10 mmol, 16.1 mg),
bib (0.10 mmol, 19.0 mg), Ni(OAc)
2
·4H O (0.10 mmol, 24.9 mg), and H
2
2
O (8 mL)
was placed in a 25 mL Teflon-lined stainless steel vessel, heated to 140 °C for
120 h, then the reaction system was cooled to room temperature and green block
crystals were obtained. Yield: 29.2 mg, 65% (based on Ni(II)). Elemental analysis
1618–1625;
(
b) T.K. Maji, G. Mostafa, R. Matsuda, S. Kitagawa, Guest-induced asymmetry in
metal-organic porous solid with reversible single-crystal-to-single-crystal
structural transformation, J. Am. Chem. Soc. 127 (2005) 17152–17153;
c) L.-L. Wen, D.-B. Dang, C.-Y. Duan, Y.-Z. Li, Z.-F. Tian, Q.-J. Meng, 1D helix, 2D
brick-wall and herringbone, and 3D interpenetration d10 metal-organic frame-
work structures assembled from pyriding-2,6-dicarboxylic acid N-oxide, Inorg.
Chem. 44 (2005) 7161–7170.
(%): calcd for (C17H21NiN O ): C, 45.37; H, 4.70; N, 15.56;Found: C, 45.30; H, 4.62;
5 6
−1
N, 15.51. IR (KBr, cm ): 3450 w, 1637 s, 1580 m, 1522 m, 1390 s, 780 m, 762 s,
665 m.
(
[20] The crystallographic data for 1 were carried out on a Bruker SMART APEX CCD dif-
fractometer with graphite-monochromated Mo Kα radiation (λ = 0.71073 Å) at
room temperature using the φ/ω scanning technique. The structures were solved
using direct methods and successive Fourier difference synthesis (SHELXS-97)
[
13] (a) A. Calderon-Casado, G. Barandika, B. Bazan, M.-K. Urtiaga, M.-I. Arriortua,
2
Unprecedented coordination modes for PDC (pyridine-2,5-dicarboxylate) in
[24], and refined using the full-matrix least-squares method on F with anisotropic
polymorphic 3D heterobimetallic compounds α- and β-[MNa
with M_Ni, Co, CrystEngComm 12 (2010) 1784–1789;
b) X.-L. Li, G.-Z. Liu, L.-Y. Xin, L.-Y. Wang, A novel metal-organic framework
2
(PDC)
2
(H
2
O)
4
],
thermal parameters for all non-hydrogen atoms (SHELXL-97) [24]. An empirical
absorption correction was applied using the SADABS program. The hydrogen
atoms were placed in calculated positions. Selected bond lengths and angles
(
(
displaying reversibly shrinking and expanding pore modulation, CrystEngComm
are summarized in Table S1. Crystal data for 1: C17
5 6
H21NiN O (Mr = 450.10),
14 (2012) 5757–5760;
monoclinic, P2 /n, a = 9.4244(7), b = 12.4821(10), c = 16.2475(13) Å, β =
1
3
−3
c) Y. Lv, Y. Qi, L. Sun, F. Luo, Y. Che, J. Zheng, Construction of metal-organic frame-
works with the pyridine-3,5-dicarboxylate anion and bis(imidazole) ligands:
synthesis, structure, and thermostability studies, Eur. J. Inorg. Chem. (2010)
96.7390(10) °, V = 1898.1(3) Å , Z = 4, ρ = 1.575 g cm , S = 0.951, and R =
0.0476, wR = 0.0637 (I N 2σ (I)), R = 0.0686, wR = 0.0685 (all data).
[21] R.L. Carlin, Magnetochemistry, Springer-Verlag, Heidelberg, 1986.
[22] S. Martin, M.G. Barandika, L. Lezama, J. Luis Pizarro, Z.E. Serna, J.I.R. De Larramendi,
M.I. Arriortua, T. Rojo, R. Cortés, Weak M(II)-azide-4,4′-bipy ferromagnets based
on unusual diamondoid (M_Mn) and 2D arrays (M_Co, Ni), Inorg. Chem. 40
(2001) 4109–4115.
5592–5596.
[
14] (a) A. Cheansirisomboon, C. Pakawatchai, S. Yongme, 2D-1D structural phase trans-
formation of Co(II) 3,5-pyridicarboxylate frameworks with chromotropism,
Dalton Trans. 41 (2012) 10698–10706;
(
b) Y.-G. Huang, X.-T. Wang, F.-L. Jiang, S. Gao, M.-Y. Wu, Q. Gao, W. Wei, M.-C. Hong,
Cobalt-lanthanide coordination polymers constructed with metalloligands: a
ferromagnetic coupled quasi-1D Dy3+ chain showing slow relaxation, Chem.
Eur. J. 14 (2008) 10340–10347.
[23] A.M. Kutasi, A.R. Harris, S.R. Batten, B. Moubaraki, K.S. Murray, Coordination poly-
mers of dicyanamide and methylpyrazine: syntheses, structures, and magnetic
properties, Cryst. Growth Des. 4 (2004) 605–610.
[24] G.M. Sheldrick, A short history of SHELX, Acta Crystallogr. A64 (2008) 112–122.
[15] (a) M. Du, C.-P. Li, C.-S. Liu, S.-M. Fang, Design and construction of coordination
polymers with mixed-ligand synthetic strategy, Coord. Chem. Rev. 257
(2013) 1282–1305;
