CoBP nanoparticles supported on three-dimensional nitrogen-doped graphene hydrogel and their superior catalysis for hydrogen generation from hydrolysis of ammonia borane

Article abstract of DOI:10.1016/j.jallcom.2017.11.137

P-doped noble-metal-free CoB nanoparticles (NPs) anchored on a three-dimensional nitrogen-doped graphene hydrogel (NGH) have been successfully synthesized trough a simple one-pot co-reduction method and further used as catalyst toward catalytic hydrolysis of ammonia borane (NH₃BH₃) at room temperature. Benefiting from the synergistic electronic effect between Co, B, and P, as well as the strong metal-support interaction between CoBP and 3D NGH, the as-synthesized Co_0.79B_0.15P_0.06/NGH catalyst exhibits excellent catalytic activity toward hydrolysis of ammonia borane, with the turnover (TOF) value of 32.8 min^?1, which is almost 5 times higher than that of undoped Co_0.85B_0.15/NGH NPs, and higher than most of the reported noble metal free catalysts.

Full text of DOI:10.1016/j.jallcom.2017.11.137

Journal of Alloys and Compounds 735 (2018) 1271e1276
Contents lists available at ScienceDirect
Journal of Alloys and Compounds
journal homepage: http://www.elsevier.com/locate/jalcom
CoBP nanoparticles supported on three-dimensional nitrogen-doped
graphene hydrogel and their superior catalysis for hydrogen
generation from hydrolysis of ammonia borane
Yana Men 1, Jun Su b 1, Xiaoqiong Du , Lijing Liang , Gongzhen Cheng , Wei Luo
a
,
,
a
a
a
a, *
a
College of Chemistry and Molecular Sciences, Wuhan University, Wuhan, Hubei, 430072, PR China
Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology, Wuhan, Hubei, 430074, PR China
b
a r t i c l e i n f o
a b s t r a c t
Article history:
Received 20 September 2017
Received in revised form
P-doped noble-metal-free CoB nanoparticles (NPs) anchored on a three-dimensional nitrogen-doped
graphene hydrogel (NGH) have been successfully synthesized trough a simple one-pot co-reduction
method and further used as catalyst toward catalytic hydrolysis of ammonia borane (NH
temperature. Benefiting from the synergistic electronic effect between Co, B, and P, as well as the strong
metal-support interaction between CoBP and 3D NGH, the as-synthesized Co0.79 0.06/NGH catalyst
exhibits excellent catalytic activity toward hydrolysis of ammonia borane, with the turnover (TOF) value
3 3
BH ) at room
1
November 2017
Accepted 10 November 2017
Available online 11 November 2017
B
0.15
P
ꢀ
1
of 32.8 min , which is almost 5 times higher than that of undoped Co0.85
B0.15/NGH NPs, and higher than
Keywords:
Nitrogen-doped graphene hydrogel
CoBP
most of the reported noble metal free catalysts.
©
2017 Elsevier B.V. All rights reserved.
Hydrogen storage
Ammonia borane
1. Introduction
sustained catalysts toward hydrolysis of AB is extremely desirable,
but still a great challenge [31,32].
Hydrogen has been considered as one of the most promising
alternative energy carrier for the future energy conversion and
storage, probably due to its high energy density and environmental
benignity [1e6]. However, safe and efficient storage of hydrogen
still remains a key issues to the forthcoming “hydrogen economy”
catalyst
NH BH þ2H Oƒƒƒ!NH BO þ3H
(1)
3
3
2
4
2
2
Hetero-atoms doping has been considered as one of the most
efficient way to increase the catalytic activity of metal catalysts.
Transition metal phosphides (TMPs), which have a slight of charge
transfer from the metal atoms to P [33e35], have been extensively
served as effective electrocatalysts in overall water splitting
36e41], on account of a strong electronic interaction between the
metal and P. Recently, Fu and coworkers first reported Ni P Nano-
catalysts prepared by reacting Ni(OH) powder with solid NaH PO
[
7e9]. To this end, a large number of hydrogen storage approaches
have been investigated, including physical absorption materials
10,11], metal hydrides [12,13], and chemical hydrides [14e16].
Among them, ammonia borane (NH BH , AB) with high stability
[
3
3
[
and high hydrogen content (19.6 wt.%) [17e20], has been consid-
ered as the most potential candidate for the chemical hydrogen
storage material [21e25]. As shown in Eq. (1), AB is able to release
hydrogen though the catalytic hydrolysis process, in which 3 mol
2
2
2
2
in argon at 543 K and their excellent catalytic performance in the
dehydrogenation of AB [42]. Subsequently, the same group re-
ported CoP nanoparticles obtained from a Co precursor using the
2
H can be obtained [26]. Currently, noble metal based materials (Rh,
Pt, or Ru) [27e30] are considered as the most effective catalysts for
catalytic hydrolysis of ammonia borane, however, their high cost
and scarcity severely hinder their large-scale applications. There-
fore, the development of noble-metal-free, highly efficient and
2 2
NaH PO -reduction method in argon at 573 K toward effectively
catalytic hydrolysis of AB [43]. One the other hand, transition metal
borides, such as CoB, NiB, and Co-Ni-B have already shown great
potential as catalysts toward catalytic hydrolysis of AB [44e46].
Despite great efforts have been made, it still remains a big challenge
to achieve desired non-noble metal based catalysts with high effi-
ciency and long-term stability. Moreover, to the best of knowledge,
doping two hetero-atoms into non-noble metal-based catalyst with
*
Corresponding author.
E-mail address: wluo@whu.edu.cn (W. Luo).
These authors contributed equally.
1
https://doi.org/10.1016/j.jallcom.2017.11.137
925-8388/© 2017 Elsevier B.V. All rights reserved.
0

1272
Y. Men et al. / Journal of Alloys and Compounds 735 (2018) 1271e1276
enhanced catalytic activity toward catalytic hydrolysis of AB, has
not been reported yet.
2.4. Preparation of N-doped graphene
Following this strategy, herein, for the first time, we reported a
simple one-pot synthesis of CoBP nanoparticles (NPs) supported on
three dimensional (3D) nitrogen-doped graphene hydrogel (NGH),
and their superior catalytic performance toward catalytic hydro-
lysis of AB. The 3D NGH was chosen as the supported substrate for
arching the as-synthesized CoBP NPs due to its large surface area,
porosity, electrical conductivity, and excellent stability [47e50].
Thanks to the synergistic electronic interaction between Co, B, and
P, as well as the strong metal-support interaction between CoBP
During a typical synthesis of the N-doped graphene (NGH)
process, 630 mg of GO was added into a 100 mL flakes with 70 mL of
deionized water. A GO dispersion of 9 mg/mL was obtained by
ultrasonication for 2 h, which was doped with nitrogen (N) atoms
by adding 3.0 mL of C H N gradually at room temperature. In the
2 8 2
next step, the suspension was stirred magnetically at 298 K for
30 min and subsequently transferred into a 100 mL Teflon-lined
ꢂ
autoclave which was heated at 180 C for 12 h. After being cooled
to room temperature, the as-obtained NGH hydrogel was dialyzed
against DI-water for at least 24 h to remove the impurities.
0.15
and 3D NGH, the obtained Co0.79B P0.06/NGH exhibits superior
catalytic performance toward hydrolysis of AB, with a turnover
ꢀ1
frequency value (TOF) of 32.8 min , which is higher than most of
the reported non-noble metal based catalysts, and even compara-
ble to noble metal based catalysts.
2.5. Synthesis of CoBP/NGH catalysts
In a typical experiment for CoBP/NGH NPs, 4 mg NGH was
dispersed into 1.5 mL ultrapure water in a two-necked round bot-
tom flask. The mixture was dispersed uniformly by ultrasonication.
2
. Experimental
ꢀ
1
Then, 0.4 mL cobalt chloride solution (CoCl
2
, 0.1 mol L ), and
2.1. Chemicals and materials
different amounts of NaH PO solution (0 mmol, 0.02 mmol,
2
2
ꢀ
1
0.06 mmol, 0.1 mmol, 0.1 mol L ) were added into the flask.
All chemicals were commercial and used without further puri-
Ultrasonication was required to obtain an equably dispersion. The
resulting mixture was then reduced by aqueous solution containing
1 mmol NaBH4 with vigorous stirring at 298 K. After the reaction
completely, the product was collected by centrifugation washing,
and drying by pump vacuum.
fication. Ultrapure water was used as the reaction solvent.
Cobalt chloride hexahydrate (CoCl O, Sinopharm Chemical
þ6H
Reagent Co., Ltd., ꢁ99%), Sodium hypophosphite (NaH PO , Aladdin
Co., Ltd. ꢁ99.0%), Sodium ammonia sulfate ((NH SO , Aladdin Co.,
Ltd.ꢁ99.0%) Tetraphydrofuran (THF, Sinopharm Chemical Reagent
Co., Ltd., >98%), sodium borohydride (NaBH , Sinopharm Chemical
Reagent Co., Ltd., >96%), potassium permanganate (KMnO
Shanghai Chemic Co., Ltd, ꢁ99.5%), hydrogen peroxide (H
2
2
2
2
4
)
2
4
4
2.6. Catalytic hydrolysis of AB
4
2
,
,
2
O
In a typical experiment, The hydrolysis reaction of AB by CoBP/
NGH NPs were tested at 298 K. Various CoBP/NGH NPs doping with
different phosphorus content were added into a 25 mL two-necked
round bottom flask. One neck was connected to a gas burette to
monitor the volume of the gas evolution, and the other for the
Sinopharm Chemical Reagent Co., Ltd, ꢁ30%), phosphoric acid
(
(
H
H
3
PO
SO
4
, Sinopharm Chemical Reagent Co., Ltd, AR), sulfuric acid
, Sinopharm Chemical Reagent Co., Ltd, 95e98%), ethanol
2
4
absolute (C H
2 5
OH, Sinopharm Chemical Reagent Co., Ltd., ꢁ99.7%),
, Sinopharm Chemical Reagent Co., Ltd.,
99.0%), graphite power (Sinopharm Chemical Reagent Co., Ltd,
99.85%) were used as received.
ꢀ
1
ethylenediamine (C
2
8
H N
2
introduction of AB (1 mmol, 1 mol L ). A water bath was used to
control the temperature of the reaction solution at 298 K. The value
of turnover frequency (TOF) can be calculated using Equation (2).
ꢁ
ꢁ
2.2. Preparation of ammonia borane (AB)
TOFinitial ¼ Patm
V
nCo
H
2
=RT
(2)
t
Sodium borohydride (NaBH
4
, 0.05mol) and sodium ammonia
sulfate ((NH SO , 0.1mol) were added to a 250 mL two-necked
4
)
2
4
where TOF initial is initial turnover frequency, Patm is the atmo-
spheric pressure, VH2 is the volume of the generated gas when the
conversion reached 50%, R is the universal gas constant, T is room
temperature (298 K), nCo is the mole amount of Co and t is the
reaction time. The temperatures were varied from 298 to 313 K to
obtain the activation energy (Ea), while CoBP/NGH and AB were
kept the same ratio (catalyst/AB ¼ 0.04).
round-bottom flask with one neck connected to a condenser.
Tetrahydrofuran (THF, 100 mL) was transferred into the flask, and
the contents were vigorously stirred at 313 K. The reaction was
under a nitrogen atmosphere. After 4 h, the resultant solution was
filtered by suction filtration and the filtrate was concentrated under
vacuum at room temperature. Then, the product was purified by
diethyl ether.
2.7. Cycle stability tests
2.3. Preparation of graphene oxide (GO)
For cycle stability tests, catalytic reactions were tested 5 times
(
Graphene oxide) GO was prepared by a modified Hummers
method [51]. During this process, 3.0 g carbon black was added into
a mixture of concentrated H SO /H PO (360:40 mL) in a 1 L flakes.
Then, a certain amount of KMnO (18.0 g) was gradually added to
by adding another the same molar contents of AB (1 mmol) after
the previous cycle at 298 K.
2
4
3
4
4
2.8. Physical characterizations
the flakes. The resulting mixture was then heated to 323 K and
stirred for 12 h. After cooling to room temperature, the mixture was
Powder X-ray diffraction (XRD) patterns were measured by a
added to 400 mL of water with 30% H
2
O
2
(3 mL). After adding 2 mL
Bruker D8-Advance X-ray diffractometer using Cu K
a
radiation
ꢂ
of excess H , a permanent yellow color was formed, which
2
O
2
source (
l
¼ 0.154178 nm) with a velocity of 8 /min. Inductively
indicated that the complete oxidation of the graphite was observed.
The resulting solution was centrifuged to obtain the product. Then,
the obtained product was washed with deionized water, 30%
diluted hydrochloric acid, and absolute ethyl alcohol many times
and then dried in vacuum at 298 K.
coupled plasma-atomic emission spectroscopy (ICP-AES) was per-
formed on IRIS Intrepid II XSP. X-ray photoelectron spectroscopy
(XPS) measurement was performed with a Kratos XSAM 800
spectrophotometer. The morphologies and sizes of the samples
were observed by Tecnai G20 U-Twin transmission electron

Y. Men et al. / Journal of Alloys and Compounds 735 (2018) 1271e1276
1273
microscope (TEM) equipped with an energy dispersive X-ray de-
tector (EDX) at an acceleration voltage of 200 kV. Scanning electron
microscopy (SEM) images were obtained using an electron micro-
scope (SIGMA, ZEISS).
Ea was calculated to be 39.42 kJ molꢀ1, which is quite lower than
those of most of reported Co-based catalysts and even some noble-
metal based catalysts as indicated in Table S2.
The powder X-ray diffraction (XRD) patterns of all the samples
shown in Fig. S2 indicate the as-prepared CoBP/NGH catalysts with
amorphous structure. It has been reported that amorphous struc-
ture belongs to metastable phase, which contains a lot of short-
range order of atoms and long-range disorder structure with
more active sites in comparison to the crystalline phase [53].
3
. Results and discussion
Nitrogen-doped graphene hydrogel (NGH) was first prepared at
ꢂ
1
80 C according to a reported hydrothermal method [52]. Then the
0.15
The Co0.79B P0.06 was also analyzed by X-ray photoelectron
CoBP/NGH catalysts with different phosphorus doping were suc-
cessfully prepared via a simple one-pot co-reduction approach and
studied for catalytic hydrogen generation toward hydrolysis of AB
at room temperature. During this process, the NGH was used as
support. NaBH was not only used as a boron source, but also as a
4
reductant, in which the metal precursors were reduced to form CoB
NPs. The CoBP/NGH with different phosphorus doping were ob-
spectroscopy (XPS). As shown in Fig. 3a, the signals of Co 2p3/2
peaks at binding energies of 778.5eV, 780.6eV and 786.4eV are
0
assigned to the Co , oxidized Co and satellite state, respectively.
Similarly, the signals of P 2p peaks (Fig. 3b) at binding energies of
0
1
29.1eV and133.5 eV are attributed to P and oxidized P, respec-
tively. And the signals of B1s (Fig. 3c) peaks located at binding
0
energies of 188.7eV and 191.7eV are attributed to B and BeO,
tained by changing the amounts of NaH
detected by inductively coupled plasma-atomic emission spec-
troscopy (ICP-AES) as shown in Table S1. Initially, Co0.85
2 2
PO , which were further
respectively. The formation of oxidized metals may be result from
being exposure to oxygen during the catalysts preparation process
B
0.15/NGH
[54]. Obviously, after doping P, the peak of Co 2p3/2 located at the
were prepared to test the catalytic activity toward the hydrolysis of
AB. As expected, it needs more than 10 min to release only 2.5
binding energies of 778.5eV has a positive shift of 0.4 eV in
Co0.79B0.15P0.06/NGH when comparing to Co0.85B0.15/NGH, probably
due to the decrease of electron density and increase of d-band
vacancies in the metal active sites [55], which might result in
boosting the catalytic activity. On the other hand, comparing with
the binding energy of pure P (129.7eV) [56], the peaks of P 2p
located at the binding energy of the 129.1eV for Co0.79B P /
0.15 0.06
NGH is negative shifted to about 0.6 eV, which indicates that there
is low charge transfer from the Co to P. In addition, the peaks of B 1s
ꢀ
1
equivalent of gas (Fig. 1a), with the TOF value of 6.2 min , which
exhibits relatively low catalytic activity and hydrogen selectivity.
However, after doping with the phosphorus, the resulted CoBP/
NGH catalysts exhibit much enhanced catalytic activities with 100%
0.15
hydrogen selectivity. Specifically, the Co0.79B P0.06/NGH exhibited
the highest catalytic activity among all the catalysts tested, with the
ꢀ1
TOF value of 32.8 min , which is almost 5 times higher than that of
0.15/NGH without P doping, and higher than those of most of
Co0.85
B
0.15 0.06
located at the binding energy of the 188.7 eV for Co0.79B P /
the previous reported non-noble metal based catalysts as shown in
Table S2. These results highlight the synergistic effect between CoB
and P in facilitating hydrolysis of AB. Furthermore, for comparison,
NGH has a positive shifted of 0.3 eV comparing with the binding
energy of pure B (188.4eV) [57]. All results indicate that there is
strong electronic interaction between Co, P and B, which can
further influence the bonding configuration of the metal active
center, resulting in an enhancement of catalytic activity. Further-
0.15
the Co0.79B P0.06/NGH NPs without supported material or sup-
ported on graphene oxide (GO) were also prepared, and their cat-
alytic activities toward hydrolysis of AB were studied. As shown in
Fig. S1, their catalytic activities are both inferior to that of
0.15
more, as shown in Fig. S3, for the C1s of Co0.79B P0.06/NGH, it can
be seen clearly that the oxygen containing functional groups eCeO,
and eC]O disappeared, and the eCOO decreased significantly,
comparing with the C1s of GO (Fig. S2a) [58], which suggest that
the abundant of oxygen groups have been reduced. At the same
time, a new peak at 285.2eV can be observed, which is due to the
doping of nitrogen atoms. Meanwhile, as shown in Fig. S4, three
types of nitrogen doped species can be observed clearly for N1s of
Co0.79
B
0.15
P
0.06/NGH, suggesting the three dimensional nitrogen-
doped graphene hydrogel is beneficial for the hydrolysis of AB
(vide infra).
0.15
The durability of Co0.79B P0.06/NGH was also tested in cycle
experiment by adding the same molar amount of AB after the
previous completion at room temperature. As shown in Fig. 1b,
even after five cycles, the catalytic activity and hydrogen selectivity
were still maintained well. To obtain the activation energy (Ea) of
0.15
Co0.79B P0.06/NGH NPs. The binding energies of 399.6 eV, 398.1 eV
and 400.8 eV are corresponding to pyrrolic N and pyridinic N,
graphitic N, respectively [59]. In general, it can be suggested that
nitrogen atom has been doped into the carbon bonds of graphene
catalytic hydrolysis of AB by Co0.79
decomposition reaction temperatures were varied from 298 K to
13 K as shown in Fig. 2a. According to the Arrhenius equation, the
0.15
B P0.06/NGH, the catalytic
3

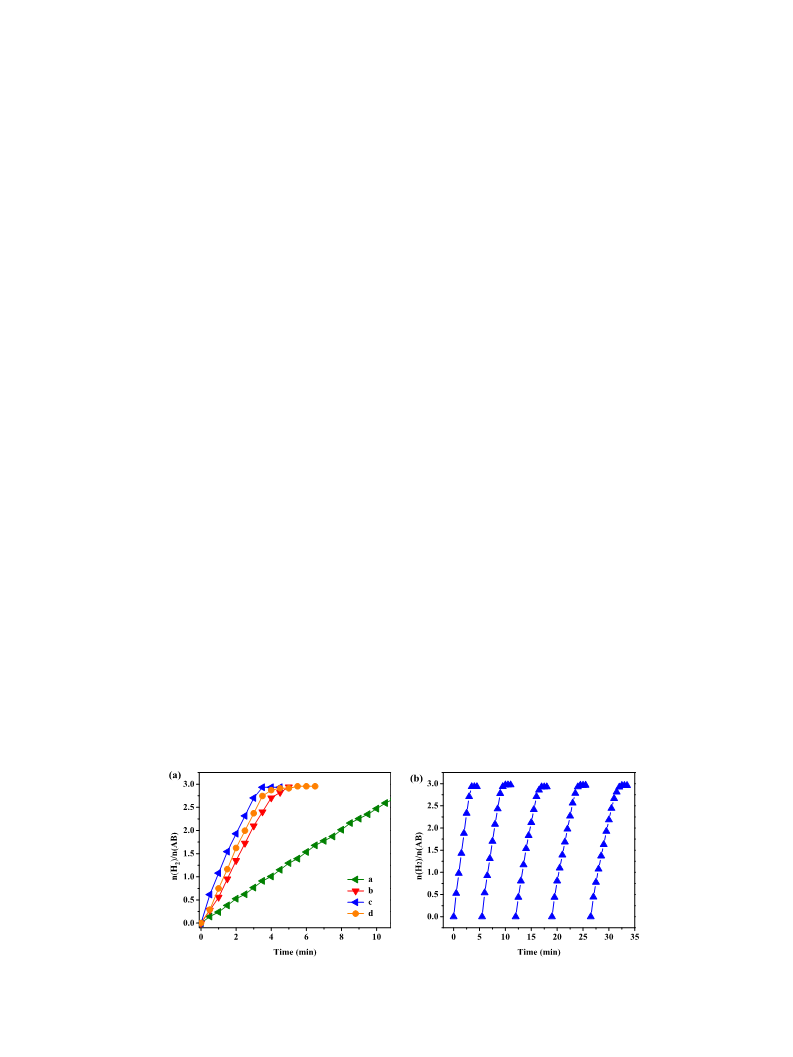

Fig. 1. (a) Catalytic performance tests of Co0.79
Co0.80 0.04/NGH, Co0.79 0.06/NGH, Co0.80
B
0.15
P
0.06/NGH with different molar of P content. (catalyst/NH
3
BH
3
¼ 0.04) (a, b, c, and d, represent the Co0.85
B0.15/NGH,
BH at room temperature.
B
0.16
P
B
0.15
P
B
0.13
P
0.07/NGH) (b) durability tests of Co0.79 0.06/NGH toward the dehydrogenation hydrolysis of NH
0.15
B P
3
3

1274
Y. Men et al. / Journal of Alloys and Compounds 735 (2018) 1271e1276

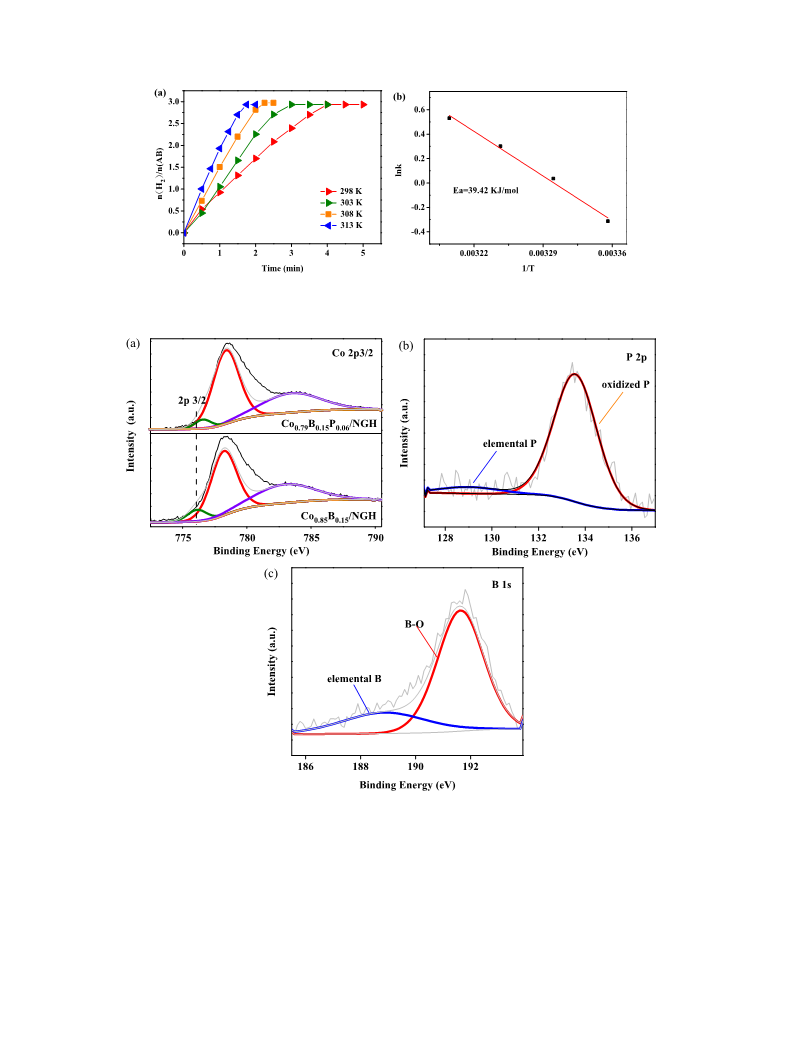

Fig. 2. (a) Time plots for hydrogen generation toward the dehydrogenation hydrolysis of NH
catalyst/NH BH BH
¼ 0.04) (b) Arrhenius plot of lnk versus 1/T during the hydrolysis of NH
3
BH
3
catalyzed by Co0.79
0.15
B P0.06/NGH at temperatures ranging from 298 to 313 K.
(
3
3
3
3
over Co0.79B P
0.15
0.06/NGH.
0.15
Fig. 3. (a) The XPS spectra of (a) Co 2p 3/2 and (b) P 2p and (c) B 1s for the Co0.79B P0.06/NGH NPs.
successfully from the C 1s and N 1s of Co0.79
which may significantly enhance the interaction between metal
and support to facilitate the hydrolysis of AB [60].
Furthermore, as shown in Fig. S5, the N-doped graphene
hydrogel is cylindrical elastic hydrogel solid, with the diameter of
B
0.15
P
0.06/NGH NPs,
pore-size distribution of the NGH (Fig. S7(b)), it can be seen clearly
that most of the pores possessing a volume of 0.288 cm /g, with a
peak pore diameter of 3.697 nm. It is reported that these pores
could greatly increase the contact with AB and facilitate the facile
release or evolved hydrogen bubbles during the catalysis [61].
3
2
.1 nm and height of 3.7 nm. It can be seen clearly from the scan-
The microstructure of the obtained Co0.79
were analyzed by transmission electron microscopy (TEM). As
shown in Fig. 4a and b, Co0.79 0.06 nanoparticles are well
dispersed on the 3D NGH. For comparison, Co0.85 0.15/NGH NPs
0.15
B P0.06/NGH NPs
ning electron microscope (SEM) (Fig. S6), the structure of NGH is
three-dimensional poriferous reticulate, which has varieties of
porous sizes. Furthermore, the porosity of the NGH was measured
B
0.15
P
B
by N
2
adsorption/desorption at 77 K. As shown in Fig. S7(a), the BET
were also characterized by TEM (Fig. S8), however, severely ag-
gregation is observed, which might impede the mutual effect
2
specific surface area of the NGH sample is 190.42 m /g. From the

Y. Men et al. / Journal of Alloys and Compounds 735 (2018) 1271e1276
1275
0.15

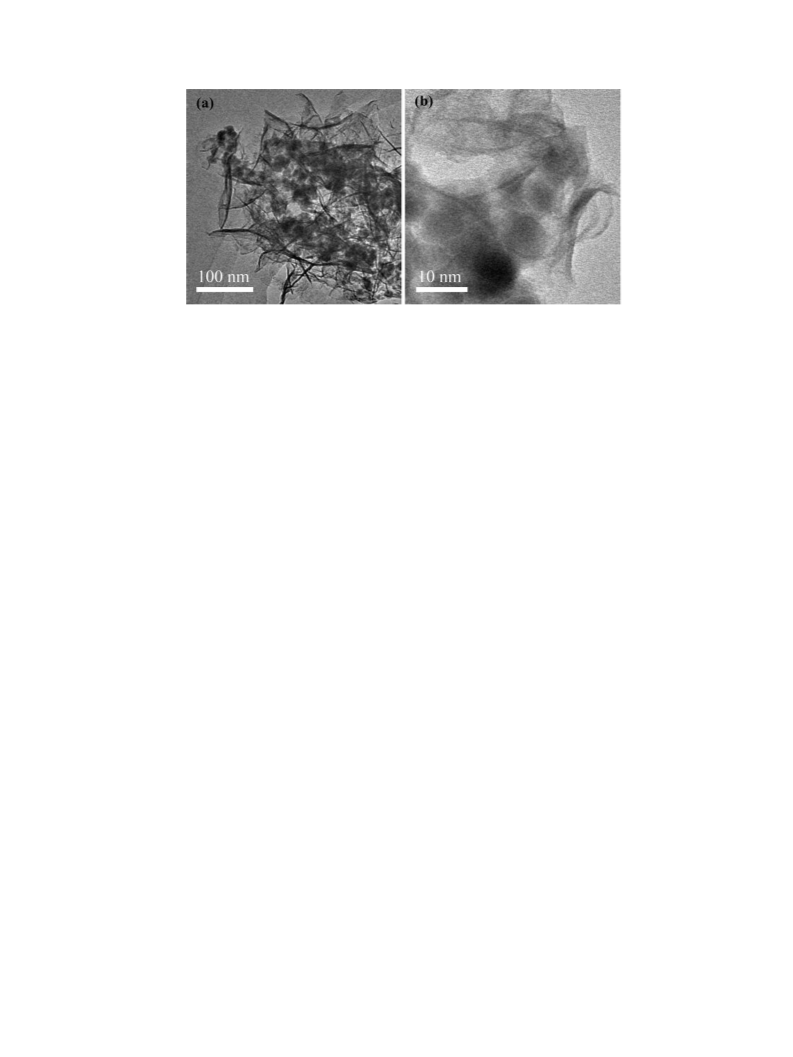

Fig. 4. TEM images of with different magnifications (a, b) of Co0.79B P0.06/NGH.
between the NH
3
BH
3
molecule and metal active centers, resulting
hydrogen: fuel of the near future, Energy Environ. Sci. 3 (2010) 279e287.
4] A. Boddien, D. Mellmann, F. G a€ rtner, R. Jackstell, H. Junge, P.J. Dyson, et al.,
[
in the decrease of the catalytic activity. Furthermore, the energy-
dispersive X-ray (EDX), as shown in Fig. S9, confirms the co-
presence of Co, B and P. In addition, the CoBP/NGH catalysts after
stability test were further characterized by XRD and TEM. As shown
in Fig. S10, the XRD indicates CoBP/NGH after stability test still
possess amorphous structure. However, slight aggregation of CoBP
NPs were observed from the TEM images as shown in Fig. S11,
which might be the reason for the decrease of the catalytic per-
formance. Further study about increasing the stability of the cata-
lysts is still in process in our lab.
Efficient dehydrogenation of formic acid using an iron catalyst, Science 333
(2011) 1733e1736.
[5] R. Zeb, L. Salar, U. Awan, K. Zaman, M. Shahbaz, Causal links between
renewable energy, environmental degradation and economic growth in
selected SAARC countries: progress towards green economy, Renew. Energy
71 (2014) 123e132.
[6] G. Cipriani, D.V. Di, F. Genduso, C.D. La, R. Liga, R. Miceli, et al., Perspective on
hydrogen energy carrier and its automotive applications, Int. J. Hydrogen
Energy 39 (2014) 8482e8494.
7] J. Graetz, New approaches to hydrogen storage, Chem. Soc. Rev. 38 (2009)
73e82.
8] W. Luo, P.G. Campbell, L.N. Zakharov, S.Y. Liu, A single-component liquid-
phase hydrogen storage material, J. Am. Chem. Soc. 133 (2011) 19326e19329.
9] D. Pukazhselvan, V. Kumar, S. Singh, High capacity hydrogen storage: basic
aspects, new developments and milestones, Nano Energy 1 (2012) 566e589.
10] W. Lei, H. Zhang, Y. Wu, B. Zhang, D. Liu, S. Qin, et al., Oxygen-doped boron
nitride nanosheets with excellent performance in hydrogen storage, Nano
Energy 6 (2014) 219e224.
[
[
[
4
. Conclusions
[
In summary, the three-dimensional nitrogen doped graphene
hydrogel (NGH) was obtained by a simple hydrothermal method,
and further used as support to anchor CoBP NPs with good
dispersion. Taking the advantage of P doping with resulted syner-
gistic electronic interaction between Co, B, and P, as well as the
strong metal-support interaction between CoBP and 3D NGH, the
[11] E. Ha, L.Y.S. Lee, J. Wang, F. Li, K.Y. Wong, S.C.E. Tsang, Significant enhance-
2 4
ment in photocatalytic reduction of water to hydrogen by Au/Cu ZnSnS
nanostructure, Adv. Mater. 26 (2014) 3496e3500.
[12] M.V. Lototskyy, V.A. Yartys, B.G. Pollet, R.C. Bowman, Metal hydride hydrogen
compressors: a review, Int. J. Hydrogen Energy 39 (2014) 5818e5851.
[13] S. Fukuzumi, T. Suenobu, Hydrogen storage and evolution catalysed by metal
hydride complexes, Dalton Trans. 42 (2013) 18e28.
resulted Co0.79
performance toward the catalytic hydrolysis of NH
B
0.15
P
0.06/NGH catalyst exhibits superior catalytic
BH at room
temperature, with a TOF value of 32.8 min , which is almost 5
times higher than that of undoped Co0.85 0.15/NGH NPs. This simple
[14] Q.L. Zhu, Q. Xu, Liquid organic and inorganic chemical hydrides for high-
3
3
capacity hydrogen storage, Energy Environ. Sci. 8 (2015) 478e512.
[15] M. Yadava, Q. Xu, Liquid-phase chemical hydrogen storage materials, Energy
ꢀ
1
Environ. Sci. 5 (2012) 9698e9725.
B
[16] D. Pukazhselvan, V. Kumar, S.K. Singh, High capacity hydrogen storage: basic
and low-cost synthetic method not only facilitate the promotion of
ammonia borane as chemical hydrogen storage material but also
open a new avenue for the fabrication of other bi- or multi-hetero
atoms doped metal catalysts for more applications.
aspects, new developments and milestones, Nano Energy 1 (2012) 566e589.
[17] Q. Xu, M. Chandra, Catalytic activities of non-noble metals for hydrogen
generation from aqueous ammoniaeborane at room temperature, J. Power
Sources 163 (2006) 364e370.
[
18] J.M. Yan, X.B. Zhang, S. Han, H. Shioyama, Q. Xu, Iron-nanoparticle-catalyzed
hydrolytic dehydrogenation of ammonia borane for chemical hydrogen
storage, Angew. Chem. Int. Ed. 47 (2008) 2287e2289.
Acknowledgements
[19] L. Wen, J. Su, X. Wu, P. Cai, W. Luo, G.Z. Cheng, Ruthenium supported on MIL-
9
6: an efficient catalyst for hydrolytic dehydrogenation of ammonia borane
for chemical hydrogen storage, Int. J. Hydrogen Energy 39 (2014)
7129e17135.
This work was financially supported by the National Natural
Science Foundation of China (21571145), and Large-scale Instru-
ment and Equipment Sharing Foundation of Wuhan University.
1
[
20] Z.H. Lu, J. Li, A. Zhu, Q. Yao, W. Huang, R. Zhou, et al., Catalytic hydrolysis of
ammonia borane via magnetically recyclable copper iron nanoparticles for
chemical hydrogen storage, Int. J. Hydrogen Energy 38 (2013) 5330e5337.
Appendix A. Supplementary data
[21] S.K. Singh, Q. Xu, Bimetallic nickel-iridium nanocatalysts for hydrogen gen-
eration by decomposition of hydrous hydrazine, Chem. Commun. 46 (2010)
6
545e6547.
Supplementary data related to this article can be found at
https://doi.org/10.1016/j.jallcom.2017.11.137.
[
[
22] S.K. Singh, Q. Xu, Bimetallic Niꢀ Pt nanocatalysts for selective decomposition
of hydrazine in aqueous solution to hydrogen at room temperature for
chemical hydrogen storage, Inorg. Chem. 49 (2010) 6148e6152.
23] S.K. Singh, Q. Xu, Complete conversion of hydrous hydrazine to hydrogen at
room temperature for chemical hydrogen storage, J. Am. Chem. Soc. 131
References
(2009) 18032e18033.
[
[
[
1] M.P. Suh, H.J. Park, T.K. Prasad, D.W. Lim, Hydrogen storage in metaleorganic
[24] J.M. Yan, Z.L. Wang, L. Gu, S.J. Li, H.L. Wang, W.T. Zheng, et al., AuPdeMnOx/
MOFegraphene: an efficient catalyst for hydrogen production from formic
acid at room temperature, Adv. Energy Mater. 5 (2015) 10e11.
[25] L. Yang, W. Luo, G.Z. Cheng, Monodisperse CoAgPd nanoparticles assembled
on graphene for efficient hydrogen generation from formic acid at room
frameworks, Chem. Rev. 112 (2011) 782e835.
2] S. Dunn, Hydrogen futures: toward a sustainable energy system, Int. J.
Hydrogen Energy 27 (2002) 235e264.
3] M. Pagliaro, A.G. Konstandopoulos, R. Ciriminna, G. Palmisano, Solar

1276
Y. Men et al. / Journal of Alloys and Compounds 735 (2018) 1271e1276
temperature, Int. J. Hydrogen Energy 41 (2016) 439e446.
26] M. Paladini, G.M. Arzac, V. Godinho, M.J. De Haro, A. Fern aꢀ ndez, Supported Co
[43] Z.C. Fu, Y. Xu, S.L.F. Chan, W.W. Wang, F. Li, F. Lang, Highly efficient hydrolysis
[
of ammonia borane by anion (ꢀ OH, Fꢀ, Clꢀ)-tuned interactions between
reactant molecules and CoP nanoparticles, Chem. Commun. 53 (2017)
705e708.
catalysts prepared as thin films by magnetron sputtering for sodium boro-
hydride and ammonia borane hydrolysis, Appl. Catal. B Environ. 158 (2014)
4
00e409.
[44] J. Yan, J. Liao, H. Li, H. Wang, R.F. Wang, Magnetic field induced synthesis of
amorphous CoB alloy nanowires as a highly active catalyst for hydrogen
generation from ammonia borane, Catal. Commun. 84 (2016) 124e128.
[45] A.K. Figen, Dehydrogenation characteristics of ammonia borane via boron-
based catalysts (CoeB, NieB, CueB) under different hydrolysis conditions,
Int. J. Hydrogen Energy 38 (2013) 9186e9197.
[46] Y.J. Zou, Y.B. Gao, C.L. Xiang, H.L. Chu, S.J. Qiu, E.H. Yan, et al., Cobalt-Nickel-
boron supported over polypyrrole-derived activated carbon for hydrolysis of
ammonia borane, Metals 6 (2016) 154.
[
27] W. Chen, J. Ji, X. Feng, X. Duan, G. Qian, P. Li, et al., Mechanistic insight into
size-dependent activity and durability in Pt/CNT catalyzed hydrolytic dehy-
drogenation of ammonia borane, J. Am. Chem. Soc. 136 (2014) 16736e16739.
28] J.F. Shen, L. Yang, K. Hu, W. Luo, G.Z. Cheng, Rh nanoparticles supported on
graphene as efficient catalyst for hydrolytic dehydrogenation of amine bo-
ranes for chemical hydrogen storage, Int. J. Hydrogen Energy 40 (2015)
[
1062e1070.
[
[
[
29] L. Wen, Z. Zheng, W. Luo, P. Cai, G.Z. Cheng, Ruthenium deposited on MCM-41
as efficient catalyst for hydrolytic dehydrogenation of ammonia borane and
methylamine borane, Chin. Chem. Lett. 26 (2015) 1345e1350.
[47] Y. Xu, K. Sheng, C. Li, G. Shi, Self-assembled graphene hydrogel via a one-step
hydrothermal process, ACS Nano 4 (2010) 4324e4330.
30] X.Q. Du, S.Y. Tan, P. Cai, W. Luo, G.Z. Cheng, A RhNiP/rGO hybrid for efficient
catalytic hydrogen generation from an alkaline solution of hydrazine, J. Mater.
Chem. A 4 (2016) 14572e14576.
31] Y.S. Du, N. Cao, L. Yang, W. Luo, G.Z. Cheng, One-step synthesis of magnetically
recyclable rGO supported Cu@Co core-shell nanoparticles: highly efficient
catalysts for hydrolytic dehydrogenation of ammonia borane and methyl-
amine borane, New J. Chem. 37 (2013) 3035e3042.
[48] Z. Zhao, T. Mei, Y. Chen, J. Qiu, D. Xu, J. Wang, et al., One-pot synthesis of
lightweight nitrogen-doped graphene hydrogels with supercapacitive prop-
erties, Mater. Res. Bull. 68 (2015) 245e253.
[49] Y. Xu, Z. Lin, X. Huang, Y. Liu, Y. Huang, X. Duan, Flexible solid-state super-
capacitors based on three-dimensional graphene hydrogel films, ACS Nano 7
(2013) 4042e4049.
[50] Y. Li, Y. Zhao, H. Cheng, Y. Hu, G. Shi, L. Dai, et al., Nitrogen-doped graphene
quantum dots with oxygen-rich functional groups, J. Am. Chem. Soc. 134
(2011) 15e18.
[51] D.C. Marcano, D.V. Kosynkin, J.M. Berlin, A. Sinitskii, Z. Sun, A. Slesarev, et al.,
Improved synthesis of graphene oxide, ACS Nano 4 (2010) 4806e4814.
[52] X.Q. Du, C. Liu, C. Du, P. Cai, G.Z. Cheng, W. Luo, Nitrogen-doped graphene
[
32] W.Q. Feng, l Yang, N. Cao, C. Du, H.M. Dai, L. Luo, G.Z. Cheng, In situ facile
synthesis of bimetallic CoNi catalyst supported on graphene for hydrolytic
dehydrogenation of amine borane, Int. J. Hydrogen Energy 39 (2014)
3371e3380.
[
[
[
33] Y. Xu, R. Wu, J. Zhang, Y. Shi, B. Zhang, Anion-exchange synthesis of nano-
porous FeP nanosheets as electrocatalysts for hydrogen evolution reaction,
Chem. Commun. 49 (2013) 6656e6658.
34] E.J. Popczun, J.R. McKone, C.G. Read, A.J. Biacchi, A.M. Wiltrout, N.S. Lewis,
R.E. Schaak, Nanostructured nickel phosphide as an electrocatalyst for the
hydrogen evolution reaction, J. Am. Chem. Soc. 135 (2013) 9267e9270.
35] J. Tian, Q. Liu, N. Cheng, A.M. Asiri, X. Sun, Self-Supported Cu3P Nanowire
Arrays as an integrated high-performance three-dimensional cathode for
generating hydrogen from water, Angew. Chem. Int. Ed. 53 (2014)
x
hydrogel-supported NiPt-CeO nanocomposites and their superior catalysis
for hydrogen generation from hydrazine at room temperature, Nano Res. 10
(2017) 2856e2865.
[53] Y. Ma, H. Li, H. Wang, X. Mao, V. Linkov, S. Ji, et al., Evolution of the electro-
catalytic activity of carbon-supported amorphous platinum-ruthenium-
nickel-phosphorous nanoparticles for methanol oxidation, J. Power Sources
268 (2014) 498e507.
[54] N. Cao, L. Yang, C. Du, J. Su, W. Luo, G. Cheng, Highly efficient dehydrogenation
of hydrazine over graphene supported flower-like NiePt nanoclusters at room
temperature, J. Mater. Chem. A 2 (2014) 14344e14347.
[55] X.Q. Du, S.Y. Tan, P. Cai, W. Luo, G.Z. Cheng, A RhNiP/rGO hybrid for efficient
catalytic hydrogen generation from an alkaline solution of hydrazine, J. Mater.
Chem. A 4 (2016) 14572e14576.
9577e9581.
[
[
36] X. Yang, A.Y. Lu, Y. Zhu, M.N. Hedhili, S. Min, K.W. Huang, Y. Han, L.J. Li, CoP
nanosheet assembly grown on carbon cloth: a highly efficient electrocatalyst
for hydrogen generation, Nano Energy 15 (2015) 634e641.
37] A. Berenguer, T.M. Sankaranarayanan, G. G oꢀ mez, I. Moreno, J.M. Coronado,
P. Pizarro, et al., Evaluation of transition metal phosphides supported on or-
dered mesoporous materials as catalysts for phenol hydrodeoxygenation,
Green Chem. 18 (2016) 1938e1951.
[56] V.D. Klimov, A.A. Vashman, I.S. Pronin, Study of atomic titanium interaction
2 3
with PF3 matrix at 77-K-cryochemical synthesis of TiF . PF mono-
triphosphinetitanium (II) fluoride new compounds, Zhurnal Obshchei Khimii
61 (1991) 2166e2174.
[
[
[
38] Z. Huang, Z. Chen, Z. Chen, C. Lv, M.G. Humphrey, C. Zhang, Cobalt phosphide
nanorods as an efficient electrocatalyst for the hydrogen evolution reaction,
Nano Energy 9 (2014) 373e382.
39] Y. Shi, B. Zhang, Recent advances in transition metal phosphide nano-
materials: synthesis and applications in hydrogen evolution reaction, Chem.
Soc. Rev. 45 (2016) 1529e1541.
40] H. Yan, C. Tian, L. Wang, A. Wu, M. Meng, L. Zhao, H. Fu, Modified tungsten
Nitride/Reduced graphene oxide as a high-performance, non-noble-metal
electrocatalyst for the hydrogen evolution reaction, Angew. Chem. Int. Ed. 127
[57] L. Chen, T. Goto, T. Hirai, Amano, State of boron in chemical vapour-deposited
SiC-B composite powders, J. Mater. Sci. Lett. 9 (1990) 997e999.
[58] D.X. Yang, A. Velamakanni, G. Bozoklu, S. Park, M. Stoller, R.D. Piner,
S. Stankovich, I. Jung, D.A. Field, Chemical analysis of graphene oxide films
after heat and chemical treatments by X-ray photoelectron and micro-raman
spectroscopy, Carbon 47 (2009) 145e152.
[59] P. Chen, J.J. Yang, S.S. Li, Z. Wang, T.Y. Xiao, Y.H. Qian, et al., Hydrothermal
synthesis of macroscopic nitrogen-doped graphene hydrogels for ultrafast
supercapacitor, Nano Energy 2 (2013) 249e256.
(
2015) 6423e6427.
[
41] P. Xiao, M.A. Sk, L. Thia, X. Ge, R.J. Lim, J. Wang, K.H. Lima, X. Wang, Nano-
[60] J.J. Zhang, R.Y. Li, Z.J. Li, J.K. Liu, Z.G. Gu, G.L. Wang, Synthesis of nitrogen-
doped activated graphene aerogel/gold nanoparticles and its application for
electrochemical detection of hydroquinone and o-dihydroxybenzene, Nano-
scale 10 (2014) 5458e5466.
[61] X.P. Zhang, D. Liu, L. Yang, L.M. Zhou, T.Y. You, Self-assembled three-
dimensional graphene-based materials for dye adsorption and catalysis,
J. Mater. Chem. A 3 (2015) 10031e10037.
structured PtRu/C catalyst promoted by CoP as an efficient and robust anode
catalyst in direct methanol fuel cells, Energy Environ. Sci.
624e2629.
42] C.Y. Peng, K. Kang, S. Cao, Y. Chen, Z.S. Lin, W.F. Fu, Nanostructured Ni
7
(2014)
2
[
2
P as a
robust catalyst for the hydrolytic dehydrogenation of ammonia-borane,
Angew. Chem. Int. Ed. 127 (2015) 15951e15955.
