Mechanochemical Synthesis of Ternary Potassium Transition Metal Chlorides
the Max-Planck-Gesellschaft, this work was supported by General
Motors Fuel Cell Activities.

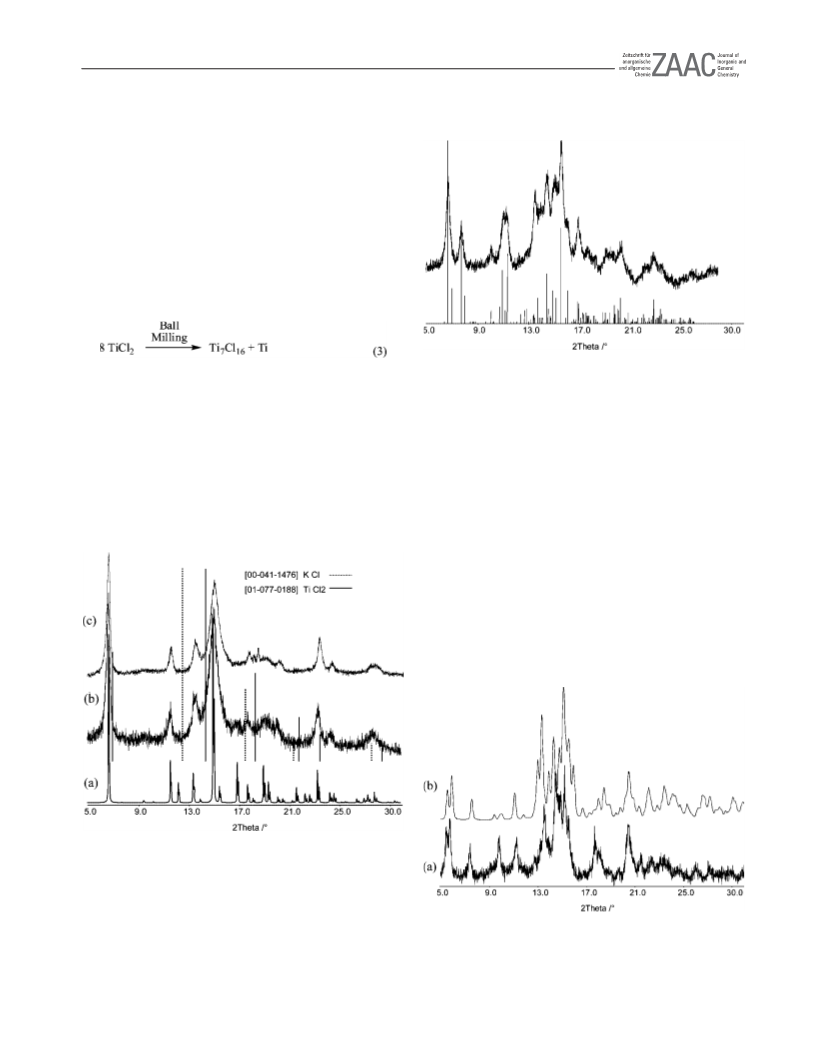

was reacted further with an additional amount of KCl, the
reaction yielded K2ZnCl4 [44, 45] (Fig. 8).
The formation of K2ZnCl4 from the intermediate phase
does not prove the single phase nature of the intermediate,
but on the other hand, there is no need to argue otherwise;
final certainty about this could probably only be achieved
by structure solution from the powder pattern for which,
however, the data quality is clearly insufficient, again due
to the limitations associated with the mechanochemical syn-
thesis.
References
[1] J. Legendziewicz, J. Cybinska, M. Guzik, G. Boulon, G. Meyer,
Opt. Mater. 2008, 30, 1655Ϫ1666.
[2] J. A. Schlueter, J. L. Manson, U. Geiser, Inorg. Chem. 2005,
44, 3194Ϫ3202.
[3] N. Gerlitzki, S. Hammerich, G. Meyer, Z. Anorg. Allg. Chem.
2004, 630, 2431Ϫ2433.
The existence of new (metastable) phases in ternary sys-
tems may be expected, because the enthalpy gain from the
synproportionation of two binary chlorides to a ternary
system is rather small (ϳ0.6 - 20 kJ molϪ1, usually much
less than 1 % of the total lattice enthalpy). But enthalpy
values have significance only at 0 K; at higher temperatures,
the Gibbs enthalpy has to be considered as the sole
criterion for stability („high” relative to 0 K) [52].
A small endothermic formation enthalpy overruled by a
sufficient negative entropy term TΔS can still result in a
negative Gibbs enthalpy: the synproportionation enthalpy

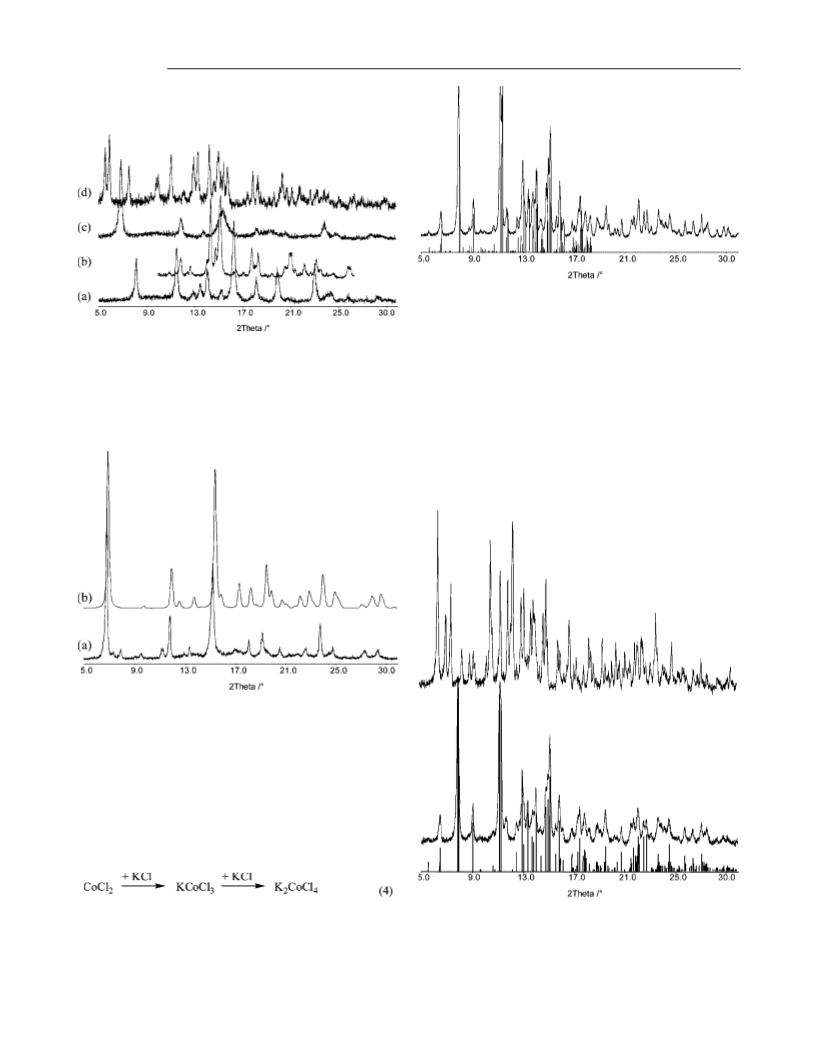

for K2CoCl4 from KCl and KCoCl3 according to Eq. (4) is
almost zero (0.6 kJ molϪ1)! Nevertheless the reaction pro-
ceeds to K2CoCl4, due to the considerable entropy gain pro-
vided by the transition from linked to isolated coordination
polyhedra [52].
[4] S. Emori, N. Koga, F. Yamada, ITE Lett. Batteries, New Tech-
nol. Med. 2004, 5, 267Ϫ270.
[5] S. Kaluza, M. Suchanska, R. Belka, S. Lesniewski, Ferroelec-
trics 2002, 273, 143Ϫ148.
[6] G. Schilling, G. Meyer, Z. Anorg. Allg. Chem. 1996, 622,
759Ϫ765.
[7] M. Hagemann, H. J. Weber, Appl. Phys. A: Mater. Sci. Process.
1996, 63, 67Ϫ74.
[8] A. K. Banerjee, A. C. Verma, S. K. Roy, J. Indian Chem. Soc.
1995, 72, 1Ϫ3.
[9] G. H. Rao, K. Barner, I. D. Brown, J. Phys.: Condens. Matter
1998, 10, L757ϪL763.
´
[10] B. Bogdanovıc, U. Eberle, M. Felderhoff, F. Schüth, Scr.
Mater. 2007, 56, 813Ϫ816.
[11] S.-i. Orimo, Y. Nakamori, J. R. Eliseo, A. Züttel, C. M. Jensen,
Chem. Rev. 2007, 107, 4111Ϫ4132.
[12] A. Züttel, Naturwissenschaften 2004, 91, 157Ϫ172.
[13] M. Fichtner, C. Frommen, O. Fuhr, Inorg. Chem. 2005, 44,
3479Ϫ3484.
[14] Y. Nakamori, H. Li, K. Miwa, S.-i. Towata, S.-i. Orimo, Mater.
Trans. 2006, 47, 1898Ϫ1901.
Conclusion
´
[15] M. Mamatha, B. Bogdanovıc, M. Felderhoff, A. Pommerin,
W. Schmidt, F. Schüth, C. Weidenthaler, J. Alloys Compd. 2006,
407, 78Ϫ86.
This study proves, that ball milling is a versatile and use-
ful tool in solid state chemistry, especially as a preparative
method. Mechanochemical synthesis gave easy access to a
number of known and previously unknown ternary halides,
and it is expected that also numerous other compounds will
be accessible via related pathways. The disadvantages of the
method with respect to structural investigation are the small
particle sizes and high defect concentrations induced by the
ball milling, which seriously impedes structural analysis. It
is typically not possible to produce single crystals suffic-
iently big for structural analysis. The quality of the powder
diffraction data is also insufficient for structure solution, so
that only comparison to known structure types can give
indications with respect to the structure of new compounds.
However, the results of our investigations may induce work
to produce higher quality samples of some of the phases
described and thus further promote knowledge on these
and related compounds. On the other hand, the very weak-
ness of the mechanochemical synthesis pathway turns into
a strength, when the products of this preparation method
are to be converted to other compounds, such as the multin-
ary hydrides discussed in the introduction. Work in this di-
rection is going on in our laboratory, and possibly, novel
hydride storage materials can emerge from this line of work.
[16] D. A. Porter, A. Harrison, D. Visser, R. C. B. Copley, A. E.
Goeta, J. A. K. Howard, K. S. Knight, Physica B 1998,
241Ϫ243, 385Ϫ386.
[17] I. N. Flerov, M. V. Gorev, K. S. Aleksandrov, A. Tressaud, J.
Grannec, M. Couzi, Mater. Sci. Eng., R 1998, R24, 81Ϫ151.
[18] V. Luana, A. Costales, A. M. Pendas, M. Florez, V. M. G.
Fernandez, Solid State Commun. 1997, 104, 47Ϫ50.
[19] V. Luana, A. Costales, A. M. Pendas, Phys. Rev. B: Condens.
Matter 1997, 55, 4285Ϫ4297.
[20] A. Boumriche, J. Y. Gesland, A. Bulou, M. Rousseau, J. L.
Fourquet, B. Hennion, Solid State Commun. 1994, 91,
125Ϫ128.
[21] M. T. Anderson, K. B. Greenwood, G. A. Taylor, K. R.
Poeppelmeier, Prog. Solid State Chem. 1993, 22, 197Ϫ233.
[22] D. Visser, A. Harrison, J. Magn. Magn. Mater. 1992, 116,
80Ϫ82.
[23] C. Ridou, M. Rousseau, J. Bouillot, C. Vettier, J. Phys. C 1984,
17, 1001Ϫ1007.
[24] J. F. Ackerman, G. M. Cole, S. L. Holt, Inorg. Chim. Acta
1974, 8, 323Ϫ343.
[25] Y. Nishihata, J. Mizuki, T. Akao, H. Tanaka, M. Uenishi, M.
Kimura, T. Okamoto, N. Hamada, Nature 2002, 418, 164Ϫ167.
[26] H. Tanaka, M. Misono, Curr. Opin. Solid State Mater. Sci.
2001, 5, 381Ϫ387.
[27] C. J. Howard, Acta Crystallogr. 2005, A61, 93Ϫ111.
[28] V. V. Boldyrev, K. Tkacova, J. Mater. Synth. Process. 2000,
8, 121Ϫ132.
[29] J. F. Fernandez-Bertran, Pure Appl. Chem. 1999, 71, 581Ϫ586.
[30] J. J. Gilman, Science 1996, 274, 65.
[31] N. Z. Lyakhov, T. F. Grigoryeva, A. P. Barinova, J. Therm.
Anal. Calorim. 2005, 82, 741Ϫ746.
[32] W. J. Vermin, G. C. Verschoor, D. J. W. Ijdo, Acta Crystallogr.
1976, B32, 3325Ϫ3328.
Acknowledgement
The assistance of Mr. Marvin Mischner in the preparation of the
samples is greatly appreciated. In addition to the basic funding by
Z. Anorg. Allg. Chem. 2009, 265Ϫ270
© 2009 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
269
