Visible Enantiomer Discrimination via Diphenylalanine-Based Chiral Supramolecular Self-Assembly on Multiple Platforms

Article abstract of DOI:10.1021/acs.langmuir.9b03449

The development of enantioselective recognition is of great significance in medical science and pharmaceutical industry, which associates with the molecular recognition phenomenon widely observed in biological systems. In particular, the facile and straig

Full text of DOI:10.1021/acs.langmuir.9b03449

Subscriber access provided by Karolinska Institutet, University Library
Article
Visible Enantiomer Discrimination via Diphenylalanine-based
Chiral Supramolecular Self-assembly on Multiple Platforms
Minggao Qin, Yaqian Zhang, Jinying Liu, Chao Xing, Changli Zhao, Xiaoqiu Dou, and Chuan-Liang Feng
Langmuir, Just Accepted Manuscript • DOI: 10.1021/acs.langmuir.9b03449 • Publication Date (Web): 23 Feb 2020
Downloaded from pubs.acs.org on February 28, 2020
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the
course of their duties.

Page 1 of 31
Langmuir
1
2
3
4
5
6
7
8
9
Visible Enantiomer Discrimination via
Diphenylalanine-based Chiral Supramolecular
Self-assembly on Multiple Platforms
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Minggao Qin, Yaqian Zhang, Jinying Liu, Chao Xing, Changli Zhao, Xiaoqiu Dou,
Chuanliang Feng*
State Key Lab of Metal Matrix Composites, School of Materials Science and
Engineering, Shanghai Jiao Tong University, 800 Dongchuan Road, Shanghai, P. R.
China, 200240
* Corresponding author
E-mail: clfeng@sjtu.edu.cn
ACS Paragon Plus Environment

Langmuir
Page 2 of 31
1
2
3
4
5
6
7
8
9
ABSTRACT: The development of enantioselective recognition is of great
significance in medical science and pharmaceutical industry, which associates with
molecular recognition phenomenon widely observed in biological systems. In particular,
the facile and straight achievement of visual enantioselective recognition has been
drawing increasing consideration but still challengeable. Herein, a heterochiral
diphenylalanine-based gelator (LFDF) is synthesized, presenting left-handed
nanofibers during self-assembled in ethanol, which accomplish the phenylalaninol
enantiomer recognition on multiple platforms. When adding L- or D-phenylalaninol
into LFDF supramolecular solution followed by ultrasonic treatment, precipitate and
gel are formed, respectively. Meanwhile, LFDF supramolecular gel completely
collapses in a minutes after dropping L-phenylalaninol, while the gel almost remains
when D-type is employed. Moreover, a fluorescent supramolecular xerogel (ThT-LFDF)
is fabricated by introducing Thioflavine T (ThT), which could detect L-phenylalaninol
accompanying with fluorescence quenching and D-type with barely decreasing. And
the ThT-LFDF xerogel system shows a good sensitivity for the detection of L-
phenylalaninol reaches to ppm. It is found that the chirality of the assembled nanofibers,
as well as amino and carboxyl of phenylalaninol play critical role on the discrimination
process. The multiple and visible enantioselective recognition of phenylalaninol
through chiral supramolecular self-assemblies show potential applications in the fields
of medical science and pharmaceutical industry.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
KEYWORDS: Supramolecular chemistry, chiral assembly, visible recognition,
diphenylalanine, multiple platforms
ACS Paragon Plus Environment

Page 3 of 31
Langmuir
1
2
3
4
5
INTRODUCTION
6
7
8
9
Enantioselective recognition is of pivotal importance not only in biomedical
sciences but also in pharmaceutical industry, and has been attracting tremendous
research interests in the past decades.1-4 Numerous tools and strategies such as
colorimetric or chromogenic methods, nuclear magnetic resonance (NMR), gas
chromatography (GC), crystal morphology, circular dichroic (CD), and wettability
switching, etc. are available to achieve this goal, yet accompanied by specialized setups,
strict test conditions and tedious procedures.5,6 These shortcomings and invisible results
severely restrict their application scopes, therefore simple, real-time, and convenient
techniques for this purpose are badly in demand.7 With the advantages of stimuli-
responsiveness and reversibility, the chiral supramolecular architecture formed through
self-assembly provides an ideal model for mimicking natural biopolymers to recognize
the chiral guest.8 Inspired by this, we introduce a new chiral recognition system using
the fabricated chiral supramolecular nanostructures as the host, which shows visible
enantiomer discrimination of phenylalaninol enantiomers on multiple platforms. This
naked-eye detectable platform based on artificial chiral assemblies offers a facile,
straightforward approach for chiral molecular recognition, which is of great
significance in scientific research and biomedical applications.9-11
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
To date, chiral sensors have mainly been established based on noncovalent
interactions between a host and an enantiomeric guest at molecular level.12-17 However,
it is difficult for molecular enantiomer to express their chirality in a range of available
analytical tool.18 In recent years, the enantioselective recognition system has been
ACS Paragon Plus Environment

Langmuir
Page 4 of 31
1
2
3
4
5
6
7
8
9
focused on the chiral polymer-based fluorescence sensors owing to amplification
effects among multiple chiral units.3 Nonetheless, covalent systems are often too rigid
and unable to adapt their shapes to the guest molecules, which results in less than
optimal binding affinities and selectivity. Another proverbial drawback is their labor-
intensive synthesis, which leaves little potential for structural variations in the polymer
chain.19 Inspired by the supramolecular architectures found in biological living
organisms (e.g. DNA, RNA, proteins), chiral supramolecular self-assemblies, such as
double helices, twists, and rolled-up nanotubes have been attracting great interests
owing to their fascinating structural features, attractive functions, and possible
applications in chiral sensing and separation.20,21 Recently, significant efforts have been
made to achieve visible chiral recognition and discrimination through supramolecular
systems.22-25 Typically, Liu26 reported a chiral supramolecular assembly formed by an
organogelating procedure, which can be functionalized as an enantioselective system.
The noticeable fluorescence color change of chiral nanofibers demonstrated that the
chiral supramolecular assemblies are potentially valuable for visual chiral recognition.
In spite of this, the visual discrimination of enantiomers via chiral supramolecular on
multiple platforms is still urgently needed but rarely being reported.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Herein, we developed a new heterochiral diphenylalanine-based gelator (LFDF),
which was able to form supramolecular assemblies in ethanol (supramolecular solution)
after heating-cooling process and gelated ethanol via a solution-to-gel transformation
under sonication. The supramolecular solution and organogel systems could visually
recognize L/D-phenylalaninol enantiomers through the observation of precipitate or gel
ACS Paragon Plus Environment

Page 5 of 31
Langmuir
1
2
3
4
5
6
7
8
9
reservation, respectively. In addition, the supramolecular xerogel doped with
fluorescent dye ThT can sensitively examine L/D-phenylalaninol enantiomers through
fluorescence quenching or not. It was found that the multiple chiral discrimination
capacities were achieved by the different interactions between chiral supramolecular
nanofibers and phenylalaninol enantiomers, which resulted in different phenomena. On
the other hand, the chirality of the assembled nanostructures, as well as amino and
carboxyl of phenylalaninol played critical roles on the discrimination process. These
outcomes not only clearly present the multiple and visible enantioselective recognition
of phenylalaninol enantiomers based on the same chiral supramolecular substrate, but
also enhance our understanding of molecular recognition and greatly expand the scope
of potential applications in the fields of medical science and pharmaceutical industry.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
EXPERIMENTAL SECTION
Materials
Boc-L-phenylalanine (Boc-L-Phe-OH), D-phenylalanine methyl ester
hydrochloride (H-D-Phe-OMe·HCl), 1-hydroxybenzotriazole (HOBt), N-(3-
dimethylaminopropyl)-n'-ethylcarbodiimide hydrochloride (EDC·HCl), N;N-
diisopropylethylamine (DIEA), L/D-phenylalaninol and 1,4-benzenedicarbonyl
chloride (BDC) were purchased from Adamas-beta reagent Co. Ltd. Trifluoroacetic
acid (TFA), dichloromethane (DCM), triethylamine (Et3N), methanol, sodium
hydroxide (NaOH), sodium bicarbonate (NaHCO3), citric acid (CA) and sodium
chloride (NaCl) were purchased from Sinopharm Chemical Reagent Beijing Co. Ltd.
All those chemicals were used without further purification.
ACS Paragon Plus Environment

Langmuir
Page 6 of 31
1
2
3
4
5
Synthesis of LFDF gelator
6
7
8
9
The synthesis of the gelator mainly involves four steps described in Scheme S1 in
supporting information. Firstly, compound 1 was obtained by conventional solution-
phase approach for dipeptide synthesis: Boc-L-Phe-OH (5.31 g, 20 mmol) and HOBt
(3.51 g, 26 mmol) in dry DCM (100 mL) was added to a DCM (100 mL) solution
containing DIEA (11.12 g, 80 mmol) and H-D-Phe-OMe·HCl (4.75g, 22 mmol) in ice-
water bath. After stirring 30 min, EDC (7.67 g, 40 mmol) was then added and the
mixture was stirred for another 12 h. The solvent was evaporated under vacuum, and
the residue was subsequently dissolved in DCM (100 mL). Washed successively with
saturated citric acid solution, NaHCO3 solution and brine, the obtained organic phase
was dried over anhydrous MgSO4. Purification by recrystallization (ethyl acetate/light
petroleum) afforded Compound 1 (6.39 g, 75%). Secondly, TFA (12.4 mL, 168 mmol)
was added to the solution of Compound 1 (4.80 g, 11.2 mmol) in dry DCM (10 mL) at
0 ℃ and stirred for 90 min to remove the Boc-group. The reaction was quenched by
adding an excess amount of methanol. Evaporation of all solvents under vacuum
afforded Compound 2 (3.54 g, 97%). Thirdly, BDC (0.609 g, 3.0 mmol) in dry DCM
(30 mL) was slowly added dropwise to a cooled (0 °C) solution of Compound 2 (2.14
g, 6.2 mmol) in dry DCM (100 mL) and Et3N (5 mL, 36.45 mmol). After stirring
overnight at room temperature precipitate was formed, filtered and washed in ethanol
and dried to give white product Compound 3 (1.67 g, 71%). Finally, for the hydrolysis,
aqueous NaOH (30 mL, 2M) was added to suspension of Compound 3 (1.56 g, 2.0
mmol) in methanol (30 mL). The mixture was stirred at room temperature for 24 hours
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

Page 7 of 31
Langmuir
1
2
3
4
5
6
7
8
9
and then acidified with HCl (3M) solution until pH value less than 3.0. The precipitate
was collected and dried under vacuum to give the target Compound 4 LFDF (1.25 g,
83%). 1H- and 13C-NMR and HR-MS were checked, shown in Figure S1-2.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Preparation of supramolecular self-assemblies
Transparent LFDF supramolecular solution is obtained by dissolving 4 mg gelator
in 1 mL ethanol under heating-cooling process. Translucent organogel could be formed
when 4 mg LFDF added in 1 mL ethanol under sonication for 2 min. Fluorescent
supramolecular xerogel is fabricated by incorporating 0.1 mg fluorescent dye thioflavin
T (ThT) into the gel (4 mg/mL) and further drying at ambient temperature overnight.
The prepared supramolecular solution, organogel and xerogel are directly utilized for
visible discrimination of enantiomeric phenylalaninol.
Characterizations
NMR spectra were performed on a Bruker Advance DRX 400 spectrometer
operating at 500/400 and 125/100 MHz for 1H and 13C NMR spectroscopy, respectively.
High-resolution mass spectrometry was measured on a Bruker Micro TOF II 10257
instrument. Field emission scanning electron microscopy (FE-SEM) measurements
were carried out using an FEI QUANTA 250 microscope. Samples were prepared by
drying the gels on silicon slice and coating with gold. Transmission electron
microscopy (TEM) observation was conducted on a Tecnai G2 spirit Biotwin at an
accelerating voltage of 120 kV. The circular dichroism (CD) spectra of self-assemblies
were measured using a JASCO J-815 CD spectrometer with bandwidth of 1.0 nm. UV-
Vis absorptions were recorded on an Evolution 201 Thermo Fisher Company, USA.
ACS Paragon Plus Environment

Langmuir
Page 8 of 31
1
2
3
4
5
6
7
8
9
Attenuated total reflectance-fourier transform infrared spectroscopy (ATR-FTIR) FTIR
spectra were collected in transmission mode on a Thermofisher Nicolet iS5 FTIR
spectrometer with smart orbit diamond ATR (iD7) and OMNIC software. The
rheological properties of gels are measured with a Rotary Rheometer (KINEXUS
LAB+, Malvern Company, UK). Fluorescent spectra were recorded on Perkin Elmer
LS 55. Laser scanning Confocal Microscopy (LSCM) measurements were performed
on Leica TCS SP8 STED 3X. Sonication treatment was performed in a KQ-3200DA
ultrasonic cleaner of Kunshan ultrasonic instruments Co. Ltd.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
RESULTS AND DISCUSSION
A C2 symmetrical structure with two heterochiral diphenylalanine arms connected
to para-disubstituted phenyl group (named LFDF) was synthesized. The choice of
phenylalanine is due to its favorable steric characteristics, which is expected to play a
major role in the stereospecific orientation of supramolecular building units and to least
steric hinder conformation.27-29 On the other side, visible enantioselective recognition
of chiral amino alcohols has attracted considerable research interests,30-33 since chiral
amino alcohols are usually indispensable as intermediates for synthesizing a variety of
biologically active compounds.34,35 However, the enantioselective recognition of chiral
phenylalaninol through chiral supramolecular architectures has not been investigated
previously. On account of the prepared chiral supramolecular self-assemblies with
different states, we have successfully accomplished the discrimination of L/D-
phenylalaninol
enantiomers
through
heterochiral
diphenylalanine-based
supramolecular solution, organogel and xerogel. The related results are shown in detail
ACS Paragon Plus Environment

Page 9 of 31
Langmuir
1
2
3
4
5
in Figure 1.
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. Middle: The molecular structure of prepared gelator LFDF; Left: The supramolecular
solution through heating-cooling transformed into precipitate/gel upon L/D-phenylalaninol,
respectively; Right: The supramolecular organogel formed under ultrasound experienced collapse
with addition of L-phenylalaninol; Up: Fluoresce quenching was observed when dropping L-
phenylalaninol to the ThT doped fluorescent supramolecular xerogel. L/D-type represent the
disriminate target L/D-phenylalaninol.
L/D-Phenylalaninol Discrimination via LFDF supramolecular solution
Transparent LFDF solution was prepared by dissolving LFDF in ethanol through
heating-cooling process. The nanostructure and handedness of supramolecular self-
assemblies were confirmed by CD, FE-SEM and TEM characterizations. CD
experiments presented a splitting Cotton effect at the position of the π–π* band, with a
zero crossing close to the absorption maximum at 250 nm (Figure 2a), indicating the
exciton coupling among aromatic chromophores. The existence of chiral nanofibers
were further confirmed by FE-SEM and TEM observations (Figure 2b and inset). In
ACS Paragon Plus Environment

Langmuir
Page 10 of 31
1
2
3
4
5
6
7
addition, the molecularly dispersed state CD was checked under diluted ethanol
solution shown in Figure S3, in which no obvious cotton effect was observed.
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

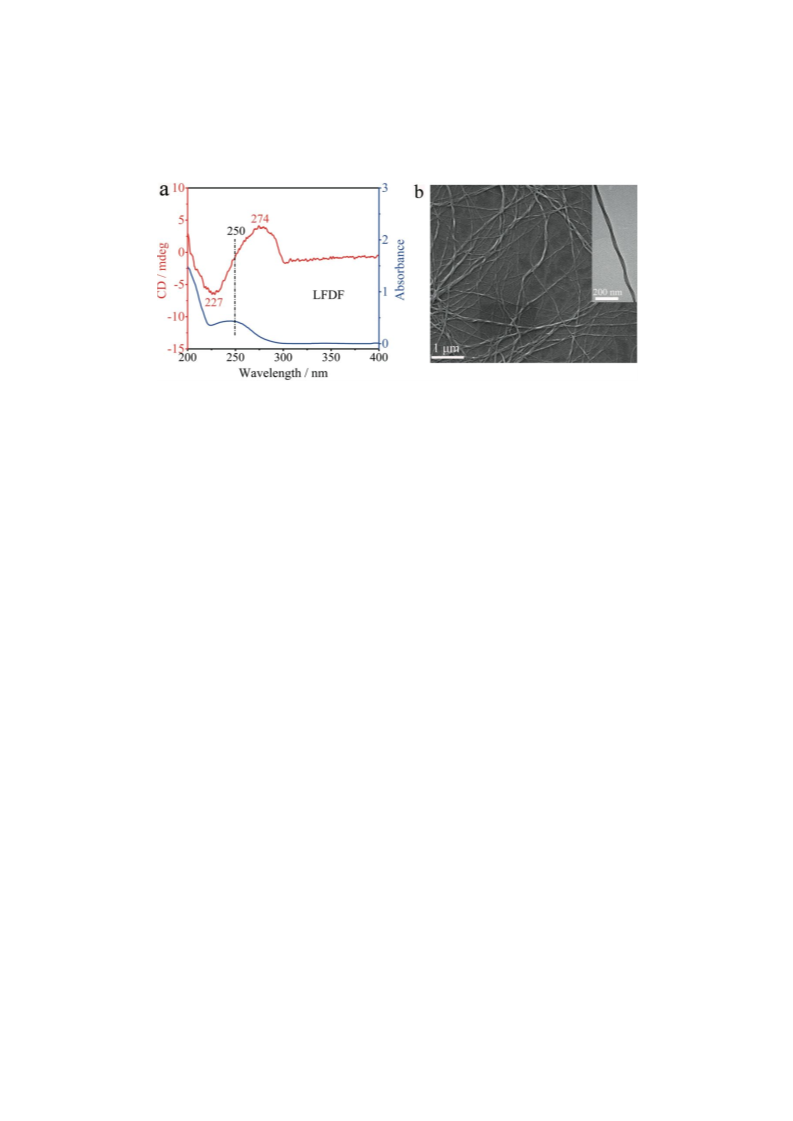

Figure 2. (a) CD spectrum, (b) SEM and TEM images (inset) of supramolecular LFDF self-
assembled nanofibers in ethanol.
As presented in Figure 3a, when D-phenylalaninol was added to the above
prepared LFDF supramolecular solution, a translucent and stable gel was formed under
sonication. On the contrary, a totally different situation was observed upon addition of
L-phenylalaninol, which strongly inhibited gel formation under the same condition. As
a blank control, the LFDF solution without L or D-phenylalaninol was directly
sonicated, gernerating a homogeneous and stable gel. To further clarify such different
changes response to L/D-phenylalaninol, the SEM images and CD spectra of the
systems were checked. As shown in Figure 3b, II, the nanostructure of the gel formed
from pure LFDF solution showed uniform nanofibers, and the same apperance observed
for LFDF with D-phenylalaninol (Figure 3b, III). While, only a few micron-sized
fractions were occurred when L-phenylalaninol was appended in (Figure 3b, I). Besides,
the significantly different SEM results were also verified by their corresponding CD
spectra. The addition of an equal amount of D-phenylalaninol induced a distinct
ACS Paragon Plus Environment

Page 11 of 31
Langmuir
1
2
3
4
5
6
7
8
9
enhancement of the CD signals at 280 nm, with an increase in the intensity from 8 to
17 mdeg, whereas the chiral signal was completely suppressed by the addition of L-
phenylalaninol (Figure 3b, IV), indicating the destruction of chiral assembly. As shown
in Figure S3, compared with the pure LFDF, the shoulder peak around 290 nm in UV-
Vis almost disappeared after adding L-phenylalaninol, indicating the breakage of π-π
interactions. And only slight derease was occurred when changing L phenylalaninol
into D-phenylalaninol. The above results clearly demonstrate that such chiral
recognition could be attributed to the difference in the interaction between the LFDF
chiral nanaofibers and the enantiomeric phenylalaninol. LFDF supramolecular solution
can visually discriminate L/D-phenylalaninol through the observation of precipitate or
gel.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

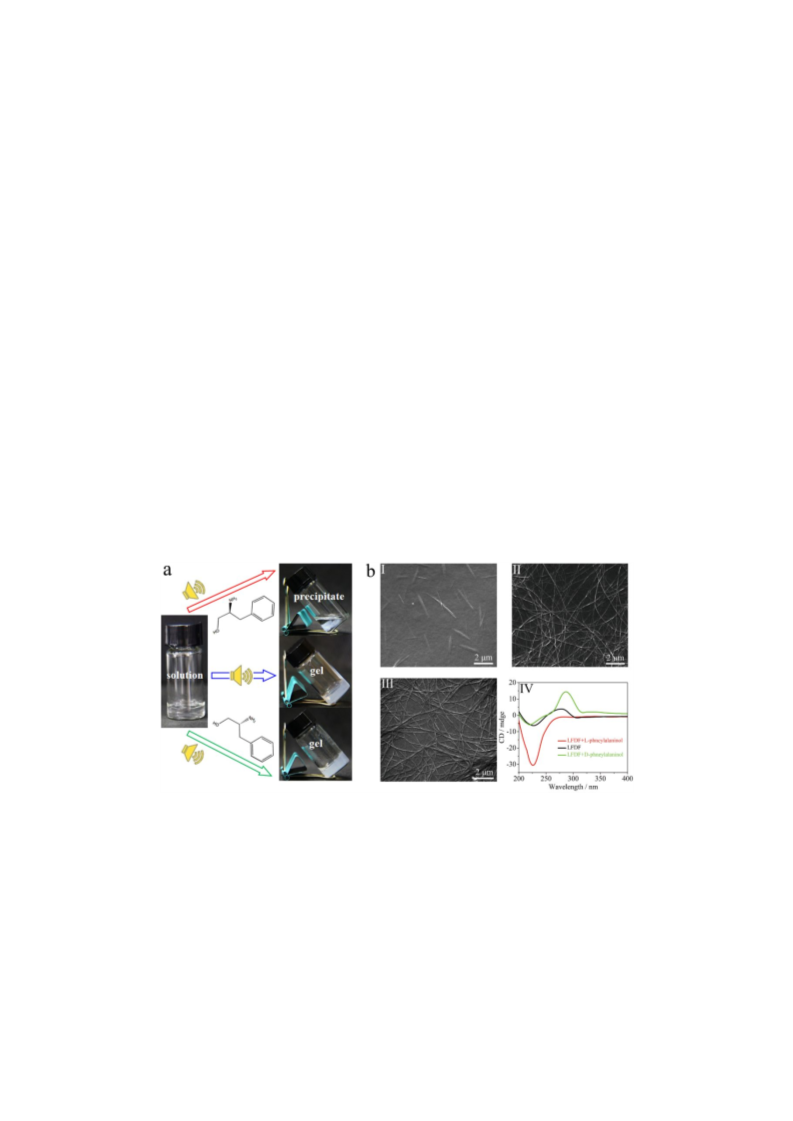

Figure 3. (a) Visual chiral recognition of L/D-phenylalaninol through LFDF supramolecular
solution (0.4 wt %) under sonication for 2 min, enantioselective precipitate for L and gel for D-type;
(b) SEM images of LFDF+ L-phenylalaninol (I), LFDF (II), and LFDF+ D-phenylalaninol (III) in
ethanol after sonication for 2 min, and their corresponding CD spectra (IV).
L/D-Phenylalaninol Discrimination via LFDF supramolecular organogels
ACS Paragon Plus Environment

Langmuir
Page 12 of 31
1
2
3
4
5
6
7
8
9
After the first example of enantioselective gel collapsing reported by Pu,22 as a
new means of visual chiral sensing, chiral supramolecular gel formation and collapsing
have been shown to be valuable in visual sensing because supramolecular gels are found
to be functional materials with sensitive responses.36 In this report, unlike the formation
of supramolecular solution through heating-cooling, LFDF gelator can directly
transform into stable organogel by trapping ethanol under ultrasound at room

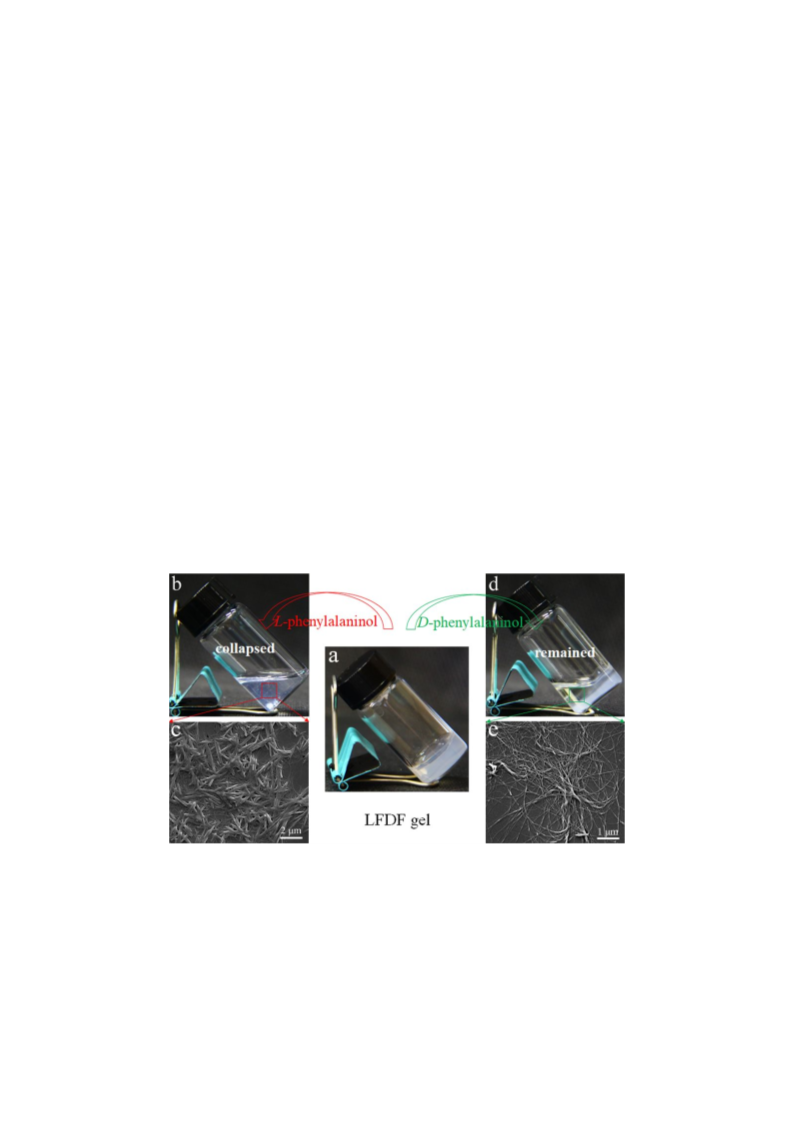

temperature (gelator concentration: 5 mg/mL), as shown in Figure 4a. The critical
gelation concentration of LFDF was measured to be 3 mg/mL. Rheology experiment
was performed to investigate the viscoelastic properties of the supramolecular gel. At
the condition of strain sweep = 0.1%, both of storage modulus (G′, representing
elasticity) and loss modulus (G″, representing viscosity) exhibited an independence to
the applied frequency (0.1-100 rad s−1). Meanwhile, G′ values were almost one order
higher than that of G″ (Figure S5a), suggesting the formation of stable gel.37 It was also
confirmed by the result of variable-temperature CD, in which the CD intensity under
60 ℃ still kept half of that under 20 ℃ (Figure S5b). Figuring out the sonication-
induced self-assembly mechanism could be valuable for understanding the molecular
recognition happened to the chiral self-assembly. Thus, we particularly utilized ATR-
FTIR spectra and temperature-dependent 1H-NMR to investigate the driving forces that
promote LFDF organization. Compared with the molecular state in DMSO, red-shift of
carboxyl, amide I (C=O stretching vibration) and amide II (N-H bending vibration)
from 1730, 1676/1651, 1543 cm-1 to 1718, 1661/1631, 1541 cm-1 were obviously
occurred in supramolecular gel state, suggesting the existence of strong hydrogen bonds
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

Page 13 of 31
Langmuir
1
2
3
4
5
among amide groups and carboxylic acid units (Figure S5c).38,39 Despite the molecules
6
7
1
that constitute a gel are not observable by solution-state H NMR spectroscopy, it is
8
9
still possible to derive valuable information about the interactions associated with
gelation by investigating the chemical-shift variations of the gelator molecule.40 As
shown in Figure S5d, the signals were strongly broadened in the gel state and underwent
significant sharpening when the gel was heated from 20 to 60 ℃. Meanwhile, the
chemical shift located at 7.726 (attributed to aromatic protons) presented up-field shift
to 7.707 ppm. These results strongly suggested that aromatic rings of LFDF were
involved into the π-π interaction during the self-assembly.41,42 In brief, we can conclude
that non-covalent hydrogen bonding and π-π stacking afforded by amide, carboxyl
groups and benzene rings are the main driving forces for molecular aggregation to
produce chiral nanofibers.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
As a kind of smart soft material with fascinating properties, the sonication-
activated chiral gel is versatile with reversible functionality and has drawn increasing
attention as an effective platform for chiral enantiomers recognition.10,23,43 However,
very few examples of naked-eye detectable recognition of phenylalaninol enantiomers
has been realized, particularly, based on the supramolecular gel state.
In this part, phenylalaninol enantiomers 1 equivalent weight were introduced into
the LFDF supramolecular gel, and the different responses of the gel toward L or D-
phenylalaninol were observed. When D-phenylalaninol was appended on the surface of
the gel, the system almost maintained stable with only small partial gel-sol transition.
Remarkably, gel system totally collapsed into translucent solution in 30 min when L-
ACS Paragon Plus Environment

Langmuir
Page 14 of 31
1
2
3
4
5
6
7
8
9
phenylalaninol was introduced, as shown in Figure 4b, d and S6. We further examined
the structural changes during such transitions using the SEM at different time points. It
was found that no noticeable changes of LFDF nanostructures were detected with
adding D-phenylalaninol, that is to say, the system still presented uniform nanofibers
without production of any new architectures (Figure 4e and Figure S8). However, along
with the time development, obvious phase separation occurred in the LFDF gel with
adding L-phenylalaninol, in which the non-chiral nano-rods, nanofibers and other
aggregates coexisted (Figure 4c and Figure S7).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Self-assembly processes which lead to the formation of helical superstructures can
be investigated by CD,21 herein, the CD was used to dynamically monitor the gel
disassembly process. Not surprisingly, only a negligible decrease towards the CD signal
intensity in 30 min when adding D-phenylalaninol (Figure 5b). However, the Cotton
peak at 280 nm decreased rapidly and disappeared completely in 10 min when L-
phenylalaninol was utilized (Figure 5a). Meanwhile, the corresponding UV-Vis
absorbance showed that an obvious blue shift was happened along with the time after
adding L-phenylalaninol, indicating the weakening of aromatic interactions (Figure 5c).
On the contrary, the UV-Vis absorbance almost kept the same with the addition of
Dphenylalaninol (Figure 5d). All these results indicated that the left-handed nanofibers
interacted more efficiently with L-phenylalaninol than with D-phenylalaninol, leading
to the disruption of the self-assembly, which were in accordance with the SEM results.
Besides, the FTIR and XRD were also checked to determine the variations of molecular
interactions and rearrangements. Since the negligible transformation with the addition
ACS Paragon Plus Environment

Page 15 of 31
Langmuir
1
2
3
4
5
6
7
8
9
of D-phenylalaninol into the gel, herein, we just focused on the changes resulted from
the addition of L-phenylalaninol. As shown in Figure S9, the peaks at 1661, 1631 and
1540 cm-1 attributed to amide I and II presented obvious blue-shift, suggesting the
weakening of intermolecular hydrogen bounding. Meanwhile, as shown in Figure S10,
the XRD presented different peaks and intensities that only the main peak at 18 degree
remained and the other peaks reduced or disappeared, indicating the changes of
molecular arrangements after adding L-phenylalaninol. These results clearly confirmed
the visual discrimination ability of the LFDF supramolecular organogel toward chiral
phenylalaninol enantiomers. It enables us a better understanding of the assembly
behavior of chiral gelators, and can also be used to add new “smart” features to
organogels.36
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4. (a) Stable LFDF supramolecular organogel (0.4 wt %) formed under ultrasound; Visual
gel collapse for L-phenylalaninol (b) and remained for D-phenylalaninol (d); and their
corresponding SEM images shown in (c) and (e) after 30 min.
ACS Paragon Plus Environment

Langmuir
Page 16 of 31
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

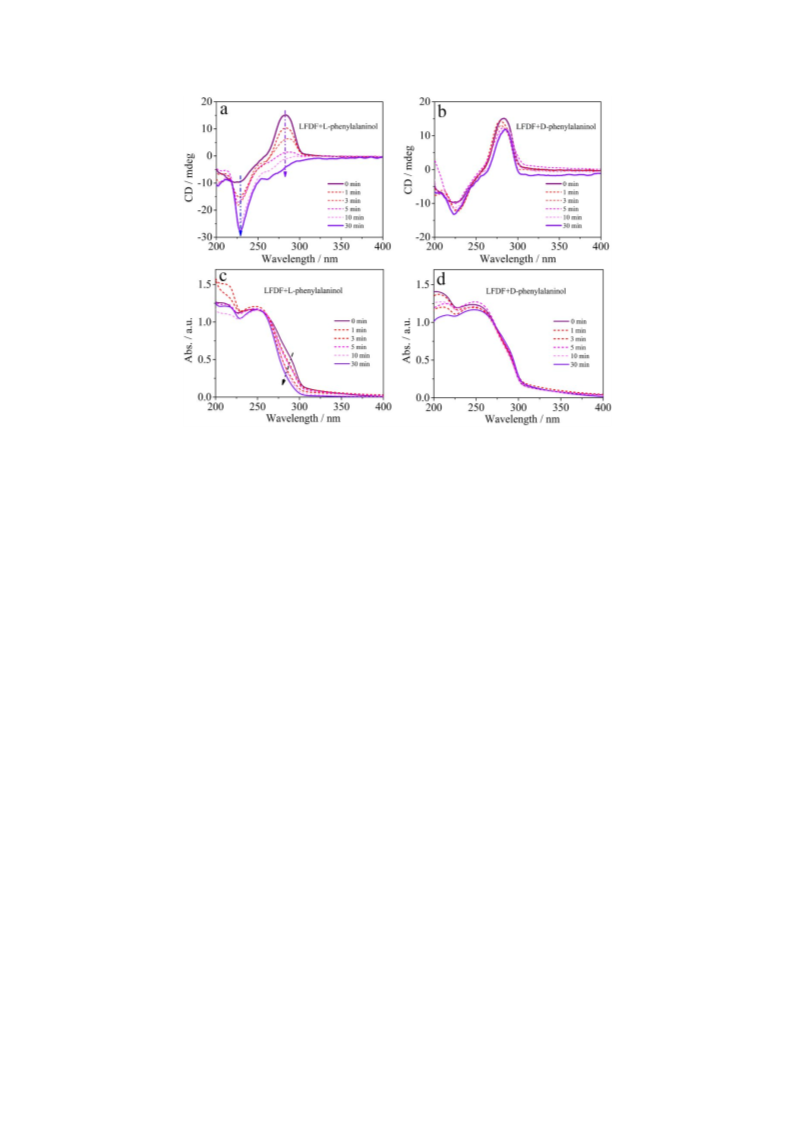

Figure 5. Time-dependent CD spectra of LFDF suopramolecular organogel adding L-
phenylalaninol (a) and D-phenylalaninol (b), and their corresponding UV-Vis absorption (c) and
(d).
L/D-Phenylalaninol Discrimination via LFDF supramolecular xerogel
Compared with low molecular weight chiral organic molecules, chiral
supramolecules based fluorescence sensors can afford a number of benefits for the
chiral enantioselective recognition, such as enhancement of fluorescence efficiency and
possible collaborative effects between multiple chiral units.44 In particular,
fluorescence variation induced by physical or chemical stimuli is especially attractive
because the response process is often instant, switchable, and visible. Moreover, the
change in the fluorescence intensity was commonly used to track the assembled or
disassembled process in the macro state.11 Taken together, attribute to the abundant
chiral units and the noncovalent versatile interactions in the supramolecular self-
assembly, it is thus anticipated that xerogel exhibits high sensitivity towards external
ACS Paragon Plus Environment

Page 17 of 31
Langmuir
1
2
3
4
5
additives.
6
7
8
9
Take those into account, in this part, a kind of fluorescent xerogel (ThT-LFDF)
was facilely obtained by incorporating fluorescent dye thioflavin T (ThT) into the gel,
followed by drying at ambient temperature. Therein, ThT can specifically recognize β-
sheet second structures, accompanying a strong enhancement of the fluorescence with
emission maximum at around 488 nm,45 whereas no fluorescence for individual LFDF
xerogel and ThT (Figure 6a). The fluorescent property of ThT-LFDF xerogel was also
verified under ultraviolet radiation (365 nm), yielding bright blue-green fluorescence
(Figure 6a inset), which supplies an advantage for highly efficient sensing system based
on fluorescence changing. LSCM imaging (Ex. 457 nm) of ThT-LFDF xerogel revealed
fibers of several mms in length under bright field, (Figure 6d), and the corresponding
green fluorescence (Figure 6c) confirmed the specific binding between ThT and β-
sheets.46
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The rich existence of β-sheet was further confirmed from the CD spectra with a
negative peak at about 230 nm. The relative red-shift compared with typical β-sheet
second structure occurred at 215 nm might due to the strong π-π stacking of the aromatic
phenylalanine residues.47,48 Different to LFDF xerogel, the CD signal at 270 nm shifted
to longer wavelength 290 nm for ThT-LFDF xerogel, suggesting that the aromatic
interaction became more compact due to the implantation of ThT into the assembly.49
Notably, a strong negative Cotton effect emerges at 445 nm corresponding to the
maximum absorption of ThT (Figure 6b), indicating that chirality of ThT is induced in
the matrix of the helix formed by LFDF.50
ACS Paragon Plus Environment

Langmuir
Page 18 of 31
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 6. (a) Fluorescence spectra and (b) CD spectra of ThT, LFDF xerogel, ThT-LFDF xerogel
and ThT-LFDF xerogel after adding L-phenylalaninol, inset in (a) showed ThT-LFDF xerogel
fluorescence emission under ultraviolet radiation (365 nm); LSCM images of ThT-LFDF xerogel
under ultraviolet irradiation (c) and corresponding bright field image (d).
Figure 7. Fluorescence spectra of ThT-LFDF xerogel upon adding L-phenylalaninol (a) and D-
phenylalaninol (b) determined at different time points. Insets: corresponding digital photographs
after 15 min at 365 nm irradiation.
ACS Paragon Plus Environment

Page 19 of 31
Langmuir
1
2
3
4
5
6
7
8
9
Taking advantage of self-assembly as an amplification system for molecular
recognition, we assumed that the prepared ThT modified LFDF system could be
applicable to a visual, real-time and highly sensitive enantiomer recognition purpose.
As shown in Figure 7a, upon the immersion of L-phenylalaninol, rapid and
dramatic fluorescence quenching was taken place for ThT-LFDF xerogel in 3 min, and
completely disappeared in 15 min, which was clearly visible under UV light. By
contrary, in the presence of D-phenylalaninol, only a slight fluorescence decrease was
detected, consistent with the bright fluorescence emission under UV light (Figure 7b
and S11). Compared with an only 19.9% decrease upon the addition of D-
phenylalaninol, the fluorescence intensity of ThT-LFDF xerogel showed an obvious
rapid decrease as much as 96.8 % upon the addition of L-phenylalaninol (Figure 7a).
The selective recognition of chiral guests is related to the enantiomeric fluorescence
difference ratio, ef, according to ef=(ID-I0)/(IL-I0), in which I0 represents the
fluorescence emission intensity in the absence of L or D-phenylalaninol and ID, IL are
the fluorescence intensities in the presence of D- and L-phenylalaninol, respectively.44
The ef value for supramolecular ThT-LFDF xerogel is as high as 4.86, which indicates
its excellent enantioselective fluorescence ability towards L-phenylalaninol.
Furthermore, compared with a gradually slight blue-shift in the presence of D-
phenylalaninol, a remarkable blue-shift phenomenon was happened when adding L-
phenylalaninol, which might be attributed to the stronger interaction between LFDF
and L-phenylalaninol, and eventually causing the disruption of β-sheet second structure
and decay of fluorescence. The corresponding CD and UV-Vis spectra of ThT-LFDF
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

Langmuir
Page 20 of 31
1
2
3
4
5
6
7
8
9
xerogel after adding L-phenylalaninol is checked (Figure 6b and S4), in which two new
Cotton peaks at 210 and 220 nm are occurred. The result further suggests the
disappearance of beta-sheet second structure.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The chirality difference of enantiomeric L- and D-phenylalaninol was manifested
successfully through the ThT loaded LFDF xerogel, which could be visualized as the
distinct FL intensities and accordingly results in the enantioselective recognition. As
for its high sensitivity, the detection limit towards L-phenylalaninol was carried out
through fluorescence quenching titrations by subjecting different concentration of L-
phenylalaninol to ThT-LFDF xerogel. Each of the spectra was recorded after 15 min of
incubation at room temperature. No obvious fluorescence decreases when the
concentration lower than 5*10-4 mg/mL, while, distinct fluorescence quenching was
observed when the concentration reached to 10-3 mg/mL (Figure 8). Namely, the
detection limit of the ThT-LFDF xerogel system for L-phenylalaninol is measured to
be about 10-3 mg/mL (1 ppm), suggesting a good sensitivity for the detection of L-
phenylalaninol.

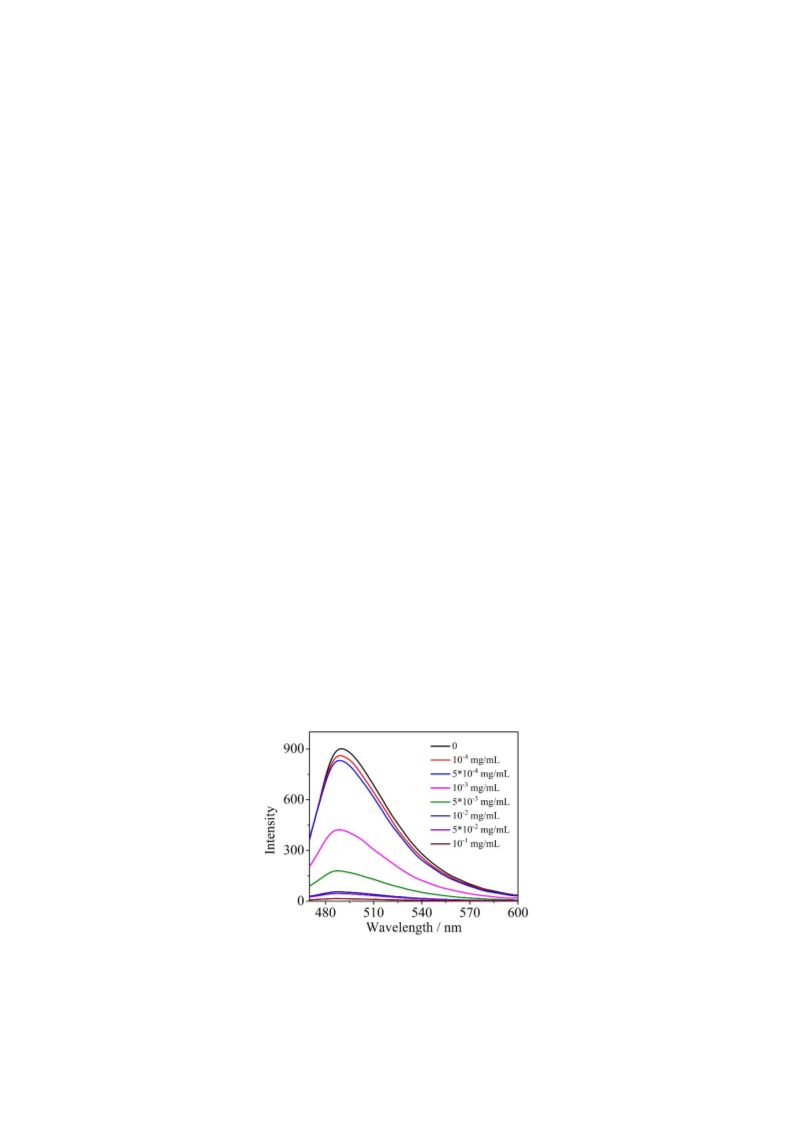

Figure 8. Fluorescence spectra of ThT-LFDF xerogel in the presence of different L-
phenylalaninol concentrations recorded after 15 min at room temperature.
ACS Paragon Plus Environment

Page 21 of 31
Langmuir
1
2
3
4
5
The recognition mechanism of LFDF towards L-phenylalaninol
6
7
8
9
Molecular recognition is a process in which a molecule selectively recognizes and
binds to another substrate molecule through various non-covalent interactions.51 In a
set of comparable experiments, we also studied the behaviors of supramolecular LFDF
systems on some other guest enantiomers, like L/D-valinol and L/D-phenylglycinol, as
shown in Scheme 1. However, no apparent differences were discovered between these
two enantiomers, respectively. For L-phenylglycinol, the addition into supramolecular
LFDF solution, organogel, or ThT-modified xerogel resulted to precipitates, translucent
solution, and no fluorescence intensity reduction. And the same phenomenon occurred
when using D-phenylglycinol. On the contrary, both L and D-valinol could disassemble
the LFDF supramolecular gel and further facilitate fluorescence quenching, without any
enantioselective recognition behavior (Figure S12, 13). These outcomes demonstrated
that the designed supramolecular chiral LFDF supramolecular system exhibit highly
selective response towards phenylalaninol enantiomers.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 1 Molecular structure of the chosen enantiomers.
To verify the decisive role of supramolecular chirality played in the discrimination
process, the DFLF gelator, the enantiomer of LFDF was synthesized. Expectedly, in
ACS Paragon Plus Environment

Langmuir
Page 22 of 31
1
2
3
4
5
6
7
8
9
contrast to left-handed LFDF self-assembly which can discriminate L-phenylglycinol,
the self-assembled right-handed nanofibers from DFLF is capable of recognizing D-
phenylglycinol through its supramolecular solution, organogel and xerogel states,
accompanied with precipitate formation, gel collapse and fluorescence quenching,
respectively (Figure S14). The outcomes above clearly demonstrate that the specific
recognition significantly depends on the chirality of the self-assembled nanofibers,
which differs to the most reported chiral sensing systems based on noncovalent
interactions between an achiral host and an enantiomeric guest at a molecular level.52
These results exemplify the significant property of chiral self-assembly for the
application to enantiomer recognition, which could be identified as the prominent
feature realized by the self-assembled supramolecular system.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
To further figure out the effects of hydroxyl and amino functional groups during
the enantioselective recognition process, we checked the LFDF gel behaviors and CD
spectra changes in the presence of phenylalaninol derivatives whose hydroxyl group
replaced by hydrogen atom (L/D-phenylpropylamine) or amino group were protected
(L/D-Cbz-phenylalaninol), as shown in Scheme 1. Upon treatment with L or D-
phenylpropylamine, both the LFDF supramolecular gels collapsed thoroughly without
any differences after 30 min. The results were in keeping with the CD spectra of the
final reactant mixtures in which the peaks at 280 nm disappeared (Figure S15a). Besides,
the gels did not show any damage upon the addition of Cbz-L or D-phenylalaninol
enantiomers. It is worth noting that the corresponding CD signals at 280 nm markedly
increased (Figure S15b), which might be ascribed the interactions among Cbz groups
ACS Paragon Plus Environment

Page 23 of 31
Langmuir
1
2
3
4
5
6
7
8
9
and aromatic residues of Phe. The above results clearly suggested that both the amino
and the hydroxyl groups of phenylalaninol played significant functions during the
enantioselective recognition process.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

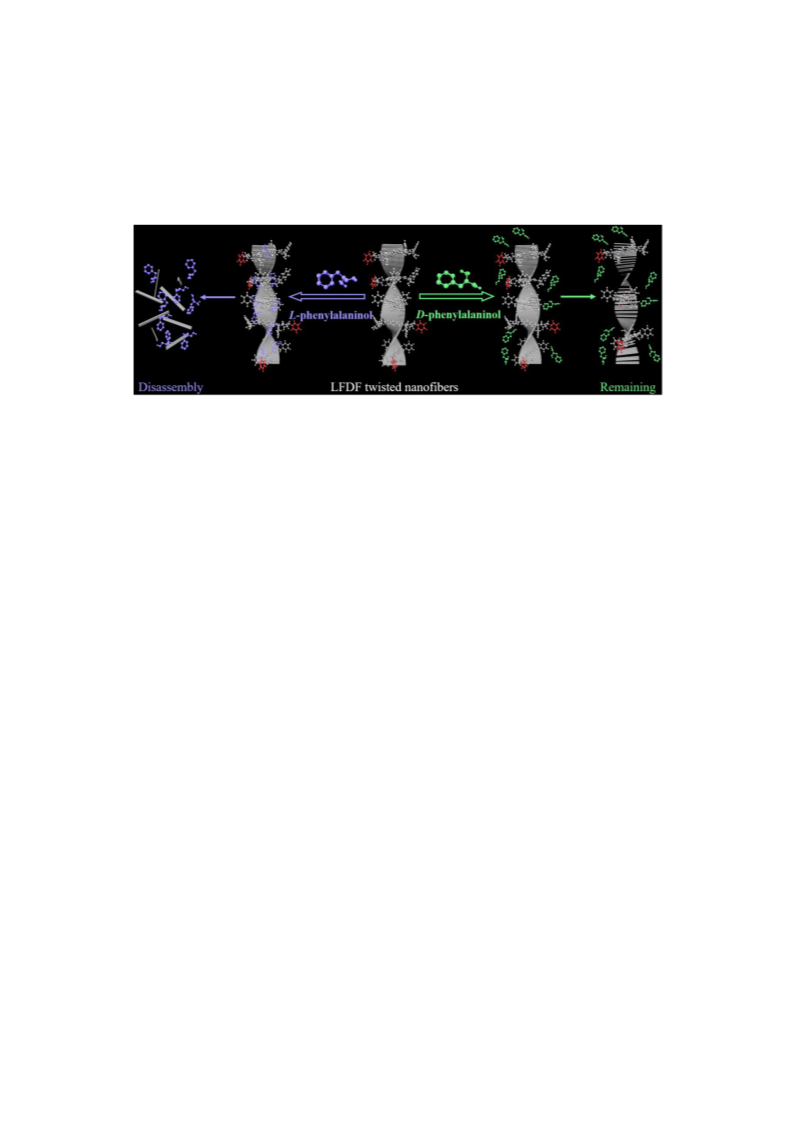

Scheme 2 Illustration of LFDF chiral supramolecular nanofibers for discrimination of L-
phenylalaninol and D-phenylalaninol.
On account of the expounded recognition results, it’s prospective that left-handed
nanofibers were more favorable for L-phenylalaninol approaching than D-
phenylalaninol, which might be owing to the minor steric hindrance. The more
favorable interactions are markedly amplified into the chiral supramolecular
nanostructures, leading to the different responses towards enantioselective
phenylalaninol enantiomers, shown in Scheme 2. We therefore propose a very unusual
chiral recognition system emerging through chiral self-assembly: that is, a chirality at
a molecular level was amplified into chiral self-assembled nanostructures and
accordingly leads to a visual output reflecting the initial difference in the enantiomeric
information.
CONCLUSIONS
In summary, a C2 symmetrical diphenylalanine-based gelator (LFDF) was
ACS Paragon Plus Environment

Langmuir
Page 24 of 31
1
2
3
4
5
6
7
8
9
developed, which could self-assemble into left-handed nanofibers. Based on naked-eye
detectable supramolecular gel formation and collapse, L/D-phenylalaninol
enantioselective recognition through LFDF supramolecular solution and organogel was
successfully achieved, respectively. Furthermore, by cooperating ThT into the gel, a
kind of fluorescent ThT-LFDF xerogel was fabricated, which could instantly
discriminate L/D-phenylalaninol with high sensitivity to 1ppm. Meanwhile, a crucial
mechanism toward the recognition was established that left-handed nanofibers were
more favorable for L-phenylalaninol approaching than for D-phenylalaninol owing to
the different steric hindrances. In addition, cooperativity in the binding process also
played an important role in the observed selectivity. In brief, enantioselective visible
recognition of L/D-phenylalaninol via diphenylalanine-based chiral supramolecular
self-assembly on multiple platforms was achieved. We believe that the present work
will expand the practical applications of chiral supramolecular assemblies, especially
in the fields of visual sensing and screening of chiral drugs.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ASSOCIATED CONTENT
Supporting Information. Synthesis details, additional spectra, characterizations and
discrimination results. The Supporting Information is available free of charge on the
ACS Publications via the Internet at http://pubs.acs.org.
Notes
The authors declare no competing financial interest.
ACKNOWLEDGEMENTS
This work was supported by the Innovation Program of Shanghai Municipal Education
ACS Paragon Plus Environment

Page 25 of 31
Langmuir
1
2
3
4
5
6
7
8
9
Commission (201701070002E00061), the NSFC (51573092), Program for professors
of Special Appointment (Eastern Scholar) at the Shanghai Institutions of Higher
Learning, and Science and Technology Commission of Shanghai Municipality
(STCSM, No. 19441903000, 19ZR1425400).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
REFERENCES
1. Noguchi, T.; Roy, B.; Yoshihara, D.; Sakamoto, J.; Yamamoto, T.; Shinkai, S.. A Chiral Recognition
System Orchestrated by Self-Assembly: Molecular Chirality, Self-Assembly Morphology, and
Fluorescence Response. Angew. Chem., Int. Ed. 2017, 56 (41), 12518-12522.
2. Rest, C.; Mayoral, M. J.; Fernandez, G., Aqueous Self-sorting in Extended Supramolecular Aggregates.
Int. J.Mol. Sci. 2013, 14 (1), 1541-1565.
3. Zhang, W.; Wei, G.; Wang, Z.; Ma, J.; Zhu, C.; Cheng, Y., Highly Enantioselective Recognition of
Alaninol via the Chiral BINAM-Based Fluorescence Polymer Sensor. Polymer. 2016, 101, 93-97.
4. Biedermann, F.; Nau, W. M., Noncovalent Chirality Sensing Ensembles for the Detection and
Reaction Monitoring of Amino Acids, Peptides, Proteins, and Aromatic Drugs. Angew. Chem., Int. Ed.
2014, 53 (22), 5694-5699.
5. Zheng, Y.; Kobayashi, Y.; Sekine, T.; Takashima, Y.; Hashidzume, A.; Yamaguchi, H.; Harada, A.,
Visible Chiral Discrimination via Macroscopic Selective Assembly. Comms. Chem. 2018, 1 (1).
6. Shcherbakova, E. G.; Minami, T.; Brega, V.; James, T. D.; Anzenbacher, P.; Jr., Determination of
Enantiomeric Excess in Amine Derivatives with Molecular Self-Assemblies. Angew. Chem. Int. Ed. 2015,
54 (24), 7130-7133.
7. Zhang, X.; Yin, J.; Yoon, J., Recent Advances in Development of Chiral Fluorescent and Colorimetric
Sensors. Chem. Rev. 2014, 114 (9), 4918-4959.
ACS Paragon Plus Environment

Langmuir
Page 26 of 31
1
2
3
4
5
6
7
8
9
8. Yang, D.; Liu, C.; Zhang, L.; Liu, M., Visualized Discrimination of ATP from ADP and AMP Through
Collapse of Supramolecular Gels. Chem. Commun. 2014, 50 (84), 12688-12690.
9. Tu, T.; Fang, W.; Bao, X.; Li, X.; Dotz, K. H., Visual Chiral Recognition Through Enantioselective
Metallogel Collapsing: Synthesis, Characterization, and Application of Platinum-Steroid Low-
Molecular-Mass Gelators. Angew. Chem. Int. Ed. 2011, 50 (29), 6601-6605.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
10. Tu, T.; Fang, W.; Sun, Z., Visual-Size Molecular Recognition Based on Gels. Adv. Mater. 2013, 25
(37), 5304-5313.
11. Pang, X.; Yu, X.; Lan, H.; Ge, X.; Li, Y.; Zhen, X.; Yi, T., Visual Recognition of Aliphatic and
Aromatic Amines Using a Fluorescent Gel: Application of a Sonication-Triggered Organogel. ACS Appl.
Mater. Interfaces 2015, 7 (24), 13569-13577.
12. Bentley, K. W.; Nam, Y. G.; Murphy, J. M.; Wolf, C., Chirality Sensing of Amines, Diamines, Amino
Acids, Amino Alcohols, and Alpha-Hydroxy Acids With a Single Probe. J. Am. Chem. Soc. 2013, 135
(48), 18052-18055.
13. Zhu, F.; Li, X.; Li, Y.; Yan, M.; Liu, S., Enantioselective Circular Dichroism Sensing of Cysteine
and Glutathione with Gold Nanorods. Anal. Chem. 2015, 87 (1), 357-361.
14. You, L.; Pescitelli, G.; Anslyn, E. V.; Di Bari, L., An Exciton-Coupled Circular Dichroism Protocol
for the Determination of Identity, Chirality, and Enantiomeric Excess of Chiral Secondary Alcohols. J.
Am. Chem. Soc. 2012, 134 (16), 7117-7125.
15. De Los Santos, Z.; A.; Joyce, L. A.; Sherer, E. C.; Welch, C. J.; Wolf, C., Optical Chirality Sensing
with a Stereodynamic Aluminum Biphenolate Probe. J. Org. Chem. 2019, 84 (8), 4639-4645.
16. Joyce, L. A.; Maynor, M. S.; Dragna, J. M.; da Cruz, G. M.; Lynch, V. M.; Canary, J. W.; Anslyn,
E. V., A Simple Method for the Determination of Enantiomeric Excess and Identity of Chiral Carboxylic
ACS Paragon Plus Environment

Page 27 of 31
Langmuir
1
2
3
4
Acids. J. Am. Chem. Soc. 2011, 133 (34), 13746-13752.
5
6
7
8
9
17. Xie, F.; Bai, Q.; Jiang, X.; Yu, X.; Xia, Z.; Wei, W., Visual and Colorimetric High-Throughput
Analysis of Chiral Carboxylic Acids Based on Enantioselective Charge Shielding of Gold Nanoparticles.
ACS Appl. Mater. Interfaces 2018, 10 (14), 11872-11879.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
18. Roy, B.; Noguchi, T.; Tsuchiya, Y.; Yoshihara, D.; Yamamoto, T.; Shinkai, S., Molecular
Recognition Directed Supramolecular Control Over Perylene-Bisimide Aggregation Resulting in
Aggregation Induced Enhanced Emission (AIEE) and Induced Chiral Amplification. J. Mater. Chem. C
2015, 3 (10), 2310-2318.
19. Ishi-i, T.; Crego-Calama, M.; Timmerman, P.; Reinhoudt, D. N.; Shinkai, S., Self-Assembled
Receptors for Enantioselective Recognition of Chiral Carboxylic Acids in a Highly Cooperative Manner.
Angew. Chem., Int. Ed. 2002, 41 (11), 1924-1929.
20. Cao, H.; Zhu, X.; Liu, M., Self-Assembly of Racemic Alanine Derivatives: Unexpected Chiral Twist
and Enhanced Capacity for the Discrimination of Chiral Species. Angew. Chem., Int. Ed. 2013, 52 (15),
4122-4126.
21. Gottarelli, G.; Lena, S.; Masiero, S.; Pieraccini, S.; Spada, G. P., The Use of Circular Dichroism
Spectroscopy for Studying the Chiral Molecular Self-Assembly: An Overview. Chirality 2008, 20 (3-4),
471-485.
22. Chen, X.; Huang, Z.; Chen, S. Y.; Li, K.; Yu, X. Q.; Pu, L., Enantioselective Gel Collapsing: A New
Means of Visual Chiral Sensing. J. Am. Chem. Soc. 2010, 132 (21), 7297-7299.
23. Kameta, N.; Masuda, M.; Shimizu, T., Qualitative/Chiral Sensing of Amino Acids by Naked-Eye
Fluorescence Change Based on Morphological Transformation and Hierarchizing in Supramolecular
Assemblies of Pyrene-Conjugated Glycolipids. Chem. Commun. 2015, 51 (55), 11104-11107.
ACS Paragon Plus Environment

Langmuir
Page 28 of 31
1
2
3
4
5
6
7
8
9
24. Meher, N.; Panda, S.; Kumar, S.; Iyer, P. K., Aldehyde Group Driven Aggregation-Induced Enhanced
Emission in Naphthalimides and Its Application for Ultradetection of Hydrazine on Multiple Platforms.
Chem. Sci. 2018, 9 (16), 3978-3985.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
25. Wu, D.; Cai, P.; Zhao, X.; Pan, Y., Enantioselective Precipitate of Amines, Amino Alcohols, and
Amino Acids via Schiff Base Reaction in the Presence of Chiral Ionic Liquid. Org. Lett. 2017, 19 (19),
5018-5021.
26. Zhang, L.; Jin, Q.; Lv, K.; Qin, L.; Liu, M., Enantioselective Recognition of a Fluorescence-Labeled
Phenylalanine by Self-Assembled Chiral Nanostructures. Chem. Commun. 2015, 51 (20), 4234-4236.
27. Pandeeswar, M.; Avinash, M. B.; Govindaraju, T., Chiral Transcription and Retentive Helical
Memory: Probing Peptide Auxiliaries Appended with Naphthalenediimides for Their One-Dimensional
Molecular Organization. Chem. Eur. J. 2012, 18 (16), 4818-4822.
28. Vargiu, A. V.; Iglesias, D.; Styan, K. E.; Waddington, L. J.; Easton, C. D.; Marchesan, S., Design of
a Hydrophobic Tripeptide That Self-Assembles Into Amphiphilic Superstructures Forming a Hydrogel
Biomaterial. Chem. Commun. 2016, 52 (35), 5912-5915.
29. Pellach, M.; Mondal, S.; Shimon, L. J. W.; Adler-Abramovich, L.; Buzhansky, L.; Gazit, E.,
Molecular Engineering of Self-Assembling Diphenylalanine Analogues Results in the Formation of
Distinctive Microstructures. Chem. Mater. 2016, 28 (12), 4341-4348.
30. Kim, K. M.; Park, H.; Kim, H. J.; Chin, J.; Nam, W., Enantioselective Recognition of 1,2-Amino
Alcohols by Reversible Formation of Imines with Resonance-Assisted Hydrogen Bonds. Org. Lett. 2005,
7 (16), 3525-3527.
31. Wang, L.; Song, F.; Hou, J.; Li, J.; Cheng, Y.; Zhu, C., In Situ Cu(II)-Containing Chiral Polymer
Complex Sensor for Enantioselective Recognition of Phenylglycinol. Polymer 2012, 53 (26), 6033-6038.
ACS Paragon Plus Environment

Page 29 of 31
Langmuir
1
2
3
4
5
6
7
8
9
32. Xu, Y.; Zheng, L.; Huang, X.; Cheng, Y.; Zhu, C., Fluorescence Sensors Based on Chiral Polymer
for Highly Enantioselective Recognition of Phenylglycinol. Polymer 2010, 51 (5), 994-997.
33. Das, S.; Xu, S.; Ben, T.; Qiu, S., Chiral Recognition and Separation by Chirality-Enriched
MetalOrganic Frameworks. Angew. Chem., Int. Ed. 2018, 57 (28), 8629-8633.
34. Meng, J.; Wei, G.; Huang, X.; Dong, Y.; Cheng, Y.; Zhu, C., A Fluorescence Sensor Based on Chiral
Polymer for Highly Enantioselective Recognition of Phenylalaninol. Polymer 2011, 52 (2), 363-367.
35. Ager, D. J.; Prakash, I.; Schaad, D. R., 1,2-Amino Alcohols and Their Heterocyclic Derivatives as
Chiral Auxiliaries in Asymmetric Synthesis. Chem. Rev. 1996, 96 (2), 835-876.
36. Qing, G.; Shan, X.; Chen, W.; Lv, Z.; Xiong, P.; Sun, T., Solvent-Driven Chiral-Interaction Reversion
for Organogel Formation. Angew. Chem., Int. Ed. 2014, 53 (8), 2124-2129.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
37. Xing, P.; Tham, H. P.; Li, P.; Chen, H.; Xiang, H.; Zhao, Y., Environment-Adaptive Coassembly/Self
Sorting and Stimulus-Responsiveness Transfer Based on Cholesterol Building Blocks. Adv. Sci. 2018, 5
(1), 1700552.
38. Ziserman, L.; Lee, H. Y.; Raghavan, S. R.; Mor, A.; Danino, D., Unraveling the Mechanism of
Nanotube Formation by Chiral Self-Assembly of Amphiphiles. J. Am. Chem. Soc. 2011, 133 (8), 2511-
2517.
39. Wang, F.; Feng, C. L., Metal-Ion-Mediated Supramolecular Chirality of L-Phenylalanine Based
Hydrogels. Angew. Chem., Int. Ed. 2018, 57 (20), 5655-5659.
40. Escuder, B.; M, L. L.; Miravet, J. F., Insight on the NMR Study of Supramolecular Gels and Its
Application to Monitor Molecular Recognition on Self-Assembled Fibers. J. Org. Chem. 2006, 71 (20),
7747-7752.
41. Shen, Y. T.; Li, C. H.; Chang, K. C.; Chin, S. Y.; Lin, H. A.; Liu, Y. M.; Hung, C. Y.; Hsu, H. F.;
ACS Paragon Plus Environment
