Structural and electronic properties of 2,2′,6,6′-tetraphenyl-dipyranylidene and its use as a hole-collecting interfacial layer in organic solar cells

Article abstract of DOI:10.1016/j.dyepig.2017.03.002

The accumulation of positive charges at the anodic interface considerably limits the efficiency of photovoltaic solar cells based on polymer/fullerene bulk heterojunctions (BHJs). Interfacial layers (IFLs) such as PEDOT:PSS improve charge injection but ha

Full text of DOI:10.1016/j.dyepig.2017.03.002

Accepted Manuscript
Structural and electronic properties of 2,2′,6,6′-tetraphenyl-dipyranylidene and its use
as a hole-collecting interfacial layer in organic solar cells
M. Courté, M. Alaaeddine, V. Barth, L. Tortech, D. Fichou
PII:
S0143-7208(17)30120-1
10.1016/j.dyepig.2017.03.002
DYPI 5828
DOI:
Reference:
To appear in: Dyes and Pigments
Received Date: 19 January 2017
Revised Date: 17 February 2017
Please cite this article as: Courté M, Alaaeddine M, Barth V, Tortech L, Fichou D, Structural and
electronic properties of 2,2′,6,6′-tetraphenyl-dipyranylidene and its use as a hole-collecting interfacial
layer in organic solar cells, Dyes and Pigments (2017), doi: 10.1016/j.dyepig.2017.03.002.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
1
2
3
Structural and electronic properties of 2,2’,6,6’-tetraphenyl-
dipyranylidene and its use as a hole-collecting interfacial layer in
organic solar cells
4
M. Courté,‡a M. Alaaeddine,‡b,c,d V. Barth,b,c,d L. Tortech,b,c,d and D. Fichou a,b,c,*
5
6
a School of Physical and Mathematical Sciences, Nanyang Technological University,
637371, Singapore.
7
b Sorbonne Universités, UPMC Univ Paris 06, UMR 8232, Institut Parisien de Chimie
Moléculaire, F-75005, Paris, France.
8
9
c CNRS, UMR 8232, Institut Parisien de Chimie Moléculaire, F-75005, Paris, France
d CEA Saclay, IRAMIS, NIMBE, LICSEN, F-91191 Gif-sur-Yvette, France
‡ These two authors have contributed equally to the work.
10
11
12
13
14
15
* Corresponding author
E-mail address: denisfichou@ntu.edu.sg
1

ACCEPTED MANUSCRIPT
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Abstract
The accumulation of positive charges at the anodic interface considerably limits the
efficiency of photovoltaic solar cells based on polymer/fullerene bulk heterojunctions (BHJs).
Interfacial layers (IFLs) such as PEDOT:PSS improve charge injection but have no effect on
the unbalanced electron/hole transport across the BHJ. We report here the use of 2,2’,6,6’-
tetraphenyl-dipyranylidene (DIPO-Ph4), a planar quinoïd compound, as an efficient anodic IFL
in organic solar cells based on BHJs made of poly(3-hexylthiophene)/[6,6]-phenyl-C61-
butyric-acid-methyl-ester (P3HT:PCBM). When deposited under vacuum onto a glass
substrate, DIPO-Ph4 thin films are constituted of densely packed and vertically aligned
crystalline needles. Current-sensing atomic force microscopy (CS-AFM) reveals a
considerable increase of the hole-carrying pathways in DIPO-Ph4 thin films as compare to
PEDOT:PSS, thus revealing their hole transporting/electron blocking properties. Inserting a
10 nm thick IFL of DIPO-Ph4 in combination with a 5 nm thick PEDOT:PSS between the ITO
electrode and the P3HT:PCBM film leads to photocurrent densities up to 11.5 mA/cm2 under
AM 1.5G and conversion efficiencies up to 4.6%, that is substantially higher than PEDOT:PSS-
only devices.
32
33
Keywords: Organic solar cells; interfacial layers; hole collection; bulk heterojunction; atomic
force microscopy.
34
2

ACCEPTED MANUSCRIPT
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
1. Introduction
A strategy to improve the performance of organic solar cells (OSCs) consists of tailoring
the interfaces between the organic active materials and the metallic electrodes. To this end
interfacial layers (IFLs) are inserted between the active layer and the respective electrodes in
order to reduce the energy barriers which promote charge carrier diffusion.[1-8] IFLs
operate as selective charge extraction materials for either holes or electrons, while blocking
the opposite charge carriers. Conducting polymer-based IFLs are commonly used to modify
the ITO surface because they ensure an electrical ohmic contact and minimize the
roughness. Poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) is the
ubiquitous hole transporting layer that is used in OSCs.[9] A thin PEDOT:PSS IFL increases the
open-circuit voltage (Voc) and improves hole collection at the anodic interface between ITO
and the photoactive material.
However, it is well-known that PEDOT:PSS suffers from several drawbacks. Its acidic
character (pH=1-2) etches the ITO electrode and considerably shortens the long-term
stability of the devices. Furthermore, PEDOT:PSS films are hygroscopic and exhibit weak
electron blocking properties.[10-12] Another drawback is the weak visible light absorption of
PEDOT:PSS that does not contribute to light harvesting in the devices.[13] Finally, PEDOT:PSS
thin films often possess important structural and electrical inhomogeneities that are not
compatible with reproducible device performances.
Therefore, alternative IFL materials have been investigated to substitute PEDOT:PSS in
OSCs and other organic devices. Various organic materials have been explored as IFLs with
the aim to improve charge collection, such as for example self-assembled monolayers of 4-
nitrophenylthiolate[14] or halogenated propysilanes,[15] and graphene oxide.[16-18] In a
previous work, we reported that 2,2’,6,6’-tetraphenyldithiapyranylidene (DITPY-Ph4) acts as
3

ACCEPTED MANUSCRIPT
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
a hole collecting IFL when introduced in OSCs based on P3HT:PCBM.[19] Inorganic materials
have also been studied as hole collecting IFLs, in particular transition metal oxides such as
MoO3,[20-22] NiOx,[23,24] VOx, [25] copper based solutions [26,27] or
polyoxometalate.[28] Note that these IFLs can be used either as single layers or in
combination with a PEDOT:PSS layer.
In this work, we describe the structural and electronic properties of 2,2’,6,6’-tetraphenyl-
dipyranylidene (DIPO-Ph4, Fig. 1) and report on its use as an efficient hole-transporting IFL in
organic solar cells based on bulk heterojunctions BHJs made of poly(3-hexylthiophene) and
[6,6]-phenyl-C61-butyric-acid-methyl-ester (P3HT:PCBM). DIPO-Ph4 is a large planar quinoïd
compound made of two pyranylidene heterocycles linked together by an exocyclic C=C
double bond in 4-4’positions relative to the two O-atoms. DIPO-Ph4 is isoelectronic with
tetrathiafulvalene and behaves as a strong π-donor with various acceptors.[29] We reveal
here the remarkable needle-like morphology of vacuum-deposited crystalline DIPO-Ph4 thin
films and show that it behaves as a more efficient anodic IFL in solar cells as compared to its
sulfur analog DITPY-Ph4.
75
76
Fig. 1 Left: Chemical structure of 2,2’,6,6’-tetraphenyldipyranylidene (DIPO-Ph4).
Right: Deep-red shiny crystalline powder of DIPO-Ph4 after purification by Soxhlet
extraction in acetonitrile.
77
78
79
4

ACCEPTED MANUSCRIPT
80
81
2. Experimental Section
Synthesis and purification of DIPO-Ph4
82
83
84
85
86
87
88
89
90
91
92
The synthesis of DIPO-Ph4 has been reported previously.[30] However, we
modified the synthetic protocol in order to substantially increase the yield and to
improve the purity of the final compound (Scheme 1). Briefly, glutaryl chloride is
functionalized by two phenyl groups using a Friedel-Craft acylation, and further oxidized by

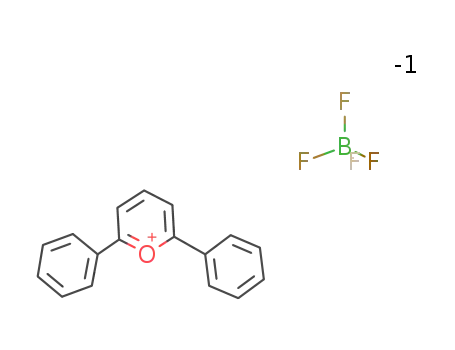

BF4.Et2O into a pyrylium salt. The latter compound is then reduced by tributylphosphine
P(C4H9)3 instead of zinc which is difficult to remove from the final product. The intermediate
ylide is finally condensed in basic medium using EtN(i-Pr)2 (DIPEA) to form 2-2’-6-6’-
tetraphenyldipyranylidene (DIPO-Ph4) in 85% yield. The raw product is a brownish
powder that is purified by Soxhlet extraction in acetonitrile during several days. The
final compound is a highly crystalline deep red powder (mp=325°C) with shiny
metallic reflections (Fig. 1).
93
94
Scheme. 1. Synthetic pathway to 2,2’,6,6’-tetraphenyldipyranylidene (DIPO-Ph4).
95
OPV device fabrication
96
97
98
ITO-coated glass substrates (Sigma-Aldrich; 2.5×2.5 cm²; R=70-100 Ω/cm2) are
patterned by chemical etching with HCl (5 % aq.) and sonicated in successively
ethanol and acetone during 10 minutes. The samples are finally exposed to UV-ozone
5

ACCEPTED MANUSCRIPT
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
during 10 minutes in order to remove organic impurities and improve the
hydrophilicity of the substrates. The crystalline DIPO-Ph4 is finely divided in a mortar
and placed in a quartz boat. DIPO-Ph4 is evaporated at a slow rate (0.1 Å/s) in a
thermal vacuum chamber (P0∼
10-4 Pa) and the thickness is monitored by a quartz
microbalance (Inficon X TM/2). A 5 nm layer of PEDOT:PSS (Sigma-Aldrich; water
solution 1.3 % in weight) is spin-coated on top of DIPO-Ph4 thin film. P3HT/PCBM bulk
layer is prepared by spin-coating from a solution of P3HT (Sigma-Aldrich; purity >98.5
%) and PCBM (Sigma-Aldrich; purity 99.5 %) dissolved in dichlorobenzene (ratio of
1:0.8 P3HT-PCBM) and sonicated beforehand during 10 minutes to obtain a
homogenous blend solution. The spin-coating conditions are adjusted to obtain 120
nm P3HT/PCBM thick films. The organic films undergo post-annealing at 110 °C under
argon during 10 min. The devices are completed by successive thermal evaporation of
LiF (7 Å) and Al (100 nm) through shadows mask with a diameter of 7 mm2. The
reference cells were prepared by deposition of 20 nm film of PEDOT:PSS on ITO
followed by an annealing at 120°C under argon for 30 min. Successive layers are
deposited under the same conditions.
115
116
117
118
119
120
121
122
3. Results and discussion
The UV-visible absorption spectrum of DIPO-Ph4 as recorded in
dichloromethane (Fig. 2) shows a structured absorption peak in the visible range
(λ
max=456 nm) with a high molar extinction coefficient 9×104 l/mol.cm. An absorption
tail of weak intensity is observed from 500 to 600 nm. Vacuum-deposited DIPO-Ph4
thin films exhibit a much broader absorption over almost the entire visible range, with
an absorption edge at 640 nm and several structures assigned to absorption bands.
Photoluminescence spectra in solution shows a sharp peak at 606 nm. Whereas DIPO-
6

ACCEPTED MANUSCRIPT
123
124
125
126
127
128
129
Ph4 thin film presents two peaks at the 636 nm and 686 nm. The bandgap of DIPO-Ph4
(
Eg=1.9 eV) is determined from the absorption spectrum. X-ray diffraction performed
on DIPO-Ph4 single crystals grown from solution reveals a parallel arrangement
between neighbouring planar molecules with an intermolecular distance of 3.49
Å.[31] Such a crystal structure is compatible with a π−stacking as well as a widening of
the optical absorption spectrum over the entire visible range as compared with that
in solution (Fig. 2b).
130
131
132
133
134
135
136
Cyclic voltammetry (Fig. S1) shows two reversible oxidation waves at respectively 0.24
V and 0.5 V, corresponding to the successive formation of the radical cation and
dication. The HOMO energy level is estimated at −4.7 eV from the first oxidaꢀon peak
at 0.24 V. DIPO-Ph4 has a slightly lower oxidation potential (Eox=0.24 eV) as compared
to that of its sulfur analog DITPY-Ph4 (Eox=0.30 eV). Therefore the highest occupied
molecular orbital (HOMO) of DIPO-Ph4 intercalates adequately between ITO and P3HT
(EHOMO=−5.0 eV) to allow hole transfer from the acꢀve layer.
137
a)
b)
138
7

ACCEPTED MANUSCRIPT
139
140
141
Fig. 2 a) Optical absorption (blue) and photoluminescence (red) spectra of DIPO-Ph4 a)
in solution in dichloromethane and b) as a 50 nm thin film vacuum-deposited on
quartz. Inserts: photographs of the respective DIPO-Ph4 solution and thin film.
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
DIPO-Ph4 thin films are prepared by slow vacuum-deposition (0.1 Å/s) onto
glass/ITO substrates. Atomic force microscopy (AFM) reveals a highly homogenous
surface made of monodisperse grains having an elongated needle shape (Fig. 3). A
distribution of the number of grains as a function of their height shows an average
height in the range 20-40 nm while the highest needles observed are 70 nm high. The
root mean square (RMS) roughness is measured at 13 nm which is much higher than
PEDOT:PSS film (RMS=0.9 nm). This particular nanomorphology of DIPO-Ph4
considerably increases the contact area between the active material and the anode,
thus greatly enhancing hole extraction. However, in order to protect the
nanostructure from partial dissolution by the organic solvent during spin-coating
deposition of the P3HT:PCBM active layer, a 5 nm thin layer of PEDOT:PSS is spin-
coated (from an aqueous solution) on top of the DIPO-Ph4 films. AFM images (Fig. S2)
confirm that the DIPO-Ph4 morphology is preserved (RMS=11.3 nm). A practical
advantage of PEDOT:PSS film is its robustness towards organic solvents during
fabrication process, making it compatible with most of organic photoactive materials.
157
8

ACCEPTED MANUSCRIPT
158
159
160
Fig. 3 (a) Tapping-mode AFM images of a 10 nm thin DIPO-Ph4 film vacuum-deposited
on ITO. (b) 3D lateral view of a typical AFM image of a 10 nm DIPO-Ph4 thin film. (c)
Distribution of the needles height in a 10 nm thin film of DIPO-Ph4.
161
162
163
164
165
166
167
168
169
170
Current-sensing atomic force microscopy (CS-AFM) images of DIPO-Ph4 films are
recorded in contact mode using either positive or negative tip voltages (Fig. 4). For a
−0.3 V tip voltage the CS-AFM images exhibit high and homogeneous hole conduction
with current intensities up to 10 nA. The hole conduction have preferential pathways
through the grain boundaries. In comparison, CS-AFM images recorded on PEDOT:PSS
films reveal insulating region and the holes are only diffused in some localized
pathways which correspond to individual PEDOT domain (Fig. S3). Current mapping
9

ACCEPTED MANUSCRIPT
171
172
recorded at +0.3 V shows a much weaker conduction of electrons as compare to
holes.
173
174
175
Fig. 4 CS-AFM images (5×5 µm²) of a thin film of DIPO-Ph4 (10 nm) vacuum-deposited
176
177
on an ITO/glass substrate recorded at tip voltages of –0.3 V (left) and +0.3 V (right).
178
179
180
181
182
183
184
185
186
187
188
We inserted a vacuum-deposited DIPO-Ph4 film (10 nm) as an anodic IFL in
combination with a PEDOT:PSS layer (5 nm) into P3HT:PCBM-based OSC devices
(Figure 5) and compared the PV performance with those of reference cells using a
PEDOT:PSS-only IFL. All devices have an open circuit voltage (Voc) of ≈0.6 V in
agreement with usual values reported for P3HT:PCBM-based devices. The short-
circuit current density of the reference cells is Jsc=7.6 mA.cm-2, resulting in a power
conversion efficiency (PCE) of 2.8% (Fig. 6, blue curve). With a 10 nm thin layer of
DIPO-Ph4, the organic solar cell exhibit higher current density. Typical devices exhibit
an average current density of Jsc=9.5 mA.cm-2 and an average PCE of 3.8% (Fig.6, red
curve). These characteristics correspond to a PCE increase of 35% as compare to the
reference cell using a PEDOT:PSS-only IFL. In the course of our experiments several
10

ACCEPTED MANUSCRIPT
189
190
191
double-IFL devices exhibit higher current densities up to Jsc=11.5 mA.cm-2 with a PCE
of 4.6% (Fig.6, light blue curve) corresponding to a 64% increase as compare to OSCs
using a PEDOT:PSS-only IFL.
192
193
194
195
Fig. 5 left) Scheme of a solar cell using a double IFL: DIPO-Ph4 (10 nm, red needles)
and PEDOT:PSS (5 nm, dark grey coating). Right) Band diagram of a solar cell using a
DIPO-Ph4 (10 nm)/PEDOT:PSS (5 nm) double IFL.
196
197
We assign the enhanced Jsc to the high hole conduction of the DIPO-Ph4 films, as
revealed by CS-AFM (Fig. 4). However, these higher characteristics are sample-
dependent due to the difficulty in controlling rigorously the nanomorphology of the
DIPO-Ph4 films, in particular the precise height, shape and density of the crystalline
needles. These parameters are extremely sensitive to slight variations in the
deposition rate, quality of the substrate and purity of the starting materials. Indeed,
devices using higher DIPO-Ph4 thicknesses (15 nm) show lower Voc (Fig. 6, green
curve) and thus a decrease in efficiency (PCE=2.5%).
198
199
200
201
202
203
204
205
11

ACCEPTED MANUSCRIPT
206
a/
207
208
b/
209
210
Fig. 6 (a) J-V curves measured in the dark and under white light illumination (AM 1.5G;
70 mW/cm²) of two P3HT:PCBM-based solar cells using DIPO-Ph4 (10 nm; red and
cyan lines)/PEDOT:PSS (5 nm) or DIPO-Ph4 (15 nm; green line) /PEDOT:PSS (5 nm) as a
double hole injecting IFL. A typical reference cell using a PEDOT:PSS-only IFL is shown
for comparison (blue line). b) EQE spectrum (red) of a PV cell using a DIPO-Ph4 (10
nm)/PEDOT:PSS (5 nm) double IFL. The dashed blue line represents the integrated
current density corresponding to the red J-V curve of Fig. 6a. The PV characteristics of
211
212
213
214
215
216
217
our devices are summarized in Table 1.
12

ACCEPTED MANUSCRIPT
218
Table 1
IFL
Voc
(V)
Jsc
FF PCE
(%)
(mA/cm2)
PEDOT:PSS
Average values
0.60
0.58
7.6
0.44 2.8
DIPO-Ph4 (10nm)/PEDOT:PSS (5nm) Average values
9.5
11.5
8.1
0.50 3.8
0.47 4.6
0.40 2.5
Maximum values 0.60
DIPO-Ph4 (15nm)/PEDOT:PSS (5nm) Average values 0.55
219
220
221
222
223
224
225
226
227
228
229
230
231
232
4. Conclusions
In summary, highly crystalline thin films of 2,2’,6,6’-tetraphenyldipyranylidene (DIPO-Ph4)
have been prepared by vacuum-deposition and used as hole injecting interfacial layers in
organic solar cells. The DIPO-Ph4 thin films are made of vertically-aligned nano-needles.
Current-sensing atomic force microscopy (CS-AFM) reveals a considerable increase of the
hole-carrying pathways in DIPO-Ph4 thin films as compare to PEDOT:PSS, thus revealing their
hole transporting/electron blocking properties. Inserting a 10 nm thick IFL of DIPO-Ph4 in
combination with a 5 nm thick PEDOT:PSS between the ITO electrode and the P3HT:PCBM
film leads to photocurrent densities up to 11.5 mA/cm2 under AM1.5G and conversion
efficiencies up to 4.6%, that is substantially higher than PEDOT:PSS-only devices. We are
currently extending this work by using DIPO-Ph4 as a HTM in various types of devices,
including perovskite solar cells and field-effect transistors.[32] We also engineer the band
alignment of DIPO-Ph4 by chemical design and synthesize a series of dipyranylidene analogs
13

ACCEPTED MANUSCRIPT
233
234
bearing electron-donating or electron-accepting peripheral substituents around the quinoïd
core.
235
236
Acknowledgements
237
238
The authors wish to thank the support from the Ministry of Education in Singapore under
the AcRF Tier 2 (MOE2014-T2-1-132).
239
240
Appendix A. Supplementary Data
241
242
243
Supplementary
data
related
to
this
article
can
be
found
at
http://dx.doi.org/10.1016/j.dyepig
14

ACCEPTED MANUSCRIPT
244
References
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
1
Lian J, Yuan Y, Peng E, Huang J. Interfacial layers in organic solar cells. In “Organic
and Hybrid Solar Cells”, H. Huang, J. Huang (eds.), Springer International Publishing,
Switzerland, 2014.
2
3
4
Mazzio KA, Luscombe CK. The future of organic photovoltaics. Chem. Soc. Rev., 2015,
44, 78.
Scharber MC. On the efficiency limit of conjugated Polymer:Fullerene-Based Bulk
Heterojunction Solar Cells. Adv. Mater., 2016, 28, 1994.
Duan C, Zhong C, Huang F, Cao Y. Development of Active Materials and Interface
Materials for High Performance Bulk-Heterojunction Polymer Solar Cells. In
“Progress in High-Efficient Solution Process Organic Photovoltaic Devices”, Yang Y, Li
G (eds), Topics in Applied Physics, Vol. 130, Springer, 2015.
5
Cao B, He X, Fetterly CR, Olsen BC, Luber EJ, Buriak JM. Role of interfacial layers in
organic solar cells: energy level pinning versus phase segregation. ACS Appl. Mater.
Interfaces, 2016,
Yin Z, Wei J, Zheng Q. Interfacial materials for organic solar cells: recent advances
and perspectives. Adv. Sci., 2016, , 1500362.
8, 28.
6
7
8
9
3
Park JH, Lee TW, Chin BD, Wang DH, Park OO. Roles of interlayers in efficient organic
photovoltaic devices. Macromol. Rapid Commun., 2010, 31, 2095.
Steim R, Kogler FR, Brabec CJ. Interface materials for organic solar cells. J. Mater.
Chem, 2010, 20, 2499.
Kim W, Kim N, Kim JK, Park I, Choi YS, Wang DH et al. Polymer bulk heterojunction
solar cells with PEDOT:PSS bilayer structure as hole extraction layer. ChemSusChem,
2013, 6, 1070.
10 Kemerink M, Timpanaro S, de Kok MM, Meulenkamp EA, Touwslager FJ. Three-
dimensional inhomogeneities in PEDOT:PSS films. J. Phys. Chem. B, 2004, 108, 18820.
11 Girtan M, Rusu M. Role of ITO and PEDOT:PSS in stability/degradation of
polymer:fullerene bulk heterojunctions solar cells. Sol. Energy Mater. Sol. Cells, 2010,
94, 446.
12 Pingree LSC, MacLeod BA, Ginger DS. The changing face of PEDOT:PSS films:
substrate, bias, and processing effects on vertical charge transport. J. Phys. Chem. C,
2008, 112, 7922.
13 Wang F, Xu Q, Tan Z, Li L, Li S, Hou X et al. Solution-processed MoO3:PEDOT:PSS
hybrid hole transporting layer for inverted polymer solar cells J. Mater. Chem. A,
2014, 2, 1318.
14 Hatton RA, Willis MR, Chesters MA, Rutten FJM, Briggs D. Enhanced hole injection in
organic light-emitting diodes using a SAM-derivatised ultra-thin gold anode
supported on ITO glass. J. Mater. Chem., 2003, 13, 38.
15 Kim JS, Park JH, Lee JH, Jo J, Kim DY, Cho K. Control of the electrode work function
and active layer morphology via surface modification of indium tin oxide for high
efficiency organic photovoltaics. Appl. Phys. Lett., 2007, 91, 112111.
15

ACCEPTED MANUSCRIPT
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
16 Yu JC, Jang JI, Lee BR, Lee GW, Han JT, Song MH. Highly efficient polymer-based
optoelectronic devices using PEDOT:PSS and a GO composite layer as a hole
transport layer. ACS Appl. Mater. Interfaces, 2014, 6, 2067.
17 Kishi N, Kato S, Saito T, Hayashi J, Ito D, Hayashi Y et al. Poly(3, 4-
ethylenedioxythiophene): Poly(styrenesulfonate)/single-wall carbon nanotube
composite film for the hole transport layer in polymer solar cells. Nano, 2011, 6, 583.
18 Jeon YJ, Yun JM, Kim DY, Na SI, Kim SS. High-performance polymer solar cells with
moderately reduced graphene oxide as an efficient hole transporting layer. Sol.
Energy Mater. Sol. Cells, 2012, 105, 96.
19 Berny S., Tortech L., Véber M, Fichou D. Dithiapyrannylidenes as efficient hole
collection interfacial layers in organic solar cells. ACS Appl. Mater. Interfaces, 2010,
2, 3059.
20 Jasieniak JJ, Seifter J, Jo J, Mates T, Heeger AJA. A solution-processed MoOx anode
interlayer for use within organic photovoltaic devices. Adv. Funct. Mater., 2012, 22
,
2594.
21 Li B, Ren H, Yuan H, Karim A, Gong X. Room-temperature, solution-processed MoOx
thin film as a hole extraction layer to substitute PEDOT/PSS in polymer solar cells.
ACS Photonics, 2014, 1, 87.
22 Ohisa S, Kagami S, Pu Y-J, Chiba T, Kido J. A solution-processed heteropoly acid
containing MoO3 units as a hole-injection material for highly stable organic light-
emitting devices. ACS Appl. Mater. Interfaces, 2016,
8, 20946–20954.
23 He S, Li S, Tan Z, Zheng H, Lin J, Hu S et al. Solution-processed nickel compound as
hole collection layer for efficient polymer solar cells. J. Phys. Appl. Phys., 2014, 47
,
505101.
24 Manders JR, Tsang SW, Hartel MJ, Lai TH, Chen S, Am CM et al. Solution-processed
nickel oxide hole transport layers in high efficiency polymer photovoltaic cells Adv.
Funct. Mater., 2013, 23, 2993.
25 Kim J, Kim H, Kim G, Back H, Lee K. Soluble transition metal oxide/polymeric acid
composites for efficient hole-transport layers in polymer solar cells. ACS Appl. Mater.
Interfaces, 2014, 6, 951.
26 Yaacobi-Gross N, Treat ND, Pattanasattayavong P, Faber H, Perumal AK, Stingelin N
et al. High-efficiency organic photovoltaic cells based on the solution-processable
hole transporting interlayer copper thiocyanate (CuSCN) as a replacement for
PEDOT:PSS Adv. Energy Mater., 2015, 5,1401529.
27 Xu Q, Wang F, Tan Z, Li L, Li S, Hou X et al. High-performance polymer solar cells with
solution-processed and environmentally friendly CuOx anode buffer layer. ACS Appl.
Mater. Interfaces, 2013, 5, 10658.
28 Alaaeddine M, Zhu Q, Fichou D, Izzet G, Rault J-E, Barrett N, Tortech L. Enhancement
of photovoltaic efficiency by insertion of a polyoxometalate layer at the anode of an
organic solar cell., Inorg. Chem. Front., 2014, 1, 682.
16

ACCEPTED MANUSCRIPT
325
326
327
328
329
330
331
332
333
334
335
29 Bolag A, Mamada M, Nishida J, Yamashita Y. Field-effect transistors based on
tetraphenyldipyranylidenes and the sulfur analogues. Chem. Mater., 2009, 21, 4350.
30 Chasseau D, Gaultier J, Hauw C. Tetraphenyldipyranylidene. Acta Crystallogr. B,
1982, 38, 1629.
31 Alizon J, Gallice J, Robert H, Delplanque G, Weyl C, Fabre C et al. Nouveaux
complexes de transfert de charge à partir des dipyranylidenes. Mol. Cryst. Liq. Cryst.,
1976, 33, 91.
32 Courté M, Surya SG, Thamankar R, Shen C, Ramgopal Rao V, Mhaisalkar SG, Fichou
D. A non-volatile resistive memory effect in 2,2’,6,6’-tetraphenyl-dipyranylidene thin
films as observed in field-effect transistors and by conductive atomic force
microscopy. RSC Advances, 2017, 7, 3336-3342.
17

ACCEPTED MANUSCRIPT
Highlights
Structural and electronic properties of 2,2’,6,6’-tetraphenyl-
dipyranylidene and its use as a hole-collecting interfacial layer in
organic solar cells
M. Courté,‡a M. Alaaeddine,‡b,c,d V. Barth,b,c,d L. Tortech,b,c,d and D. Fichou a,b,c,*
• Dipyranylidene acts as an efficient anodic interlayer in organic solar cells.
• It possesses excellent hole transporting/electron blocking properties.
• Photocurrent densities up to 11.5 mA/cm2 are recorded under AM 1.5G
• Conversion efficiencies up to 4.6% are attained, higher than PEDOT:PSS-only
devices
• The origin is also to be found in the high crystallinity of dipyranylidene films.
