An in situ prepared photo-luminescent transparent biocompatible
hyperbranched epoxy/carbon dot nanocomposite
Bibekananda Dea, Manishekhar Kumarb, Biman B. Mandalb and Niranjan Karaka*
aAdvanced Polymer and Nanomaterial Laboratory, Center for Polymer Science and Technology,
Department of Chemical Sciences, Tezpur University, Napaam-784028, Assam, India.
bBiomaterial and Tissue Engineering Laboratory, Department of Biosciences and
Bioengineering, Indian Institute of Technology Guwahati, Guwahati-781039, Assam, India.
*Correspondence author: Email: karakniranjan@gmail.com.
Abstract
A photo-luminescent transparent biocompatible hyperbranched epoxy/carbon dot nanocomposite
was prepared by incorporation of carbon dot during formation of hyperbranched epoxy resin.
The prepared nanocomposite was characterized by FTIR, NMR and TEM analyses. The
poly(amido-amine) cured nanocomposite exhibited high tensile strength (62.5 MPa), high
elongation at break (45 %), good thermal stability (291 °C), high transparency and excellent
wavelength dependent photoluminescence behavior along with biocompatibility with skin cells.
The performance of this nanocomposite was also compared with the pristine hyperbranched
epoxy as well as hyperbranched epoxy/carbon dot nanocomposite obtained through ex situ
solution technique. The study revealed that the in situ prepared nanocomposite possessed
superior mechanical, optical and biocompatible properties compared to pristine epoxy as well as
ex situ prepared nanocomposite. Thus, the study will significantly contribute in the field of high
performance transparent fluorescent polymeric materials used in optoelectronics. Good viability,
1

RSC Advances
Page 2 of 31
View Article Online
DOI: 10.1039/C5RA12131K
spreading and proliferation of skin fibroblasts and keratinocytes cells on the nanocomposite
suggest it also as a highly potential material for bio-sealant application.
Keywords: carbon dot, hyperbranched epoxy nanocomposite, photoluminescence, mechanical
properties, biocompatible
1. Introduction
Last two decades intensive research has been focused on quantum dots (semiconductor
nanocrystals) because of their promising optical and electronic properties.1-3 Recently
polymer/quantum dot nanocomposites have captured tremendous interest to achieve high
transparency and high luminescence solid films for advanced optoelectronics.2,4-6 The polymer
matrix provides mechanical and chemical stability as well as helps in dispersion of the quantum
dots by preventing their agglomeration. However, because of the organophobic surface of
semiconductor quantum dots, good dispersion in polymer matrix is a key challenge to obtain
high transparent photoluminescent films even by in situ polymerization technique.7,8 In case of
semiconductor quantum dot based nanocomposite biocompatibility of the material is also a major
issue. In this respect, carbon quantum dot or carbon dot (size 2-10 nm) is a new class of
fluorescent material as an attractive alternate to traditional semiconductor nanocrystals due to
superior properties like resistance to photobleaching, chemical inertness, no optical blinking,
easy functionalizability, non toxicity or biocompatibility and water solubility of the former.9-13
The presence of large number of oxygenous functional groups on its surface provides excellent
dispersion in many polar solvents as well as in polymer matrices. Simple synthetic protocols and
use of easily available carbon precursors make it very cost-effective. Recently research has been
started on carbon dot based light emitting polymer nanocomposites for different optoelectronics
2

Page 3 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
including light emitting device (LED). Zhou et al. synthesized polysaccharide based amphibious
fluorescent carbon dot and incorporated it into poly(methyl methacrylate) and poly(vinyl
alcohol) matrices to obtain light emitting polymer nanocomposites.14 Hao et al. incorporated
carbon dot into poly(ethylene glycol) to produce poly(ethylene glycol)/carbon dot
nanocomposite film for tunable blue-red light emission.15 Kwon et al. fabricated a freestanding
luminescent film from poly(methyl methacrylate) and nitrogen-rich carbon dot for white light
emitting device.16 However, in all these cases nanocomposites are prepared by ex situ technique.
Further the performance including mechanical properties, thermal stability, etc. was also not
reported by these investigations. On the contrary, carbon dot has large number of polar
functionalities and thus provides an opportunity to be used as a nanomaterial for in situ polymer
nanocomposite. This not only helps in uniform and stable dispersion of carbon dot but it also
aids to the performance of the nanocomposite in a significant manner.
On the other hand attributes of high mechanical properties, high thermal stability, excellent
adhesive strength, good weather and chemical resistance, high transparency and others endow a
unique position to epoxy resins in the domain of optoelectronics.17-20 Last decade, researchers
have trusted their interests on luminescent epoxy nanocomposites by incorporating different
fluorescent nanomaterials for making advanced optoelectronic devices. Zou et al. reported a
transparent and luminescent epoxy nanocomposite with CdSe quantum dots.21 Yang et al.
reported transparent and light-emitting epoxy nanocomposites containing ZnO quantum dots as
encapsulating materials for solid state lighting.22 However, in all afore mentioned cases, mainly
toxic semiconductor quantum dots were used and no report on performance of the materials was
noticed. However, the improvement of performance and luminescence properties are limited for
advanced optoelectronics in all such cases including our recent report,23 as they are ex situ
3

RSC Advances
Page 4 of 31
View Article Online
DOI: 10.1039/C5RA12131K
nanocomposites. Further, carbon dot based polymer or polymer nanocomposite not only offers
high performance fluorescent material, it also introduces biocompatibility to the system which is
helpful for bio-imaging application.24 However, in case of carbon dot based biocompatible in situ
epoxy nanocomposite is the best suitable material for the bio-sealant application in surgical
wound healing along with bio-imaging.
Thus, in the present report a high performance photo-luminescent transparent
hyperbranched epoxy nanocomposite with biocompatibility attribute was prepared where carbon
dot was incorporated during preparation of the epoxy resin. The hyperbranched structure of such
epoxy added special interest due to its easy synthetic accessibility and processibility, high
solubility, low viscosity, high reactivity and large number of end functional groups.19,20,25
2. Experimental section
2.1. Materials
Carbon dot used in this study was prepared by heating of banana juice at 150 °C as reported
earlier.26 Pentaerythritol (Sigma-Aldrich, Germany) was re-crystallized from ethanol before use.
Bisphenol-A and epichlorohydrin were purchased from G. S. Chemical, India. Bisphenol-A was
re-crystallized using toluene before use. Poly(amido-amine) (HY840, amine value 5-7 eq./kg)
hardener for hyperbranched epoxy resin was obtained from Ciba Giegy, India. All other reagents
used in the present investigation were of reagent grade.
2.2. Preparation of hyperbranched epoxy resin and its nanocomposites with carbon dot
Hyperbranched epoxy resin was synthesized by the polycondensation reaction of bisphenol-A
and pentaerythritol (10 wt% with respect to bisphenol-A) with epichlorohydrin (1:2 mole ratio
with respect to hydroxyl group) at 110 °C with continuous stirring, as described in our recent
report.27 An amount of 10.0 g (0.0438 mol) of bisphenol-A, 1.0 g (0.0073 mol) of pentaerythritol
4

Page 5 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
and 21.64 g (0.2339 mol) of epichlorohydrin were taken in two necked round bottom flask
equipped with a water condenser and a dropping funnel. The reaction mixture was stirred with a
magnetic stirrer. To this reaction mixture 5N aqueous solution of NaOH (4.67 g, 0.1168 mol,
equivalent to the hydroxyl group) was added slowly from a dropping funnel. After 4 h, the
reaction was stopped and allowed to settle in a separating funnel to separate out the aqueous
layer from the desired organic layer. Then the organic layer was washed with 15% aqueous
sodium chloride solution followed by distilled water for 2-3 times. Then the epoxy resin was
dried at 70 °C with the help of rotary evaporator (Eyela, Tokyo, Japan) to get viscous sticky
transparent masses. This pristine hyperbranched epoxy (yield ~97%) was coded as PHE and used
as control for comparison purpose.
The hyperbranched epoxy/carbon dot in situ nanocomposite was prepared by the same
procedure using the same reactants and same amount under the same conditions. Here, only 1
wt% of carbon dot (with respect to the above synthesized resin) was incorporated with the 5N
aqueous solution of NaOH. The nanocomposite was coded as CHE.
The ex situ nanocomposite of hyperbranched epoxy with carbon dot (coded as ECP) was
prepared by the solution technique with the help of mechanical shearing and ultrasonication
similar to our earlier report.23 Ethanolic solution of carbon dot (1 wt% respect to hyperbranched
epoxy) was added to the above synthesized hyperbranched epoxy resin (PHE) and the mixture
was stirred mechanically for 4 h followed by ultrasonication (acoustic power density-460
W/cm2) at 60% amplitude and 0.5 cycles for 10 min at room temperature.
2.3. Curing of the epoxy resin and the nanocomposites
PHE resin, CHE and ECP were cured by mixing homogenously with 50 phr of poly(amido
amine) hardener at room temperature in the presence of little amount of THF or ethanol solvent
5

RSC Advances
Page 6 of 31
View Article Online
DOI: 10.1039/C5RA12131K
(0.5 mL/g). Then the mixtures were uniformly coated on glass plates (75 × 25 × 1.3 mm3) and
steel plates (150 × 50 × 1.6 mm3). The solvents and other volatiles were removed with the help
of vacuum for 24 h and the plates were cured at 100 °C for 45 min. The optimization of curing
reaction was done by determining swelling values (20-30%) of the cured films using THF after
48 h kept into glass bottles.
2.4. Characterization
The FTIR spectra were recorded on a Nicolet FTIR spectrometer (Impact-410, Madison, USA)
1
using KBr pellet. The H NMR and 13C NMR spectra were recorded by a 400 MHz, Jeol
FTNMR spectrometer using CDCl3 (1H NMR of PHE resin), d6-DMSO (PHE and CHE) and
D2O (carbon dot) as the solvents and TMS as the internal standard. The morphologies and the
selected area electron diffraction (SAED) patterns were analyzed by high resolution transmission
electron microscope, HRTEM (JEOL, JEMCXII, Transmission Electron Microscope operating
voltage at 200 kV). The physical properties such as epoxy equivalent, hydroxyl value and
swelling value of the resins were measured by the standard test methods.19,20 The determination
of shear viscosities of the resin and the nanocomposites were done by Bohlin rheometer CVO100
(Malvern, UK). The tensile strength (standard ASTM D 882) of the thermosets was measured by
a Universal Testing Machine (UTM, WDW10, Jinan, China). The test was performed on
rectangular film samples (size 60 × 10 × 0.3-0.4 mm3) with a 500 N load cell (crosshead speed of
10 mm/min). Scratch hardness test (standard ASTM G171) was carried out by a scratch hardness
tester (Sheen instrument Ltd., UK) on the surface of glass slide coated hyperbranched epoxy
thermosets (area 75 × 25 × 0.3 mm3). Impact strength of the steel plate coated thermosets (area
150 × 50 × 1.6 mm3) was measured by an Impact tester (S. C. Dey Co., Kolkata) using the
standard falling weight (ball) method (ASTM D 1709). The bending test of the thermosets
6

Page 7 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
(thickness of the films were 0.3-0.4 mm) was done using a mandrel with diameter 1 to 100 mm
(standard ASTM D 522). All the tests for the measurement of mechanical properties were
repeated for five times and average values were taken. Thermogravimetric analysis (TGA) of the
thermosets was done using a PerkinElmer TG4000, US, with nitrogen flow rate of 30 mL/min
and the heating rate of 10 °C/min from 30 to 700 °C. Differential scanning calorimetry (DSC)
study of the thermosets was performed on a PerkinElmer DSC6000, US. The samples were
heated at a rate of 10 °C/min and cooled at a rate of -10 °C under a nitrogen flow rate of 30
mL/min and a heating-cooling-heating cycle was followed. The UV-visible absorption spectra as
well as percent of light transmittance by thermoset films (calculated from UV-visible spectra)
were recorded using a UV spectrometer, Hitachi (U2001, Tokyo, Japan). The visual transparency
of the thermoset films was checked by printed words covered with the thin thermosetting films
(thickness 0.5 mm). The photoluminescent spectra of the resin and the nanocomposites (in
ethanolic solution) as well as the thermoset films were recorded using a photoluminescent setup
(Perkinelemer Singapore PTE Ltd., Singapore, Model LS 55). The optical color emission photos
of the resin and nanocomposite; and the thermoset films were recorded by a UV fluorescence
inspection cabinet (Labotech Solutions, Mumbai). The quantum yield values of carbon dot and in
situ nanocomposite were determined at excitation wavelength of 360 nm by the following
equation,
2
2
QS = QR×IS/IR×AR/AS×ɳS /ɳR ………………………………………………………… (1)
where ‘Q’ is the quantum yield, ‘I’ is the intensity of luminescent spectra, ‘A’ is the absorbance
at exited wavelength and ‘η’ is the refractive index of used solvent; using quinine sulfate
(quantum yield 54) in 0.1 M H2SO4 solution as the reference. The subscripts ‘S’ for samples
(carbon dot and nanocomposite) and ‘R’ for reference are used in this equation. The life time of
7

RSC Advances
Page 8 of 31
View Article Online
DOI: 10.1039/C5RA12131K
the photoluminescence of carbon dot and nanocomposites in ethanol were analyzed by time
resolved fluorescence using picosecond time-resolved cum steady state luminescence
spectrometer (Edinburgh Instruments, UK, Model FSP920) at excitation wavelength 365 nm and
emission wavelength 425 nm.
2.5. Cell proliferation and cytocompatibility assessment
Human dermal fibroblast (HDF) cells were cultured in high glucose Dulbecco’s modified eagle
medium (DMEM, Gibco, USA) supplemented with 10% fetal bovine serum (FBS, Gibco, USA)
antibiotics (Himedia, India), and 2 mM glutamine (Sigma-Aldrich, USA). Similarly, human
keratinocyte, HaCaT cells were cultured in high glucose DMEM/F12 (Gibco, USA)
supplemented with 10% FBS and antibiotics. For experiments, cells were maintained at 37 ºC in
humidified incubator with 5% CO2 and media was replenished twice a week. Cells were cultured
on all the three variants of membrane namely, ex situ nanocomposite (ECP), in situ
nanocomposite (CHE) and pristine epoxy thermoset (PHE). For cell proliferation studies,
membranes with 10 mm diameter were pre-sterilized in laminar hood with 70% v/v ethanol for 4
h. Further, membranes were thoroughly washed with sterile phosphate-buffered saline (PBS, pH
7.4) to remove residual alcohol. Membranes were conditioned overnight in complete DMEM.
HDF and HaCaT cells were seeded on sterilized membranes at a density of 5×104 cells per
membrane. Cell proliferation/cytocompatibility was monitored with alamar blue dye reduction
assay (Invitrogen, USA). Alamar blue is an aqueous fluorescent dye which measures the cell
proliferation rate for the same batch of culture at different time points. It has no adverse effect on
cellular phenotype, viability or proliferation. Alamar blue assay was done at specific intervals of
1, 4 and 7 days following manufacturers’ protocol. Briefly, cell-seeded membranes were
incubated in medium supplemented with 10% (v/v) alamar blue dye for 3 h. After incubation,
8

Page 9 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
100 µL of solution from each sample was read at 570/600 nm in a multiplate reader (Tecan
infinite M 200). Non-seeded membranes supplemented with 10% alamar blue dye were used as
negative control.
2.6. Live/dead assay for cellular viability
Live/dead assay was performed to check the viability and adherence of cells on the membranes
after 7 days of culture. Live and dead cells were stained by the staining solution containing 4
mM calcein AM and 2 mM ethidium homodimer (Sigma-Aldrich, USA), respectively. Briefly,
cell-seeded membranes were rinsed with PBS (pH 7.4) and incubated in live/dead solution for
15-20 min in humidified incubator at 37 ºC. Excess dye was washed with PBS and cells were
visualized under florescent microscope (EVOS FL, Life Technologies, USA). Viable cells
convert calcein AM to calcein which imparts green colour to the cells. Dead cells are visualized
with ethidium homodimer which enters into dead cells and fluoresces red after binding with
DNA.
Statistical analysis
All data are reported as mean ± standard deviation. For each experiment, n = 4 samples were
used. Statistical analysis was performed by one-way analysis of variance (ANOVA). All
statistical analyses were executed using OriginPro 8 and p<0.05 was considered statistically
significant and p<0.01 as highly significant.
3. Results and discussion
3.1. Synthesis and characterization of the resin and nanocomposite
PHE resin was synthesized by an A2 + B4 polycondensation reaction. Initially, diglycidyl ether of
bisphenol-A (A2) was formed in the reaction mixture as reactivity of bisphenol-A with
9

RSC Advances
Page 10 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Scheme 1 (a) Chemical reactions of the reactants and carbon dot during the formation of CHE in
situ nanocomposite and (b) its general structure.
epichlorohydrin is greater than pentaerythritol as the former contains aromatic proton. Finally,
PHE resin was formed by reaction between diglycidyl ether of bisphenol-A (A2) and
pentaerythritol (B4). On the other hand in case of CHE, carbon dot contains sodium salt of
reactive phenolic and carboxylic acid groups as carbon dot was mixed with NaOH solution. The
formation of sodium salt increases the reactivity of the phenolic and carboxylic groups by
increasing nucleophilicity of the groups. Thus, here diglycidyl ether of bisphenol-A and
epichlorohydrin were reacted with reactive carbon dot as well as pentaerythritol to form
hyperbranched epoxy in situ nanocomposite as shown in Scheme 1. In this case the reaction of
diglycidyl ether of bisphenol-A and epichlorohydrin with sodium salt of carbon dot followed the
mechanism like anionic ring-opening polymerization.28 The structural features of PHE resin and
CHE were characterized by FTIR and NMR studies which also confirmed that carbon dot
participated in the reaction to form hyperbranched epoxy in situ nanocomposite. In the FTIR
10

Page 11 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 1 FTIR spectra of carbon dot, PHE and CHE.
spectrum (Fig. 1) of PHE resin the stretching vibrations are attributed to the following features
(νmax/cm-1): 919 and 835 (oxirane), 3457 (O-H), 3055 (aromatic C-H), 2970 (aliphatic C-H),
1606 (aromatic C=C), 1450-1510 (C-O-C), 1244 (C-O) and 1035 (C-C).19,20 In case of carbon
dot the stretching vibrations of FTIR spectrum are (νmax/cm-1): 3492 (-OH), 2935 (C-H), 1730
(C=O), 1625 (aromatic C=C), 1422 (C-O-C), 1264 (C-O) 918 and 780 (oxirane),23,26 whereas, in
FTIR spectrum of CHE the stretching vibrations are attributed to the following features (νmax/cm-
1): 919 and 835 (oxirane), 3444 (O-H), 3062 (aromatic C-H), 2971 (aliphatic C-H), 1764 (C=O),
1460-1510 (C-O-C), 1614 (aromatic C=C), 1244 (C-O) and 1037 (C-C). The hydroxyl and
carboxylic acid stretching frequencies of carbon dot (at 3492 and 1730 cm-1 respectively) are
shifted to 3444 and 1764 cm-1 in CHE due to their participation in different chemical reactions
1
during formation of hyperbranched epoxy in situ nanocomposite as shown in Scheme 1a. In H
NMR spectrum (Fig. 2a) of PHE resin, δH (400 MHz, CDCl3, Me4Si, ppm) values indicate the
following structural features: 3.3 (1H, oxirane), 2.7 and 2.9 (2H, oxirane), 3.9 (2H, 4CH2 of
pentaerythritol), 1.6 (3H, CH3 of bisphenol-A), 6.8 (4H, bisphenol-A), 7.1 (4H, bisphenol-A),
11

RSC Advances
Page 12 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 2 1H NMR spectra of (a) PHE, (b) CHE and (c) carbon dot.
1.9 (1H, OH), 4.2 (1H, CHOH), 4.0 (2H, CH2 attached with oxirane), 3.9 (2H, CH2 attached with
oxygen atoms of pentaerythritol unit) and 4.1 (2H, CH2 attached with oxygen atoms of
bisphenol-A unit). Whereas, in 1H NMR spectrum (Fig. 2b) of CHE the same δH (400 MHz, d6-
12

Page 13 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 3 13C NMR spectra of (a) PHE, (b) CHE and (c) carbon dot.
DMSO, Me4Si, ppm) values are present along with 5.7-6.2 (aromatic protons of carbon dot), 4.8-
5.2 (HC=CH of carbon dot), 3.6 (protons attached with ether of carbon dot) and 1.0-1.4 (sp3
1
protons of carbon dot) which are also present in H NMR spectrum of pristine carbon dot (Fig.
2c). The carboxylic acid and phenolic protons of carbon dot in the range of 7.5-9.5 ppm are not
present in 1H NMR spectrum of CHE which confirms that these functional groups were
13

RSC Advances
Page 14 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Table 1 The values of physical parameters for PHE, CHE and ECP.
Parameter
Epoxy equivalent (g/eq.)
Hydroxyl value (mg
KOH/g)
PHE CHE ECP
394 360
100 144
-
-
Viscosity (Pas) at 25 °C
2.99 4.36 12.9
participated in the reaction during preparation of CHE in situ nanocomposite. In 13C NMR
spectrum (Fig. 3a) of PHE resin, the δC (d6-DMSO, ppm) values were observed at 43 (CH2,
oxirane), 49 (CH, oxirane), 46-47 (central C of pentaerythritol unit), 114, 127, 143 and 156 (4C
of bisphenol-A), 31 (CH3, bisphenol-A unit), 41 (C, isopropediene of bisphenol-A unit), 68
(CH2, pentaerythritol unit) and 62-67 (CH2-O units and CHOH unit). All these δC (d6-DMSO,
ppm) are present in 13C NMR spectrum (Fig. 3b) of CHE along with 20-30 (sp3 carbons of
carbon dot), 65-68 (carbon dot carbons attached with ether linkages), 80-100 (sp2 carbons of
carbon dot) and 170-180 (carbonyl carbons of carbon dot) which are also present in 13C NMR
spectrum (Fig. 3c) of carbon dot. The degree of branching (DB) of PHE resin was determined
from 13C NMR spectrum. A hyperbranched polymer contents three different types of units:
dendritic (D), linear (L) and terminal (T) in its structure. DB is the ratio of the sum of integration
of D and T units to the sum of integration of D, L, and T units, i.e., DB = (D + T)/(D + L +
T).19,20 In case of PHE resin, the units with three and four, two and one hydroxyl group(s) of
pentaerythritol substituted by diglycidyl ether of bisphenol-A moiety are representing dendritic
(D), linear (L) and (T) units respectively. In 13C NMR spectrum the central carbon atom of
pentaerythritol for these four units were observed at δ = 46.75, 46.55, 46.40 and 46.20 ppm
14

Page 15 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 4 HR-TEM images of (a) CHE and (b) ECP at low magnification and internal structure of
(c) carbon dot, (d) ECP and (e) CHE at very high magnification.
respectively as shown in inset picture of Fig. 3a. The calculated DB from integration values of
these peaks for PHE resin was found 0.78. However, in case of CHE structural characterization
by DB is very difficult as carbon dot also took part in the reaction with in situ formed diglycidyl
ether of bisphenol-A and other reactants as shown in Scheme 1. The calculated DB based on the
above mentioned peaks was found to be 0.52, excluding the participation of carbon dot.
The epoxy equivalent, hydroxyl and viscosity values of PHE and CHE are given in Table
1. The numbers of epoxy as well as hydroxyl groups of the hyperbranched epoxy are higher for
15

RSC Advances
Page 16 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 5 SAED patterns of (a) carbon dot, (b) ECP and (c) CHE.
CHE than PHE due to participation of carbon dot in the former. As the number of these polar
functional groups are higher in CHE compared to PHE resin, so the viscosity of the former is
also higher (<1.5 folds), due to the presence of more intra- and inter- molecular attraction in
CHE. Again, when carbon dot was physically mixed with PHE resin (i.e. in case of ECP) the
viscosity increased more than four folds as the polar functional groups (hydroxyl, carboxylic
acid, epoxy, ether, etc. as revealed from FTIR spectrum) of carbon dots are totally free to interact
(by different physical interactions including polar-polar) with polar functional groups of PHE
resin. The inner structure of CHE and ECP were examined by HR-TEM analysis. The uniform
and homogenous dispersion of carbon dot inside CHE was observed in Fig. 4a. This uniform
dispersion is due to the chemical bond formation of the functional groups of carbon dot during
the preparation of hyperbranched epoxy. However in case of ECP, a few amounts of carbon dots
are agglomerated inside the PHE matrix due to the intra molecular attraction of the polar
functional groups of carbon dot as shown in Fig. 4b. Thus the interlayer spacing (d001) of carbon
dot is more affected in case of CHE compared to ECP as shown in Fig. 4(c-e). The graphitic d001
spacing of carbon dot increases from 0.24 to more than 1.0 nm after formation of CHE, whereas
it increases up to 0.33 nm after formation of ECP. The poor crystalline structure of carbon dot
16

Page 17 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Table 2 Performance of PHE, CHE and ECP thermosets.
Parameter
PHE
CHE
ECP
Swelling value (%)
22±0.2 21±0.5 27±0.8
Tensile strength (MPa) 51±1.0 62.5±2.0 44±1.4
Elongation at break (%) 37±0.5 45±1.3 62±2.5
Toughness (MPa)a
1432
1682
>10.0
>100
<1
2299
>10.0
>100
<1
Scratch hardness (kg)b >10.0
Impact resistance (cm)c >100
Bending diameter
(mm)d
<1
Initial degradation
temperature (°C)
279
291
235
aCalculated by integrating the area under stress-strain curves, bInstrument limit of the scratch
hardness was 10.0 kg (highest), cInstrument limit of the impact strength was 100 cm (highest),
dInstrument limit of the mandrel diameter was 1 mm (lowest).
becomes amorphous after formation of CHE as shown in selected area electron diffraction
(SAED) patterns in Fig. 5. The bright spots in SEAD pattern of carbon dot (Fig. 5a) are
completely disappeared from SAED pattern of CHE (Fig. 5c), whereas few bright spots are
found in SAED pattern of ECP (Fig. 5b). This is due to the fact that after formation of CHE by
the reaction of carbon dot with diglycidyl ether of bisphenol-A and pentaerythritol, the poor
crystalline nature of carbon dot changes to completely amorphous state.
3.2. Curing study
17

RSC Advances
Page 18 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 6 Stress-strain profiles of PHE, CHE and ECP thermosets.
PHE resin, CHE and ECP were cured at 100 °C with 50 phr poly(amido-amine) hardener for 45
min and the swelling values of the thermosets are given in Table 2. PHE, CHE and ECP took 35,
30 and 45 min curing times respectively to reach <30% swelling value. However for better
comparison all of them cured at same temperature (100 °C) for same time (45 min) with same
amount of hardener (50 wt%) though the swelling values were kept in optimum (20-30%). The
possible reactions occurred during the curing process were the reactions between amine groups
of the hardener with the strained epoxy oxirane rings of PHE, CHE and ECP. Again, the
hydroxyl, carboxylic acid and epoxy groups of carbon dot (in case of ECP) also took part in the
curing reaction, however they took long time due to agglomeration of few amount of carbon dot
inside PHE matrix. As CHE possessed highest number of epoxy groups (lowest epoxy
equivalent, as given in Table 1), so it has the lowest swelling value. However, in case of ECP as
carbon dot physically mixed with PHE, it exhibited the highest swelling value.
3.3. Mechanical properties
18

Page 19 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 7 TGA thermograms and DTG curves (inset figure) of CHE, ECP and PHE thermosets.
Mechanical properties like tensile strength, elongation at break, toughness, scratch hardness,
impact resistance and bending values of PHE, CHE and ECP thermosets are given in Table 2.
The stress-strain profiles of the thermosets are shown in Fig. 6. From these results it is found that
CHE thermoset possessed the highest tensile strength value. This is due to the fact that the
aromatic carbonized carbon dot is chemically bonded (covalently bonded) with diglycidyl ether
of bisphenol-A and pentaerythritol during the formation of hyperbranched epoxy in situ
nanocomposite. This helps in strong interfacial interactions and uniform dispersion of carbon dot
with compact structural architecture. It also exhibited higher elongation at break compared to
PHE thermoset. This may be due to sliding of carbon dot layers at high stress as it is seen from
Fig. 4e. Thus, the distance between the layers is increased after formation of CHE. This
increased layer spacing and strong covalent bonds easily overcome the interlayer interactions
between the carbon dot sheets. As CHE thermoset possessed higher tensile strength and
elongation at break, it also showed higher toughness compared to PHE thermoset as calculated
from the area under stress-strain curves (Fig. 6). However, tensile strength value of PHE
thermoset is decreased after physically mixed with carbon dot in ECP thermoset. This is due to
19

RSC Advances
Page 20 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 8 DSC curves of (a) PHE, (b) ECP and (c) CHE thermosets.
the fact that in case of ECP physical interactions of carbon with PHE are predominated over the
chemical bond formation and carbon dots are agglomerated inside the PHE matrix as observed
from the TEM image (Fig. 4b). Thus elongation at break and toughness values of PHE was
increased after formation of ECP thermoset. PHE, CHE and ECP thermosets exhibited the same
values of scratch hardness and impact resistance as the values reached the highest limit of the
instruments for scratch hardness (10 kg) and impact resistance (100 cm). They also exhibited the
lowest limit of the instrument for flexibility evaluation (1 mm bending diameter of mandrel)
without any damage to the film.
3.4. Thermal study
Initial degradation (5 wt% degradation) temperatures (°C) of the thermosets obtained from the
TGA thermograms (Fig. 7), are given in Table 2. From the results, it was found that CHE
thermoset exhibited the highest thermal stability as carbon dot chemically bonded with the
structure of hyperbranched epoxy. Whereas, in case of physical mixture of carbon dot with PHE,
the thermal stability of the thermoset was decreased as only physical interactions are present in
ECP thermoset. However, maximum degradation of the thermosets were started after 300 °C and
50 wt% degradations of them were occurred at ~390 °C as observed from TGA thermograms of
the thermosets in Fig. 7. The thermosets were also degraded by two step patterns as observed in
20

Page 21 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 9 (a) Optical absorbance spectra and; (b) percent of transmittance and transparency (inset
pictures) of PHE, ECP and CHE thermosets.
DTG curves (inset of Fig. 7), where the first step (~360 °C) is due to the degradation of aliphatic
moieties of hyperbranched epoxy and poly(amido-amine) hardener, and the second step (~450
°C) is due to the degradation of aromatic moieties of hyperbranched epoxy and carbon dot. From
the DSC study (Fig. 8), it was found that PHE, ECP and CHE thermosets exhibited close glass
transition temperatures (Tg) due to their similar structural attributes. The slightly increment of Tg
value of PHE after formation of carbon dot nanocomposite (CHE and ECP) is due to rigid
structure of aromatic carbon dot as well as carbon dot restricted the chain motions of
hyperbranched epoxy by different physico-chemical interactions. When, carbon dot act as an in
situ reactive component in CHE, the effect is more due to covalent bond formation and thus,
increment is higher compare to ex situ nanocomposite (ECP).
3.5. Optical properties
The optical absorbance spectra of PHE, CHE and ECP thermosets are shown in Fig. 9a. The
figure shows that the thermosets absorbed more amount of light in the UV region. In case of
PHE thermoset, absorption of UV light is due to the π-π* transition of aromatic bisphenol-A
21

RSC Advances
Page 22 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 10 PL spectra of (a) CHE, ECP and carbon dot in ethanolic solution at same
concentration (0.001%); (b) CHE (in ethanolic solution) with variation of concentration and
(c) variation of excitation wavelength; and (d) CHE, ECP and PHE thermosets.
moiety present in its structure. Whereas, in case of CHE and ECP thermosets absorption is due to
the π-π* and n-π* transitions of carbon dot as well as the π-π* transition of aromatic bisphenol-A
moiety.23,26 From the Fig. 9a, it is found that ECP thermoset absorbed the highest amount of UV
light because of the presence of only physical interactions between carbon dot and PHE, and
thus, carbon dots are free to interact with UV light. However, in case of CHE depletion of the
electronic transition was occurred due to the participation of the functional groups of carbon dot
22

Page 23 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 11 Fluorescence decay profiles of (a) carbon dot, (b) CHE and (c) ECP.
in chemical reactions to form hyperbranched epoxy and thus, it absorbed less amount of UV
light.
The visual transparency and percent of transmittance of visible light of PHE, CHE and ECP
thermoset films are shown in Fig. 9b. In the inset picture it is found that CHE thermoset film
showed the highest transparency. This is due to the quantum size carbon particles with large
number of polar functional groups participate in the reaction to form the hyperbranched epoxy.
Thus, the percent of transmittance of visible light was also the highest in case of CHE. However,
the transparency as well as the percent of transmittance of visible light of PHE was decreased
after formation of ECP. This is due to the presence of only physical interactions between carbon
dot and PHE as well as agglomeration of carbon dot in the PHE matrix.
The photoluminescence (PL) behaviors of CHE and thermosetting solid film of CHE are
shown in Fig. 10. CHE exhibited higher PL intensity as well as spectrum is also narrower
compared to carbon dot at the same concentration in ethanolic solution (0.001%) as shown in
Fig. 10a. This is due to uniform dispersion of carbon dot without agglomeration after formation
of CHE. However, after formation of ECP these were not happened due to the presence of
agglomerated carbon dot inside the PHE matrix. From the Fig. 10b, it was found that the
intensity of the PL spectra increases with the increase of concentration of CHE in ethanolic
solution. On the other hand, reverse trend was found in case of carbon dot in our earlier study,26
23

RSC Advances
Page 24 of 31
View Article Online
DOI: 10.1039/C5RA12131K
because of agglomeration of free carbon dot at higher concentration due to interactions among
the polar functional groups on the surface. Whereas, these groups are chemically bonded with
other reactants during the formation of CHE and thus, in this case homogeneous and uniform
dispersion of carbon dot was observed without any agglomeration. However, CHE also exhibited
excitation wavelength dependent PL behavior like carbon dot as shown in Fig. 10c. Here, also
the highest intensity PL spectrum was found at 360 nm excitation wavelength similar to carbon
dot as reported in our earlier study.26 This is common PL behavior of carbon dot and the reasons
for this behavior are the presence of different particle sizes and the distribution of the different
surface energy traps of the carbon dot as reports earlier as well as in literatures.26,29-31 Quantum
yield of CHE was found 12.69 using quinine sulfate as the reference according to Equation 1 on
excitation at 360 nm wavelength, which was higher compared to carbon dot (8.95) as measured
in our earlier study.26 This is because of the uniform and homogenous dispersion of carbon dot
inside the matrix in CHE compared to bare carbon dot. Second order exponential fitting curves
of fluorescence decay of carbon dot, CHE and ECP are shown in Fig. 11. Here, the fitting curves
and the life time of PL values are comparable with the reported carbon dot as well as carbon dot
based nanocomposites.32-34 The PL spectra of CHE, ECP and PHE thermoset films are shown in
Fig. 10d. From the spectra, it was found that CHE exhibited the highest PL intensity due to
strong interfacial interaction of carbon dot with hyperbranched polymer as well as homogeneous
and uniform dispersion of carbon dot inside the matrix as stated above. However, PL intensity of
PHE was not significantly improved after formation of ECP as only physical interactions are
present and agglomeration of carbon dot was also formed inside the PHE matrix. PHE thermoset
possessed negligible PL due to the presence of aromatic bisphenol-A moiety in its structure.
24

Page 25 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 12 Optical color emissions of (a) carbon dot, (b) CHE and; (c) CHE and ECP thermosets
under exposure of UV lights at 254 and 365 nm.
The optical color emissions of carbon dot, CHE as well as CHE and ECP thermosets at
different wavelengths of UV light are shown in Fig. 12. From Fig. 12(a-c) it was found that CHE
as well as CHE thermoset emits green and light blue fluorescence similar to carbon dot after
illumination with short (254 nm) and long (365 nm) wavelengths of UV light. The green and
blue color emissions are due to the corresponding band gaps of carbon dot at different excitation
wavelengths of UV light and the color change is due to the presence of different sizes of carbon
dot as reported earlier.23 ECP thermoset also emits similar color like CHE thermoset (Fig. 12c),
however due to some agglomeration of carbon dot inside the PHE matrix brightness of color is
inferior to CHE thermoset.
3.6. Cell proliferation and cytocompatibility assessment
In vitro cell proliferation/cytocompatibility studies were performed on ECP, CHE and PHE
membranes using HDF and HaCaT cells. Alamar blue assay was done to quantify cell viability
and proliferation over time to assess cytocompatibility of the membranes. Increased reduction
percentage of alamar blue overtime relates to higher number of proliferating cells which in turn
25

RSC Advances
Page 26 of 31
View Article Online
DOI: 10.1039/C5RA12131K
Fig. 13 Alamar blue cell proliferation assay showing (a) human dermal fibroblast (HDF) and (b)
skin keratinocyte (HaCaT) cell proliferation on all the three membranes. Data represented as
average ± standard deviation. (**p<0.01)
indicates cytocompatibility of the membranes favoring cell growth.35-37 All the membranes
showed cell proliferation and increase in cell number with time. After 7 days of culture, HDF
cell proliferation showed the following trend: ~82 % on CHE, ~ 44 % on ECP and ~16 % on
PHE compared to day 1 of culture (Fig. 13a) (p<0.01). On day 7, all the membranes CHE, ECP
and PHE exhibited significant differences for HDF cells (p<0.01). In case of HaCaT cells,
similar proliferation trend was observed (Fig. 13b). On day 7, HaCaT cells proliferated
̴ 3.17
fold on CHE , 2.47 fold on ECP and 2.55 fold on PHE as compared to culture day 1. For
̴
̴
HaCaT cells there was a significant difference between CHE with ECP and CHE with PHE,
respectively (p<0.01). However, no significant difference was observed between ECP and PHE
(p<0.01). Thus CHE is the best material for HDF and HaCaT cell proliferation may be due to
better compatibility compared to other two materials.
3.7. Live/dead assay for cellular viability
26

Page 27 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K

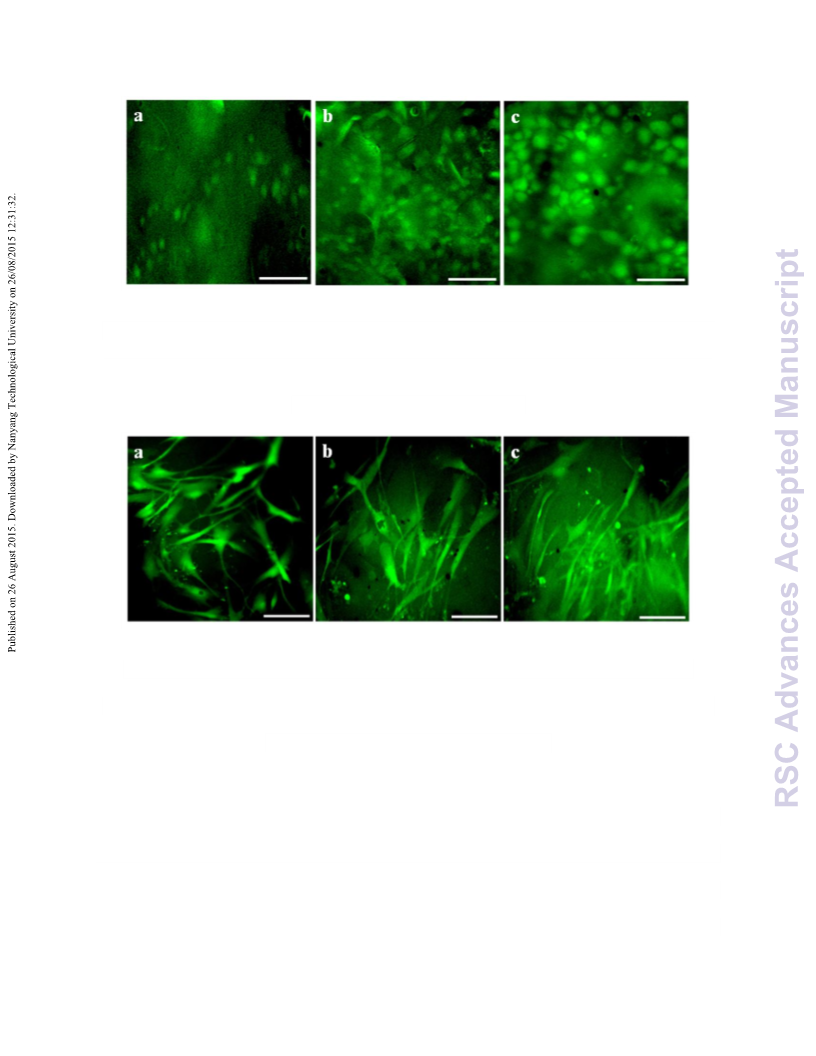

Fig. 14 Fluorescent microscopic images showing human dermal fibroblast (HDF) cells growing
on membranes after seven days of culture. (a) ex situ (ECP) , (b) in situ (CHE) and (c) pristine
(PHE). Scale bar represents 100 µm.
Fig. 15 Fluorescent microscopic images showing human skin keratinocyte (HaCaT) cells
growing on membranes after seven days of culture. (a) ex situ (ECP) , (b) in situ (CHE) and (c)
pristine (PHE). Scale bar represents 100 µm.
As evident from fluorescent microscopic images both HDF and HaCaT cells attached firmly to
all the membranes and proliferated well (Fig. 14 and 15). Cells maintained native spindle
morphology suggesting the membranes to be cytocompatible and favoring growth and
attachment. Cells were evenly distributed on the membranes. Hence, the viability, spreading and
27

RSC Advances
Page 28 of 31
View Article Online
DOI: 10.1039/C5RA12131K
proliferation of skin fibroblasts and keratinocytes on these membranes suggest them to be highly
applicable as a bio-sealant material in surgical wound skin closure.
Furthermore, this biocompatibility is helpful for safe handling of the material for its
different applications. The nanocomposite exhibited good biocompatibility with human skin
fibroblasts and keratinocytes cells as observed in Fig. 13-15 with good viability, spreading and
proliferation of these cells on it. The thermoset contains 50 wt% vegetable oil derived
poly(amido-amine) hardener, which is an excellent biodegradable material as shown in our
earlier works.20,38-40 A very recent study of our group also showed that an epoxy thermoset with
similar structural attributes and same hardener was degraded under physiological conditions and
the degraded products were nontoxic.40 Thus, it is expected that the studied material may be safe
to use and partially biodegradable.
4. Conclusion
The present study, therefore, demonstrated an excitation wavelength dependent
photoluminescence biocompatible carbon dot/hyperbranched epoxy in situ nanocomposite. NMR
and TEM studies confirmed the participation of carbon dot in chemical reaction during the
formation of hyperbranched epoxy in situ nanocomposite. The study also revealed superior
mechanical, thermal, optical and bio-sealant properties of this nanocomposite over the ex situ
nanocomposite of carbon dot with hyperbranched epoxy. These results clearly evident the
incorporation of carbon dot in the hyperbranched structure through covalent linkages. Thus, the
study may open up a new avenue for high performance transparent fluorescent polymeric
materials used in advanced optical as well as bio-sealant applications.
Acknowledgement
28

Page 29 of 31
RSC Advances
View Article Online
DOI: 10.1039/C5RA12131K
Dr. B. B. Mandal greatly acknowledges to Government of India for financial support by the
following grants: DBT- BT/505/NE/TBP/2013 and DBT- BT/IN/Sweden/38/BBM/2013 for
biological works of the present study.
References
1
2
3
4
S. V. Gaponenko, Optical Properties of Semiconductor Nanocrystals, Cambridge
University Press, Cambridge, 1998.
N. Tomczak, D. Janczewski, M. Han and G. J. Vancso, Prog. Polym. Sci., 2009, 34, 393-
430.
X. Li, Y. Wu, D. Steel, D. Gammon, T. H. Stievater, D. S. Katzer, D. Park, C.
Piermarocchi and L. J. Sham, Science, 2003, 301, 809-811.
J. H. Park, J. Y. Kim, B. D. Chin, Y. C. Kim, J. K. Kim and O. O. Park, Nanotechnology,
2004, 15, 1217-1220.
5
6
7
8
N. Tomczak, R. Liua and J. G. Vancso, Nanoscale, 2013, 5, 12018-12032.
M. D. Goodman, J. Xu, J. Wang and Z. Lin, Chem. Mater., 2009, 21, 934-938.
H. Althues, P. Simon and S. Kaskel, J. Mater. Chem., 2007, 17, 758-765.
L. Chen, C. Wang, Q. Li, S. Yang, L. Hou and S. Chen, J. Mater. Sci., 2009, 44, 3413-
3419.
9
Q. Li, T. Y. Ohulchanskyy, R. Liu, K. Koynov, D. Wu, A. Best, R. Kumar, A. Bonoiu and
P. N. Prasad, J. Phys. Chem. C, 2010, 114, 12062-12068.
10 C. S. Stan, C. Albu, A. Coroaba, M. Popa and D. Sutiman, J. Mater. Chem. C, 2015, 3,
789-795.
11 S. T. Yang, L. Cao, P. G. Luo, F. Lu, X. Wang, H. Wang, M. J. Meziani, Y. Liu, G. Qi and
Y. P. Sun, J. Am. Chem. Soc., 2009, 131, 11308-11309.
29
