Synthesis and evaluation of 99mTc-labeled dimeric folic acid for FR-targeting

Article abstract of DOI:10.3390/molecules21060817

The folate receptor (FR) is overexpressed in a wide variety of human tumors. In our study, the multimeric concept was used to synthesize a dimeric folate derivative via a click reaction. The novel folate derivative (HYNIC-D₁-FA₂) was radiolabeled with ^99mTc using tricine and trisodium triphenylphosphine-3,3′,3″-trisulfonate (TPPTS) as coligands (^99mTc-HYNIC-D₁-FA₂) and its in vitro physicochemical properties, ex vivo biodistribution and in vivo micro-SPECT/CT imaging as a potential FR targeted agent were evaluated. It is a hydrophilic compound (log P = -2.52 ± 0.13) with high binding affinity (IC₅₀ = 19.06 nM). Biodistribution in KB tumor-bearing mice showed that ^99mTc-HYNIC-D₁-FA₂ had high uptake in FR overexpressed tumor and kidney at all time-points, and both of them could obviously be inhibited when blocking with free FA in the blocking studies. From the in vivo micro-SPECT/CT imaging results, good tumor uptake of ^99mTc-HYNIC-D₁-FA₂ was observed in KB tumor-bearing mice and it could be blocked obviously. Based on the results, this new radiolabeled dimeric FA tracer might be a promising candidate for FR-targeting imaging with high affinity and selectivity.

Full text of DOI:10.3390/molecules21060817

molecules
Article
Synthesis and Evaluation of 99mTc-Labeled Dimeric
Folic Acid for FR-Targeting
Zhide Guo 1,2, Mengna Gao 2, Manli Song 2, Changrong Shi 2, Pu Zhang 2, Duo Xu 2, Linyi You 2,
Rongqiang Zhuang 2, Xinhui Su 3, Ting Liu 2, Jin Du 1,* and Xianzhong Zhang 2,
*
1
Department of Isotopes, China Institute of Atomic Energy, P. O. Box 2108, Beijing 102413, China;
guozhide0518@gmail.com
Center for Molecular Imaging and Translational Medicine, State Key Laboratory of Molecular Vaccinology
and Molecular Diagnostics, School of Public Health, Xiamen University, Xiang’an South Rd, Xiamen 361102,
China; 18037005951@163.com (M.G.); songmanli199142@126.com (M.S.);
2
changrongshi2016@yahoo.com (C.S.); 18811471208@126.com (P.Z.); 13164604466@163.com (D.X.);
youly01@sina.com (L.Y.); zhuangrongqiang@126.com (R.Z.); tingliu20072008@yahoo.com (T.L.)
Department of Nuclear Medicine, Zhongshan Hospital Affiliated of Xiamen University, Hubin South Road,
Xiamen 361004, China; suxinhuii@163.com
3
*
Correspondence: dujin@china-isotope.com (J.D.); zhangxzh@xmu.edu.cn (X.Z.);
Tel.: +86-10-68515109 (J.D.); +86-592-2880645 (X.Z.)
Academic Editor: Zhen Cheng
Received: 30 May 2016; Accepted: 20 June 2016; Published: 22 June 2016
Abstract: The folate receptor (FR) is overexpressed in a wide variety of human tumors. In our
study, the multimeric concept was used to synthesize a dimeric folate derivative via a click reaction.
The novel folate derivative (HYNIC-D1-FA2) was radiolabeled with 99mTc using tricine and trisodium
1
11
triphenylphosphine-3,3 ,3 -trisulfonate (TPPTS) as coligands (99mTc-HYNIC-D1-FA2) and its in vitro
physicochemical properties, ex vivo biodistribution and in vivo micro-SPECT/CT imaging as a
potential FR targeted agent were evaluated. It is a hydrophilic compound (log P =
´
2.52
˘
0.13)
with high binding affinity (IC50 = 19.06 nM). Biodistribution in KB tumor-bearing mice showed that
99mTc-HYNIC-D1-FA2 had high uptake in FR overexpressed tumor and kidney at all time-points,
and both of them could obviously be inhibited when blocking with free FA in the blocking studies.
From the in vivo micro-SPECT/CT imaging results, good tumor uptake of 99mTc-HYNIC-D1-FA2 was
observed in KB tumor-bearing mice and it could be blocked obviously. Based on the results, this new
radiolabeled dimeric FA tracer might be a promising candidate for FR-targeting imaging with high
affinity and selectivity.
Keywords: folate receptor; molecular imaging; dimeric folic acids; click reaction; SPECT imaging
1. Introduction
The realization of accurate early detection of tumors requires the use of efficient and safe molecular
imaging probes. To further improve the delivery efficiency and cancer specificity, several tumor
targeting ligands (such as antibodies, sugars, folic acid (FA), transferrin, epidermal growth factor,
and RGD peptide) are currently being pursued. One of the rational ligands is FA, which is a stable,
inexpensive, and non-immunogenic vitamin (Mw = 441 Da). This ligand provides high tumor binding
affinity and better tumor uptake for its corresponding radiotracers because of the enrichment of the
folate receptor (FR) on the surface of many many tumors (e.g., ovarian, breast, colorectal, endometrial
and renal carcinomas) [
probes for positron emission tomography (PET) or single-photon emission computed tomography
(SPECT) have attracted significant interest, and become important tools in molecular imaging [ ].
1–3]. In the field of folate-based radiopharmaceuticals, over the years, several
4–6
Molecules 2016, 21, 817; doi:10.3390/molecules21060817
www.mdpi.com/journal/molecules

Molecules 2016, 21, 817
2 of 13
Folate conjugates also display this property after chemical modification, which makes FA an ideal
structure for nuclear imaging [7–10].
In a previous study, we reported a 99mTc-labeled folate derivative (99mTc-HYNIC-T-FA) with a
1,2,3-triazole linkage [11]. Azide-functionalized HYNIC was coupled with alkyne-functionalized folate
via a click reaction to give the final HYNIC-T-FA compound, which was proved to be a highly efficient
method. Furthermore, 99mTc-HYNIC-T-FA showed favorable characteristics compared with other
folate derivatives modified with a HYNIC-binding entity. Although good evaluation results were
obtained both in vivo and in vitro, there was still some room for further improvement of targeting
efficiency. Introducing the multimeric cyclic RGD peptides provides higher α β binding affinity and
v
3
better tumor uptake for their corresponding radiotracers [12–15]. Inspired by the multimerization
concept of cyclic RGD peptides, it might be a good strategy to improve the binding affinity and
tumor targeting efficacy of tracers. To the best of our knowledge, no multimeric FR-targeting probes
have been reported before. Therefore it is of interest to develop multimeric folate derivatives for
radiolabeling and potential clinical applications.
In this study, a new FR-targeting dimeric probe was synthesized via a click reaction and labeled
with 99mTc to provide a radiotracer (99mTc-HYNIC-D1-FA2). It was investigated in vitro and in vivo
including biodistribution, receptor binding in tumor cell culture and imaging in tumor bearing mice
with micro-SPECT/CT to verify its tumor targeting ability.
,
2. Results
2.1. Chemistry and Radiolabeling
The general strategy of the synthesis is shown in Scheme 1. FA-NHS and azido HYNIC were
synthesized as previously described [11,16]. In order to form folate dimers, a small dendrimer-based
platform with unique branching structure (D1) was used to attach two targeting moieties (resulting in
D1-FA2) in a well-defined manner. Transitional product D0.5 was synthesized from the starting material
propynylamine (D0) using the same method as the Michael addition of primary amines with methyl
acrylate. D1 was synthesized from D0.5 using the same method used for amidation of methyl ester
groups with a large molar excess of ethylenediamine [17–
19]. The molecular parameters and 1H-NMR
spectra of PAMAM dendrons are shown in Figure S1. Azide-alkyne click chemistry was employed to
conjugate azido HYNIC and D1-FA2 together to provide HYNIC-D1-FA2 via an efficient transformation
reaction. The corresponding FT-IR spectrum (Figure S2) showed that the characteristic peaks around
´1
2100 cm disappeared, indicating the successful click reaction of the alkyne and azide groups in the
formation of HYNIC-D1-FA2. In addition, the UV spectra of folic acid and HYNIC-D1-FA2 are shown
in Figure S3. The characteristic absorption peaks 280 and 363 nm suggested the successful grafting of
folic acid in the HYNIC-D1-FA2, according to its folic acid structure. The presence of HYNIC and folic
acid in the HYNIC-D1-FA2 molecule was confirmed by NMR (Figure S4).
HYNIC is an efficient BFC (bifunctional chelator) for labeling of 99mTc using tricine and TPPTS
as coligands [20,21]. High radiochemical yield (>90%) was obtained by using a radiolabeling method.
After labeling, a sample of the resulting solution was analyzed and then purified by radio-HPLC.
As shown in Figure S5A, the retention time of 99mTc-HYNIC-D1-FA2 was 14.33 min and the radiochemical
purity (RCP) of the purified radiotracer was 98%. The final product was detected by UV and the
specific activity was calculated as 2.5 MBq/nmol. The octanol-water partition coefficient (log P) of
99mTc-HYNIC-D1-FA2 is slightly better than the value of HYNIC-T-FA (shown in Table 1).
Table 1. Molecular parameters of HYNIC-T-FA and HYNIC-D1-FA2.
Derivative
FA/HYNIC
Molecular Formula
Mw
Log P
HYNIC-T-FA
HYNIC-D1-FA2
1/1
2/1
C40H44N16O6
C69H81N27O13
844.4
1495.7
´2.40 ˘ 0.17
´2.52 ˘ 0.13

Molecules 2016, 21, 817
3 of 13

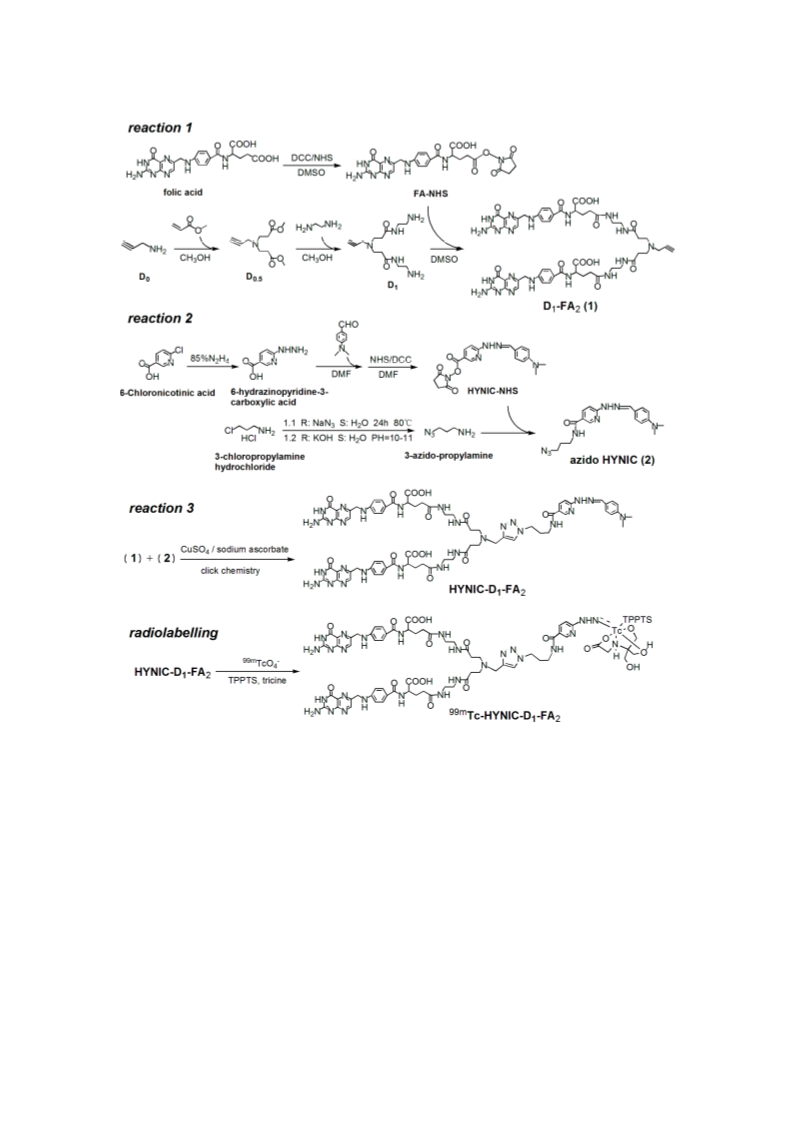

Scheme 1. Reaction sequence for the preparation of HYNIC-D1-FA2 and radiolabeling procedure
of 99mTc-HYNIC-D1-FA2. In our study, the novel folate derivative is composed of four structural
components: targeting moiety FA, PAMAM (D1), 1,2,3-triazole linkage, and bifunctional chelator.
2.2. In Vitro Experiments
Time-dependent cell binding and internalization experiments were performed using FR
overexpressed KB cells. As shown in Figure 1A, the radiofolates associated with the FRs on KB cells are
rapidly accumulated (approaching 50% at 4 h) and approximately 10% of the radiolabeled folate-dimer
was internalized. After blocking with excess FA, the cell uptake was reduced drastically. The results of
this study confirmed the high specificity of the folate-dimer for the FRs in vitro. The binding curves
are shown in Figure 1B and the IC50 values of HYNIC-D1-FA2 and HYNIC-T-FA were calculated as
19.06 nM and 12.33 nM by inhibition experiments using 125I-tyr-FA (see Figure S5B).

Molecules 2016, 21, 817
4 of 13

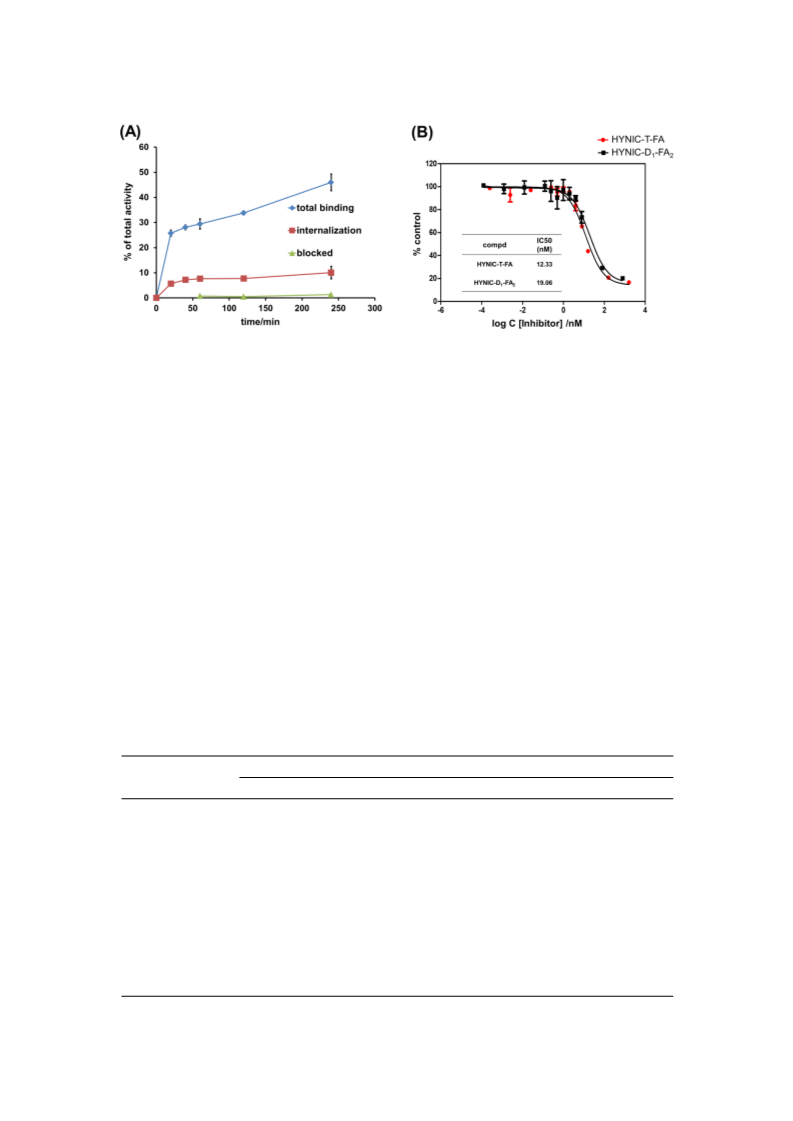

Figure 1.
internalization and blocked by excess folic acid, p < 0.05). The cell binding was expressed as
(A
) The cell binding properties of 99mTc-HYNIC-D1-FA2 in KB cells (cell total binding,
percentage of total added radioactivity; (
cells by HYNIC-D1-FA2.
B)
In vitro inhibition of 125I-tyr-FA binding to FR on KB
2.3. Biodistribution Study
In order to evaluate the distribution of the radiotracer in vivo, biodistribution studies in normal
mice (see Table S1) and KB tumor-bearing mice were performed (see Table 2). The animal model was
set up in accordance with the previous method. All animal studies were carried out in compliance with
the national laws related to the conduct of animal experimentation. 99mTc-HYNIC-D1-FA2 uptake in
the tumor reached a high accumulation (10.16%
˘
1.16%ID/g) at 2 h p.i.. Significant uptake intensity
3.12%ID/g).
was also found in the kidney, and reached a remarkable value at 4 h p.i. (56.69%
The uptakes of 99mTc-HYNIC-D1-FA2 in the other organs, such as heart, liver, stomach, lung and
intestine, were kept at a low level. In the blockage study, injection with excess FA leads to an obvious
˘
decreased uptake of radiofolate for the FR overexpressed tumor and kidney (2.26%
10.46% 0.04%ID/g at 2 h p.i., respectively). PMX was used to increase the tumor-to-kidney ratio
of radiofolates based on the literatures [22
˘
0.19%ID/g and
˘
,
23]. Administration of PMX 1 h before the injection of
99mTc-HYNIC-D1-FA2 significantly reduced the kidney accumulation, whereas the tumor uptake was
not changed much.
Table 2. The biodistribution results of 99mTc-HYNIC-D1-FA2 in KB tumor-bearing mice (%ID/g,
mean ˘ SD, n = 5).
Post-Injection Time
Tissues
2 h
4 h
2 h w/ PMX *
2 h w/ FA **
Heart
Liver
Lung
Kidney
Spleen
Stomach
Bone
Muscle
Intestines
Blood
Tumor
1.11 ˘ 0.18
1.45 ˘ 0.56
1.59 ˘ 0.62
54.09 ˘ 2.21
0.95 ˘ 0.05
1.03 ˘ 0.11
1.11 ˘ 0.07
0.69 ˘ 0.04
0.80 ˘ 0.12
0.66 ˘ 0.19
10.16 ˘ 1.16
14.72
0.90 ˘ 0.08
1.01 ˘ 0.11
0.97 ˘ 0.11
56.69 ˘ 3.12
0.78 ˘ 0.31
0.65 ˘ 0.09
0.98 ˘ 0.07
0.40 ˘ 0.07
0.63 ˘ 0.07
0.58 ˘ 0.04
9.30 ˘ 0.91
23.25
0.75 ˘ 0.10
1.23 ˘ 0.14
1.05 ˘ 0.31
28.07 ˘ 2.42
0.85 ˘ 0.18
0.73 ˘ 0.03
0.76 ˘ 0.16
0.70 ˘ 0.10
0.63 ˘ 0.11
0.66 ˘ 0.16
8.47 ˘ 0.45
12.10
0.82 ˘ 0.12
0.88 ˘ 0.10
1.27 ˘ 0.18
10.46 ˘ 0.04
0.99 ˘ 0.14
0.46 ˘ 0.03
0.91 ˘ 0.21
0.86 ˘ 0.12
0.76 ˘ 0.16
0.96 ˘ 0.20
2.26 ˘ 0.19
2.63
Tumor/Muscle
Tumor/Kidney
0.19
0.16
0.30
0.22
* 400
99mTc-HYNIC-D1-FA2.
µ µg FA was injected at 10 min prior to
g PMX was injected at 1 h prior to 99mTc-HYNIC-D1-FA2; ** 100

Molecules 2016, 21, 817
5 of 13
2.4. Static Imaging Study
The in vivo binding specificity of 99mTc-HYNIC-D1-FA2 to FR was also demonstrated by SPECT
imaging in KB tumor-bearing mice. Two tumor stages (8-days and 16-days after tumor cell inoculation)
were imaged by using 99mTc-HYNIC-D1-FA2. The images of 8-days tumors are shown in Figure 2A.
The probe was effective against early-stage cancer even at a small size, which increases the chance
of early diagnosis and treatment of tumors. By pre-administration of excess free FA (100 µg FA was
injected at 10 min prior to the radiotracer) via a lateral tail vein, the uptake in FR overexpressed
kidney and tumor were significantly reduced. For the 16-days tumor, the KB tumor and kidney were
clearly visualized at all time points (Figure 2B), this result was consistent with the biodistribution
data. A reduced kidney uptake and increased tumor-to-kidney ratio were obtained as expected by
pre-administration of PMX (Figure 2C).

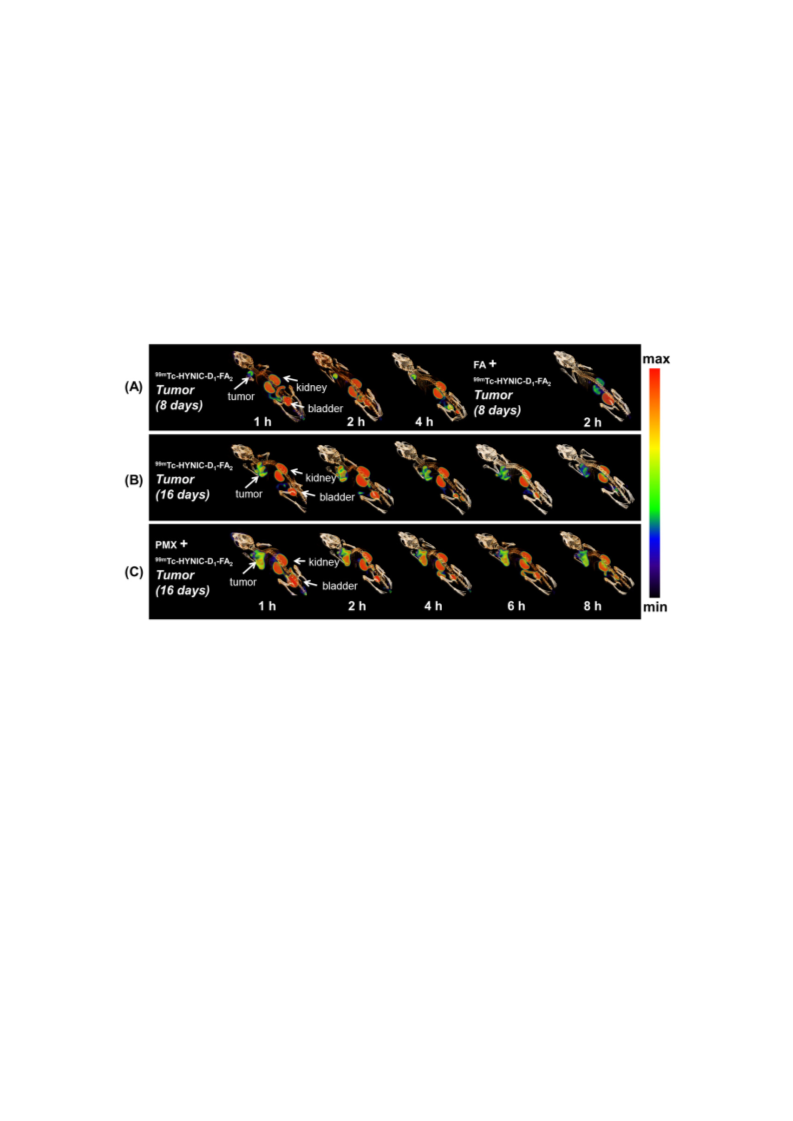

Figure 2. SPECT/CT imaging of xenografted KB-tumor in athymic nude mice.
(A) 8-days
tumor-bearing mice was received 99mTc-HYNIC-D1-FA2. Blocking study was performed by giving
100 µ B) 16-days tumor-bearing mice
g FA at 10 min prior to the injection of 99mTc-HYNIC-D1-FA2; (
was received 99mTc-HYNIC-D1-FA2; (C) 16-days tumor-bearing mice was received 400 µg PMX at 1 h
prior to the injection of 99mTc-HYNIC-D1-FA2.

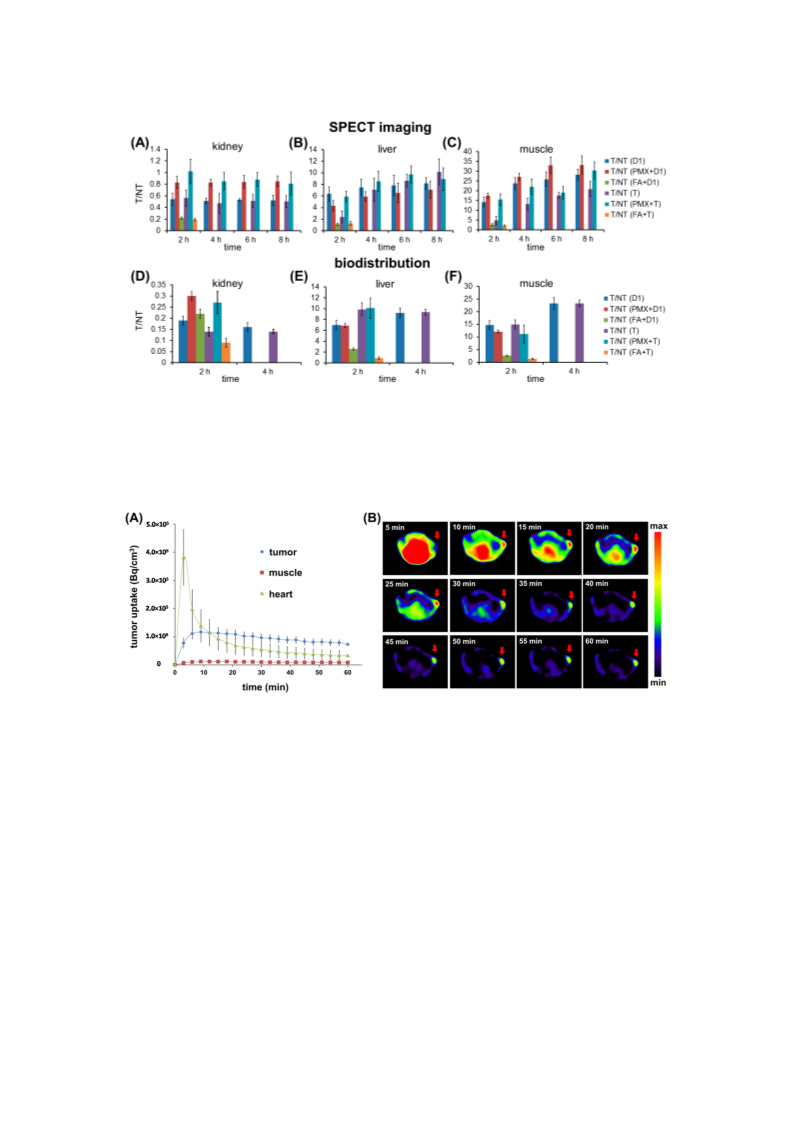

T/NT ratios of 99mTc-HYNIC-D1-FA2 and previously reported 99mTc-HYNIC-T-FA [11] are
compared in Figure 3. In SPECT imaging, 99mTc-HYNIC-D1-FA2 has much higher tumor-to-muscle
ratio than that of 99mTc-HYNIC-T-FA, while their tumor-to-kidney ratios were almost same. In the
biodistribution results, dimeric 99mTc-HYNIC-D1-FA2 did not show increased T/NT ratios when
compared with monomeric 99mTc-HYNIC-T-FA. Both of tumor-to-kidney ratios of these two
radiofolates could be obviously increased by pre-administration of PMX.
2.5. Dynamic Imaging Study
For semiquantitative dynamic SPECT imaging, as shown in Figure 4A, from early time points
(15 min p.i.), a relatively high accumulation of radioactivity was observed in the tumor, and significant
retention was also indicated over the time of investigation with low muscle uptake. Fast clearance
from the heart (blood) was observed during the earlier 15 min p.i. and then the uptake lower than that
of tumor afterward. Figure 4B shows SPECT images of corresponding transversal sections of KB tumor
at different detection times. The nonspecific retentions of radioactivity in tumor surrounding tissues
were decreased obviously over time, leading to a clear outline of tumor (marked with an arrow).

Molecules 2016, 21, 817
6 of 13
Figure 3. T/NT ratios of 99mTc-HYNIC-D1-FA2 and 99mTc-HYNIC-T-FA in SPECT imaging (
biodistribution studies (D–F). Uptakes of organs were calculated by drawing ROIs on the SPECT/CT
images. D1 = 99mTc-HYNIC-D1-FA2; T = 99mTc-HYNIC-T-FA. PMX block study: PMX (400
g) 1 h prior
to 99mTc-HYNIC-D1-FA2. FA block study: Folic acid (100 µg) 10 min prior to 99mTc-HYNIC-D1-FA2.
A–C) and
µ
Figure 4. (A
) Time-activity curves (TACs) of 99mTc-HYNIC-D1-FA2 in KB tumor-bearing mice derived
from the 60 min dynamic SPECT/CT scan; (
of image acquisition.
B) Transversal tumor SPECT images at different time points
3. Discussion
With the development of molecular imaging, diagnosis as well as therapeutic methods for diseases
are becoming more and more exact, credible and rapid. Nuclear medicine plays a crucial role in the
development of molecular imaging and precision medicine, depending on different types of molecular
probes and innovative techniques.
SPECT offers unique capabilities of easier preparation and much lower costs. An efficient
ternary ligand system (HYNIC, tricine and TPPTS) has been used in 99mTc-labeling of biomolecules.
In this study, a lyophilized kit formulation of HYNIC-D1-FA2 has been developed to simplify the
radiolabeling and purification procedure. In this situation, a one-pot synthesis of 99mTc-HYNIC-D1-FA2
has significant advantages over the corresponding 18F-labeled FA derivatives and should be easily
acceptable for clinical application. In recent years, various folate radiotracers have been reported
increasingly [11,21,24–26]. Compared with other reported monomeric probes (as shown in Table 3),
99mTc-HYNIC-D1-FA2 performs much better in tumor uptake value and T/NT ratio. All of these
comprehensive advantages lead to its potential as folate radiotracer candidate for tumor detection.

Molecules 2016, 21, 817
7 of 13
Table 3. Biodistribution data (4 h p.i.) of radiofolates in athymic nude mice bearing KB tumor xenografts
(%ID/g, mean ˘ SD).
Blood
Muscle
Tumor
Kidneys
Liver
111In-DTPA-folate [24]
0.03 ˘ 0.02
0.19 ˘ 0.05
0.37 ˘ 0.02
0.31 ˘ 0.07
0.06 ˘ 0.00
0.30 ˘ 0.07
0.37 ˘ 0.05
0.58 ˘ 0.04
0.71 ˘ 0.26
0.70 ˘ 0.14
2.40 ˘ 0.10
0.98 ˘ 0.17
0.17 ˘ 0.07
0.81 ˘ 0.23
0.35 ˘ 0.11
0.40 ˘ 0.07
2.9 ˘ 0.9
2.9 ˘ 0.8
3.3 ˘ 0.2
7.9 ˘ 1.4
0.19 ˘ 0.05
9.8 ˘ 1.7
8.14 ˘ 0.5
9.30 ˘ 0.91
25.0 ˘ 6.0
21.0 ˘ 3.0
47.0 ˘ 5.0
88.6 ˘ 9.2
3.6 ˘ 1.4
0.64 ˘ 0.23
1.05 ˘ 0.30
7.60 ˘ 0.50
2.08 ˘ 0.18
0.14 ˘ 0.07
0.60 ˘ 0.13
0.85 ˘ 0.11
1.01 ˘ 0.11
99mTc-DTPA-folate [24]
99mTc(CO)3-DTPA-folate [25]
99mTc(HYNIC-lys-pteroyl)(tricine/TPPTS) [21]
99mTc(HYNIC-NHHN-FA)(tricine/TPPMS) [26]
99mTc(HYNIC-NHHN-FA)(tricine/TPPTS) [26]
99mTc-HYNIC-T-FA [11]
114.9 ˘ 8.1
57.72 ˘ 4.5
56.69 ˘ 3.12
99mTc-HYNIC-D1-FA2
Many radiolabeled multimeric cyclic RGD peptides have been used in α β3-positive tumor
v
imaging by SPECT and PET. Construction of multimers has proved to be an effective approach to
improve the tumor uptake. Although some previous studies have shown that radiolabeled FR-targeting
PAMAM dendrimers can be used in live animal micro-SPECT imaging studies, there are so many
primary amine groups on the branched surface that are difficult to control the number of BFCs and
targeting precursors conjugated to the PAMAM dendrimer. Besides uncertain molecular structure,
folate-PAMAM dendrimers with large molecular weight are associated with cytotoxicity and excessive
liver retention, which limit their further applications in vitro and in vivo [27,28].
Different from the multimeric concept based on PAMAM dendrimers, here we use a small
alkyne-functionalized molecule with two branches to build a small system to link two identical
targeting elements. Based on this design, we believe that if the distance of the FA in HYNIC-D1-FA2 is
suitable, the two FAs entities will bind to FRs on the cell surface. In this case, weak ligand-receptor
interactions would be enhanced. If simultaneous FRs binding is difficult, the FA concentration is still
“locally enriched” in the vicinity of neighboring FR sites once the first FA element is bound, which is
similar to the concept of multimeric cyclic RGD. In our study, the results showed that this approach
can improve the radiotracer’s FR-targeting capability and minimize its accumulation in normal
organs. Both in vitro experiments and SPECT studies showed that the radiolabeled HYNIC-D1-FA2
had excellent tumor uptake and better ratios of tumor-to-muscle and tumor-to-liver than that of
monomeric FR-targeting probe due to its enhanced uptake in tumor but decreased uptake in muscle
and liver.
In this study, as shown in Figure 3, the SPECT imaging and biodistribution results of
99mTc-HYNIC-D1-FA2 were compared to previously published data of 99mTc-HYNIC-T-FA using
KB-tumor bearing mice [11]. In imaging study, 99mTc-HYNIC-D1-FA2 had a tumor-to-kidney ratio
which is equivalent to 99mTc-HYNIC-T-FA. Application of PMX effectively raise the tumor-to-kidney
and tumor-to-muscle ratios for both dimer and monomer at all observation time points. In blocked
study, tumor-to-muscle ratio was reduced to 2.59 after injection of free FA, supporting FR-specific
binding of 99mTc-HYNIC-D1-FA2. From the perspective of tumor-to-muscle ratio, 99mTc-HYNIC-D1-FA2
obtained a higher score and showed better tumor image contrast. This advantage was reflected in
biodistribution study. While, it's important to note that in order to ensure minimal time used for imaging,
SPECT/CT studies required higher amounts of radio folate (as well as folate mass) than biodistribution.
Consequently, we could present only a qualitative comparison of the data from the biodistribution and
SPECT/CT studies [29,30].
4. Materials and Methods
4.1. Reagents and Materials
All chemicals obtained commercially were used without further purification.
N-Tris-(hydroxymethyl)-methylglycine (tricine), trisodium triphenylphosphine-3,3,311-trisulfonate
(TPPTS), N-hydroxylsuccinimide (NHS) and dicyclohexylcarbodiimide (DCC) and other reagents
were purchased from J & K Chemical Ltd. (Beijing, China). The eluent Na99mTcO4 were obtained from

Molecules 2016, 21, 817
8 of 13
Zhongshan Hospital Affiliated of Xiamen University. The radioactivity was counted with
γ-counter
(WIZARD 2480, Perkin-Elmer, Waltham, MA, USA) and CRC-25R Dose Calibrators (CAPIN-TEC
Inc., Ramsey, NJ, USA). SPECT imaging studies were performed using a nanoScan-SPECT/CT
scanner (Mediso, Budapest, Hungary). The PET/CT study was performed using Siemens Inveon
1
device (Siemens Corp., Berlin, Germany). H-NMR spectra were measured on a Bruker (400 MHz)
spectrometer (Bruker, Karlsruhe, Germany). FT-IR spectroscopy (AVATAR 360, Nicolet Company,
Madison, WI, USA) was used to analyze reaction progress. The UV spectroscopy was performed using
a microplate spectrophotometer (Multiskan GO, Thermo Fisher, Waltham, MA, USA). Mass spectra
(MS) were recorded using a Bruker Apex IV FTM instrument. Kit formulations were lyophilized using
a lyophilizer (Freezone Triad 2.5L, LABCONCO, Kansas, MO, USA). Dionex Ulti-Mate 3000 HPLC
(Thermo Scientific, Waltham, MA, USA) with flow-counter radioactivity detector (BioScan, Poway,
CA, USA) was used to test the radiochemical purity. The mobile phase is presented below: A: 90%
NH4HCO3 (0.05 mol/L)/10% CH3OH, B: 100% CH3OH; 0–10 min, B: 5%–50%; 10–20 min, B: 50%–50%;
20–30 min, B: 50%–5%; flow rate: 1 mL/min.
4.2. Synthetic Route to HYNIC-D1-FA2
4.2.1. Reaction 1
FA-NHS and propargyl-PAMAM dendron D1 were successfully synthesized and the corresponding
D1-FA2 was prepared by amidation.
Preparation of FA-NHS
Folic acid (3 g, 6.8 mmol), NHS (940 mg, 8.2 mmol) and DCC (1.68 g, 8.2 mmol) were dissolved
in DMSO (50 mL) under vigorous stirring and stirred at room temperature for 24 h in the dark.
The byproduct was removed by filtration to give a reddish-brown filtrate containing FA-NHS.
Preparation of Propargyl-PAMAM Dendrons (D1)
Propargyl-PAMAM dendrons with primary amine terminal groups (D1) were synthesized
according to the procedure similar to that reported by Lee et al. [18]. A solution of propargylamine
(indicated as D0, 5 g, 90.7 mmol) in methanol (30 mL) was added dropwise over 30 min to a cooled
(ice-water bath) and stirred solution of methyl acrylate (78 g, 907.0 mmol) in methanol (80 mL).
˝
The resulting solution was stirred for 1 h at 0 C and then reacted at room temperature under a
nitrogen atmosphere for a further 48 h. The reaction solvent was removed under vacuum to give the
1
dendron D0.5 as yellow oil. H-NMR (CDCl3):
δ
3.67 (s, 6H), 3.42 (s, 2H), 2.85–2.81 (t, 4H), 2.48–2.44
(t, 4H), 2.26–2.25 (d, 1H). ESI-MS: m/z calcd for C11H17NO4: 227.3, found 228.3 [M + H]+. Next a
solution of D0.5 (5 g, 21.9 mmol) in methanol (30 mL) was added dropwise to a cooled (ice-water
bath) and stirred solution of 1,2-diaminoethane (53 g, 876 mmol) in methanol (80 mL) over 30 min.
˝
The resulting solution was stirred for 1 h at 0 C and then reacted at room temperature under a nitrogen
atmosphere for a further 72 h. The reaction solution was removed under reduced pressure using a
rotary evaporator, to give the dendron D1 as a yellow oil with two primary amine terminal groups.
1H-NMR (D2O):
δ3.35 (s, 2H), 3.18–3.15 (t, 4H), 2.80–2.76 (t, 4H), 2.65–2.64 (t, 4H), 2.62 (s, 1H), 2.39–2.35
(t, 4H). ESI-MS: m/z calcd for C3H9N4: 283.6, found 284.9 [M + H]+.
Preparation of D1-FA2
D1 (0.85 g, 3 mmol) and DIPEA (1.1 g, 8.4 mmol) were added dropwise to the filtrate containing
FA-NHS. The mixture was stirred for 2 days in the dark at room temperature to ensure sufficient
reaction of FA-NHS and D1. In order to remove unreacted raw materials, the rough product was
dissolved in DMSO and dialyzed (cellulose membrane with 500 MWCO) against DMSO for 3 days.
Then the solution was dropped into ether. The precipitate was collected by filtration, and then dried
under vacuum to afford the crude product.

Molecules 2016, 21, 817
9 of 13
4.2.2. Reaction 2
Azido HYNIC were synthesized according to a procedure similar to that reported in our previous
article [11].
Preparation of 3-azidopropyl-1-amine
To a solution of 3-chloropropylamine hydrochloride (5.0 g, 38.5 mmol) in water (15 mL) was
slowly added a solution of NaN3 (7.5 g, 115.3 mmol) in water (30 mL). The resulting solution was
˝
heated at 80 C for 18 h. After cooling to room temperature, about 1/2 to 2/3 of the water was removed
under vacuum. The remaining residue was diluted with ether (50 mL). This biphasic mixture was
cooled in an ice bath for 5 min and KOH (2.0 g) was added. The phases were separated and the
aqueous phase was extracted with diethyl ether (2 x 50 mL). The organic layers were combined, dried
with Na2SO4, and concentrated to give the 3-azidopropylamine as light yellow oil (2.9 g, 29.0 mmol)
1
in 75% yield. H-NMR (CDCl3):
δ
3.39–3.36 (t, 2H), 2.82–2.79 (t, 2H), 1.77–1.70 (m, 2H), 1.45 (bs, 2H).
ESI-MS: m/z calcd for C3H9N4: 100.1, found 101.1 [M + H]+.
Preparation of azido HYNIC
6-Chloronicotinic acid (5 g; 31.7 mmol) was added to 80% hydrazine hydrate (22 mL; 584.6 mmol)
˝
and the resulting solution was heated at 100 C for 6 h. Then the reaction mixture was concentrated to
dryness to afford a white solid. The solid was dissolved in water (50 mL). The pH was adjusted to 5.5
by addition of concentrated hydrochloric acid, and a yellow precipitate was formed. The precipitate
was collected by filtration, washed with 95% ethanol and ether and dried under high vacuum to afford
3.6 g of 6-hydrazinopyridine-3-carboxylic acid in a yield of 75%.
6-Hydrazinopyridine-3-carboxylic acid (3 g, 19.6 mmol) was dissolved in DMF (50 mL) and
4-dimethylaminobenzaldehyde (3.2 g, 21.9 mmol) was then added. The reaction mixture was allowed
to react at room temperature. After being stirred for 8 h, the resulting solution was mixed with NHS
(2.3 g, 20 mmol) and DCC (8.5 g, 41 mmol) and stirring was continued for 24 h. The reaction mixture
was filtered to give a reddish-brown filtrate containing 6-BOC-HYNIC-NHS.
3-Azidopropyl-1-amine (2.9 g, 29.0 mmol) and DIPEA (2.53 g, 19.6 mmol) were added dropwise
to the filtrate containing 6-BOC-HYNIC-NHS. The mixture was stirred for 2 days at room temperature,
and then concentrated to dryness to give a yellow residue. The residue was dissolved in ethyl acetate
(50 mL). The desired product was separated by filtration and dried under vacuum to give 4.2 g of a
yellow solid (yield 71%). The azido HYNIC was used for the next reaction without further purification.
1H-NMR (DMSO-d6):
δ8.59 (s, 1H), 8.32 (s, 1H), 8.05–8.04 (d, 1H), 7.95 (s, 1H), 7.49 (d, 2H), 7.15–7.14
(d, 1H), 6.75 (d, 2H), 5.57–5.56 (d, 2H), 3.42–3.39 (q, 2H), 2.95 (s, 6H), 1.77–1.73 (m, 2H), 1.51–1.48 (t, 2H).
ESI-MS: m/z calcd for C18H22N8O: 366.5, found 367.5 [M + H]+.
4.2.3. Reaction 3
HYNIC-D1-FA2 was prepared by a transformation which has been denoted as a “click reaction”.
Preparation of HYNIC-D1-FA2
D1-FA2 (2.26 g, 2 mmol) and azido HYNIC (734 mg, 2 mmol) were dissolved in t-BuOH/H2O
(1:1, 30 mL). The mixture was stirred under a nitrogen atmosphere. Then CuSO4 5H2O (50 mg,
¨
0.2 mmol) and sodium ascorbate (80 mg, 0.4 mmol) were added. The reaction flask was sealed and
the reactions were carried out at 70 ˝C for 1 h in the dark. NaOH (1 mol/L) was added dropwise
until the solutions were clear, followed by cooling the mixture to room temperature, and filtration.
The product was precipitated by adjusting the pH to 3 with HCl (1 mol/L). The resulting suspension
was centrifuged and the pale yellow supernatant decanted. The solid was dried under vacuum to give
the HYNIC-D1-FA2 as a brown powder. In order to remove unreacted HYNIC and folate moieties,
the crude product were further purified by HPLC. ESI-MS: m/z calcd for C18H22N8O: 1495.7, found
1496.7 [M + H]+.

Molecules 2016, 21, 817
10 of 13
4.3. Radiolabeling
The labeling method was as follows: to a 10 mL vial was added tricine solution (0.5 mL, 80 mg/mL
in saline), HYNIC-D1-FA2 solution (100
µ
L, 1 mg/mL in PBS, pH 7.4), TPPTS (´0.2 mL, 5 mg/mL in
saline), SnCl2 solution (20
µ
L, 2 mg/mL) in 0.1 N HCl and about 1 mL of 99mTcO4 (370 MBq) in saline.
˝
The vial was heated at 100 C for 30 min in a heating module. After cooling to room temperature,
a sample of the resulting solution was purified and analyzed by Sep-Pak C18 cartridge and radio-HPLC.
In further experiments, a kit formulation was developed for preparation of 99mTc-HYNIC-D1-FA2 using
this ternary ligand system.
4.4. Octanol/Water Partition Coefficient
To determine the hydrophilicity of 99mTc-HYNIC-D1-FA2, the partition coefficient (expressed as
log P) was measured following the method: 100
(0.05 mol/L, pH = 7.4) and 3 mL 1-octanol. After shaking for 3 min, the mixture was centrifuged at
6000 rpm for 5 min. The counts of 100 L organic layer and 100 L inorganic layer were determined
µL radiotracer solution was diluted with 2.9 mL PBS
µ
µ
by a gamma counter, respectively. The following equation was used to calculate log P: P = (activity
in octanol phase—background activity)/(activity in aqueous phase—background activity). All the
experiments were performed with triplicate samples and reported as mean ˘ SD.
4.5. In Vitro Experiments
The cell culture process has been described in a previous article [11]. For cell uptake study, 0.3 µCi
99mTc-HYNIC-D1-FA2 in 100
µL folate-free RPMI medium was added to each well and incubated
at 37 ˝C. After incubation, the medium was removed and the cells were gently washed three times
with cold PBS (pH 7.4, including 0.2% bovine serum albumin) to determine total radiofolate uptake.
Cellular internalization of the 99mTc-HYNIC-D1-FA2 was assessed by additionally washing with 500
µL
stripping buffer (pH 4.0, including 0.2% bull serum albumin) two times. The stripping buffer was
then transferred to tubes. Finally, the cells were lysed by treatment with 1 M NaOH for 5–10 min and
transferred to tubes. The blocking studies were performed by addition of free folic acid solution (10
µ
L,
˝
1 mg/mL). Then, 100
µL radiotracer was added, and the well plates were incubated at 37 C for 1 h, 2 h
and 4 h, respectively. After incubation, the medium were removed, and the cells were rinsed with cold
PBS. Finally, the cells were lysed by treatment with 1 M NaOH for 5–10 min and transferred to tubes.
4.6. Biodistribution Study
The biodistribution of 99mTc-HYNIC-D1-FA2 was evaluated in normal BALB/c mice and KB
tumor-bearing mice (18–20 g, female), and the mice were maintained on a folate-deficient diet for 5 days
before the study. 25 BALB/c mice were randomly divided into five groups and 20 KB tumor-bearing
mice were randomly divided into four groups, each of which had five animals. Approximately 37 kBq
of the purified radiotracer was administered via a lateral tail vein. Then the mice (n = 5) were sacrificed
at different time points. The interested tissues and organs were excised, weighed and counted in a
gamma counter. The results were calculated as a percentage of the injected dose per gram of tissue
(% ID/g). In order to confirm that the 99mTc-HYNIC-D1-FA2 had specific receptor binding, mice
were performed by injection with free folic acid (100 µg/mouse) as blocking agent 10 min prior
to the radiotracer injection. In order to reduce undesired accumulation in the kidneys, antifolate
PMX was used to reduce accumulation in the kidneys. The PMX was injected via a lateral tail vein
(400 µg/100 µL) 1 hour prior to the radiotracer injection. Animals were sacrificed by decapitation for
biodistribution using the same procedure above 2 h after radiotracer injection.
4.7. Static SPECT Imaging Study
The imaging study was performed using a nanoscan SPECT/CT preclinical imager (Mediso).
For static SPECT imaging, each mouse was injected with 18.5 MBq/200 µ
L 99mTc-HYNIC-D1-FA2 via a

Molecules 2016, 21, 817
11 of 13
lateral tail vein. Anesthesia was induced with isoflurane and spontaneous breathing was maintained
during the scan procedure. CT data were acquired using an X-ray voltage biased to 50 kVp with a
670
140 keV energy peak for 99mTc, window width of 20%, matrix of 256
30 s. The static pinhole SPECT imaging was performed at different time point to investigate the FR
binding properties of 99mTc-HYNIC-D1-FA2 in vivo. As for the blocking study, 100
g of excess folic
µ
A anode current, and the projections were 720˝. SPECT acquiring parameters were as follows:
ˆ
256, medium zoom, and frame:
µ
acid (1 mg/mL folic acid in PBS) was administered via intravenous injection 10 min prior to the
radiotracer injection. The imaging scans of the blocking study were performed at 2 h p.i. In order to
measure the tumor-to-kidney ratio, the antifolate drug pemetrexed (PMX, 400 µg in 100 µL PBS) was
injected via intravenous injection, 1 h before the radiotracer.
4.8. Dynamic SPECT Imaging Study
For dynamic SPECT imaging, the indwelling needle was prepared before injecting the mouse with
18.5 MBq/200
imaging was performed for 60 min (12
isoflurane during the scan procedure. TACs were derived by drawing ROIs on the SPECT/CT images.
µ
L 99mTc-HYNIC-D1-FA2 via a lateral tail vein. Dynamic semiquantitative SPECT/CT
ˆ
300 s) after injection, and anesthesia was induced with
5. Conclusions
In this study, we report a novel FR-targeting dimeric FA conjugate labeled with 99mTc as a potential
SPECT radiopharmaceutical for clinical applications. The combination reaction of the labeling entity
and the targeting precursor was carried out via a click chemistry approach. The new dimeric probe
can be produced by a reliable radiosynthesis using tricine and TPPTS as coligands. In vitro, ex vivo and
in vivo studies shows that 99mTc-HYNIC-D1-FA2 has high affinity and specificity to the FR, and might
be a promising candidate for further clinical translational study in FR-positive cancer and imaging
inflammatory diseases with SPECT.
Supplementary Materials: Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/21/
6/817/s1.
Acknowledgments: This study was financially supported by the National Key Basic Research Program of
China (2014CB744503), National Natural Science Foundation of China (21271030, 81471707) and partially by the
Fundamental Research Funds for the Central Universities of China (20720150063, 2013SH009).
Author Contributions: Xianzhong Zhang, Zhide Guo and Jin Du were responsible for the conception and design
of the study, the acquisition, analysis and interpretation of the data, the drafting of the manuscript, and final
approval of the version to be published. Ting Liu and Rongqiang Zhuang contributed to critical revision for
important intellectual content, and final approval of the version to be published. Manli Song, Mengna Gao,
Changrong Shi, Pu Zhang, Duo Xu and Linyi You contributed to acquisition, analysis and interpretation of data,
critical revision for important intellectual content, and final approval of the version to be published. Xinhui Su
contributed to critical revision of the manuscript for important intellectual content and material support.
Conflicts of Interest: The authors declare no conflict of interest.
Abbreviations
The following abbreviations are used in this manuscript:
FA
folic acid
FR
folate receptor
HYNIC
BFC
2-hydrazinonicotinic acid
bifunctional chelator
DMSO
DCC
NHS
Tricine
TPPTS
PEG
Dimethyl Sulphoxide
N,N1-Dicyclohexylcarbodiimide
N-Hydroxysuccinimide
N-tris-(hydroxymethyl)-methylglycine
trisodiumtriphenylpho-sphine-3,30,3”-trisulfonate
poly-(ethylene glycol)

Molecules 2016, 21, 817
12 of 13
PAMAM
PMX
SPECT
RGD
99mTc
MRI
polyamidoamine
pemetrexed
single photon emission computed tomography
cyclic arginine-glycine-aspartic acid peptides
technetium-99m
magnetic resonance imaging
phosphate buffer
PB
ITLC-SG
TLC
RCP
Instant thin-layer chromatography silica gel strips
thin-layer chromatography
radiochemical purity
SA
specific activity
%ID/g
TACs
ROIs
T/NT
3D
percentage of injected dose per gram
time-activity curves
regions of interests
tumor-to-nontarget tissue
three-dimensional
HPLC
CT
18F-FDG
p.i.
High Performance Liquid Chromatography
computed tomography
18F-fluorodeoxyglucose
post-injection time
References
1.
2.
3.
4.
5.
6.
7.
Gnanasegaran, G.; Ballinger, J.R. Molecular imaging agents for SPECT (and SPECT/CT). Eur. J. Nucl. Med.
Mol. Imaging 2014, 41 (Suppl. 1), S26–S35. [CrossRef] [PubMed]
Bandara, N.A.; Hansen, M.J.; Low, P.S. Effect of receptor occupancy on folate receptor internalization.
Mol. Pharm. 2014, 11, 1007–1013. [CrossRef] [PubMed]
Vlahov, I.R.; Leamon, C.P. Engineering Folate-Drug Conjugates to Target Cancer: From Chemistry to Clinic.
Bioconjugate Chem. 2012, 23, 1357–1369. [CrossRef] [PubMed]
Ke, C.Y.; Mathias, C.J.; Green, M.A. Folate-receptor-targeted radionuclide imaging agents. Adv. Drug
Deliv. Rev. 2004, 56, 1143–1160. [CrossRef] [PubMed]
Muller, C. Folate-based radiotracers for PET imaging-update and perspectives. Molecules 2013, 18, 5005–5031.
[CrossRef] [PubMed]
Muller, C.; Schibli, R. Folic acid conjugates for nuclear imaging of folate receptor-positive cancer. J. Nucl. Med.
2011, 52. [CrossRef] [PubMed]
Kim, M.H.; Kim, W.H.; Kim, C.G.; Kim, D.W. Synthesis and Evaluation of 99mTc-Labeled Folate-Tripeptide
Conjugate as a Folate Receptor-Targeted Imaging Agent in a Tumor-Bearing Mouse Model. Nucl. Med.
Mol. Imaging 2015, 49, 200–207. [CrossRef] [PubMed]
8.
9.
Guo, W.; Jing, H.; Yang, W.; Guo, Z.; Feng, S.; Zhang, X. Radiolabeling of folic acid-modified chitosan with
99mTc as potential agents for folate-receptor-mediated targeting. Bioorg. Med. Chem. Lett. 2011, 21, 6446–6450.
[CrossRef] [PubMed]
Jing, H.; Guo, Z.; Guo, W.; Yang, W.; Xu, P.; Zhang, X. Synthesis and characterization of folic acid modified
water-soluble chitosan derivatives for folate-receptor-mediated targeting. Bioorg. Med. Chem. Lett. 2012, 22,
3418–3424. [CrossRef] [PubMed]
10. Benchaala, I.; Mishra, M.K.; Wykes, S.M.; Hali, M.; Kannan, R.M.; Whittum-Hudson, J.A.
Folate-functionalized dendrimers for targeting Chlamydia-infected tissues in a mouse model of reactive
arthritis. Int. J. Pharm. 2014, 466, 258–265. [CrossRef] [PubMed]
11. Guo, Z.; Zhang, P.; Song, M.; Wu, X.; Liu, C.; Zhao, Z.; Lu, J.; Zhang, X. Synthesis and preliminary evaluation
of novel 99mTc-labeled folate derivative via click reaction for SPECT imaging. Appl. Radiat. Isotopes 2014, 91,
24–30. [CrossRef] [PubMed]
12. Zhou, Y.; Kim, Y.S.; Lu, X.; Liu, S. Evaluation of 99mTc-labeled cyclic RGD dimers: Impact of cyclic RGD
peptides and 99mTc chelates on biological properties. Bioconjugate Chem. 2012, 23, 586–595. [CrossRef]
[PubMed]
13. Dijkgraaf, I.; Kruijtzer, J.A.; Liu, S.; Soede, A.C.; Oyen, W.J.; Corstens, F.H.; Liskamp, R.M.; Boerman, O.C.
Improved targeting of the α β integrin by multimerisation of RGD peptides. Eur. J. Nucl. Med. Mol. Imaging
v
3
2007, 34, 267–273. [CrossRef] [PubMed]

Molecules 2016, 21, 817
13 of 13
14. Li, Z.B.; Cai, W.; Cao, Q.; Chen, K.; Wu, Z.; He, L.; Chen, X. (64)Cu-labeled tetrameric and octameric
RGD peptides for small-animal PET of tumor α β integrin expression. J. Nucl. Med. 2007, 48, 1162–1171.
v
3
[CrossRef] [PubMed]
15. Zhou, Y.; Kim, Y.S.; Chakraborty, S.; Shi, J.; Gao, H.; Liu, S. 99mTc-labeled cyclic RGD peptides for noninvasive
monitoring of tumor integrin α β expression. Mol. Imaging 2011, 10, 386–397. [PubMed]
v
3
16. Singh, P.; Gupta, U.; Asthana, A.; Jain, N.K. Folate and Folate-PEG-PAMAM Dendrimers: Synthesis,
Characterization, and Targeted Anticancer Drug Delivery Potential in Tumor Bearing Mice. Bioconjugate Chem.
2008, 19, 2239–2252. [CrossRef] [PubMed]
17. Yu, H.; Nie, Y.; Dohmen, C.; Li, Y.; Wagner, E. Epidermal Growth Factor-PEG Functionalized
PAMAM-Pentaethylenehexamine Dendron for Targeted Gene Delivery Produced by Click Chemistry.
Biomacromolecules 2011, 12, 2039–2047. [CrossRef] [PubMed]
18. Lee, J.W.; Kim, H.J.; Han, S.C.; Kim, J.H.; Jin, S.-H. Designing poly(amido amine) dendrimers containing
core diversities by click chemistry of the propargyl focal point poly(amido amine) dendrons. J. Polym. Sci.
Polym. Chem. 2008, 46, 1083–1097. [CrossRef]
19. Zhang, Z.; Rong, F.; Niu, S.; Xie, Y.; Wang, Y.; Yang, H.; Fu, D. Investigation the effects of nano golds on the
fluorescence properties of the sectorial poly(amidoamine) (PAMAM) dendrimers. Appl. Surf. Sci. 2010, 256,
7194–7199. [CrossRef]
20. Meszaros, L.K.; Dose, A.; Biagini, S.C.G.; Blower, P.J. Hydrazinonicotinic acid (HYNIC)-Coordination
chemistry and applications in radiopharmaceutical chemistry. Inorg. Chim. Acta 2010, 363, 1059–1069.
[CrossRef]
21. Guo, H.; Xie, F.; Zhu, M.; Li, Y.; Yang, Z.; Wang, X.; Lu, J. The synthesis of pteroyl-lys conjugates and its
application as Technetium-99m labeled radiotracer for folate receptor-positive tumor targeting. Bioorg. Med.
Chem. Lett. 2011, 21, 2025–2029. [CrossRef] [PubMed]
22. Reber, J.; Struthers, H.; Betzel, T.; Hohn, A.; Schibli, R.; Muller, C. Radioiodinated folic acid conjugates:
Evaluation of a valuable concept to improve tumor-to-background contrast. Mol. Pharm. 2012, 9, 1213–1221.
[CrossRef] [PubMed]
23. Ghobril, C.; Lamanna, G.; Kueny-Stotz, M.; Garofalo, A.; Billotey, C.; Felder-Flesch, D. Dendrimers in nuclear
medical imaging. New J. Chem. 2012, 36, 310–323. [CrossRef]
24. Mathias, C.J.; Hubers, D.; Low, P.S.; Green, M.A. Synthesis of [99mTc]DTPA-folate and its evaluation as a
folate-receptor-targeted radiopharmaceutical. Bioconjugate Chem. 2000, 11, 253–257. [CrossRef]
25. Trump, D.P.; Mathias, C.J.; Yang, Z.; Low, P.S.; Marmion, M.; Green, M.A. Synthesis and evaluation of
99mTc(CO)3-DTPA-folate as a folate-receptor-targeted radiopharmaceutical. Nucl. Med. Biol. 2002, 29,
569–573. [CrossRef]
26. Jie, L.; Yan, P.; Fang, X.; Guo, H.; Yan, L.; Zhi, Y.; Wang, X. Synthesis and in vitro/in vivo evaluation of
99mTc-labeled folate conjugates for folate receptor imaging. Nucl. Med. Biol. 2011, 38, 557–565.
27. Zhang, Y.; Sun, Y.; Xu, X.; Zhu, H.; Huang, L.; Zhang, X.; Zhang, X.; Qi, Y.; Shen, Y. Radiosynthesis and
micro-spect imaging of 99mTc-dendrimer poly(amido)-amine folic acid conjugate. Bioorg. Med. Chem. Lett.
2010, 20, 927–931. [CrossRef] [PubMed]
28. Zhang, Y.; Sun, Y.; Xu, X.; Zhang, X.; Zhu, H.; Huang, L.; Qi, Y.; Shen, Y. Synthesis, biodistribution, and
microsingle photon emission computed tomography (SPECT) imaging study of technetium-99m labeled
pegylated dendrimer poly(amidoamine) (PAMAM)-folic acid conjugates. J. Med. Chem. 2010, 53, 3262–3272.
[CrossRef] [PubMed]
29. Müller, C.; Schibli, R.; Krenning, E.P.; De, J.M. Pemetrexed improves tumor selectivity of 111In-DTPA-folate
in mice with folate receptor-positive ovarian cancer. J. Nucl. Med. 2008, 49, 623–629. [CrossRef] [PubMed]
30. Müller, C.; Schibli, R.; Forrer, F.; Krenning, E.P.; Jong, M.D. Dose-dependent effects of (anti)folate preinjection
on 99mTc-radiofolate uptake in tumors and kidneys. Nucl. Med. Biol. 2007, 34, 603–608. [CrossRef] [PubMed]
Sample Availability: Not available.
©
2016 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC-BY) license (http://creativecommons.org/licenses/by/4.0/).
