Scheme 1. (a) Illustration of the ‘‘Au antenna-Pd reactor” system under light irradiation. (b) The preparation process and structure of the ‘‘antenna-reactor” catalysts.
through electromagnetic force. In this context, how the near-field
affect a type of reactions involving different substrates (with differ-
ent electron cloud densities at their reactive center) is still an open
question.

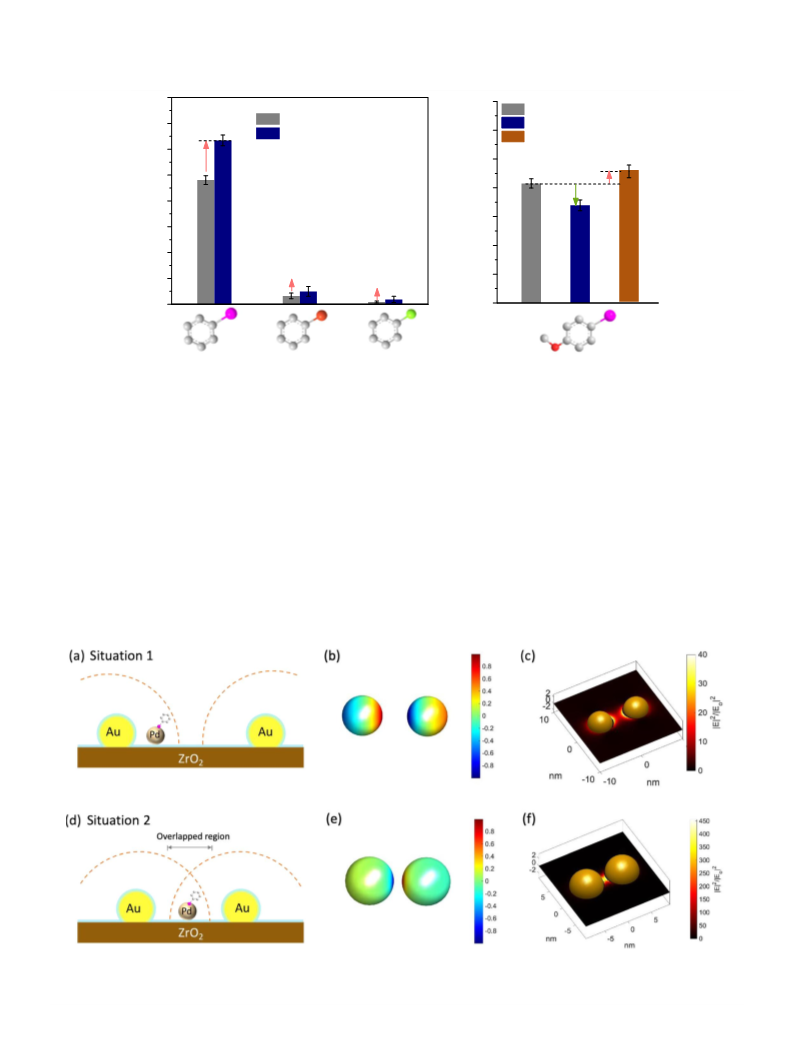

Herein, we designed a ‘‘Au antenna-Pd reactor” catalytic system
to study the near-field enhancement effect in chemical reactions
Au/ZrO2 catalyst. The thickness of the SiO2 layer is around 2 nm
and it is fully covered on Au nanoparticles as shown in the inset
in Fig. 1b. The X-ray powder diffraction (XRD) result of the as-
prepared catalyst (Figure S2) well-matched with the monoclinic
ZrO2 crystal (PDF#65-1025), showing no diffraction peaks for any
crystalline SiO2 species, implying the amorphous nature of the

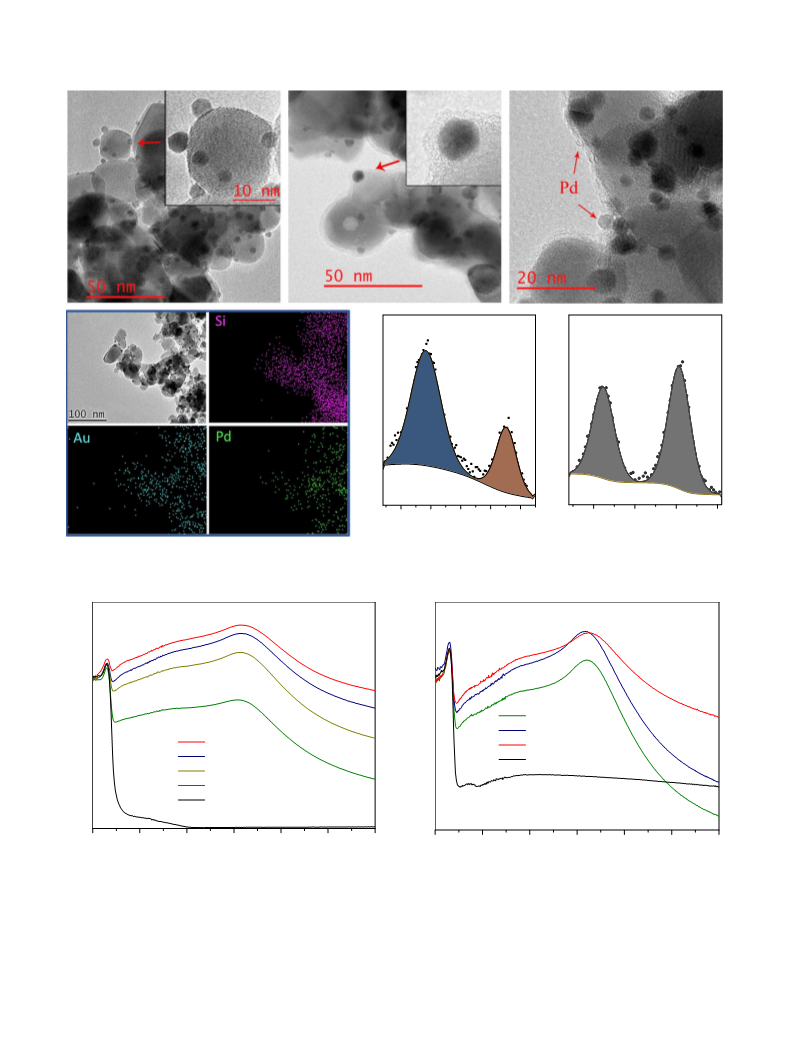

SiO2 layer. Fig. 1c shows the finished catalyst after Pd deposition.
The Pd nanoparticles (as indicated by the red arrows) were dis-
persed outside the SiO2 shell and close to the encapsulated Au
nanoparticles. The mapping scan shown in Fig. 1d demonstrates
the elemental distribution in the as-prepared catalyst, further con-
firming the existence of SiO2 shell and Au, Pd nanoparticles. As a
reference, the pristine ZrO2 without Au deposition was also coated
by a layer of SiO2 and further deposited with Pd to give the ‘‘stan-
dard activity” of the Pd catalysts in the absence of near-fields (Fig-
ure S3). The ‘‘antenna-reactor” catalysts with 1%, 5%, and 7% Au
loading amount were also prepared to study the enhancement
resulted from different density of electromagnetic hot spots, and
their morphology are shown in Figure S4.
from
a perspective of reaction substrates. As illustrated in
Scheme 1b, to eliminate possible hot electron transfer contribution
from the support under light illumination, Au nanoparticles were
deposited on ZrO2 that has a large bandgap of around 5–7 eV,
and is unable to be excited by light with a wavelength longer than
248 nm. [24] In this scenario, Au nanoparticles act as light-
absorbing antenna to harvest visible photons through LSPR of Au
nanoparticles, while catalytically-active Pd nanoparticles work as
the reaction sites (reactor) for chemical reactions. Before loading
Pd nanoparticles, a 2 nm thick SiO2 layer was coated onto the
Au/ZrO2 nanostructure to encapsulate Au nanoparticles, prevent-
ing the Pd and Au nanoparticles from directly contacting with each
other but enabling a close spatial distance between them, therefore
avoiding the enhancement from the bimetallic synergistic effect or
charge redistribution between Au and Pd, and constructing an ideal

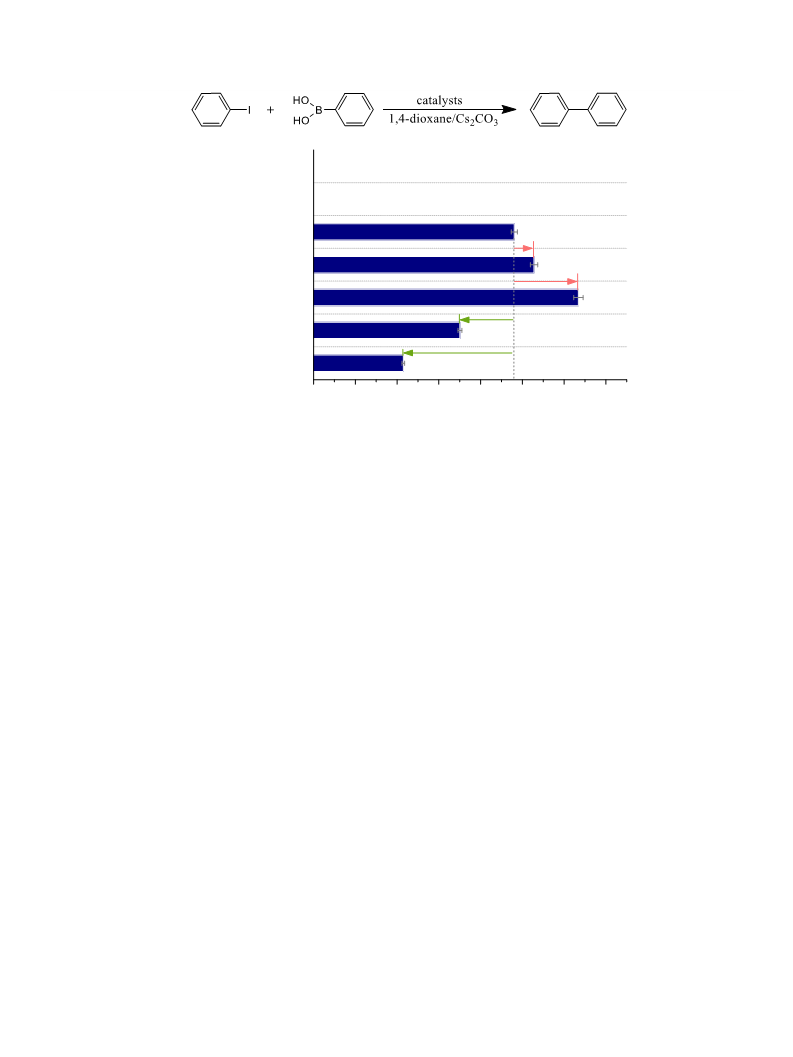

platform for near-field enhancement study. Suzuki–Miyaura cross-
coupling was selected as the model reaction because the electron
cloud density at reactive centers of aryl halides can be altered by
introducing electron-donating or electron-withdrawing sub-
stituent groups to benzene rings at different positions, which is
beneficial to evaluate the near-field enhancement to various sub-
strate molecules.
Next, we studied the chemical states of Au and Pd nanoparticles
in catalysts using X-ray photoelectron spectroscopy. As Pd3d5/2
partially overlaps with Zr3p3/2, we determined the chemical state
of Pd based on its 3d3/2 orbit. Fig. 1e shows a singlet of Pd3d3/2
at 341.0 eV, corresponding to 335.7 eV for Pd3d5/2 (spin-orbit com-
ponents
D = 5.3 eV), revealing the metallic nature of Pd nanoparti-
cles. [26–27] The Au4f region (Fig. 1f) shows doublet separated by
3.7 eV, identified as Au4f5/2 and Au4f7/2, respectively. The binding
energy for Au4f7/2 centered at 83.9 eV, indicating the Au nanopar-
ticles are in a metallic state, and therefore able to harvest photons
through LSPR effect. [28–29]
2. Results and discussion
The light response of catalysts was studied using Ultraviolet–
visible (UV–vis) spectroscopy (Fig. 2). The pristine ZrO2 has no
absorption in the visible light (400–800 nm) region but strongly
absorbs photons with a wavelength shorter than 250 nm due to
interband excitations (Fig. 2a). [24] After Au loading, a new absorp-
tion peak appeared at around 530 nm, which can be attributed to
the excitation of the LSPR of Au nanoparticles, and the peak grad-
ually intensified and broadened with the increase of Au loading
amount. [3–4] Fig. 2b shows the absorption curves of the catalyst
sample in different stages of preparation, and the spectrum of 3%
Au/ZrO2 was also plotted here as a reference. After SiO2 coating
(the green line), the LSPR absorption of Au nanoparticles was still
clearly observed, although the overall absorption intensity
decreased in the range of 250–800 nm, probably owing to the
The density of electromagnetic hot spots can be adjusted by
controlling the loading amount of ‘‘Au antennas”. Transmission
electron microscopy (TEM) image in Fig. 1a shows the morphology
of 3% Au/ZrO2 before SiO2 coating. The Au nanoparticles were
evenly dispersed at the surface of ZrO2, having an average diameter
of around 5 nm (Figure S1a) and presenting very sharp edges,
implying a clean surface of these Au nanoparticles. The particle
spacing is centered at 3 nm as revealed by the statistical analysis
of 200 nanoparticles based on TEM images (Figure S1b). Then, a
layer of SiO2 was coated on the Au/ZrO2 nanostructure through
hydrolysis of sodium silicate at elevated temperatures. [25] As
shown in Fig. 1b, after coating, a clear SiO2 layer with lower con-
trast than that of ZrO2 under TEM can be observed around the
