Glucoraphanin and sulforaphane evolution during juice preparation from broccoli sprouts

Article abstract of DOI:10.1016/j.foodchem.2018.06.089

Broccoli sprouts are considered functional food as they are naturally enriched in glucoraphanin (GR) that is the biological precursor of the anticancer compound sulforaphane (SFN). Due to its health promoting value, also broccoli sprout juice is becoming

Full text of DOI:10.1016/j.foodchem.2018.06.089

Accepted Manuscript
Glucoraphanin and sulforaphane evolution during juice preparation from broc-
coli sprouts
Cristiano Bello, Mariateresa Maldini, Simona Baima, Cristina Scaccini, Fausta
Natella
PII:
S0308-8146(18)31062-8
DOI:
https://doi.org/10.1016/j.foodchem.2018.06.089
FOCH 23050
Reference:
Food Chemistry
To appear in:
Received Date:
Revised Date:
Accepted Date:
12 February 2018
13 June 2018
18 June 2018
Please cite this article as: Bello, C., Maldini, M., Baima, S., Scaccini, C., Natella, F., Glucoraphanin and sulforaphane
evolution during juice preparation from broccoli sprouts, Food Chemistry (2018), doi: https://doi.org/10.1016/
j.foodchem.2018.06.089
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers
we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and
review of the resulting proof before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

Glucoraphanin and sulforaphane evolution during juice preparation from broccoli sprouts
Cristiano Bello, Mariateresa Maldini, Simona Baima§, Cristina Scaccini and Fausta Natella*
Consiglio per la Ricerca in Agricoltura e l’Analisi dell’Economia Agraria (CREA), Food and Nutrition Research Centre – Via
Ardeatina 546, 00178 Roma, Italy
§
present affiliation: Consiglio per la Ricerca in Agricoltura e l’Analisi dell’Economia Agraria (CREA), Research centre for
Genomics and Bioinformatics- Via Ardeatina 546, 00178 Roma, Italy
*Corresponding author:
Fausta Natella
CRA-NUT - Via Ardeatina 546 – 00178 Roma, Italy
Telephone
Fax
+3906 51494649
+3906 51494550
e-mail: fausta.natella@entecra.it
author’s email
Cristiano Bello: cristiano.bello@crea.gov.it
Mariateresa Maldini: maldiniluce@gmail.com
Simona Baima: simona.baima@crea.gov.it
Cristina Scaccini: cristina.scaccini@crea.gov.it
Declarations of interest: none

 Abbreviations: Cys, Cysteine; ESP, epithiospecifier protein; ESI-MS, Electrospray Ionization
Source-Mass Spectrometry; FW, Fresh Weight; GL, Glucosinolate; GR, glucoraphanin; GSH,
glutathione; GR, glucoraphanin; HPLC, High Performance Liquid Chromatography; ITC,
isothiocyanates; Lys, Lysine; PEITC, phenethyl isothiocyanate; SFN, sulforaphane;
1

Abstract
Broccoli sprouts are considered functional food as they are naturally enriched in glucoraphanin
(GR) that is the biological precursor of the anticancer compound sulforaphane (SFN). Due to its
health promoting value, also broccoli sprout juice is becoming very popular.
The present study aimed to quantitatively assess the conversion of GR to its hydrolysis products,
SFN and SFN-nitrile, during the juice preparation process. We demonstrated that SFN plus SFN-
nitrile yield from glucoraphanin is quite low (25%) and that some SFN is lost during the juice
preparation partially due to the spontaneous conversion to sulforaphane-amine or conjugation to
GSH and proteins naturally present in the juice. Our results demonstrate that the detection of the
sole SFN free form does not provide reliable information about the real concentration of this
functional compound in the juice.
Key words: broccoli sprouts, bioactive molecules, glucosinolate, isothiocyanates, sulforaphane
Chemical compounds studied in this article:ꢀ Glucoraphanin (PubChem CID: 9548634);
Sulforaphane (PubChem CID: 5350); Sulforaphane nitrile (PubChem CID: 543743)
2

1. Introduction
Several epidemiological studies demonstrate that cruciferous vegetable consumption is associated
with a reduction of cancer risk (Tse & Eslick, 2014) and of other chronic diseases (Dinkova-
Kostova & Kostov, 2012). Currently, the role of these vegetables on cancer chemoprevention has
been attributed to the hydrolysis products of glucosinolates (GLs) that are secondary plant
metabolites typical of Brassica vegetables (Possenti et al., 2016), where they are particularly
abundant. GLs are beta-D-thioglucoside-N-hydroxy sulphates with a variable side chain
characterizing the molecule. GLs as such are biologically inactive, but when plant tissues are
crushed or chewed, GLs are hydrolyzed by myrosinase releasing isothiocyanates (ITCs), a class of
very reactive compounds. Several evidence, demonstrate that ITCs are inducer of phase 2
detoxification enzymes (Cornblatt, et al., 2007) and of the Nrf2 signaling pathway (Bauman et al.,
2016), suggesting that they can affect cancer development. Beside anti-cancerogenic activity, ITCs
possess protective effects against cardiovascular disease, neurodegeneration, diabetes and several
inflammatory disorders (Bahadoran et al., 2011; Mirmiran, Bahadoran, Hosseinpanah, Keyzad, &
Azizi, 2012).
Because of the potential health benefits of GL/ITC intake, several attempts have been made to
increase Brassica vegetable consumption. Unfortunately, due to their sensory characteristics these
vegetables tend to be disliked (Cox & Poelman, 2015), prompting food researchers and food
industry to develop new food products rich in cruciferous bioactive molecules (Amofa-Diatuo,
Anang, Barba, & Tiwari, 2017).
Among ITCs, sulforaphane (SFN) is the most studied compound and is the one that has the
strongest evidence of beneficial effects (recently it has also been utilized to improve some
symptoms of autism spectrum disorders (Singh et al., 2014)). SFN is produced by the hydrolysis of
glucoraphanin (GR), in a myrosinase-catalysed reaction yielding glucose and an unstable aglycone.
This unstable product undergoes spontaneous rearrangement into two different products, SFN and
3

SFN-nitrile, whose relative formation is related to the differences in the hydrolysis conditions (e.g.
the presence and activity of the epithiospecifier protein (ESP) and Fe2+, that direct the hydrolysis
reaction favouring the formation of SFN nitrile in place of SFN (Matusheski et al., 2006); high
temperature that can differently inhibit myrosinase and ESP activities (70°C and 50°C,
respectively) (Matusheski, Juvik, & Jeffery, 2004).
GR is particularly abundant in broccoli (where it represents about 50% of total GL) with a content
ranging from 25 to 650 mg/100 g FW, and is even higher in broccoli sprouts (up to 1400 mg/100 g
FW) (Possenti et al., 2016).
As domestic processing and cooking decrease the content of GR, SFN and other bioactive
molecules (Nugrahedi, Verkerk, Widianarko, & Dekker, 2015), the market and consumers are
driven towards uncooked, healthy and easy to eat products, such as broccoli and broccoli sprout
juice. Indeed, several Brassica vegetable beverages and juices have been put onto the market and
tested for their functional capacity in in vitro (Lee et al., 2013) and in vivo experiments (Egner et
al., 2014; Kensler et al., 2012).
In most paper studying the biological activity of these products, only the concentration of GR
present in the starting raw material is given and the assumption is made that all the GR present in
the raw vegetable is converted into SFN. However, matching the results of our previous studies
(Ferruzza et al., 2016; Natella et al., 2016) we observed that during broccoli sprout juice preparation
the conversion of GR to SFN and SFN-nitrile seems to be not quantitative. The aim of the present
study was to monitor the conversion of GR to SFN and SFN-nitrile during the juice preparation
process.
4

2. Materials and Methods
2.1. Materials
Solvents and HPLC grade methanol used for extraction were of high purity (Carlo Erba, Milano,
Italy). Acetonitrile (LC-MS grade) and formic acid (MS grade) were from Sigma-Aldrich Chemical
Company (St Louis, MO). HPLC grade water (18 m) was prepared using a Millipore (Bedford,
MA, USA) Milli-Q purification system. Glucoraphanin potassium salt (purity 93.4%) was
purchased from PhytoLab GmbH & Co. KG (Vestenbergsgreuth, Germany). Sulforaphane (purity
>95%), Pronase E, Glutathione (reduced form) and Lysine were from Sigma-Aldrich (St. Louis,
MO, USA). 4-(Methylsulfiny)-1-butylamine (Sulforapahne-amine) was purchased from Santa Cruz
Biotechnology (Dallas, TX, USA).
2.2. Growth condition of Broccoli Sprouts
Broccoli seeds (Brassica oleracea L. var. botrytis subvar. cymosa) were purchased from
SUBA&UNICO (Longiano, FC, Italy). Seeds were surface sterilized by soaking for 15 min in 2%
sodium hypochlorite under shaking, then drained and rinsed 10 times with distilled water. After
soaking in distilled water for 16-18 h at 21 °C, seeds were rinsed in distilled water and transferred
in the germination cylinder of Vitaseed sprouter (SUBA&UNICO) filled with distilled water.
Sprouts were grown at 21°C and 70% humidity in a plant growth chamber (Weiss Gallenkamp,
Loughborough, United Kingdom) equipped with PHILIPS Master TL-D 36W/840 cool-white
fluorescent tubes providing a photosynthetic photon flux density of 110 µmol m-2 s-1, with a 16 h
light/8 h dark photoperiod. Five days old sprouts were rapidly but gently collected from the
germination cylinder and weighted. For each germination cylinder, 100 g of sprouts were used for
juice extraction
2.3 Juice extraction
5

Immediately after harvesting broccoli sprouts were squeezed with a mechanical press (Angel
8500S, Living Juice srl, Lecco, LC). The juice was collected in ice-cold tubes, cleared by
centrifugation (30 min, 4000 rpm, 4 °C) and aliquots, immediately frozen in liquid nitrogen, were
stored at –80 °C until further analysis. For some analyses, a microwaving treatment was applied
before squeezing: 100 gr sprouts were immersed in 150 ml of double distilled water and exposed
for 1 minute at 850 Watt in a domestic microwave oven (Samsung GE82P), to reach an internal
temperature of 58 °C. Then, sprouts were drained, gently soaked up with tissue paper, re-weighted
and squeezed as described above.

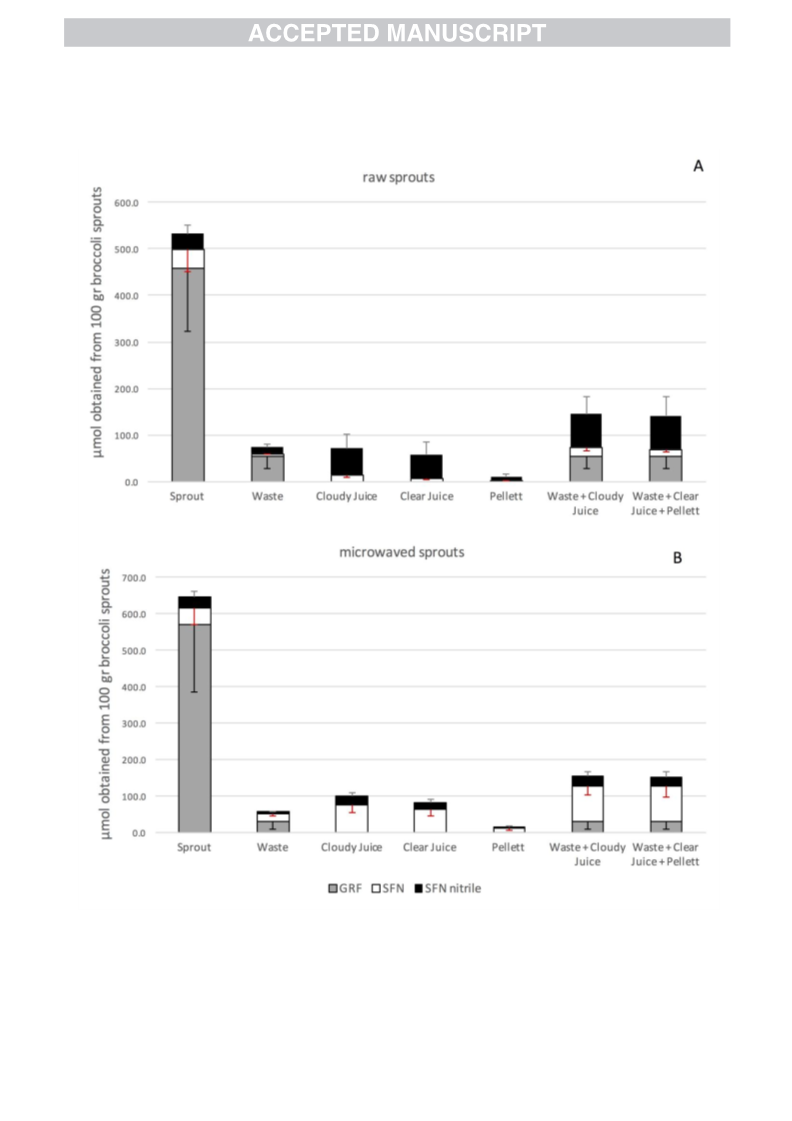

The volumes of crude and cleared juice and the weights of squeezed sprouts residue and insoluble
debris pellet were recorded. Aliquots of all the intermediate fractions were immediately frozen in
liquid nitrogen and stored at –80 °C until analysis.
The release of SFN from its protein-conjugates was studied using freshly prepared juice samples,
diluted 1:10 with TRIS 20 mM pH 8 and incubated for 120 min at room temperature or at 65°C (Hu
et al., 2001).
2.4 Proteins digestion for the detection of amino acid adducts
Proteins from broccoli sprout juice were precipitated using trichloroacetic acid (TCA)/acetone
following the procedure described by Méchin (Méchin, Damerval, & Zivy, 2007). Briefly, 200 µL
of juice were precipitated with 1.8 mL of cold acetone containing 10% TCA (w/v) and 0.07% 2-
mercaptoethanol (v/v) and centrifuged at 13000 rpm for 30 min (3°C). Supernatant was discarded
and the pellet was re-suspended in 1.8 mL cold acetone containing 0.07% of 2-mercaptoethanol
(v/v). This step was repeated twice. Pellets were dried with nitrogen and incubated with 300 µL of
Pronase E (5 mg/mL) in 50mM sodium bicarbonate pH 8.9 at 37°C for 20 hours (Kumar &
Sabbioni, 2010). The digested samples were acidified (up to pH 4.0) with 2 M hydrochloric acid
and diluted twice with methanol prior to the analysis by LC-MS/MS.
6

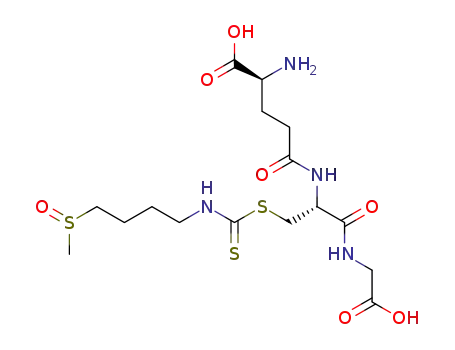

2.5 Synthesis of Sulforaphane–Glutathione adduct (SFN-GSH) and Sulforaphane–Lysine adduct
(SFN-Lys)
SFN-GSH was synthesized according to the following procedure (Pernice et al., 2009): 2.2 µmol of
SFN and 4.5 µmol of GSH were dissolved in 500µL of 0.5 M sodium hydrogen carbonate buffer
pH 10 and stirred at 25°C for 1h. The reaction was stopped by adjusting the pH to 5 using 36%
hydrochloric acid. For SFN-Lys preparation 2.2 µmol of SFN and 5.4 µmol of lysine were
dissolved in 500 µL of 0.5 M sodium hydrogen carbonate buffer pH 10 and stirred at 25°C for 1h.
Molecular weight and structures of the conjugates were confirmed by electrospray ionization MS
and their retention time and mass spectra were utilized to identify the adduct in the samples.
2.7 Glucoraphanin, Sulforaphane, Sulforaphane-nitrile, Sulforaphane-amine and Sulforaphane
adducts analysis
Glucoraphanin (GR), Sulforaphane (SFN), Sulforaphane-amine, SFN-GSH and SFN-Lys were
identified by using an HPLC system (Perkin-Elmer, USA) interfaced to an Applied Biosystems
(Foster City, CA, USA) API3200 Q-Trap spectrometer. Quantitative on-line HPLC-ESI-MS/MS
analyses were performed using mass spectrometer in Multiple Reaction Monitoring (MRM) mode.
GR measurement was performed according Maldini et al. (2012); briefly, samples were extracted
with methanol:water (70:30 v/v; sample to solvent ratio 1:25 w/v) at 70 °C for 30 min under vortex
mixing. Samples were centrifuged (4000 rpm, 30 min, 4 °C), supernatants were collected and the
solvent was completely removed using a rotary evaporator at 40 °C. The dried samples were
dissolved in ultrapure water with the same volume of extraction and filtered through 0.20 µm
syringe PVDF filters (Whatmann International Ltd., UK). Samples were injected (10 L) into a
Luna C18 column (Phenomenex, USA) (150x2.1 mm i.d., 5 µm) and eluted at flow rate of 0.3 mL
7

min-1. Mobile phase A was H2O containing 0.1% formic acid while mobile phase B was acetonitrile
containing 0.1% formic acid. Elution gradient was: 94% A, 88:12 (A:B) in 15 min, from 88:12
(A:B) to 75:25 (A:B) in 6 min, from 75:25 (A:B) to 40:60 (A:B) in 9 min, and finally to 100% B in
1 min. The column was kept at 25 °C, using a Peltier Column Oven Series 200 (Perkin Elmer). MS
detection was performed in ESI negative ion mode; source temperature was held at 450°C, and MS
parameters were: ion spray voltage at -4500; dwell time was 60 ms; declustering potential -50 eV,
entrance potential -5 eV, collision energy -27 eV; selected transition was 436/178.
For SFN, SFN-nitrile, Sulforaphane-amine, SFN-GSH, SFN-Cys and SFN-Lys identification and/or
determination, juice or pronase digested juice samples were diluted with H2O containing 0.1%
formic acid. For SFN and SFN-nitrile determination sprout, waste and pellet were extracted with
methanol:water (70:30 v/v; sample to solvent ratio 1:25 w/v) at 70 °C for 30 min under vortex
mixing. Samples were centrifuged (4000 rpm, 30 min, 4 °C), supernatants were collected and the
solvent was completely removed using a rotary evaporator at 40 °C. The dried samples were
dissolved in ultrapure water with the same volume of extraction and filtered through 0.20 µm
syringe PVDF filters (Whatmann International Ltd., UK).
Samples were filtered, injected into a Luna C18 column (Phenomenex, USA) (150 x 2.1 mm i.d., 5
µm d) and eluted at flow rate of 0.3 mL min-1. Mobile phase A was H2O containing 0.1% formic
acid while mobile phase B was acetonitrile containing 0.1% formic acid. Elution gradient was:
100% A, 20:80 (A:B) in 20 min, from 20:80 (A:B) to 0:100 (A:B) in 1 min. The column was kept at
25 °C, using a Peltier Column Oven Series 200 (Perkin Elmer). MS detection was performed in ESI
positive ion mode; Source temperature was held at 500°C, and MS parameters were: ion spray
voltage at +5500; dwell time was 100 ms; declustering potential 46 eV, entrance potential 6 eV, cell
exit potential 4 eV. For quantitative measure the following transitions were selected: SFN 178/114
and 178/55 (CE=18); SFN-nitrile 146/87 and 146/55 (CE=25); Sulforaphane-amine 136/72
(CE=18) and 136/55 (CE=30). SFN and Sulforaphane-amine concentrations were calculated over
8

an external standard curve of the respective standard, while SFN-nitrile, SFN-GSH and SFN-Lys
concentrations were calculated over an external standard curve of SFN.
For the above analysis, data acquisition and processing were performed using Analyst software
1.5.1.
3. Results and Discussion
In previous studies we analysed the GL content in broccoli sprouts (Maldini et al., 2012),
successively we used broccoli sprouts grown in the same condition to produce a juice whose
biological effect was studied on a cellular model (Ferruzza et al., 2016). Matching the results
obtained in these two different studies we observed that SFN content of the juice was notably lower
than expected from the GR content of sprouts. In order to study this apparent inconsistency, the fate
of GR and SFN in broccoli sprouts during juice preparation was studied here. Immediately after
harvesting, broccoli sprouts were squeezed with a mechanical press (usually used for homemade
juice preparation), then, the collected juice (cloudy juice) was centrifuged to remove particulate
matter and cellular debris, yielding the final clear juice and pellet; the waste material remaining in
the press after the squeezing was also collected (waste).
The total content in GR, SFN and SFN-nitrile during the whole juice preparation process (in
sprouts, waste, cloudy juice, clear juice and pellet) is shown in Figure 1A.
The GR content in 100 g of the starting broccoli sprouts was 458±136 µmol, a value comparable to
that observed in our previous work (Maldini, 2012) and similar to that reported by Baenas for
broccoli sprouts grown on soil trays (Baenas, García-Viguera, & Moreno, 2014). As shown in the
figure 1A, broccoli sprouts also contained small amounts of SFN and SFN-nitrile (41±49 and 33±18
µmol, respectively), whose presence is presumably due to slight mechanical injuries suffered by the
sprouts during harvesting.
9

As expected, the clear juice extracted from fresh sprouts (about 50 mL of clear juice were collected
from 100g of sprouts) did not contain GR, while the predominant product of GR hydrolysis was
SFN-nitrile (0.90±0.46 µmol/mL juice, which corresponds to 51±28 µmol in the juice extracted
from 100 g fresh sprouts).
These results are in agreement with previous data, that reported that when broccoli or broccoli
sprouts are crushed at room temperature and endogenous plant pH, SFN-nitrile is the principal GR
hydrolysis product (Jones, Frisina, Winkler, Imsic, & Tomkins, 2010; Matusheski et al., 2004).
The total amount of SFN extracted in the juice from 100 g fresh sprouts was about 7±3 µmol
(0.12±0.04 µmol/mL juice), a value a bit higher than that previously reported in broccoli juice or
broccoli sprouts juices (about 0.05-0.1 µmol/mL and 0.02 µmol/mL, respectively) (Houška et al.,
2006; Kassie et al., 1996; Totušek et al., 2011).
A common assumption in the current literature concerning the health benefits of SFN is that the GR
present in broccoli is almost entirely converted to SFN and SFN-nitrile during crushing or
squeezing. However, unexpectedly, we observed that the sum of SFN and SFN-nitrile contained in
the juice obtained from 100 g broccoli sprouts represented only 10% (57.8±30.9 µmol) of the total
amount of GR plus the small amount of SFN and SFN-nitrile found in the sprouts (532±145 µmol)
(Figure 1A). We thought to look for the missing SFN, SFN-nitrile and GR amounts in the waste
produced during broccoli sprouts squeezing and in the pellet obtained after juice clearing by
centrifugation (Figure 1A). The overall contents of GR, SFN and SFN-nitrile in these two by-
products of juice preparation were 73.9±30.7 µmol and 10.2±5.8 µmol, respectively for all waste
and pellet obtained from the starting 100 g broccoli of sprouts. This means that the total amount of
GR breakdown products present in juice, pellet and waste produced from 100 g of sprouts is
141.9±65.0 µmol, which accounts for about a quarter of the amount present in the sprouts. As
expected, similar results have been obtained measuring SFN and SFN-nitrile on the un-centrifuged
cloudy juice (figure 1A).
10

In order to verify whether the ESP inactivation (that redirects GR hydrolysis toward SFN instead of
SFN-nitrile) could somewhat explain the missing amounts of GR breakdown products, before
squeezing the sprouts were heated at 58 °C using a microwave oven (100 g broccoli sprouts in 150
mL of water for 1 min at 750 W). Due to the higher sensitivity to heat of ESP respect to
myrosinase, the temperature reached by broccoli sprouts after this microwave treatment allows the
inactivation of ESP without affecting myrosinase activity (Matusheski et al., 2004), as demonstrated
by the absence of GLs in the juice (figure 1B). As expected the thermal inactivation of ESP
promote SFN production in place of SFN nitrile. Nevertheless, also in this case we did not obtain a
higher recovery of GR hydrolysis products. In fact, the sum of SFN and SFN-nitrile present in juice,
pellet and waste corresponds only to 23% of GR found in starting broccoli sprout GR (Figure 1B).
A non-quantitative yield of GR to SFN+SFN-nitrile has been previously reported in few different
papers and samples (broccoli sprouts and broccoli seeds, respectively 50 and 20-70% recovery)
(Guo, Yang, Wang, Guo, & Gu, 2014; Matusheski et al., 2001; Shen, Su, Wang, Du, & Wang,
2010), but unfortunately it was not further investigated.
SFN and SFN-nitrile could be further enzymatically or chemically degraded and the possible
catabolic pathways are shown in figure 2.
In in vitro experiments it has been demonstrated that ITC can decompose to their corresponding
amine (Hanschen et al., 2012), but clearly no ITC derived amines have been detected in intact
Brassica vegetables (Song, Morrison, Botting, & Thornalley, 2005).
In order to investigate whether SFN or SFN-nitrile catabolism could explain the apparent non–
quantitative conversion of GR during juice preparation, we searched for the presence of these
breakdown compounds by HPLC MS/MS. Sulforaphane-amine was identified in broccoli sprout
juice and quantified using authentic standard; the amount found in broccoli sprout juice was
0.46±0.19 µmol/mL (data not shown). Although indicative of the reactivity of SFN, this small
amount cannot explain the GR-derivatives loss observed in our study; in fact, the amount of
11

sulforaphane-amine originating from 100 g of broccoli sprouts is about only 3% of the starting GR.
Unfortunately, we did not investigate further possible reactions of this amine; in fact, sulforaphane-
amine could react with SFN (or other ITCs occurring in the juice) and form disulforaphanylthiourea
(or other thiourea derivatives) (figure 2). The formation of this thiourea derivatives has been
suggested for phenethyl isothiocyanate (PEITC), whose in vitro hydrolysis produces both
phenethylamine and N,N-diphenethylthiourea (Xu & Thornalley, 2000).
ITCs are strong electrophiles able to react with nucleophilic compounds, such as thiol, hydroxyl and
amino groups of proteins and/or amino acids (Hanschen et al., 2012). Few and old studies describe
the interaction between ITCs and food proteins (Björkman, 1973; Hernaindez-triana & Petzke, n.d.;
Kishore Kumar Murthy & Narasinga Rao, 1986), and demonstrate that ITCs binding takes place
especially on cysteine and lysine residues (Kawakishi & Kaneko, 1987), leading to the formation of
thiocarbamoylated protein and/or thiourea-like derivatives. However, these studies are focused on
the alteration and/or loss of nutritional quality of proteins rather than on the possible effect on ITC
availability (Hanschen, Lamy, Schreiner, & Rohn, 2014; Kawakishi & Kaneko, 1987). Therefore,
we further investigated the possible reactions between SFN and some nucleophilic compounds,
specially GSH and protein.
As the ITC binding to cysteine sulfhydryl group is reversible under slightly alkaline pH (Conaway,
Krzeminski, Amin, & Chung, 2001), broccoli sprout juice was diluted in an alkaline buffer (TRIS at
pH 8.5) and incubated both at room temperature and at 65°C to improve the dissociation. Figure 3
shows that the alkalinization of the juice induces an increase in the measurable SFN (+16% and
+45%, respectively for RT and 65°C), suggesting its release from protein and other easily
hydrolysable adducts, such as SFN-GSH.
On the basis of these results, the binding of SFN to the free cysteine sulfydryl group of plant GSH
was investigated. The presence of SFN-GSH in broccoli sprout juice was studied by HPLC MS/MS,
that allowed to demonstrate the occurrence of this adduct in the juice. The identity of SFN-GSH
adduct was initially verified by comparing the MS2 spectrum with that reported in literature
12

(Kassahun, Davis, Hu, Martin, & Baillie, 1997) and then confirmed by comparing both the retention
time and the MS2 spectrum with those of synthetized SFN-GSH. The chromatogram and mass
spectral data of the adduct are shown in Figure 4. Quantifying the SFN-GSH adduct on SFN
standard curve, we obtained a value of 9±2 nmol/mL juice, that corresponds to 0.3±0.1 µmol
produced from 100 g broccoli sprouts. Then also the amount of SFN “lost” in the form of GSH
adduct is quite low and cannot explain the poor recovery.
Interestingly, an ITC-GSH conjugate was already observed (unfortunately only once) in a plant
extract. About 12.5 pmol/mL of PEITC-GSH conjugate (1% of the parent GLS) has been, in fact,
reported in a crude watercress extract (Rose, 2000).
The studies on ITC-food protein interactions were carried out in model system using isolated
protein or protein fractions (Kawakishi & Kaneko, 1987; Keppler et al., 2017; Kishore Kumar
Murthy & Narasinga Rao, 1986). In these studies, the interaction between ITC (such as benzyl-ITC,
allyl-ITC, etc.) and aminoacids of food proteins has been indirectly demonstrated through the
determination of the available aminoacids before and after ITC treatment (Hernaindez-Triana &
Petzke, 1996; Kishore Kumar Murthy & Narasinga Rao, 1986). Currently, there is only one
investigation about the interaction of SFN with aminoacids (namely cysteine) directly in food,
specifically in broccoli sprouts (Hanschen et al., 2012). Hanschen and collaborators found that one
fifth of the SFN formed after the addition of exogenous myrosinase reacted with a cysteine
derivative (Nα-(tert-butoxycarbonyl)-L-cysteine methyl ester) that was specifically added to the
broccoli sprout extract. They also hypothesised that part of the produced SFN could react with food
proteins, as only 63% of breakdown products were recovered after GR hydrolysis.
Differently from this paper, we specifically studied the possibility that naturally produced SFN
reacted with amino group of proteins naturally present in the sprout juice. For such purpose, the
proteins precipitated from sprout juice were enzymatically digested by Pronase E and then analyzed
for the presence of SFN-Lys adducts by LC-MS/MS following the method of Kumar (Kumar &
Sabbioni, 2010).
13

We were able to identify the SFN–lysine adduct, whose identity was verified by comparison of both
retention time and MS2 spectrum with that of synthetized SFN-Lys. The mass spectrum (ESI
positive mode) shows the characteristic fragment ions (324.2: [M + H]+, 136.0 [M - C7H12N2O2S]+,
147.2 [M C6H11NOS2]+, 260.2 [M - CH3OS]+) as reported by Kumar (Kumar & Sabbioni, 2010)
(Figure 5). SFN-Lys adducts, quantified using a SFN standard curve, were estimated at about 20
pmol/mg proteins (data not shown), an amount too low to explain the poor recovery.
The presence of SFN-Cys was also monitored, but as expected no SFN–cysteine adducts were
found in digested proteins. In fact, as already demonstrated by Kumar (Kumar & Sabbioni, 2010)
and Conaway (Conaway et al., 2001), the ITC binding to thiol group are too labile to survive the
experimental procedure needed for protein precipitation and sample preparation.
In summary, we demonstrated that the juice contains sulforaphane-amine that can be formed from
SFN idrolysis or can be released from the cleavage of dithiocarbamate and thiourea-like derivatives
coming from the reaction among SFN and amino group of GSH and protein (Figure 2). We also
suggest that other thiourea derivatives can be formed from this compound. In addition, we can state
that part of the SFN is “sequestered” as conjugate with GSH and proteins, but we cannot
demonstrate that all the “missing” SFN is present in its conjugated forms. At the best of our
knowledge this is the first time that the interaction of an ITC with food proteins/GSH has been
directly demonstrated in food.
An important limitation of our study is that the quantification of SFN-nitrile and bound SFN were
done using the calibration curve of SFN, and this does not allow to exactly quantify the presence of
these molecules. Actually, SFN-nitrile could have been underestimated, then the real recovery could
be higher than that we estimated. A second limitation is that we did not determine the presence of
sulforaphane-amine and SFN-adducts in waste.
14

Then, further studies are needed to answer these points and to understand if broccoli sprout juice
could be a real alternative, in terms of bioactive molecules, to its fresh counterpart (as seems to be
demonstrated by broccoli juice supplementation studies (Smith, Mithen & Johnson, 2003), or if the
application of different processing technologies could help in the preservation of SFN and/or GR.
Even if, it should be also considered that the concentrations of SFN and/or GR are not the sole
determinants of their in vivo bioavailability and activity (Fahey et al., 2015) and that there is still
need to perform in depth studies evaluating the impact of processing on the nutritional properties of
the GLS containing vegetables (Barba & Orliena, 2017).
4. Conclusions
Studying the fate of GR and SFN during the process of juice preparation we observed that, despite
all GR present in the starting broccoli sprouts was hydrolyzed during the process, the resulting juice
did not contain an equivalent amount of SFN and SFN-nitrile. Even considering their loss in the
waste discarded during juice preparation, the apparent yield of these two compounds was about
25% percent of the starting GR. In our study we were not able to utterly explain the reason of this
low recovery, however, analyzing the possible “escape route” of SFN, we found that SFN can 1) be
degraded to sulforaphane-amine, 2) form an adduct with GSH and 3) bind to the plant proteins
present in the juice.
It is widely accepted that, at least in human cellular model, the ITC bound forms can release the
biological active free form, then these conjugates exhibit biological activities similar to those of free
ITCs (Rose, 2000). However, it is also known that the binding to proteins can cause an interference
with ITC action. For example, it has been demonstrated that the antimicrobial activity of AIT in
meat can be neutralized by the presence of GSH and Cys (Luciano, Hosseinian, Beta, & Holley,
2008), while the antimicrobial activity of cauliflower juice is reversed by addiction of cysteine
(Brandi, Amagliani, Schiavano, De Santi, & Sisti, 2006).
15

Therefore, as an amount of SFN is bound to juice proteins, the detection of the sole free form does
not provide information about the effective availability of this functional compound in foods.
16

Acknowledgements
This work was supported by Italian Ministry of Agriculture, Food & Forestry (MiPAAF) grant
“FoodBall” (DM 28331/7303/14 del 9/12/2014).
Kariklia Pascucci is acknowledged for her kind support in the daily lab work.
17

References
Amofa-Diatuo, T., Anang, D. M., Barba, F. J., & Tiwari, B. K. (2017). Development of new apple
beverages rich in isothiocyanates by using extracts obtained from ultrasound-treated
cauliflower by-products: Evaluation of physical properties and consumer acceptance. Journal
of Food Composition and Analysis, 61, 73–81. http://doi.org/10.1016/j.jfca.2016.10.001
Baenas, N., García-Viguera, C., & Moreno, D. A. (2014). Biotic elicitors effectively increase the
glucosinolates content in Brassicaceae sprouts. Journal of Agricultural and Food Chemistry,
62(8), 1881–1889. http://doi.org/10.1021/jf404876z
Bahadoran, Z., Mirmiran, P., Hosseinpanah, F., Hedayati, M., Hosseinpour-Niazi, S., & Azizi, F.
(2011). Broccoli sprouts reduce oxidative stress in type 2 diabetes: A randomized double-blind
clinical trial. European Journal of Clinical Nutrition, 65(8), 972–977.
http://doi.org/10.1038/ejcn.2011.59
Barba, F.J., Orlien, V. (2017) Processing, bioaccessibility and bioavailability of bioactive sulfur
compounds: Facts and gaps. Journal of Food Composition and Analysis, 61, pp. 1-3.
Bauman, J.E., Zang, Y., Sen, M., Li, C., Wang, L., Egner, P.A., et al. (2016) Prevention of
carcinogen-induced oral cancer by sulforaphane. Cancer Prevention Research, 9 (7), pp. 547-
557.
Björkman, R. (1973). Interaction between proteins and glucosinolate isothiocyanates and
oxazolidinethiones from Brassica napus seed. Phytochemistry, 12(7), 1585–1590.
http://doi.org/10.1016/0031-9422(73)80372-3
Brandi, G., Amagliani, G., Schiavano, G. F., De Santi, M., & Sisti, M. (2006). Activity of Brassica
oleracea leaf juice on foodborne pathogenic bacteria. Journal of Food Protection, 69(9), 2274–
2279. http://doi.org/10.4315/0362-028X-69.9.2274
18

Conaway, C. C., Krzeminski, J., Amin, S., & Chung, F. L. (2001). Decomposition rates of
isothiocyanate conjugates determine their activity as inhibitors of cytochrome P450 enzymes.
Chemical Research in Toxicology, 14(9), 1170–1176. http://doi.org/10.1021/tx010029w
Cornblatt, B.S., Ye, L., Dinkova-Kostova, A.T., Erb, M., Fahey, J.W., Singh, et al. (2007)
Preclinical and clinical evaluation of sulforaphane for chemoprevention in the breast
Carcinogenesis, 28 (7), pp. 1485-1490.
Cox, D. N., & Poelman, A. A. M. (2015). Towards greater vegetable consumption: Change the
product or change the person? Case studies of two vegetable commodities. Food Research
International, 69, 348–356. http://doi.org/10.1016/j.foodres.2014.12.026
Dinkova-Kostova, A. T., & Kostov, R. V. (2012). Glucosinolates and isothiocyanates in health and
disease. Trends in Molecular Medicine, 18(6), 337–347.
http://doi.org/10.1016/j.molmed.2012.04.003
Egner, P. A., Chen, J. G., Zarth, A. T., Ng, D. K., Wang, J. B., Kensler, K. H., … Kensler, T. W.
(2014). Rapid and sustainable detoxication of airborne pollutants by broccoli sprout beverage:
Results of a randomized clinical trial in China. Cancer Prevention Research, 7(8), 813–823.
http://doi.org/10.1158/1940-6207.CAPR-14-0103
Fahey, J.W., Holtzclaw, W.D., Wehage, S.L., Wade, K.L., Stephenson, K.K., Talalay, P. (2015).
Sulforaphane bioavailability from glucoraphanin-rich broccoli: Control by active endogenous
myrosinase. PLoS ONE, 10 (11)
Ferruzza, S., Natella, F., Ranaldi, G., Murgia, C., Rossi, C., Trošt, K., … Baima, S. (2016).
Nutraceutical improvement increases the protective activity of broccoli sprout juice in a human
intestinal cell model of gut inflammation. Pharmaceuticals, 9(3).
http://doi.org/10.3390/ph9030048
19

Guo, L., Yang, R., Wang, Z., Guo, Q., & Gu, Z. (2014). Glucoraphanin, sulforaphane and
myrosinase activity in germinating broccoli sprouts as affected by growth temperature and
plant organs. Journal of Functional Foods, 9(1), 70–77.
http://doi.org/10.1016/j.jff.2014.04.015
Hanschen, F. S., Brüggemann, N., Brodehl, A., Mewis, I., Schreiner, M., Rohn, S., & Kroh, L. W.
(2012). Characterization of products from the reaction of glucosinolate-derived isothiocyanates
with cysteine and lysine derivatives formed in either model systems or broccoli sprouts.
Journal of Agricultural and Food Chemistry, 60(31), 7735–7745.
http://doi.org/10.1021/jf301718g
Hanschen, F. S., Lamy, E., Schreiner, M., & Rohn, S. (2014). Reactivity and stability of
glucosinolates and their breakdown products in foods. Angewandte Chemie (International Ed.
in English), 53(43), 11430–11450. http://doi.org/10.1002/anie.201402639
Hecht, S. S. (1995). Chemoprevention by isothiocyanates. Journal of Cellular Biochemistry, 59(22
S), 195–209. http://doi.org/10.1002/jcb.240590825
Hernaindez-Triana, M., & Petzke, K. J. (1996) Benzyl-isothiocyanate (BITC) decreases quality of
egg white proteins in rats, Nutritional Biochemistry 2863(96).
Houška, M., Strohalm, J., Kocurová, K., Totušek, J., Lefnerová, D., Tříska, J., … Paulíčková, I.
(2006). High pressure and foods-fruit/vegetable juices. Journal of Food Engineering, 77(3),
386–398. http://doi.org/10.1016/j.jfoodeng.2005.07.003
Hu C., Eggler AL., Mesecar AD., van Breemen RB. (2011) Modification of keap1 cysteine residues
by sulforaphane. Chem Res Toxicol. Apr 18;24(4):515-21.
Jones, R. B., Frisina, C. L., Winkler, S., Imsic, M., & Tomkins, R. B. (2010). Cooking method
significantly effects glucosinolate content and sulforaphane production in broccoli florets.
20

Food Chemistry, 123(2), 237–242. http://doi.org/10.1016/j.foodchem.2010.04.016
Kassahun, K., Davis, M., Hu, P., Martin, B., & Baillie, T. (1997). Biotransformation of the
naturally occurring isothiocyanate sulforaphane in the rat: Identification of phase I metabolites
and glutathione conjugates. Chemical Research in Toxicology, 10(11), 1228–1233.
http://doi.org/10.1021/tx970080t
Kassie, F., Parzefall, W., Musk, S., Johnson, I., Lamprecht, G., Sontag, G., & Knasmüller, S.
(1996). Genotoxic effects of crude juices from Brassica vegetables and juices and extracts
from phytopharmaceutical preparations and spices of cruciferous plants origin in bacterial and
mammalian cells. Chemico-Biological Interactions, 102(1), 1–16. http://doi.org/10.1016/0009-
2797(96)03728-3
Kawakishi, S., & Kaneko, T. (1987). Interaction of proteins with allyl isothiocyanate. Journal of
Agricultural and Food Chemistry, 35(37), 85–88. http://doi.org/10.1021/jf00073a020
Kensler, T. W., Ng, D., Carmella, S. G., Chen, M., Jacobson, L. P., Muñoz, A., … Hecht, S. S.
(2012). Modulation of the metabolism of airborne pollutants by glucoraphanin-rich and
sulforaphane-rich broccoli sprout beverages in Qidong, China. Carcinogenesis, 33(1), 101–
107. http://doi.org/10.1093/carcin/bgr229
Keppler, J. K., Martin, D., Garamus, V. M., Berton-Carabin, C., Nipoti, E., Coenye, T., & Schwarz,
K. (2017). Functionality of whey proteins covalently modified by allyl isothiocyanate. Part 1
physicochemical and antibacterial properties of native and modified whey proteins at pH 2 to
7. Food Hydrocolloids, 65, 130–143. http://doi.org/10.1016/j.foodhyd.2016.11.016
Kishore Kumar Murthy, N. V., & Narasinga Rao, M. S. (1986). Interaction of Allyl Isothiocyanate
with Mustard 12S Protein. Journal of Agricultural and Food Chemistry, 34(3), 448–452.
http://doi.org/10.1021/jf00069a017
21

Kumar, A., & Sabbioni, G. (2010). New biomarkers for monitoring the levels of isothiocyanates in
humans. Chemical Research in Toxicology, 23(4), 756–765. http://doi.org/10.1021/tx900393t
Lee, S. G., Kim, J. H., Son, M. J., Lee, E. J., Park, W. D., Kim, J. B., … Lee, I. S. (2013). Influence
of extraction method on quality and functionality of broccoli juice. Preventive Nutrition and
Food Science, 18(2), 133–138. http://doi.org/10.3746/pnf.2013.18.2.133
Luciano, F. B., Hosseinian, F. S., Beta, T., & Holley, R. A. (2008). Effect of free-SH containing
compounds on allyl isothiocyanate antimicrobial activity against Escherichia coli O157:H7.
Journal of Food Science, 73(5), 214–220. http://doi.org/10.1111/j.1750-3841.2008.00762.x
Luís, I. M., Alexandre, B. M., Oliveira, M. M., & Abreu, I. A. (2016). Selection of an Appropriate
Protein Extraction Method to Study the Phosphoproteome of Maize Photosynthetic Tissue.
Plos One, 11(10), e0164387. http://doi.org/10.1371/journal.pone.0164387
Maldini M., Baima S., Morelli G., Scaccini C., Natella F. (2012). A liquid chromatography-mass
spectrometry approach to study “glucosinoloma” in broccoli sprouts. Journal of Mass
Spectrometry, 47(9), 1198–1206. article. http://doi.org/10.1002/jms.3028
Matusheski, N. V., Juvik, J. A., & Jeffery, E. H. (2004). Heating decreases epithiospecifier protein
activity and increases sulforaphane formation in broccoli. Phytochemistry, 65(9), 1273–1281.
http://doi.org/10.1016/j.phytochem.2004.04.013
Matusheski, N. V., Swarup, R., Juvik, J. A., Mithen, R., Bennett, M., & Jeffery, E. H. (2006).
Epithiospecifier protein from broccoli (Brassica oleracea L. ssp. italica) inhibits formation of
the anticancer agent sulforaphane. Journal of Agricultural and Food Chemistry, 54(6), 2069–
2076. http://doi.org/10.1021/jf0525277
Matusheski, N. V., Wallig, M. A., Juvik, J. A., Klein, B. P., Kushad, M. M., & Jeffery, E. H.
(2001). Preparative HPLC method for the purification of sulforaphane and sulforaphane nitrile
22

from Brassica oleracea. Journal of Agricultural and Food Chemistry, 49(4), 1867–1872.
http://doi.org/10.1021/jf0013860
Méchin, V., Damerval, C., & Zivy, M. (2007). Total Protein Extraction with TCA-Acetone. Plant
Proteomics, 355(2), 1–8. http://doi.org/10.1385/1-59745-227-0:1
Mirmiran, P., Bahadoran, Z., Hosseinpanah, F., Keyzad, A., & Azizi, F. (2012). Effects of broccoli
sprout with high sulforaphane concentration on inflammatory markers in type 2 diabetic
patients: A randomized double-blind placebo-controlled clinical trial. Journal of Functional
Foods, 4(4), 837–841. http://doi.org/10.1016/j.jff.2012.05.012
Natella, F., Maldini, M., Nardini, M., Azzini, E., Foddai, M. S., Giusti, A. M., … Scaccini, C.
(2016). Improvement of the nutraceutical quality of broccoli sprouts by elicitation. Food
Chemistry, 201. http://doi.org/10.1016/j.foodchem.2016.01.063
Nugrahedi, P. Y., Verkerk, R., Widianarko, B., & Dekker, M. (2015). A Mechanistic Perspective on
Process-Induced Changes in Glucosinolate Content in Brassica Vegetables: A Review. Critical
Reviews in Food Science and Nutrition, 55(6), 823–838.
http://doi.org/10.1080/10408398.2012.688076
Pecháček, R., Velísek, J., Hrabcová, H. (1997) Decomposition Products of Allyl Isothiocyanate in
Aqueous Solutions. Journal of Agricultural and Food Chemistry, 45 (12), pp. 4584-4588.
Pernice, R., Hauder, J., Koehler, P., Vitaglione, P., Fogliano, V., & Somoza, V. (2009). Effect of
sulforaphane on glutathione-adduct formation and on glutathione_S_transferase-dependent
detoxification of acrylamide in Caco-2 cells. Molecular Nutrition and Food Research, 53(12),
1540–1550. http://doi.org/10.1002/mnfr.200900447
Possenti, M., Baima, S., Raffo, A., Durazzo, A., Giusti, A. M., & Natella, F. (2016). Glucosinolates
in Food. In J.-M. Mérillon & G. K. Ramawat (Eds.), Glucosinolates (pp. 1–46). inbook, Cham:
23

Springer International Publishing. http://doi.org/10.1007/978-3-319-26479-0_4-1
Rose, P. (2000). 7-Methylsulfinylheptyl and 8-methylsulfinyloctyl isothiocyanates from watercress
are potent inducers of phase II enzymes. Carcinogenesis, 21(11), 1983–1988.
http://doi.org/10.1093/carcin/21.11.1983
Shen, L., Su, G., Wang, X., Du, Q., & Wang, K. (2010). Endogenous and exogenous enzymolysis
of vegetable-sourced glucosinolates and influencing factors. Food Chemistry, 119(3), 987–
994. http://doi.org/10.1016/j.foodchem.2009.08.003
Singh K, Connors SL, Macklin EA, Smith KD, Fahey JW, Talalay P, Zimmerman AW. (2014)
Sulforaphane treatment of autism spectrum disorder (ASD). Proc Natl Acad Sci USA. Oct
28;111(43):15550-5.
Smith, T.K., Mithen, R., Johnson, I.T. (2003) Effects of Brassica vegetable juice on the induction of
apoptosis and aberrant crypt foci in rat colonic mucosal crypts in vivo. Carcinogenesis, 24 (3),
pp. 491-495.
Song, L., Morrison, J. J., Botting, N. P., & Thornalley, P. J. (2005). Analysis of glucosinolates,
isothiocyanates, and amine degradation products in vegetable extracts and blood plasma by
LC-MS/MS. Analytical Biochemistry, 347(2), 234–243.
http://doi.org/10.1016/j.ab.2005.09.040
Totušek, J., Tříska, J., Lefnerová, D., Strohalm, J., Vrchotová, N., Zendulka, O., … Houška, M.
(2011). Contents of sulforaphane and total isothiocyanates, antimutagenic activity, and
inhibition of clastogenicity in pulp juices from Cruciferous plants. Czech Journal of Food
Sciences, 29(5), 548–556.
Tse, G., & Eslick, G. D. (2014). Cruciferous vegetables and risk of colorectal neoplasms: a
systematic review and meta-analysis. Nutrition and Cancer, 66(1), 128–39.
24

http://doi.org/10.1080/01635581.2014.852686
Xu, K., & Thornalley, P. J. (2000). Studies on the mechanism of the inhibition of human leukaemia
cell growth by dietary isothiocyanates and their cysteine adducts in vitro. Biochemical
Pharmacology, 60(2), 221–231. http://doi.org/10.1016/S0006-2952(00)00319-1
25

Figure Captions
Figure 1: Amount of GR, SFN and SFN-nitrile (µmol) present in 100 gr of broccoli sprouts and in
the different fractions obtained from 100 gr broccoli sprouts raw (A) and after microwaving
treatment (B)
Figure 2: Scheme of the catabolic pathways of GR, SFN and SFN-nitrile. Reaction 1: SFN-nitrile
hydrolysis to carboxylic acids by nitrilases (our hypothesis); Reaction 2 reversible SFN binding to
SH group of protein (Kawakishi & Kaneko, 1987; Conaway et al., 2001; Song et al., 2006; Hu et
al., 2011; Hanschen et al., 2012); Reaction 3: SFN binding to protein NH2 group (Kawakishi &
Kaneko, 1987; Hernaindez-Triana & Petzke, 1996; Kumar & Sabbioni, 2010; Hanschen et al.,
2012); Reaction 4: SFN hydrolysis to sulforaphane-amine (Pecháček et al, 1997; Xu et al., 2000;
Song et al., 2005; Hanschen et al., 2012); Reaction 5: SFN binding to GSH (Rose et al., 2000; Song
et al., 2005); Reaction 6: sulforaphane-amine reaction with SFN to form disulforaphanylthiourea (or
other thiourea derivatives) (Pecháček et al, 1997; Xu et al., 2000).
Figure 3: SFN concentration in broccoli sprout juice diluted in an alkaline buffer (TRIS at pH 8.5)
and incubated at room temperature or at 65°C
Figure 4: LC-MS/MS analysis of SFN-GSH in broccoli sprout juice; (A) SFN-GSH spectrum (B)
chromatogram of SFN-GSH detected in the juice using three different MRM transitions (485/136,
485/356 and 485/178 m/z)
Figure 5: SFN-Lys mass spectrum
26

27

28

29
