Ultrafine CuO Particles Dispersed on Nitrogen-Doped Carbon Hollow
Nanospheres for Oxidative Esterification of Biomass-Derived 5-
Hydroxymethylfurfural
†
‡
†,*
Shyam Sunder R. Gupta , Prof. Ajayan Vinu and Prof. Mannepalli Lakshmi Kantam
†
Department of Chemical Engineering, Institute of Chemical Technology, Matunga (E),
Mumbai - 400019, Maharashtra, India.
‡
Global Innovative Center for Advanced Nanomaterials (GICAN), School of Engineering,
Faculty of Engineering and Built Environment, The University of Newcastle, Callaghan,
NSW 2308, Australia.
Corresponding author E-mail:lk.mannepalli@ictmumbai.edu.in
Abstract: One-pot synthesis of furan-2,5-dimethylcarboxylate (FDMC) from 5-
hydroxymethylfurfural (HMF) is highly demanding for the commercial production of
polyethylene furanoate (PEF). Herein, we report a direct synthesis of FDMC from oxidative
esterification of HMF using ultrafine CuO particles dispersed on nitrogen-doped carbon
hollow nanospheres (CuO/N-C-HNSs) as a catalyst and tert-butyl hydroperoxide (TBHP) as
an oxidizing and methylating reagent. The CuO/N-C-HNSs was prepared through a template
protection-sacrifice strategy using SiO as a sacrificial template and histidine as the precursor
2
for N and C. N-doping facilitated a strong interaction between the support and copper
species, affording formation of CuO nanoparticles of less than 10 nm in size. By virtue of the
2
highly dispersed CuO nanoparticles and a high BET surface area 373 m /g, the CuO/N-C-
HNSs shows excellent catalytic performance in selective conversion of HMF into FDMC
affording 93% yield of the desired product with a TON value of 49. Furthermore, the
3
oxidative esterification involving SP C-H bond functionalization is also demonstrated using
the same catalyst.
Keywords: heterogeneous catalysis; 5-hydroxymethylfurfural; nanostructures; N-doped
carbon; oxidative esterification
1
. Introduction
Utilization of carbon-neutral biomass as a renewable resource for the production of fuels and
value-added chemicals is a promising approach to overcome the rapid consumption of fossil
resources and environmental deterioration due to the emission of CO
.[1–7] Among a broad
2
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
spectrum of biomass-derived molecules, 5-hydroxymethylfurfural (HMF) obtained from
acid-catalyzed hydrolysis of cellulose, has attracted the significant attention of researchers
due to its versatile applications in fuel[8] pharmaceutical[9] and polymer[10] industries.
Selective oxidation of HMF affords 2,5-furandicarboxylic acid[11–16] (FDCA) which is an
important raw material used for the synthesis of polyethylene furanoate (PEF), a bio-based
renewable polymer, through a simple polymerization with ethylene glycol.[17] PEF is
identified as a suitable replacement for the petroleum-derived polyethylene terephthalate
[18]
(
PET) . As compared to PET, PEF exhibits superior material properties including high
tensile strength, high glass transition temperature, high isolation rate of CO , O and water
2
2
and easy enzymatic hydrolysis.[19,20] Despite the significant progress that has been made in
the production of FDCA, a direct polymerization of FDCA with ethylene glycol is less
preferred because the quantitative isolation of FDMC in high purity for polymerization is
challenging.[21] The high boiling point and poor solubility of FDCA in numerous solvents
make its purification difficult by distillation and recrystallization techniques.[22] Furthermore,
the undesirable side reactions, including decarboxylation of FDCA during polymerization,
produces a low quality PEF.[23] These issues may be overcome by converting FDCA into
furan-2,5-dimethylcarboxylate (FDMC) through esterification. In contrast to FDCA, FDMC
is soluble in various industrial solvents and posses a low boiling point. In addition, it can be
purified by a low temperature sublimation process and can be used directly for the
polymerization with ethylene glycol to obtain a high quality PEF.[17,24] Therefore, a simple
and one-pot conversion of HMF into FDMC is in high demand since such processes will
improve the quality as well as cost in commercial production of PEF (Fig. 1).
Fig. 1 Previous and the current approaches used for synthesis of FDMC from HMF.
Considering these benefits, several researchers are continuously working for the development
of highly efficient catalytic systems for one-pot conversion of HMF into FDMC. In this
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
regard, Christensen and co-workers reported the pioneering work on one-pot conversion of
HMF into FDMC in presence of molecular oxygen and sodium methoxide using Au/TiO as a
2
catalyst.[25] Subsequently, Corma and co-workers reported the aerobic oxidative esterification
of HMF using gold supported nano-ceria catalyst in absence of any base and concluded that
the Lewis acidity associated with cerium helps in the oxidation of alcohol group present in
HMF.[26] Inspired by the excellent catalytic activity of gold, several other catalyst containing
gold as the active metal were designed and explored for the one-pot conversion of HMF into
FDMC.[27–32] Considering the limited availability, and a high cost of gold, precious metal-free
oxidative esterification of HMF was also investigated by several researchers. In this regard,
Fu and co-workers prepared a pyrolyzed Co
x
O -N@C material which exhibited an excellent
y
catalytic performance when applied in combination with a co-catalyst K-OMS-2 in aerobic
oxidative esterification of HMF and provided 96% yield the desired product.[33] Xu and co-
workers studied the catalytic activity of CoO
x
-N/C in combination with α-MnO towards base
2
free synthesis of FDMC from HMF and proposed that the pyridinic nitrogen present in the
catalyst acts as a base and facilitates the oxidation of the alcoholic functional group present in
HMF.[34] Recently Cai and co-workers prepared a Zeolitic Imidazole Framework-derived
hollow Co@CN material via a template protection-sacrifice (TPS) method using SiO as a
2
sacrificial template and evaluated its catalytic performance in base free one-pot conversion of
HMF into FDMC. They concluded that the hollow structure obtained from the removal of
SiO facilitates the mass transfer of reactants and products during the reaction thereby
2
regenerating the catalytically active sites.[35] Inspired by the excellent performance of cobalt,
a wide variety of materials containing cobalt were designed and fabricated for one-pot
conversion of HMF into FDMC.[36–43] The above-mentioned processes are highly efficient
and provides excellent yield of FDMC from oxidative esterification of HMF using air or
molecular oxygen as an economical and readily available oxidizing agent. However, from
academic research point of view, the exploration of alternate methods for the synthesis of
FDMC from HMF using different oxidizing agents is also important.
Herein, we demonstrate an alternate and unique strategy for the oxidative-methyl
esterification of HMF into FDMC using tert-butyl hydroperoxide (TBHP) as an oxidant and
methylating reagent catalyzed by a novel nanocomposite, CuO/N-C-HNSs (ultrafine CuO
particles dispersed on Nitrogen-doped carbon hollow nanospheres). The use of TBHP for
methyl-esterification of various oxygenates such as benzyl alcohols, benzaldehydes and
benzoic acids was explored by Ghosh et al. using Pd/Cu
2
Cl(OH)
3
as a catalyst and K
2
CO as
3
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
a base additive.[44] Recently, we have explored a base free synthesis of FDMC via oxidative
methyl-esterification of HMF in presence of TBHP using mesoporous alumina nanospheres-
embedded with CuO nanoparticles as a catalyst.[45] In present work, we have fabricated a
novel nanomaterial, CuO/N-C-HNSs for the oxidative esterification reaction. The hollow
spherical structure induces a high mesoporosity which facilitates the mass transfer of
reactants as well as products during the reaction. N-doped carbon materials provide ultra-high
dispersion of metals in the form of fine particles or even as single atoms.[46,47] N-doping
firmly stabilizes the metal nanoparticles through a strong interaction between the metal and
the support and mitigates their aggregation during the reaction.[48] Considering these
advantages, N-C-HNSs with ultrafine dispersion of CuO particles was prepared by a template
protection-sacrifice strategy using SiO
and C.[49] The overall synthesis of CuO/N-C-HNSs is schematically illustrated in Figure 2.
At-first, SiO nanospheres having particle sizes in the range of 100-150 nm were prepared by
a modified StÖber’s method.[50] Next, the surface of the as-prepared SiO
nanospheres was
modified with negative charges using NaCl, PDDA and PSS polymers. Once the SiO
2
as a hard template and histidine as the precursor for N
2
2
2
2
+
nanospheres are modified with the negative charges, Cu ions gets strongly adsorbed on their
surface through electrostatic force of attraction. Subsequently, the histidine molecule
containing an amine, a carboxylic acid and an imidazole group binds with the Cu2+ ions
through coordination interaction and results in to the formation of SiO @His-Cu
2
nanospheres. Finally, the high-temperature pyrolysis followed by silica itching afforded
highly dispersed CuO nanoparticles on the surface of N-C-HNSs. In addition to HMF, a wide
variety of substrates were also converted in to the corresponding esters through
3
functionalization of a less reactive SP C-H bond (Table 2). Thus the present synthetic
methodology can also be used for the synthesis various organic compounds. TBHP has been
utilized as an multitasking reagent in several organic reactions[44,51–56] and here also it acts as
an oxidizing and methylating reagent. Furthermore, the pyridinic N present in CuO/N-C-
HNSs eliminates the use of an external base.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
Fig. 2 Schematic representation of the CuO/N-C-HNSs synthesis.
. Results and discussion
.1 Catalyst characterization
2
2
Field emission gun-scanning electron microscopy (FEG-SEM) images (Fig. 3a and b) and
transmission electron microscopy (TEM) image (Fig. 4a) show the formation of spherical
shaped SiO
nanospheres were used as the sacrificial template for the synthesis of CuO/N-C-HNSs. The
as-fabricated CuO/N-C-HNSs after removal of SiO by etching remained intact as hollow
nanospheres and retained the original size and morphology of the SiO nanoparticles (Fig. 3c
2
nanoparticles having a diameters between 100-150 nm. The formed SiO
2
2
2
and d). The high surface area and mesoporosity resulting from theses hollow nanostructures
facilitate the effective mass transfer of reactants and products during the oxidative methyl-
esterification process. The well-defined hollow morphology of the CuO/N-C-HNSs was
further verified by TEM (Fig. 4b and c). The high-resolution transmission electron
microscope (HRTEM) image reveals the presence of ultrafine CuO particles of 5-10 nm in
size on the surface of N-C-HNSs (Fig. 4d). The measured interplanar spacing of the
nanoparticle is around 0.25 nm (Fig. 4d) corresponding to the CuO (-111) plane. The
concentric rings in the selected area electron diffraction (SAED) pattern (Fig. 4f) reveal the
polycrystalline nature of the CuO nanoparticles. The presence of ultrafine CuO particles on
N-C-HNSs was further verified by electron energy loss spectroscopy (EELS) coupled high-
angle annular dark-field scanning transmission electron microscope (HAADF-STEM)
imaging. A number of highly dispersed bright dots are observed which correspond to the
ultrafine CuO particles (Fig. 4g). Moreover, the EELS elemental mapping shows uniform
dispersion of copper on the surface of N-C-HNSs.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
Fig. 3 FEG-SEM images of SiO nanospheres (a) & (b) and CuO/N-C-HNSs (c) & (d).
2
Phase identification and crystallinity of the as-fabricated materials were examined by
recording their powder X-ray diffraction (XRD) patterns (Fig. 5). The as-prepared SiO
2
o
[57]
nanospheres exhibit a broad XRD peak at 22 indicating their amorphous nature. The XRD
peak corresponding to SiO disappeared in CuO/N-C-HNSs after the removal of the template
2
o
o
while two new broad peaks appeared at 25 and 44 which can be indexed to (002) and (100)
crystal planes of graphitic carbon respectively.[49,58] The absence of CuO related XRD peaks
in CuO/N-C-HNSs could be possibly due to the weak degree of crystallinity of CuO
nanoparticles.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
Fig. 4 TEM image of SiO
2
nanospheres (a). TEM images (b) and (c), HRTEM images (d) and
(
e) and SAED pattern (f) of CuO/N-C-HNSs. HAADF-STEM image and EELS elemental
mapping of CuO/N-C-HNSs.
X-ray photoelectron spectroscopy (XPS) analysis was performed to probe the elemental
compositions and their chemical states in CuO/N-C-HNSs. The survey scan (Fig. 6a) shows
the coexistence of Cu, N, C and O elements in the as-fabricated CuO/N-C-HNSs. The two
peaks at 934.7 eV (Cu 2p3/2) and 954.9 eV (Cu 2p1/2) in high-resolution Cu 2p spectrum (Fig.
6
b) indicate the presence of CuO.[59] Additionally, the satellite signals originating at 943.8
eV, and 962.6 eV further confirmed the +2 oxidation state of copper. High-resolution N 1s
spectrum (Fig. 6c) reveals the presence of pyridinic N (398.2 eV), graphitic N (399.7 eV) and
oxidized form of N (402.4 eV) in CuO/N-C-HNSs.[48,49] These diverse nitrogen species
interact strongly with the copper atoms and stabilize them in the form of ultrafine CuO
particles on the surface of N-C-HNSs and also prevents their aggregation during the reaction.
The deconvoluted high-resolution C 1s spectrum (Fig. 6d) exhibits three peaks at 284.5 eV,
2
85.8 eV and 288.8 eV which can be assigned to C-C, C-N and C=O group respectively.[49]
The presence of hysteresis loop in nitrogen adsorption-desorption isotherms (Fig. S2a, ESI)
indicates the existence of mesopores in CuO/N-C-HNSs. The pore size distribution curve
(
Fig. S2b, ESI) reveals that the average diameter of the pores is 4.2 nm. Due to the
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
mesoporous structure the material possess a large Brunauer-Emmett-Teller (BET) surface
2
area of 373 m /g. Inductively coupled plasma optical emission spectroscopy (ICP-OES)
analysis reveals the 2.4 wt% loading of copper in CuO/N-C-HNSs. Thermogravimetric
analysis (TGA) analysis (Fig. S1, ESI) exhibits a total of 14 % loss in the weight of CuO/N-
o
C-HNSs when the material was heated up to 800 C. The weight loss is predominantly due to
evaporation of the trapped moisture from the pores of CuO/N-C-HNSs. The presence of
copper in CuO/N-C-HNSs was further verified by recording the XRF spectrum. The XRF
spectrum of CuO/N-C-HNSs (Figure S3, ESI) contains a high-intensity peak at 8.05 KeV
corresponding to Cu-K
α
and a low-intensity peak at 8.93 KeV corresponding to Cu-K . Thus,
β
the various characterization results confirm the successful formation of the ultrafine CuO
particles dispersed on the surface of N-C-HNSs.

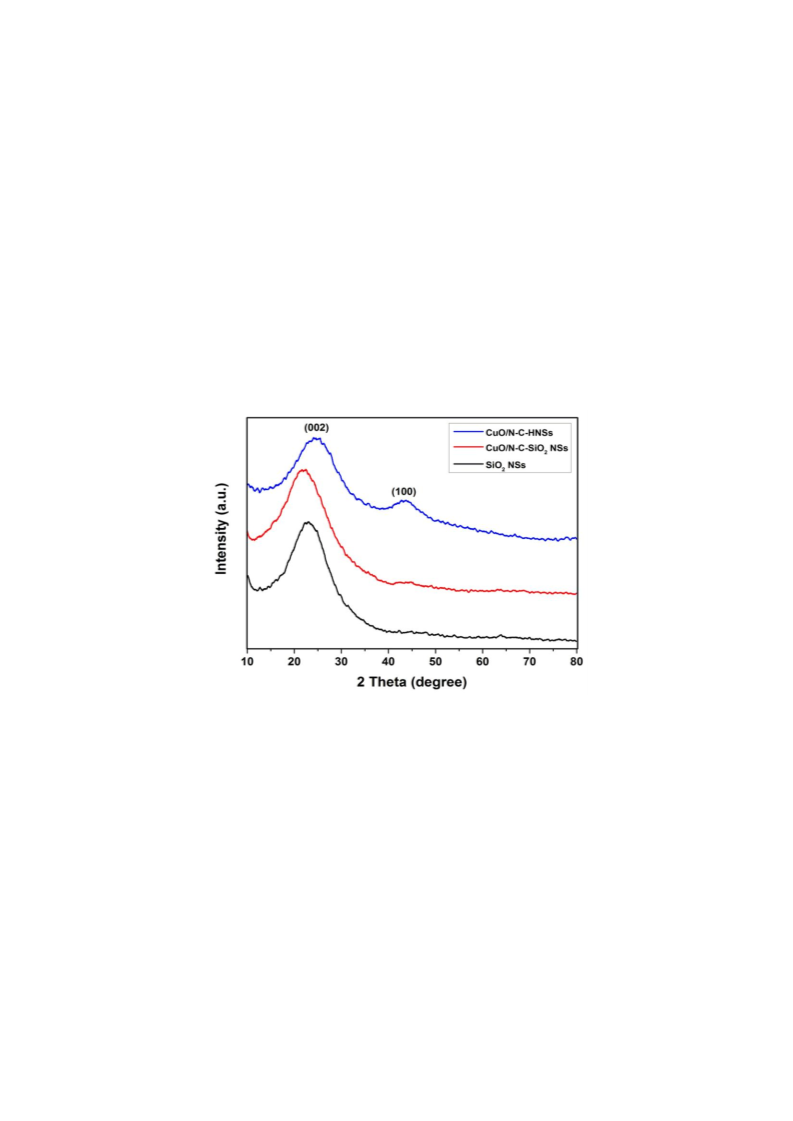

Fig. 5 Powder XRD patterns of the pure silica nanospheres and the CuO functionalized
materials.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713

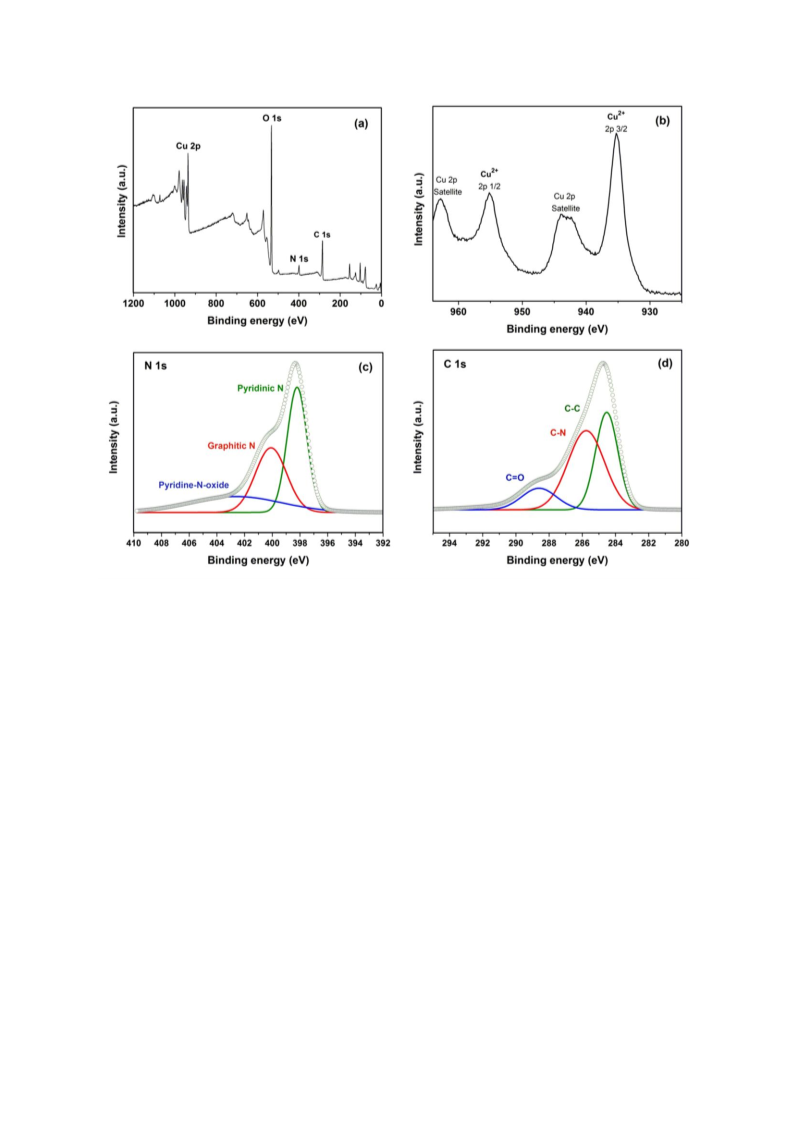

Fig. 6 XPS of CuO/N-C-HNSs (a) survey spectrum, (b) Cu 2p, (c) N 1s and (d) C 1s high-
resolution spectrum.
2
2
.2 Catalytic activity
.2.1 One-pot synthesis of FDMC from HMF
Catalytic activity of the as-fabricated CuO/N-C-HNSs was examined towards one-pot
conversion of HMF into FDMC and the results are framed in Table 1. Initially, the reaction
o
was carried out using CuO/N-C-HNSs as the catalyst at 80 C and 34% of the desired product
FDMC was obtained with 66% conversion of HMF (Table 1, entry 1). Next, when
o
o
temperature of the reaction was increased from 80 C to 100 C, the yield of FDMC was also
increased from 34% to 93% (Table 1, entries 1-3). However, further increasing the reaction
o
temperature to 110 C did not improve the yield of FDMC (Table 1, entry 4). Therefore,
o
optimization of the other reaction parameters was carried out at 100 C. It was noted that,
when Nitrogen-doped carbon hollow nanospheres (N-C-HNSs) without any CuO
nanoparticles was used as the catalyst, there was no formation of the desired product FDMC
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
(
Table 1, entry 5). This clearly indicates that the catalytic activity of CuO/N-C-HNSs is
completely due to the CuO nanoparticles present on the surface of N-C-HNSs. Next, when
the reaction was carried out using bulk CuO nanopowder (particle sizes below 50 nm) as the
catalyst, 56% yield of FDMC was obtained with a poor TON of 1 (Table 1, entry 6). The
yield as well as TON was decreased significantly when CuO powder having particle sizes in
micron was employed as a catalyst for the reaction (Table 1, entry 7). A blank test, in absence
of any catalyst, did not produce the desired product FDMC even after 20 h of the reaction
(
Table 1, entry 8). This indicates the slow kinetics of oxidative methyl-esterification reaction
in the absence of the catalyst. Next, the reaction was tried to carry out using other oxidants
such as molecular oxygen or hydrogen peroxide, but there was no formation of FDMC was
observed in either cases (Table 1, entries 9 and 10). Next, the quantity of TBHP was
optimized and it was found that the 8 mol% of TBHP provides the maximum yield of FDMC
(
Table 1, entries 11 and 12). Effect of solvents on the progress of the reaction was also
studied. The lower yield of FDMC (68%) was obtained when the reaction was carried out in
DMSO as the solvent (Table 1, entry 13). Similarly, water as well as methanol also provided
the poor yield of FDMC 63% and 44% respectively (Table 1, entries 14 and 15). The
maximum yield of the FDMC was obtained when the mixture of DMSO (3 mL) and water (1
mL) was used as the solvent.

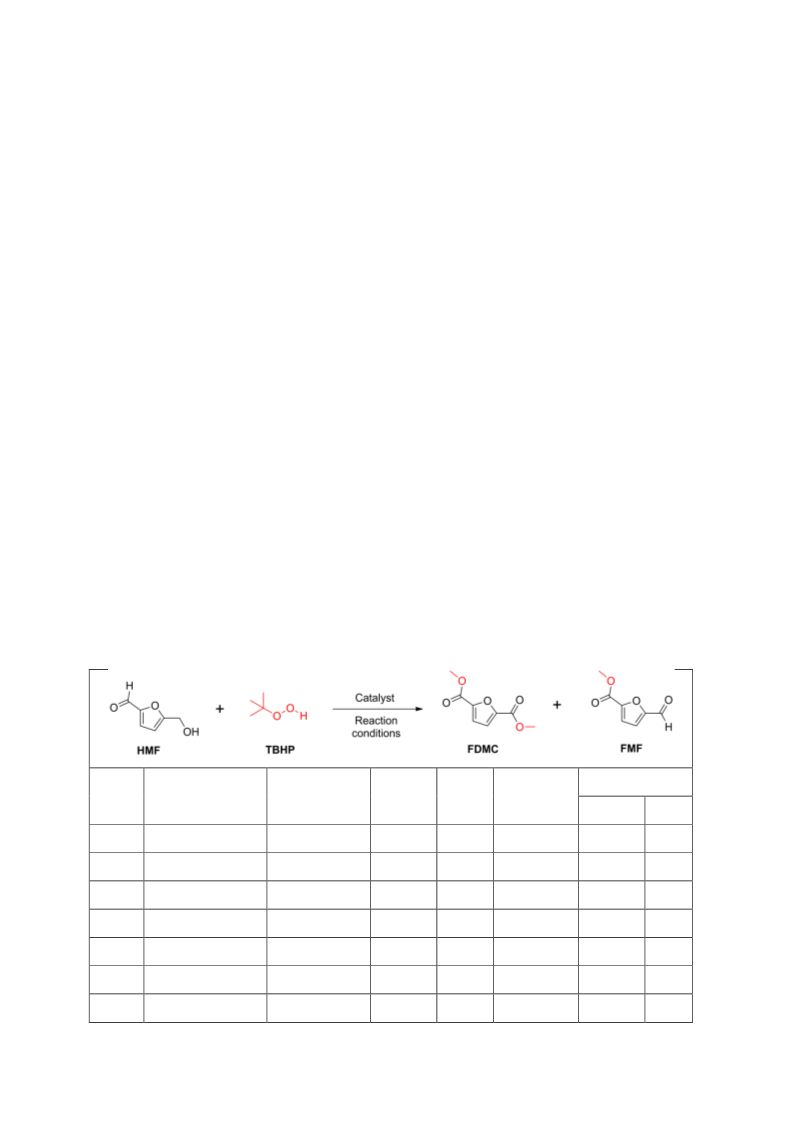

Table 1 Optimization of the reaction conditions for oxidative methyl-esterification of
HMF.[a]
Entry
Catalyst
Temperature Oxidant TON Conversio
Yields [b] [%]
[oC]
n [b] [%]
FDMC FMF
1
2
CuO/N-C-HNSs
CuO/N-C-HNSs
CuO/N-C-HNSs
CuO/N-C-HNSs
N-C-HNSs
80
TBHP
TBHP
TBHP
TBHP
TBHP
TBHP
TBHP
18.2
30.6
49.2
48.8
-
66
34
58
93
92
-
24
17
-
90
83
3
100
110
100
100
100
100
100
9
4
-
5
-
6c
7d
CuO
1
84
56
35
15
18
CuO
0.6
57
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
8
9
Blank
100
100
100
100
100
100
100
100
TBHP
-
8
-
-
-
CuO/N-C-HNSs
CuO/N-C-HNSs
CuO/N-C-HNSs
CuO/N-C-HNSs
CuO/N-C-HNSs
CuO/N-C-HNSs
CuO/N-C-HNSs
O
2
-
6
-
1
0
H
2
O
2
-
10
-
-
1
1e
1 f
TBHP
TBHP
TBHP
TBHP
TBHP
40.2
48.0
36.0
33.2
23.4
100
100
94
78
91
68
63
44
16
-
2
1
1
3g
4h
5i
-
100
74
18
-
1
[
a] Reaction conditions: HMF, 1 mmol; catalyst, 50 mg; TBHP, 8 mmol; solvent, DMSO:
Water (3mL:1mL); time, 20 h. [b] Conversion and yields were determined by GC. [c] CuO
bulk nanopowder <50 nm. [d] CuO bulk powder. [e] TBHP, 6 mmol. [f] TBHP, 10 mmol.
[
g] Solvent, DMSO (4 mL). [h] Solvent, water (4 mL). [i] Solvent, methanol (4 mL).
The effect of CuO/N-C-HNSs loading on one-pot conversion of HMF into FDMC was
studied comprehensively and the outcomes are presented in Fig. 7a. Increasing the loading of
CuO/N-C-HNSs from 1 to 2 mol% increased the yield of FDMC from 38% to 93% which
could be possibly due to the more number of catalytic sites available for the reaction.
However, further increment in the loading of CuO/N-C-HNSs up to 2.5 mol% did not
increase the yield of FDMC. This suggests that the 2 mol% loading of CuO/N-C-HNSs
provides a sufficient quantity of catalytic sites in the reaction to achieve the maximum yield
of FDMC. Next, the progress of the reaction was monitored at different time intervals (Fig.
7
b). Analysis of the reaction mixture after 10 h shows that the mixture contains 26% of 5-
formyl-2-methyl furoate (FMF) and 38% of FDMC. The quantity of FMF in the reaction
mixture decreases gradually as the reaction time increases, whereas the quantity of FDMC
increases continuously. This indicates that FMF is the intermediate product formed in one-pot
conversion of HMF into FDMC using TBHP.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713

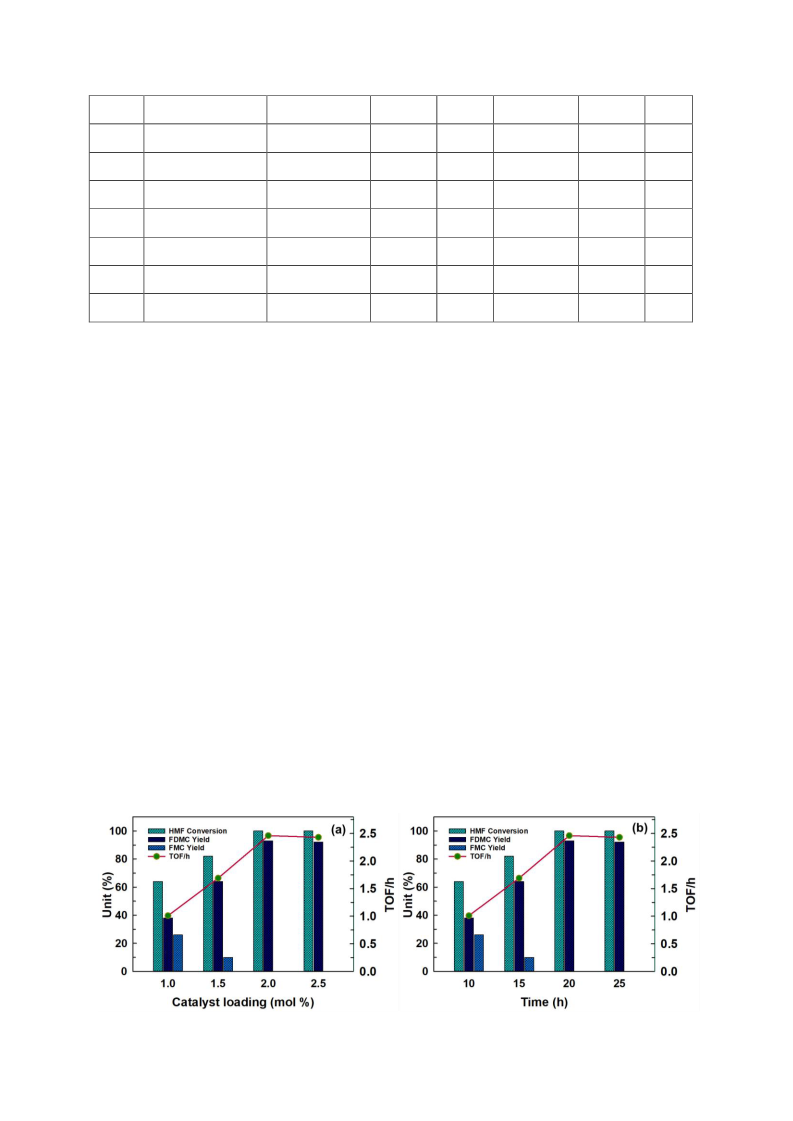

Fig. 7 Optimization study in oxidative methyl-esterification of HMF. (a) Effect of CuO/N-C-
HNSs loading. Conditions: HMF, 1 mmol; CuO/N-C-HNSs, 1-2.5 mol%; TBHP, 8 mmol;
o
DMSO:H
2
O, 3mL:1mL; temperature, 100 C; time, 20 h. (b) Effect of reaction time.
Conditions: HMF, 1 mmol; CuO/N-C-HNSs, 2 mol%; TBHP, 8 mmol; DMSO: H O, 3mL:
2
o
1
mL; temperature, 100 C; time, 10-25 h.
3
2
.2.2 Synthesis of different esters through SP C-H bond functionalization
To establish the wide applicability of CuO/N-C-HNSs in oxidative methyl-esterification
reaction, a wide variety of substrates were efficiently converted in to the corresponding esters
3
through functionalization of a less reactive SP C-H bond. As summarized in Table 2, various
less reactive substrates were smoothly converted into the corresponding products in high
3
yields through SP C-H bond functionalization.
Table 2 Oxidative methyl-esterification via SP C-H bond functionalization.[a]
3
[
b]
Entry
Substrate
Product
Yield (%)
1
73
2
3
76
86
4
5
6
88
87
83
[
a] Reaction conditions: Substrate, 1 mmol; CuO/N-C-HNSs, 2 mol%; TBHP, 8 mmol;
o
DMSO:H
2
O, 3mL:1mL; temperature, 100 C; time, 20 h. [b] GC yields.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
2
.3 Control experiments to study the reaction mechanism
A set of controlled experiments was performed to study the mechanism of the direct
conversion of HMF into FDMC using TBHP and the outcomes are summarized in Scheme 1.
When the reaction was carried out in presence of 1 equivalent of a radical scavenger, TEMPO
(
2,2,6,6-tetramethylpiperidine-N-oxyl) only 6% of the desired product was obtained where as
3% of 1-methoxy-2,2,6,6-tetramethylpiperidine was formed (Scheme 1b). This suggests that
8
the reaction proceeds via a radical mechanism and involves the formation of methyl radicals
in the catalytic cycle. Next, to identify the source of methyl radical whether it comes from the
TBHP or DMSO, the reaction was carried out using water as the only solvent, and the FDMC
was obtained in 63% yield. Therefore, it is confirmed that the methyl radicals come from the
TBHP (Scheme 1c). Thus, it can be concluded that the TBHP plays a dual role as it acts as
the oxidizing agent as well as the methylating reagent in oxidative methyl-esterification of
HMF.

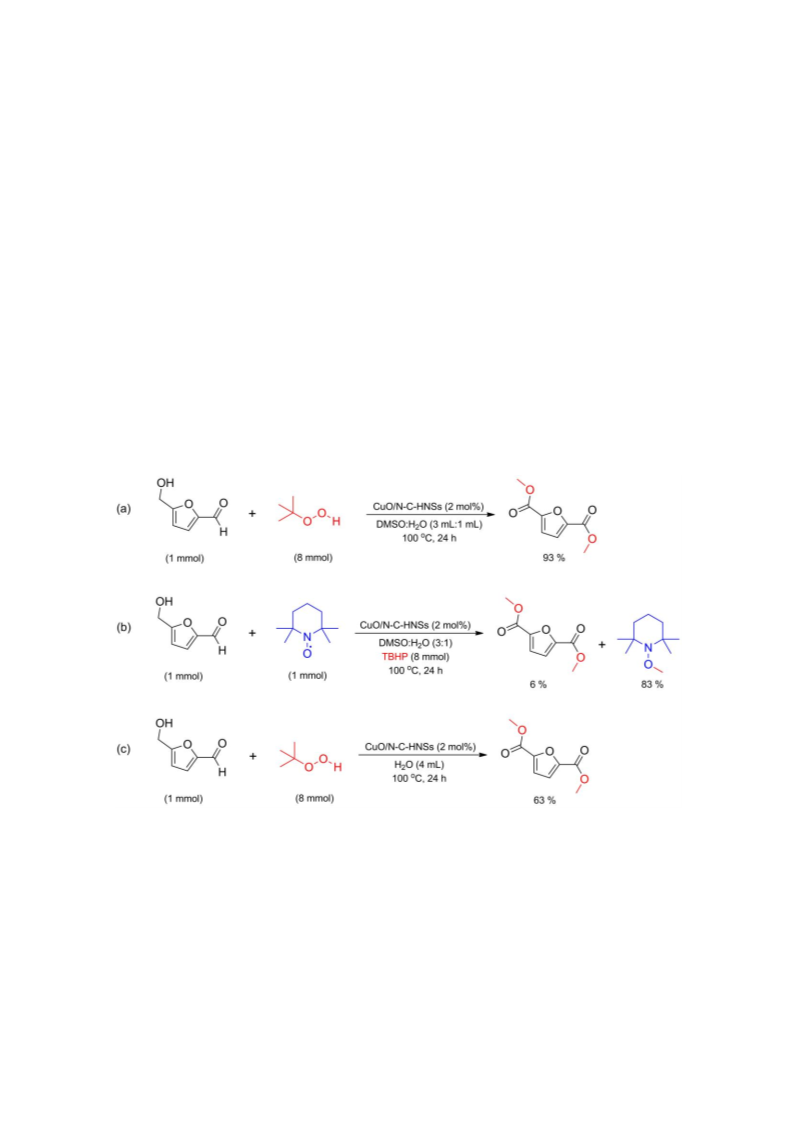

Scheme 1 Control experiments and the effect of radical scavenger.
Taking into consideration the outcome of control experimentations and previous reports
[51,53,60],
of a tert-butoxyl or tert-butylperoxyl radicals from TBHP in the presence of CuO/N-C-HNSs
Step I, Scheme 2). Next, tert-butoxyl radical undergoes a unimolecular decomposition
a plausible mechanism is presented (Scheme 2). The reaction begins with generation
(
generating acetone and a methyl radical. The starting material, HMF or 2,5-dimethylfuran in
presence of TBHP and catalyst undergoes oxidation affording the formation of acyloxyl
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
radical. In the last step, acyloxyl radical reacts with methyl radicals and generates the desired
product (Step III, Scheme 2).

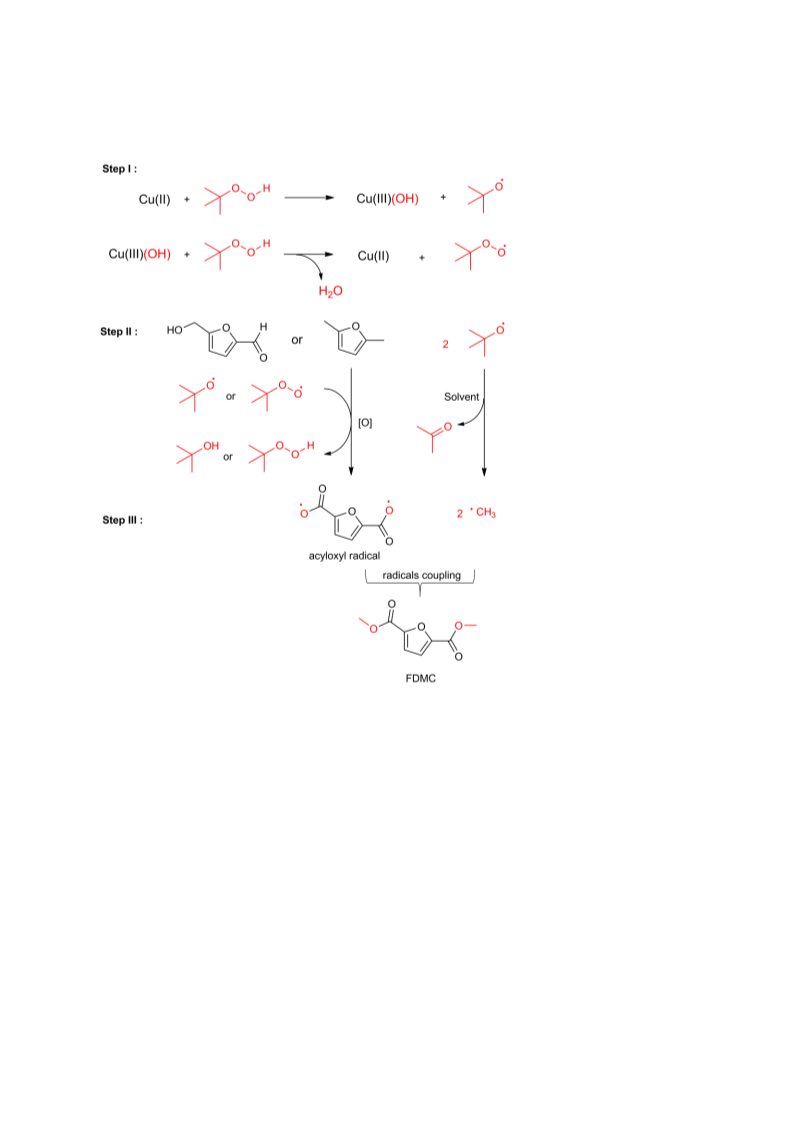

Scheme 2 Plausible mechanism for oxidative methyl-esterification of HMF using TBHP.
2
.4 Catalyst stability and recyclability

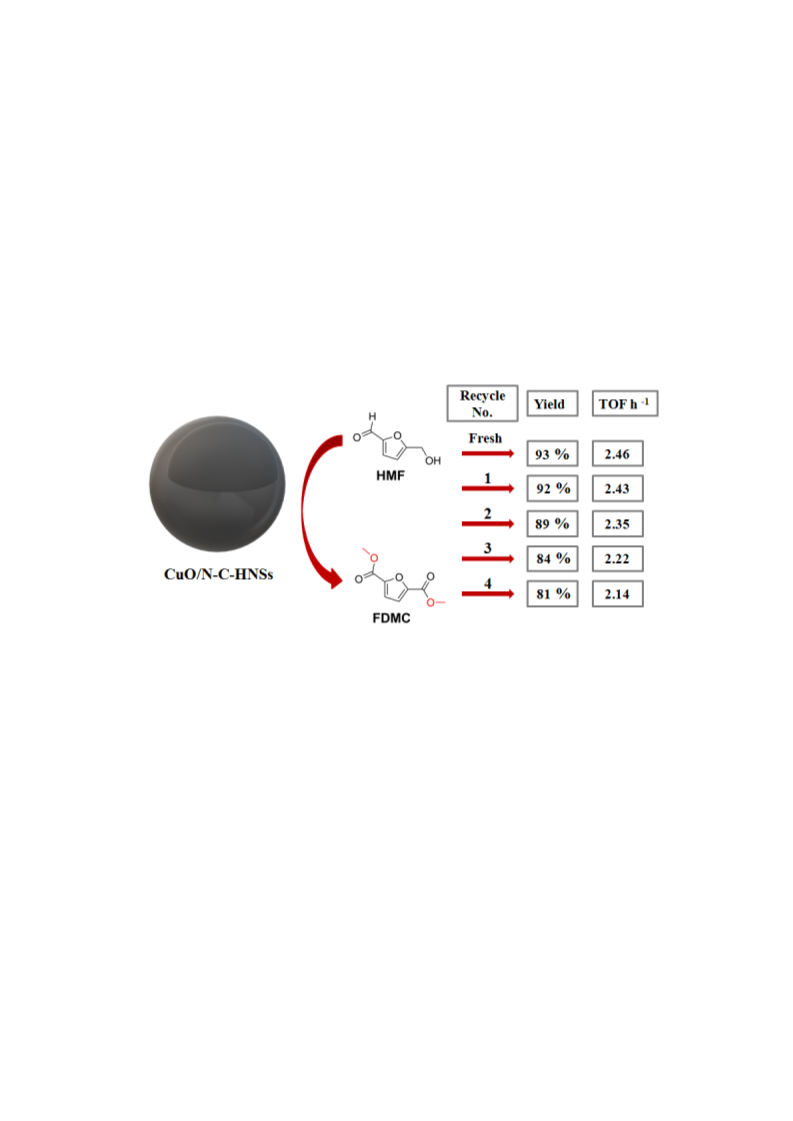

The recyclability of CuO/N-C-HNSs was also investigated. During the recycling study, the
CuO/N-C-HNSs was isolated by centrifugation and then washed with a mixture of water and
o
ethanol. The washed catalyst was dried at 100 C for 12 h and then used for the next batch of
reaction. The result shows a marginal decrease in the yield of FDMC from 93% to 81% and
-1
-1
the TOF from 2.46 h to 2.14 h during the recycling of CuO/N-C-HNSs for 4 times (Figure
). The hot-filtration test was carried out to confirm the heterogeneity of CuO/N-C-HNSs in
8
oxidative methyl-esterification reaction. During hot-filtration test, the reaction was stopped
after 5h, and the catalyst was removed from the reaction mixture by filtration, and then the
reaction was further continued for 15h using the filtrate. The conversion, as well as yield,
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
remained constant after the removal of catalyst from the reaction mixture indicating the
heterogeneous nature of CuO/N-C-HNSs. The SEM, TEM and HRTEM images of CuO/N-C-
HNSs after recycling for 4 times were recorded. The SEM images (Figure S4, ESI) show the
retention of original structure and morphology in the recycled CuO/N-C-HNSs. TEM and
HRTEM images (Figure S5 and S6, ESI) reveal the absence of agglomeration of CuO
nanoparticles on the surface of N-C-HNSs in the recycled catalyst. The powder XRD of
CuO/N-C-HNSs recycled for 4 times (Figure S7, ESI) shows the diffraction pattern similar to
the fresh catalyst suggesting no structural changes in the recycled catalyst. Thus, the various
characterizations of the recycled catalyst confirm the high stability of the CuO/N-C-HNSs in
the oxidative methyl-esterification of HMF.
Fig. 8 Recyclability of CuO/N-C-HNSs in oxidative methyl-esterification of HMF.
3
. Conclusions
In conclusion, we have demonstrated a one-pot synthesis of FDMC from HMF in the
presence of TBHP using a novel material, ultrafine CuO particles dispersed on nitrogen-
doped carbon hollow nanospheres (CuO/N-C-HNSs) as a catalyst. N-doping provided a
strong interaction between the support and metal affording ultrafine dispersion of CuO
nanoparticles on the surface of N-C-HNSs and also prevented the agglomeration of CuO
nanoparticles during the catalyst recycling. The hollow spherical structure resulting from the
removal of SiO facilitates the mass transfer of reactants and products thereby regenerating
2
the catalytic sites for further reactions. The mechanistic study reveals that the reaction
proceeds through formation and coupling of radical intermediates and TBHP plays a dual
role, it acts as an oxidizing as well as methylating reagent. In addition to HMF, a wide variety
of substrates were also converted into the corresponding esters through functionalization of a
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
3
less reactive SP C-H bond establishing the broad applicability of the CuO/N-C-HNSs in
oxidative methyl-esterification reaction.
4
. Experimental details
4
.1 Synthesis of CuO/N-C-HNSs
For the synthesis of CuO/N-C-HNSs, first SiO
2
nanospheres with particle sizes between 100-
1
50 nm was prepared by a modified StÖber’s method.[61] In a typical procedure, 3 mL of
TEOS was added into a beaker containing 100 mL of ethanol under continuous stirring. To
the resulting mixture, 6 mL of ammonia and 6 mL of distilled water was added and the
reaction mixture was kept stirring for 5 h at room temperature. The colourless solution
gradually turned into a turbid suspension indicating the formation of colloidal SiO
2
nanoparticles. The SiO nanoparticles were isolated by centrifugation at 10000 rpm for 10
2
min and then washed with distilled water and ethanol mixture several times by centrifugation
o
and redispersion. The obtained solid was dried at 80 C for 12 h and then grinds to obtain
SiO nanospheres.
2
Next, the surface of the as-prepared SiO
charges using poly(diallyldimethylammonium chloride) solution (PDDA) and poly(sodium 4-
styrenesulfonate) solution (PSS) polymers.[49] Specifically, the as-prepared SiO
nanospheres
0.6 g) were dispersed in 100 mL distilled water containing 3 g NaCl by ultra sonication for
2
nanospheres was functionalized with negative
2
(
3
0 min. To the resulting suspension, 1 g of PDDA solution was added, and the mixture was
nanospheres
were isolated and washed with distilled water by centrifugation at 10000 rpm for 10 min.
Following the similar procedure, the surface of the PDDA-modified SiO nanospheres was
further coated with the layers of PSS, PDDA and PSS successively to obtain the negatively
charged PDDA/PSS/PDDA/PSS-modified SiO nanospheres. Subsequently, 500 mg of the
PDDA/PSS/PDDA/PSS-modified SiO nanospheres were dispersed by ultra sonication in 10
kept stirring for 1 h at room temperature. After that, the PDDA-modified SiO
2
2
2
2
mL distilled water containing 50 mg of copper (II) nitrate trihydrate. To the above
suspension, 200 mg of histidine was added and kept stirring for 30 min at room temperature.
o
The resulting mixture was vacuum-dried at 80 C for 2h and then pyrolyzed in N
2
atmosphere
o
o
-1
at 800 C for 3h with a heating rate of 2 C min . The SiO
2
template in the pyrolyzed product
was removed by etching with 2M NaOH (50 mL) for 24h at room temperature and then
o
washed with distilled water several times and dried for overnight at 100 C to obtain the final
product CuO/N-C-HNSs.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
4
.2 Process for the oxidative methyl-esterification reaction
All the oxidative methyl-esterification reactions were carried out in an oven-dried glass vial.
In a typical procedure, the glass vial was charged with substrate (1 mmol), 70% aqueous
TBHP (1 mL), catalyst (20 mg) and solvent dimethyl sulfoxide (DMSO): water (3:1) 4 mL.
The glass vial was sealed with an aluminium cap fitted with a Teflon coated rubber septum
o
and the reaction mixture was heated in an oil bath at 100 C for 20 h under continuous
stirring. After 20 h, the reaction mixture was allowed to cool at room temperature and then
subjected to centrifugation for 10 min at 10000 rpm. After centrifugation, the catalyst get
settled at the bottom of the centrifuge tube and the clear supernatant liquid was transferred
into a separating funnel containing 100 mL of water and mixed thoroughly. Ethyl acetate (40
mL x 2 times) was used as a solvent for extraction of the organic components from the
aqueous mixture. The dried organic portion was evaporated under vacuum to obtain the crude
product which was later purified by column chromatography and finally characterized by
GC-MS and NMR spectroscopy.
Acknowledgements:
Author MLK sincerely acknowledge Science and Engineering Research Board, Department
of Science and Technology, India for providing J.C. Bose national fellowship. Authors are
greatly thankful to the Godrej Industries Limited, India for providing financial support.
References:
[
[
[
[
[
[
[
[
1] Y. Zhu, C. Romain, C. K. Williams, Nature 2016, 540, 354–362.
2] R. A. Sheldon, Green Chem. 2014, 16, 950–963.
3] S. S. R. Gupta, M. L. Kantam, Catal. Today 2018, 309, 189–194.
4] S. S. R. Gupta, M. L. Kantam, Catal. Commun. 2019, 124, 62–66.
5] H. Xia, J. An, M. Hong, S. Xu, L. Zhang, S. Zuo, Catal. Today 2019, 319, 113–120.
6] J. An, G. Sun, H. Xia, ACS Sustain. Chem. Eng. 2019, 7, 6696–6706.
7] M. Hong, S. Wu, J. Li, J. Wang, L. Wei, K. Li, Catal. Commun. 2020, 136, 105909.
8] S. Mhadmhan, A. Franco, A. Pineda, P. Reubroycharoen, R. Luque, ACS Sustain.
Chem. Eng. 2019, 7, 14210–14216.
[
[
9] R.-J. van Putten, J. C. van der Waal, E. de Jong, C. B. Rasrendra, H. J. Heeres, J. G. de
Vries, Chem. Rev. 2013, 113, 1499–1597.
10] M. A. Hillmyer, Science. 2017, 358, 868–870.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
[
[
[
[
11] X. Huang, J. Song, M. Hua, Z. Xie, S. Liu, T. Wu, G. Yang, B. Han, Green Chem.
020, 22, 843-849.
2
12] X. Liao, J. Hou, Y. Wang, H. Zhang, Y. Sun, X. Li, S. Tang, K. Kato, M. Yamauchi,
Z. Jiang, Green Chem. 2019, 21, 4194–4203.
13] S. Xu, P. Zhou, Z. Zhang, C. Yang, B. Zhang, K. Deng, S. Bottle, H. Zhu, J. Am.
Chem. Soc. 2017, 139, 14775–14782.
14] A. Tirsoaga, M. El Fergani, N. Nuns, P. Simon, P. Granger, V. I. Parvulescu, S. M.
Coman, Appl. Catal. B Environ. 2020, 278, 119309.
[
[
[
15] T. Gao, Y. Yin, G. Zhu, Q. Cao, W. Fang, Catal. Today 2020, 355, 252–262.
16] H. Xia, J. An, W. Zhang, Nanomaterials 2020, 10, 1624.
17] A. F. Sousa, C. Vilela, A. C. Fonseca, M. Matos, C. S. R. Freire, G.-J. M. Gruter, J. F.
J. Coelho, A. J. D. Silvestre, Polym. Chem. 2015, 6, 5961–5983.
[
[
[
[
18] J. Zhu, J. Cai, W. Xie, P.-H. Chen, M. Gazzano, M. Scandola, R. A. Gross,
Macromolecules 2013, 46, 796–804.
19] S. K. Burgess, J. E. Leisen, B. E. Kraftschik, C. R. Mubarak, R. M. Kriegel, W. J.
Koros, Macromolecules 2014, 47, 1383–1391.
20] S. Weinberger, K. Haernvall, D. Scaini, G. Ghazaryan, M. T. Zumstein, M. Sander, A.
Pellis, G. M. Guebitz, Green Chem. 2017, 19, 5381–5384.
21] X. Kong, Y. Zhu, Z. Fang, J. A. Kozinski, I. S. Butler, L. Xu, H. Song, X. Wei, Green
Chem. 2018, 20, 3657–3682.
[
[
[
22] G. Yi, S. P. Teong, Y. Zhang, Green Chem. 2016, 18, 979–983.
23] A. J. J. E. Eerhart, A. P. C. Faaij, M. K. Patel, Energy Environ. Sci. 2012, 5, 6407.
24] C. F. Araujo, M. M. Nolasco, P. J. A. Ribeiro-Claro, S. Rudić, A. J. D. Silvestre, P. D.
Vaz, A. F. Sousa, Macromolecules 2018, 51, 3515–3526.
[
25] E. Taarning, I. S. Nielsen, K. Egeblad, R. Madsen, C. H. Christensen, ChemSusChem
2
008, 1, 75–78.
[
[
26] O. Casanova, S. Iborra, A. Corma, J. Catal. 2009, 265, 109–116.
27] M. Kim, Y. Su, T. Aoshima, A. Fukuoka, E. J. M. Hensen, K. Nakajima, ACS Catal.
2
019, 9, 4277–4285.
28] J. Du, H. Fang, H. Qu, J. Zhang, X. Duan, Y. Yuan, Appl. Catal. A Gen. 2018, 567,
0–89.
29] D. K. Mishra, J. K. Cho, Y. Yi, H. J. Lee, Y. J. Kim, J. Ind. Eng. Chem. 2019, 70,
38–345.
[
[
[
8
3
30] A. Buonerba, S. Impemba, A. D. Litta, C. Capacchione, S. Milione, A. Grassi,
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
ChemSusChem 2018, 11, 3139–3149.
[
[
31] A. Cho, S. Byun, J. H. Cho, B. M. Kim, ChemSusChem 2019, 12, 2310–2317.
32] F. Menegazzo, M. Signoretto, D. Marchese, F. Pinna, M. Manzoli, J. Catal. 2015, 326,
1
–8.
[
[
33] J. Deng, H.-J. Song, M.-S. Cui, Y.-P. Du, Y. Fu, ChemSusChem 2014, 7, 3334–3340.
34] Y. Sun, H. Ma, X. Jia, J. Ma, Y. Luo, J. Gao, J. Xu, ChemCatChem 2016, 8, 2907–
2
911.
[
[
35] K. Sun, S. Chen, Z. Li, G. Lu, C. Cai, Green Chem. 2019, 21, 1602–1608.
36] H. Zhou, S. Hong, H. Zhang, Y. Chen, H. Xu, X. Wang, Z. Jiang, S. Chen, Y. Liu,
Appl. Catal. B Environ. 2019, 256, 117767.
[
37] A. Salazar, P. Hünemörder, J. Rabeah, A. Quade, R. V. Jagadeesh, E. Mejia, ACS
Sustain. Chem. Eng. 2019, 7, 12061-12068.
[
[
[
38] K. S. Kozlov, L. V. Romashov, V. P. Ananikov, Green Chem. 2019, 21, 3464–3468.
39] F. Li, X.-L. Li, C. Li, J. Shi, Y. Fu, Green Chem. 2018, 20, 3050–3058.
40] Y. Feng, W. Jia, G. Yan, X. Zeng, J. Sperry, B. Xu, Y. Sun, X. Tang, T. Lei, L. Lin, J.
Catal. 2020, 381, 570–578.
[
[
[
[
41] A. Salazar, A. Linke, R. Eckelt, A. Quade, U. Kragl, E. Mejía, ChemCatChem 2020,
1
2, 3504–3511.
42] T. Rui, G.-P. Lu, X. Zhao, X. Cao, Z. Chen, Chinese Chem. Lett. 2020, DOI
0.1016/j.cclet.2020.06.027.
43] Y. Lin, G.-P. Lu, X. Zhao, X. Cao, L. Yang, B. Zhou, Q. Zhong, Z. Chen, Mol. Catal.
020, 482, 110695.
44] T. Ghosh, P. Chandra, A. Mohammad, S. M. Mobin, Appl. Catal. B Environ. 2018,
26, 278–288.
1
2
2
[
[
45] S. S. R. Gupta, A. Vinu, M. L. Kantam, J. Catal. 2020, 389, 259–269.
46] W. Gong, Y. Lin, C. Chen, M. Al‐Mamun, H. Lu, G. Wang, H. Zhang, H. Zhao, Adv.
Mater. 2019, 31, 1808341.
[
[
47] X. Han, X. Ling, Y. Wang, T. Ma, C. Zhong, W. Hu, Y. Deng, Angew. Chemie Int. Ed.
2
019, 58, 5359–5364.
48] D. A. Bulushev, A. L. Chuvilin, V. I. Sobolev, S. G. Stolyarova, Y. V. Shubin, I. P.
Asanov, A. V. Ishchenko, G. Magnani, M. Riccò, A. V. Okotrub, L. G. Bulusheva, J.
Mater. Chem. A 2017, 5, 10574–10583.
[
49] Y. Chen, Z. Li, Y. Zhu, D. Sun, X. Liu, L. Xu, Y. Tang, Adv. Mater. 2019, 31,
1
806312.
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
[
[
[
50] W. Stöber, A. Fink, E. Bohn, J. Colloid Interface Sci. 1968, 26, 62–69.
51] S. Wang, Z. Zhang, B. Liu, ACS Sustain. Chem. Eng. 2015, 3, 406–412.
52] F. A. Kucherov, L. V. Romashov, K. I. Galkin, V. P. Ananikov, ACS Sustain. Chem.
Eng. 2018, 6, 8064–8092.
[
[
53] Y. Zhu, H. Yan, L. Lu, D. Liu, G. Rong, J. Mao, J. Org. Chem. 2013, 78, 9898–9905.
54] P. S. Samudrala, A. V. Nakhate, S. S. R. Gupta, K. B. Rasal, G. P. Deshmukh, C. R.
Gadipelly, S. Theegala, D. K. Dumbre, S. Periasamy, V. R. C. Komandur, S. K.
Bhargava, L. K. Mannepalli, Appl. Catal. B Environ. 2019, 240, 348-357.
55] S. S. R. Gupta, A. V. Nakhate, K. B. Rasal, G. P. Deshmukh, L. K. Mannepalli, New J.
Chem. 2017, 41, 15268-15276.
[
[
[
[
[
56] S. S. R. Gupta, A. V. Nakhate, G. P. Deshmukh, S. Periasamy, P. S. Samudrala, S. K.
Bhargava, M. Lakshmi Kantam, ChemistrySelect 2018, 3, 8436-8443.
57] C. Tang, Y. Liu, C. Xu, J. Zhu, X. Wei, L. Zhou, L. He, W. Yang, L. Mai, Adv. Funct.
Mater. 2018, 28, 1704561.
58] W. Li, C. Min, F. Tan, Z. Li, B. Zhang, R. Si, M. Xu, W. Liu, L. Zhou, Q. Wei, Y.
Zhang, X. Yang, ACS Nano 2019, 13, 3177–3187.
59] P. Jiang, D. Prendergast, F. Borondics, S. Porsgaard, L. Giovanetti, E. Pach, J.
Newberg, H. Bluhm, F. Besenbacher, M. Salmeron, J. Chem. Phys. 2013, 138,
0
24704.
60] N. Khatun, S. K. Santra, A. Banerjee, B. K. Patel, European J. Org. Chem. 2015,
015, 1309–1313.
61] X. Qiu, T. Li, S. Deng, K. Cen, L. Xu, Y. Tang, Chem. - A Eur. J. 2018, 24, 1246–
252.
[
[
2
1
This article is protected by copyright. All rights reserved.

ChemPlusChem
10.1002/cplu.202000713
Table of Contents:
One-pot synthesis of FDMC from oxidative methyl-esterification of HMF has been reported
using a novel nanocomposite, CuO/N-C-HNSs as a catalyst and TBHP as an oxidizing and
methylating reagent. The nitrogen-doped carbon nanospheres firmly anchored CuO and
stabilized them in the form of clusters of less than 10 nm in size. In addition to HMF, the
3
oxidative esterification involving SP C-H bond functionalization has also been demonstrated
using the same catalyst.
This article is protected by copyright. All rights reserved.
