Heterocycles with a bridging nitrogen atom. 17*. Unexpected formation of indolizine during the preparation of (2-thioxopyridin-1-yl) acetate

Article abstract of DOI:10.1007/s10593-005-0282-5

Ethyl 2-hydroxy-1-(2-thioxopyridin-1(2H)-yl)indolizin-3-carboxylate was formed along with ethyl (2-thioxopyridin-1(2H)-acetate from the reaction of 2-bromo-1-(ethoxycarbonylmethyl)pyridinium bromide with sodium sulfide. The structures of all compounds wer

Full text of DOI:10.1007/s10593-005-0282-5

Chemistry of Heterocyclic Compounds, Vol. 41, No. 8, 2005
HETEROCYCLES WITH A BRIDGING NITROGEN ATOM.
17*. UNEXPECTED FORMATION OF INDOLIZINE DURING
THE PREPARATION OF (2-THIOXOPYRIDIN-1-YL) ACETATE
E. V. Babaev, G. A. Smirnov, and V. B. Rybakov
Ethyl 2-hydroxy-1-(2-thioxopyridin-1(2H)-yl)indolizin-3-carboxylate was formed along with ethyl
(2-thioxopyridin-1(2H)-acetate from the reaction of 2-bromo-1-(ethoxycarbonylmethyl)pyridinium
bromide with sodium sulfide. The structures of all compounds were confirmed by X-ray crystallography.
Keywords: pyridine-2-thione, 2-bromopyridinium salts, sodium sulfide, ethyl (2-thioxopyridin-1(2H))-
yl)acetate, ethyl 2-hydroxy-1-(2-thioxopyridin-1(2H)-yl)indolizin-3-carboxylate, synthesis of indolizine.
Pyridoneacetic acid A [2,3] and its analog B, containing the pyrimidinethione-2 fragment [4], are
capable of undergoing cyclization to form mesoionic azolo[3,2-a]azinium-2-olates which possess interesting
structural and chemical properties [5]. Between them, a close thio-analog of A is the pyridinethione C (a
potential source of new meso-ionic bicycles) which was not known until now.
S
N
O
S
COOH
N
N
N
COOH
COOH
A
B
C
+
+
N
O
S
–
–
O
O
N
N
Acid A and its esters are readily prepared by selective N-alkylation of pyridone-2 with derivatives of
haloacetic acids. However this method is not used for the synthesis of the thio-analog C and its esters since it is
known that pyridine-2-thiones are readily S-alkylated with various ethyl haloacetates [6]. (We note that the
corresponding pyrimidinthiones B are obtained by a multistage synthesis, but not by N-alkylation).
The aim of this work was to study the possibility of the synthesis of ester 1 (a precursor to acid C) by an
alternative strategy – the reaction of a bromopyridinium salt 2 with sodium sulfide or hydrosulfide:
_______
* For Communication 16, see [1].
__________________________________________________________________________________________
Chemistry Faculty, M. V. Lomonosov Moscow State University, Moscow 119992; e-mail:
babaev@org.chem.msu.su. Translated from Khimiya Geterotsiklicheskikh Soedinenii, No. 8, 1250-1255,
August, 2005. Original article submitted December 8, 2004.
0009-3122/05/4108-1071©2005 Springer Science+Business Media, Inc.
1071

–
HS
+
Br
COOEt
+
N
S
N
Br
N
Br
COOEt
COOEt
2
1
+
Br
COOEt
N
H
S
N
S
EtOOC
It is clear that this method the problem of selectivity of alkylation disappears, since the order of
formation of the NC and CS bonds in the pyridine ring is changed. The strategy of obtaining N-alkylpyridine-2-
thiones by the reaction N-alkyl-2-halopyridinium salts with aqueous solutions of sodium sulfide is well known
(for example, N-phenacylpyridine-2-thiones were made in this way [7, 8]). In its turn, the bromopyridinium salt
starting material 2 has been described [9], but the possibility of its conversion into the thione 1 has not been
studied.
Salt 2 was prepared in high yield by quaternization of 2-bromopyridine with ethyl bromoacetate. The
structure of salt 2 was confirmed by X-ray crystallography (Fig. 1).
The following thionation stage required a careful choice of conditions. Salt 2 is very sensitive to traces
of base so that use of aqueous solutions of sodium sulfide or hydrogen sulfide (which clearly contain base
because of strong hydrolysis) appeared unacceptable.
We succeeded in obtaining the expected conversion of salt 2 into the thione 1 in ~50% yield by use of
anhydrous NaSH in absolute methanol. However this method id poorly reproducible and the preparation of
anhydrous sodium hydrogen sulfide is sufficiently difficult. (The procedure for its synthesis includes the passage
of H2S through sodium methoxide and requires an enormous excess of ether to precipitate the required
compound which is very soluble in methanol).
A successful and acceptable synthesis for the conversion of salt 2 into thione 1 was carried out in acetic
acid. The weakly acid medium prevents the hydrolysis of the sulfide and permits reaction with commercially
available the hydrate Na2S·9H2O. We have succeeded in choosing optimal conditions in which compound 1 was
formed in 60-70% yield. The structure of the thione was confirmed by X-ray crystallography (Fig. 1).
Apart from the required compound 1 another substance was isolated from the reaction mixture. The
1H NMR spectrum of this compound showed signals of two different pyridine units. The structure of the
unknown compound was determined by X-ray crystallography to be ethyl 2-hydroxy-1-(2-thioxopyridin-1(2H)-
yl)indolizin-3-carboxylate (3).
N
S
–
HS
+
OH
2
1
N
COOEt
3
1072

1
2
3
Fig. 1. X-ray Crystallographic Results and Bond Lengths in Molecules of Compound 1-3
From the mutual positions of the two pyridine residues in molecule 3 it is clear that the assembly of the
pyrrole ring occurs at the C(2)–C(3) and C(8a)–C(1) bonds of indolizine (the fragments which form these bonds
are separated by heavy lines in the scheme). However the reason and sequence of the formation of these bonds is
not obvious (Scheme 1).
We are convinced that the pyridinethione 1 is not converted into the indolizine 3 and consequently the
formation of indolizine can only be linked to the conversion of salt 2. It is evident that the CH2CO group in the
pyridinium salt 2 possesses high CH acidity and under the influence of bases (hydrogen sulfide or acetate ions)
may be readily deprotonated to give the ylide 4. Subsequent processes are probably linked with completion of
the cyclization by nucleophilic attack of the carbanion center of the ylide at the electrophilic center of a second
molecule of salt 2 (or a second ylide molecule). Note that molecule 2 has two electrophilic centers – the
α-position of the pyridine ring (with an excellent leaving group) and the ester group (inclined to condensation).
Consequently the mechanism of the process depends on which of the two electrophilic centers of salt 2
undergoes nucleophilic attack by the ylide 4 first.
There are two such mechanisms. The first mechanism (the upper part of the scheme) includes (a) the
initial substitution of the bromine atom of salt 2 by the carbanion center of the ylide 4 with subsequent (b)
intramolecular ester cyclocondensation with closing of the indolizine bicycle. In the second mechanism the
stages are reversed, i.e., the ylide 4 initially undergoes condensation (c) with the ester group of salt 2 and then
displacement of the halogen atom occurs (d). In one stage (probably the last (e))nucleophilic substitution of the
second bromine atom occurs under the influence of the hydrogen sulfide ion. The first mechanism appears the
more likely because of the know mobility of a halogen atom in the α-position of a pyridinium salt.
1073

Scheme 1
+
N
+
N
Br
O
Br
–
MeCOO
Et
COOEt
COOEt
+
+
O
+
– H
N
N
C
H
COOEt
–
– Br-
(a)
– EtOH
– H
(b)
+
+
N
+
Br
(a)
N
Br
COOEt
+
C
O
N
Br
N
S
H
(c)
–
OEt
HS
OH
OH
4
N
N
(e)
–
COOEt
COOEt
Br
– EtOH
(c)
–
(d)
– Br
+
N
Br
Br
Br
Br
+
N
–
MeCOO
+
+
C
+
N
N
H
– H
–
O
Br
O
COOEt
COOEt
We note that the assembly of the pyrrole ring of an indolizine of this type (with the formation of the
C(2)–C(3) and C(8a)–C(1) bonds) is known. It occurs, for example, in the reactions of N-phenacyl-2-
chloropyridinium salts with β-dicarbonyl compounds [10] , where the source of the C(1)–C(2) bond in the
forming indolizine is the CH2CO group of the dicarbonyl compound. In the conversion described here the same
C(1)–C(2) fragment of the bicyclic skeleton comes however from the CH2CO unit of a second molecule of the
pyridinium salt 2.
The bond lengths in molecules 1-3 are cited in Fig. 1 (the details of the geometry will be reported in a
separate paper). We not only that the X-ray crystallographic data confirm the enolic structure of compound 3.
EXPERIMENTAL
1H NMR spectra were recorded with Bruker AC 400 (360 MHz) instrument.

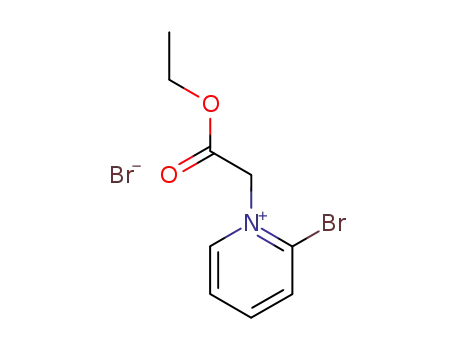

2-Bromo-1-(ethoxycarbonylmethyl)pyridinium Bromide (2) was prepared by the reaction of
2-bromopyridine with ethyl bromoacetate [9]. Yield 76%; mp 183°C (mp 183-184°C [9]). The X-ray
crystallographic results are give in Fig. 1.
Reaction of 2-Bromo-1-(ethoxycarbonylmethyl)pyridinium Bromide (2) with Sodium Sulfide. Salt
2 (40 g, 123 mmol) was heated and stirred in water (50 ml). The solution was cooled to room temperature and
poured into methanol (50 ml) and acetic acid (15 ml). A filtered solution of sodium sulfide (55 g, 230 mmol)
1074

(Na2S·9H2O) in a minimum of water was added dropwise to the reaction mixture over 40 min, and then stirred
for 30 min. The precipitate was filtered off and dissolved in benzene (100 ml). If the precipitate separated as an
oily mass, the reaction mixture was extracted with benzene (2 × 50 ml) and the extract was treated with water.
Ethyl 2-Hydroxy-1-(2-thioxopyridin-1(2H)-yl)indolizin-3-carboxylate (3). On treatment of the
benzene extract with water a substance was separated which was insoluble in water and poorly soluble in
1
benzene. The precipitate of indolizine 3 was filtered off. Yield 5-15%; mp 185°C. H NMR spectrum
(DMSO-d6), δ, ppm (J, Hz): 9.24 (1H, d, J = 7.3, H-5 [indolizin]); 7.75 (1H, d, J = 6.4, H-6' [thioxo]); 7.58 (1H,
d, J = 8.6, H-8); 7.33 (1H, m, H-7 or H-4'); 7.15 (1H, m, H-7 or H-4'); 7.01 (1H, d, J = 8.9, H-3'); 6.88 (1H, m,
H-6 or H-5'); 6.75 (1H, m, H-6 or H-5'); 4.43 (2H, q, J = 7.1, CH2); 2.9 (1H, br, OH); 4.43 (2H, t, J = 7.1 ,CH3).
Ethyl (2-Thioxopyridin-1(2H)-yl)acetate (1). The filtered benzene extract was washed with sodium
hydrogen carbonate solution, then twice with water, and dried over sodium sulfate. The extract was evaporated
to a volume of 20-25 ml and then cooled. The crystals formed were filtered off and washed with cod benzene to
1
give compound 1 (16.2 g, 67%); mp 71°C (benzene). H NMR spectrum (CDCl3), δ, ppm (J, Hz): 8.09 (1H, d,
J = 6.4, H-6); 7.48 (1H, d, J = 8.1, H-3); 7.38 (1H, m, H-4); 6.82 (1H, m, H-5); 5.26 (2H, s, NCH2); 4.16 (2H, q,
J = 7, OCH2); 1.21 (3H, t, J = 7, CH3).
In order to avoid the formation of the indolizine 3 and to obtain the pure ester 1 it is necessary to add the
sodium sulfide solution to the reaction mixture with a pH not exceeding 7 and the temperature should not exceed
30°C.
REFERENCES
1.
E. V. Babaev, A. A. Tsisevich, D. V. Al'bov, V. B. Rybakov, and L. A. Aslanov, Izvest. Akad. Nauk,
Ser. Khim., , 252 (2005).
2.
3.
4.
G. V. Boyd and P. H. Wright, J. Chem. Soc. (C), 1485 (1970).
H. Petride and D. Raileanu, Rev. Roum. Chim., 33, 729 (1988).
J. Liebscher and A. Hassoun, Synthesis, 10, 816 (1988).
5.
E. V. Babaev, J. Heterocycl. Chem., 37, 519 (2000).
6.
7.
8.
A. W. Erian, A. Konno, and T. Fuchigami, J. Org. Chem., 60, 7654 (1995).
B. Blank, N. W. DiTullio, A. J. Crog, and H. L. Saunders, J. Med. Chem., 21, 489 (1978).
H. Pauls and F. Krohnke, Chem. Ber., 109, 3653 (1976).
9.
A. Dainis, Austral. J. Chem., 25, 1549 (1972).
10.
R. A. Nugent and M. Murphy, J. Org. Chem., 52, 2206 (1987).
1075
