JOURNAL OF CHEMICAL RESEARCH 2017 295
Synthesis of metallophthalocyanines (4–12); general procedure
Electronic Supplementary Information

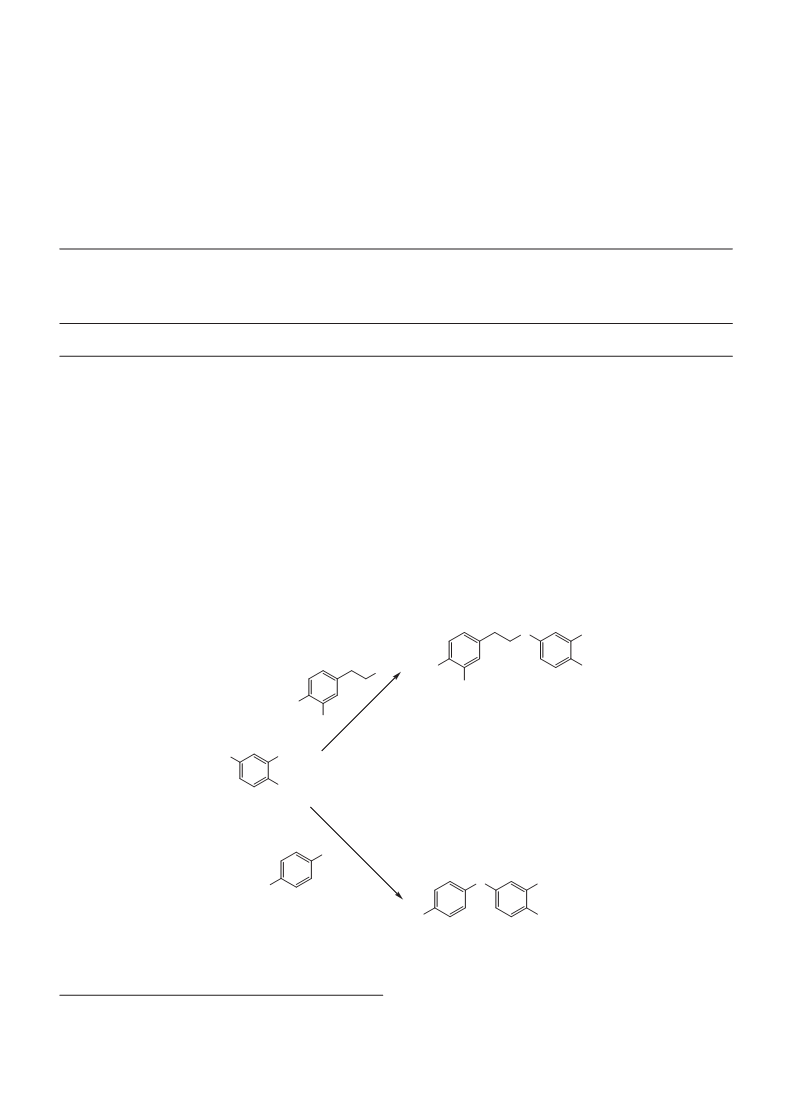

A mixture of desired phthalonitriles, compound 1 (0.073 g, 0.24 mmol)
or compound 2 (0.06 g, 0.24 mmol,), N,N-dimethylaminoethanol
(DMAE) (4 mL), DBU (1mL) and the corresponding metal salts
(0.06 mmol) were stirred at 150 °C for 24 h under N2. The progress
of the reaction was monitored by TLC. The mixture was left to
cool to r.t. then treated with ethylacetate to precipitate the product.
The crude product was collected by filtration and washed with
water, ethanol and ether, and then dried. The obtained green solid
product was purified by column chromatography (silica gel) with
chloroform:methanol (100:5) as the solvent system.
The ESI is available through:
stl.publisher.ingentaconnect.com/content/stl/jcr/supp-data
Received 11 February 2017; accepted 31 March 2017
Paper 1704596
Published online: 4 May 2017
References
Zn(II) phthalocyanine (4): White solid; m.p. 330 °C; yield 80%;
FTIR (KBr) (n cm−1): 3024 (C–Harom), 1387 (C–C), 1270 (C–N), 1607
(C=C), 1480 (C=N), 902 (Zn–N); 1H NMR (400 MHz, DMSO-d6): δ
3.75 (s, 4H, Hald), 6.87–7.72 (m, 16Harom), 3.1 (t, 3J = 6.00 Hz, 8H, H2¢),
4.32 (t, J = 6.20 Hz, 8H, H1¢); UV-Vis (DMF, λmax nm (log ε)): 636
(4.632), 697 (5.064), 343 (4.834). Anal calcd for C72H64N8O12Zn: C,
1
G. Waltera, B. Rudineb and C.J. Wamser, Porphyr. Phthalocyanines, 2010, 14,
759.
W. Wu, W. Wu, S, Ji, H. Guo, X. Wang and J. Zhao, Dyes Pigments, 2011, 89,
199.
I. Muzikante, V. Parra and R. Dobulans, Sensors, 2007, 7, 2984.
M. Kraus, S. Richler, A. Opitz and W. Brütting, J. Appl. Phys., 2010, 107, 94503.
B. Kahveci, S. Şazmaz and M. Özil, Turk. J. Chem., 2006, 30, 681.
H. Schultz, H. Lehman, M. Rein and M. Hanack, Structure and bonding,
SpringerVerlag, Heidelberg, 1992, p 41.
U. Drechsler, M. Hanack, J.L. Atwood, J.E.D. Davies, D.D. McNicolm and F.
Vögtle (eds), Comprehensive supramolecular chemistry, Pergamon, Oxford,
1996, Vol. 9, p 283.
2
3
3
4
5
6
66.58; H, 4.96; N, 8.62; found: C, 66.7; H, 5.2; N, 8.7%.
Ni(II) phthalocyanine (5): Elution solvent system:
chloroform:methanol (100:3); m.p. 330 °C; yield 76%; FTIR (KBr) (n
cm−1): 3020 (C–Harom), 1390 (C–C), 1272 (C–N), 1602 (C=C), 1482
7
1
(C=N), 903 (Ni–N); H NMR (400 MHz, DMSO-d6): δ 3.73 (s, 4H,
3
Hald), 6.85–7.71 (m, 16Harom); 3.2 (t, J = 6.00 Hz, 8H, H2¢); 4.31 (t,
8
9
M.K. Engel, P. Bassoul, L. Ossio, H. Lehmann, M. Hanack and M.J. Simon, Liq.
Cryst., 1993, 15, 709.
M. Burghard, M. Schmelzer, S. Roth, P. Haisch and M. Hanack, Langmuir,
1994, 10, 4265.
3J = 6.20 Hz, 8H, H1¢); UV-Vis (DMSO, λmax nm (log ε)): 614 (4.436),
675 (4.968), 332 (4.645). Anal calcd for C72H64N8O12Ni: C, 66.93; H,
4.99; N, 8.67; found: C, 66.7; H, 5.1; N, 8.8%.
Co(II) phthalocyanine (6): m.p. 325 °C; yield 82%; FTIR (KBr) (n
cm−1): 3020 (C–Harom), 1385 (C–C), 1269 (C–N), 1606 (C=C), 1479
(C=N), 902 (Co–N); UV-Vis (DMSO, λmax nm (log ε)): 614 (4.320),
690 (4.922), 331 (4.462). Anal calcd for C72H64N8O12Co: C, 66.91; H,
4.99; N, 8.67; found: C, 66.8; H, 5.1; N 8.7%.
Cu(II) phthalocyanine (7): m.p. 330 °C; yield 75%; FTIR (KBr) (n
cm−1): 3016 (C–Harom), 1382 (C–C), 1270 (C–N), 1604 (C=C), 1480
(C=N), 900 (Cu–N); UV-Vis (DMSO, λmax nm (log ε)): 622 (4.462),
708 (5.054), 334 (4.728). Anal calcd for C72H64N8O12Cu: C, 66.68; H,
4.97; N, 8.64; found: C, 66.7; H, 5.1; N 8.7%.
10 M.J. Cook, J. Mater. Chem, 1996, 6, 677.
11 S. Zhou , X. Jin, W. Hu, Y. Liu and S. Liu, Solid State Commun., 1999, 112, 269.
12 D.M. Pai and B.E. Springett, Rev. Mod. Phys., 1993, 65, 163.
13 R. Ao, L. Kümmert and D. Haarer, Adv. Mater, 1995, 7, 495.
14 A.B.P. Lever, M.R. Hempstead, C.C. Lezznoff, W. Liu, M. Melnik, W.A. Nevin
and P. Seymour, Pure Appl. Chem., 1986, 58, 1467.
15 B. Simic-Glavaski, Phthalocyanines: properties and applications, eds A.B.P.
Lever and C.C. Leznoff, VCH, New York, 1993, Vol. 3.
16 W. Aijian, L. Lingliang and C. Zhang, J. Incl. Phenom. Macrocycl. Chem.,
2011, 71, 1.
17 D. Dini and M. Hanack, The porphyrin handbook: physical properties of
phthalocyanine-based materials, eds K.M. Kadish, K.M. Smith and R. Guilard,
Academic Press, San Diego, CA, 2003, Vol. 17, p 22.
18 W. Aijian, L. Lingliang and C. Zhang, Tetrahedron, 2012, 68, 2433.
19 L. Guanghui, W. Aijian, S. Jingbao and Z. Qiang, Inorg. Chem. Commun., 2015,
57, 47.
20 A.S. Al-Ayed, Mediterr. J. Chem., 2016, 5, 632.
21 Z. Shen, Y. Masanori, G.D. Andrew, H. Briggs and P. Kyriakos, J. Am. Chem.
Soc., 2016, 138, 1313.
22 V. Alexander, E.B. Babkin, B.A. Zodbinov, A. Bulgakov, V. Kepman and V.
Avdeev, Eur. Polym. J., 2015, 66, 452.
23 R.K. Ali and K. Azam, Tetrahedron Lett., 2012, 53, 5223.
24 T. Hulya, O. Ahmet and H. Tuncer, Acta Crystallogr. E, 2012, 68, o565.
25 V. Nostrum, S.J. Picken, A.J. Schouten and R.J.M. Nolte, J. Am. Chem. Soc.,
1995, 117, 9957.
26 W. Wu, S. Ji, H. Guo, X. Wang and J. Zhao, Dyes Pigments, 2011, 89, 199.
27 A. Selcuk, A. Ahmet and B. Mustafa, Polyhedron, 2013, 49, 41.
28 Y. Gök, H. Kantekin, M. B. Kılıc and H. Aslan, Dyes Pigments, 2007, 74, 692.
29 H.A. Dinc, A. Gül and M.B. Koc, J. Porphyr. Phthalocya., 2004, 8, 1204.
30 D.D. Dominguez, A.W. Snow, J.S. Shirk and P.S. Pong, J. Porphyr. Phthalocya.,
2001, 5, 582.
31 M.N. Yaras, M. Kandaz, B.F. Senkal, A. Koca and B. Salih, Polyhedron, 2007,
26, 5235.
32 K. Güven, E. Yücel and F.Çetintaş, Pharm. Biol, 2006, 44, 79.
33 P.A. Wayne, National committee for clinical laboratory standards. Proposed
standard M38-P, 1998.
Zn(II) phthalocyanine (9): m.p. 315 °C; yield 75%; FTIR (KBr) (n
cm−1): 3015 (C–Harom), 1388 (C–C), 1228 (C–N), 1610 (C=C), 1476
1
(C=N), 905 (Zn–N); H NMR (400 MHz, DMSO-d6): δ 9.1 (s, 4H,
Hald), 6.81–7.82 (m, 28Harom); UV-Vis (DMSO, λmax nm (log ε)): 629
(4.541), 683 (4.986), 339 (4.673). Anal calcd for C60H32N8O8Zn: C,
68.09; H, 3.04; N, 10.58; found: C, 68.2; H, 3.1; N, 10.4%.
Ni(II) phthalocyanine (10): m.p. 320 °C; yield 95%; FTIR (KBr) (n
cm−1): 3016 (C–Harom), 1393 (C–C), 1234 (C–N), 1609 (C=C), 1480
1
(C=N), 910 (Ni–N); H NMR (400 MHz, DMSO-d6): δ 9.2 (s, 4H,
Hald), 6.85–7.85 (m, 28Harom); UV-Vis (DMSO, λmax nm (log ε)): 615
(4.159), 678 (4.943), 345 (4.617). Anal calcd for C60H32N8O8Ni: C,
68.52; H, 3.06; N, 10.65; found: C, 68.7; H, 3.1; N 10.7%.
Co(II) phthalocyanine (11): m.p. 330 °C; yield 74%; FTIR (KBr) (n
cm−1): 3015 (C–Harom), 1390 (C–C), 1236 (C–N), 1614 (C=C), 1475
(C=N), 900 (Co–N); UV-Vis (DMSO, λmax nm (log ε)): 615 (4.195),
686 (4.861), 334 (4.538). Anal calcd for C60H32N8O8Co: C, 68.51; H,
3.06; N, 10.65; found: C, 68.6; H, 3.1; N, 10.7%.
Cu(II) phthalocyanine (12): m.p. 315 °C; yield 80%; FTIR (KBr)
(n cm−1): 3017 (C–Harom), 1391 (C–C), 1231 (C–N), 1612 (C=C), 1478
(C=N), 910 (Cu–N); UV-Vis (DMSO, λmax nm (log ε)): 615 (4,195),
686 (4.861), 310 (4.238). Anal calcd for C60H32N8O8Cu: C, 68.21; H,
3.05; N, 10.60; found: C, 68.5; H, 3.2; N, 10.7%.
Acknowledgements
The authors would like to thank the Deanship of Scientific
Research at King Saud University for funding the work through
the research group project, no. PRG-1436-02.
34 D.D. Perrin and W.L.F. Armarego, Purification of laboratory chemicals,
Pergamon, Oxford, 1989.
35 G.J. Young and W.J. Onyebuagu, Org. Chem., 1990, 55, 2155.
