Fabrication of metal-organic framework and infinite coordination polymer nanosheets by the spray technique

Article abstract of DOI:10.1021/acs.langmuir.6b04353

We have developed a rapid and convenient method for fabricating metal-organic framework (MOF) and infinite coordination polymer (ICP) nanosheets by spraying the atomized solution of metal ions onto the organic ligand solution. Nanosheet formation could be attributed to the anisotropic diffusion of metal ions in the ligand solution, which may give rise to a lateral interface of metal ions and organic ligands, where the crystals tend to grow laterally in the form of nanosheets. Three kinds of Zn- and Cu-based MOF nanosheets and two kinds of Co-based ICP nanosheets have been successfully obtained by spraying under mild conditions. The two-dimensional structures of nanosheets with a nanometer thickness and a homogeneous size can be evidenced by scanning electron microscopy, atomic force microscopy, X-ray diffraction, Brunauer-Emmett-Teller, and Fourier transform infrared spectroscopy measurements. Furthermore, the fabricated ICP nanosheets have exhibited efficient catalytic performance for the conversion of CO₂ to high-value-added chemicals. This spray technique simplifies the nanosheet production process by industrialized means and enhances its controllability by the fast liquid-liquid interfacial fabrication, thus allowing access to the industrialized fabrication of MOF and ICP nanosheets. (Figure Presented).

Full text of DOI:10.1021/acs.langmuir.6b04353

Subscriber access provided by UNIV OF CALIFORNIA SAN DIEGO LIBRARIES
Article
Fabrication of Metal-Organic Framework and Infinite
Coordination Polymer Nanosheets by the Spray Technique
Yunong Li, Sha Wang, Yuan Zhou, Xiaojue Bai, Guoshuai Song,
Xueying Zhao, Tieqiang Wang, Xuan Qi, Xuemin Zhang, and Yu Fu
Langmuir, Just Accepted Manuscript • DOI: 10.1021/acs.langmuir.6b04353 • Publication Date (Web): 09 Jan 2017
Downloaded from http://pubs.acs.org on January 14, 2017
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Langmuir is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 18
Langmuir
1
2
3
4
5
6
7
8
9
Fabrication of MetalꢀOrganic Framework and Infinite
Coordination Polymer Nanosheets by the Spray Technique
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Yu-Nong Li,‡* Sha Wang,‡ Yuan Zhou, Xiao-Jue Bai, Guo-Shuai Song, Xue-Ying Zhao, Tie-
Qiang Wang, Xuan Qi, Xue-Min Zhang and Yu Fu*
College of Sciences, Northeastern University, Shenyang 110819, P. R. China
ABSTRACT: This manuscript has developed a rapid and convenient method to fabricate MOF
and ICP nanosheets by spraying the atomized solution of metal ions onto the organic ligands
solution. The nanosheets formation could be attributed to the anisotropic diffusion of metal ions
in the ligands solution, which may give rise to a lateral interface of metal ions and organic
ligands, where the crystals tend to grow laterally as the form of nanosheets. Three kinds of Zn
and Cuꢀbased MOF nanosheets and two kinds of Coꢀbased ICP nanosheets have been
ACS Paragon Plus Environment
1

Langmuir
Page 2 of 18
1
2
3
4
5
6
7
8
9
successfully obtained by spray in mild conditions. These twoꢀdimensional structure of
nanosheets with nanometer thickness and homogeneous size can be evidenced by the SEM,
AFM, XRD, BET and FTꢀIR measurements. Furthermore, the fabricated ICP nanosheets have
shown efficiently catalytic performance for the conversion of CO2 to high valueꢀadded
chemicals. This spray technique simplifies the nanosheets production process by the
industrialized means and enhance its controllability by the fast liquidꢀliquid interfacial
fabrication, thus opening up access to the industrialized fabrication for MOF and ICP nanosheets.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
INTRODUCTION
Over the past decades, metalꢀorganic frameworks (MOFs) and infinite coordination polymers
(ICPs) have attracted much attention due to their porous structures, channel functionalities and
structural tailorability, which leads to wide range potential applications.1ꢀ3 In particular, making
these materials into twoꢀdimensional (2D) nanosheets is highly desirable, on account of the
intriguing physical and chemical properties that are rarely present in bulk materials.4ꢀ5 In this
context, nanosheets are usually considered to be promising candidates for gas separation,6ꢀ7
energy storage (e.g. batteries, solar cells),8ꢀ9 chemical sensors,10 catalysis11ꢀ15 and other
application in the field of nanotechnology.16
In the structure of ICPs or MOFs, organic bridging ligands and inorganic connecting points
can build an infinite network extending isotropically in three dimensional space.1 Hence, it is
difficult to confine them in the 2D direction. With regard to ICP, the fabrication of ICP
nanosheets has rarely been reported so far,17ꢀ19 and the preparation of spherical ICP particles
are mostly focused on.20ꢀ22 As for MOF nanosheets, the fabrication approaches have been
developed mainly in two ways, which are topꢀdown exfoliation23ꢀ24 and bottomꢀup growth.25ꢀ26
ACS Paragon Plus Environment
2

Page 3 of 18
Langmuir
1
2
3
4
5
6
7
8
9
The topꢀdown exfoliation relies on the disintegration of bulk layered materials into singleꢀ or
multiꢀlayers with large lateral dimensions. However, the morphological damage, reꢀaggregation
and even the introduction of impurities in the exfoliation process are difficult to be avoided.5ꢀ6, 27
Therefore, plenty of efforts have been spent on the bottomꢀup growth strategy, which normally
produces nanosheets at their genesis by either enhancing the anisotropic crystal growth or
restricting the thermodynamically favored layer stacking.28 Recently, a novel bottomꢀup growth
strategy has been reported to prepare MOF nanosheets by threeꢀlayer method. In this system,
metal ions and organic ligands were respectively dissolved in the topmost and bottom solutions
and separated by the intermediate buffer solvent, forming three vertically arranged liquid layers.
The consequent diffusion of metal ions and linker ligands into the buffer segment caused the
growth of MOF crystals in the horizontal direction, yielding corresponding nanosheets.7
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Inspired by the threeꢀlayer mode, we have developed a rapid and convenient method to
fabricate MOF and ICP nanosheets by spraying the atomized solution of metal ions onto the
organic ligands solution as shown in Scheme 1. The atomization of the metal ion solution could
greatly recede the disturbance of the contact between the two reaction solutions. That may give
rise to a steady interface where the crystal would tend to grow in the lateral direction with
anisotropic diffusion, producing nanosheets without the need of buffer layer. As well known, the
spray is an easyꢀtoꢀhandle technique, and valuable for industrial applications, which always
works in combination with other manipulation as sprayꢀpyrolysis,29 plasmaꢀspray30 and sprayꢀ
drying.31ꢀ34 Uniquely, the nanoscale MOF with spherical hollow superstructures have been
successfully obtained via sprayꢀdrying.31 Herein, the spray technique could simplify the
nanosheets production process by the industrialized means and enhance its controllability by the
ACS Paragon Plus Environment
3

Langmuir
Page 4 of 18
1
2
3
4
5
6
liquidꢀliquid interfacial fabrication, which would pave a practical way for nextꢀstep
modifications and applications.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

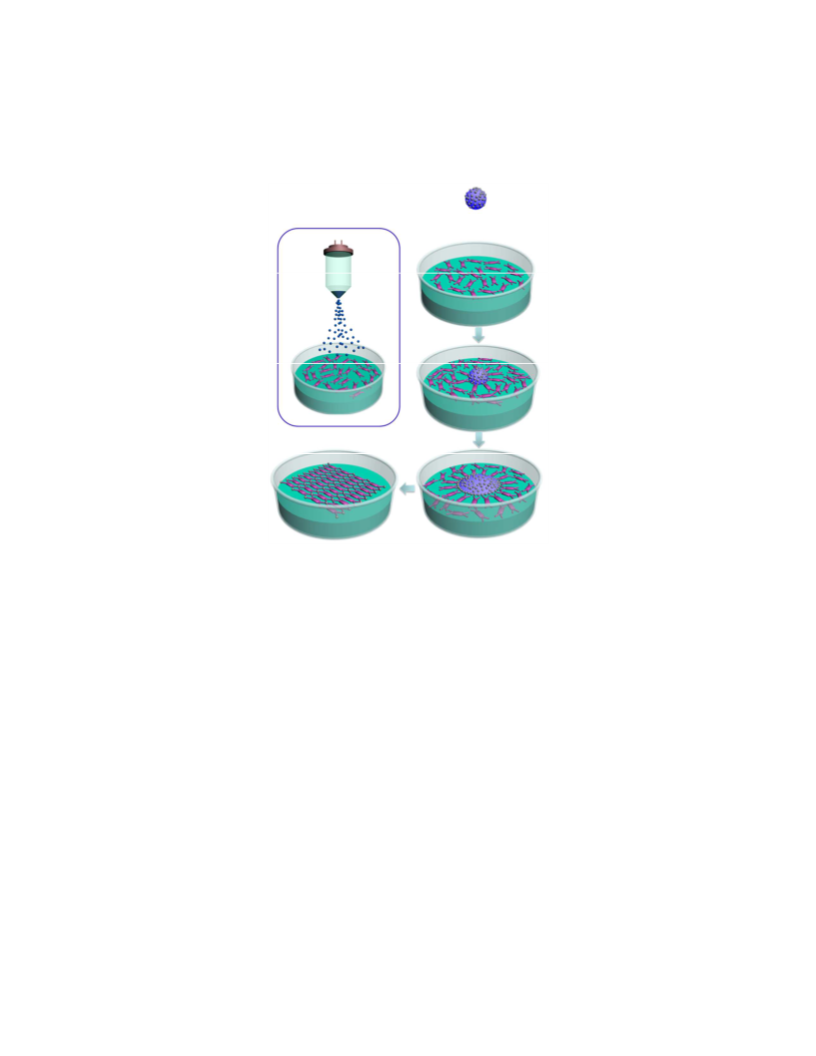

Scheme 1. The fabrication of MOF and ICP nanosheets by spray. Droplets, metal ions, ligands
are shown in blue, grey and pink, respectively.
EXPERIMENTAL SECTION
Materials. The feedstocks of (CH3COO)2M.XH2O (M= Cu, Zn, Co), 1,4ꢀ
benzenedicarboxylate acid (BDCA), 1,4ꢀnaphthalenedicarboxylate (NDCA), and 1,4ꢀ
diazabicyclo[2.2.2]octane (DABCO) were purchased from Alfa Aesar or Energy Chemical,
which were used without any further purification.
Preparation. Three kinds of MOF nanosheets including CuBDC (copper 1,4ꢀ
benzenedicarboxylate), Cu(1,4ꢀNDC) (copper 1,4ꢀnaphthalenedicarboxylate), ZnBDC (zinc
ACS Paragon Plus Environment
4

Page 5 of 18
Langmuir
1
2
3
4
5
6
7
8
9
1,4ꢀbenzenedicarboxylate) and two kinds of ICP nanosheets CoBDC (cobalt 1,4ꢀ
benzenedicarboxylate), Co2(BDC)2(DABCO) (BDC = 1,4ꢀbenzenedicarboxylate) can be
fabricated by spray in mild conditions. Generally, the fabrication process started with the
injection of metal ion solution into the spray nozzle by automatic injection pump, and then
underwent the ultrasonic atomization of metal ion solution to microdroplets at a certain rate.
Subsequently, the droplets containing the metal ions fell on the surface of the organic ligand
solution in the culture dish by spraying as shown in Scheme 1. Taking the CuBDC as an example,
30 mg of (CH3COO)2Cu was dissolved separately in a mixture of 10 mL of N,Nꢀdimethyl
formamide (DMF) and 5 mL of acetonitrile (CH3CN), and this (CH3COO)2Cu solution was
sprayed to the 1,4ꢀbenzenedicarboxylate acid (BDCA) solution (2 mg/mL, DMF:CH3CN = 1:2)
in the culture dish with the flow rate of 1 ꢀL/sec for 110 seconds. CH3CN worked as a suitable
miscible coꢀsolvent. Then, the instantly appeared precipitates could be distinctly observed at the
interface, which were simultaneously assembled to crystalline nanosheets. Subsequently, the
precipitates were directly collected by the glass substrate, followed by washing with DMF (1 mL)
and dichloromethane (1 mL) to afford the desired product. The optimum structures of CuBDC,
Cu(1,4ꢀNDC), ZnBDC, CoBDC and Co2(BDC)2(DABCO) nanosheets with nanometer thickness
and homogeneous sizes were obtained in the above method, also with the adjustion of the ions
concentrations. Thus, the optimum concentrations of feedstocks were respectively 2 mg/mL
(CH3COO)2Cu with 2 mg/mL BDCA for synthesizing CuBDC nanosheets, 0.9 mg/mL
(CH3COO)2Cu with 0.75 mg/mL NDCA for synthesizing Cu(1,4ꢀNDC) nanosheets, 2.2 mg/mL
(CH3COO)2Zn and 1.1 mg/mL BDCA for synthesizing ZnBDC nanosheets, 52.3 mg/mL
(CH3COO)2Co.4H2O with 34.9 mg/mL BDCA for synthesizing CoBDC nanosheets, and 52.3
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment
5

Langmuir
Page 6 of 18
1
2
(CH3COO)2Co.4H2O, 34.9 mg/mL BDCA with 23.4 mg/mL DABCO for synthesizing
Co2(BDC)2(DABCO) nanosheets.
3
4
5
6
7
8
9
Characterization. Nanosheets with nanometer thickness and homogeneous size have been
evidenced by the Scanning Electron Microscopy (SEM), Atomicꢀforce Microscopy (AFM), Xꢀ
ray diffraction (XRD), Brunauer Emmett Teller (BET) and Fourier Transform Infrared
Spectroscopy (FTꢀIR) measurements. The SEM images were taken with a JEOLJSMꢀ6700F
field emission scanning electron microscope (15 kV). The AFM images were collected using a
Bruker Dimension Icon equipped with ScanasystꢀAir peak force tapping mode AFM tips from
Bruker. The XRD patterns were recorded using a diffractometer (model D/maxꢀIIB, Rigaku
Co., Tokyo, Japan) in the 2θ range 20–60° using CuKα1 (λ= 1.5405 Å) radiation. The surface
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
area was calculated using a multipoint BET model. The total pore volume was estimated at a
relative pressure of 0.99, assuming full surface saturation with nitrogen. The IR spectra were
recorded on a Bruker Tensor 27 FTꢀIR spectrophoꢀtometer with KBr pellets.
RESULTS AND DISCUSSION

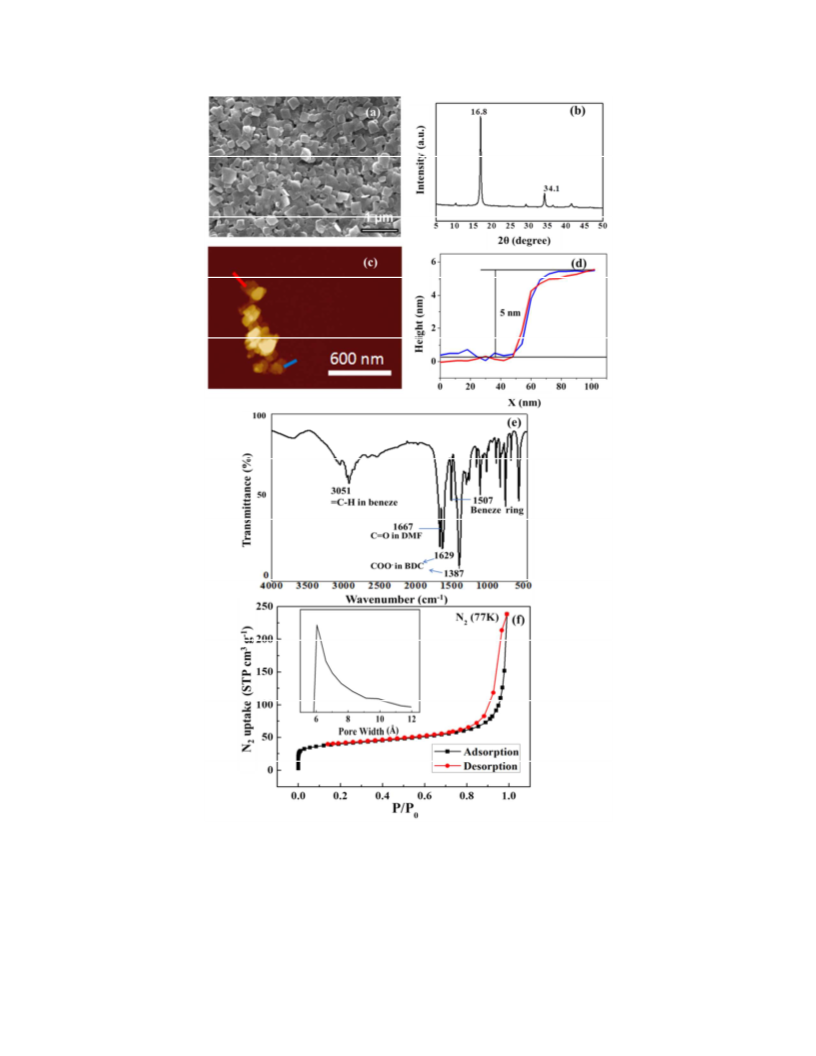

Using the spray technique described above, CuBDC nanosheets have been synthesized smoothly,
which are wellꢀdispersed and homogeneously distributed in small square shapes, demonstrated in
SEM image (Fig. 1a). In the AFM image, the square lamellae of CuBDC exhibits lateral
dimensions in the range of 220ꢀ440 nm with the thickness of 5 nm approximately (Fig. 1c and
1d). The CuBDC can be proven to be formed via the coordinated synthesis from FTꢀIR
spectroscopy (Fig. 1e). Characteristic peaks at 3051 and 1507 cmꢀ1 refer to CꢀH stretching
vibration absorption and ring vibration in beneze, respectively. The absorptions of 1629 and
1387 cmꢀ1 indicate the COOꢀ group.35ꢀ36 The XRD pattern of CuBDC gives only two reflections,
ACS Paragon Plus Environment
6

Page 7 of 18
Langmuir
1
2
3
4
5
6
7
8
9
the 2θ at 16.8o and 34.1o (Fig. 1b), being indexed as the (ꢀ201) and (ꢀ402) crystallographic planes
of the CuBDC structure, which can be detected from the peaks of CuBDCꢀMOF crytals.7 Besides,
no additional Bragg diffractions of the bulk counterpart are observed, showing agreements with
standards of 2D MOF structures. Through the cryogenic nitrogen physisorption/desorption and
BET analysis, CuBDC feature a specific surface area (SBET) of 130.1 m2 g-1 and an average
micropore size of 6.5ꢀ7 Å (Fig. 1f). The rapid N2 uptake observed at low relative pressure also
indicates the CuBDC to be the microporous MOF material. There is a H1ꢀtype hysteresis loop at
the high relative pressure (P/P0>0.8), probably owing to the interlaminar porosity between the
nanosheets, which is usually absent in the bulk solid.7
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment
7

Langmuir
Page 8 of 18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. Characterizations of CuBDCꢀMOF nanosheets fabricated by spray. (a) SEM image; (b)
XRD pattern; (c) AFM image; (d) The height profiles in colourꢀcoded red and blue tracks in
AFM image; (e) FTꢀIR spectrum; (f) N2 sorption isotherms and BET analysis.
ACS Paragon Plus Environment
8

Page 9 of 18
Langmuir
1
2
3
4
5
6
7
8
9

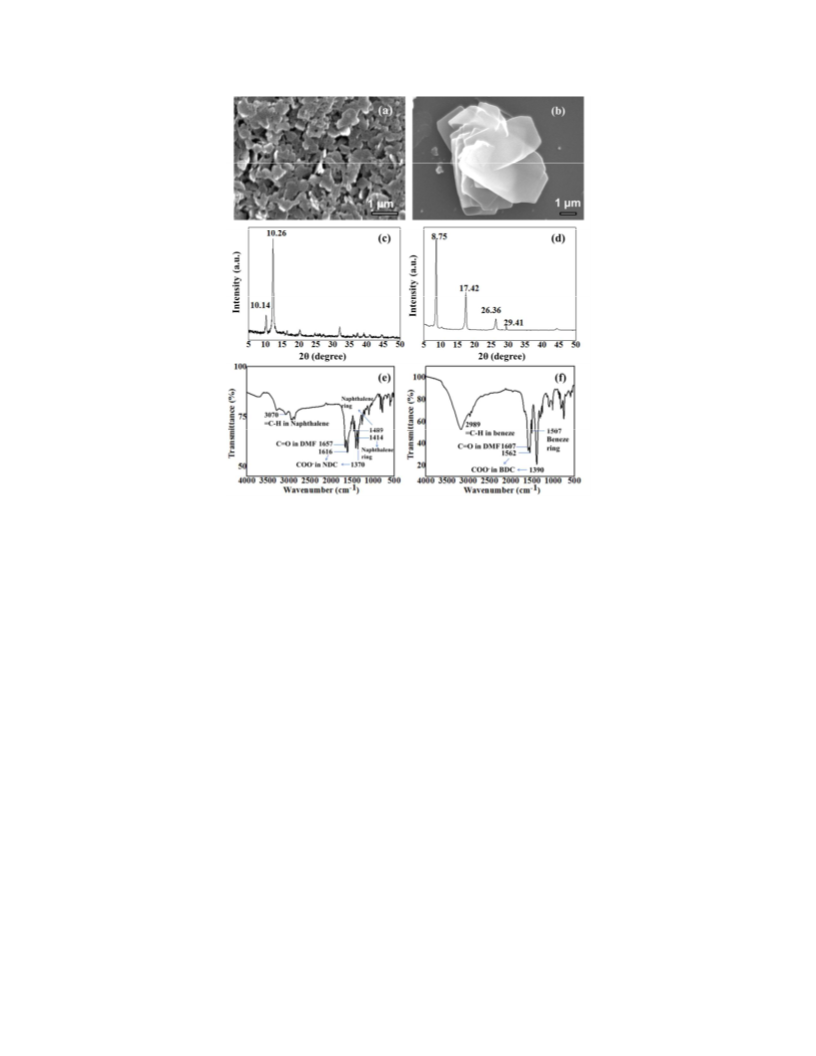

The ligand and metal center have also been varied to synthesize MOF nanosheets of Cu(1,4ꢀ
NDC) and ZnBDC. The ligand in the MOF may have great influence on the surface profile and
nanosheet distribution. When the ligand is changed to 1,4ꢀnaphthalenedicarboxylate acid,
Cu(1,4ꢀNDC) nanosheets become thick with round and swell edges (Fig. 2a). The appearances of
2θ at 10.14o, 12.26o in XRD measurement can confirm the product to be isostructural to the 2D
structure of Cu(1,4ꢀNDC) (Fig. 2c).7 The FTꢀIR spectrum shows the characteristic peaks of
COOꢀ group in Cu(1,4ꢀNDC) at 1616 and 1370 cm−1. Absorption peaks of naphthalene ring37 can
be observed at 3070, 1489 and 1414 cmꢀ1 (Fig. 2e). Compared with others, Zn(BDC) displays
the thinnest nanosheets and the largest pieces from 2 ꢀm×4.7 ꢀm to 3.6 ꢀm×5.3 ꢀm (Fig. 2b).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Interestingly, bulk ZnBDC named MOFꢀ5 has limited stability, which can be reversible
transformed into MOFꢀ5W and MOFꢀ5H when exposed to water for different exposure time.38 In
our XRD measurement of ZnBDC (Fig. 2d), the intensity of 2θ at 8.71o corresponds to the
special structure of MOFꢀ5W, and the three reflections 2θ at 8.71o, 17.42o and 26.36o support its
2D framework. In the FTꢀIR spectrum, signals at 1562 and 1390 cmꢀ1 can be assigned to C=O
bands in BDCꢀ group in ZnBDC. The peaks at 2989 and 1507 cmꢀ1 correspond to CꢀH stretching
vibration absorption and ring vibration in beneze, respectively (Fig. 2f). These characterizations
all suggest the successful synthesis of Cuꢀ and Znꢀbased MOF nanosheets.
ACS Paragon Plus Environment
9

Langmuir
Page 10 of 18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2. Characterizations of Cu(1,4ꢀNDC)ꢀMOF and ZnBDCꢀMOF nanosheets. Cu(1,4ꢀNDC):
SEM image (a), XRD pattern (c), FTꢀIR spectrum (e); ZnBDC: SEM image (b), XRD pattern
(d), FTꢀIR spectrum (f).

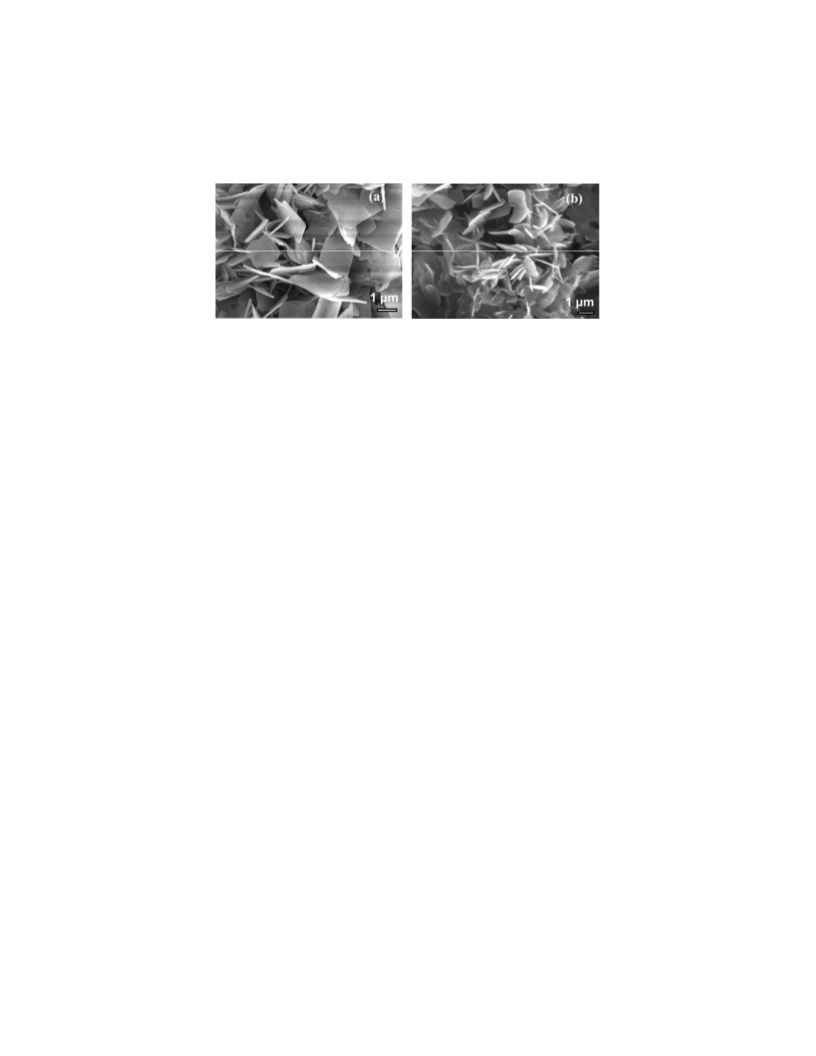

Employing the spray technique, we have also obtained Coꢀbased ICP nanosheets.
Remarkably, CoBDC nanosheets can be verified from the regular lamellaes and their thinner
transverse sections (Fig 3a). Adding DABCO into the metal ion solution before the spray step
can also fabricate Co2(BDC)2(DABCO) nanosheets, which closely weave andvertically and
insert into each other (Fig. 3b). Through the XRD analysis, we have found XRD patterns of
CoBDC and Co2(BDC)2(DABCO) nanosheets are totally different from the standards of bulk
MOFs. Nevertheless, both of CoBDC and Co2(BDC)2(DABCO) nanosheets have been proven
to be synthesized via coordination between the Co center and ligands according to the existing
ACS Paragon Plus Environment
10

Page 11 of 18
Langmuir
1
2
characteristic absorptions of COOꢀ, beneze and DABCO groups in the FTꢀIR spectra, which
supports their ICP structures.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3. SEM images of ICP nanosheets fabricated by spray. (a) CoBDC; (b)
Co2(BDC)2(DABCO).
In order to investigate the role of the spray technique, the direct mixing of the salt
(CH3COO)2Zn or (CH3COO)2Co solution with the ligand BDCA solution without the spraying
process has been carried out as the control experiments. However, the irregular bulks have been
obtained instead of MOFs or ICPs nanosheets, which conforms with the situation and the result
of the omission of the intermediate buffer layer in threeꢀlayer mode7, and further validates the
indispensable role of the spray technique in creating the nanosheet morphology in this work.
Basing on the experimental results and the related references,7, 31, 39ꢀ40 the possible mechanism of
nanosheets formation through spraying was illustrated in Scheme 1. When metal ions solution
was sprayed on the surface of the organic ligands solution, the droplets containing metal ions
were supposed to diffuse in the lateral direction rather than in the vertical one. Consequently,
metal ions would diffuse along with the lateral expansion of droplets and distribute evenly at the
interface. This procedure benefited the rapid interfacial contaction and reaction between metal
ions and organic ligands, thereby tending to generate the MOF or ICP nanometric crystals
quickly as the form of nanosheets in lateral directions. The rapid nanosheets fabrication could
largely rely on the fast reaction by employing the acetate salt (CH3COO)2M as the metal ion
ACS Paragon Plus Environment
11

Langmuir
Page 12 of 18
1
2
3
4
5
6
precursor, which would give high kinetic reaction rate due to the intrinsically protophilic weak
acid anion of CH3COOꢀ. Instead, using M(NO3)2 could not achieve the formation of
7
8
9
ꢀ
corresponding nanosheets. That is probably because NO3 may result in a hysteretic reaction,
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
whose occurrence would miss the opportunity of the lateral diffusion at the interface, yet be
carried out tardily with the followꢀup vertical diffusion, failing to afford the 2D structure.
Hence, this nanosheets fabrication process arises from the anisotropic diffusion, which is
strategically similar to the reported threeꢀlayer diffusion method. However, the spray approach
needs no buffer layer and has more advantages in combining with the industrialization
technology for nanosheets production depending on the fast interfacial synthesis.
With the nanosheets in hand, we also tried to develop their application in catalysis. The
coordination nanosheets with multiple Lewis acid centers, zeoliteꢀlike properties and 2D
structural features represent promising heterogeneous catalysts for some organic reactions.
Particularly, the cycloaddition of CO2 with epoxides to produce fiveꢀmembered cyclic
carbonates41ꢀ42 is of great significance for the utilization of waste gas CO2.43ꢀ44 In the
cycloaddition, the homogeneous catalysts usually have the limitation of hard separation and
o
high reaction temperatures (>100 C).41 Fortunately, using CoBDC nanosheets as the catalyst,
the phenyl epoxide 1 can be successfully converted 95% to selectively produce phenyl cyclic
carbonates 2 in the high yield of 85%, also affording little of byproducts phenylglycol 3
(Scheme 2). It is worth mentioning that the reaction conditions are extremely mild with the
atmospheric pressure of CO2 and the temperature of 70 oC, without any organic solvent, which
is difficult to implement in the previous cycloaddition (details see SI).
ACS Paragon Plus Environment
12

Page 13 of 18
Langmuir
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

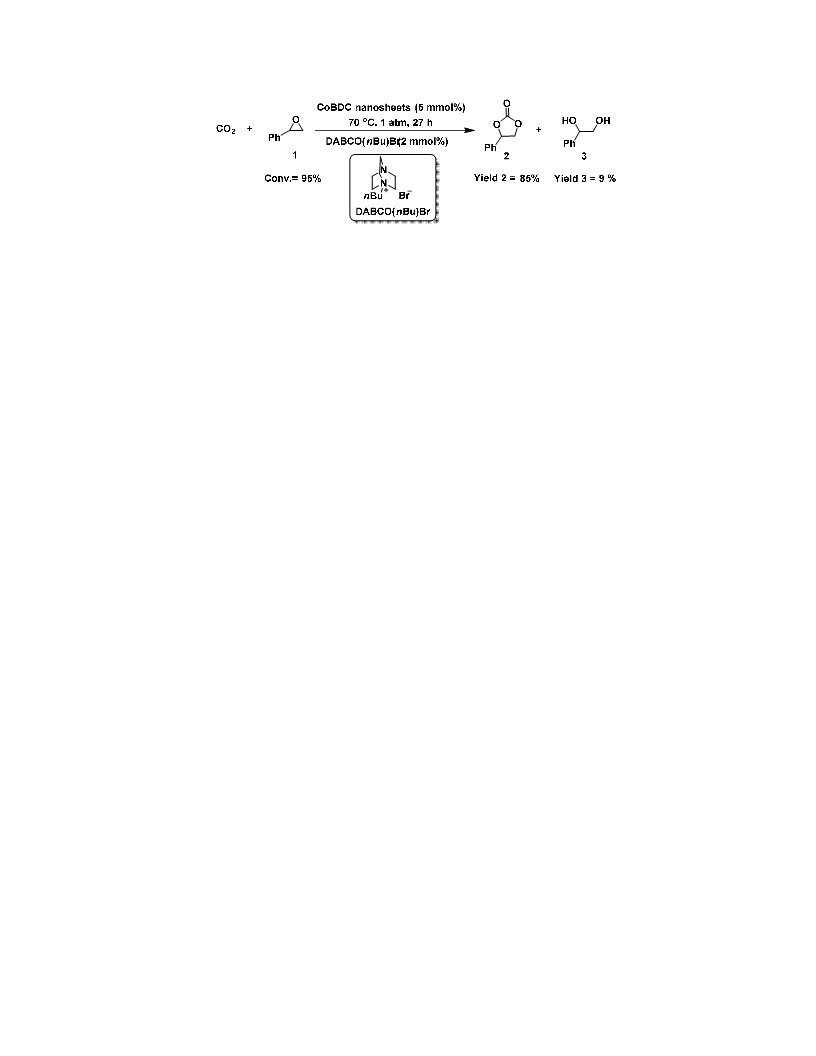

Scheme 2. CoBDC nanosheetsꢀcatalyzed cycloaddition of CO2 with epoxides.
CONCLUSION
In summary, we have developed a fast, economical and versatile spray method for the
fabrication of MOF and ICP nanosheets, which is applicable to the fabrication of a series of Cu,
Znꢀbased MOF nanosheets and Coꢀbased IPC nanosheets with different organic ligands. On the
basis of the anisotropic diffusion in the bottomꢀup strategy, the liquidꢀliquid interfacial synthesis
and the simultaneous lateral assembly of nanosheets have been readily achieved, dispensed with
the need of the buffer layer or the solid substrate during the nanosheets formation. Furthermore,
the fabricated ICP nanosheets also have efficiently catalytic performance for the conversion of
CO2 to high valueꢀadded chemicals under mild conditions. This spray approach opens up an
effective way for the MOF and ICP nanosheets fabrication by industralized means, potentially
beneficial for the further manipulations and applications. The researches on deeper insight of
synthetic mechanism as well as further utilization are ongoing.
ASSOCIATED CONTENT
Supporting Information
Instruments for catalytic conversion of CO2 and the characterization data of products.
AUTHOR INFORMATION
Corresponding Author
ACS Paragon Plus Environment
13

Langmuir
Page 14 of 18
1
2
3
4
*Eꢀmail: liyunong@mail.neu.edu.cn; fuyu@mail.neu.edu.cn.
5
6
7
Notes
8
9
The authors declare no competing financial interest.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
‡ These two authors contributed equally.
ACKNOWLEDGMENTS
The authors gratefully acknowledge the financial support from the National Natural Science
Foundation of China (Grant no. 21404021, 21503037, 51601032), the Doctoral Scientific
Research Foundation of Liaoning Province (20141013, 201501149), Fundamental Research
Funds for the Central Universities (N130205001, N150504004, N150504005, N140502001,
N142004001, N140503001) and the Open Project of the State Key Laboratory of Supra
molecular Structure and Materials (SKLSSM201609).
REFERENCES
(1) Ma, L.; Abney, C.; Lin, W. Enantioselective catalysis with homochiral metalꢀorganic
frameworks. Chem. Soc. Rev. 2009, 38 (5), 1248ꢀ1256.
(2) Spokoyny, A. M.; Kim, D.; Sumrein, A.; Mirkin, C. A. Infinite coordination polymer nanoꢀ
and microparticle structures. Chem. Soc. Rev. 2009, 38 (5), 1218ꢀ1227.
(3) Wang, S.; Morris, W.; Liu, Y.; McGuirk, C. M.; Zhou, Y.; Hupp, J. T.; Farha, O. K.; Mirkin,
C. A. Surfaceꢀspecific functionalization of nanoscale metalꢀorganic frameworks. Angew. Chem.
2015, 127 (49), 14951ꢀ14955.
(4) Novoselov, K. S.; Geim, A. K.; Morozov, S. V.; Jiang, D.; Zhang, Y.; Dubonos, S. V.;
Grigorieva, I. V.; Firsov, A. A. Electric field effect in atomically thin carbon films. Science 2004,
306 (5696), 666ꢀ669.
(5) Li, P.ꢀZ.; Maeda, Y.; Xu, Q. Topꢀdown fabrication of crystalline metalꢀorganic framework
nanosheets. Chem. Commun. 2011, 47 (29), 8436ꢀ8438.
(6) Peng, Y.; Li, Y.; Ban, Y.; Jin, H.; Jiao, W.; Liu, X.; Yang, W. Metalꢀorganic framework
nanosheets as building blocks for molecular sieving membranes. Science 2014, 346 (6215),
ACS Paragon Plus Environment
14

Page 15 of 18
Langmuir
1
2
3
4
1356ꢀ1359.
5
6
7
8
(7) Rodenas, T.; Luz, I.; Prieto, G.; Seoane, B.; Miro, H.; Corma, A.; Kapteijn, F.; Llabrés i
Xamena, F. X.; Gascon, J. Metalꢀorganic framework nanosheets in polymer composite materials
for gas separation. Nat. Mater. 2015, 14 (1), 48ꢀ55.
9
(8) Liu, Q.; Low, Z.ꢀX.; Feng, Y.; Leong, S.; Zhong, Z.; Yao, J.; Hapgood, K.; Wang, H. Direct
conversion of twoꢀdimensional ZIFꢀL film to porous ZnO nanoꢀsheet film and its performance as
photoanode in dyeꢀsensitized solar cell. Micropor. Mesopor. Mat. 2014, 194, 1ꢀ7.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(9) Yan, C. S.; Gao, H. Y.; Le Gong, L.; Ma, L. F.; Dang, L. L.; Zhang, L.; Meng, P. P.; Luo, F.
MOF surface method for the ultrafast and oneꢀstep generation of metalꢀoxideꢀNP@MOF
composites as lithium storage materials. J Mater. Chem. A 2016, 13603ꢀ13610.
(10) Yang, L.ꢀZ.; Wang, J.; Kirillov, A. M.; Dou, W.; Xu, C.; Fang, R.; Xu, C.ꢀL.; Liu, W.ꢀS. 2D
lanthanide MOFs driven by a rigid 3,5ꢀbis(3ꢀcarboxyꢀphenyl)pyridine building block:
solvothermal syntheses, structural features, and photoluminescence and sensing properties.
CrysteEngcomm 2016, 18 (34), 6425ꢀ6436.
(11) Lee, J.; Farha, O. K.; Roberts, J.; Scheidt, K. A.; Nguyen, S. T.; Hupp, J. T. Metalꢀorganic
framework materials as catalysts. Chem. Soc. Rev. 2009, 38 (5), 1450ꢀ1459.
(12) Zhang, Z.; Chen, Y.; He, S.; Zhang, J.; Xu, X.; Yang, Y.; Nosheen, F.; Saleem, F.; He, W.;
Wang, X. Hierarchical Zn/NiꢀMOFꢀ2 nanosheetꢀassembled hollow nanocubes for
multicomponent catalytic reactions. Angew. Chem. 2014, 126 (46), 12725ꢀ12729.
(13) Liu, J.; Chen, L.; Cui, H.; Zhang, J.; Zhang, L.; Su, C.ꢀY. Applications of metalꢀorganic
frameworks in heterogeneous supramolecular catalysis. Chem. Soc. Rev. 2014, 43 (16), 6011ꢀ
6061.
(14) Lin, W.; Rieter, W. J.; Taylor, K. M. L. Modular synthesis of functional nanoscale
coordination polymers. Angew. Chem. Int. Ed. 2009, 48 (4), 650ꢀ658.
(15) Rieter, W. J.; Pott, K. M.; Taylor, K. M. L.; Lin, W. Nanoscale coordination polymers for
platinumꢀbased anticancer drug delivery. J. Am. Chem. Soc. 2008, 130 (35), 11584ꢀ11585.
(16) Xu, D.; Zhang, D.; Zou, H.; Zhu, L.; Xue, M.; Fang, Q.; Qiu, S. Guidance from an in situ
hot stage in TEM to synthesize magnetic metal nanoparticles from a MOF. Chem. Commun.
2016, 52 (69), 10513ꢀ10516.
(17) Li, G.ꢀR.; Xie, C.ꢀC.; Shen, Z.ꢀR.; Chang, Z.; Bu, X.ꢀH. Cobalt oxide 2D nanoꢀassemblies
from infinite coordination polymer precursors mediated by a multidentate pyridyl ligand. Dalton
Trans. 2016, 45 (18), 7866ꢀ7874.
(18) Jin, L.ꢀN.; Liu, Q.; Yang, Y.; Fu, H.ꢀG.; Sun, W.ꢀY. Largeꢀscale preparation of indiumꢀbased
infinite coordination polymer hierarchical nanostructures and their good capability for water
treatment. J. Colloid Interf. Sci. 2014, 426, 1ꢀ8.
(19) Hu, M.; Ishihara, S.; Yamauchi, Y. Bottomꢀup synthesis of monodispersed singleꢀcrystalline
cyanoꢀbridged coordination polymer nanoflakes. Angew. Chem. Int. Ed. 2013, 52 (4), 1235ꢀ1239.
ACS Paragon Plus Environment
15

Langmuir
Page 16 of 18
1
2
3
4
5
6
(20) Sun, X.; Dong, S.; Wang, E. Coordinationꢀinduced formation of submicrometerꢀscale,
monodisperse, spherical colloids of organicꢀinorganic hybrid materials at room temperature. J.
Am. Chem. Soc. 2005, 127 (38), 13102ꢀ13103.
7
8
(21) Oh, M.; Mirkin, C. A. Chemically tailorable colloidal particles from infinite coordination
9
polymers. Nature 2005, 438 (7068), 651ꢀ654.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(22) Oh, M.; Mirkin, C. A. Ion exchange as a way of controlling the chemical compositions of
nanoꢀ and microparticles made from infinite coordination polymers. Angew. Chem. 2006, 118
(33), 5618ꢀ5620.
(23) AmoꢀOchoa, P.; Welte, L.; GonzalezꢀPrieto, R.; Sanz Miguel, P. J.; GomezꢀGarcia, C. J.;
MateoꢀMarti, E.; Delgado, S.; GomezꢀHerrero, J.; Zamora, F. Single layers of a multifunctional
laminar Cu(I,II) coordination polymer. Chem. Commun. 2010, 46 (19), 3262ꢀ3264.
(24) Tan, J.ꢀC.; Saines, P. J.; Bithell, E. G.; Cheetham, A. K. Hybrid nanosheets of an inorganic–
organic framework material: facile synthesis, structure, and elastic properties. Acs Nano 2011, 6
(1), 615ꢀ621.
(25) Kondo, A.; Tiew, C. C.; Moriguchi, F.; Maeda, K. Fabrication of metalꢀorganic framework
nanosheets and nanorolls with Nꢀdonor type bridging ligands. Dalton Trans. 2013, 42 (43),
15267ꢀ15270.
(26) Makiura, R.; Usui, R.; Sakai, Y.; Nomoto, A.; Ogawa, A.; Sakata, O.; Fujiwara, A. Towards
rational modulation of inꢀplane molecular arrangements in metalꢀorganic framework nanosheets.
ChemPlusChem 2014, 79 (9), 1352ꢀ1360.
(27) Foster, J. A.; Henke, S.; Schneemann, A.; Fischer, R. A.; Cheetham, A. K. Liquid exfoliation
of alkylꢀether functionalised layered metalꢀorganic frameworks to nanosheets. Chem. Commun.
2016, 52 (69), 10474ꢀ10477.
(28) Hu, G.; Wang, N.; O'Hare, D.; Davis, J. Oneꢀstep synthesis and AFM imaging of
hydrophobic LDH monolayers. Chem. Commun. 2006, (3), 287ꢀ289.
(29) Ravichandran, K.; Philominathan, P. Fabrication of antimony doped tin oxide (ATO) films
by an inexpensive, simplified spray technique using perfume atomizer. Mater. Lett. 2008, 62 (17–
18), 2980ꢀ2983.
(30) Tummala, R.; Guduru, R. K.; Mohanty, P. S. Nanostructured Co3O4 electrodes for
supercapacitor applications from plasma spray technique. J. Power Sources 2012, 209, 44ꢀ51.
(31) CarnéꢀSánchez, A.; Imaz, I.; CanoꢀSarabia, M.; Maspoch, D. A sprayꢀdrying strategy for
synthesis of nanoscale metal–organic frameworks and their assembly into hollow
superstructures. Nat. Chem. 2013, 5 (3), 203ꢀ211.
(32) Cheow, W. S.; Li, S.; Hadinoto, K. Spray drying formulation of hollow spherical aggregates
of silica nanoparticles by experimental design. Chem. Eng. Res. Des. 2010, 88 (5–6), 673ꢀ685.
(33) Xu, H.; Tan, Z.; Abe, H.; Naito, M. Microcapsule assembly of singleꢀwalled carbon
nanotubes from sprayꢀdried hollow microspheres. J. Ceram. Soc. Jpn. 2011, 119 (1387), 180ꢀ
ACS Paragon Plus Environment
16

Page 17 of 18
Langmuir
1
2
3
4
184.
5
6
7
8
(34) Maas, S. G.; Schaldach, G.; Littringer, E. M.; Mescher, A.; Griesser, U. J.; Braun, D. E.;
Walzel, P. E.; Urbanetz, N. A. The impact of spray drying outlet temperature on the particle
morphology of mannitol. Powder Technol. 2011, 213 (1–3), 27ꢀ35.
9
(35) Rostamnia, S.; Alamgholiloo, H.; Liu, X. Pdꢀgrafted open metal site copperꢀbenzeneꢀ1,4ꢀ
dicarboxylate metal organic frameworks (CuꢀBDC MOF’s) as promising interfacial catalysts for
sustainable Suzuki coupling. J. Colloid Interf. Sci. 2016, 469, 310ꢀ317.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(36) Yang, J.; Lutz, M.; Grzech, A.; Mulder, F. M.; Dingemans, T. J. Copperꢀbased coordination
polymers from thiophene and furan dicarboxylates with high isosteric heats of hydrogen
adsorption. CrysteEngcomm 2014, 16 (23), 5121ꢀ5127.
(37) Choi, I.ꢀH.; Kim, Y.; Lee, D. N.; Huh, S. Threeꢀdimensional cobalt(II) and cadmium(II)
MOFs containing 1,4ꢀnaphthalenedicarboxylate: Catalytic activity of CdꢀMOF. Polyhedron
2016, 105, 96ꢀ103.
(38) Rodriguez, N. A.; Parra, R.; Grela, M. A. Structural characterization, optical properties and
photocatalytic activity of MOFꢀ5 and its hydrolysis products: implications on their excitation
mechanism. RSC Adv. 2015, 5 (89), 73112ꢀ73118.
(39) Makiura, R.; Motoyama, S.; Umemura, Y.; Yamanaka, H.; Sakata, O.; Kitagawa, H. Surface
nanoꢀarchitecture of a metalꢀorganic framework. Nat. Mater. 2010, 9 (7), 565ꢀ571.
(40) Ameloot, R.; Vermoortele, F.; Vanhove, W.; Roeffaers, M. B. J.; Sels, B. F.; De Vos, D. E.
Interfacial synthesis of hollow metalꢀorganic framework capsules demonstrating selective
permeability. Nat. Chem. 2011, 3 (5), 382ꢀ387.
(41) Song, J.; Zhang, Z.; Hu, S.; Wu, T.; Jiang, T.; Han, B. MOFꢀ5/nꢀBu4NBr: an efficient
catalyst system for the synthesis of cyclic carbonates from epoxides and CO2 under mild
conditions. Green Chem. 2009, 11 (7), 1031ꢀ1036.
(42) Barthel, A.; Saih, Y.; Gimenez, M.; Pelletier, J. D. A.; Kuhn, F. E.; D'Elia, V.; Basset, J.ꢀM.
Highly integrated CO2 capture and conversion: direct synthesis of cyclic carbonates from
industrial flue gas. Green Chem. 2016, 18 (10), 3116ꢀ3123.
(43) Li, Y.ꢀN.; Diao, Z.ꢀF.; He, L.ꢀN.; Yang, Z.ꢀZ. Carbon capture with simultaneous activation
and its subsequent transformation. Adv. Inorg. Chem. 2014, 66 (9), 289ꢀ345.
(44) Sakakura, T.; Choi, J. C.; Yasuda, H. Transformation of carbon dioxide. Chem. Rev. 2007,
107 (6), 2365ꢀ2387.
ACS Paragon Plus Environment
17

Langmuir
Page 18 of 18
1
2
3
4
5
6
7
8
9
Fabrication of MetalꢀOrganic Framework and Infinite
Coordination Polymer Nanosheets by the Spray Technique
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Yu-Nong Li,‡* Sha Wang,‡ Yuan Zhou, Xiao-Jue Bai, Guo-Shuai Song, Xue-Ying Zhao, Tie-
Qiang Wang, Xuan Qi, Xue-Min Zhang and Yu Fu*
College of Sciences, Northeastern University, Shenyang 110819, P. R. China
A rapid and convenient spray method has been developed to fabricate metalꢀorganic framework
and infinite coordination polymer nanosheets by the fast liquidꢀliquid interfacial fabrication on
the basis of anisotropic diffusion.
ACS Paragon Plus Environment
18
