ACCEPTED MANUSCRIPT
A pH-SENSITIVE DRUG CARRIER BASED ON MALEIC ACID-SUBSTITUTED
CYCLOTRIPHOSPHAZENE
Jinjun Qiu1*, Yu Wang1, Yuanyuan Liu1, Min Zhang2, Zhangxin Wu1, Chengmei Liu1
1. School of Chemistry and Chemical Engineering, Huazhong University of Science and
Technology, Wuhan, 430074, P.R. China.
2. Department of Material Science and Engineering, Northwestern University, Evanston, IL
60208, USA.
Correspondence to: Jinjun Qiu (E-mail: qiujj@hust.edu.cn, Tel: 86-27-87559627, Fax: 86-27-
87543632)
Abstract The cyclotriphosphazene derivative N3P3[OC6H4-p-CH2O(CO)CH=CH(CO)OH]6
bearing maleic acid groups was synthesized and characterized by NMR, FTIR spectroscopy and
MS. A cross-linked network was produced by free radical copolymerization of this phosphazene
derivative with N-vinyl-2-pyrrolidone. Swelling experiments indicated that the cross-linked
network was highly sensitive to pH environments. In-vitro release studies have been performed
in 2.0 and 7.4 pH media to simulate gastric and intestinal conditions. The results indicated a
dependence on the pH of the release media and extent of crosslinking.
1
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Keywords Cyclotriphosphazene; pH-controlled release; cross-linker; swelling; maleic acid
2
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
INTRODUCTION
Phosphazenes are a class of compounds having chemical structures based on repetitive
P=N units. The class includes cyclic derivatives with three or four such units and polymers with
a linear or branched skeletal structure. Phosphazenes have recently received a great deal of
attention as potential biomaterials due to their synthetic flexibility,[1] high biocompatibility and
distinctive degradation property.[2] The synthetic flexibility of phosphazenes has enabled the
development of a wide range of phosphazene derivatives with a variety of physiochemical and
biological properties. The degradable phosphazenes release phosphate, ammonia from the
backbone and free organic side groups through hydrolysis reactions.[3] The produced phosphate
can be metabolized and the ammonia excreted [2] The phosphate-ammonia solution creates a
nearly neutral, pH-buffered medium. Blending a poly(α-hydroxyester) with a polyphosphazene
provides a viable improvement to biomaterials based on acid-releasing organic polymers because
the degradation products of the polyphosphazene neutralizes the acidic degradation products of
the poly(α-hydroxyester).[3-7] Moreover, the degradation rate of the phosphazene can be tuned by
choosing various side groups or changing co-substituent ratios.[2, 8]
Much research has been focused on developing polyphosphazenes for the purpose of tissue
engineering and drug carrier applications.[7, 9-14] However, it is difficult to control exactly and
reproducibly the purity and molecular weight of polyphosphazene because organic reactions
carried out on polymer side groups are nearly always more challenging than on small molecules.
Small molecule model cyclophosphazene reactions usually were carried out for providing a basis
to plan the substitution reactions of poly(dichlorophosphazene).[10, 15-17]. The purity and
molecular weight of the cyclophosphazene derivatives are easy to control, and thus reduce the
3
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
difficulty of synthesis. In this regard, design and synthesis of cyclophosphazene derivatives for
the purpose of biomedical applications are preferable.
Remarkable progress has been achieved in recent decades in the synthesis and application
of cyclotriphosphazenes for biomedical applications. A variety of novel cyclotriphosphazene
derivatives, such as cyclotriphosphazenes containing vitamins,[16] oligopeptides,[18-20] drugs,[21-
24], amino acids[15] and amino acid esters[25], or which can take on the form of hydrogels,[21-22, 25]
micelles[19-20] or microspheres, has been developed.[24]
In this paper, we describe a new kind of degradable cyclophosphazene derivative,
N3P3[OC6H4-p-CH2O(CO)CH=CH(CO)OH]6 (HMCP, Scheme 1), which can be used as a cross-
linker to form a three-dimensional network. Maleic acid side groups provide double bonds that
act as the cross-linking sites. Although maleic acid does not homopolymerize because of the
polar effects, copolymerizations of this compound are possible.[26] The phosphazene backbone
and the ester group provide hydrolytic instability. The ionization of carboxyl groups imparts
water solubility and the capacity of forming a dual cross-link system with bivalent metallic ions.
In this study, we investigated the cross-linking reaction of HMCP with N-vinyl-2-pyrrolidone
(NVP) (Scheme 2) and the pH sensitive performances of the formed HMCP-NVP network.
Preliminary results on the HMCP-NVP network as pH-dependent drug controlled release matrix
are also reported.
RESULTS AND DISCUSSION
Synthesis and characterization of HMCP
4
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
HMCP was synthesized according to Scheme 1. DMAP was used as a MA ring-opening
reaction catalyst for improving the yield. The oily product was purified by re-precipitation into
diethyl ether, no further purification measures were taken.
The structure of the HMCP was confirmed with 1H, 13C, 31P NMR, FTIR spectroscopy, and
MS. The 1H NMR spectrum (Fig. S1 in the Supplemental materials SM) of the HMCP showed a
singlet at 5.16 ppm for methylene protons (ArCH2O). The multiplets at 6.38-6.43 ppm were
assigned to the ethenyl protons (CH=CH). Resonances appearing at 6.90-6.87ppm and 7.30-7.32
ppm were assigned to the aromatic protons. In the corresponding 13C NMR spectrum (Fig. S2 in
the SM), the carbonyl carbon atoms of ester and carboxy groups were observed at 165.6 and
167.0 ppm, respectively. The double bond carbon (C=C) resonated at 130.2 and 132.5 ppm. 13C
NMR spectra of the methylene groups showed resonance at 65.9. Other chemical shifts (ppm)
were assigned to the aromatic carbon resonances: 150.2 (CO), 133.2 (C), 128.6 (CH), 120.9
(CH). In the 31P NMR spectrum of HMCP (Fig. S3 in the SM), a singlet appearing at 8.91ppm
indicated that the substituted reaction onto CP ring was complete. In the FTIR spectrum of
HMCP (Fig. S4 in the SM), the characteristic absorption bands due to the maleic acid moiety
were observed at 1735 cm−1 (C=O stretching vibration), 1643 cm−1 (C=C stretching vibration),
3000-2500 cm−1 (OH stretching vibration), 1198 cm−1 (symmetric stretching of C-O-C), 1417
cm−1 (asymmetric bending of CH2). The wave numbers from 700 to 900 cm−1 and at 1507 cm−1
are assigned to the disubstituted benzene ring. Two strong absorption peaks located at 957 cm−1
and 1163 cm−1 are due to stretching of P-O-Ar and N=P, respectively. The MALDI-TOF mass
spectrum confirmed the expected chemical composition with a m/z value of 1484.18,
corresponding to the (M+Na)+ ion.
5
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Crosslinking reaction and compressive testing
The cross-linked network of HMCP-NVP was prepared in the composition as listed in
Table 1. Upon the HMCP, NVP and free radical initiator mixing and increasing the temperature
to 37 °C, the solutions will rapidly solidify in 10 min due to the free radical polymerization
mechanism (Scheme 2). The specimens were kept at 37 °C for 24 h in order to get a complete
reaction of the monomer. The extent of cross-linking of HMCP-NVP network was evaluated by
compressive testing. The compressive strength at yield, fracture strength and compressive
modulus of the cross-linked specimens were measured (Table 1). An increase in HMCP provided
more cross-linking points and resulted in shorter poly NVP cross-links, which created a more
densely cross-linked polymeric network. Therefore, an increase in the HMCP/NVP ratio resulted
in an increase in compressive strength at yield, compressive modulus, and fracture strength. The
compressive strengths and compressive modulus of the sample with equal HMCP and NVP in
mass were 11.5 MPa and 215.2 MPa, values which were closer to those of human cancellous
bone.[27] Therefore, the HMCP-NVP copolymer could be used as a potential injectable bone
repair material for replacing the non-degradable PMMA bone cement. Further improvement of
the mechanical property of the HMCP-NVP network may be brought about by reinforcement
with hydroxyapatite. Although the mechanical properties of specimens with low HMCP/NVP
ratio were insufficient for replacement of human bone, they hold promise for the engineering of
softer orthopedic tissues such as cartilage. The mechanical property study demonstrated the
feasibility of the cross-linked network with tailored mechanical properties by varying the
HMCP/NVP ratio.
Equilibrium swelling studies
6
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
The pH-dependent equilibrium swelling of the HMCP-NVP networks were studied both in
the simulated gastric and intestinal pH conditions using pH 2.0 and pH 7.4 phosphate buffer,
respectively (Fig. 1 and Fig. 2). The HMCP-NVP network swelled in pH 7.4 PBS but shrank in
pH 2.0 PBS. This different swelling behavior in acidic and neutral media clearly indicated that
the matrix was pH sensitive. The swelling ratio in water has a relation to extent of cross-linking
and the affinity of the matrix to water. At pH 7.4, the ionization of carboxyl groups increased the
hydrophilic nature of the matrix. The lowered intermolecular interaction force by the dissociation
of hydrogen bonds, together with the electrostatic repulsion between the ionized groups created a
large swelling force and brought about a significant swell. At pH 2.0, the deprotonated carboxyl
groups in HMCP decreased the hydrophilic nature of cross-linked network and lowered the
affinity of the matrix to water. Moreover, the hydrogen bond between carboxyl groups increased
the intermolecular interaction force, increasing the network shrink force. The unreacted
monomer and homopolymer of NVP dissolved into water under the shrink force, which led to the
shrinkage of the sample. The different crosslinking density also leads to differences in
equilibrium swelling. An equilibrium swelling of 71.2% was observed for samples with low
content of HMCP compared with 40.2% of samples with high content of HMCP in pH 7.4
media. In this research, HMCP played the role of a multifunctional cross-linker, so more cross-
linking structure should be formed as more HMCP was used, which resulted in the lowest
swelling ratio. At the same time, more cross-linking structure would decrease the formation of
water-soluble homopolymer of NVP, therefore lowered the shrink ratio of cross-linked samples
in pH 2.0 media.
pH-Sensitive drug release behaviors
7
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
To understand the drug release behaviors from the 5-FU-loaded HMCP-NVP cross-linked
network, in vitro release experiments were carried out under gastric and intestinal pH conditions.
5-FU loading concentration was 100 mg/g. The initial weight of the drug-loading sample was
0.1040±0.0011g. Fig. 3 and Fig. 4 showed that the release profiles of 5-FU from HMCP-NVP
network at pH 7.4 and pH 2.0 at 37 °C as a function of time. In general, it was found that the
HMCP-NVP network in neutral media had a shorter half drug release time. The percentage of
drug released increased with an increase in pH of PBS, within 1 h, 54.6% of 5-FU was released
from the samples with high crosslinking density (HMCP/NVP = 1.0/1.0) at pH 7.4 but 13.9% at
pH 2.0. This behavior showed that drug release profiles of HMCP-NVP network were pH-
sensitive.
The swelling characteristics of HMCP-NVP network have a significant influence on the
diffusion behavior of drug molecules through the matrix. At pH 7.4, the loose network due to the
swelling and the hydrophilic nature of matrix raised the permeation ability of the drug. On the
contrary, in acidic media, the compact matrix arising from the shrinking and the higher
hydrophobicity hindered the drug transport. The initial burst effect may be attributed to the
release of drug entrapped towards the surface of the matrix. For different formulations in the
same pH medium, as the ratio of HMCP/NVP increased, the HMCP-NVP had a longer half drug
release time due to the higher crosslinking density. To some extent, the release rate of 5-FU can
be tuned by the ratio of HMCP/NVP.
CONCLUSIONS
A new multifunctional cyclic trimeric phosphazene derivative containing maleic acid was
synthesized and a biodegradable HMCP-NVP cross-linked network based on this compound was
8
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
prepared by free radical polymerization. The mechanical property measurement suggested that
this network might find applications as injectable tissue engineering scaffolds. The equilibrium
swelling measurements and in vitro release behavior of 5-FU in simulated fluids indicated the pH
responsive nature of this network. The results implied that the HMCP-NVP network could be
exploited as potential drug carriers for the localized oral drug delivery to the gastric
environment.
The formation of HMCP-NVP network showed that the multifunctional cyclic trimeric
phosphazene was an effective network-forming molecule for the creation of degradable polymer
networks. It should be appropriate for crosslinking with any acrylate or other vinyl monomers by
free radical polymerization. By varying the vinyl monomer, it should be possible to get cross-
linked polymer materials with various properties and applications in biomedical field.
EXPERIMENTAL
Materials. Hexachlorocyclotriphosphazene was synthesized according to the literature,[28] and
was recrystallized from dry hexane followed by sublimation (60 °C, 0.05 mm Hg) before use.
Maleic anhydride (MA), 4-dimethylaminopyridine (DMAP), tetrahydrofuran (THF), NaBH4,
benzoyl peroxide (BPO), 4-hydroxybenzaldehyde, methanol, and K2CO3 were gained from
Sinopharm Chemical Reagent Co., Ltd., China. 4-Hydroxybenzaldehyde was purified by
recrystallization from water. K2CO3was dried at 140 °C. THF was freshly distilled under
nitrogen from sodium-benzophenone ketyl. NVP was purchased from Merck Company and
purified by distillation. N,N-Dimethyl-p-toluidine (DMT) was acquired from Acros. 5-
Fluorouracil (5-FU) was obtained from Tianjin Central Pharm. Co., Ltd.
9
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
N3P3(OC6H4-p-CHO)6 was prepared according to the literature[29] with minor modification. 4-
Hydroxybenzaldehyde (25.20 g, 0.206 mol) was dissolved in dry THF (300 mL). To this solution
was added K2CO3 (45.50 g, 0.33 mol). The mixture was stirred at room temp. for 30 min. A
solution of hexachlorocyclotriphosphazene (10.00 g, 0.0288 mol) in THF (50 mL) was added
drop-wise to the reaction mixture over 1h. After stirring at refluxing temperature for 48 h, the
reaction mixture was concentrated in a rotary evaporator and washed with 800 mL of water. The
crude product was then recrystallized from ethyl acetate to yield white crystalline N3P3(OC6H4-
p-CHO)6. Yield 77.5%, m. p. 160-162 °C. 1H NMR (DMSO-d6, TMS, ppm): 9.95(1H, CHO),
7.19-7.82(4H, dd, ArH). 13C NMR (DMSO-d6, TMS, ppm): 192.0 (C=O), 154.1 (C-O), 134.1
(C-C), 131.9 (CH), 121.5(CH). 31P NMR (DMSO-d6, ppm): 7.64.

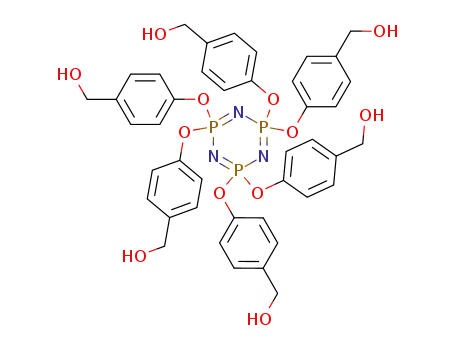

Reduction of N3P3(OC6H4-p-CHO)6 was carried out following the literature procedure[30] with
minor modification. N3P3(OC6H4-p-CHO)6 (6.00 g, 7 mmol) was dissolved in dry THF-methanol
(400 mL, 1:1). To this solution was added NaBH4 (1.70 g, 0.045 mol), and the mixture was
stirred at room temperature for 14 h. The solvent was evaporated by a rotary evaporator. The
residue was recrystallized from EtOH-H2O (9:1) to give 3.93 g white crystalline N3P3(OC6H4-p-
CH2OH)6. Yield 65.5%, m. p. 228~231 °C, 1H NMR (DMSO-d6, TMS, ppm): 7.21-6.80 (4H, dd,
ArH), 5.23 (1H, OH), 4.48-4.47 (2H, CH2). 13C NMR (DMSO-d6, TMS, ppm): 149.1 (C-O),
139.9 (C-C), 128.2 (CH), 120.6(CH), 62.8 (CH2). 31P NMR (DMSO-d6, ppm): 8.88.
N3P3[OC6H4-p-CH2O(CO)CH=CH(CO)OH]6. N3P3(OC6H4-p-CH2OH)6 (3.00 g, 3.44 mmol)
was added in 240 mL dry THF (240 mL). The mixture was refluxed until the formation of a
homogeneous solution. To this solution was added MA (3.03 g, 0.0309 mol) and DMAP in 60
mL THF over 30 min. After refluxing for 24 h, the reaction mixture was cooled and filtered. The
10
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
filtrate was concentrated with a rotary evaporator; the residue was purified by reprecipitation into
ethyl ether (three times) to yield 2.19 g yellowish oily product. Yield 43.6 %.
Characterization
The structure of the compounds was verified by solution-state 1H, 13C and 31P NMR
spectroscopy using a Bruker AV400 NMR spectrometer at a proton frequency of 400 MHz as
well as the corresponding phosphorus frequency at room temperature. FT-IR spectra were
recorded in KBr matrix using a Bruker VERTEX 70 spectrometer in the 4000–400 cm−1 range.
The molecular weight of N3P3[OC6H4-p-CH2O(CO)CH=CH(CO)OH]6 was analyzed using time-
off light mass spectroscopy with positive-mode electrospray ionization on a Bruker Daltonics
Inc. MALDI-TOF. Figures S 1 – S 4 (Supplemental Materials) provide sample NMR and FT-IR
spectra for HCMP
Crosslink reaction and compressive testing
The HMCP was dissolved in the appropriate amount of NVP. DMT was added into the
solution, followed by the BPO, which was dissolved in the remaining NVP. The mixture was
placed in the Teflon molds (Φ 6×12 mm). After a 24 h period at 37 C in order to get a complete
reaction of the monomer, the cylinders were removed. The mechanical properties were measured
according to ISO5833:2002(E) and carried out on a universal WDW-20 Electronic Materials
Testing System at room temperature. The cross-linked samples were compressed at a cross-head
speed of 1 mm min−1 until failure, with the stress versus strain curve recorded throughout. Five
replicate specimens were prepared for compression testing.
Swelling studies
11
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
The cross-linked samples (Φ4.5×5 mm) were incubated in 20 ml of 0.1M PBS with pH
was 7.4 or 2.0. The swelling study was carried out at 37 °C until equilibrium was attained. The
percentage equilibrium swelling was equal to [(Wt-W0)/W0]×100%, where W0 is the initial
weight and Wt is the weight of the sample at time t.
In vitro drug release studies
In order to incorporate a model drug into the system, the crosslinking reaction was
performed in the presence of the drug. In this work, a model drug, 5-FU, was mixed in the
monomer mixture at a concentration of 10 wt %. Upon polymerization, the network was formed
and the drug was trapped inside the matrix. The resulting samples were washed with distilled
water, dried, and stored until further use. The in-vitro release of the entrapped 5-FU was carried
out by placing the samples (Φ4.5×5 mm) into 20 ml of PBS with pH = 7.4 or 2.0 at 37 C and
shaken at 60 r.p.m. on an orbital shaker. At predetermined time points, the PBS medium was
replaced and tested at 265 nm using UV-VIS spectrophotometer (Shimadzu UV-2550).
Acknowledgement
We thank for the support from the National Science Foundation of China (50703013,
21274049) and the Fundamental Research Fund for Central Universities (2013QN159). We also
thank the Analytical and Testing Center of HUST for NMR and MS measurements.
12
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
REFERENCES
[1]
[2]
[3]
Gleria, M.; Jaeger, R. D. J. Inorg. Organomet. P. 2001, 11, 1-45.
Allcock, H. R.; Morozowich, N. L. Polym. Chem. 2012, 3, 578-590.
Deng, M.; Kumbar, S. G.; Wan, Y.; Toti, U. S.; Allcock, H. R.; Laurencin, C. T. Soft
Matter 2010, 6, 3119-3132.
[4]
[5]
[6]
[7]
Ambrosio, A. M. A.; Allcock, H. R.; Katti, D. S.; Laurencin, C. T. Biomaterials 2002, 23,
1667-1672.
Krogman, N. R.; Singh, A.; Nair, L. S.; Laurencin, C. T.; Allcock, H. R.
Biomacromolecules 2007, 8, 1306-1312.
Ibim, S. E. M.; Ambrosio, A. M. A.; Kwon, M. S.; El-Amin, S. F.; Allcock, H. R.;
Laurencin, C. T. Biomaterials 1997, 18, 1565-1569.
Deng, M.; Nair, L. S.; Nukavarapu, S. P.; Jiang, T.; Kanner, W. A.; Li, X.; Kumbar, S.
G.; Weikel, A. L.; Krogman, N. R.; Allcock, H. R.; Laurencin, C. T. Biomaterials 2010,
31, 4898-4908.
[8]
[9]
Nichol, J. L.; Hotham, I. T.; Allcock, H. R. Polym. Degrad. Stabil. 2014, 109, 92-96.
Nichol, J. L.; Morozowich, N. L.; Decker, T. E.; Allcock, H. R. J. Polym. Sci. Pol. Chem.
2014, 52, 2258-2265.
[10] Morozowich, N. L.; Nichol, J. L.; Mondschein, R. J.; Allcock, H. R. Polym. Chem. 2012,
3, 778-786.
[11] Sethuraman, S.; Nair, L. S.; El-Amin, S.; Nguyen, M.-T.; Singh, A.; Krogman, N.,
Greish, Y. E.; Allcock, H. R.; Brown, P. W.; Laurencin, C. T. Acta Biomater. 2010, 6,
1931-1937.
13
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
[12] Akram, M.; Wang, L.; Yu, H.; Amer, W. A.; Khalid, H.; Abbasi, N. M.; Chen, Y.; Zain
Ul; A., Saleem, M.; Tong, R. Prog. Polym. Sci. 2014,
http://10.1016/j.progpolymsci.2014.07.009.
[13] Ibim, S. M.;Ambrosio, A. A.; Larrier, D., Allcock, H. R.; Laurencin, C. T. J. Control.
Release. 1996, 40, 31-39.
[14] Deng, M.; Nair, L. S.; Nukavarapu, S. P.; Kumbar, S. G.; Jiang, T.; Weikel, A. L.;
Krogman, N. R.; Allcock, H. R.; Laurencin, C. T. Adv. Funct. Mater. 2010, 20, 2794-
2806.
[15] Weikel, A. L., Owens, S. G., Fushimi, T., Allcock, H. R. Macromolecules 2010, 43,
5205-5210.
[16] Morozowich, N. L.; Weikel, A. L.; Nichol, J. L.; Chen, C.; Nair, L. S.; Laurencin, C. T.;
Allcock, H. R. Macromolecules 2011, 44, 1355-1364.
[17] Weikel, A. L.; Krogman, N. R.; Nguyen, N. Q., Nair; L. S.; Laurencin, C. T.; Allcock, H.
R. Macromolecules 2009, 42, 636-639.
[18] Yu, J. Y.; Jun, Y. J.; Jang, S. H.; Lee, H. J.; Sohn, Y. S. J. Inorg. Biochem. 2007, 101,
1931-1936.
[19] Toti, U. S.; Moon, S. H.; Kim, H. Y.; Jun, Y. J.; Kim, B. M.; Park, Y. M.; Jeong, B.;
Sohn, Y. S. J. Control. Release 2007, 119, 34-40.
[20] Xu, J. Z.; Moon, S. H.; Jeong, B.; Sohn, Y. S. Polymers 2007, 48, 3673-3678.
[21] Cho, Y. W.; Lee, J.-R.; Song, S.-C. Bioconjugate Chem. 2005, 16, 1529-1535.
[22] Song, S.-C.; Lee, S. B.; Lee, B. H.; Ha, H.-W.; Lee, K.-T.; Sohn, Y. S. J. Control.
Release. 2003, 90, 303-311.
14
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
[23] Fantin, G.; Fogagnolo, M.; Gleria, M.; Medici, A.; Minto, F.; Pedrini, P. Tetrahedron
1996, 52, 9535-9540.
[24] Ozay, H.; Ozay, O. Colloids and Surfaces A: Physicochemical and Engineering Aspects
2014, 450, 99-105.
[25] Lee, S. B.; Song, S.-C.; Jin, J.-I.; Sohn, Y. S. J. Am. Chem. Soc. 2000, 122, 8315-8316.
[26] Rudin, A.; Choi, P. The Elements of Polymer Science & Engineering, Academic Press:
Waltham, 2012.
[27] Goldstein, S. A.; Matthews, L. S.; Kuhn, J. L.; Hollister, S. J. J. Biomech. 1991, 24, 135-
150
[28] Emsley, J.; Udy, P. B. Polymers 1972, 13, 593-594.
[29] Allcock, H. R.; Austin, P. E. Macromolecules 1981, 14, 1616-1622.
[30] Chang, J. Y.; Ji, H. J.; Han, M. J.; Rhee, S. B.; Cheong, S.; Yoon, M. Macromolecules
1994, 27, 1376-1380.
15
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table 1 Composition and mechanical properties of the HMCP-NVP network formulations.
Compressive
Yield Strength
(MPa)
Compressive
Modulus
(MPa)
Fracture
Strength
(MPa)
HMCP/NVP BPO DMT
Formulation
(g/g)
(wt%) (wt%)
F1
F2
0.50/1
1/1
1
1
1
1
2.7±0.3
30.6±7.1
215.2±28.9
77.4±4.5
160.6±3.3
11.5±0.2
16
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Figure 1 Effect of HMCP/NVP on swelling of cross-linked products in pH=7.4 PBS. Data
represents the mean ± SD.
17
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Figure 2 Effect of HMCP /NVP on swelling of cross-linked products in pH=2.0 PBS. Data
represents the mean ± SD.
18
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Figure 3 Effect of HMCP /NVP on drug release of cross-linked products in pH=7.4 PBS.
Data represents the mean ± SD.
19
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Figure 4 Effect of HMCP/NVP on drug release of cross-linked products at pH = 2.0 PBS.
Data represents the mean ± SD.
20
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Scheme 1: Synthesis route for N3P3[OC6H4-p-(CH2O(CO)CH=CHCOOH)]6.
21
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Scheme 2: Cross-linking reaction of HMCP and NVP.
22
ACCEPTED MANUSCRIPT
