Synthesis of 2,6,9-substituted xanthen-3-one and solvent effect on structural and photophysical properties

Article abstract of DOI:10.1016/j.dyepig.2020.108667

The synthesis of donor-π-donor type 2,6,9-substituted xanthen-3-one and its solvent effect on both the structural and photophysical properties were revealed. The keto-enol isomerization behavior and red-shift of the emission wavelengths were observed depe

Full text of DOI:10.1016/j.dyepig.2020.108667

Journal Pre-proof
Synthesis of 2,6,9-substituted xanthen-3-one and solvent effect on structural and
photophysical properties
Taro Koide, Shohei Iwamori, Satoshi Koga, Yasutaka Suzuki, Jun Kawamata, Yoshio
Hisaeda
PII:
S0143-7208(20)31364-4
DOI:
https://doi.org/10.1016/j.dyepig.2020.108667
DYPI 108667
Reference:
To appear in: Dyes and Pigments
Received Date: 10 March 2020
Revised Date: 22 June 2020
Accepted Date: 23 June 2020
Please cite this article as: Koide T, Iwamori S, Koga S, Suzuki Y, Kawamata J, Hisaeda Y, Synthesis of
2,6,9-substituted xanthen-3-one and solvent effect on structural and photophysical properties, Dyes and
Pigments, https://doi.org/10.1016/j.dyepig.2020.108667.
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition
of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of
record. This version will undergo additional copyediting, typesetting and review before it is published
in its final form, but we are providing this version to give early visibility of the article. Please note that,
during the production process, errors may be discovered which could affect the content, and all legal
disclaimers that apply to the journal pertain.
© 2020 Elsevier Ltd. All rights reserved.

Taro Koide: Conceptualization, Methodology, Validation, Investigation, Data Curation,
Writing - Original Draft, Writing - Review & Editing, Project administration, Funding
acquisition, Shohei Iwamori: Validation, Formal analysis, Investigation, Visualization,
Satoshi Koga: Validation, Investigation, Yasutaka Suzuki: Formal analysis, Funding
acquisition, Jun Kawamata: Formal analysis, Resources, Supervision, Yoshio
Hisaeda: Resources, Supervision, Project administration, Funding acquisition

Highlights
The donor-π-donor type 2,6,9-substituted xanthen-3-one was newly
synthesized.
The keto-enol isomerization behavior was observed depending on the solvent
polarity.
Twisted intramolecular charge transfer (TICT) occurs in this system due to the
rotation of electron donating aryl group at 2-position of the xanthene skeleton in
the excited state.

Figure. 1H NMR spectrum of 6 in CD3OD. *: solvents and impurities.
Figure. UV–vis absorption (black), fluorescence (red, excited at 510 nm), and excitation spectra of 6 (blue, dotted,
monitored at 555 nm) in MeOH.
S
1

1
2
Synthesis of 2,6,9-substituted xanthen-3-one and solvent effect on structural and photophysical
properties
3
4
Taro Koide,*[a] Shohei Iwamori,[a] Satoshi Koga,[b] Yasutaka Suzuki,[b] Jun Kawamata,[b] Yoshio
Hisaeda*[a][c]
5
6
a
7
Department of Chemistry and Biochemistry, Graduate School of Engineering, Kyushu University,
8
Moto-oka 744, Nishi-ku, Fukuoka-shi, Fukuoka 819-0395, Japan
b
9
Graduate School of Sciences and Technology for Innovation, Yamaguchi University, 1677-1
10
11
12
13
14
15
16
17
18
Yoshida, Yamaguchi, Yamaguchi 753-8512, Japan
c
Center for Molecular Systems (CMS), Kyushu University, Moto-oka 744, Nishi-ku, Fukuoka-shi,
Fukuoka 819-0395, Japan
Abstract
The synthesis of donor-π-donor type 2,6,9-substituted xanthen-3-one and its solvent effect on both
the structural and photophysical properties were revealed. The keto-enol isomerization behavior and
red-shift of the emission wavelengths were observed depending on the solvent polarity. This
observation indicated that twisted intramolecular charge transfer (TICT) occurs in this system. This
1

19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
is probably due to the electron donating aryl group at 2-position of the xanthene skeleton, which
could rotate in the excited state. The luminescence of the compound was also confirmed in a living
cell.
Keywords
xanthene, solvent effect, tautomerization, twisted intramolecular charge transfer (TICT)
1. Introduction
Fluorescence imaging has attracted many researchers since it can be used to monitor the
surrounding environment of fluorescent molecules. [1-4] Especially, the molecules showing large
Stokes shift could avoid the self-quenching and also could be possible to use the longer wavelength
emission. The near infrared (NIR) light has high biopermeability and low scattering properties,
which are advantageous not only in living systems but also in various medias. One of the methods to
increase the Stokes shift is utilization of charge transfer (CT). Twisted intramolecular charge transfer
(TICT) is the phenomenon induced by the photoexcitation and following twisting of the bond
between the electron donor and acceptor, which highly depends on the solvent polarity and/or
viscosity. TICT molecules exhibit red-shifted emission in the polar solvent due to the stabilization of
the twisted charge separated excited state. [5,6]
2

37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Xanthene is known as the basic skeleton of a group of pigments, such as fluorescein, eosin,
rhodamine, etc (Figure 1). Peripheral modification of the xanthene skeleton affords a variety of dyes.
The selective modification of the chromophore is important to manipulate the electronic state of the
molecule, affecting on the absorption and emission of the dyes. The development of synthetic
methods of xanthene derivatives is well summarized in the recent review by Gryko and
co-workers.[7] For the fluorescein derivatives, the importance of the benzene moiety at 9-position of
xanthene skeleton and the substituent at ortho position of the benzene ring was revealed by Nagano
and co-workers during the development of Tokyo Green.[8,9] The fixed perpendicular placement of
xanthene backbone and benzene ring at 9-position is essential for high fluorescence quantum yield.
They clarified that the increase of the electron donating property of 9-aryl group quenches the
fluorescence via the photo-induced electron transfer to xanthene skeleton. However, there was no
color change depending on the magnitude of the electron donating property of 9-aryl group and also
on the steric hindrance of the ortho position of the aryl group. Non-radiative deactivation due to
TICT state of rhodamines were discussed by Rettig and co-workers based on the 3,7-diamino
substituted xanthene derivatives[10], however, it focused on the fluorescence quantum yield and
deactivation process via non-emissive TICT state.
3

53
54
Figure 1. Structure of xanthene and known derivatives.
55
56
57
58
59
60
61
62
63
64
65
66
67
68
In this study, the synthesis of donor-π-donor type 2,6-substituted-9-methyl xanthen-3-one was
achieved by the condensation of substituted precursors. The similar synthesis method had been
reported, however the introduction of electron donating aryl group at 2-position had not been
investigated. [11,12] The efficient synthetic method of 9-alkyl substituted xanthene derivatives has
been improved in the past one or two decades,[7,12-15] though they had been used as lasing dyes for
long time.[16] Among them, the 9-methyl substituted xanthenes are known to show the keto-enol
tautomerization by the change in pH.[15] It was also described that the 9-methyl xanthene was
converted to enol-form in the hydrogen-bond acceptor solvent DMSO to a large extent. In that case,
the fluorescence intensity of keto-form was reported to be low, but the details of the solvent effect
were not discussed. In this study, we focused on the 2- and 6-position substitution because these
positions are on the diagonal of the molecular skeleton of xanthene, which are expected to afford the
effective π-conjugation connected to the terminal substituents. 6-dimetylamino,
2-dimetylaminophenyl substituted 9-methyl xanthen-3-one was synthesized and investigated the
detailed spectroscopic charcterizations to find unique structural and electronic properties of the
4

69
70
71
72
73
74
75
76
77
78
79
80
compound. The keto-enol tautomerization was confirmed by the NMR measurements in various
solvents. We also found that effective TICT emission was observed in the solvents that do not form
hydrogen bonding.
2. Materials and Methods
As a precursor, 4-bromoresorcinol 1 was selected. Benzyl protection of the hydroxyl groups of 1
gave compound 2. Following Suzuki-Miyaura cross coupling with 4-dimethylaminophenyl boronic
acid pinacol ester gave 4-(4-dimethylaminophenyl) resorcinol derivative 3. Deprotection of benzyl
groups afforded the precursor 4. The condensation of 4 and 5 in methane sulfonic acid afforded the
target compound, 2,6,9-substituted xanthen-3-one 6 in 72% yield (Scheme 1).
Characterization of the compounds 3, 4, and 6 was performed by 1H NMR, 13C NMR,
HR-ESI-TOF-MS. (SI) Compound 5 was synthesized according to the reported method. [12]
5

81
82
Scheme 1. Synthesis of 2,6-substituted-9-methyl xanthene 6.
83
84
85
86
87
88
89
90
91
92
93
3. Results and Discussions
2-Dimethylaminophenyl-6-dimethylaminio substituted xanthene 6 exhibited remarkable solvent
effects; one was the keto-enol tautomerization and the other was the change of emission based on
TICT. From a structural viewpoint, the keto-enol (quinoid-benzenoid) tautomerization at 3- and
1
9-position of xanthene was observed in the H NMR spectra. In CDCl3, the signal, which could be
assigned as the proton of methyl group at 9-position of xanthene, was observed at 2.63 ppm,
indicating that 6 took keto-form, 6-keto (Figure 2a, Figure S7). On the contrary, in DMSO-d6, the
signal of terminal olefin was observed at 5.23 ppm along with the signal of terminal OH-proton at
9.90 ppm, indicating that the xanthene 6 took the enol-form, 6-enol (Figure 2c). The proportions of
keto-form and enol-form were checked in various solvents (Figure 2, Figure S9-S14, Table 1) and
6

1
94
95
96
97
98
were calculated from the integral intensities of the signals in H NMR. In acetone, benzene, and
toluene, keto- and enol-forms co-existed in the ratio of 58:42, 79:21, and 79:21, respectively. Based
on the results, the enol-from seemed to be stabilized by the interaction between the OH-proton of the
hydroxyl group at 3-position and the solvents; hydrogen bonding for DMSO, DMF and acetone and
O-H-π interaction for benzene and toluene.
99
1
100

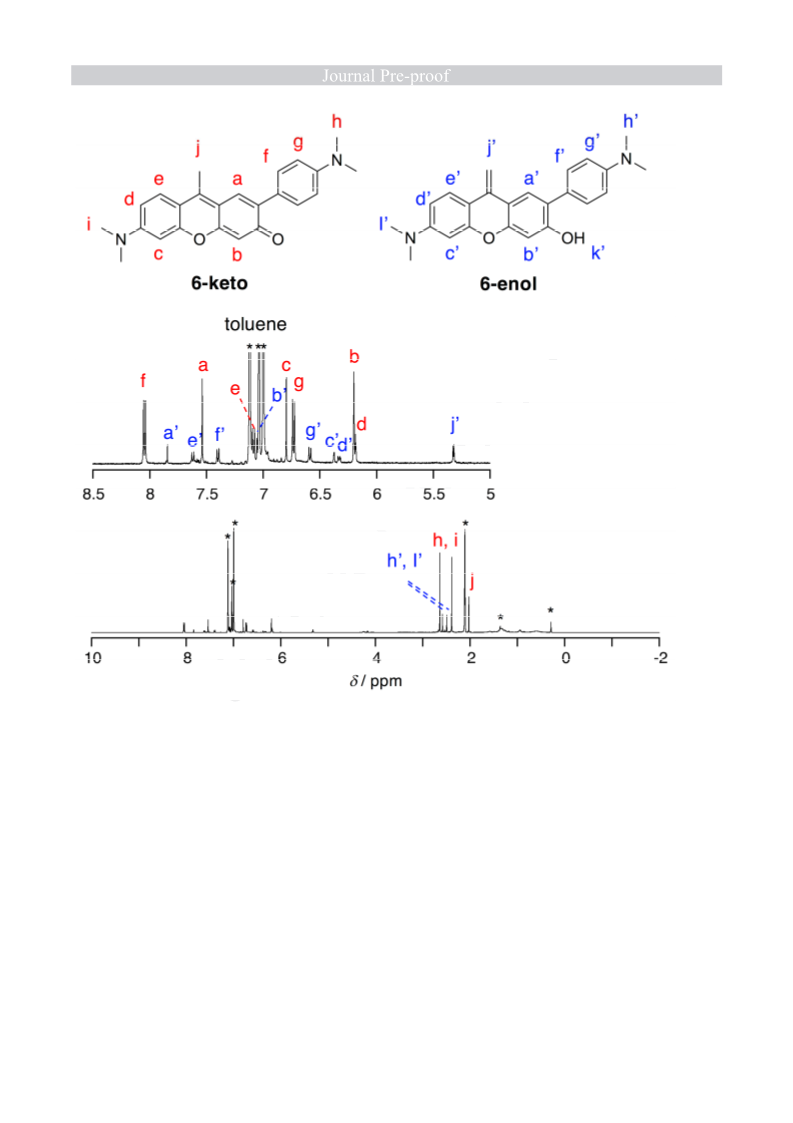

Figure 2. Comparison of H NMR spectra of 6 in a) CDCl3, b) toluene-d8, and c) DMSO-d6. The
101
102
103
104
105
signals assigned to 6-keto are labeled with red circle, and those assigned to 6-enol are labeled with
blue triangle.
The UV-vis absorption, fluorescence, and fluorescence quantum yield of compound 6 were
measured in benzene, toluene, chloroform, dichloromethane, acetone, DMF, and DMSO (Figure 3-5,
7

106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
Figure S15-21, Table 1). The absorption spectra showed the absorption maxima around 500 and 520
nm in almost all the solvents. However, a large solvent effect was observed for the fluorescence
spectra and fluorescence quantum yields. In DMF and DMSO, the observed emission wavelength
was at 565 nm and 567 nm with the small Stokes shifts of 1276 and 1196 cm–1, respectively (Figure
S20, S21) and their fluorescence quantum yields were 1.2 and 1.3 %, indicating that the enol-form
6-enol does not emit strongly and there was a small energy relaxation in the excited state. On the
other hand, the fluorescence wavelength in benzene was observed at 624 nm, while that in
chloroform was observed at 670 nm and in acetone at 685 nm. Thus, it has been confirmed that the
Stokes shift values are significantly different. In addition, the fluorescence quantum yield was 40%
in benzene, whereas it was 17% in chloroform and 3% in acetone. We considered that the difference
in the Stokes shift values is due to the twisted intramolecular charge transfer (TICT). [5,6] Therefore,
we evaluated the solvent polarity shown in the table and Lippert-Mataga plot. The solvent polarity
parameter ∆f = (ε-1/2ε+1)-(n2-1/2n2+1) (ε: relative permittivity, n: refractive index) and the Stokes
shifts showed a linear correlation, indicating the TICT fluorescence of the molecule (Figure 6). The
fluorescence quantum yield and the solvent polarity also showed linear correlations (Figure4, Table
1, Figure S22), which supported the fact that the non-radiative deactivation process of the excited
state is enhanced in a polar solvent. Compared to the examples of fluorescein and rhodamine, which
possess aryl groups at 9-position, the effect of solvents is remarkably large in this molecule. This is
8

124
125
126
127
probably due to the difference in the energy barrier for the rotation of the aryl group. The rotation
barrier of the phenyl ring on biphenyl and phenyl anthracene had been known to be ~2-3 and ~21
kcal/mol, respectively. [17][18] TICT and non-radiative deactivation probably occurred due to the
rotation of the aryl ring.
128
129
Figure 3. UV-vis absorption spectra of 6 in various solvents.
130
131
Figure 4. Emission spectra of 6 in various solvents.
9

132
133
Figure 5. Photo image of the solutions of 6 in various solvents under room light and under UV light.
134
135
136
Concentrations of the solutions were ~2 x 10–5 M.
Table 1. Comparison of the optical properties of 6 in various solvents
solvent
solvent
polarity
(∆f)
absorption
Emission
Stokes
shift
FLQY
FL life
time
(λ
max/ nm)
(λmax/ nm)
(cm–1)
3391
3352
( / ns)
2.6
benzene
toluene
0.00294
0.0153
494, 515
492, 514
624
621
40% (51% a)
35% (44% a)
2.5
10

CHCl3
CH2Cl2
Acetone
DMF
0.152
0.220
0.284
0.274
0.263
500, 524
670
683
685
565
567
4159
4406
4669
1276
1196
17%
10%
2.0
1.7
502, 525
499, 519
3.0% (5.0% a) 2.8
502 (sh), 527
504 (sh), 531
1.2%
1.3%
3.4
3.3
DMSO
137
138
a: The calculated FLQYs of 6-keto from the existing ratio in a solution assuming that 6-enol is
non-emissive.
139
140
Figure 6. Lippert–Mataga plot of Stokes shifts for 6 vs. solvent polarity ∆f for benzene, toluene,
141
CHCl3, CH2Cl2, and acetone.
11

142
143
144
145
146
147
148
149
150
151
152
Considering the red emission property of compound 6, applicability as fluorescence probe for
biological material was investigated. The fluorescence microscope image of HEK293 cell stained by
compound 6 is shown in Figure 7. The fluorescence signal of green channel was the highest
compared to other, blue or red, colored channels. This suggested that the TICT of 6 seemed to not
occur in the living cell corresponding to the TICT that did not occur in polar solvents such as DMSO
and DMF. By the way, a clear fluorescence microscope image was obtained by employing 6. This
observation indicated that 6 certainly exhibited fluorescence in cell and can be used as a
fluorescence probe for microscopic observations in live cell. Considering the shape of the
microscope image, compound 6 is thought to be localized on mitochondria (Figure 7, Figure S23).
[19]
20µm
153
12

154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
Figure 7. Fluorescence microscope images of living cells stained with 6.
4. Conclusions
In summary, D-π-D type xanthene derivative 6 was successfully synthesized and the interesting
solvent effects on the isomerization behavior and emission with a large Stokes shift raised from the
TICT were revealed. Moreover, we confirmed that compound 6 could be used as a probe for
fluorescence microscope.
5. Acknowledgements
This work was partially supported by JSPS KAKENHI Grant Number JP19K22204, 19K05403,
19H04677. T. K. is grateful for the financial support from Tonen General Sekiyu, CASIO SCIENCE
PROMOTION FOUNDATION and Kyushu University.
6. References
[1] A. P. de Silva, H. Q. N. Gunaratne, T. Gunnlaugsson, A. J. M. Huxley, C. P. McCoy, J. T.
Rademacher, T. E. Rice, Chem. Rev. 1997, 97, 1515−1566. https://doi.org/10.1021/cr960386p
[2] Z. Guo, S. Park, J. Yoon, I. Shin, Chem. Soc. Rev. 2014, 43, 16−29.
https://doi.org/10.1039/C3CS60271K
13

172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
[3] L. Wang, W. Du, Z. Hu, K. Uvdal, L. Li, W. Huang, Angew. Chem. Int. Ed. 2019, 58,
14026−14043. https://doi.org/10.1002/anie.201901061
[4] L. Wang, M. S. Frei, A. Salim, K. Johnsson, J. Am. Chem. Soc. 2019, 141, 2770−2781.
https://doi.org/10.1021/jacs.8b11134
[5]
D.
Liese,
G.
Haberhauer,
Isr.
J.
Chem.
2018,
58,
813−826.
https://doi.org/10.1002/ijch.201800032
[6] S. Sasaki, G. P. C. Drummen, G. Konishi, J. Mater. Chem. C 2016, 4, 2731−2743.
https://doi.org/10.1039/C5TC03933A
[7] Y. M. Poronik, K. V. Vygranenko, D. Gryko, D. T. Gryko, Chem. Soc. Rev. 2019, 48, 5242−5265.
https://doi.org/10.1039/C9CS00166B
[8] Y. Urano, M. Kamiya, K. Kanda, T. Ueno, K. Hirose, T. Nagano, J. Am. Chem. Soc. 2005, 127,
4888−4894. https://doi.org/10.1021/ja043919h
[9] M. Kamiya, H. Kobayashi, Y. Hama, Y. Koyama, M. Bernardo, T. Nagano, P. L. Choyke, Y.
Urano, J. Am. Chem. Soc. 2007, 129, 3918−3929. https://doi.org/10.1021/ja067710a
[10] M. Vogel, W. Rettig, R. Sens, K. H. Drexhage, Chem. Phys. Lett. 1988, 147, 452−460.
https://doi.org/10.1016/0009-2614(88)85007-3
[11] R. R. Sauers, S. N. Husain, A. P. Piechowski, G. R. Bird, Dyes and Pigments, 1987, 8, 35−53.
https://doi.org/10.1016/0143-7208(87)85004-0
14

190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
[12] Ye. M. Poronik, M. P. Shandura, Yu. P. Kovtun, Dyes and Pigments 2007, 72, 199−207.
https://doi.org/10.1016/j.dyepig.2005.08.017
[13] Á. Martínez-Peragón, D. Miguel, R. Jurado, J. Justicia, J. M. Álvarez-Pez, J. M. Cuerva, L.
Crovetto, Chem. Eur. J. 2014, 20, 447−455. https://doi.org/10.1002/chem.201303113
[14] M. Gangopadhyay, R. Mengji, A. Paul, Y. Venkatesh, V. Vangala, A. Jana, N. D. P. Singh, Chem.
Commun. 2017, 53, 9109−9112. https://doi.org/10.1039/C7CC03241B
[15] P. Šebej, J. Wintner, P. Müller, T. Slanina, J. A. Anshori, L. A. P. Antony, P. Klán, J. Wirz, J. Org.
Chem. 2013, 78, 1833−1843. https://doi.org/10.1021/jo301455n
[16] A. P. Piechowski, G. R. Bird, Optics Communications, 1984, 50, 386−392.
https://doi.org/10.1016/0030-4018(84)90107-X
[17] F. Grein, J. Phys. Chem. A 2002, 106, 3823−3827. https://doi.org/10.1021/jp0122124
[18] K. Nikitin, H. Müller-Bunz, Y. Ortin, J. Muldoon, M. J. McGlinchey, Org. Lett. 2011, 13,
256−259. https://doi.org/10.1021/ol102665y
[19] Y. Niko, H. Moritomo, H. Sugihara, Y. Suzuki, J. Kawamata, G. Konishi, Journal of Materials
Chemistry B 2015, 3, 184−190. https://doi.org/10.1039/C4TB01404A
15

Supporting Information
Synthesis of 2,6,9-substituted xanthen-3-one and solvent effect on structural and
photophysical properties
Taro Koide,*[a] Shohei Iwamori,[a] Satoshi Koga,[b] Yasutaka Suzuki,[b] Jun Kawamata,[b] Yoshio Hisaeda*[a][c]
a Department of Chemistry and Biochemistry, Graduate School of Engineering, Kyushu University, Moto-oka 744,
Nishi-ku, Fukuoka-shi, Fukuoka 819-0395, Japan
b
Graduate School of Sciences and Technology for Innovation, Yamaguchi University, 1677-1 Yoshida,
Yamaguchi, Yamaguchi 753-8512, Japan
c
Center for Molecular Systems (CMS), Kyushu University, Moto-oka 744, Nishi-ku, Fukuoka-shi, Fukuoka
819-0395, Japan
Contents
1. General information··············································································S2
2. Experimental Details··············································································S2
3. NMR spectra························································································S5
4. Absorption, emission and excitation spectra················································S13
5. Supporting references············································································S16
S
1

1. General information
Reagents and solvents of the best grade available were purchased from commercial suppliers and were
used without further purification unless otherwise noted. Dried acetone was obtained by distillation from CaH2
under a N2 atmosphere.
Nuclear magnetic resonance (NMR) spectra were recorded on a Bruker Avance 500MHz NMR
spectrometer. The resonance frequencies are 500 MHz for 1H and 125 MHz for 13C. Chemical shifts were reported
as δ values in ppm relative to solvent residual solvents.[S1] High-resolution electron spray ionization mass spectra
(HR-ESI-TOF-MS) were measured and recorded on an micrOTOFQII spectrometer (Bruker). Ultraviolet–visible–
near infrared (UV–vis–NIR) absorption spectra were recorded on U-3310 spectrometer (Hitachi, Japan) and
UV-3150PC (Shimadzu). Fluorescence excitation and emission spectra were collected at room temperature on a
Hitachi F-7000 fluorescence spectrometer. Fluorescence spectra of 6 in DMF and DMSO were recorded by
FP-8300 (JASCO Co.). Emission spectra were collected with a scan speed of 240 nm/min, and the slits were set
at 2.5 nm (excitation slit) and 2.5 nm (emission slit). The absolute photoluminescence quantum yields (ΦPL) were
determined using absolute PL quantum yields measurement system C9920-02 (Hamamatsu photonics).
Time-resolved photoluminescence lifetimes were carried out by using time-correlated single-photon counting
lifetime spectroscopy system, Quantaurus-Tau C11367-02 (Hamamatsu photonics). The decay constants and
fitting parameters for transient decays were determined using the embedded software of Quantaurus-Tau.
2. Experimental Details.
Cell culture and fluorescence microscopy
HEK293 cells were grown in Dulbecco’s modified Eagle medium (DMEM, Sigma-Aldrich Japan), supplemented
with 10% fetal bovine serum (FBS, Sigma-Aldrich Japan) at 37 ℃ in a humidified atmosphere containing 5%
CO2. HEK293 cell were treated with medium containing 1 μM of compound 6 for 24 hours. For imaging,
HEK293 cells were washed several times with phenol-red-free medium (Opti-MEM, Invitrogen) supplemented
with 10% (v/v) FBS.
Fluorescence images were obtained via a wide-field fluorescencemicroscope IX81 (OLYMPUS)
equipped with digital camera DP50 (OLYMPUS). Green emission of compound 6 was collected by U-MW1G
(excitation filter 510-560 nm, dichroic mirror 565 nm, barrier filter 590 nm).
1,3-bis(benzyloxy)-4-Bromobenzene 2
4-bromoresorcinol (1.0 g, 5.3 mmol) and potassium carbonate (1.61 g, 11.6 mmol) were added to a 100 mL
two-necked flask. After purging with nitrogen, 30 mL of dehydrated acetone and benzyl bromide (1.4 mL, 11.6
mmol) were added. After refluxing for 20 h, the reaction solution was evaporated under reduced pressure,
S
2

extracted with dichloromethane, washed with brine, and dried under reduced pressure. 2 was obtained as
yellowish brown solid (1.9 g, 97%) and used to the next reaction without further purification.
1H NMR (500 MHz, CDCl3): δ = 5.03 (s, 2H, -OCH2Ph), 5.13 (s, 2H, -OCH2Ph), 6.53(dd, 1H, J = 2.5 Hz, 9.0
Hz ), 6.66 (d, 1H, J = 2.5 Hz), 7.3-7.6 (m, 15H) ppm, 13C NMR (125 MHz, CDCl3): δ = 70.38, 70.78, 102.59,
103.58, 107.67, 126.98, 127.44, 127.90, 128.08, 128.54, 128.59, 133.19, 136.39, 136.53, 155.72, 159.20 ppm
HR-MS (ESI-TOF, positive mode): C20H17BrO2 ([M]+) m/z found; 368.0418, calcd; 368.0406
1,3-bis(benzyloxy)-4-(4-dimethylaminophenyl)benzene 3
Compound 2 (200 mg, 0.543 mmol) and 4-dimethylaminophenylboronic acid pinacol ester (160 mg, 0.65 mmol)
were added to a 100 mL two-necked flask. Then, 50 mL of toluene and 10 mL of an aqueous potassium carbonate
solution (2 M) were added under N2 atmosphere. After nitrogen bubbling for 10 min,
tetrakis(triphenylphosophine)palladium(0) (100 mg, 0.086 mmol) was added, and the mixture was stirred for 24 h
under refluxing. The solvent was removed by distillation under reduced pressure, and the resulting mixture was
separated by column chromatography (ethyl acetate: hexane = 3:97) to afford 3 as a white solid (65 mg, 29%).
1H NMR (500 MHz, CDCl3): δ = 2.99 (s, 6H, N(CH3)2), 5.06 (s, 4H, -OCH2Ph), 6.65 (dd, 1H, J = 2.5 Hz, 8.0 Hz),
6.68 (d, 1H, J = 2.5 Hz), 6.78 (d, 1H, J = 8.0 Hz), 7.3-7.6 (m, 13H) ppm, 13C NMR (125 MHz, CDCl3): δ = 41.10,
70.69, 70.96, 102.33, 106.99, 112.72, 125.13, 127.05, 127.39, 127.95, 127.98, 128.39, 128.84, 129.03, 130.58,
131.34, 137.57, 137.78, 149.82, 156.97, 159.09 ppm
HR-MS (ESI-TOF, positive mode): C28H27NO2 ([M]+) m/z found; 409.2026, calcd; 409.2036
4-(4-dimethylaminophenyl)resorcinol 4
10% Pd/C (20 mg) was added to a 25 mL round-bottom flask, followed by purging with nitrogen. Thereto was
added a solution of compound 3 (65 mg, 0.15 mmol) in 10 mL of dichloromethane / methanol = 1/1. The system
was filled with a constant hydrogen pressure, followed by stirring at room temperature for 30 h. The reaction
mixture was filtered through celite, washed with dichloromethane. The obtained solution was evaporated under
reduced pressure. The resulting mixture was purified by column chromatography (ethyl acetate: hexane = 1: 5) to
afford 4 as white crystals (25 mg, 73%).
1H NMR (500 MHz, CDCl3): δ = 3.00 (s, 6H,), 4.81 (s, 1 H), 5.34 (s, 1H), 6.44 (dd, 1H, J = 2.5 Hz, 8.0 Hz), 6.48
(d, 1H, J = 2.5 Hz), 6.83(d, 2H, J = 8.5 Hz), 7.05 (d, 1H, J = 8.0 Hz), 7.28 (d, 2H, J = 8.5 Hz) ppm, 13C NMR
(125 MHz, CDCl3): δ = 40.49, 102.56, 107.77, 113.21, 121.38, 124.17, 129.86, 130.80, 150.06, 153.06, 153.73,
155.86 ppm
HR-MS (ESI-TOF, positive mode): C14H15NO2 ([M+H]+) m/z found; 230.1165, calcd; 230.1176
6-dimethylamino-2-(4-dimethylaminophenyl)-9-methylxanthen-3-one 6
S
3

Into a 20 ml Schlenk tube, 4 (25 mg, 0.11 mmol) and 2-acethyl-5-dimethylaminophenol 5 (19 mg, 0.11 mmol)
were added. After purging with nitrogen, 4 mL of methanesulfonic acid was added, and the mixture was stirred at
room temperature for 30 min and then at 90 °C for 30 h. After cooling to room temperature, 50 mL of iced water
was added, and neutralized with sodium bicarbonate. The crude mixture was extracted with dichloromethane,
washed with brine, and dried over Na2SO4. The solution was concentrated under reduced pressure, and purified by
silica gel column chromatography (dichlorometane) to afford 6 as a purple solid (30 mg, 72%).
1H NMR (500 MHz, CDCl3): δ = 2.63 (s, 3H), 2.98 (s, 6H), 3.11 (s, 6H), 6.44 (s, 1H) 6.53 (d, 1H, J = 3.0 Hz),
6.68 (dd, 1H, J = 3.0 Hz, 9.0 Hz), 6.80 (d, 2H, J = 9.5 Hz), 7.59 (d, 1H, J = 9.0 Hz), 7.61 (s, 1H), 7.62 (d, 2H, J =
9.5 Hz) ppm, 13C NMR (125 MHz, CDCl3): δ = 13.44, 40.13, 40.61, 97.43, 105.37, 109.63, 111.45, 112.33,
116.45, 124.98, 126.20, 126.64, 130.03, 138.21, 144.91, 150.31, 153.59, 154.44, 157.86, 183.58 ppm
HR-MS (ESI-TOF, positive mode): C24H24N2O2 ([M+H]+) m/z found; 373.1896, calcd; 373.1911, UV-vis
(CH2Cl2): λmax/nm (ε/M-1 cm-1): 525 (17300) , FL (CH2Cl2, excited at 525 nm): λmax/nm 683, Stokes shift: 158 nm,
4406 cm-1, quantum yield (φfl): 10%, excited state lifetime (τ): 1.7 ns.
S
4

3. NMR spectra
Figure S1. 1H NMR spectrum of 2 in CDCl3. *: solvents and impurities.
Figure S2. 13C NMR spectrum of 2 in CDCl3. *: solvents and impurities.
S
5

Figure S3. 1H NMR spectrum of 3 in CDCl3. *: solvents and impurities.
Figure S4. 13C NMR spectrum of 3 in CDCl3. *: solvents and impurities.
S
6

Figure S5. 1H NMR spectrum of 4 in CDCl3. *: solvents and impurities.
Figure S6. 13C NMR spectrum of 4 in CDCl3. *: solvents and impurities.
S
7

Figure S7. 1H NMR spectrum of 6 in CDCl3. *: solvents and impurities.
Figure S8. 13C NMR spectrum of 6 in CDCl3. *: solvents and impurities.
Figure S9. 1H NMR spectrum of 6 in CD2Cl2. *: solvents and impurities.
S
8

Figure S10. 1H NMR spectrum of 6 in benzene-d6. *: solvents and impurities.
S
9

Figure S11. 1H NMR spectrum of 6 in toluene-d8. *: solvents and impurities.
S
10

Figure S12. 1H NMR spectrum of 6 in acetone-d6. *: solvents and impurities.
Figure S13. 1H NMR spectrum of 6 in DMF-d7. *: solvents and impurities.
11
S
