Lignosulfonate Improves Photostability and Bioactivity of Abscisic Acid under Ultraviolet Radiation

Article abstract of DOI:10.1021/acs.jafc.7b02002

Abscisic acid (ABA), as a commonly used plant growth regulator, is easy to be degraded and lose its bioactivity under sunshine. To select an eco-friendly and efficient photoprotectant for the improvement of photostability and bioactivity of ABA when exposed to ultraviolet (UV) light, we tested the effects of three biodegradable natural-derived high polymers, sodium lignosulfonates 3A [molecular weight (MW) > 50000, with degree of sulfonation (DS) of 0.48] and NA (20000 < MW < 50000, with DS of 0.7) and calcium lignosulfonate CASA (MW < 20000, with DS of 0.7), on the photodegradation of ABA. Lignosulfonates 3A, NA, and CASA showed significant photostabilizing capability on ABA. Lignosulfonate 3A showed preferable photostabilizing effects on ABA compared to CASA, while NA showed an intermediate effect. That indicated that lignosulfonate with a high MW and low DS had a stronger UV absorption and the hollow aggregate micelles formatted by lignosulfonate protect ABA from UV damage. Approximately 50% more ABA was kept when 280 mg/L ABA aqueous solution was irradiated by UV light for 2 h in the presence of 2000 mg/L lignosulfonate 3A. The bioactivity on wheat (JIMAI 22) seed germination was greatly kept by 3A in comparison to that of ABA alone. The 300 times diluent of 280 mg/L ABA plus 2000 mg/L 3A after 2 h of irradiation showed 20.8, 19.3, and 9.3% more inhibition on shoot growth, root growth, and root numbers of wheat seed, separately, in comparison to ABA diluent alone. We conclude that lignosulfonate 3A was an eco-friendly and efficient agent to keep ABA activity under UV radiation. This research could be used in UV-sensitive and water-soluble agrichemicals and to optimize the application times and dosages of ABA products.

Full text of DOI:10.1021/acs.jafc.7b02002

Subscriber access provided by UNIV OF TASMANIA
Article
Lignosulfonate improves photostability and
bioactivity of abscisic acid under UV radiation
Fei Gao, Sha Yu, Qun Tao, Weiming Tan, Liusheng Duan, Zhaohu Li, and Haixin Cui
J. Agric. Food Chem., Just Accepted Manuscript • DOI: 10.1021/acs.jafc.7b02002 • Publication Date (Web): 29 Aug 2017
Downloaded from http://pubs.acs.org on September 4, 2017
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Journal of Agricultural and Food Chemistry is published by the American Chemical
Society. 1155 Sixteenth Street N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 38
Journal of Agricultural and Food Chemistry
1
2
Lignosulfonate improves photostability and bioactivity of abscisic acid under UV radiation
Fei Gaoa, b, Sha Yub, Qun Taob, Weiming Tanb, Liusheng Duanb*, Zhaohu Lib, Haixin Cuia
3
4
a Institute of Environment and Sustainable Development in Agriculture, Chinese Academy of
Agricultural Sciences, Beijing 100081, PR China
5
6
b State Key Laboratory of Plant Physiology and biochemistry / Engineering Research Center of
Plant Growth Regulators, Ministry of Education / College of Agronomy and Biotechnology, China
Agricultural University, Beijing 100193, PR China
7
8
9
10
11
12
13
14
15
16
17
18
*Corresponding author: Liusheng Duan (Tel: +86 10 62731301; Eꢀmail: duanlsh@cau.edu.cn)
This research was supported by Innovation and Development of New Plant Growth Regulator and
Bioꢀherbicide in the National Key Research and Development Program of China
(2017YFD0201300), Synergistic Key Technology of Chemical Pesticide and Product
Development in the National Key Research and Development Program of China
(2016YFD0200500), the Major National Scientific Research Program of China (2014CB932200),
and the Agricultural Science and Technology Innovation Program.
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 2 of 38
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Abstract: Abscisic acid (ABA), as a commonly used plant growth regulator, is easy to be
degraded and lose its bioactivity under sunshine. To select an ecoꢀfriendly and efficient
photoprotectant for the improvement of photostability and bioactivity of ABA when exposed to
UV light, we tested the effects of three biodegradable natural derived high polymers — sodium
lignosulfonates 3A (molecular weight (MW) > 50000, degree of sulfonation (DS) 0.48), NA
(20000 < MW < 50000, DS 0.7) and calcium lignosulfonate CASA (MW < 20000, DS 0.7) on the
photodegradation of ABA. Both 3A, NA and CASA showed significant photoꢀstabilizing
capability on ABA. 3A showed preferable photostabilizing effects on ABA than CASA, while NA
showed an intermediate effect. That indicated lignosulfonate with high molecular weight and low
degree of sulfonation had a stronger UV absorption and the hollow aggregates micelles formatted
by lignosulfonate protect ABA from UV damage. Approximately 50 % more ABA was kept when
280 mg/l ABA aqueous solution was irradiated by UV light for 2 hours in the presence of 2000
mg/l lignosulfonate 3A. The bioactivity on wheat (JIMAI 22) seed germination was greatly kept
by 3A, comparing to that of ABA alone. The 300 times diluent of 280 mg/l ABA plus 2000 mg/l
3A after 2 hours irradiation showed 20.8 %, 19.3 % and 9.3% more inhibition on shoot growth,
root growth and root numbers of wheat seed, separately, comparing to ABA diluent alone. We
conclude that lignosulfonate 3A was an ecoꢀfriendly and efficient agent to keep ABA activity
under UV radiation. This research could be used in UVꢀsensitive and water soluble agrichemicals
and to optimize the application times and dosages of ABA products.
Keywords: abscisic acid (ABA); UV light; photodegradation; lignosulfonate; shoot and root
growth
ACS Paragon Plus Environment

Page 3 of 38
Journal of Agricultural and Food Chemistry
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
1 Introduction
Most of bioꢀagrichemicals are susceptible to UV damage in the field and their halfꢀlives were
very short, for example, 6 hours for avermectin (1) and 1 hour for spinosad (2). Therefore,
bioꢀagrichemicals requires more applications and high amount to ensure their effectiveness (3).
Abscisic acid (ABA) is an effective bioꢀplantꢀgrowthꢀregulator, which could prolong florescence
(4-7), promote differentiation of flower bud (8-10), enhance the growth of root and shoot (11-13),
raise fruit coloring rate and quality (14-19), and improve resistance to drought stress (20-25). ABA
also had curative effects on inflammation, type Ⅱ diabetes and tumor of animals and humans
(26-28). ABA is a potential product that would be widely applied both in agriculture and medical
care. However, due to UV light of sunshine, ABA is readily losing its bioactivity by isomerizing to
inactive transꢀABA (Figure 1) (29-31). The halfꢀlife of ABA is only 24 min (32). This increases
economic cost for ABA field application.
Many efforts have been made to keep the bioactivity of ABA and reduce its photosensitivity
(33-36), such as replaced the double bond or hydrogen in ꢁ2 (the location of double bond) of ABA
side chain to benzene ring and cyclopropyl or fluorine to relieve cis–trans isomerization. However,
the bioactivities of these new compounds were much less than that of ABA. Our previous study
found benzophenoneꢀtype UV absorbers (BPs) UVꢀ531 (2ꢀHydroxyꢀ4ꢀnꢀoctoxyꢀbenzophenone)
and BPꢀ4 (2ꢀHydroxyꢀ4ꢀmethoxybenzophenoneꢀ5ꢀsulfonic acid) greatly improved the stability and
bioactivity of ABA under UV radiation (37). However, potential endocrine disrupting effects of
these UV absorbers were reported (38-43). They have been revealed to act in a similar way to
estrogen and/or antiandrogen (38, 39), exert mutagenic effects on Salmonella (40), generate
oxidative stress in Carassius auratus (41), suppress immunity of the immune system (42) and
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 4 of 38
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
induce sister chromatid exchanges or chromosomal aberrations in Chinese hamster ovarian cells
(43). What’s worse, BPs contained in personal care products, industrial and agricultural products
might pollute the aquatic environment and be bioaccumulated through food chains, as residues
have been detected in water, sediments, human breast milk, urine and blood (38). Though the toxic
of BPꢀ4 is rather low (39), the potential impacts cannot be excluded. Potential environmental
impacts of BPs have led to an increase concern over their usage in commercial products and their
presence in the environment. Therefore, it is better to develop ecoꢀfriendly photoprotectants to
alleviate the photosensitivity of ABA in application.

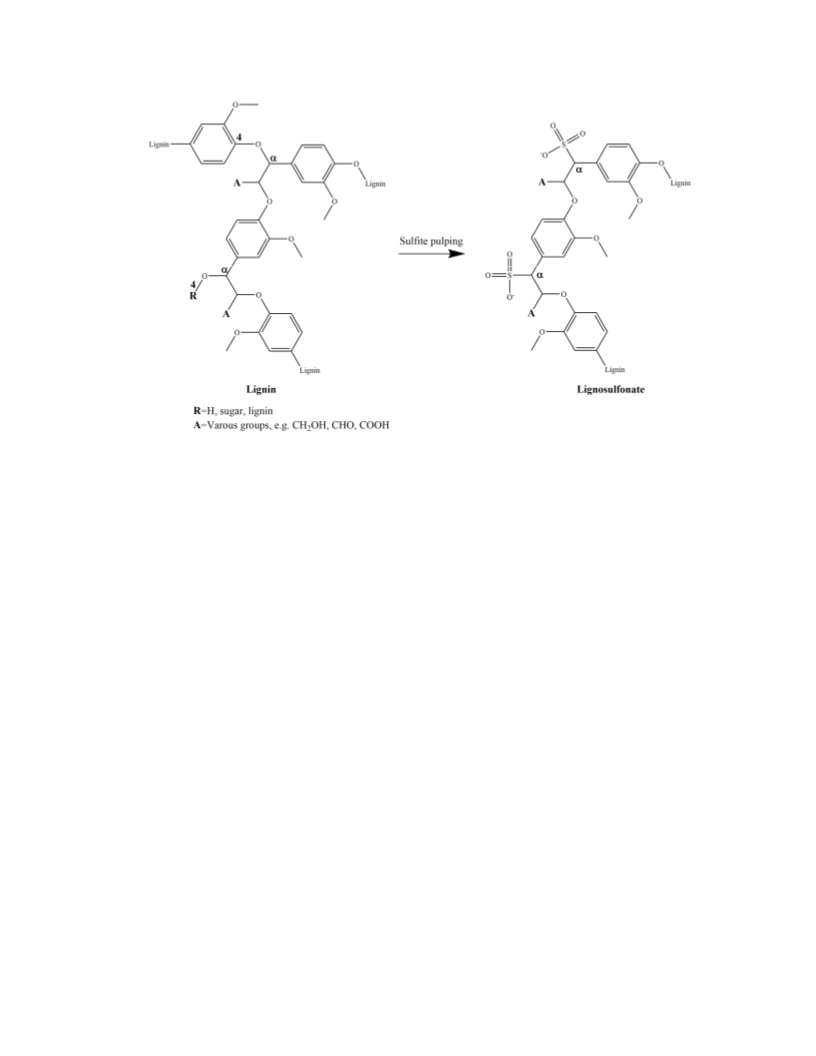

Lignosulfonate is sulfonated, fragmented lignin from the waste liquor of sulfite pulp mills
(44-48) (Figure 2). It is highly crossꢀlinked polymer formed from different phenylꢀpropanoid units
and keeps approximately the original chemical structure of native lignin except for the
introduction of a great number of sulfonic acid groups on the αꢀcarbons of lignin side chains (49).
The sulfonic acid groups make it easy to be soluble in the water. Due to hydrophilic groups
(sulphonic, phenylic hydroxyl, carboxylic and alcoholic hydroxyl) and hydrophobic groups
(aromatic, aliphatic and carbon chains), lignosulfonate showed surface activities (44, 46, 47, 50).
Due to the existence of phenolic hydroxyl group, carbonyl and other chromophores, some
researchers used lignin and lignosulfonate as sun blockers added into the emulsions of cosmetics
(51), or as wall material of microcapsule for protecting the agrichemicals and microbial pesticide
from UV damage and controlling actives release (52-54). The physicoꢀchemical properties of three
commercialized lignosulfonates 3A, CASA and NA were shown in Table 1. 3A has low degree of
sulfonation and high molecular weight which might make it has more αꢀOꢀ4 ether bonds and
conjugated systems separately. CASA has low sulfonation degree and molecular weight which
ACS Paragon Plus Environment

Page 5 of 38
Journal of Agricultural and Food Chemistry
84
85
might make it have fewer αꢀOꢀ4 ether bonds and conjugated systems. NA has high sulfonation
degree and intermediate value of molecular weight which might make it have fewer αꢀOꢀ4 ether
bonds and intermediate levels of conjugated systems.
86
87
We hypothesized that applying lignosulfonate could reduce photosensitivity of ABA. The
objective of this study was therefore to test the hypothesis and to further select an efficient
photoprotectant. The dynamics of ABA degradation at different doses of selected lignosulfonate
and afterwards bioactivity of ABA plus lignosulfonate on plant growth were also analyzed. The
bioactivity of lignosulfonate itself at different doses on plant growth was analyzed as well.
88
89
90
91
92
93
2 Materials and methods
94
2.1 Experimental design and managements
95
Experiment 1 was designed for comparing the stabilizing effects of three lignosulfonates on
ABA degradation under UV light. Three lignosulfonates were calcium lignosulfonate Borresperse
CAꢀSA, abbreviated as CASA; sodium lignosulfonate Borresperse NA, abbreviated as NA; and
modified and purified sodium lignosulfonate 3A, abbreviated as 3A. Solid contents all above were
greater than 93 % and main properties were listed in Table 1. All lignosulfonates were purchased
from Borregaard LignoTech. These lignosulfonates at the dose of 0 mg/l and 500 mg/l were added
into 5 mg/l ABA (pure content above 98 %, purchased from J&K Scientific Ltd.) aqueous solution.
Quartz test tubes (16 mm×13 mm×150 mm, obtained from Nanjing Xujiang Electromechanical
Plant) with 10 ml corresponding ABA solution prepared above were exposed to UV light in
photochemical reactor (XPAꢀ7, obtained from Nanjing Xujiang Electromechanical Plant). Test
tube of each treatment covered with aluminum foil was set as dark control. Mercury lamp (300 W)
96
97
98
99
100
101
102
103
104
105
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 6 of 38
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
equipped with 365 nm light filter (both obtained from Nanjing Xujiang Electromechanical Plant)
was applied as UV radiation source (S1), around which the test tubes could orbit. The actual
irradiance is the energy of mercury lamp multiplying the transmittance of UV filter. The actual
irradiance of UVA was detected as 9974 ꢂW/cm2, UVB as 2730 ꢂW/cm2. And the actual
irradiance ratio of UVA to UVB was 3.7. Solutions in the tubes were stirred in order to achieve
uniform irradiation. At intervals of 1 min, 0.5 ml solution of each treatment under irradiation was
sampled and directly injected into high performance liquid chromatography (HPLC) after high
speed centrifugation. Dark control of each treatment was determined after irradiation ended. Total
radiation time lasted for 8 min and the experiments were repeated three times.
Experiment 2 was for further optimizing the dosage of lignosulfonates added into ABA
application. The lignosulfonate 3A was added into ABA aqueous solution (280 mg/l). The dose of
3A was 0 mg/l, 500 mg/l, 1000 mg/l, 2000 mg/l, 4000 mg/l and 5000 mg/l respectively. Referring
to the method of experiment 1, the solutions were exposed to UV light for 8 h. At intervals of 1
hour, 20 ꢂl solution of each treatment under irradiation was sampled and injected into HPLC after
diluted by 100 times and filtered by strainer (0.22 ꢂm). Dark control of each treatment was
determined after irradiation ended. The experiments were repeated three times.
Experiment 3 was for testing the remaining bioactivity of ABA in the presence of selected
lignosulfonate after irradiation. In order to compare the bioactivity of ABA with and without 3A
after irradiation, ABA were diluted to lower concentrations, as preꢀbioassay of ABA above 2 mg/l
showed badly suppression on wheat (JIMAI 22) seed germination and growth, which resulted in a
difficulty to compare the differences among treatments. Therefore, ABA (280 mg/l) with and
without 3A (2000 mg/l) were exposed to UV light for two hours and then diluted 300 times to
ACS Paragon Plus Environment

Page 7 of 38
Journal of Agricultural and Food Chemistry
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
prepare 25 ml solution each and added with 20 ꢂl Tweenꢀ20 for bioactivity assay. Petri dish (Ф =
90 mm) placed with two layers of filter paper was immersed by 4 ml each prepared solution and
then seeded by twenty wheat seeds disinfected with 10 % hydrogen peroxide solution for 10 min.
Five dishes were applied for each treatment as repeats. Artificial climate chest (PRXꢀ450C,
obtained from Ningbo Saifu Experimental Instrument Co., Ltd.) was used to incubate wheat seeds
of all treatments in darkness at the temperature of 25 °C and humidity of 85 %. After three days’
incubation, 10 seeds were chosen randomly in each dish to measure the shoot length, root length
and root numbers of each treatment.
Experiment 4 was for examining the bioactivity of lignosulfonate 3A at different dosages on
wheat seed germination. 25 ml lignosulfonate solution at the dose of 0 mg/l, 1.3 mg/l, 6.7 mg/l,
33.3 mg/l, 500 mg/l, 1000 mg/l, 2000 mg/l and 5000 mg/l were prepared separately for bioactivity
assay referring the methods of experiment 3. After three days’ incubation, 10 seeds were chosen
randomly in each dish to measure the shoot length, root length and root numbers of each
treatment.
Experiment 5 was for determination of critical aggregation concentration (CAC). CAC was
determined with Platinum ring (ϕ = 20.5 mm × 0.6 mm) on automatic interfacial tension meter
(JK99BM, obtained from Shanghai Zhongchen Digital Technic Apparatus Co., Ltd) at 20 °C.
Surface tensions of lignosulfonate 3A at a series of concentration were determined and the turning
point on the curve of γꢀc plot was CAC. Surface tension of water was 73.7 mN/m.
Experiment 6 was for the measurements of particle size distribution of lignosulfonate 3A at a
series of concentration by dynamic light scattering (DLS). The measurements were carried out by
ZETASIZER Nano series (Nano ꢀ ZS90, obtained from Malvern Instruments) with a scattering
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 8 of 38
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
angle of 90° at 25 ± 0.01 °C. The light source is a standard laser with a power of 4 mW and a
wavelength of 633 nm. The range of the particle size measurement was from 0.3 nm to 5000 nm.
Accurate concentrations of lignosulfonate 3A were prepared in ultrapure water and then
equilibrated for 24 h before data collection. 4 ml of each prepared solution was added into
polystyrene disposable cuvette (12 mm × 12 mm × 45 mm). Each measurement was repeated three
times, and the average result was accepted as the final hydrodynamic diameters whenever all the
values fluctuated within reasonable experimental errors.
Experiment 7 was for investigating the morphology of lignosulfonate 3A at the concentrations
of CAC. The experiment was carried out by scanning electron microscopy (SEMꢀSU8010,
obtained from Hitachi) with an accelerating voltage of 5 kV and a working distance of 8 mm. The
analysis was done in a high vacuum, with Everhart–Thornley secondary electron (SE) detector. To
prepare samples for SEM investigation, lignosulfonate 3A at 2 g/l was dissolved in ultrapure water
and equilibrated for 24 h. Then the sample was added dropwise onto the surface of a polished
silicon substrate and naturally dried at room temperature overnight being protected from dust in
the air. The sample was thereafter coated with platinum (thickness = 5 nm) by a sputter coater
(EM ACE600, obtained from Leica Vienna, Austria) before capturing SEM images. Three parallel
experiments were carried out to exclude accidental errors.
Experiments 1 to 4 were carried out at Engineering Research Centre of Plant Growth Regulators,
Ministry of Education in China Agricultural University in 2015, Beijing, China. Experiments 5 to
7 were carried out at Institute of Environment and Sustainable Development in Agriculture,
Chinese Academy of Agricultural Sciences in 2017, Beijing, China. Experiments 1 to 3 were
focused on the photodegradation and afterwards bioactivity of ABA plus lignosulfonates.
ACS Paragon Plus Environment

Page 9 of 38
Journal of Agricultural and Food Chemistry
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
Experiments 4 to 7 were focused on the property of lignosulfonates.
2.2 Measurements
HPLC equipped with Agilent Eclipse Plus C18 column (4.6 mm×5 ꢂm, 250 mm) (Agilent 1200,
obtained from Agilent Technologies) was used to determine ABA concentrations. Methanol and
water (60/40, V/V) contained 0.2 % acetic acid inside were applied as mobile phase and operated
at the speed of 1 ml/min, in which temperature was set at 30 °C. UV detector wavelength was set
at 260 nm. The injection volume of samples was 20 ꢂl. ABA concentrations in samples were
calculated by external standard method according to a series of ABA standard solutions.
Full wavelength scan ranging from 190 nm to 400 nm were carried out to determine absorptions
of accurate amount of lignosulfonates 3A, CASA, NA, UV absorber BPꢀ4
(2ꢀHydroxyꢀ4ꢀmethoxybenzophenoneꢀ5ꢀsulfonic acid) and ABA in aqueous solution separately by
UV/Vis spectrophotometer (UVꢀ4802, obtained from Unico Instruments Co. Ltd). Absorptivity per
unit mass was calculated from absorbance according to LambertꢀBeer’s Law.
UV intensity of this research and natural sunshine were detected by UVA and UVB
radiationmeters (obtained from Photoelectric Instrument Factory of Beijing Normal University).
2.3 Data analysis
The bioactivity differences of ABA with ABA plus lignosulfonate 3A after being exposed to UV
radiation were analyzed by OneꢀWay ANOVA using LSD test at significant level of 0.05.
Bioactivity differences of a series of lignosulfonate 3A concentrations compared to pure water
were analyzed by the same statistical method as well.
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 10 of 38
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
3 Results
3.1 Photodegradation of ABA in the presence of lignosulfonates

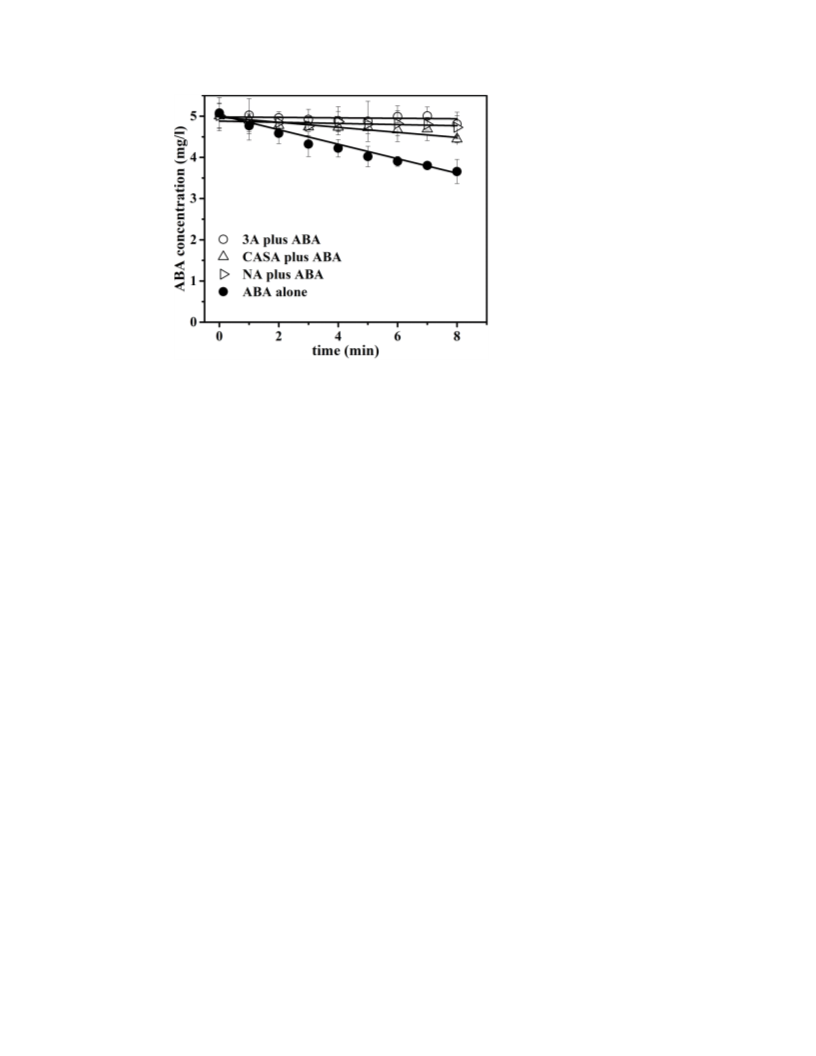

Three types of lignosulfonates, CASA, NA and 3A significantly stabilized ABA under UV
radiation (Figure 3). After 8 mins’ UV radiation, only 72 % ABA remained in ABA alone
treatment. However, all the treatments of ABA plus lignosulfonate kept at least 89 % ABA. 3A had
more significant effects on stabilizing ABA (degradation slope ꢀ0.005) than CASA (degradation
slope ꢀ0.055). Intermediate values of remained effective ABA were achieved in adding NA
(degradation slope ꢀ0.014).
3.2 Degradation dynamics of ABA adding with different dosages of lignosulfonate 3A
With adding 3A at the dose of 2 g/l to 5 g/l, more than 92 percent effective ABA remained after
two hour’s radiation, more than 80 percent after 4 hours, and more than 67 percent after 8 hours
(Figure 4). Meanwhile, there was only 23 percent ABA remained in ABA alone treatment after 8
hours radiation. Lower level but significant values of remained effective ABA were also achieved
in adding 3A with doses of 0.5 g/l and 1 g/l, in which the latter showed better stabilizing effects.
3A at 4 g/l and 5 g/l showed no significant difference on stabilizing ABA. Though 3A at 2 g/l
showed significant less effect on stabilizing ABA at longer duration of radiation than at 4 g/l and 5
g/l, it showed nearly the same stabilizing capability in the first 4 hours’ radiation. Thus, 3A at 2g/l
would be more convenient for further tests.
3.3 Remaining bioactivity of ABA in the presence of lignosulfonate 3A after irradiation
ACS Paragon Plus Environment

Page 11 of 38
Journal of Agricultural and Food Chemistry
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
Shoot and root length of wheat were significantly suppressed by the diluents of 280 mg/l ABA
alone or the diluents of 280 mg/l ABA plus 2000 mg/l 3A, compared to the control of pure water
(Figure 5a and 5b). Shoot and root length in ABA plus 3A treatment were 20.8 % and 19.3 %
shorter than that of ABA alone respectively, and there was no significant difference with the
treatments of unꢀdegraded ABA (Figure 5a and 5b). Root numbers in treatment of ABA plus 3A
were 9.3 % fewer than that in ABA alone. Root numbers in ABA alone showed no significant
difference with that of pure water treatment (Figure 5c). The bioactivity of unꢀdegraded ABA with
or without 3A showed no significant difference.
3.4 Impacts of lignosulfonate 3A on wheat seed germination
3A showed no significant bioactivity on wheat seed germination at the doses ranged from 1.3
mg/l to 2000 mg/l, compared to that of pure water treatment, while significant differences were
found among various lignosulfonate concentrations (Figure 6a, 6b and 6c). However, 3A at the
dose of 5000 mg/l suppressed 27 % shoot growth and 32 % root growth comparing to pure water
treatment (Figure 6a and 6b). The root numbers in all treatments showed no significant difference
with that of pure water control (Figure 6c).
3.5 Critical aggregation concentration of lignosulfonate 3A
According to the relationship between γ value and concentration (Figure 7), surface tension of
lignosulfonate 3A decreased sharply when the concentration was lower than 2 g/l. However, as the
concentration continued to increase, surface tension reduced slowly. So we defined concentration
at 2 g/l as a critical aggregation concentration of lignosulfonate 3A in aqueous solution.
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 12 of 38
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
3.6 Dynamic aggregation behavior of lignosulfonate 3A in aqueous solution
From the intensity distribution of particle diameter for lignosulfonate 3A in aqueous solution
(Figure 8), there was a single peak at 0.5 g/l and 1g/l respectively, however, bimodal peaks
presented at 2 g/l. The smallest particle at one peak top was about 250 nm and the largest at
another peak top was about 5.5 ꢂm. The intensity of particle size distribution of 3A in aqueous
solution decreased with increasing concentration of 3A, but the intensity and the size of 3A
aggregates increase. These results indicate that assemble of 3A is a gradually process.
3.7 Morphologic characterization of lignosulfonate 3A
From the SEM photograph (Figure 9a and 9b), aggregated structures of lignosulfonate 3A at the
concentration of 2 g/l were observed. The aggregated structures were within the diameters of
about 500 nm to about 5µm and the larger ones appeared to be hollow, as deep grey color in the
middle of the aggregated structures was observed (Figure 9b). Solid aggregated structures would
show the same pale white color with the exterior, but if the structures are hollow, the middle
would be collapsed under the strong voltage of SEM. This resulted in deep grey color in the center
of the aggregated structures.
4 Discussions and conclusions
By adding lignosulfonates, ABA degradation under UV light was significant reduced.
Lignosulfonate greatly kept the bioactivity of ABA after exposed to UV radiation. Lignosulfonate
itself had no significant bioactivity. Adding lignosulfonate kept 67 percent ABA remained after 8
ACS Paragon Plus Environment

Page 13 of 38
Journal of Agricultural and Food Chemistry
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
hours exposing to UV irradiation, while only 23 percent ABA remained in ABA alone control. The
efficiency of ABA was increased nearly 3 times by adding lignosulfonate.
It is well known that UV bands of field sunshine mainly range from 290 nm to 400 nm (55). At
this range, ABA has some absorption in UVB (290 nm ~ 320 nm) but very little in UVA (320 nm ~
400 nm) (56) (Figure 10). Thus, UVB takes a great role on ABA bioactivity reduction in the field.
Lignosulfonates absorb UV radiation at most of UV region due to many chromophores it
contained. And the complex structure of lignosulfonate, which is widely accepted as a kind of
threeꢀdimensional crossꢀlinked biopolymer (57), can effectively dissipate the energy associated
with the absorption of UV light internally thereby preventing transfer to other proximate actives.
Though absorption of lignosulfonate per unit mass is not greater than that of ABA (Figure 10),
especially, in UVB region, increased dosage of lignosulfonate could show great UVB absorption.
Our experiments proved that lignosulfonate at proper high mass dosage strongly competed UVB
absorption, compared to that of ABA. Besides, the UV radiation applied in this research mainly
ranged from UVB to UVA (S1). UVB intensity applied in this study (2730 ꢂW/cm2) was much
higher than under natural sunshine (263 ꢂW/cm2). Therefore, laboratory results in this study that
ABA photodegradation could be greatly reduced by competitive UV absorption of lignosulfonate
can be applicable in field situation.
Lignosulfonate with different molecular weight and sulfonation degree showed different
stabilizing effects on ABA degradation under UV radiation. Lignosulfonate with higher molecular
weight may have more aryl ring structural units (58), which strengthens and shifts the UV
absorption of lignosulfonate to longer wavelength and thereby absorbs more UV damage from
ABA around. Lignosulfonate with lower sulfonation degree may have more αꢀOꢀ4 ether bonds not
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 14 of 38
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
being replaced by sulfonic acid groups (57), which also enhances and induces red shift and finally
help improve UV protection effects. 3A with low degree of sulfonation and high molecular weight,
thus, showed most preferable photostabilizing effect on ABA degradation.
Absorptivity of lignosulfonate per unit mass is much lower than that of UV absorbers such as
2ꢀHydroxyꢀ4ꢀmethoxybenzophenoneꢀ5ꢀsulfonic acid (BPꢀ4) (Figure 10), therefore, theoretically,
much higher dosages of lignosulfonate should be applied to stabilize ABA comparing to that of
UV absorber. According to our measurements in this study and in the former researches (37), we
found 3A at 500 mg/l showed no significant difference with that of BPꢀ4 at 200 mg/l on stabilizing
ABA under UV radiation (Figure 11). However, adding 2000 mg/l 3A had a much higher
stabilizing effect on ABA than adding BPꢀ4. In consideration of potential impacts on human health
and the environment (38-43), caution is needed to increase the dosage of BPꢀ4 applied on ABA in
order to improve its stabilizing effects. Lignosulfonate, however, is sulfonated natural lignin,
proved safety to human beings (49, 59) and degradable in the environment (60). Lignosulfonate in
aqueous solution is quite stable even under strong and short wavelength UV radiations (61-63).
Properly increasing dosages of lignosulfonate was proved little impacts on plant growth by our
experiments. Thus, lignosulfonate is more efficient and ecoꢀfriendly to stabilizing ABA under UV
radiation even applied at high dosage.
Lignosulfonate 3A at 2 g/l (CAC) showed similar photostabilizing effects with that of 3A at
higher concentration (4 g/l or 5 g/l). There is no significantly increased effect on ABA
photostabilizing by further increasing lignosulfonate 3A above CAC, which indicates there might
be other factors that also protect ABA from UV damage except for competitive UV absorption.
One factor might be the micelles that lignosulfonate formed. It is well known that micelles were
ACS Paragon Plus Environment

Page 15 of 38
Journal of Agricultural and Food Chemistry
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
formed by surfactants above critical micelle concentration. A typical micelle is an aggregate with
the hydrophilic “head” regions in contact with surrounding solvent, sequestering the hydrophobic
singleꢀtail regions in the micelle center. Though lignosulfonate has amphiphilic activity and could
form micelles, the lignosulfonate molecules cannot aggregate into hollow micelles by their
hydrophobic sites as conventional linear molecule surfactants, as the hydrophobic base and
hydrophilic groups in lignosulfonate molecules are not totally separated from one another and the
hydrophilic groups are scattered in the whole molecule (Figure 12) (64). According to our research
and other studies (46, 64), hollow aggregates are the main form of the lignosulfonate at the
dosages of above CAC in solution. Moreover, sulfonic groups and some phenolic hydroxyl groups
constructed the surface of lignosulfonate aggregates. And the core of the aggregates is formed by
hydrophobic chains, which is loose and contains many weakly ionized groups such as carboxyls
and phenolic hydroxyl groups (Figure 12) (46). ABA has hydroxyl, conjugated carboxyl and
ketene groups and is slightly dissolved in water (3 g/l) and strongly dissolves in methanol, acetone
and ethyl acetate (above 90 g/l) (65), thus it showed relative weak polarity which makes it tend to
presence in the core of lignosulfonate aggregates through hydrogenꢀbonding and intermolecular
van der Waals forces (Figure 12). This explains the similar stabilizing effects of lignosulfonate 3A
at dosages above CAC. Therefore, we concluded that the formation of hollow aggregates might be
the other important factor that helped lignosulfonate protect ABA from UV damage. CAC found
in this study can be applied as one of the reference indexes for adding lignosulfonate into ABA.
Absorbance of agrichemicals by plant stems and leaves mainly takes place in the first four
hours after their application. According to our former measurement in natural conditions of winter
time, the applied ABA (540 mg/l) lost more than 50 % within 4 hours and even worse during other
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 16 of 38
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
seasons due to much higher UV radiation. By adding lignosulfonate, the loss of ABA bioactivity
can be reduced to less than 20 % and even much lower. Although our previous studies (37) proved
UV absorber BPꢀ4 had a good photostabilizing effect on ABA, however, the simple small
molecule of BPꢀ4 might loss its stabilizing capability on ABA due to the rain. Lignosulfonate has
amphiphilic groups and plant leave surface is always hydrophobic or hydrophilic, which could
help ABA well adhere on the leaves and thereby increases its effects on ABA stabilization.
Therefore, the usage of surfactant could be thereafter reduced and the limitation of using BPꢀ4 can
be relieved.
In the future studies, appropriate time and dosage of lignosulfonate added into ABA application
are still required, especially, by more experiments at field conditions. In the field, the bioactivity
of ABA plus lignosulfonate in the sunny day might be different from that of in the cloudy due to
different degrees of degradation, so the effect and suitable doses of lignosulfonate should be
testified at both situations in the future. The effects of ABA plus lignosulfonate on growth,
development and yields of plant in relation to optimal applying time and dosage should be
determined at field condition. Moreover, the effects of new ABA products with adding
lignosulfonate on prolonging florescence, promoting fruit coloring rate and improving resistance
to drought stress is necessary to be explored, especially under natural sunshine.
In conclusion, lignosulfonate greatly reduced ABA photodegradation. Lignosulfonate 3A
addition significantly prevented ABA from UV damage and thereafter greatly kept ABA
bioactivity after exposed to UV radiation. Besides, lignosulfonate showed no significant impacts
on plant growth at suitable dosage. Consequently, lignosulfonate could be a safe and high
efficiency agent to photostabilize ABA. The usage of surfactants could also be reduced due to the
ACS Paragon Plus Environment

Page 17 of 38
Journal of Agricultural and Food Chemistry
348
349
350
351
352
353
354
surface activities of lignosulfonate. And waste liquor of sulfite pulp mills can be reduced and
reused. Pretty low cost would be made by applying lignosulfonate to prepare novel photostable
formulations of ABA or alternatively to be applied tankꢀmixed in the field, compare to the
application of UV absorbers. Thereafter, the ABA efficiency would be significantly promoted and
crop yield and quality would be improved. This research could be widely used in the application
of UVꢀsensitive and waterꢀsoluble agrichemicals and help to reduce environmental impact of
applying plant growth regulators.
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 18 of 38
355
356
357
Acknowledgment
We thank Professor Lizhen Zhang, College of Resources and Environmental Sciences, China
Agricultural University, for technical improvement of the manuscript.
ACS Paragon Plus Environment

Page 19 of 38
Journal of Agricultural and Food Chemistry
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
References
1. Li, Z. Z.; Chen, J. F.; Liu, F.; Liu, A. Q.; Wang, Q.; Sun, H. Y.; Wen, L. X., Study of UVꢀshielding
properties of novel porous hollow silica nanoparticle carriers for avermectin. Pest Management Science
2007, 63, 241ꢀ6.
2. Liu, S.; Li, Q. X., Photolysis of spinosyns in seawater, stream water and various aqueous solutions.
Chemosphere 2004, 56, 1121ꢀ7.
3. Hurle, K.; Walker, A., Persistence and its prediction. In Interaction Between Herbicides and the
Soil, Hance, R. J., Ed. Academic Press: London, 1980; pp 83–122.
4. Ferrante, A.; Trivellini, A.; Scuderi, D.; Romano, D.; Vernieri, P., Postꢀproduction physiology and
handling of ornamental potted plants. Postharvest Biology and Technology 2015, 100, 99ꢀ108.
5. ShimizuꢀYumoto, H.; Ichimura, K., Postharvest physiology and technology of cut eustoma
flowers. Journal of the Japanese Society for Horticultural Science 2010, 79, 227ꢀ238.
6. Ahmad, I.; Joyce, D. C., Abscisic acid treatment has inconsistent effects on the water relations and
longevity of cut Acacia holosericea foliage. Journal of Horticultural Science & Biotechnology 2011,
86, 107ꢀ112.
7. Kim, J.; van Iersel, M. W., Abscisic acid drenches can reduce water use and extend shelf life of
Salvia splendens. Scientia Horticulturae 2011, 127, 420ꢀ423.
8. Frankowski, K.; Wilmowicz, E.; Kucko, A.; Kesy, J.; Swiezawska, B.; Kopcewicz, J., Ethylene,
auxin, and abscisic acid interactions in the control of photoperiodic flower induction in Pharbitis nil.
Biologia Plantarum 2014, 58, 305ꢀ310.
9. Su, W. R.; Huang, K. L.; Shen, R. S.; Chen, W. S., Abscisic acid affects floral initiation in
Polianthes tuberosa. Journal of Plant Physiology 2002, 159, 557ꢀ559.
10. Wang, W. Y.; Chen, W. S.; Chen, W. H.; Hung, L. S.; Chang, P. S., Influence of abscisic acid on
flowering in Phalaenopsis hybrida. Plant Physiology and Biochemistry 2002, 40, 97ꢀ100.
11. Mutui, T. M.; Mibus, H.; Serek, M., The influence of plant growth regulators and storage on root
induction and growth in Pelargonium zonale cuttings. Plant Growth Regulation 2010, 61, 185ꢀ193.
12. Moreno, D.; Berli, F. J.; Piccoli, P. N.; Bottini, R., Gibberellins and abscisic acid promote carbon
allocation in roots and berries of grapevines. Journal of Plant Growth Regulation 2011, 30, 220ꢀ228.
13. Basak, H.; Demir, K.; Doganlar, Z. B., The effect of abscisic acid application on rootꢀshoot length
and some antioxidant enzyme activities of two different tomato seedlings. Journal of Animal and Plant
Sciences 2012, 22, 695ꢀ703.
14. Singh, S. P.; Saini, M. K.; Singh, J.; Pongener, A.; Sidhu, G. S., Preharvest application of abscisic
acid promotes anthocyanins accumulation in pericarp of litchi fruit without adversely affecting
postharvest quality. Postharvest Biology and Technology 2014, 96, 14ꢀ22.
15. Barickman, T. C.; Kopsell, D. A.; Sams, C. E., Exogenous foliar and root applications of abscisic
acid increase the influx of calcium into tomato fruit tissue and decrease the incidence of blossomꢀend
rot. Hortscience 2014, 49, 1397ꢀ1402.
16. Barickman, T. C.; Kopsell, D. A.; Sams, C. E., Foliar applications of abscisic acid decrease the
incidence of blossomꢀend rot in tomato fruit. Scientia Horticulturae 2014, 179, 356ꢀ362.
17. Peppi, M. C.; Fidelibus, M.; Dokoozlian, N.; Walker, M. A., Abscisic acid applications improve
the color of crimson seedless table grapes. American Journal of Enology and Viticulture 2006, 57,
388aꢀ388a.
18. Peppi, M. C.; Fidelibus, M. W.; Dokoozlian, N., Abscisic acid application timing and
concentration affect firmness, pigmentation, and color of 'flame seedless' grapes. Hortscience 2006, 41,
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 20 of 38
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
1440ꢀ1445.
19. Ferrara, G.; Mazzeo, A.; Matarrese, A. M. S.; Pacucci, C.; Pacifico, A.; Gambacorta, G.; Faccia,
M.; Trani, A.; Gallo, V.; Cafagna, I.; Mastrorilli, P., Application of abscisic acid (SꢀABA) to 'Crimson
Seedless' grape berries in a mediterranean climate: Effects on color, chemical characteristics, metabolic
profile, and SꢀABA concentration. Journal of Plant Growth Regulation 2013, 32, 491ꢀ505.
20. Waterland, N. L.; Campbell, C. A.; Finer, J. J.; Jones, M. L., Abscisic acid application enhances
drought stress tolerance in bedding plants. Hortscience 2010, 45, 409ꢀ413.
21. Agehara, S.; Leskovar, D. I., Optimizing foliar application of abscisic acid to improve drought
tolerance of melon transplants. Hortscience 2010, 45, S50ꢀS51.
22. Bakht, J.; Bano, A.; Shafi, M.; Dominy, P., Effect of abscisic acid applications on cold tolerance in
chickpea (Cicer arietinum L.). European Journal of Agronomy 2013, 44, 10ꢀ21.
23. Li, X.; Cai, J.; Liu, F.; Dai, T.; Cao, W.; Jiang, D., Exogenous abscisic acid application during
grain filling in winter wheat improves cold tolerance of offspring's seedlings. Journal of Agronomy and
Crop Science 2014, 200, 467ꢀ478.
24. Fan, S. K.; Fang, X. Z.; Guan, M. Y.; Ye, Y. Q.; Lin, X. Y.; Du, S. T.; Jin, C. W., Exogenous
abscisic acid application decreases cadmium accumulation in Arabidopsis plants, which is associated
with the inhibition of IRT1ꢀmediated cadmium uptake. Frontiers in Plant Science 2014, 5.
25. Shi, W. G.; Li, H.; Liu, T. X.; Polle, A.; Peng, C. H.; Luo, Z. B., Exogenous abscisic acid
alleviates zinc uptake and accumulation in Populus x canescens exposed to excess zinc. Plant Cell
Environ 2015, 38, 207ꢀ23.
26. Li, H. H.; Hao, R. L.; Wu, S. S.; Guo, P. C.; Chen, C. J.; Pan, L. P.; Ni, H., Occurrence, function
and potential medicinal applications of the phytohormone abscisic acid in animals and humans.
Biochemical pharmacology 2011, 82, 701ꢀ12.
27. Kharenko, O. A.; Polichuk, D.; Nelson, K. M.; Abrams, S. R.; Loewen, M. C., Identification and
characterization of interactions between abscisic acid and human heat shock protein 70 family
members. Journal of Biochemistry 2013, 154, 383ꢀ391.
28. BassaganyaꢀRiera, J.; Skoneczka, J.; Kingston, D. G.; Krishnan, A.; Misyak, S. A.; Guri, A. J.;
Pereira, A.; Carter, A. B.; Minorsky, P.; Tumarkin, R.; Hontecillas, R., Mechanisms of action and
medicinal applications of abscisic Acid. Current Medicinal Chemistry 2010, 17, 467ꢀ78.
29. Mousseron, C. M.; Mani, J. C.; Dalle, J. P.; Olive J. L., Photoxydation sensibilisee de quelques
composes apparentés à la déhydroꢀβꢀionone, synthése de lester methylique de la (±) abscisine. Bulletin
de la Société Chimique de France 1966, 3874ꢀ3878.
30. Cornforth, J. W.; Milborrow, B. V.; Ryback, G., Synthesis of (±)ꢀAbscisin II. Nature 1965, 206,
715ꢀ715.
31. Milborrow, B. V., The effects of synthetic dlꢀdormin (Abscisin II) on the growth of the oat
mesocotyl. Planta 1966, 70, 155ꢀ71.
32. Cao, M.; Liu, X.; Zhang, Y.; Xue, X.; Zhou, X. E.; Melcher, K.; Gao, P.; Wang, F.; Zeng, L.; Zhao,
Y.; Zhao, Y.; Deng, P.; Zhong, D.; Zhu, J. K.; Xu, H. E.; Xu, Y., An ABAꢀmimicking ligand that
reduces water loss and promotes drought resistance in plants. Cell research 2013, 23, 1043ꢀ54.
33. Chen, S. C.; Mactaggart, J. M., Abscisicꢀacid analogs with a geometrically rigid conjugated acid
sideꢀchain. Agricultural and Biological Chemistry 1986, 50, 1097ꢀ1100.
34. Kim, B. T.; Min, Y. K.; Asami, T.; Park, N. K.; Kwon, O. Y.; Cho, K. Y.; Yoshida, S., Synthesis of
2ꢀfluoroabscisic acid: A potential photoꢀstable abscisic acid. Tetrahedron Letters 1997, 38, 1797ꢀ1800.
35. Wu, Q. The synthesis of (±)ꢀabscisic acid and 2,3ꢀmethylene derivatives. China Agricultural
ACS Paragon Plus Environment

Page 21 of 38
Journal of Agricultural and Food Chemistry
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
University, Beijing, P.R. China, 2004.
36. Liu, W. Synthesis, photostability and bioactivity of 2,3ꢀcyclopropylized abscisic acid analogues.
China Agricultural University, Beijing, P.R. China, 2008.
37. Gao, F.; Hu, T.; Tan, W.; Yu, C.; Li, Z.; Zhang, L.; Duan, L., Photoprotectant improves
photostability and bioactivity of abscisic acid under UV radiation. Journal of Photochemistry and
Photobiology. B, Biology 2016, 158, 99ꢀ104.
38. Liu, H.; Sun, P.; Liu, H.; Yang, S.; Wang, L.; Wang, Z., Acute toxicity of benzophenoneꢀtype UV
filters for Photobacterium phosphoreum and Daphnia magna: QSAR analysis, interspecies relationship
and integrated assessment. Chemosphere 2015, 135, 182ꢀ8.
39. Suzuki, T.; Kitamura, S.; Khota, R.; Sugihara, K.; Fujimoto, N.; Ohta, S., Estrogenic and
antiandrogenic activities of 17 benzophenone derivatives used as UV stabilizers and sunscreens.
Toxicology and Applied Pharmacology 2005, 203, 9ꢀ17.
40. Zeiger, E.; Anderson, B.; Haworth, S.; Lawlor, T.; Mortelmans, K.; Speck, W., Salmonella
Mutagenicity tests: III. Results from the testing of 255 chemicals. Environmental Mutagenesis 1987, 9,
1ꢀ60.
41. Liu, H.; Sun, P.; Liu, H.; Yang, S.; Wang, L.; Wang, Z., Hepatic oxidative stress biomarker
responses in freshwater fish Carassius auratus exposed to four benzophenone UV filters. Ecotoxicology
and Environmental Safety 2015, 119, 116ꢀ22.
42. Frikeche, J.; Couteau, C.; Roussakis, C.; Coiffard, L. J., Research on the immunosuppressive
activity of ingredients contained in sunscreens. Archives of Dermatological Research 2015, 307, 211ꢀ8.
43. French, J. E., NTP technical report on the toxicity studies of 2ꢀHydroxyꢀ4ꢀmethoxybenzophenone
(CAS No. 131ꢀ57ꢀ7) Adminstered Topically and in Dosed Feed to F344/N Rats and B6C3F1 Mice.
Toxicity Report Series 1992, 1ꢀE14.
44. Li, H.; Deng, Y.; Ye, H.; Xiao, L.; Qiu, X., Effect of temperature on polyelectrolyte expansion of
lignosulfonate. BioResources 2014, 10, 575ꢀ587.
45. Chakrabarty, K.; Krishna, K. V.; Saha, P.; Ghoshal, A. K., Extraction and recovery of
lignosulfonate from its aqueous solution using bulk liquid membrane. Journal of Membrane Science
2009, 330, 135ꢀ144.
46. Yan, M.; Yang, D.; Deng, Y.; Chen, P.; Zhou, H.; Qiu, X., Influence of pH on the behavior of
lignosulfonate macromolecules in aqueous solution. Colloids and Surfaces A: Physicochemical and
Engineering Aspects 2010, 371, 50ꢀ58.
47. Yong Qian, Y. D., Conghua Yi, Haifeng Yu, Xueqing Qiu, Solution behaviors and adsorption
characteristics of sodium lignosulfonate under different pH conditions. BioResources 2011, 6,
4686ꢀ4695.
48. Qian, Y.; Deng, Y.; Guo, Y.; Li, H.; Qiu, X., Light scattering characterization of lignosulfonate
structure in saline solutions. Holzforschung 2015, 69.
49. Harumi Suzuki, T. S. T. K. I., Sunao Yamazaki, Naoki Yamamoto, Shozo Toda, Lignosulfonate, a
waterꢀsolubilized lignin from the waste liquor of the pulping process, inhibits the infectivity and
cytopathic effects of human immunodeficiency virus in vitro. Agricultural and Biological Chemistry
1989, 53, 3369ꢀ3372.
50. Ouyang, X.; Qiu, X.; Chen, P., Physicochemical characterization of calcium lignosulfonate—A
potentially useful water reducer. Colloids and Surfaces A: Physicochemical and Engineering Aspects
2006, 282-283, 489ꢀ497.
51. Qian, Y.; Qiu, X.; Zhu, S., Lignin: a natureꢀinspired sun blocker for broadꢀspectrum sunscreens.
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 22 of 38
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
Green Chemistry 2015, 17, 320ꢀ324.
52. FernándezꢀPérez, M.; FloresꢀCéspedes, F.; DazaꢀFernández, I.; VidalꢀPeña, F.;
VillafrancaꢀSánchez, M., Lignin and lignosulfonateꢀbased formulations to protect pyrethrins against
photodegradation and volatilization. Industrial & Engineering Chemistry Research 2014, 53,
13557ꢀ13564.
53. Arthurs, S. P.; Lacey, L. A.; Behle, R. W., Evaluation of sprayꢀdried ligninꢀbased formulations and
adjuvants as solar protectants for the granulovirus of the codling moth, Cydia pomonella (L). Journal of
Invertebrate Pathology 2006, 93, 88ꢀ95.
54. García, M. C.; Díez, J. A.; Vallejo, A.; García, L.; Cartagena, M. C., Use of kraft pine lignin in
controlledꢀrelease fertilizer formulations. Industrial & Engineering Chemistry Research 1996, 35,
245ꢀ249.
55. Yao, Q. X.; Du, M. L.; Sun, M., Improving antiꢀaging coatings by coupling of organic and
inorganic ultraviolet absorbers. Advanced Materials Research 2013, 652-654, 1723ꢀ1727.
56. Milborrow, B. V., The chemistry and physiology of abscisic acid. Annual Review of Plant
Physiology 1974, 25, 259ꢀ307.
57. Lauten, R. A.; Myrvold, B. O.; Gundersen, S. A., New developments in the commercial utilization
of lignosulfonates. In Surfactants from Renewable Resources, Kjellin, M.; Johansson, I., Eds. John
Wiley & Sons, Ltd: Chichester, UK, 2010; pp 269ꢀ283.
58. Li, B.; Ouyang, X. P., Structure and properties of lignosulfonate with different molecular weight
isolated by gel column chromatography. Advanced Materials Research 2012, 554-556, 2024ꢀ2030.
59. Tabil, L. G.; Sokhansanj, S.; Tyler, R. T., Performance of different binders during alfalfa pelleting.
Canadian Agricultural Engineering 1997, 39, 17ꢀ23.
60. Huang, J.; Zhang, L.; Chen, F., Effects of lignin as a filler on properties of soy protein plastics. I.
Lignosulfonate. Journal of Applied Polymer Science 2003, 88, 3284ꢀ3290.
61. Kadam, S. R.; Mate, V. R.; Panmand, R. P.; Nikam, L. K.; Kulkarni, M. V.; Sonawane, R. S.; Kale,
B. B., A green process for efficient lignin (biomass) degradation and hydrogen production via water
splitting using nanostructured C, N, Sꢀdoped ZnO under solar light. RSC Advances 2014, 4,
60626ꢀ60635.
62. Wang, X.; Wang, L.; Huang, Y., Degradation of lignosulfonate under UV/H2O2 treatment.
Chemistry and Industry of Forest Products 2007, 27, 98ꢀ102.
63. Awungacha Lekelefac, C.; Hild, J.; Czermak, P.; Herrenbauer, M., Photocatalytic active coatings
for lignin degradation in a continuous packed bed reactor. International Journal of Photoenergy 2014,
2014, 1ꢀ10.
64. Qiu, X.; Kong, Q.; Zhou, M.; Yang, D., Aggregation behavior of sodium lignosulfonate in water
solution. The Journal of Physical Chemistry B 2010, 114, 15857ꢀ61.
65. European Food Safety Authority, Conclusion on the peer review of the pesticide risk assessment
of the active substance Sꢀabscisic acid. EFSA Journal 2013, 11, 3341.
ACS Paragon Plus Environment

Page 23 of 38
Journal of Agricultural and Food Chemistry
528
529
Figure captions
Figure 1 Structure and photoisomerization of ABA to transꢀABA.
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
Figure 2 Sulfonation process of lignin in sulfite pulping. Lignin in the group sites of the structure
represents for propagated lignin structure. This figure was modified from Lauten et al (57).
Figure 3 Photodegradation dynamics of ABA in the presence of varieties of lignosulfonate. ABA
was applied at 5 mg/l. Lignosulfonate 3A, CASA and NA were all applied at 500 mg/l. Error bars
are s. e. (standard error) of three replicates.
Figure 4 Dynamics of ABA (280 mg/l) photodegradation in aqueous solution affected by adding
different doses of lignosulfonate 3A. ABA was applied at 280 mg/l. Lignosulfonate 3A was
applied at 500 mg/l, 1000 mg/l, 2000 mg/l, 4000 mg/l and 5000 mg/l. lingo. is the abbreviation for
lignosulfonate 3A. Error bars are s. e. of three replicates.
Figure 5 Bioactivity of ABA in the presence of lignosulfonate 3A after irradiation on the growth
of wheat (JIMAI 22). ABA (280 mg/l) with or without 3A (2000 mg/l) were exposed to UV
radiation for 2 h and then diluted for 300 times to compare their bioactivity on wheat shoot and
root growth. Error bars are s. e. of five replicates. Within each figure, treatments with same letter
are not significantly different at a=0.05. unꢀdeg. is the abbreviation for unꢀdegraded; pꢀdeg. is the
abbreviation for partiallyꢀdegraded.
Figure 6 Impacts of lignosulfonate 3A on the growth of wheat (JIMAI 22). 3A is applied at 1.3
mg/l, 6.7 mg/l, 33.3 mg/l, 500 mg/l, 1000 mg/l, 2000 mg/l and 5000 mg/l. Error bars are s. e. of
five replicates. Within each figure, treatments with same letter are not significantly different at
a=0.05.
Figure 7 Surface tension of lignosulfonate 3A as a function of 3A concentration at 25 °C. CAC is
the abbreviation for critical aggregation concentration. γ represents for surface tension.
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 24 of 38
551
552
553
554
555
556
557
558
559
560
Figure 8 Influence of concentration on the particles size distribution of lignosulfonate 3A at
25 °C.
Figure 9 SEM micrography of lignosulfonate 3A on polished silicon substrate. Lignosulfonate
was applied at the concentration of 2 g/l. a and b represent for micrograph captured at different
magnification.
Figure 10 Absorption spectra per unit mass of ABA, lignosulfonate 3A, CASA and NA, and UV
absorber BPꢀ4 in aqueous solution. Gray and light gray shadows indicate UVB (290ꢀ320 nm) and
UVA (320ꢀ400 nm) region in natural UV radiation.
Figure 11 Comparison effects of lignosulfonate 3A and UV absorber BPꢀ4 on stabilizing ABA
under UV radiation. ABA was applied at 280 mg/l. Error bars are s. e. of three replicates.
Figure 12 The formation of lignosulfonate aggregate and its interaction with ABA.
561
562
ACS Paragon Plus Environment

Page 25 of 38
Journal of Agricultural and Food Chemistry
563
564
Tables
Table 1 Physicoꢀchemical properties of three commercialized lignosulfonates
Name Molecular weight Na (%) Ca (%) Sulfonation degree
3A
NA
> 50000
20000 ~ 50000
< 20000
8.5
9
0.02
0.3
5
0.48
0.7
CASA
< 0.1
0.7
565
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 26 of 38
566
567
Figure graphics
568
569
Figure 1
ACS Paragon Plus Environment

Page 27 of 38
Journal of Agricultural and Food Chemistry
570
571
572
Figure 2
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 28 of 38
573
574
Figure 3
ACS Paragon Plus Environment

Page 29 of 38
Journal of Agricultural and Food Chemistry
575
576
Figure 4
ACS Paragon Plus Environment
