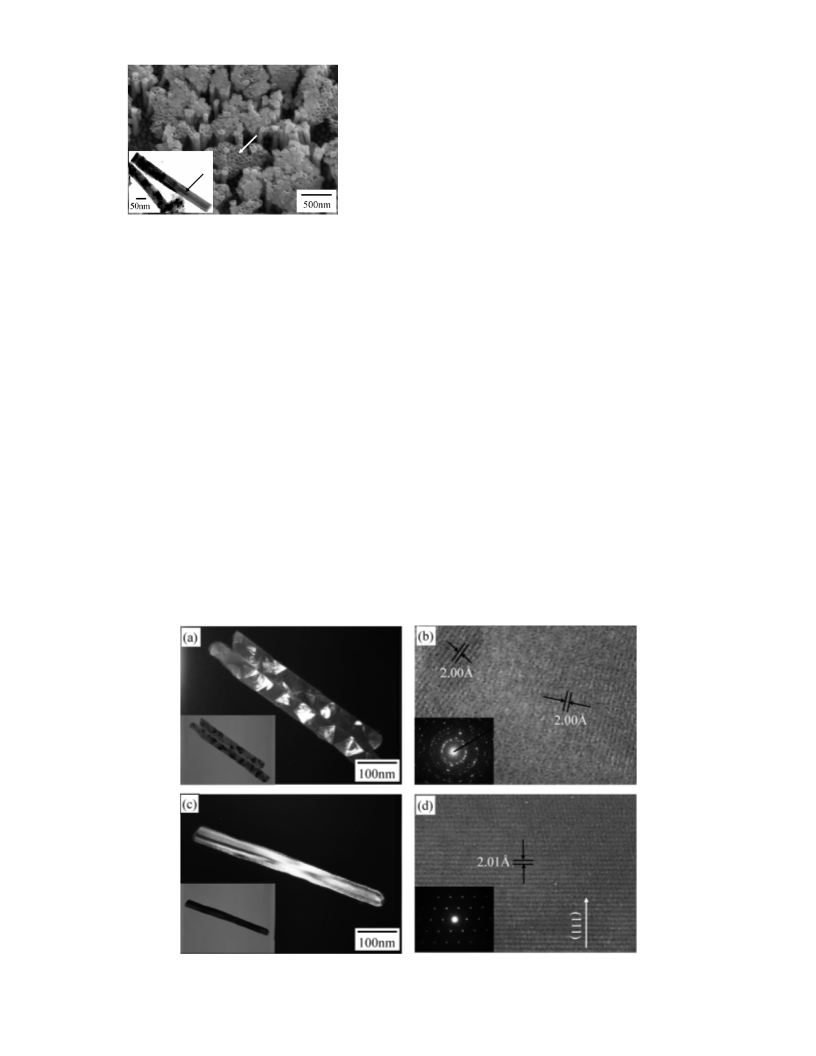

the electrodeposition on the PAA/Si substrate with a conductive
Au interlayer under the PAA template, the current variation
revealed the typical three stages of the growth of nanowires,13
as shown in Figure 1a. Stage I indicates the deposition of Ni
into the channels. Stage II shows the formation of caps at the
end of nanowires outside the channel and stage III shows the
formation of planar Ni layer on the PAA surface. Figure 1b
shows the current variation for the electrodeposition of Ni on
the 300 nm thick PAA/Si substrate without a conductive
interlayer. The current decreased in the beginning and reached
a steady state in the subsequent electrodeposition process for
all the applied voltages, quite different from that shown in Figure
1a. This indicates that the deposition mechanisms of Ni were
probably different for the different substrates. Besides, no
obvious fluctuation in current was observed for the electrodepo-
sition on the PAA/Si substrate without a conductive layer, even
when the applied voltage was as negative as -40 V. Only a
few bubbles were found on the electrode for all the electrodepo-
sition voltages, implying that the hydrolysis of water on the
PAA/Si substrate was quite low. It is not clear why the
hydrolysis reaction cannot readily occur on the PAA/Si substrate
without a conductive layer; however, the low degree of the
hydrolysis reaction reduces the possibility of obstructing the
electrodeposition at more negative voltages by gas bubbles.
To further investigate the electrodeposition behavior of Ni
on the PAA/Si substrate without a conductive interlayer, the
electrodeposition was also conducted on the blank Si substrate.
Figure 2a shows the surface morphologies of a Si substrate after
the electrodeposition of Ni at -2 V for 10 min. Some Ni
particles were formed, but with a very low density of about
1.45 × 104 cm-2. Even for a more negative applied voltage
(-3 V), the density of Ni particles only slight increases (3.15
× 104 cm-2), accompanying the formation of Ni particles of
larger size (Figure 2b). The dominant carriers of n-type Si are
electrons. When a negative voltage was applied on the n-type
Si (forward bias),14 the electrons should easily be driven to the
Si/solution interface and reduce the metal ions to form the
deposit. Nevertheless, the results of Figure 2a,b indicate that
the deposit does not prefer to nucleate on the Si substrate. The
low nucleation density of metal on the semiconductor can be
attributed to the low interaction energy between the absorbed
metal atom and the substrate, as well as the required larger
critical nucleus size compared with that on the metallic
substrate.15
Figure 3. High-magnification image of 300 nm thick PAA surface in
the initial period of electrodeposition at -2.0 V for (a) 30 s, (b) 90 s,
and (c) 150 s.
pure oxide.16 Owing to the limited thickness of the template,
electron avalanches due to the electrical breakdown of the anion-
contaminated oxide might occur under the applied electrodepo-
sition voltage in the present study, even though the calculated
field strength was only about 105 V cm-1 for the electrodepo-
sition voltage of -3 V. The surface of the template could be
considered as the cathode for electrodeposition. The electric field
across PAA would decrease as the thickness of PAA was
increased, leading to a reduced nucleation density of Ni because
the nucleation density is dependent on the magnitude of
overpotential.17
Another interesting phenomenon is that the density of Ni
particles is higher on the PAA/Si substrate than that on the blank
Si substrate under the same electrodeposition conditions. In
addition to the factor of interaction energy mentioned above,
other factors may also affect the electrodeposition of metal on
the different substrates used. Because the pore wall of PAA is
composed of pure oxide at the inner part and anion-contaminated
oxide at the outer part,16 the existence of defects on the anion-
contaminated oxide will provide more nucleation sites during
electrodeposition. It may be one possible reason the density of
Ni particle is higher on the PAA/Si substrate than that on the
blank Si substrate.
Part c and d of Figure 2 show the surface morphologies of
300 nm thick PAA/Si substrates after electrodeposition. The
densities of Ni particles were about 2.5 × 106 and 4 × 106
cm-2 when the electrodeposition was conducted at -2 and -3
V, respectively. When a 600 nm thick PAA/Si substrate was
used for electrodeposition, the densities of Ni particles were
7.7 × 105 and 1.18 × 106 cm-2 for voltage at -2 and -3 V,
respectively (Figure 2e,f). These results indicate that the density
of Ni particles decreased with the increase of the PAA thickness.
In our previous study, it was found that no deposit was observed
on the pore wall and the underlying Si when the electrodepo-
sition voltage was more positive than -2 V.11 As the applied
voltage was more negative than -2 V, Ni began to deposit at
the outer surface of PAA instead of the underlying Si. It was
suggested that the unusual electrodeposition behavior was caused
by the electrical breakdown of PAA that would lead to the
formation of negatively charged pore wall. It is well-known that
the pore wall is composed of the pure oxide at the inner part
and the anion-contaminated oxide at the outer part. The
conductivity of the anion-contaminated oxide is higher than the
Figure 3 shows a high-magnification image of a 300 nm thick
PAA surface in the initial period of electrodeposition at -2.0
V. In the beginning, the deposition occurred in local area (the
white area) on the PAA surface, like those shown in Figure 3a.
The subsequent electrodeposition of Ni prefers to occur at the
