Controllable synthesis and modification of carbon micro-spheres from
deoiled asphalt
Yongzhen Yang a,b, Xuguang Liu a,c,n, Chun Yi Zhang a,b, Mingcong Guo a,c, Bingshe Xu a,b
a Key Laboratory of Interface Science and Engineering in Advanced Materials, Taiyuan University of Technology, Ministry of Education, Taiyuan 030024, China
b College of Materials Science and Engineering, Taiyuan University of Technology, Taiyuan 030024, China
c College of Chemistry and Chemical Engineering, Taiyuan University of Technology, Taiyuan 030024, China
a r t i c l e i n f o
a b s t r a c t
Article history:
A series of size-controllable carbon micro-spheres (CMSs) were synthesized from deoiled asphalt by
chemical vapour deposition, with the emphasis on the effect of reaction temperature, Ar flow rate and
collection zone. Graphitized carbon micro-spheres (GCMSs) were obtained from as-prepared CMSs by
vacuum heat treatment at 2000 1C for 1 h. Air oxidation was performed to realize functionalization of
CMSs. Morphologies and structures of CMSs and GCMSs were characterized by field emission scanning
electron microscopy, high-resolution transmission electron microscopy, energy dispersive X-ray
spectroscopy, X-ray diffraction and Raman spectroscopy, and the functional groups on the surface of
GCMSs and CMSs were characterized by Fourier transformation infra-red spectrometry. Results show
Received 10 February 2009
Received in revised form
25 November 2009
Accepted 26 November 2009
Keywords:
A. Amorphous materials
B. Vapour deposition
D. Microstructure
D. Surface properties
that effective mass production of size-controllable CMSs, with diameters ranging from 100 nm to 1 mm,
was achieved. As-obtained high purity CMSs were spherical with uniform size and low graphitization
degree, but the graphitization degree of GCMSs was enhanced obviously. By air oxidation, some oxygen-
containing functional groups were introduced onto the surface of CMSs, while no functional groups
were introduced onto the surface of GCMSs.
& 2009 Elsevier Ltd. All rights reserved.
1. Introduction
either in common organic solvents or in aqueous solution. Deoiled
asphalt (DOA) is a kind of carbon-rich by-product of petroleum
processing. Converting DOA into carbon materials with high
added value is an economically competent route [14–19]. The
purpose of this work is to synthesize a series of size-controllable
CMSs from DOA by CVD, and obtain graphitized carbon micro-
spheres (GCMSs) from as-prepared CMSs by vacuum heat
treatment, and then modify their surface by air oxidation.
In 1990s, some scientists, such as Ugarte [1] and Iijima [2],
brought the research of carbon materials to a new stage. Among
various forms of carbon, carbon micro-spheres (CMSs) as a kind of
advanced material are becoming increasingly important because
of their special properties. Many potential applications for CMSs
have been proposed, including anode material of secondary
lithium ion batteries, catalyst supporter, fillers in composite and
porous conductive material [3–6]. Up to now, various methods
have been demonstrated for the synthesis of CMSs, such as
emulsion, suspension, arc discharge, pressurized carbonization,
chemical vapour deposition (CVD), etc. [7–13]. CVD is considered
to be a suitable route for the synthesis of CMSs due to its simple
technological operation and low cost. But the graphitization
degree of CMSs synthesized by CVD is low. However, to expand
and optimize the use of CMSs in research field, it is necessary to
modify and functionalize their surface. The modification of CMSs
is an essential step to graft a wide variety of functional groups or
active molecules to their surface, or to improve their solubility
2. Experimental
2.1. Synthesis of CMSs
DOA used in this experiment was supplied by China University
of Petroleum-Beijing. Table 1 shows some analytical data of DOA,
and Table 2 shows the main compositions of its pyrolytic gases.
Fig. 1 shows the schematic of experimental apparatus and the
corresponding temperature profile along quartz tube reactor with
the central temperature of 1100 1C. CMSs were synthesized in the
quartz tube (32 mm i.d. and 1000 mm long), which was mounted
in a horizontal tubular furnace. At the beginning of synthesis
experiment, 2.0 g of DOA was placed in a small quartz boat
located at the inlet cool zone of the quartz tube, as shown in Fig. 1.
While the temperature of central reaction zone reached
n Corresponding author at: College of Chemistry and Chemical Engineering,
Taiyuan University of Technology, 79, West Yingze Street, Taiyuan 030024, China.
Tel./fax: +86 351 6014138.
E-mail address: liuxuguang@tyut.edu.cn (X. Liu).
0022-3697/$ - see front matter & 2009 Elsevier Ltd. All rights reserved.
doi:10.1016/j.jpcs.2009.11.012

ARTICLE IN PRESS
236
Y. Yang et al. / Journal of Physics and Chemistry of Solids 71 (2010) 235–241
predetermined temperature in Ar atmosphere, reaction was
allowed to proceed for 30 min by moving the quartz boat into
low temperature zone (500–600 1C) near the inlet of the quartz
tube, where the pyrolytic gases of DOA were carried into reaction
zone by Ar flow. Then the quartz tube was cooled to room
temperature under the protection of flowing Ar. Finally, the black
powder was collected from high temperature zone (denoted as
Zone A in Fig. 1) and low temperature zone near the outlet of the
quartz tube (denoted as Zone B in Fig. 1).
2.2. Preparation of GCMSs
The CMSs obtained in Section 2.1 were further treated by
vacuum heat treatment. Experimental parameters were as
follows: vacuum was between 2 Â 10À2 and 2 Â 10À3 Pa, the
vacuum furnace was heated to 2000 1C at the rate of 30 1C/min,
kept for 1 h and then cooled to room temperature.
2.3. Modification of CMSs and GCMSs
Air oxidation was performed to modify as-synthesized CMSs.
The process parameters and procedures were as follows: 50 mg of
CMSs was placed in a small quartz boat and then heated in open
air in a horizontal tubular furnace at 500 1C for 1, 2, 3, 5, 7 or 10 h.
GCMSs were also oxidized in air at 500 1C for 5 h.
Table 1
Analytical data of DOA.
Elemental analysis
(wt%)
H/C
(mol molÀ1
Softening point
Carbon residue
(wt%)
)
(1C)
2.4. Characterization
C
H
N
S
The products were characterized using field emission scanning
electron microscope (FESEM, JSM-6700F, operated at 10 kV)
equipped with an energy dispersive X-ray spectroscope (EDS),
high-resolution transmission electron microscope (HRTEM,
JEM-2010, working at an accelerating voltage of 200 kV),
87.84 9.39 1.28 0.42 1.28
193
41.08
Table 2
Main compositions of pyrolytic gases of DOA.
Raman spectrometer (JY-HR800, 532 nm), X-ray powder diffract-
˚
l=1.54018 A). Func-
tional groups were characterized using Fourier transformation
Composition
Vol%
H2
N2
CH4
CO
CO2
CnHm
17.32
ometer (XRD, D/Max-3C, Cu-K radiation,
a
4.92
37.58
30.43
3.52
2.43
infra-red spectrometer (FTIR, FTS-165).
Fig. 1. Schematic of experimental apparatus and the temperature profile along the quartz tube with the central temperature of 1100 1C.
Fig. 2. FESEM images of CMSs obtained at (a) 900, (b) 1000 and (c) 1100 1C.

ARTICLE IN PRESS
Y. Yang et al. / Journal of Physics and Chemistry of Solids 71 (2010) 235–241
237
3. Results and discussion
the range of 650–750 nm, were basically invariable with
increasing reaction temperature from 900 to 1100 1C. This was
consistent with the results of Jin et al. [12]. On the other hand, the
yield increased obviously with increasing temperature, as shown
in Table 3. The corresponding size distribution and yield data are
also listed in Table 3.
Ar flow rate determined the retention time of pyrolytic gases
in reaction zone. Therefore, the effect of Ar flow rate on yield and
diameters of CMSs was investigated by fixing reaction tempera-
ture at 1100 1C and reaction time at 30 min (shown in Table 4). A
group of FESEM images are shown in Fig. 3, and the relationship
between Ar flow rate and CMSs yield can be found in Table 4. The
CMSs obtained at different Ar flow rates were uniform in size.
With increasing Ar flow rate from 60 to 300 ml/min, the size of
3.1. Controllable synthesis of CMSs
Fig. 2 shows typical FESEM images of CMSs obtained at
different reaction temperatures with Ar flow rate of 180 ml/min
and reaction time of 30 min. The diameters of CMSs, distributed in
Table 3
Effects of the reaction temperatures on the size and yield of CMSs.
a
No. Temperature Ar flow rate
Reaction time Size
Yield
(%)
(1C)
(ml/min)
(min)
distribution
(nm)
CMSs decreased from 1 mm to 220 nm (shown in Fig. 3) and the
1
2
3
900
180
180
180
30
30
30
650–750
650–750
650–750
21
yield of CMSs decreased from 44.7% to 30.7% (shown in Table 4).
In addition, CMSs obtained at Ar flow rate of 300 ml/min was
analyzed by EDS. In the as-prepared samples of CMSs, only carbon
was observed (see inset in Fig. 3(c)). It is clear that Ar flow rate
played an important role for the formation of CMSs. At lower Ar
flow rate, the higher concentration of carbon species formed by
decomposition of pyrolytic gases and longer retention time
favored the rapid growth of CMSs with subsequent higher yield
and larger size. On the other hand, as Ar flow rate got higher, the
lower concentration and shorter retention time of carbon species
in reaction zone resulted in lower yield and smaller size.
The products above-discussed were collected in high tem-
perature zone (Zone A in Fig. 1). The effect of collection zone was
also noticed in this paper. Fig. 4 shows the FESEM images of CMSs
obtained in different collection zones with the experimental
temperature of 1100 1C, reaction time of 30 min and Ar flow rate
of 180 ml/min. As can be seen from Fig. 4, the products obtained
in low temperature zone (200–900 1C, Zone B in Fig. 1) were CMSs
1000
1100
33.6
35.6
a
Yield=total mass of CMSs/mass of (raw materialsÀresidue in boat) Â 100%.
Table 4
Effects of Ar flow rate on the size and yield of CMSs.
a
No. Temperature Ar flow rate
Reaction time Size
Yield
(%)
(1C)
(ml/min)
(min)
distribution
(nm)
1
2
3
4
1100
1100
1100
1100
60
120
180
300
30
30
30
30
900–1000
800–900
650–750
200–300
44.7
41.7
35.6
30.7
a
Yield=total mass of CMSs/mass of (raw materialsÀresidue in boat) Â 100%.
Fig. 3. FESEM images of CMSs obtained at different Ar flow rates: (a) 60, (b) 120, and (c) 300 ml/min (inset in (c) shows EDS patterns of CMSs).
Fig. 4. FESEM images of CMSs collected in (a) high and (b) low temperature zones. Reaction temperature: 1100 1C, time: 30 min, Ar flow rate: 180 ml/min.

ARTICLE IN PRESS
238
Y. Yang et al. / Journal of Physics and Chemistry of Solids 71 (2010) 235–241
with size ranging from 250 to 400 nm, which were smaller than
those obtained in high temperature zone (900–1100 1C, Zone A)
with size ranging from 650 to 750 nm. During deposition process,
some pyrolytic carbon species were carried into Zone B by Ar flow,
depositing on the tube wall and resulting in the formation of
CMSs with small diameters.
Table 5 and Fig. 5, and the histograms of size distribution of CMSs
were shown in the upper-right-hand corner of the corresponding
FESEM images in Fig. 5. By selection of preparation parameters,
CMSs with size ranging from 100 nm to 1
with good size controllability.
mm were synthesized
CMSs with different sizes have potential applications because
of their excellent properties. A large number of experiments were
conducted to synthesize a series of size-controllable and high-
quality CMSs from DOA. The experimental results were shown in
3.2. Microstructure analysis of CMSs and GCMSs

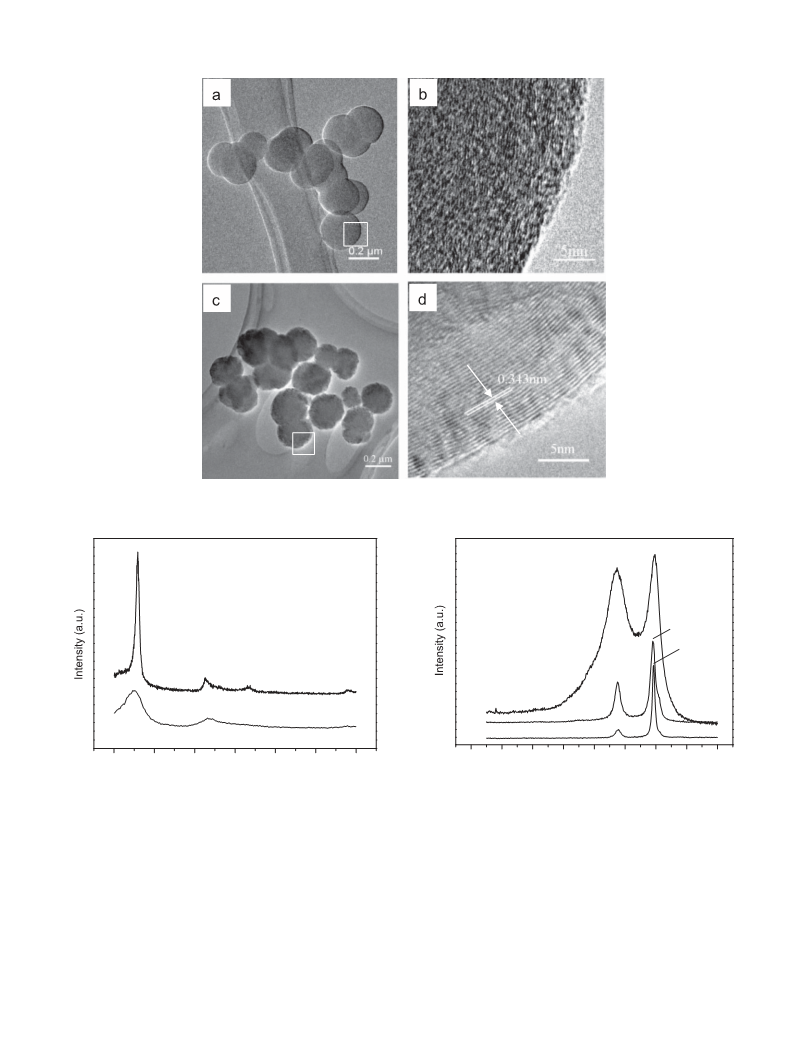

Fig. 6(a) and (b) show TEM images of CMSs obtained in 300 ml/
min Ar atmosphere at 1100 1C for 30 min, and Fig. 6(c) and (d)
show TEM images of GCMSs. Perfect spherical shapes with
uniform size and smooth surface can be seen in Fig. 5a, which is
consistent with FESEM observation. As shown in Fig. 6(b), CMSs
were of low graphitization degree, with discernible graphite
layers. The graphitization degree of GCMSs was enhanced, and the
graphite layers with space of 0.343 nm was clear (as shown in
Fig. 6(d)).
The graphitization degrees of CMSs and GCMSs were also
examined by XRD and Raman spectroscopy. Typical XRD patterns
of CMSs and GCMSs are shown in Fig. 7. The broad peak at 25.451
(Fig. 7(a)) and the sharp one at 25.91 (Fig. 7(b)) were attributed to
the (0 0 2) plane of graphite, and the corresponding d values were
