Non-mercury catalytic acetylene hydrochlorination over Ru catalysts enhanced by carbon nanotubes

Article abstract of DOI:10.1039/c4ra12017e

Ru-based catalysts with different deposition sites were prepared using multiwalled carbon nanotubes as the support and RuCl₃ as the precursor, to study the effects of multiwalled carbon nanotubes on the catalytic performance of Ru catalysts for acetylene hydrochlorination. It has been suggested that Ru catalysts deposited inside the CNTs channels exhibit the optimal catalytic activity with the acetylene conversion of 95.0% and the selectivity to VCM of 99.9% after 10 h on stream under the conditions of 170 °C and GHSV (C₂H₂) of 90 h^-1. In combination with characterizations of BET, TEM, XRD, TPR, TPD and XPS, it is illustrated that the CNTs with the inner diameter about 3-7 nm can functionalize as an efficient support with unique electron property to enhance the catalytic performance of Ru-based catalysts for acetylene hydrochlorination.

Full text of DOI:10.1039/c4ra12017e

View Article Online
View Journal
RSC Advances
This article can be cited before page numbers have been issued, to do this please use: G. Li, W. Li, H.
Zhang, Y. Pu, M. Sun and J. Zhang, RSC Adv., 2014, DOI: 10.1039/C4RA12017E.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. This Accepted Manuscript will be replaced by the edited,
formatted and paginated article as soon as this is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the Ethical guidelines still
apply. In no event shall the Royal Society of Chemistry be held
responsible for any errors or omissions in this Accepted Manuscript
or any consequences arising from the use of any information it
contains.
www.rsc.org/advances

Page 1 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
Graphical Abstract

RSC Advances
Page 2 of 20
View Article Online
DOI: 10.1039/C4RA12017E
Highlights

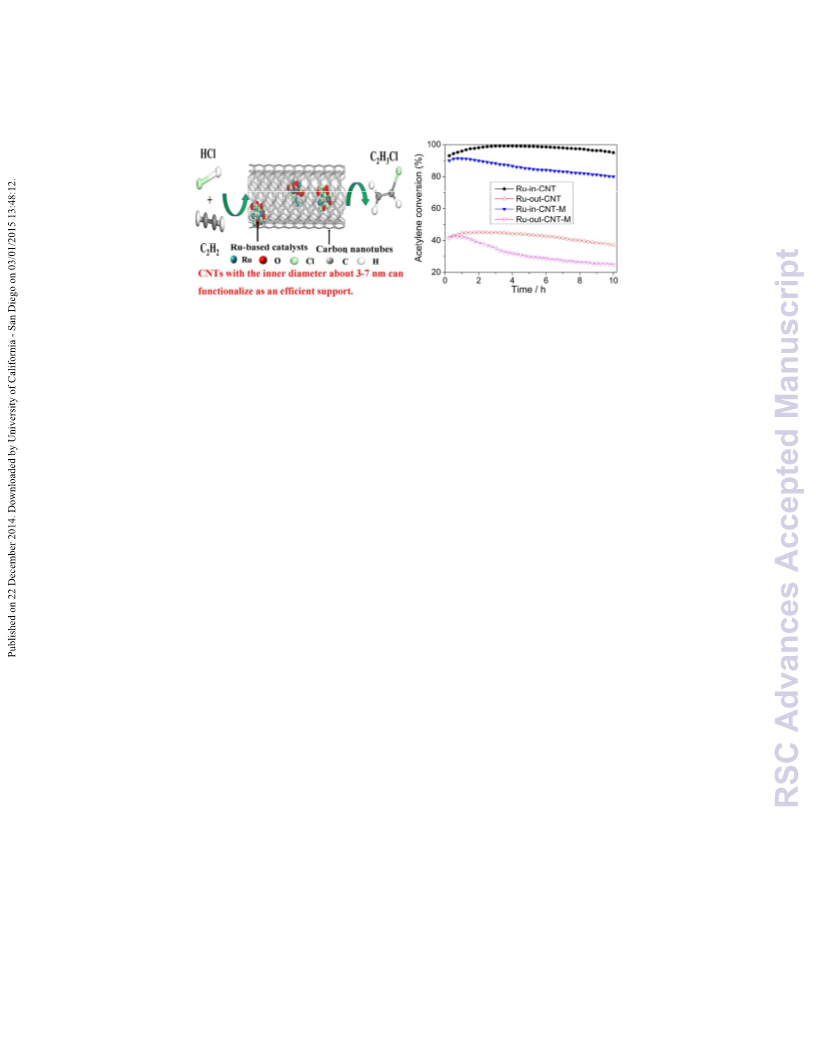

• Ru catalysts deposited inside the channels of CNTs show higher catalytic activity.
• Ru-in-CNT catalyst exhibited the acetylene conversion of 95.0 % at 170 °C and 10
h.
• CNTs with the inner diameter of 3-7 nm can functionalize as an efficient support.

Page 3 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
Non-mercury catalytic acetylene hydrochlorination over Ru
catalysts enhanced by carbon nanotubes
Guangbi Li,a,b Wei Lia, Haiyang Zhanga, Yanfeng Pua, Mengxia Suna and Jinli Zhang*a
a School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, P. R.
China
b Department of Environmental Science and Engineering, Tianjin University of Science and
Technology, Tianjin 300457, P. R. China
Dr. Jinli Zhang
Professor of Chemical Engineering
School of Chemical Engineering and Technology
Tianjin University, Tianjin 300072, China
TEL: +86-22-27890643
FAX: + 86-22-27890643
E-mail: zhangjinli@tju.edu.cn
1

RSC Advances
Page 4 of 20
View Article Online
DOI: 10.1039/C4RA12017E
1
Abstract
2
3
Ru-based catalysts with different deposition sites were prepared using multiwalled carbon
nanotubes as the support and RuCl3 as the precursor, in order to study the effects of multiwalled
carbon nanotubes on the catalytic performance of Ru catalysts for acetylene hydrochlorination. It
is suggested that Ru catalysts deposited inside the CNTs channels exhibit the optimal catalytic
activity, with the acetylene conversion of 95.0 % and the selectivity to VCM of 99.9 % after 10 h
on stream under the conditions of 170 °C and GHSV (C2H2) of 90 h-1. In combination with
characterizations of BET, TEM, XRD, TPR, TPD and XPS, it is illustrated that the CNTs with
the inner diameter about 3-7 nm can functionalize as an efficient support with unique electron
property to enhance the catalytic performance of Ru-based catalysts for acetylene
hydrochlorination.
4
5
6
7
8
9
10
11
12 Keywords：acetylene hydrochlorination, ruthenium, carbon nanotubes, confinement
13 1. Introduction
14
15
16
17
18
19
20
Acetylene hydrochlorination reaction is an important coal-based industrial process to produce
vinyl chloride monomer (VCM), which is the monomer to manufacture polyvinyl chloride via
polymerization.1 The reaction is carried out industrially using activated carbon-supported
mercuric chloride as the catalyst,2 which causes serious environmental pollution owing to high
toxicity and volatility of the active mercuric chloride component. Thus, it is urgent to explore a
reliable and environmental-benign non-mercury catalyst to substitute the poisonous mercuric
chloride for acetylene hydrochlorination. Non-mercuric catalysts, involving the main metallic
2

Page 5 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
21
component of Au,3-5 Pd,6,7 and Ru,8-10 have been studied extensively, following the pioneer work
of Hutchings.11 However, it is still a challenge so far to develop an efficient non-mercury catalyst
with high activity and long-term stability.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Multiwalled carbon nanotubes (CNTs) have a well-defined tubular structure formed by
graphene layers with an electron-deficient interior surface and an electron-enriched exterior
surface,12-15 and are considered as the promising supports to adjust the activity of dispersed metal
catalysts.16-22 For examples, Bao and co-workers studied the effect of CNTs (with the inner and
outer diameters about 4-8 and 10-20 nm, respectively) on the catalytic performance of Ru
nanoparticles for ammonia synthesis reaction and reported that metallic Ru nanoparticles
dispersed on the outside of CNTs displayed about two times higher turnover frequency than
those dispersed inside the CNT channels.23 Ran et al. studied the cellobiose conversion reaction
over Ru nanoparticles and reported that the catalytic activity of Ru nanoparticles dispersed inside
the CNT channels was higher than that dispersed on the outside of CNTs (with the inner and
outer diameters about 3-6 and 10-20 nm, respectively).24 It is suggested that the benificial
deposition sites on CNTs for metallic catalysts are greatly associated with the distinct chemical
reactions and the diameters of CNTs. Recently, Li et al. reported that polypyrrole-modified
multiwalled carbon nanotubes (PPy-MWCNT) can enhance the catalytic activity of Au-based
catatlysts for acetylene hydrochlorination.25 These results enlightened us to study the effects of
different Ru deposition sites of CNTs on acetylene hydrochlorination reaction.
In this article, we adopted multiwalled CNTs as the supports to prepare Ru-based catalysts
deposited on the outside of CNTs or inside the channels of CNTs, and assessed the catalytic
activity of these two kinds of Ru-based catalysts for acetylene hydrochlorination. In combination
3

RSC Advances
Page 6 of 20
View Article Online
DOI: 10.1039/C4RA12017E
43
44
45
with characterizations of BET, TEM, XRD, TPR, TPD and XPS, it is indicated that Ru-based
catalysts deposited inside the channels of CNTs show greatly high catalytic activity for acetylene
hydrochlorination.
46 2 Experimental
47
2.1 Materials
48
49
50
51
52
53
54
55
56
57
58
Analytical grade RuCl3ꢀ3H2O (the content of Ru assay 37.0 %) was purchased from Xi’an
Kaida Chemical, Ltd. (China) and used without any purification. Two kinds of multiwalled CNTs
(raw-CNT, raw-CNT-M) were purchased from Chengdu Organic Chemicals Co., LTD, China.
The raw materials of multiwalled CNTs were treated by refluxing in concentrated HNO3 (68.0 %)
at 140 °C for 14 h, followed by filtration and washing in turn and then dessication at 60 °C for
12 h, in order to make the nanotube terminals open and the length of nanotubes cut into segments
of 200-500 nm. The as-prepared CNTs were adopted as the supports to prepare Ru-based
catalysts further. As shown in Fig. S1 of supplementary information, the support CNT has the
inner and outer diameter of 3-7 nm and 8-15 nm respectively (denoted as CNT), while another
support has the inner and outer diameter of 5-10 nm and 20-30 nm respectively (denoted as
CNT-M).
59
2.2 Catalysts preparation
60
61
62
63
Adopting the support CNT, Ru-based catalysts deposited inside the channels of CNT (denoted
as Ru-in-CNT) or on the outer surface of CNTs (denoted as Ru-out-CNT) were prepared using
an improved wet chemistry method.26-28 For the synthesis of Ru-in-CNT, the CNT (1.5 g) were
dispersed in 70 mL solution of RuCl3 in acetone by sonication for 6 h; the mixture was
4

Page 7 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
64
continuously stirred at room temperature to allow slow evaporation of acetone, followed by a
heated treatment in a tube furnace at 150 °C for 18 h with the air flow rate of 25 mL min-1. For
the synthesis of Ru-out-CNT, the CNT (1.5 g) were first dispersed in xylene solution (70 g) by
ultrasonic treatment for 6 h so as to make the channels of CNT filled with xylene, then mixed
with a RuCl3 aqueous solution (2 mL) under magnetically stirring at 80 °C. The obtained mixture
was also treated in a tube furnace at 150 °C for 18 h with the air flow rate of 25 mL min-1. In
order to make the discussion clear in the next context, the blank support in-CNT was used to
indicate the support CNT experienced the same treatment procedure to prepare Ru-in-CNT
catalysts but without ruthenium trichloride precursors, while the blank support out-CNT was the
support CNT experienced the same treatment to prepare Ru-out-CNT catalysts without
ruthenium trichloride precursors.
65
66
67
68
69
70
71
72
73
74
75
76
77
78
In the case of another support CNT-M, we adopted the same procedures to prepare Ru-based
catalysts deposited inside the channel of CNT-M (denoted as Ru-in-CNT-M) or on the outer
surface of CNT-M (denoted as Ru-out-CNT-M). The Ru loading amount of all catalysts was 1
wt. % in this study, confirmed by the atomic absorption spectroscopy.
79
2.3 Catalyst characterization
80
81
82
83
84
85
N2 adsorption/desorption experiments were conducted using a Quantachrome NOVA BET
2200e analyzer. The samples were first degassed at 300 °C for 4 h and analyzed via liquid
nitrogen adsorption at -196 °C. Transmission electron microscopy (TEM) was performed on a
JEM 2100F field emission transmission electron microscope (JEOL, Tokyo, Japan) working at
200 kV using a scanning TEM mode (spot size, 0.4 nm). For sample preparation, the samples
were first reduced in H2 at 450 °C for 5 h and ultrasonically dispersed in ethanol, and then some
5

RSC Advances
Page 8 of 20
View Article Online
DOI: 10.1039/C4RA12017E
86
87
droplets of the suspension was dipped onto a holey carbon-coated copper grid and dried. X-ray
powder diffraction (XRD) experiment was performed on a Bruker D8 Focus diffractometer using
Cu Kα radiation at λ = 1.54056 Å with a scanning speed of 4 ° min-1 and a step of 0.02 ° (2θ) in
the range from 20 ° to 80 °. X-ray photoelectron spectra (XPS) were obtained using a PHI 5000
Versa Probe (ULVAC-PHI Inc., Osaka, Japan) employing monochromatic Al Kα X-rays (hν =
1486.7 eV) under high vacuum condition. The data were collected at a sample tilt angle of 45 °.
The binding energies were corrected using the C 1s peak of aliphatic carbon at 284.8 eV as an
internal standard. The atomic absorption spectroscopy (AAS) was performed with a
Perkin-Elmer 800 atomic absorption spectrometer using an air-acetylene flame. H2 temperature
programmed reduction (H2-TPR) was performed on a TPDRO 1100 apparatus equipped with a
thermal conductivity detector. For each test, 100 mg sample was heated from room temperature
to 800 °C at a rate of 10 °C min-1, flushing with a 20 mL min-1 gas mixture containing 5 % H2 in
N2 gas. Temperature-programmed desorption (TPD) was analyzed by TPDRO 1100 apparatus.
The samples were pretreated under hydrogen chloride and acetylene atmosphere at the reactive
temperature (170 °C) for 6 h, respectively. Then high-purity N2 (50 mL min-1) was passed
through the sample at 100 °C for 30 min. The TPD profiles were recorded for the sample heated
from 100 °C to 650 °C with a rate of 10 °C min-1.
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
2.4 Catalytic performance evaluation
104
105
106
107
The catalytic performance was investigated using a fixed-bed glass micro-reactor (i.d. of 8
mm). Acetylene (99.9% purity) was passed through silica-gel desiccant to remove trace
impurities, and hydrogen chloride gas (99.9% purity) was dried using 5A molecular sieves.
Acetylene (3 mL min-1) and hydrogen chloride (3.3 mL min-1) were introduced into a heated
6

Page 9 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
108
reactor containing catalyst (2 mL) through a mixing vessel via calibrated mass flow controllers,
giving a C2H2 gas hourly space velocity (GHSV) of 90 h-1 at 170 °C. This microreactor was
purged with nitrogen before reaction to remove water and air. The reactor effluent was passed
through an absorption bottle containing sodium hydroxide solution to remove unreacted
hydrogen chloride. And then, the gas mixture was analyzed by Beifen GC-3420A gas
chromatograph (GC).
109
110
111
112
113
114 3 Results and discussion
115
116
3.1 Catalyst characterization
3.1.1 Catalyst texture properties
117
118
119
120
121
122
123
124
125
126
127
128
BET measurements were performed to investigate the physical structure changes of CNT
caused by the treatment of nitric acid, acetone, or xylene. Table 1 lists the specific surface area,
pore volume and pore diameter of the raw material CNT, the CNT support treated by nitric acid,
the blank in-CNT support experienced the same treatment procedure to prepare Ru-in-CNT
catalysts but without ruthenium precursors, and the blank out-CNT support experienced the same
treatment procedure to prepare Ru-out-CNT catalysts without ruthenium precursors, as well as
the fresh catalysts of Ru-in-CNT and Ru-out-CNT. It is clear that the nitric acid treatment makes
the specific surface area increased from 192 to 236 m2 g-1, the total pore volume increased from
0.28 to 0.32 cm3 g-1, and the pore diameter increased from 3.03 to 3.82 nm. It is indicated that
further acetone or xylene treatment results in a little decrease of both surface area and pore
volume, comparing in-CNT or out-CNT with CNT. The morphology changes of these different
nanotubes are characterized by TEM images, as displayed in Fig. S2. After deposition of
7

RSC Advances
Page 10 of 20
View Article Online
DOI: 10.1039/C4RA12017E
129
130
131
132
133
134
ruthenium chloride, the surface area of the fresh catalyst Ru-in-CNT (220 m2 g-1) decreases by a
fraction of 5 % comparing with in-CNT; while the pore volume of Ru-in-CNT (0.29 cm3 g-1)
decreases by 3 % comparing with in-CNT, which is due to partial blocking of ruthenium species
inside the support CNT. In the case of fresh catalyst Ru-out-CNT, both the surface area and the
pore volume are similar with those of out-CNT.
Table 1 Pore structure parameters of different CNTs and the supported catalysts
catalyst
SBET (m2 g-1) Pore volume (cm3 g-1) Pore diameter (nm)
raw-CNT a
CNT b
192 ± 0.5e
236 ± 0.8
232 ± 0.8
233 ± 0.5
232 ± 0.6
220 ± 0.8
0.28 ± 0.006
0.32 ± 0.003
0.30 ± 0.005
0.31 ± 0.003
0.31 ± 0.005
0.29 ± 0.007
3.03 ± 0.006
3.82 ± 0.006
3.82 ± 0.002
3.83 ± 0.003
3.81 ± 0.008
3.80 ± 0.007
in-CNT c
out-CNT d
Ru-out-CNT
Ru-in-CNT
135
136
137
138
139
140
141
a : The raw multiwalled CNTs purchased from Chengdu Organic Chemicals Co., LTD, China.
b: The CNTs treated by refluxing in concentrated nitric acid at 140 °C for 14 h, which are used as the support to prepare catalysts.
c: The blank in-CNT support, which is experienced the same treatment procedure to prepare Ru-in-CNT catalysts but without
ruthenium trichloride precursors.
d: The blank out-CNT support, which is experienced the same treatment procedure to prepare Ru-out-CNT catalysts but without
ruthenium trichloride precursors.
e: The data were obtained by the standard deviation.
142
3.1.2 Dispersion of Ru particles
143
144
145
146
147
148
Fig. 1 shows the XRD patterns of the support CNT, the fresh catalysts Ru-in-CNT and
0
0
Ru-out-CNT. Apart from four characteristic diffraction peaks of CNT located at 25.6 , 42.6 ,
0
0
53.1 and 77.7 , respectively,29 neither of the fresh Ru-in-CNT and Ru-out-CNT shows peaks
indicative of the hexagonal close-packed (hcp) metallic Ru phase or anhydrous tetragonal RuO2,
indicating that all Ru particles are very small (with the size lower than 4 nm),30 which is in
accord with TEM images (Fig. 2).
8

Page 11 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
149
150

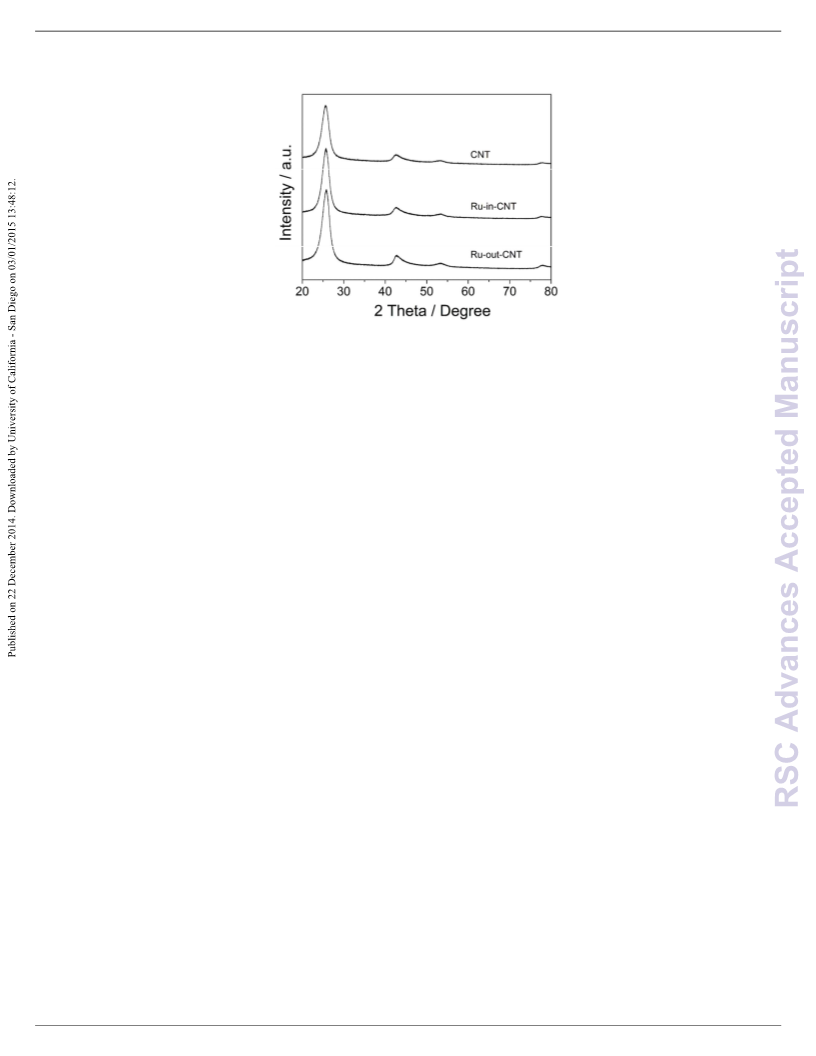

Fig. 1 X-ray diffraction patterns of (a) the support CNT and the fresh catalysts (b) Ru-in-CNT and (c)
151
152
Ru-out-CNT.
153
154
155
156
157
158
159
160
161
162
Fig. 2 displays typical TEM images and the particle size distributions of the fresh catalysts
Ru-in-CNT and Ru-out-CNT reduced in H2 at 450 °C for 5 h. For the fresh catalyst Ru-in-CNT,
Ru nanoparticles inside the channel of nanotubes have an average size about 0.95 nm, which is
smaller than the inner diameter of CNT (3-7 nm). The percentage of Ru nanoparticles deposited
inside the channel of CNT was calculated by counting the locations of 150-200 Ru particles on at
least 100 nanotubes. It is indicated that over eighty percent of ruthenium particles have been
introduced into the inner cavity of nanotubes (Fig. 2a). For the fresh catalyst Ru-out-CNT, Ru
nanoparticles are distributed exclusively on the exterior surface of CNT with the average size
about 1.01 nm (Fig. 2b).
9

RSC Advances
Page 12 of 20
View Article Online
DOI: 10.1039/C4RA12017E
163
164

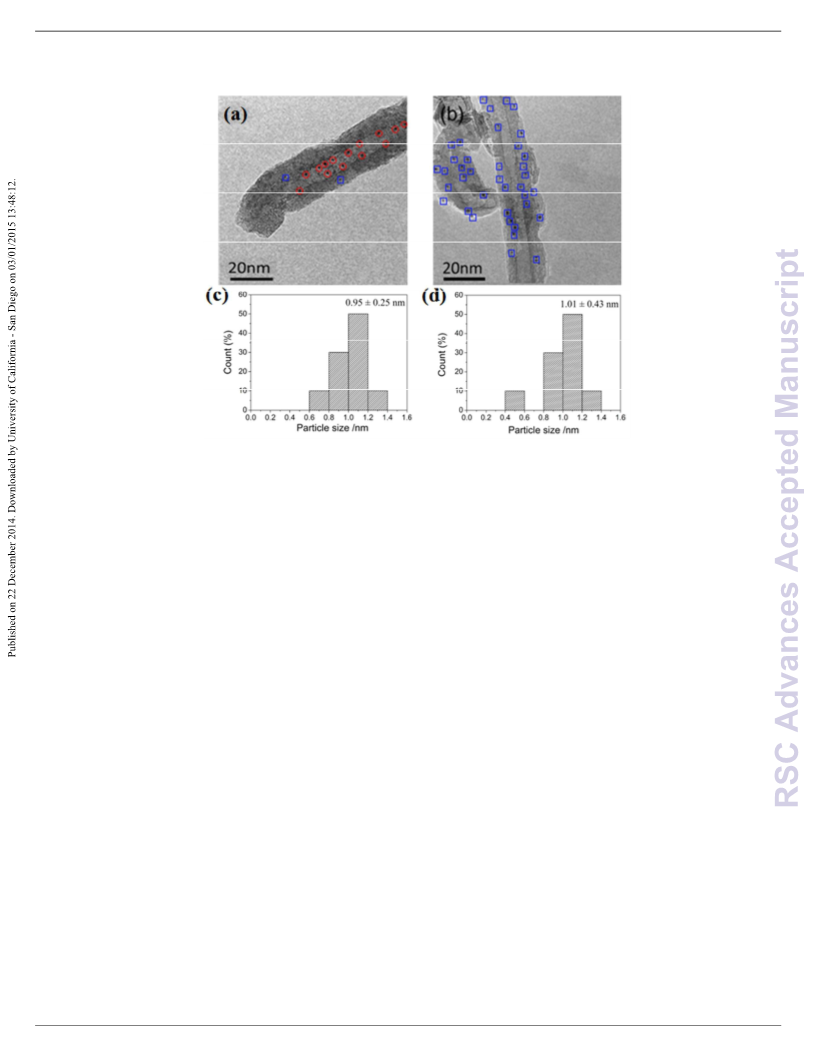

Fig. 2 TEM images and the particle size distributions of the fresh catalysts of Ru-in-CNT (a, c) and
Ru-out-CNT (b, d). (Red circles: Ru nanoparticles confined within channels of CNT; blue squares: Ru
nanoparticles located on external surfaces of CNT.)
165
166
167
168
3.1.3 Reducibility and adsorption property of Ru-based catalysts
169
170
171
172
173
174
175
176
177
H2-TPR profiles were measured to evaluate the reducibility of two kinds of Ru-based catalysts
using CNTs as the support. As shown in Fig. 3, TPR profiles of the fresh catalyst Ru-in-CNT and
Ru-out-CNT are distinct from that of the blank support CNT. There are two broad peaks in the
range of 350-800 °C for all the samples, which are attributed to the reduction of oxygenated
groups in the CNT support.23,31 There is a broad H2 consumption peak in the temperature range
of 100-350 °C for both Ru-in-CNT and Ru-out-CNT catalysts, compared with the profile of the
support CNT, which is due to the reduction of ruthenium species involving the ruthenium oxides
and ruthenium chloride in the catalysts.23,32,33 It is noted that the reduction of ruthenium species
takes place around 292 °C for Ru-in-CNT, whereas it occurs at a higher temperature (311 °C) for
10

Page 13 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
178
179
180
181
182
183
184
185
186
Ru-out-CNT. It is known that the interaction between the electron-deficient concave surface of
carbon nanotubes and the anionic chlorine in RuCl3 or the anionic oxygen in RuO2 could lead to
weaken bonding strength of RuCl3 or RuO2 and consequently make it easier to reduce ruthenium
species inside the channels of CNT. On the contrary, for Ru-out-CNT the weak interactions
between the electron density-enriched outer surfaces of nanotubes with the anionic chlorine in
RuCl3 or the anionic oxygen in RuO2, have less influence on the reducibility of ruthenium
species.15,23 Previous literatures also reported that ruthenium species inside CNT channel are
easier to reduce compared to the outside ones.23
187
188

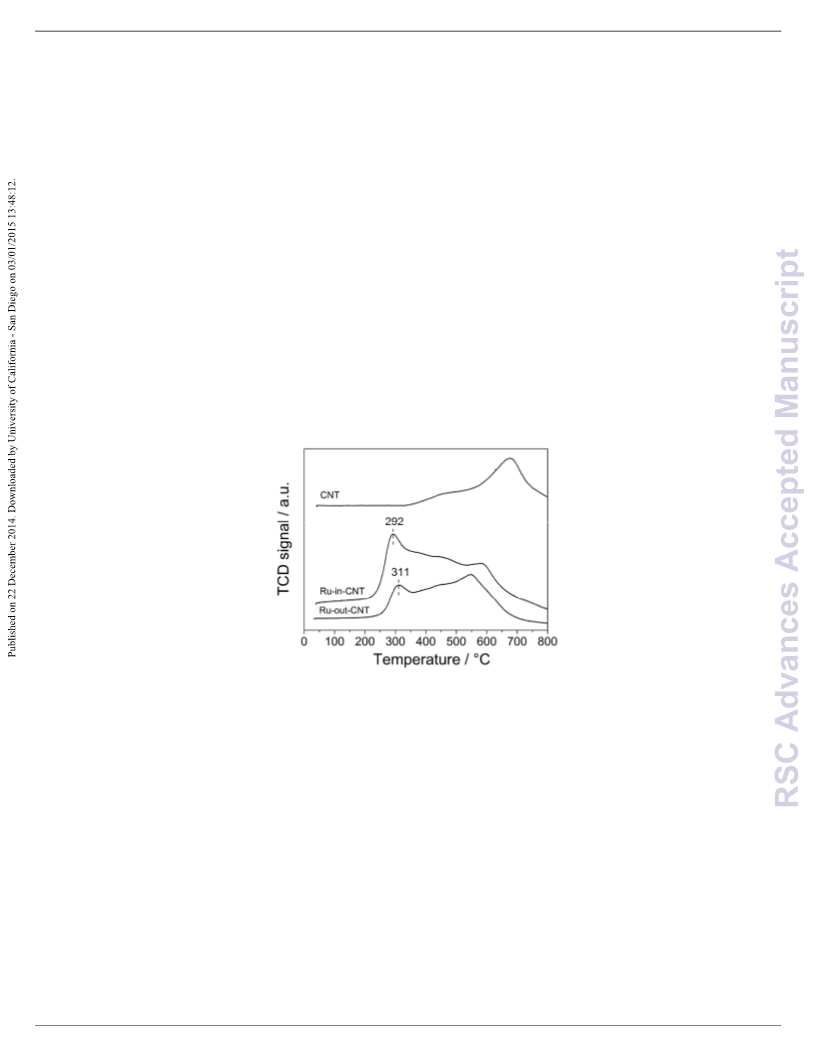

Fig. 3 H2-TPR profiles of the support CNT (a), and the fresh catalysts of (b) Ru-in-CNT and (c) Ru-out-CNT.
189
190
191
192
193
194
TPD experiments were carried out to illustrate the adsorption property of the fresh catalysts
Ru-in-CNT and Ru-out-CNT towards hydrogen chloride and acetylene. As shown in Fig. 4, the
support CNT shows no obvious adsorption of hydrogen chloride, while the catalysts Ru-in-CNT
and Ru-out-CNT show the obvious desorption peak of hydrogen chloride in the range of 205 ~
295 °C, and the desorption area of hydrogen chloride from Ru-in-CNT is significantly larger
11

RSC Advances
Page 14 of 20
View Article Online
DOI: 10.1039/C4RA12017E
195
196
197
198
199
200
201
202
than that from Ru-out-CNT. For another reactant acetylene, as shown in Fig. 5, the catalysts
Ru-in-CNT and Ru-out-CNT show the desorption peak of acetylene in the range of 190 ~ 430 °C,
and the desorption area of acetylene from Ru-in-CNT is also larger than that from Ru-out-CNT.
It is indicated that the catalyst Ru-in-CNT shows enhanced adsorption of both hydrogen chloride
and acetylene, suggesting that the confinement within channels of CNT results in more active
metallic sites in Ru-in-CNT and consequently promotes higher catalytic activities for the
acetylene hydrochlorination reaction, as mentioned in the section 3.2.
203
204

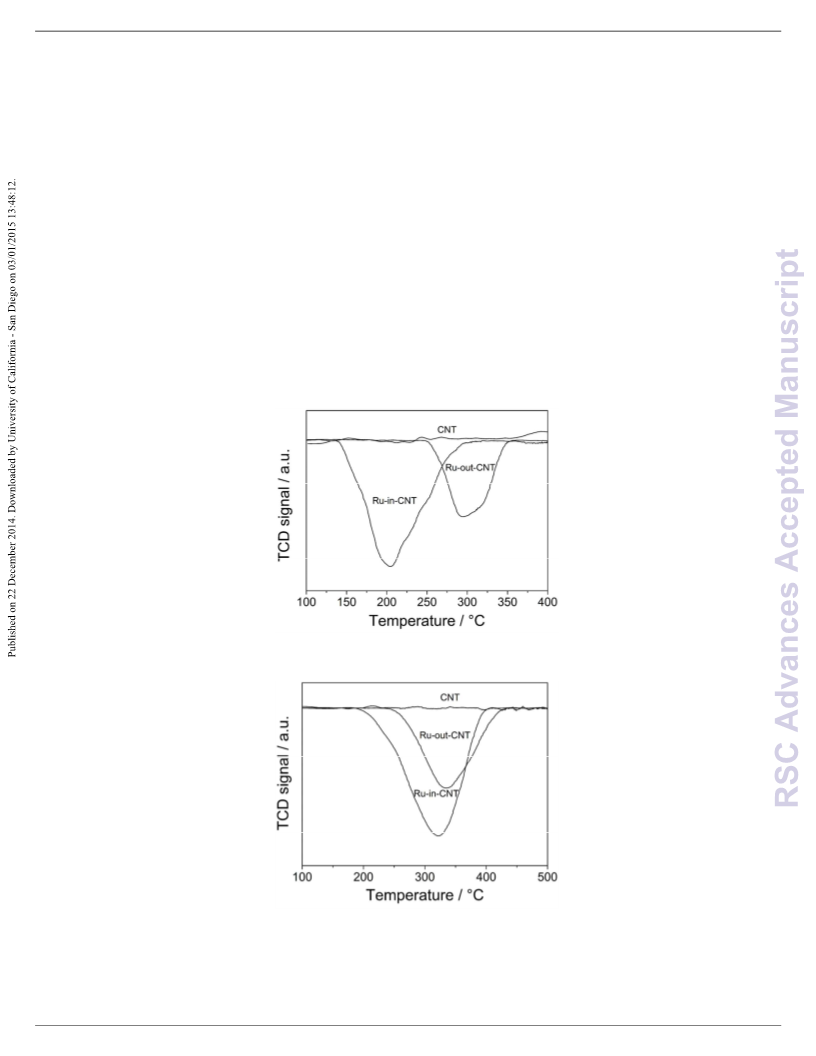

Fig. 4 HCl-TPD profiles of the support CNT (a), and the fresh catalysts of (b) Ru-in-CNT and (c) Ru-out-CNT.
205
206
207
Fig. 5 C2H2-TPD profiles of the support CNT (a), and the fresh catalysts of (b) Ru-in-CNT and (c)
Ru-out-CNT.
12

Page 15 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
208
209
3.1.4 Ruthenium species associated with deposition sites on CNTs
210
211
212
213
214
215
216
217
218
219
220
221
222
Ru 3p3/2 XPS spectra of the fresh catalysts Ru-in-CNT and Ru-out-CNT were deconvoluted
into five peaks at 461.7 eV, 462.7 eV, 463.5 eV, 464.8 eV and 466.2 eV (Fig. S3), corresponding
to the species of metallic Ru, Ru/RuOy, RuCl3, RuO2 and RuOx, respectively.34-37 The relative
content and binding energy of all the five Ru species are listed in Table 2. It is indicated that the
dominant species of Ru-in-CNT are RuO2 (46.6 %) followed by Ru/RuOy (24.4 %), RuOx
(14.5 %), RuCl3 (10.9 %) and metallic Ru (3.6 %), while the major species of Ru-out-CNT
include metallic Ru (28.1 %), RuO2 (25.9 %) and RuCl3 (24.5 %). It is well known that the
interior surface of CNT is electron-deficient whereas the exterior surface is
electron-enriched.12,13,16 Thus, the ruthenium inside the channel of CNT works like the donor of
electrons so that the dominant species are high-valence oxidation states, while the ruthenium
deposited on the outer surface of CNT can easily accept electrons from CNT so as to generate
more amount of metallic Ru. It is illustrated that the deposition site of ruthenium precursor plays
an important role in affecting the distribution of valence states of ruthenium species in catalysts.
223
224
225
Table 2 The binding energy (eV) and relative content (Area %) of ruthenium species in the fresh catalysts
Ru-in-CNT and Ru-out-CNT.
Ru0
Ru/RuOy
RuCl3
RuO2
RuOx
Catalysts
eV(Area %) eV(Area %)
461.7(3.6) 462.7(24.4)
461.2(28.1) 462.3(13.0)
eV(Area %)
463.5(10.9)
463.1(24.5)
eV(Area %)
464.9(46.6)
464.8(25.9)
eV(Area %)
466.2(14.5)
466.0(8.5)
Ru-in-CNT
Ru-out-CNT
226
227
3.2 Catalytic performance for acetylene hydrochlorination
13

RSC Advances
Page 16 of 20
View Article Online
DOI: 10.1039/C4RA12017E
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
The catalytic activity of different carbon nanotube supports was measured under the
conditions of 170 °C and GHSV (C2H2) of 90 h-1, and shown in Fig S4. It is indicated that the
initial acetylene conversion is as low as 2.5 % over raw-CNT, CNT, in-CNT and out-CNT and

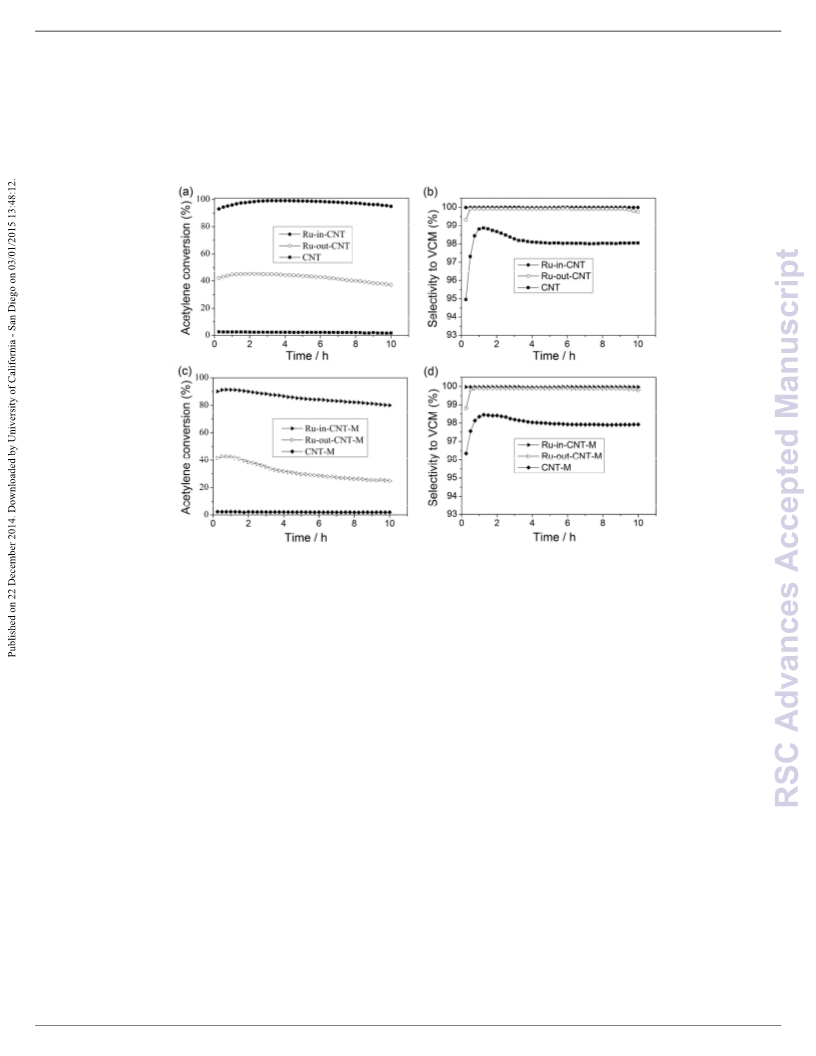

decreases quickly. Fig. 6a and 6b show the catalytic performance of Ru-in-CNT and
Ru-out-CNT for acetylene hydrochlorination. Over the catalyst Ru-out-CNT, the initial acetylene
conversion is 45.2 % and decreases to 37.2 % after 10 h reaction. Whereas over Ru-in-CNT, the
initial acetylene conversion is 99.1 % and decreases to 95.0 % after 10 h, and the selectivity to
VCM maintains 99.9 %.
Adopting another carbon nanotube support CNT-M with the inner diameter of 5-10 nm, the
catalytic performance of Ru-in-CNT-M and Ru-out-CNT-M is shown in Fig. 6c and 6d, under the
same reaction conditions. Over Ru-out-CNT-M catalyst, the acetylene conversion decreases from
42.8 % to 24.9 % within 10 h reaction, whereas the selectivity to VCM increases somewhat from
the initial 98.8 % to 99.8 % at 10 h. Over Ru-in-CNT-M catalyst, the acetylene conversion
decreases from 91.4 % to 80.1 % within 10 h whereas the VCM selectivity maintains at 99.9 %.
In order to disclose the reason that the catalytic performance of Ru catalysts is dependent on
the deposition sites of ruthenium precursors on the supports, TEM images and the particle size
distributions of the fresh catalysts Ru-in-CNT-M and Ru-out-CNT-M were analyzed. As shown
in Fig. S5, for the fresh catalyst Ru-in-CNT-M, Ru nanoparticles inside the channel of nanotubes
have an average size about 1.66 nm. The percentage of Ru nanoparticles deposited inside the
channel of CNT-M was calculated by counting the locations of 200 Ru particles on at least 100
nanotubes. It is indicated that over ninety percent of ruthenium particles have been introduced
into the inner cavity of nanotubes. For the fresh catalyst Ru-out-CNT-M, Ru nanoparticles are
14

Page 17 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
distributed exclusively on the exterior surface of CNT-M with the average size about 2.27 nm.
Table S1 lists the surface area and the pore diameter of the support CNT-M and the supported Ru
catalysts. After deposition of ruthenium precursors, the surface area of Ru-in-CNT-M decreases
a little more than that of Ru-out-CNT-M, which is similar with those supported on CNT.
Further through the deconvolution of Ru 3p3/2 XPS spectra of the fresh catalysts
Ru-in-CNT-M and Ru-out-CNT-M, the relative content and binding energy of Ru species are
compared with those supported on CNT. As shown in Fig. S5, there are five peaks at 461.5 eV,
462.7 eV, 463.1 eV, 464.7 eV and 466.0 eV, due to the species of metallic Ru, Ru/RuOy, RuCl3,
RuO2 and RuOx, respectively. The relative content and binding energy of all the five Ru species
are listed in Table S2. It is indicated that the major species of Ru-in-CNT-M included RuO2
(35.5 %), Ru/RuOy (24.7 %), RuCl3 (22.5 %), metallic Ru (14.3 %) and RuOx (3.0 %), while the
dominant species of Ru-out-CNT-M are RuCl3 (70.1 %) followed by metallic Ru (13.7 %), RuO2
(10.4 %), Ru/RuOy (3.5 %) and RuOx (2.3 %). It is indicated that RuO2 is the most abundant
species in both Ru-in-CNT and Ru-in-CNT-M. Previous work suggests that RuO2 is the
important active ingredient for the acetylene hydrochlorination.10 Therefore, Ruthenium catalysts
deposited in the channel of CNT with the inner diameter of 3-7 nm exhibit the optimal catalytic
performance for acetylene hydrochlorination, which is associated with the abundance of RuO2.
Previous literature reported that phenol, ether, and carbonyl groups on activated carbon
surface are important to improve the catalytic activity of Au-based catalysts.38 It is reasonable to
consider that the carbon nanotubes experienced the treatment of nitric acid, acetone, or xylene
possess different functional groups on the surfaces, which are probably associated with the
catalytic performance of Ru-based catalysts. The effects of surface functional groups on
15

RSC Advances
Page 18 of 20
View Article Online
DOI: 10.1039/C4RA12017E
272
273
Ru-based catalysts will be studied in the future work.
274
275
276
277
Fig. 6 Catalytic performances of Ru-based catalysts deposited inside the channel of the support CNT (a, b) and
CNT-M (c, d), and those deposited in the outer surface of individual support. Reaction conditions: temperature
(T) =170 °C; C2H2 gas hourly space velocity (GHSV) = 90 h-1; feed volume ratio VHCl /VC2H = 1.1.
2
278
279 4 Conclusions
280
281
282
283
284
285
Ru-based catalysts with different deposition sites were prepared using multiwalled carbon
nanotubes as the support and RuCl3 as the precursor, in order to study the effects of multiwalled
carbon nanotubes on the catalytic performance of Ru catalysts for acetylene hydrochlorination.
Characterized by BET, TEM, XRD, TPR, TPD and XPS, it is suggested that Ru catalysts
deposited inside the CNTs channels exhibit the optimal catalytic activity, with the acetylene
conversion of 95.0 % and the selectivity to VCM of 99.9 % after 10 h on stream under the
16

Page 19 of 20
RSC Advances
View Article Online
DOI: 10.1039/C4RA12017E
286
287
288
289
290
291
292
293
294
conditions of 170 °C and GHSV (C2H2) of 90 h-1. It is indicated that confinement inside CNTs
can greatly influence the amount of ruthenium species involved in Ru0, Ru/RuOy, RuCl3, RuO2
and RuOx in the preparation process of Ru-in-CNT catalyst, and enhance the adsorption of
hydrogen chloride and acetylene over the catalyst. The acetylene conversion over these catalysts
at 170 °C and 10 h decreases in the order of: Ru-in-CNT (95.0 %) > Ru-in-CNT-M (80.1 %) >
Ru-out-CNT (37.2 %) > Ru-out-CNT-M (24.9 %). The excellent catalytic performance of
Ru-in-CNT catalyst illustrates that the CNTs with the inner diameter about 3-7 nm can
functionalize as an efficient support for Ru-based catalysts to enhance the acetylene
hydrochlorination reaction.
295
Acknowledgements
296
297
298
This work was supported by the Special Funds for the Major State Research Program of China
(No. 2012CB720302), the 863 Program (No. 2012AA062901), the NSFC (21176174), and the
Program for Chang Jiang Scholars and Innovative Research Team in University (No. IRT1161).
299
References
300
301
302
303
304
305
306
307
308
309
310
311
312
313
1 N. Liu, J. Zhang, W. Li, B. Dai, Front. Chem. Sci. Eng., 2011, 5, 514-520.
2 J. B. Agnew and H. S. Shankar, Ind. Eng. Chem. Prod. Res. Dev., 1986, 25, 19-22.
3 M. Conte, C. J. Davies, D. J. Morgan, T. E. Davies, D. J. Elias, A. F. Carley, P. Johnston and G. J. Hutchings,
J. Catal., 2013, 297, 128-136.
4 M. Conte, A. F. Carley, G. Attard, A. A. Herzing, C. J. Kiely and G. J. Hutchings, J. Catal., 2008, 257,
190-198.
5 H. Zhang, B. Dai, W. Li, X. Wang, J. Zhang, M. Zhu and J. Gu, J. Catal., 2014, 316, 141-148.
6 T. V. Krasnyakova, I. V. Zhikharev, R. S. Mitchenko, V. I. Burkhovetski, A. M. Korduban, T. V. Kryshchuk
and S. A. Mitchenko, J. Catal., 2012, 288, 33-43.
7 S. A. Mitchenko, T. V. Krasnyakova and I. V. Zhikharev, Theor. Exp. Chem., 2010, 46, 32-38.
8 M. Zhu, L. Kang, Y. Su, S. Zhang and B. Dai, Can. J. Chem., 2013, 91, 120-125.
9 J. Zhang, W. Sheng, C. Guo and W. Li, RSC Adv., 2013, 3, 21062-21068.
10 Y. Pu, J. Zhang, L. Yu, Y. Jin, W. Li, Appl. Catal., A, 2014, 488, 28-36.
11 G. J. Hutchings, J. Catal., 1985, 96, 292-295.
17

RSC Advances
Page 20 of 20
View Article Online
DOI: 10.1039/C4RA12017E
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
12 R. C. Haddon, Science, 1993, 261, 1545-1550.
13 D. Ugarte, A. Châtelain and W. A. de Heer, Science, 1996, 274, 1897-1899.
14 B. Shan and K. Cho, Phys. Rev. B: Condens. Matter Mater. Phys., 2006, 73, 081401(R).
15 W. Chen, X. Pan, M. Willinger, D. Su and X. Bao, J. Am. Chem. Soc., 2006, 128, 3136-3137.
16 X. Pan, Z. Fan, W. Chen, Y. Ding, H. Luo and X. Bao, Nat. Mat., 2007, 6, 507-511.
17 W. Chen, Z. Fan, X. Pan and X. Bao, J. Am. Chem. Soc., 2008, 130, 9414-9419.
18 E. Castillejos, P. J. Debouttiere, L. Roiban, A. Solhy, V. Martinez, Y. Kihn, O. Ersen, K. Philippot, B.
Chaudret and P. Serp, Angew. Chem., Int. Ed., 2009, 48, 2529-2533.
19 Z. Chen, Z. Guan, M. Li, Q. Yang and C. Li, Angew. Chem., Int. Ed., 2011, 50, 4913-4917.
20 Z. Guan, S. Lu and C. Li, J. Catal., 2014, 311, 1-5.
21 K. Zhou, J. Si, J. Jia, J. Huang, J. Zhou, G. Luo and F. Wei, RSC Adv., 2014, 4, 7766-7769.
22 L. Wang, J. Chen, L. Ge, V. Rudolph and Z. Zhu, RSC Adv., 2013, 3, 12641-12647.
23 S. Guo, X. Pan, H. Gao, Z. Yang, J. Zhao and X. Bao, Chem. - Eur. J., 2010, 16, 5379-5384.
24 M. Ran, Y. Liu, W. Chu and A. Borgna, Catal. Lett., 2013, 143, 1139-1144.
25 X. Li, M. Zhu, and B. Dai, Appl. Catal., B, 2014, 142-143, 234-240.
26 E. Dujardin, T. W. Ebbesen, H. Hiura and K. Tanigaki, Science, 1994, 265, 1850-1852.
27 S. C. Tsang, Y. Chen, P. J. F. Harris and M. L. H. Green, Nature, 1994, 372, 159-162.
28 C. Wang, S. Guo, X. Pan, W. Chen and X. Bao, J. Mater. Chem., 2008, 18, 5782-5786.
29 C. Jin, W. Xia, T. C. Nagaiah, J. Guo, X. Chen, M. Bron, W. Schuhmann and M. Muhler, Electrochim. Acta,
2009, 54, 7186-7193.
30 P. Gao, A. Wang, X. Wang and T. Zhang, Catal. Lett., 2008, 125, 289-295.
31 S. Kundu, Y. Wang, W. Xia and M. Muhler, J. Phys. Chem. C, 2008, 112, 16869-16878.
32 J. Kang, S. Zhang, Q. Zhang and Y. Wang, Angew. Chem., Int. Ed., 2009, 48, 2565-2568.
33 A. Guerrero-Ruiz, P. Badenes and I. Rodrıguez-Ramos, Appl. Catal., A, 1998, 173, 313-321.
́
34 B. Folkesson, Acta Chem. Scand., 1973, 27, 287-302.
35 Y. Park, B. Lee, C. Kim, Y. Oh, S. Nam and B. Park, J. Mater. Res., 2009, 24, 2762-2766.
36 B. Yang, Q. Lu, Y. Wang, L. Zhuang, J. Lu, P. Liu, J. Wang and R. Wang, Chem. Mater., 2003, 15,
3552-3557.
37 A. B. Laursen, Y. Y. Gorbanev, F. Cavalca, P. Malacrida, A. Kleiman-Schwarsctein, S. Kegnæs, A. Riisager,
I. Chorkendorff and S. Dahl, Appl. Catal., A, 2012, 433–434, 243-250.
38 J. Xu, J. Zhao, J. Xu, T. Zhang, X. Li, X. Di, J. Ni, J. Wang, and J. Cen, Ind. Eng. Chem. Res., 2014, 53,
14272–14281.
18
