Diazotization of 6-Amino-2-phenyl-7-chloro-2H-benzotriazole-
4-carboxylic Acid and Transformations
of the Resulting Diazo Compounds
G. L. Artamonov and V. P. Perevalov
Mendeleev Russian University of Chemical Engineering, Moscow, Russia
Received January 31, 2003
Abstract 6-Amino-2-phenyl-7-chloro-2H-benzotriazole-4-carboxylic acid was prepared by oxidation of
2,5-diamino-4-chloro-2-phenylazobenzoic acid, and its diazotization and subsequent transformations of the
diazo compounds were studied. 7-Hydroxy-2-phenyl-2H-benzotriazole-4-carboxylic acid was prepared.
The chemical properties of 2H-benzotriazoles con-
taining several substituents in the benzene moiety are
studied insufficiently [1, 2] because of limited avail-
ability of di- and trisubstituted m-phenylenediamines
required for their preparation. In this connection, start-
ing from 4-chloro-3,5-diaminobenzoic acid, we pre-
pared by the known scheme [3] 6-amino-2-phenyl-7-
chloro-2H-benzotriazole-4-carboxylic acid I and per-
formed with it certain chemical transformations.
in the form of quinone diazide VI. This compound
was also prepared by treatment of a solution of diazo-
nium salt II in acetic acid with sodium carbonate. The
presence in VI of the diazo function in the form of
diazo rather than diazonium group is confirmed by a
1
strong narrow band in the IR spectrum at 2180 cm
[5 7]. Formation of VI is apparently due to lability of
the chlorine atom in the molecule of II; this atom is
replaced by the hydroxy group under the action of
water, which is followed by the tautomeric transfor-
mation into the diazonium salt of hydroxybenzotria-
zole. Diazo compound VI is highly stable, so that we
detected a molecular ion in its mass spectrum.
Amino compound I is diazotized in HCl difficultly
because of its poor solubility and low basicity of the
amino group caused by the electron-withdrawing
properties of the triazole moiety [4]. After prolonged
standing at room temperature, the reaction mixture
contains, according to TLC, the starting compound
exhibiting strong blue luminescence. When the diazo-
tization was performed with addition of acetic acid,
in which compound I is readily soluble, the reaction
was complete in 1 h. The resulting diazonium salt II
entered into further transformations without compli-
cations only in acid solution: Its reaction with N,N-di-
ethylaniline yielded azo compound III, and the reac-
tion with a solution of SO2 in acetic acid in the pres-
ence of HCl yielded benzotriazolesulfonyl chloride IV
and 6,7-dichloro-2-phenyl-2H-benzotriazole-4-carbox-
ylic acid V. At the same time, attempted azo coupling
of diazonium salt II with 2-naphthol in alkaline solu-
tion failed because of tarring of the reaction mixture,
probably caused by instability of II under these con-
ditions.
Quinone diazide VI is formed in a high yield and is
stable in storage. It reacts with 2-naphthol in alkaline
solution to form 2,2-diaryl hydroxy azo compound
VII and undergoes nitrogen substitution in a strongly
acidic or strongly alkaline solution, i.e., under the
conditions facilitating the transformation of the qui-
none diazide into the diazo compound salt [8].
Prolonged heating of VI in ethanol in the presence
of copper(II) sulfate resulted in substitution of the di-
azo group with hydrogen and formation of 7-hydroxy-
2-phenyl-2H-benzotriazole-4-carboxylic acid VIII.
In refluxing ethanolic solution of NaOH, compound
VIII is formed from VI considerably faster.
EXPERIMENTAL
We believe that the specific features of the diazo
compound obtained from I are confirmed by the re-
sults of diazotization in aqueous sulfuric acid at ele-
vated temperature. The diazo compound isolated from
the reaction was characterized by H NMR, mass, and
IR spectra, which indicate that the compound exists
The IR spectra were recorded on a Specord M-80
spectrophotometer (mulls in mineral oil). The 1H
NMR spectra were taken on a Bruker WP-200 spec-
trometer (200 MHz) in DMSO-d6 at 40 C, internal
reference TMS. The mass spectra were recorded on
a Kratos MS-39 spectrometer (ionizing electron ener-
1
1070-3632/04/7411-1763 2004 MAIK Nauka/Interperiodica

1764
ARTAMONOV, PEREVALOV
Cl
Cl
N+2
N
N
N
H2N
N Ph
N Ph
N
COO
CO2H
I
II
Et2N
N
N
OH
Cl
O
+
N
N
N
N
N
N
N
N
N Ph
N Ph
N Ph
CO2H
CO2H
CO2H
III
VI
VIII
Cl
Cl
N
N
Cl
N
N
ClO2S
N Ph
N Ph
+
N
Cl
HO
N
N
N
CO2H
CO2H
N Ph
IV
V
CO2H
VII
gy 70 eV, ionization chamber temperature 220 C,
direct sample inlet).
and 15 ml of concentrated HCl and a solution of
0.28 g of sodium nitrite in 7 ml of water were added.
After 1 h, a solution of 0.5 g of N,N-diethylaniline in
10 ml of absolute ethanol was added to the resulting
diazo salt solution. The mixture was neutralized to
weakly acidic reaction with a saturated solution of
sodium acetate and allowed to stand for 1 h. The pre-
cipitate was filtered off, reprecipitated from acetone,
recrystallized from ethanol, and dried. Yield of III
0.6 g (13%), mp 267 268 C. IR spectrum (mineral
6-Amino-2-phenyl-7-chloro-2H-benzotriazole-4-
carboxylic acid I. A 13-g portion of 3,5-diamino-4-
chloro-2-phenylazobenzoic acid was suspended in
150 ml of isopropyl alcohol, and the mixture was
heated to 50 C. A copper ammine solution prepared
from 63 g of CuSO4 5H2O, 150 ml of 25% aqueous
ammonia, and 70 ml of water was added with stirring.
The mixture was heated to reflux. After 6 h, the
cooled mixture was acidified with 10% HCl to strong-
ly acidic reaction. The precipitate was filtered off,
washed with water, dried, and recrystallized from
glacial acetic acid. Yield of I 14.3 g (69%), mp 283
1
1
oil), , cm : 1700 (C=O). H NMR spectrum, , ppm
(J, Hz): 8.55 s (1H, H5), 8.35 d (2H, H2 ,6 , 8.0),
7.72 d (2H, H2 ,6 , 10.0), 7.61 7.55 m (3H, H3 ,4 ,5 ),
6.85 d (2H, H3 ,5 , 10.0), 3.50 d (4H, 2CH2, 6.9),
1.18 t (6H, 2CH3, 6.9). Found, %: C 61.33; H 4.70;
N 18.56. M 448. C23H21ClN6O2. Calculated, %: C
61.54; H 4.72; N 18.72. M 448.
1
284 C. IR spectrum (mineral oil), , cm : 3400,
1
3460 (NH2), 1700 (C=O). H NMR spectrum, , ppm
(J, Hz): 8.17 d (2H, H2 ,6 , 8.0), 7.82 s (1H, H5), 7.58
7.46 m (3H, H3 ,4 ,5 ), 6.12 br.s (2H, NH2). Found, %:
C 54.17; H 3.09; N 19.53. M 288. C13H9ClN4O2.
Calculated, %: C 54.09; H 3.14; N 19.41. M 288.
7-Chloro-6-chlorosulfonyl-2-phenyl-2H-benzo-
triazole-4-carboxylic acid IV and 6,7-dichloro-2-
phenyl-2H-benzotriazole-4-carboxylic acid V. A 1-g
portion of 6-amino-2-phenyl-7-chloro-2H-benzotri-
azole-4-carboxylic acid was dissolved with heating in
80 ml of glacial acetic acid. The solution was cooled,
and 15 ml of concentrated HCl and a solution of
0.28 ml of sodium nitrite in 7 ml of water were added.
7-Chloro-6-(4 -N,N-diethylanilinophenylazo)-2-
phenyl-2H-benzotriazole-4-carboxylic acid III. A
1-g portion of 6-amino-2-phenyl-7-chloro-2H-benzo-
triazole-4-carboxylic acid was dissolved with heating in
80 ml of glacial acetic acid. The solution was cooled,
RUSSIAN JOURNAL OF GENERAL CHEMISTRY Vol. 74 No. 11 2004

DIAZOTIZATION OF 6-AMINO-2-PHENYL...
1765
After keeping for 1 h, the solution of the diazo salt
was added to 20 ml of a 30% solution of SO2 in
glacial acetic acid, and a concentrated aqueous solu-
tion of 0.1 g of CuCl2 2H2O was added. Warming of
the mixture was prevented by cooling with ice-cold
water. The reaction was complete in 10 min. The mix-
ture was diluted with water and filtered; the precipitate
was dried and recrystallized from glacial acetic acid.
A mixture of IV and V (0.7 g) was obtained. Com-
pound IV, M+ 372; compound V, M+ 308. IR spec-
was filtered off, washed with water, dried, and recrys-
tallized two times from ethanol. Yield of VII 1.10 g
(37%), mp 246 247 C. IR spectrum (mineral oil), ,
cm : 1700 (C=O). Found, %: C 61.33; H 4.70; N
18.56. M 425. C23H15N5O4. Calculated, %: C 64.94;
H 3.55; N 16.46. M 425.
1
7-Hydroxy-2-phenyl-2H-benzotriazole-4-carb-

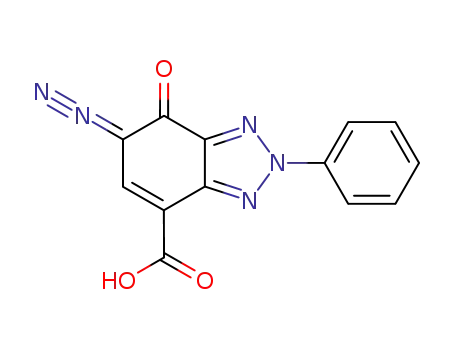

oxylic acid VIII. a. A 0.2-g portion of 6-diazo-7-
oxo-2-phenyl-2H-benzotriazole-4-carboxylic acid VI
was dissolved in 50 ml of ethanol, and 0.10 g of
CuSO4 5H2O was added. The mixture was refluxed
for 6 h, cooled, brought to a weakly acidic reaction,
and filtered. The reaction product crystallized from
the filtrate; it was filtered off and dried in air. Yield of
VIII 0.04 g (22%).
1
trum (mineral oil), , cm : 1180, 1380 (SO2Cl),
1
1700 (C=O). Compound IV: H NMR spectrum, ,
ppm (J, Hz): 8.69 s (1H, H5), 8.33 d (2H, H2 ,6 , 8.0),
1
7.74 7.59 m (3H, H3 ,4 ,5 ). Compound V: H NMR
spectrum, , ppm (J, Hz): 8.33 d (2H, H2 ,6 , 8.0),
8.15 s (1H, H5), 7.74 7.59 m (H3 ,4 ,5 ). As judged
from the ratio of the integral intensities of the H5
signals, the relative content of IV and V in the mix-
ture is 65 and 35%, respectively.
b. To a suspension of 1 g of VI in 100 ml of ethan-
ol, 5 ml of a 50% NaOH solution was added, and the
mixture was refluxed for 1 h. After cooling, the mix-
ture was acidified with 10% HCl to a weakly acidic
reaction. The precipitate was filtered off, washed with
water, dried in air, and recrystallized from 80% aque-
ous acetic acid. Yield of VIII 0.3 g (33%), mp 203
6-Diazo-7-oxo-2-phenyl-2H-benzotriazole-4-car-
boxylic acid VI. a. A 1-g portion of I was suspended
in 20 ml of 96% sulfuric acid and 15 ml of water.
A solution of 0.48 g of sodium nitrite in 10 ml of
water was added in portions. Diazotization was per-
formed with stirring at 60 C, until the starting com-
pound disappeared. After cooling, the mixture was
poured into 10% NaOH; the precipitate was filtered
off, washed with water, and dried. Yield of VI 0.74 g
(76%).
1
204 C. IR spectrum (mineral oil), , cm : 3600,
1
3400 (OH), 1690 (C=O). H NMR spectrum, , ppm
(J, Hz): 11.60 br.s (1H, OH), 8.32 d (2H, H2 ,6 , 7.4),
8.04 d (1H, H6, 8.32), 7.73 7.57 m (3H, H3 ,4 ,5 ),
6.81 d (1H, H5, 8.32). Found, %: C 61.23; H 3.48;
N 16.43. M+ 255. C13H9N3O3. Calculated, %: C
61.18; H 3.55; N 16.46. M+ 255.
b. A 1-g portion of I was dissolved with heating in
80 ml of glacial acetic acid. The solution was cooled,
and 5 ml of concentrated HCl was added. A solution
of 0.28 g of sodium nitrite in 20 ml of water was
added dropwise at room temperature. After 1 h, excess
acetic acid was distilled off on a rotary evaporator, the
solution was neutralized with 10% sodium carbonate
to pH 6, the mixture was diluted with water, and the
precipitate was filtered off, washed with water, and
dried in air. Yield of VI 0.65 g (67%), mp 200
REFERENCES
1. Benson, F.R. and Savell, W.L., Chem. Rev., 1950,
vol. 46, no. 1, p. 1.
2. Krasovitskii, B.M. and Bolotin, B.M., Organicheskie
lyuminofory (Organic Luminophores), Moscow:
Khimiya, 1984, p. 336.
3. Schmidt, M.P. and Hagenbocker, A., Ber., 1921,
vol. 54, no. 11, p. 2191.
1
201 C. IR spectrum (mineral oil), , cm : 2180
4. Gempper, R., Walther, P., Brauchle, C., and Stadler, S.,
1
(=N+=N ), 1690 (C=O). H NMR spectrum, , ppm
Tetrahedron, 1996, vol. 52, no. 46, p. 14607.
(J, Hz): 8.45 s (1H, H5), 8.20 d (2H, H2 ,6 , 7.4),
7.61 m (3H, H3 ,4 ,5 ). Found, %: C 55.56; H 2.54;
N 24.74. M 281. C13H7N5O3. Calculated, %: C 55.52;
H 2.51; N 24.90. M 281.
5. Panetta, C.A., Fang, Z., and Heimer, N.E., J. Org.
Chem., 1993, vol. 58, no. 22, p. 6146.
6. Frolov, A.N. and Pevzner, M.S., Khim. Geterotsikl.
Soedin., 1970, no. 5, p. 705.
7-Hydroxy-6-(2-hydroxynaphthyl-1-azo)-2-
phenyl-2H-benzotriazole-4-carboxylic acid VII. A
suspension of 2 g of 6-diazo-7-oxo-2-phenyl-2H-
benzotriazole-4-carboxylic acid VI in 30 ml of water
was added to a solution of 1 g of 2-naphthol and 2 g
of NaOH in 100 ml of water at room temperature. The
mixture was heated for 2 h at 60 C. The precipitate
7. Reimlinger, H., Van Overstraeten, A., and Viche, H.,
Chem. Ber., 1961, vol. 94, no. 4, p. 1036.
8. Stepanov, B.I., Vvedenie v khimiyu i tekhnologiyu or-
ganicheskikh krasitelei (Introduction to Chemistry and
Technology of Organic Dyes), Moscow: Khimiya, 1984,
p. 318.
RUSSIAN JOURNAL OF GENERAL CHEMISTRY Vol. 74 No. 11 2004
