Artificial peptide-nanospheres self-assembled from three-way junctions of β-sheet-forming peptides

Article abstract of DOI:10.1021/ja052644i

Rational design of self-assembly of proteins, which plays pivotal roles in biology, is an important subject for biotechnology and also bottom-up nanotechnology. This paper has proposed a novel strategy for construction of artificial peptide-nanospheres by

Full text of DOI:10.1021/ja052644i

Published on Web 06/30/2005
Artificial Peptide-Nanospheres Self-Assembled from Three-Way Junctions of
â-Sheet-Forming Peptides
Kazunori Matsuura,* Kazuya Murasato, and Nobuo Kimizuka
Department of Chemistry and Biochemistry, Graduate School of Engineering, Kyushu UniVersity, Hakozaki 6-10-1,
Higashi-ku, Fukuoka 812-8581, Japan
Received April 23, 2005; E-mail: ma14tcm@mbox.nc.kyushu-u.ac.jp
Self-assembly of proteins such as formation of viruses, flagella,
microtubules, actin fibers, and amyloid fibrils plays pivotal roles
in biology.1 Rational design of such protein nano-assemblies will
give new applications not only in biotechnology but also in
nanotechnology.2 To date, fibrous peptide assemblies have been
designed based on the formation of â-sheets3 and leucine zippers.4
On the other hand, formation of spherical assemblies are limited
to the oil-/water-templated protein aggregates,5 self-assemblies of
amphiphilic peptides,6 aromatic dipeptides,7 and â-amyloid 1-40
peptides.8 These spherical assemblies are less exquisite compared
to the self-assembly of symmetric capsids in spherical viruses.1 For
example, icosahedral internal skeleton of tomato bushy stunt virus
is self-assembled from 60 C3-symmetric â-sheet subunits.9 Clathrin
lattice, which participates in receptor-mediated endocytosis, is a
polyhedral assembly of C3-symmetric triskelions formed in the
presence of Mg2+ 10
. The viral and clathrin’s self-assembly is thus
based on C3-symmetric architectures with directed intermolecular
interactions. This strategy would be generally applicable to the
design of artificial, nanosized polypeptide assemblies. We have
recently demonstrated self-assembly of DNA three-way junctions
with self-complementary sticky ends into mesoscopic spherical
DNA assemblies.11 In this paper, we extend the three-way
component design to polypeptides, and show a first example of
artificial C3-symmetric peptide conjugates that self-assemble into
viral-sized peptide nanospheres.

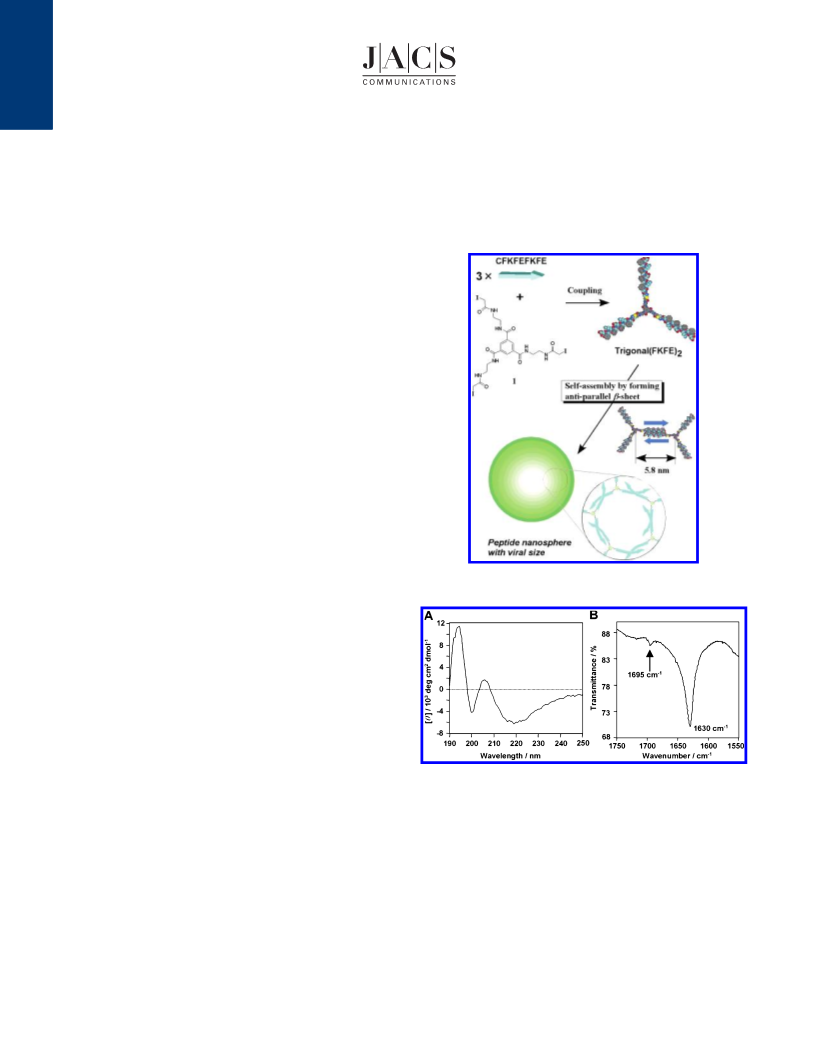

Figure 1. Synthesis of a C3-symmetric â-sheet peptide conjugate and
schematic illustration of the self-assembly.
As shown in Figure 1, the artificial C3-symmetric conjugate
Trigonal(FKFE)2 bears three â-sheet-forming peptides FKFEFKFE.3a
When these peptide arms form antiparallel â-sheets in water,
spontaneous self-assembly of peptide networks is expected. Trigo-
nal(FKFE)2 was prepared by coupling of thiol groups of CFK-
FEFKFE peptides with C3-symmetric iodoacetamidated core mol-
ecule 1 (Figure 1). The C3-symmetric 1 was synthesized by
condensation of trimesoyl chloride with N-Boc-ethylenediamine,
followed by deprotection and iodoacetylation. The 9-mer H-
CFKFEFKFE-OH peptide was prepared by standard solid-phase
synthesis using Fmoc chemistry (for FKFEFKFE). It was then
coupled with Boc-Cys(Trt)-OH and purified by reversed-phase
HPLC. The Trigonal(FKFE)2 conjugate was prepared by coupling
the 9-mer peptides with 1 in the presence of DIPEA (in degassed
DMF at -20 °C).12 The crude product was purified by reversed-
phase HPLC eluting with a linear gradient of acetonitrile/water (0/
100 to 60/40 over 60 min) containing 0.1% TFA (the isolated
yield: 8%). Isolation of the compound was confirmed by MALDI-
TOF-MS (m/z ) 4127 ([M + H]+)). The Trigonal(FKFE)2 was
soluble in acidic water but was hardly soluble in neutral and alkaline
water. Thus, the following experiments were conducted in acidic
aqueous dispersions (pH 3.3).
Figure 2. (A) CD spectrum of Trigonal(FKFE)2 (24 µM) in aqueous HCl
solution (pH 3.3) at 25 °C and (B) FT-IR transmission spectrum of
Trigonal(FKFE)2 cast from the acidic aqueous dispersion (24 µM, pH 3.3).
Substrate, BaF2.
Another negative peak at 200 nm is probably ascribed to an induced
CD for the benzene ring or amide bonds of the core molecule, since
such a CD peak was not observed for the component peptide
FKFEFKFE alone. FT-IR transmission spectrum of Trigonal-
(FKFE)2 cast on BaF2 plate from the acidic aqueous solution (24
µM, pH 3.3) showed a strong peak at 1630 cm-1 and a weak peak
at 1695 cm-1 (Figure 2B), which are characteristic of antiparallel
â-sheet structures.13 These results clearly indicate that Trigonal-
(FKFE)2 forms hydrogen-bond-mediated intermolecular assemblies,
since it is not possible for a single Trigonal(FKFE)2 molecule to
form â-sheets in an antiparallel manner.
The circular dichroism (CD) spectrum of the Trigonal(FKFE)2
(24 µM) in aqueous HCl (pH 3.3) showed negative peak at 219
nm, indicating the formation of â-sheet structures (Figure 2A).
9
10148
J. AM. CHEM. SOC. 2005, 127, 10148-10149
10.1021/ja052644i CCC: $30.25 © 2005 American Chemical Society

C O M M U N I C A T I O N S
In conclusion, supramolecular peptide-nanospheres are spontane-
ously self-assembled from artificial C3-symmetric â-sheet peptides.
The present C3-symmetric strategy would be widely applied to the
design of spherical bio-nanoassemblies. As the present C3-sym-
metric peptide can be chemically modified with desired functional
groups, we envisage their use in many fields such as gene carriers16
and as nanosized reactors.17
Acknowledgment. The present work is supported by a fund
from Sekisui Chemical Co., Ltd., a Grant-in-Aid for the 21st
Century COE Program from the Ministry of Education, Culture,
Sports, Science and Technology and by Grant-in-Aid for Scientific
Research (A) (16205028) from Japan Society for the Promotion of
Science.
Supporting Information Available: Experimental details, HPLC
chart, and MALDI-TOF-MS. This material is available free of charge
via the Internet at http://pubs.acs.org. This material is available free of
charge via the Internet at http://pubs.acs.org.
References
(1) Branden, C.; Tooze, J. Introduction to Protein Structure, 2nd ed.; Garland
Publishing: New York, 1999.
Figure 3. AFM images (noncontact mode) of Trigonal(FKFE)2 (A) and
peptide CFKFEFKFE (B) adsorbed on mica substrate from the aqueous
HCl solution (0.1 mg/mL, pH 3.3). (C) SEM image of Trigonal(FKFE)2
sample (A) coated with Pt (thickness, ca. 3 nm). (D) Size-distribution
obtained from DLS of the aqueous HCl (pH 3.3) dispersion of Trigonal-
(FKFE)2 (96 µM, at 25 °C).
(2) (a) Niemeyer, C. M. Angew. Chem., Int. Ed. 2001, 40, 4128. (b) Zhang,
S. Nat. Biotechnol. 2003, 21, 1171.
(3) (a) Marini, D. M.; Hwang, W.; Lauffenburger, D. A.; Zhang, S.; Kamm
R. D. Nano Lett. 2002, 2, 295. (b) Hwang, W.; Zhang. S. G.; Kamm, R.
D.; Karplus, M. Proc. Natl. Acad. Sci. U.S.A. 2004, 101, 12916. (c)
Takahashi, Y.; Ueno, A.; Mihara, H. Chem. Eur. J. 1998, 4, 2475. (d)
Takahashi, Y.; Ueno, A.; Mihara, H. ChemBioChem 2001, 2, 75. (e)
Brown, C. L.; Aksay, I. A.; Saville, D. A.; Hecht, M. H. J. Am. Chem.
Soc. 2002, 124, 6846.
Specimens for atomic force microscopy (AFM) of Trigonal-
(FKFE)2 were prepared by placing a drop (10 µL) of the acidic
aqueous solution (24 µM, pH 3.3) on a freshly cleaved mica
substrate. The droplet was kept for 30 s, and the substrate was rinsed
with deionized water. In AFM, many domed structures with z-height
of 2.3 ( 0.4 nm and diameter of 35-70 nm are abundantly seen
(Figure 3A). On the other hand, the component peptide CFK-
FEFKFE afforded fibrils3a with a z-height of ca. 1.0 nm and width
of ca. 40 nm (Figure 3B). Scanning electron microscopy (SEM) of
Trigonal(FKFE)2 also showed the presence of spherical nano-
structures with the size of 22-34 nm and concave structures with
the size of 50-100 nm (Figure 3C). These concave structures might
be formed by collapse of the spherical assemblies on mica substrate.
Even when the concentration of Trigonal(FKFE)2 was increased
to 96 µM, there was little change in the size and morphology of
the assemblies. The average diameter of nanospheres as determined
by dynamic light scattering (DLS) was 19.1 ( 4.0 nm (Figure 3D),14
which nearly matches with the actual size of spherical nanostruc-
tures (ca. 16-28 nm) observed in SEM observations by considering
the thickness of Pt coating (ca. 3 nm). The z-height of the collapsed
assemblies of Trigonal(FKFE)2 on mica observed in AFM
corresponds to twice that of peptide CFKFEFKFE fibrils, suggesting
that Trigonal(FKFE)2 might form hollow nanospheres in acidic
solution.
When two Trigonal(FKFE)2 molecules form an antiparallel
â-sheet, the distance between two core benzene rings is estimated
to be about 5.8 nm from the molecular model. Assuming that the
distance is a side of the polyhedron, the diameter of the assembly
is calculated to be ca. 26 nm for a soccer ball-like structure and
ca. 16 nm for a dodecahedron structure. These estimated diameters
are comparable to the average diameter of the nanospheres observed
by DLS (19.1 ( 4.0 nm). The absence of fibrous â-sheet assemblies
from Trigonal(FKFE)2s indicates that the three-armed Trigonal-
(FKFE)2 molecules self-assemble into a finite set of closed aggre-
gates, most likely a soccer ball- or a dodecahedron-like superstruc-
ture which is composed of antiparallel hydrogen bonding.15
(4) (a) Zhou, M.; Bentley, D.; Ghosh, I. J. Am. Chem. Soc. 2004, 126, 734.
(b) Potekhin, S. A.; Melnik, T. N.; Popov, V.; Lanina, N. F.; Vazina, A.
A.; Rigler, P.; Verdini, A. S.; Corradin, G.; Kajava, A. V. Chem. Biol.
2001, 8, 1025. (c) Ryadnov, M. G.; Woolfson, D. N. Nat. Mater. 2003,
2, 329.
(5) (a) Suslick, K. S.; Grinstaff, M. W. J. Am. Chem. Soc. 1990, 112, 7807.
(b) Lu, G.; An, Z.; Tao, C.; Li, J. Langmuir 2004, 20, 8401.
(6) (a) Fujita, K.; Kimura, S.; Imanishi, Y. Langmuir 1999, 15, 4377. (b)
Boerakker, M. J.; Hannink, J. M.; Bomans, P. H. H.; Frederik, P. M.;
Nolte, R. J. M.; Meijer, E. M.; Sommerdijk, N. A. J. M. Angew. Chem.,
Int. Ed. 2002, 41, 4239. (c) Bellomo, E. G.; Wyrsta, M. D.; Pakstis, L.;
Pochan, D. J.; Deming, T. J. Nat. Mater. 2004, 3, 244. (d) Morikawa,
M.-a.; Yoshihara, M.; Endo, T.; Kimizuka, N. Chem. Eur. J. 2005, 11,
1574.
(7) Reches M.; Gazit E. Nano Lett. 2004, 4, 581.
(8) (a) Westlind-Danielsson A.; Arnerup G. Biochemistry 2001, 40, 14736.
(b) Hoshi, M.; Sato, M.; Matsumoto, S.; Noguchi, A.; Yasutake, K.;
Yoshida, N.; Sato, K. Proc. Natl. Acad. Sci. U.S.A. 2003, 100, 6370. (c)
Chromy, B. A.; Nowak, R. J.; Lambert, M. P.; Viola, K. L.; Chang, L.;
Velasco, P. T.; Jones, B. W.; Fernandez, S. J.; Lacor, P. N.; Horowitz,
P.; Finch, C. E.; Krafft, G. A.; Klein, W. L. Biochemistry 2003, 42, 12749.
(9) Olson, A. J.; Bricogne, G.; Harrison, S. C. J. Mol. Biol. 1983, 171, 61.
(10) (a) Harrison, S. C.; Kirschhausen, Cell 1983, 33, 650. (b) Fotin, A.; Cheng,
Y.; Sliz, P.; Grigorieff, N.; Harrison, S. C.; Kirchhausen, T.; Walz, T.
Nature 2004, 432, 573.
(11) Matsuura, K.; Yamashita, T.; Igami, Y.; Kimizuka, N. Chem. Commun.
2003, 376.
(12) When the reaction was carried out at room temperature, mainly undesirable
side products were obtained. From MALDI-TOF-MS analyses, we
presume that the side products are produced by reductive de-iodination
and hydrogenation of iodoacetyl groups of 1 with the thiol group of peptide
CFKFEFKFE.
(13) (a) Bandekar, J. Biochim. Biophys. Acta. 1992, 1120, 123. (b) Dieudonne,
D.; Gericke, A.; Flach, C. R.; Jiang, X.; Farid, R. S.; Mendelsohn, R. J.
Am. Chem. Soc. 1998, 120, 792.
(14) Since it was difficult to obtain sufficient light-scattering intensity at
[Trigonal(FKFE)2] ) 24 µM, we conducted DLS measurement at the
concentration of 96 µM.
(15) Since the size of assemblies was minimally affected by concentration of
the components and concave structure of the assemblies were observed
in SEM, dendritic or hyperbranched structures might be excluded from
candidates.
(16) (a) Aoyama, Y. Chem. Eur. J. 2004, 10, 588. (b) Aoyama, Y. Trends
Glycosci. Glycotechnol. 2005, 17, 39.
(17) (a) Douglas, T.; Strable E.; Willtis, D.; Aitouchen, A.; Libera, M.; Young,
M. AdV. Mater. 2002, 14, 415. (b) Allen, M.; Willtis, D.; Mosolf, J.;
Young, M.; Douglas, T. AdV. Mater. 2002, 14, 1562.
JA052644I
9
J. AM. CHEM. SOC. VOL. 127, NO. 29, 2005 10149
