A rapid and highly sensitive fluorescent imaging materials for thiophenols

Article abstract of DOI:10.1016/j.dyepig.2016.06.009

Thiophenols, a class of toxic and polluting compounds, are widely used in industrial production. Meanwhile, some aliphatic thiols play important roles in living organisms. Therefore, the development of probes for specific thiophenol detection is of great importance. Herein, a novel highly sensitive and selective 'off-on' fluorescent probe for detecting thiophenols has been developed by an ICT mechanism through a rational design. The probe displays a large Stokes shift (140 nm) and 60-fold fluorescence intensity enhancement. More importantly, the probe features a rapid signal response time (within 100 s), a good linearity range and the detection limit is as low as 13 nM. In addition, the ability of the probe to detect thiophenols in living cells (HepG2 cells) via an enhancement of the fluorescence has also been demonstrated.

Full text of DOI:10.1016/j.dyepig.2016.06.009

Accepted Manuscript
A rapid and highly sensitive fluorescent imaging materials for thiophenols
Weijie Zhang, Fangjun Huo, Tao Liu, Yin Wen, Caixia Yin
PII:
S0143-7208(16)30260-1
10.1016/j.dyepig.2016.06.009
DYPI 5293
DOI:
Reference:
To appear in: Dyes and Pigments
Received Date: 24 April 2016
Revised Date: 1 June 2016
Accepted Date: 4 June 2016
Please cite this article as: Zhang W, Huo F, Liu T, Wen Y, Yin C, A rapid and highly sensitive fluorescent
imaging materials for thiophenols, Dyes and Pigments (2016), doi: 10.1016/j.dyepig.2016.06.009.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT
1
2
Abstract Graphic
The Title:
3
4
A rapid and highly sensitive fluorescent imaging materials for thiophenols
5
6
7
List of Authors:
Weijie Zhang,a,1 Fangjun Huo, b,* Tao Liu,a,1 Yin Wen,a Caixia Yin a,**
8
9
The statement:
10
11
12
A novel highly sensitive and selective ‘off-on’ fluorescent probe for detecting
thiophenols has been developed by an ICT mechanism through a rational design. It
displays a large Stokes shift (140 nm), a good linearity range, a rapid signal response
time (within 100 s) and the detection limit is as low as 13 nM. In addition, the ability
of the probe to detect thiophenols in living cells (HepG2 cells) via an enhancement of
the fluorescence has also been proved.
13
14
15
16
17
18
19
20
21
22
1

ACCEPTED MANUSCRIPT
23
A rapid and highly sensitive fluorescent imaging materials for thiophenols
24
25
26
Weijie Zhang,a,1 Fangjun Huo, b,* Tao Liu,a,1 Yin Wen,a Caixia Yin a,**
a
27
28
29
30
31
32
33
34
Institute of Molecular Science, Key Laboratory of Materials for Energy Conversion
and Storage of Shanxi Province, Shanxi University, Taiyuan, 030006, China.
b Research Institute of Applied Chemistry, Shanxi University, Taiyuan, 030006, China.
*Corresponding author:
C.X. Yin, E-mail: yincx@sxu.edu.cn,Tel/Fax: +86-351-7011022;
F.J. Huo, E-mail: huofj@sxu.edu.cn.
1Weijie Zhang, Tao Liu contributed equally to this work.
35
36
37
38
39
40
41
42
43
44
Abstract: Thiophenols, a class of toxic and polluting compounds, are widely used in
industrial production. Meanwhile, some aliphatic thiols play important roles in living
organisms. Therefore, the development of probes for specific thiophenol detection is
of great importance. Herein, a novel highly sensitive and selective ‘off-on’ fluorescent
probe for detecting thiophenols has been developed by an ICT mechanism through a
rational design. The probe displays a large Stokes shift (140 nm) and 60-fold
fluorescence intensity enhancement. More importantly, the probe features a rapid
signal response time (within 100 s), a good linearity range and the detection limit is as
low as 13 nM. In addition, the ability of the probe to detect thiophenols in living cells
(HepG2 cells) via an enhancement of the fluorescence has also been demonstrated.
45
46
47
48
Keywords: Thiophenols; Detection; Fluorescent probe; Bioimaging.
2

ACCEPTED MANUSCRIPT
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1. Introduction
Thiophenols, also named benzenethiols, are extensively used in organic synthesis for
preparing various products in the agrochemical industry and pharmaceutical industry.
However, thiophenols are poisonous to aquatic bio-organisms and animals, possessing a
median lethal concentration (LC 50 ) of 0.01−0.4 mM in fish and a median lethal dose
(LD 50 ) of 46.2 mg/kg in mouse. It was also reported that thiophenols can enter into the
human body easily by inhalation and skin absorption to induce systemic injuries
including shortness of breath, muscular weakness, nausea, vomiting, and even death [1-3].
Despite high toxicity, thiophenols are essential and widely used chemicals for the
preparation of agrochemicals, pharmaceuticals, and various industrial products [4-6].
Considering their toxicity and the continuing environmental concerns, simple, rapid,
sensitive, and selective detection of thiophenols is therefore of considerable interest in
both environmental and biological science.
Fluorescence detection using fluorescent probes has been recognized as one of the
most attractive methods to monitor and visualize molecules due to its simplicity,
convenience, and great potential for use in a wide range of chemical, biological, and
environmental applications. Since Wang et al. [7] reported the first reaction based
fluorescent turn-on probe for selective detection of thiophenols, a number of fluorescent
probes have been developed for these compounds [8-20]. Because of the similarity of
chemical properties among aliphatic thiols and thiophenols, most of these probes are
designed mainly for discrimination of aliphatic thiols such as cysteine and glutathione
from other amino acids, and in general, they cannot clearly discriminate thiophenols
3

ACCEPTED MANUSCRIPT
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
over aliphatic thiols [21-24]. 2,4-Dinitrobenzenesulfonyl (DNBS) was first used by
Maeda et al. as a sulfonate ester of a fluorophore for the detection of thiols [25]. The
high level of electron deficiency enables the DNBS moiety to act as an electron sink
and incur intramolecular charge transfer (ICT), resulting in the quenching of the
fluorescence. The DNBS ester can easily undergo desulfonylation in the presence of
thiophenols through a nucleophilic aromatic substitution (SNAr) mechanism,
liberating SO2 and the attached fluorophore, thus resulting in an increase in
fluorescence.
Herein, we report a novel type of highly sensitive and selective fluorescent probe
toward thiophenols which operates through an ICT pathway by selecting
N-butyl-4-amino-1,8-naphthalimide as a fluorophore, the 2,4-dinitrobenzene-
sulfonamide group as a recognition unit, and a piperazine moiety as a linker to extend
the fluorophore and reactive sulfonamide bond. The masked sulfonamide moiety can
be easily removed by a highly nucleophilic thiolate anion through the SNAr process
(see Scheme 1)[26]. More importantly, we found that this probe not only shows high
selectivity and sensitivity (DL = 13 nM) but also offers a rapid fluorescence turn-on
sensing process (100s) for detecting thiophenols. Furthermore, this probe was
successfully applied in fluorescent imaging in living cells.
2. Materials and methods
2.1. Materials
4-(2-Hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) was purchased
from Sigma-Aldrich (St. Louis, MO). Sodium hydroxide solution (0.1 mol/L) was
4

ACCEPTED MANUSCRIPT
93
94
added to aqueous HEPES (10 mmol/L) to adjust the pH to 7.4. Amino acids were
purchased from Shanghai Experiment Reagent Co., Ltd (Shanghai, China). All other
chemicals used were of analytical grade.
95
96
2.2. Instruments
97
A pH meter (Mettler Toledo, Switzerland) was used to determine the pH.
Ultraviolet–visible (UV–vis) spectra were recorded on an Agilent 8453 UV-Visible
spectrophotometer. Fluorescence spectra were measured on F-7000 FL
Spectrophotometer. A PO-120 quartz cuvette (10 mm) was purchased from Shanghai
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
1
Huamei Experiment Instrument Plants, China. H NMR, 13C NMR spectra were
recorded on a Bruker AVANCE-600 MHz and 150 MHz NMR spectrometer,
respectively (Bruker, Billerica, MA). ESI determinations were carried out on AB
Triple TOF 5600plus System (AB SCIEX, Framingham, USA). The ability of the
probe to react with thiophenols in living cells was also evaluated by laser confocal
fluorescence imaging using an Olympus FV1000 laser scanning microscope.
2.3. Preparation and characterization of the probe
2.3.1.Synthesis of N-butyl-4-Br-1,8-naphthalimide
The route employed to synthesise of the probe is summarized in scheme 2.
4-Bromo-1,8-naphthalic anhydride (2.76 g, 10 mmol) and N-butylamine (0.8 g, 11
mmol) was taken in EtOH (20 mL) and stirred at 55◦C monitoring with TLC. After the
reaction was complete, the reaction mixture was evaporated in vacuum and the
residue was washed with water and dried to give a solid product. The solid obtained
was purified by column chromatography (silica gel dichloromethane) to give a white
5

ACCEPTED MANUSCRIPT
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
product in 88% yield. mp, 104℃-106℃. IR (KBr): 3389.40, 3340.32, 3308.66,
3069.14, 2954 45, 2930.41, 2871.51, 1700.09, 1658.69, 1616.26, 1590.03, 1569.12,
1502.94, 1460.23, 1435.22, 1402.59, 1380.89, 1359.43, 1342.57, 1259.15, 1229.36,
1191.63, 1151.33, 1116.74, 1098.79, 1075.34, 1042.95, 996.06, 940.45, 899.29,
1
873.13, 858.94, 848.36, 780.97, 748.66, 730.67, 711.70, 659.48, 567.65, 424.73. H
NMR (DMSO-d6, 600 MHz): δ (ppm): 8.54 (d, J = 7.2 Hz, 1H), 8.51 (d, J = 8.7 Hz,
1H), 8.30 (d, J = 7.6 Hz, 1H), 8.19 (d, J = 7.7 Hz, 1H), 7.98 (t, J = 7.8 Hz, 1H), 4.02
13
(t, J = 7.3 Hz, 1H), 1.61 (m, 1H), 1.35 (m, 1H), 0.93 (t, J = 7.4 Hz, 2H); C NMR
(DMSO-d6, 150 MHz): δ 163.22, 163.17, 132.95, 131.94, 131.74, 131.32, 130.14,
129.51, 129.17, 128.61, 123.10, 122.32, 30.02, 20.27, 14.17. ESI–MS m/z: [B + H]+
Calcd. for C16H15BrNO2 332.0286, Found 332.0286 (Fig. S1).
2.3.2. Synthesis of N-butyl-4-(piperazin-1-yl)-1,8-naphthalimide
N-butyl-4-Br-1,8-naphthalimide (1.65 g, 5 mmol) and Piperazine(0.52 g, 6 mmol)
was taken in 20 mL of 2-methoxyethanol. The mixture was stirred at 130℃ with
monitoring by TLC. After the reaction was complete, the clear solution obtained was
concentrated and left to cool. The brown solid was collected by filtration, washed
with water and dried to give a solid product. After crystallization from MeCN, a solid
was obtained to give a brown product in 82% yield. mp, 102℃-104℃. IR (KBr):
3374.44, 3324.79, 3291.76, 3066.96, 2956.74, 2927.13, 2862.04, 2837.13, 2748.11,
1691.30, 1652.99, 1613.22, 1588.15, 1512.96, 1456.36, 1427.33, 1384.64, 1355.30,
1287.47, 1243.90, 1181.73, 1164.87, 1137.39, 1118.77, 1089.48, 1070.96, 1024.50,
1001.53, 949.56, 929.37, 893.57, 873.89, 848.70, 835.18, 783.44, 758.58, 746.45,
6

ACCEPTED MANUSCRIPT
1
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
671.98, 656.48, 412. 20. H NMR (600 MHz, DMSO) δ 8.41 (dd, J = 11.9, 8.0 Hz,
2H), 8.35 (d, J = 7.9 Hz, 1H), 7.76 (t, J = 7.6 Hz, 1H), 7.27 (d, J = 7.9 Hz, 1H), 4.00 (t,
J = 6.7 Hz, 2H), 3.13 (s, 4H), 3.00 (s, 4H), 1.58 (d, J = 6.4 Hz, 2H), 1.39 – 1.25 (m,
13
2H), 0.91 (t, J = 7.0 Hz, 3H). C NMR (151 MHz, DMSO) δ 163.98 (s), 163.45 (s),
156.74 (s), 132.69 (s), 131.16 – 130.91 (m), 129.59 (s), 126.30 (s), 125.74 (s), 122.98
(s), 115.70 (s), 115.32 (s), 54.57 (s), 46.14 (s), 40.48 (d, J = 16.2 Hz), 30.18 (s), 20.28
(s), 14.19 (s). ESI–MS m/z: [C + H]+ Calcd. for C20H23N3O2 337.179, Found
338.1839 (Fig. S2).
2.3.3.Synthesis of the probe
2,4-Dinitrobenzen-esulfonylchloride (0.662 g, 2.5 mmol) and N-butyl-4-
(piperazin-1-yl)-1,8-naphthalimide (0.674 g, 2 mmol) in CH2Cl2 (15 mL) with 2 mmol
(0.202 g) Et3N. The mixture was stirred overnight at 0-5 in ice-water with
monitoring by TLC. After the reaction was completed, removing the solvent under
reduced pressure gave a solid which was purified by column chromatography (silica
gel dichloromethane) to give probe 1 in 77% yields. mp 218℃-220℃. IR (KBr):
3426.36, 3105.53, 2959.04, 2924.03, 2852.91, 2170.33, 1697.12, 1650.66, 1590.96,
1556.47, 1536.51, 1513.89, 1447.13, 1425.28, 1390.92, 1351.29, 1267.81, 1234.48,
1162.78, 1125.57, 1073.18, 956.88, 909.84, 845.95, 832.77, 782.04, 755.27, 703.44,
662.57, 620.28, 598.58, 571.76, 545.76, 515.76, 464.38. 1H NMR (600 MHz, DMSO)
δ 9.08 (s, 1H), 8.65 (d, J = 6.6 Hz, 1H), 8.48 (d, J = 7.2 Hz, 1H), 8.47 – 8.42 (m, 1H),
8.40 (t, J = 9.9 Hz, 1H), 8.37 (d, J = 8.7 Hz, 1H), 7.81 (t, J = 7.7 Hz, 1H), 7.39 (d, J =
8.0 Hz, 1H), 4.03 (s, 2H), 3.60 (s, 4H), 3.34 (s, 4H), 1.70 – 1.54 (m, 2H), 1.34 (dd, J =
7

ACCEPTED MANUSCRIPT
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
14.8, 7.3 Hz, 2H), 0.90 (dd, J = 25.9, 18.6 Hz, 3H). 13C NMR (151 MHz, DMSO) δ
163.97 (s), 163.46 (s), 155.16 (s), 150.78 (s), 148.40 (s), 134.50 (s), 132.88 (s),
132.48 (s), 131.23 (s), 130.84 (s), 129.45 (s), 127.51 (s), 126.86 (s), 125.96 (s),
123.10 (s), 120.59 (s), 117.01 (s), 116.41 (s), 52.56 (s), 46.37 (s), 40.52 (s), 30.16 (s),
20.26 (s), 14.20 (s). ESI–MS m/z: [Probe + H]+ Calcd. for C26H25N5O8S 567.14238,
Found 568.1474 (Fig. S3).
<Inserted Scheme 2>
2.4. Optical studies of probe 1
Probe stock solutions were prepared in DMSO. Other analyte solutions were
prepared by using deionized water. Fluorescence measurements were carried out with
a slit width of 5 nm (λex = 383 nm). UV–Vis and fluorescence spectra were obtained
in DMSO–HEPES buffer (10 mmol/L, pH 7.4, 1 : 1, v/v).
2.5. General UV–vis and fluorescence spectra measurements
Thiophenol stock and Probe stock were prepared in DMSO. Other analytes were
prepared by using deionized water. Fluorescence measurements were carried out with
a slit width of 5 nm (λex = 383 nm). UV–Vis and fluorescence spectra were obtained
in HEPES buffer (10 mmol/L, pH 7.4)/DMSO (v/v, 1:1).
2.6. Detection wavelength range
Fluorescence spectra were measured from 450 to 650 nm with excitation at 383
nm (slit width: 5 nm/5 nm) in HEPES buffer (10 mmol/L, pH 7.4)/DMSO (v/v, 1:1).
The detection threshold for thiophenol was 13 nM, and at this level the fluorescence
color change was very obvious.
8

ACCEPTED MANUSCRIPT
181
182
3. Results and discussion
3.1 The Selective response of probe to thiophenols
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
An important feature of the probe is that it has special selectivity for for one kind
of analyte over other substances. In order to study its special recognition ability, we
carried out the experiment by UV-Vis and fluorescence spectrometer. Figure 1 shows
the fluorescence spectral changes upon addition of various analytes (10 equiv.) in
HEPES buffer (10 mmol/L, pH 7.4)/DMSO (v/v, 1:1) solution, including PhOH,
-
-
-
2-
PhNH2, PhCH3, KCN, H2O2, Na2S, Cl-, Br-, I-, N3 , NO3 , HSO3 , SO3 , ME, Cys, Hcy,
GSH, p-Nitrothiophenol, thiosalicyclic acid they all triggered very minor changes.
However, the probe displayed obvious fluorescence enhancement (Fig.1) (λex = 383
nm, λem = 523 nm) in the presence of PhSH, p-NH2-C6H4SH, p-CH3-C6H4SH in
HEPES buffer (10 mmol/L, pH 7.4)/DMSO (v/v, 1:1) solution, Similarly, the probe
displayed obvious UV-Vis spectral (Fig. S4a) changes in the presence of PhSH, and
p-NH2-C6H4SH, p-CH3-C6H4SH. These signal changes indicate that the probe can
serve as a selective chemosensor for thiophenols .
<Inserted Figure 1>
3.2 The UV–vis and Fluorescence spectra titration for probe 1
A detailed spectral titration for thiophenol was carried out. Fig. 2 showed the
fluorescence spectra change of probe 1 (2 µmol/L) upon addition of thiophenol (0-6
µmol/L) in HEPES (10 mmol/L, pH 7.4)/DMSO (v/v, 1:1). Initially, the probe (2
ꢀmol/L) has no fluorescence (λex = 383 nm). The addition of thiophenol caused a
remarkable enhancement (60-fold) of emission intensity at 523 nm (Fig. 2b). The
9

ACCEPTED MANUSCRIPT
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
sensitivity of probe 1 was then examined by the fluorescence response of the probe
toward different concentrations of thiophenol under the same reaction condition as
described above (Figure 3). The increase of fluorescence intensity was displayed in a
concentration dependent manner. However, when more than 3 equiv of thiophenol
were used, the enhancement of fluorescence intensity reached a maximum without
further alteration.
The UV-Visible spectrum response of probe 1 (10 µmol/L) toward thiophenol
(0-10 µmol/L) was studied in HEPES (10 mmol/L, pH 7.4)/DMSO (v/v, 1:1) solution.
Fig. S4b shows the change of probe 1 (0.5 µmol/L) in the UV-Visible spectrum upon
addition of thiophenol (0-10 µmol/L), the absorption peak of the probe at 375 nm is
gradually increased.
<Inserted Figure 2>
To investigate the detection limit of probe 1 for thiophenol, probe 1 (2 µmol/L)
was treated with various concentrations of thiophenol (0-6 µmol/L) and the relative
emission intensity at 523 nm in HEPES (10 mmol/L, pH 7.4)/DMSO (v/v, 1:1) (λex =
383 nm, slit: 5 nm/5 nm) was plotted as a function of the thiophenol concentration
(Fig. 3). Subsequent data analysis revealed an excellent linear relationship (R2 =
0.9999) between the relative fluorescence intensity at 523 nm and the thiophenol
concentration (0-6 µmol/L). The detection limit for thiophenol, based on the definition
by IUPAC (CDL=3 Sb/m) [27-31], was found to be 13 nM, which was much lower

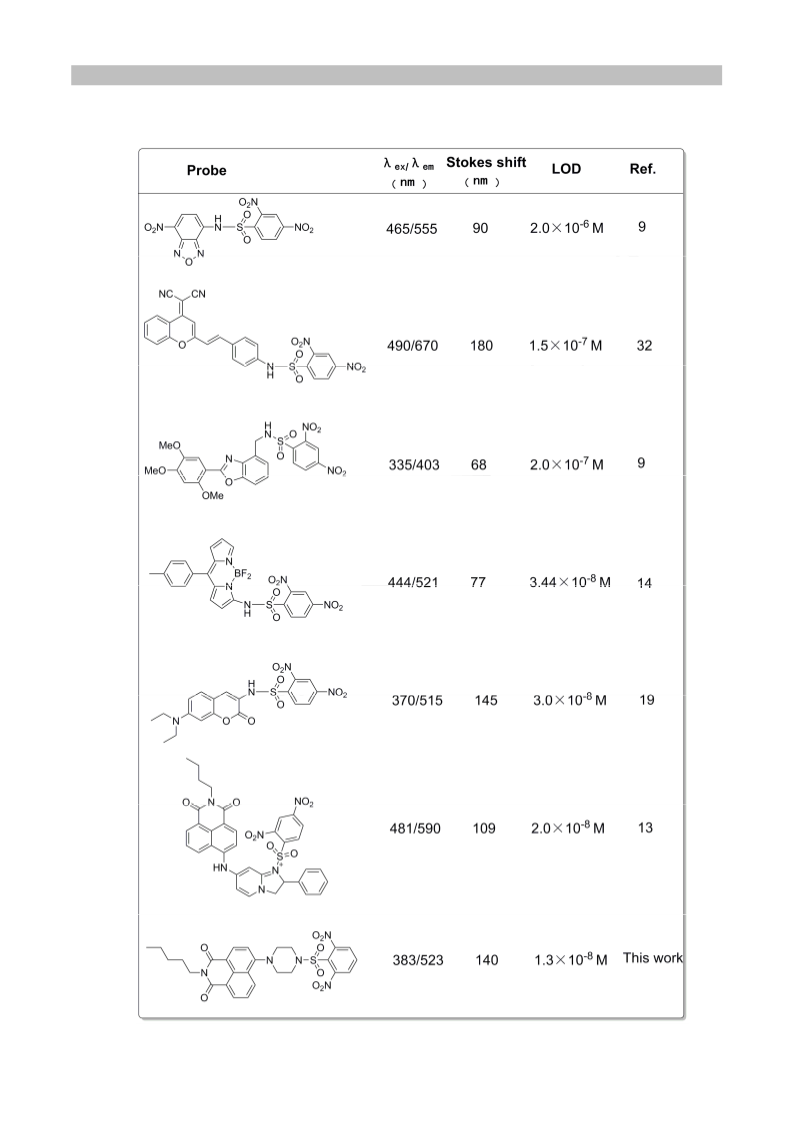

than that of the ICT probe reported by Wang et al. A summary of the comparison of
recently developed fluorescent probes for thiophenol is given in Table 1. The probe 1
10

ACCEPTED MANUSCRIPT
225
showed its excellent analytical performance.
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
<Inserted Figure 3>
<Inserted Table 1>
3.3. pH dependence
As the pH value of system is often considered as a significant influencing factor on
interactions. The effect of pH on the fluorescence intensity of the probe in the absence
and presence of thiophenol were also investigated (Figure S5). Experimental results
indicated that the probe was pH insensitive in the pH range from pH 2 to 13. As
expected, due to the enhanced ionization of thiophenol to result in a faster SNAr
process, the fluorescence intensity increase with the pH ranging from pH 5 to 11, .
Notably, the fluorescence changes of probe 1 to thiophenol reached a maximum and
became almost constant in the pH range of 6−8, which is consistent with the pKa
value of thiophenol (pK a ≈ 6.5). The weaker response at pH >8.0 was presumably
attributed to diminished concentration of thiophenol, because of the disulfide
formation under this conditions. Therefore, physiological pH (pH=7.4) could be
selected as an appropriate working pH for the sensing of thiophenols with the
designed probe.
3.4. Time-dependence in the detection process of thiophenol
Time-dependent modulations in the fluorescence spectra of probe 1 were
monitored in the presence of 10 eq. of thiophenol. The kinetic study (Fig. 4) showed
that the reaction was complete within 100 s for thiophenol, indicating that the sensor
can achieve real-time detection of thiophenols.
11

ACCEPTED MANUSCRIPT
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
<Inserted Figure 4>
3.5. Proposed mechanism
Similar to previously reported DNBS-based thiophenol probes [33, 34], the
fluorescence enhancement response of probe 1 is attributed to a thiolate anion induced
SNAr process which resulted in the cleavage of the DNBS group from the probe
molecule (Scheme 1). Zhao etc has reported a new fluorescent probe for thiophenols
based on 2,4-Dinitrosulfonyl functional group with 1-amino BODIPY. Under their
experimental conditions, the probe displayed a selective response to thiophenols over
aliphatic thiols and the detection limit could be improved to 34 nM. In our work, upon
addition of thiophenol, the probe caused a remarkable enhancement (60-fold) of
emission intensity at 523 nm and the detecting limit is as low as 13 nM, which was
much lower compared with the literature reported. But, there are still room to improve
in terms of detection limit and application in vivo. As mentioned before, after reacting
with thiophenol, probe produced an obviously fluorescence enhancement due to a
nucleophilic aromatic substitution (SNAr) mechanism, releasing SO2 gas and
N-butyl-4-(piperazin-1-yl)-1,8-naphthalimide, thus resulting in an increase in
fluorescence. Furthermore, The identification of the adduct in the ESI-MS analysis
made it possible to propose the signaling mechanism: a peak at m/z 338.1852
corresponding to [probe-PhSH + H]+ was clearly observed (Fig. S6). Further NMR
spectroscopic analysis also provided the evidence for thiophenol nucleophilic
substitution reactions with probe 1. With addition of thiophenol to probe in DMSO-d6,
the resonance of the original proton at 9.08, 8.66, 8.64 ppm disappeared and new
12

ACCEPTED MANUSCRIPT
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
peaks at 8.90, 7.58, 7.56 ppm appeared (Fig. S7). Thus, the sensing mechanism of
probe 1 towards thiophenol, is based on the nucleophilic aromatic substitution (SNAr)
reactions as shown in Scheme 1.
3.6. Cellular Imaging
Ions play important roles in many industrial and biochemical processes[35, 36].
In order to evaluate the cell permeability and capability of probe 1 to selectively
detect intracellular thiophenol, live-cell imaging studies were carried out (Fig. 5). As
shown in Fig. 5a, HepG2 cells incubated with 10 µmol/L of probe for 30 min at 37
showed no fluorescence. In a further experiment it was found that HepG2 cells
displayed yellow-green fluorescence when the cells were first incubated with 10
ꢀmol/L of probe for 30 min at 37 and then incubated with 20 ꢀmol/L thiolphenol
(Fig. 5b). These data demonstrated the good cell-membrane permeability of probe and
it can thus be used to mark thiolphenol within living cells.
4. Conclusions
In summary, we have developed a “turn-on” fluorescent probe for thiolphenols based
on a 2,4-dinitrosulfonyl functional group with high selectivity and sensitivity in
aqueous-DMSO media. Besides, owing the merits of a high selectivity and sensitivity,
this probe shows a rapid detection process (100 s), high fluorescence enhancement
(up to 60-fold), large Stokes shift and the detection limit is as low as 13 nM.
Moreover, fluorescence scanning microscopic experiments demonstrated that the
probe can readily be used to detect the intracellular thiophenol in living HepG2 cells.
13

ACCEPTED MANUSCRIPT
291
Acknowledgments
292
293
294
295
296
The work was supported by the National Natural Science Foundation of China (No.
21472118), the Program for the Top Young and Middle-aged Innovative Talents of
Higher Learning Institutions of Shanxi (TYMIT, No. 2013802), talents Support
Program of Shanxi Province (No. 2014401), Shanxi Province Outstanding Youth
Fund (No. 2014021002), and Shanxi University funds for study aboard 2014.
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
14

ACCEPTED MANUSCRIPT
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
References
[1] Munday R. Toxicity of thiols and disulphides: involvement of free-radical species.
Free Radic Biol Med 1989; 7: 659−673.
[2] Heil TP, Lindsay RC. Toxicological properties of thio- and alkylphenols causing
flavor tainting in fish from the upper Wisconsin River. J Environ Sci Health Part
B 1989; 24: 349−360.
[3] Amrolia P, Sullivan SG, Stern A, Munday R. Toxicity of aromatic thiols in the
human red blood cell. J Appl Toxicol 1989; 9: 113−118.
[4] Love JC, Estroff LA, Kriebel JK, Nuzzo RG, and Whitesides GM,
Self-Assembled Monolayers of Thiolates on Metals as a Form of
Nanotechnology. Chem Soc Rev 2005; 105: 1103–1107.
[5] Eychmüller, Rogach AL. Chemistry and photophysics of thiol-stabilized II-VI
semiconductor nanocrystals. Pure Appl Chem 2000; 72: 179–188.
[6] Juneja TR, Gupta RL, Samanta S , Activation of monocrotaline, fulvine and their
derivatives to toxic pyrroles by some thiols. Toxicol Lett 1984; 21: 185−189.
[7] Jiang W, Fu Q, Fan H, Ho J. and Wang W, A highly selective fluorescent probe
for thiophenols. Angew Chem Int Ed Engl 2007; 46: 8445-8448.
[8] Lin, WY. Long, LL. Tan, W. A highly sensitive fluorescent probe for detection
of benzenethiols in environmental samples and living cells. Chem Commun
(Cambridge U. K.) 2010; 46: 1503-1505.
[9] Jiang W, Cao Y, Liu Y. and Wang W. Rational design of a highly selective and
sensitive fluorescent PET probefor discrimination of thiophenols and aliphatic
15

ACCEPTED MANUSCRIPT
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
thiols. Chem Commun 2010; 46: 1944–1946.
[10] Zhao WW, Liu W, Ge MJC, Wu JS, Zhang WJ, Meng XM. and Wang PF. A
novel fluorogenic hybrid material for selective sensing of thiophenols. J Mater
Chem 2011; 21: 13561–13568.
[11] Zhao C，Zhou Y，Lin Q，Zhu L，Feng P，Zhang Y. and Cao J. Development of
an Indole-Based Boron-Dipyrromethene Fluorescent Probe for Benzenethiols. J
Phys Chem B 2011; 115: 642–647.
[12] Wang X, Cao J, and Zhao C. Design of a ratiometric fluorescent probe for
benzenethiols based on athiol–sulfoxide reaction. Org Biomol Chem 2012; 10:
4689–4691.
[13] Wang Z, Han DM. Jia WP. Zhou QZ and Deng WP. Reaction-based fluorescent
probe for selective discrimination of thiophenols over aliphaticthiols and its
application in water samples. Anal Chem 2012; 84: 4915–4920.
[14] Kand D, Mishra PK, Saha T, Lahiri M and Talukdar P. BODIPY based
colorimetric fluorescent probe for selective thiophenol detection: theoretical and
experimental studies. Analyst 2012; 137: 3921–3924.
[15] Liu XL, Duan XY, Du XJ and Song QH. Quinolinium-Based Fluorescent Probes
for the Detection of Thiophenols in Environmental Samples and Living Cells.
Chem-Asian J 2012; 7: 2696–2702.
[16] Shiraishi Y, Yamamoto K, Sumiya S. and Hirai T. Selective fluorometric
detection of aromatic thiols by a chemosensor containing two electrophilic sites
with different local softness. Chem Commun 2013; 49: 11680–11682.
16

ACCEPTED MANUSCRIPT
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
[17] Zhao C. Wang X, Cao J. Feng P, Zhang J, Zhang Y Yang Y and Yang Z,
BODIPY-based sulfoxide: Synthesis, photophysical characterization and
response to benzenethiols. Dyes Pigments 2013; 96: 328–332.
[18] Kand D, Mishra PK, Saha T, Lahiri M and Talukdar P. Iminocoumarin based
fluorophores: Indispensable scaffolds for rapid, selective and sensitive detection
of thiophenol. Dyes Pigments 2014; 106: 25–31.
[19] Li J, Zhang CF, Yang SH, Yang WC and Yang GF. Highly Selective and
Sensitive 1-Amino BODIPY-Based Red Fluorescent Probe for Thiophenols with
High Off-to-On Contrast Ratio. Anal Chem 2014; 86: 3037–3042.
[20] Balkrishna SJ, Hodage AS, Kumar S, Panini P and Kumar S. Sensitive and
regenerable organochalcogen probes for the colorimetric detection of thiols. RSC
Adv 2014; 4: 11535–11538.
[21] Tang Y, Yang HR, Sun HB, Liu SJ. Wang JX, Zhao Q, Liu XM, Xu WJ, Li SB,
Huang W. Rational Design of an “OFF–ON” Phosphorescent Chemodosimeter
Based on an Iridium(III) Complex and Its Application for Time-Resolved
Luminescent Detection and Bioimaging of Cysteine and Homocysteine.
Chem-Eur J 2013; 19: 1311−1319.
[22] Li X, Qian S, He Q, Yang B, Li J, Hu Y. Towards molecular diversity
dealkylation of tert-butyl amine in Ugi-type multicomponent reaction product
establishes tert-butyl isocyanide as a useful convertible isonitrile. Org Biomol
Chem 2010; 8: 3627−3630.
[23] Kim GJ, Yoon DH, Yun M, Kwon YH, Ha HJ, Kim HJ. An activatable
17

ACCEPTED MANUSCRIPT
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
fluorescent probe for targeting cellular membrane through the biothiol-mediated
hydrazone-to-pyrazole transformation. Sensor Actual B-Chem 2015; 211:
245-249.
[24] Lee H, Kim DI, Kwon H. Kim HJ. Bromoacetylfluorescein monoaldehyde as a
fluorescent turn-on probe for cysteine over glutathione. Sensor Actual B-Chem
2015; 209: 652-657.
[25] Maeda H, Matsuno H, Ushida M, Katayama K, Saeki K, Itoh N. 2,4-
Dinitrobenzenesulfonyl Fluoresceins as Fluorescent Alternatives to Ellmans
Reagent in Thiol-Quantification Enzyme Assays. Angew Chem Int Ed Engl 2005;
44: 2922−2925.
[26] Fukuyama T, Cheung M, Jow CK, Hidai Y, and Kan T. 2,4-Dinitrobenzen-
esulfonamides: A simple and practical method for the preparation of a variety of
secondary amines and diamines, Tetrahedron Lett 1997; 38: 5831-5834.
[27] Xie, YS. Wei, PC. Li, X. Hong, T. Zhang, K. Furuta, H. Macrocycle contraction
and expansion of a dihydrosapphyrin isomer. J Am Chem Soc 2013; 135:
19119–19122.
[28] Ding, YB. Li, X. Li, T. Zhu, WH. Xie. YS. α-Monoacylated and α,α’ - and α,β’
diacylated dipyrrins as highly sensitive fluorescence “turn-on” Zn2+ probes. J
Org Chem 2013; 47: 5328–5338.
[29] Ding, YB. Xie, YS. Li, X. Hill, JP. Zhang, WB. Zhu. WH. Selective and
sensitive“turn-on” fluorescent Zn2+ sensors based on di-and tripyrrins with
readily modulated emission wavelengths. Chem Commun 2011; 47: 5431–5433.
18

ACCEPTED MANUSCRIPT
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
[30] Xie, YS. Ding, YB. Li, X. Wang, C. Hill, JP. Ariga, K. Zhang, WB. Zhu, WH.
Selective, sensitive and reversible “turn-on”fluorescent cyanide probes based on
2,2 -dipyridylaminoanthracene-Cu2+ ensembles. Chem Commun 2012; 48:
11513 –11515.
[31] Chen, B. Ding, YB. Li, X. Zhu, WH. Hill, JP. Ariga, K. Xie,YS. Steric hindrance
enforced distortion as a general strategy for the design of fluorescence “turn-on”
cyanide probes. Chem Commun 2013; 49: 10136–10138.
[32] Liu HW, Zhang XB, Zhang J, Wang QQ, Hu XX, Wang P, Tan WH.
Efficient two-photon fluorescent probe with red emission for imaging of
thiophenols in living cells and tissues. Anal Chem 2015; 87: 8896 −8903.
[33] Ma QJ, Xu JH, Zhang XB, Zhou LY, Liu HW, Zhang J. A naphthalene-based
two-photon fluorescent probe for selective and sensitive detection of thiophenols
Sensor Actual B-Chem 2016; 229: 434-440.
[34] Liu XJ, Yang L, Gao L, Chen WQ, Qi FP, Song XZ. A phthalimide-based
fluorescent probe for thiophenol detection in water samples and living cells with
a large Stokes shift. Tetrahedron Lett 2015; 71: 8285-8289
[35] Ding, YB. Tang, YY. Zhu, WH. Xie. YS. Fluorescent and colorimetric ion
probes based on conjugated oligopyrroles. Chem. Soc. Rev. 2015; 47:
5328–5338.
[36] Ding, YB. Zhu, WH. Xie. YS. Development of Ion Chemosensors Based on
Porphyrin Analogues. Chem. Rev. 2016; DOI: 10.1021/acs.chemrev.6b00021.
19

ACCEPTED MANUSCRIPT
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
Figure captions
Scheme 1 Proposed detection mechanism of the probe to thiophenol.
Scheme 2 The synthesis of the probe 1.
Fig. 1 (a) Fluorescence spectra spectra of the probe 1 (2 µmol/L) in DMSO–HEPES
buffer (10 mmol/L, pH=7.4, 1 : 1, v/v) in the presence of 60 µmol/L PhOH, PhNH2,
PhCH3, KCN, H2O2, Na2S, ME, Cys, Hcy, GSH, and 6 µmol/L PhSH, p-NH2-C6H4SH,
p-CH3-C6H4SH (b) Optical density two-dimensional graph of the probe at 523 nm
upon the addition of various analytes.
Fig. 2 Fluorescence spectra of the probe 1 (2 µmol/L) in the presence of various
concentrations of thiophenol (0-6 µmol/L) in DMSO–HEPES buffer (10 mmol/L, pH
7.4, 1 : 1, v/v) (λex = 383 nm, slit: 5 nm/5 nm).
Fig. 3 The linearity of the relative fluorescence intensity versus thiophenol
concentration.
Table. 1 Summary of fluorescent probes for thiophenols.
Fig. 4 Reaction time profiles of probe (2 µmol/L) with thiophenol (60 µmol/L).
Fig. 5 Confocal fluorescence images in HepG2 cells. (a) Fluorescence image of
HepG2 cells with adding probe (10 ꢀM) and its bright field image (c); (b)
Fluorescence image of HepG2 cells incubated with 10 ꢀM probe for 30 min at 37 °C,
then incubated with 20 ꢀM thiophenol for 30 min at 37 °C and its bright field image
(d).
20

ACCEPTED MANUSCRIPT
447
Scheme 1
448
449
Scheme 2
450
21

ACCEPTED MANUSCRIPT
451
Fig. 1 (a)
452
453
(b)
22

ACCEPTED MANUSCRIPT
454
455
Fig. 2
456
23

ACCEPTED MANUSCRIPT
457
Fig. 3
458
459
460
461
462
463
464
465
466
467
468
469
24

ACCEPTED MANUSCRIPT
470
Table 1
471
25

ACCEPTED MANUSCRIPT
472
Fig.4.
473
474
Fig. 5.
475
26

ACCEPTED MANUSCRIPT
476
477
Support Information
478
479
A rapid and highly sensitive fluorescent imaging materials for thiophenols
480
481
Figure S1: Structure characterization of compound B
Figure S2: Structure characterization of compound C
Figure S3: Structure characterization of the probe
Figure S4: UV-Vis titration
482
483
484
485
486
487
488
Figure S5: PH interference to the detection
Figure S6: The ESI-MS of product obtained by reaction of probe and thiophenol
Figure S7: 1D 1H NMR the probe and probe-thiophenol
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
27

ACCEPTED MANUSCRIPT
510
511
Figure S1: 1D 1H NMR, 13C NMR, ESI-MS and IR of compound B.
512
513
The 1H NMR (600MHz) spectra of compound B in DMSO-d6.
514
515
516
The 13C NMR (150 MHz) spectra of compound B in DMSO-d6.
28

ACCEPTED MANUSCRIPT
517
518
+
The ESI-MS of compound B: m/z: [B + H] Calcd. for C16H15BrNO2 332.0286,
519
Found 332.0286.
520
521
The IR spectra of compound B
522
523
524
29
