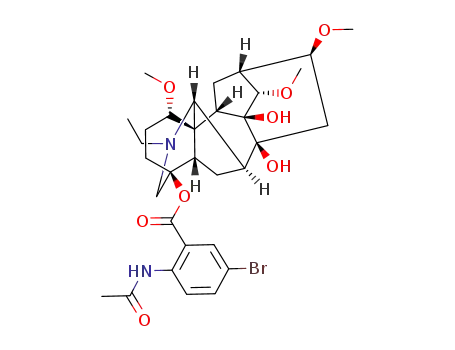

Molecular structure of 5-bromolappaconitine

Article abstract of DOI:10.1007/s10600-009-9186-4

The structure of 5-bromolappaconitine that was synthesized by an alternate method was solved by XSA.

Full text of DOI:10.1007/s10600-009-9186-4

Chemistry of Natural Compounds, Vol. 44, No. 6, 2008
MOLECULAR STRUCTURE OF 5′-BROMOLAPPACONITINE
V. E. Romanov, Yu. V. Gatilov, E. E. Shul′ts,* and G. A. Tolstikov
UDC 547.944.7;582.67
The structure of 5′-bromolappaconitine that was synthesized by an alternate method was solved by XSA.
Key words: lappaconitine, 5′-bromolappaconitine, pyridinium dichlorobromate, XSA, ring conformations, gas-phase
quantum-chemical calculations.
The synthesis of 5′-bromolappaconitine (1) has been reported [1]. Its antiarrhythmic activity has been investigated [2,
]. It was found that the hydrobromide of 1 is practically an order of magnitude more effective than the hydrobromide of
3
lappaconitine 2 (preparation Allapinine [4]) as an antiarrhythmic in CaCl and adrenaline arrhythmia models. The
2
hydrobromide of 5′-bromolappaconitine is 4.8 times less toxic than Allapinine [3, 4]. Therefore, the search for alternate
pathways for preparing 1 and the study of its structure seemed timely.
OCH
3
H CO
3
HO
OCH
3
N
OH
O
O
C
Br
NHAc
1
Herein a method for preparing 1 by bromination of lappaconitine (2) using pyridinium dichlorobromate (PyHBrCl2),
a new stable brominating agent for bromination of aromatic compounds [5], is described. Bromination of an acetylanilide by
an equivalent amount of this reagent resulted in rapid formation of bromo derivatives, including o-substituted ones [5]. This
last feature prompted us to use PyHBrCl in our work with the hope of synthesizing the still unknown 3′-bromolappaconitine.
2
However, as it turned out, bromination of 2 by 1 eq. of this reagent in CH Cl was unsuccessful. Bromination in ethanol gave
2
2
a complicatedmixtureofproducts [N-deacetyllappaconitine, 5′-bromolappaconitine(1), N-deacetyl-5′-bromolappaconitine, etc.].
Compound 1 was isolated in 32% yield using PyHBrCl only with 5 eq. of the reagent in CH Cl . 3′-Bromolappaconitine was
2
2
2
apparently not formed. An x-ray structure analysis (XSA) was carried out for the synthesized 5′-bromolappaconitine (1).
Figures 1a and 1b show the structures of two crystallographically independent molecules of 1 that differ in the
orientation of the C16 methoxyl. The bond lengths are similar to those of starting lappaconitine (2) [6]. Six-membered rings
A (C1-C5, C11), B (C7-C11, C17), and E (C4, C5, C11, C17-C19) had the chair conformation with a distortion toward the
envelope/chair. The distorted boat conformation of ring A is usually observed due to formation of an intramolecular H-bond
by the protonated N atom (hydrobromide of lappaconitine [7]) or by replacing the C1 methoxyl by hydroxyl (e.g., condelphine
[8]).
N. N. VorozhtsovNovosibirsk InstituteofOrganic Chemistry, Siberian Branch, Russian AcademyofSciences, Russian
Federation, 630090, Novosibirsk, prosp. Akad. Lavrent′eva, 9, fax: (383) 330 97 52, e-mail: schultz@nioch.nsc.ru. Translated
from Khimiya Prirodnykh Soedinenii, No. 6, pp. 598-600, November-December, 2008. Original article submitted August 25,
2
008.
©
0
009-3130/08/4406-0740 2008 Springer Science+Business Media, Inc.
7
40

a
C 2 3
C 1
C 1 0
O 3
C 1 2
C 9
C 1 4
C 2
C 5
C 4
O 1
O 4
C 3
O 1
C 2 4
C 1 3
C 1 6
C 11
C 1 7
′
O 5
C 2 5
C 8
O 2
C 6
C 9
′
O 2
′
C 1 9
N 1
′
C 7
′
N 1 8
C 2
′
C 7
C 2 2
C 1 5
C 1
′
C 8
′
C 6
′
C 2 1
O 3
′
C 3
′
C 5
′
C 4
′
B r1
′
b
C 2 3 A
B r1 ′′
C 1 A O 1A
C 1 0 A C 1 2 A
C 2 A
C 3 A
C 5 ′′
C 1 3 A
O 4 A
O 3 A
C 9 A
C 1 7 A
C 2 4 A
C 4 ′′
C 6 ′′
C 4 A
C 11A
C 1 4 A
C 8 A
C 3 ′′
C 8 ′′
C 5 A
C 6 A
O 1 ′′
C 7 ′′ C 1 9 A
O 2 ′′
O 3 ′′
C 2 ′′
C 1 ′′
C 2 5 A
O 5 A
C 1 6 A
C 1 5 A
N 1
′
N 1 8 A
C 2 1 A
C 7 A
C 9 ′′
O 2 A
C 2 2 A
C 2 2 B
Fig. 1. Molecular structure of 5′-bromolappaconitine (1) (structures of
two crystallographically independent molecules a and b are shown).
The boat conformation of ring A in 1 was less favorable by 2.3 kcal/mol (gas-phase DFT/PBE/3z calculations). Ring
D (C8, C9, C13-C16) had the boat conformation with a distortion toward an envelope that is often seen for similar alkaloids.
Deviations of C14 and C15 from the plane of the remaining atoms were 0.83, 0.88 and 0.37, 0.28 Å, respectively, for the two
independent molecules. The chair conformation for this ring (e.g., in talatisamine [9]) in our instance was not a local minimum.
Five-membered ring C (C9, C10, C12-C14) had the envelope conformation with C14 deviating from the plane of the other
atoms by 0.75 and 0.67 Å; ring F (C5-C7, C11, C17), the twist conformation with C11 and C17 deviating by 0.44, −0.38 and
0
.37, −0.47 Å, respectively, for the two independent molecules.
The different orientation of the C16 methoxyl in the two independent molecules (Fig. 1) produced different
C13C16O5C25 torsion angles of −162.7 and −65.0°, respectively. This angle in lappaconitine (2) [6] is −165.8°; in
lappaconitine hydrobromide [7], disordered over two positions (−150.1 and −97.2°). Disorder of the N18 ethyl group was
observed in the second molecule of 1 (0.4:0.6 ratio). The C17N18C21C22 torsion angles were −73.1 and −144.3°. This angle
in lappaconitine hydrobromide was −66.3; in lappaconitine, −164.6°. According to gas-phase calculations, changing the
orientation of the C16 methoxyl and the N18 ethyl in 1 changes the energybyabout 0.2 kcal/mol. The 2-(acetylamino)benzoate
moietyis nearlyplanar (deviation of atoms in the range ±0.41 and ±0.13 Å) with an intramolecular H-bond N1′–H...O2′ (H...O,
2
.02 and 2.01 Å; N–H...O, 135 and 136°).
According to the hydroxyl H-atom positions found by the SHELXL-97 program [10], all OH groups form bifurcated
H-bonds, both intra- and intermolecular. The intramolecular H-bonds were O2–H...O3 (H...O, 2.21 Å, O–H...O, 118°),
O3–H3...O4 (H...O, 2.59 Å, O–H...O, 107°), O2A–H...O4A (H...O, 2.39 Å, O–H...O, 127°), O3A–H...O2A (H...O, 2.30 Å,
O–H...O, 108°). The intermolecular H-bonds O2–H...O4A (H...O, 2.19 Å, O–H...O, 147°), O3–H...O3A (H...O, 2.28 Å,
O–H...O, 177°), 02A–H...O2 (H...O, 2.31 Å, O–H...O, 138°), O3A–H...O4 (H...O, 2.34 Å, O–H...O, 118°) linked the two
independent molecules into dimers that were combined into ribbons along diagonals in the b-c plane through C25A–H...O5
(
H...O, 2.21 Å, C–H...O, 167°) interactions. Dimers were not observed in the crystal of starting lappaconitine (2) [7].
741

EXPERIMENTAL
NMRspectra in CDCl were recorded on a Bruker AV-300 instrument at operating frequency300.13 MHz. The course
3
of reactions and the purity of products were monitored by TLC on Silufol UV-254 plates using CHCl :C H OH. Pyridinium
3
2 5
dichlorobromate was prepared by the literature method [5].
Synthesis of 5′-Bromolappaconitine using PyHBrCl . A mixture of lappaconitine (2, 584 mg, 1 mmol) and
2
PyHBrCl (1155 mg, 5 mmol) was dissolved in CH Cl (20 mL), stirred at room temperature for 4 d, and treated with ammonia
2
2
2
solution (25%) until the pH was ∼10. The aqueous layer was separated. The organic layer was dried over anhydrous MgSO4.
Solvent was distilled in a rotary evaporator. The mixture was separated by column chromatography over SiO with elution by
2
CHCl :C H OH (50:1). Yield of 5′-bromolappaconitine, 32% of theoretical (215 mg). The melting point and PMR spectrum
3
2 5
agreed with those published [1].
X-ray structure analysis of 1 was performed at room temperature by the standard method on a Bruker P4
diffractometer using MoKα-radiation (λ = 0.71073 Å) and a graphite monochromator. Intensities of reflections were measured
by θ/2θ-scanning. Absorption was calculated by integrating along the crystal faces (transmission 0.781-0.889). The structure
was solved bydirect methods using the Sir2002 program and was refined by full-matrix anisotropic and isotropic (for H atoms)
least-squares methods using the SHELXL-97 program. Coordinates of Hatoms were calculated geometricallyand refined using
the rider model. The hydroxyl H atoms could not be found in difference syntheses. Therefore, the capabilities of the
SHELXL-97 program were used to examine three orientations and select the version giving the best H-bond. The
crystallographic data are C H BrN O , MW = 662.59, triclinic system, space group P1, a = 10.970(2), b = 12.983(2),
3
2
42
2 8
3
3
−1
c = 13.136(2) Å, α = 62.41(1), β = 86.10(1), γ = 74.03(1)°, V = 1590.3(5) Å , Z = 2, d
= 1.384 g/cm , μ = 1.345 mm ,
calc
crystal size 0.1 × 0.2 × 0.3 mm, 5755 independent reflections, 2θmax = 51°, R = 0.0617 for 2739 observed (I > 2σ) reflections,
1
wR = 0.1595 and GooF = 1.004 for all reflections. The absolute structure factor was 0.008(14).
2
Crystallographic data for 1anddata from thex-raystructureanalysisweredepositedin the Cambridge Crystallographic
Data Centre (number CCDC 692647). Gas-phase quantum-chemical calculations (DFT method, functional PBE, 3z basis) were
performed using the PRIRODA program [11].
REFERENCES
1
2
3
.
.
.
S. A. Osadchii, E. E. Shul′ts, E. V. Polukhina, M. M. Shakirov, and G. A. Tolstikov, Izv. Akad. Nauk, Ser. Khim.,
No. 6, 1038 (2006).
T. G. Tolstikova, E. E. Shul′ts, A. O. Bryzgalov, M. V. Khvostov, V. E. Romanov, S. A. Osadchii, and
G. A. Tolstikov, Khim. Interesakh Ustoich. Razvit., 15, 599 (2007).
S. A. Osadchii, E. E. Shul′ts, A. A. Martynov, A. O. Bryzgalov, T. G. Tolstikova, M. P. Dolgikh, I. V. Sorokina,
and G. A. Tolstikov, RF Pat. No. 2,295,524; Byull. Izobret., 8, 68 (2007).
M. D. Mashkovskii, Drugs, 15th Ed., Novaya Volna, Moscow (2006).
H. A. Muathen, Synthesis, 169 (2002).
4.
5.
6.
Y.-P. Wang, W.-X. Sun, J. Zhang, H.-S. Liu, and H.-H. Wen, Acta Crystallogr., Sect. E: Struct. Rep. Online, 63,
o1645 (2007).
7.
8.
9.
D. M. Turdybekov, K. M. Turdybekov, E. V. Burdel′naya, A. Zh. Turmukhambetov, S. M. Adekenov, and
Yu. V. Gatilov, Khim. Prir. Soedin., 17 (2003).
M. Ahmad, S. Ali, F. Shaheen, S. Anjum, and M. I. Choudhary, Acta Crystallog., Sect. E: Struct. Rep. Online, 62,
o1428 (2006).
B. Tashkhodzhaev, K. K. Turgunov, Attia-tul-Vakhab, M. N. Sultankhodzhaev, M. I. Choudhary, and
Atta-ur-Rakhman, Khim. Prir. Soedin., 500 (2005).
1
0.
1.
G. M. Sheldrick, SHELX-97: Programs for the Solution and Refinement of Crystal Structures, University of
Gottingen, Germany (1997).
D. N. Laikov, Chem. Phys. Lett., 281, 151 (1997).
