Vitis bellula is a new grape crop in southern China. Berries of this species are rich in antioxidative anthocyanins and proanthocyanidins. This study reports cloning and functional characterization of a cDNA encoding a V. bellula dihydroflavonol reductase (VbDFR) involved in the biosynthesis of anthocyanins and proanthocyanidins. A cDNA including 1014 bp was cloned from young leaves and its open reading frame (ORF) was deduced encoding 337 amino acids, highly similar to V. vinifera DFR (VvDFR). Green florescence protein fusion and confocal microscopy analysis determined the cytosolic localization of VbDFR in plant cells. A soluble recombinant VbDFR was induced and purified from E. coli for enzyme assay. In the presence of NADPH, the recombinant enzyme catalyzed dihydrokaempferol (DHK) and dihydroquercetin (DHQ) to their corresponding leucoanthocyanidins. The VbDFR cDNA was introduced into tobacco plants via Agrobacterium-mediated transformation. The overexpression of VbDFR increased anthocyanin production in flowers. Anthocyanin hydrolysis and chromatographic analysis revealed that transgenic flowers produced pelargonidin and delphinidin, which were not detected in control flowers. These data demonstrated that the overexpression of VbDFR produced new tobacco anthocyanidins. In summary, all data demonstrate that VbDFR is a useful gene to provide three types of substrates for metabolic engineering of anthocyanins and proanthocyanidins in grape crops and other crops.

Full text of DOI:10.3390/molecules23040861

molecules
Article
Molecular Cloning and Functional Characterization
of a Dihydroflavonol 4-Reductase from Vitis bellula
Yue Zhu 1,2, Qingzhong Peng *, Kegang Li 1 and De-Yu Xie 1,2,* ID
1,
1
Hunan Provincial Key Laboratory of Plant Resources Conservation and Utilization,
College of Biology and Environmental Sciences, Jishou University, No. 120 Ren Min Nan Lu,
Jishou City 416000, China; yzhu31@ncsu.edu (Y.Z.); lkg@jsu.edu.cn (K.L.)
Department of Plant Biology, North Carolina State University, 100 Derieux Place, Raleigh, NC 27695, USA
2
*
Correspondence: qzpengjsu@163.com (Q.P.); dxie@ncsu.edu (D.-Y.X.)
ꢀ
ꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀ
ꢁꢂꢃꢄꢅꢆ
Received: 14 March 2018; Accepted: 2 April 2018; Published: 10 April 2018
Abstract: Vitis bellula is a new grape crop in southern China. Berries of this species are rich in antioxidative
anthocyanins and proanthocyanidins. This study reports cloning and functional characterization of
a cDNA encoding a V. bellula dihydroflavonol reductase (VbDFR) involved in the biosynthesis of
anthocyanins and proanthocyanidins. A cDNA including 1014 bp was cloned from young leaves and
its open reading frame (ORF) was deduced encoding 337 amino acids, highly similar to V. vinifera DFR
(VvDFR). Green florescence protein fusion and confocal microscopy analysis determined the cytosolic
localization of VbDFR in plant cells. A soluble recombinant VbDFR was induced and purified from E. coli
for enzyme assay. In the presence of NADPH, the recombinant enzyme catalyzed dihydrokaempferol
(DHK) and dihydroquercetin (DHQ) to their corresponding leucoanthocyanidins. The VbDFR cDNA was
introduced into tobacco plants via Agrobacterium-mediated transformation. The overexpression of VbDFR
increased anthocyanin production in flowers. Anthocyanin hydrolysis and chromatographic analysis
revealed that transgenic flowers produced pelargonidin and delphinidin, which were not detected in
control flowers. These data demonstrated that the overexpression of VbDFR produced new tobacco
anthocyanidins. In summary, all data demonstrate that VbDFR is a useful gene to provide three types
of substrates for metabolic engineering of anthocyanins and proanthocyanidins in grape crops and
other crops.
Keywords: Vitis bellula; dihydroflavonol reductase; dihydroflavonol; leucoanthocyanidin; anthocyanin;
proanthocyanidin
1
. Introduction
Dihydroflavonol 4-reductase (DFR) is a key late enzyme in the plant flavonoid pathway
toward both anthocyanins and proanthocyanidins (Figure 1). It catalyzes the key step from
dihydroflavonols, such as dihydrokaempferol (DHK), dihydroquercetin (DHQ), and dihydromyricetin
(
DHM), to leucoanthocyanidins, such as leucopelargonidin, leucocyanidin, and leucodelphinidin [
DFR genes have been cloned from multiple plants and its mutation has been demonstrated to cause the
loss of anthocyanins and proanthocyanidins in plants [ ]. To date, DFR is an economically important
plant gene, given that anthocyanins and proanthocyanidins are two groups of antioxidants relating
to high nutritional values of crop, food, and beverage (such as wine and green tea) products [ ].
Particularly, anthocyanins are one of the richest plant natural pigments with significant economic values
in the horticulture industry [ 10 13]. Since the first success of Petunia flower color engineering was
achieved using the first DFR cDNA cloned from maize [13], multiple homologs have been cloned to
engineer anthocyanins [ 14 15] and proanthocyanidins [16 17]. DFR also plays a key role in transcription
factor-based anthocyanin engineering. A common metabolic phenotype is that the activation or
1].
2–5
6–9
6, –
1,
,
,
Molecules 2018, 23, 861; doi:10.3390/molecules23040861
www.mdpi.com/journal/molecules

Molecules 2018, 23, 861
2 of 14
enhancement of DFR expression is necessary in MYB transcription factor-based anthocyanin engineering.
For example, the regulatory function of the Production of Anthocyanin Pigmentation 1 (PAP1, a MYB75)
depends upon the expression of DFR [18–24].
Vitis bellula (namely Bellula here) is a relative of V. vinifera (in Vitaceae), which is the main
grape crop for both wine and non-alcoholic beverage products [25–27]. Although the cropping of
V. bellula is limited to southern China [28], this species has become an emerging new grape crop to
develop potential wine and beverage products due to its high nutritional values. Our recent studies
have revealed that its berry is rich in flavan-3-ols and proanthocyanidins [28
demonstrated that the formation of proanthocyanidins and flavan-3-ols in V. bellula is via two pathways,
the anthocyanidin reductase (ANR) and leucoanthocyanidin reductase (LAR) pathways [28 30].
Metabolic profiling revealed that Bellula’s berries produce two types of configurations of flavan-3-ols,
R, 3S-2, 3-trans-flavan-3-ols such as (+)-catechin and (+)-gallocatechin and 2R, 3R-2, 3-cis-flavan-3-ols
such as ( )-epicatechin (and ( )-epigallocatechin. Both butanol:HCl cleavage and chromatograph
,29] (Figure 1). We have
,
2
−
−
analyses have revealed that the building units of proanthocyanidins include three types of flavan-3-ols,
which are characterized by one –OH, two –OH, and three –OH groups in the B ring, such as
(
−
)-epifazelechin, (
−
)-epicatechin, and ( )-epigallocatechin (Figure 1). These three types of structures
−
are correspondingly derived from leucopelargonidin, leucocyanidin, and leucodelphinidin via either
the ANR or LAR pathway (Figure 1).

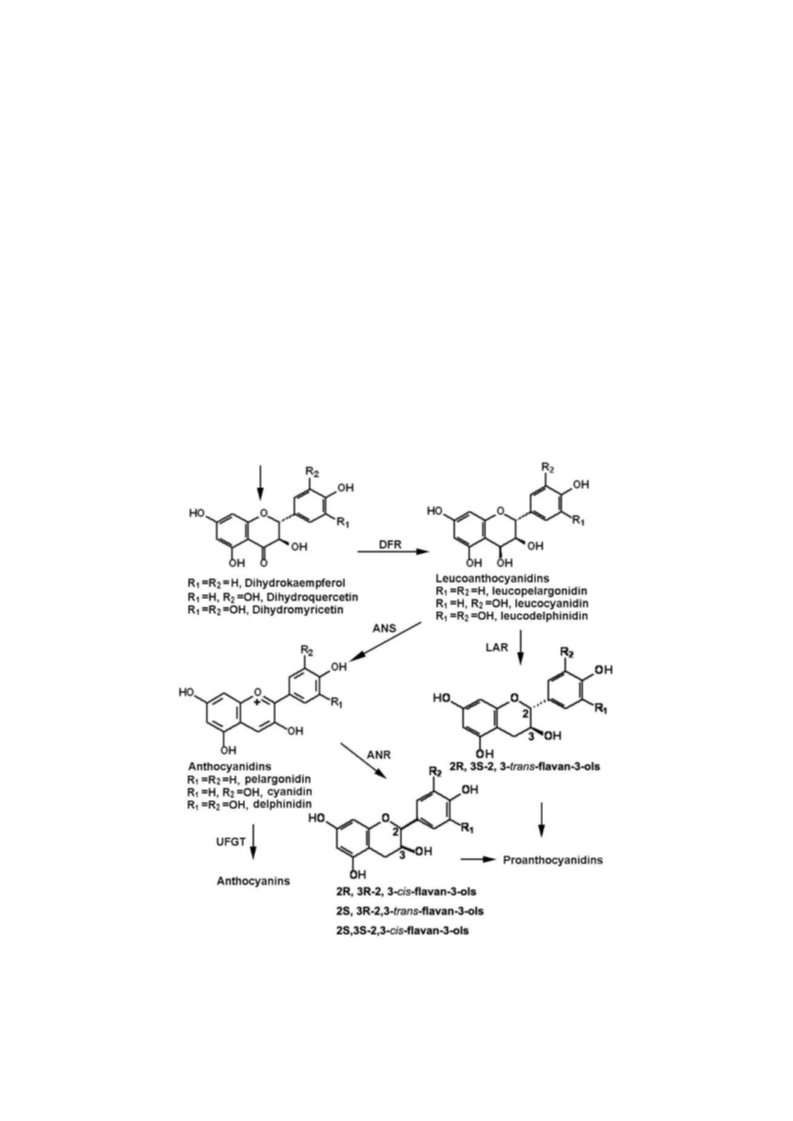

Figure 1. Late pathway steps of flavonoids from dihydroflavonol to anthocyanins and proanthocyanidins.
DFR: dihydroflavonol reductase, ANS: anthocyanidin synthase, ANR: anthocyanidin reductase,
LAR: leucoanthocyanidin reductase, and UFGT: UDP-glucose flavonoid 3-O-glucosyltransferase. UDP:
uridine diphosphate.

Molecules 2018, 23, 861
3 of 14
To date, cDNA(s) encoding DFR has not be cloned from V. bellula. In this article, we report the
cloning and characterization of V. bellula DFR (VbDFR). A DFR cDNA homolog, namely VbDFR,
was cloned from young leaves. Sequence alignment using deduced amino acids showed that only
three amino acids were different between VbDFR and V. vinifera DFR (VvDFR), demonstrating their
high identity. In vitro enzymatic assay, transgenic analysis, and metabolic profiling of transgenic plants
showed that VbDFR catalyzes the step from dihydroflavonols to leucoanthocyanidins. Particularly,
the overexpression of VbDFR in tobacco flowers led to the formation of pelargonidin, cyanidin,
and delphinidin in plants. These results indicate that VvDFR is a useful gene to metabolically engineer
three types of anthocyanidins and their corresponding anthocyanins.
2
. Results
2
.1. Cloning of DFR Gene from Leaf of V. bellula
Based on VvDFR sequence (GenBank: CAA53578.1), we designed a pair of primers, which contained
the start and stop codon nucleotides. RT-PCR was carried out to amplify a DFR cDNA from a leaf
cDNA library of V. bellula. We named it VbDFR. This amplification produced an approximately 1 kb
cDNA fragment (Figure 2a). Sequencing confirmed that this fragment was composed of 1014 nucleotides
including the full length of open reading frame (ORF) from the start codon to the stop codon, which was
deduced to translate 337 amino acids. An unrooted phylogenetic tree was built using amino acid
sequences of 13 DFR homologs. The resulting tree clustered them into two main clades (Figure 2b).
VbDFR, VvDFR, AtDFR, AgDFR, and PlDFR were clustered in one clade, which VbDFR and VvDFR are
directly clustered together, indicating their close similarity. Further amino acid sequence alignment using
13 DFR homologs revealed three different amino acids between VbDFR and V. vinifera DFR (VvDFR).
In addition, this alignment showed that the deduced VbDFR amino acid sequence included the conserved
glycine-rich Rossmann NADPH/NADH-binding domain and a substrate specificity domain (Figure 2c).
2
.2. Recombinant VbDFR Expression and Enzymatic Assay
The ORF was cloned into a pET 28a (+) vector to obtain a recombinant pET 28a (+)-VbDFR vector.
This construct was transformed into BL21 (DE3) plysS strain to induce recombinant VbDFR protein.
The pET 28a (+) empty vector was used as control. After induced with 1.0 mM IPTG, extraction of E. coli
revealed that the recombinant VbDFR protein existed on both inclusion body and buffer (Figure 3a).
However, the recombinant protein was not produced from the empty vector control (Figure 3a). Next,
the recombinant protein was purified by using a Ni-NTA column. SDS-PAGE analysis showed one
major recombinant VbDFR band from this purification (Figure 3b). The purified recombinant VbDFR
◦
was stored at
−
20 C for further enzymatic assays. (
−
)-Taxifolin and ( )-dihydrokaempferol (DHK)
−
are two DFR substrates (Figure 1). We used these two substrates to examine the enzymatic activity
of the recombinant VbDFR. The enzymatic reaction was carried out in 500 L volume that included
g substrates, 50 g protein, 50 mM citrate buffer at pH 6, and 20 g NADPH. After reactions were
µ
1
5
µ
µ
µ
extracted with ethyl acetate, products were dissolved in methanol for HPLC analysis. HPLC profiles
recorded at 280 nm showed that one new peak was observed from reactions using taxifolin (Figure 3c-1)
and DHK (Figure 3d-1), respectively. However, these new peaks were neither observed from control
reactions using denatured protein nor existed in standard samples (Figure 3c-2,d-2). These results
demonstrated that the recombinant VbDFR used these two metabolites as substrates. Although
leucoanthocyanidin standards were not commercially available, based on our previous elucidation
method for DFR’s products [
1], these two new peaks from taxifolin and DHK were annotated to be
leucocyanidin and leucopelargonidin, respectively.

Molecules 2018, 23, 861
4 of 14

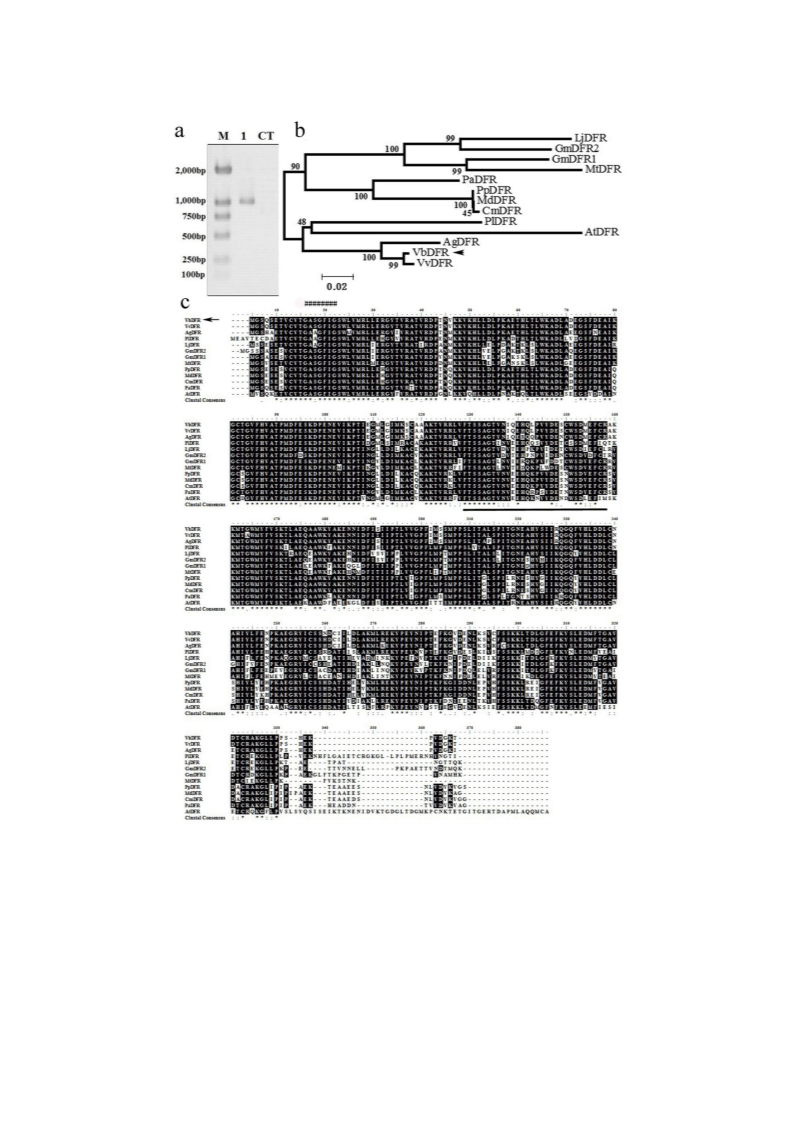

Figure 2. Cloning, amino acid sequence alignment, and an unrooted phylogenetic tree of DFR obtained
from deduced amino acid sequences of 13 DFR homologs. ( ) a DFR cDNA fragment was amplified
from V. bellula leaf tissue by RT-PCR. M: DNA marker, 1: DFR cDNA fragment, CT: negative control;
) an unrooted phylogenetic tree was built from amino acid sequences of 13 DFR homologs; ( ) amino
acid sequence alignment were develop from 13 DFR homologs; “*”: the same amino acid in all sequences;
a
(b
c
“
:”: conserved amino acid residues; “.”: half conserved amino acid residues; “######”: potential
NADPH/NADH binding domain; amino acids underlined form a potential substrate specificity domain
of DFR. AtDFR: Arabidopsis thaliana DFR; CmDFR: Crataegus monogyna DFR; GmDFR1: Glycine max DFR1;
GmDFR2: Glycine max DFR2; LjDFR: Lotus japonicas DFR; MdDFR: Malus domestica DFR; MtDFR: Medicago
truncatula DFR; NgDFR: Nekemias grossedentata DFR; PaDFR: Prunus avium DFR; PpDFR: Pyrus pyrifolia
DFR; PlDFR: Paeonia lactiflora DFR; VvDFR: Vitis vinifera DFR.

Molecules 2018, 23, 861
5 of 14

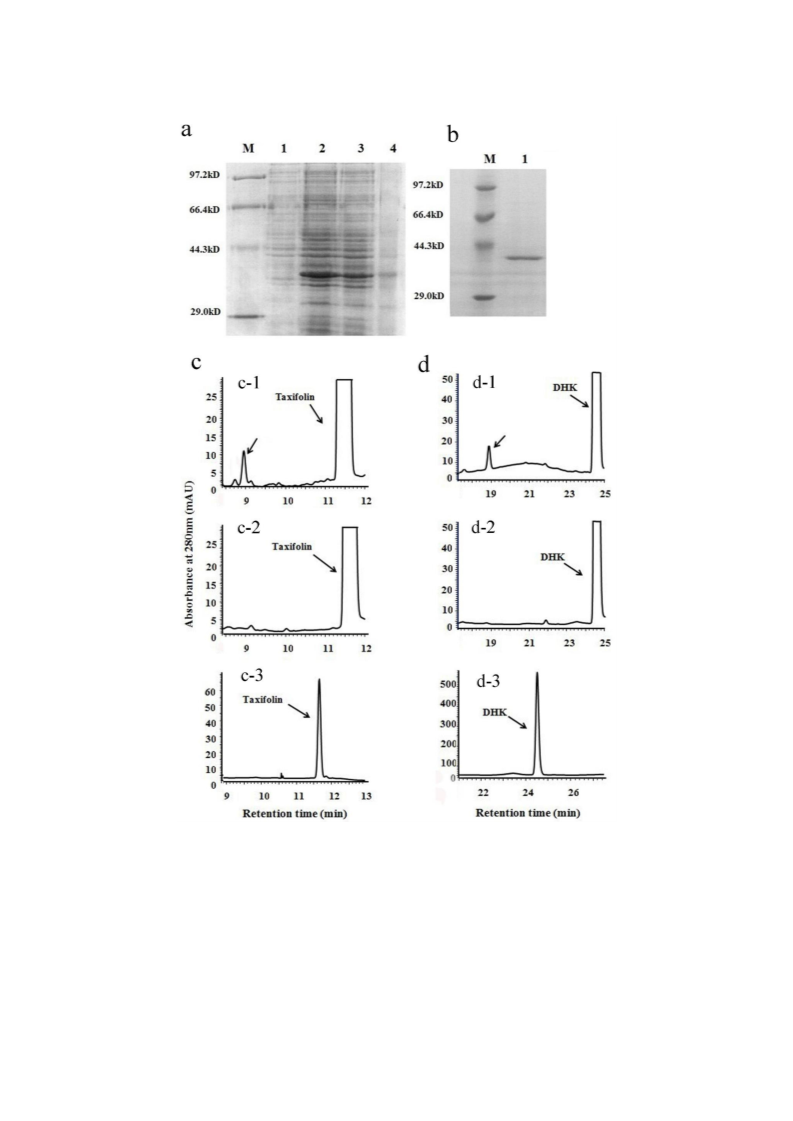

Figure 3. Recombinant protein expression and enzymatic analysis of VbDFR. (
shows recombinant VbDFR protein induced in E. coli BL21 (DE3) plysS strain. Lane 1: 20
protein extracts from BL21 (DE3) plysS/pET28a (+) vector control; lane 2: 20 g crude protein extracts
a
) a SDS-PAGE image
µg crude
µ
from BL21 (DE3) plysS/pET28a (+)-VbDFR. Lane 3: insoluble crude protein extracts from BL21 (DE3)
plysS/pET28a (+)-VbDFR. Lane 4: soluble crude protein extracts from BL21 (DE3) plysS/pET28a
(
(
(
+)-VbDFR. M: protein molecular weight marker; (
) HPLC profiles show one product formed from the incubation of taxifolin and recombinant VbDFR
c-1) but not denatured VbDFR (c-2); c-3, taxifolin standard; ( ) HPLC profiles show one product
b) an image shows recombinant VbDFR purified;
c
d
formed from the incubation of dihydrokaempferol (DHK) and recombinant VbDFR (d-1) but not
denatured recombinant VbDFR (d-2); d-3 DHK standard.

Molecules 2018, 23, 861
6 of 14
2
.3. Subcellular Localization of VbDFR
After the stop codon was removed, VbDFR was fused to the 5-terminus of green fluorescent protein
GFP) to obtain a new plasmid, namely pBI121-VbDFR-GFP (Figure 4a). In addition, a pBI121-GFP
(
plasmid was used as control. Two types of plasmids were introduced to onion epidermal cells via
a gene gun transformation. Examination of epidermal cells under confocal microscope revealed that
green fluorescence signal was mainly located in the entire cytosol of epidermal cells transformed
with the pBI121-VbDFR-GFP plasmid (Figure 4a). The same result was observed in epidermal cells
transformed with the pBI121-GFP plasmid (Figure 4b). These results showed the cytosolic localization
of VbDFR.
Figure 4. Transient expression using VbDFR-GFP fusion and confocal microscope images. (
showing VbDFR and GFP fusion and a confocal microscopy image showing subcellular localization of
VbDFR-GFP; ( ) a cassette showing GFP as positive control and a confocal microscopy image showing
a) a cassette
b
subcellular localization of GFP.
2
.4. Overexpression of VbDFR Tobacco Enhances Production of Anthocyanins
VbDFR was overexpressed in tobacco plants to examine its function in planta. The ORF of VbDFR
was cloned into the pBI121 binary vector under the control of a CaMV35S promoter (Figure 5a) and
transformed to tobacco plants as reported previously [ ]. More than 10 kanamycin-resistant plantlets
1
were regenerated from tissue culture, planted in pot soil, and maintained in the greenhouse to grow
up for flowers. In addition, pBI121 vector transgenic and wild-type plants were grown as control to
compare plant growth and flower coloration. PCR analysis showed that the transgene was integrated
into the transgenic plant genome and RT-PCR analysis demonstrated the ectopic expression of the
VbDFR transgene (Figure 5b). Obvious flower color changes were observed in VbDFR transgenic plants.
The red pigmentation of VbDFR transgenic petals was deeper than that of control petals (Figure 5a).
Further quantification using methanol: HCl extraction was carried out on a UV spectrophotometer.
Absorbance values recorded at 530 nm showed that the contents of anthocyanins are significantly
higher in VbDFR transgenic flowers than in control ones (Figure 5c). These demonstrated that the
overexpression of VbDFR increased anthocyanin biosynthesis in transgenic flowers.

Molecules 2018, 23, 861
7 of 14

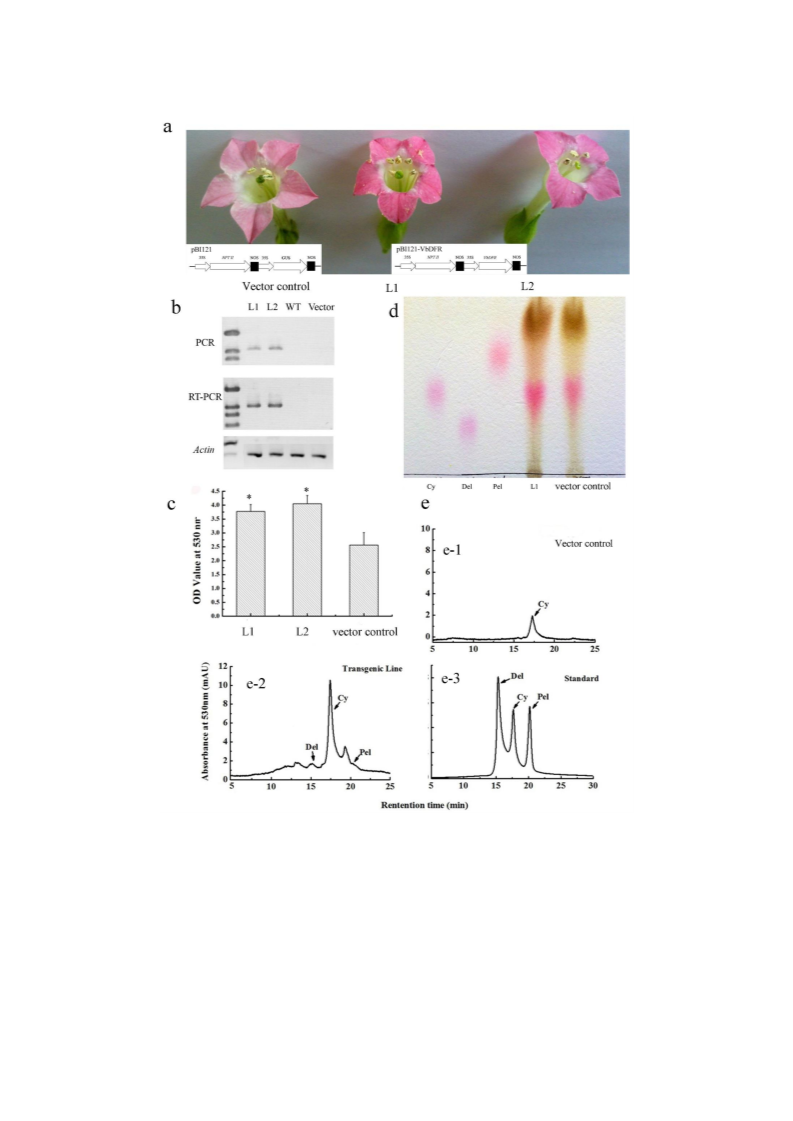

Figure 5. Increase of anthocyanins in transgenic tobacco flowers overexpressing VbDFR. (a) cassettes
of pBI121 and pBI121-VbDFR vectors show VbDFR controlled by 35S promoter for overexpression,
and red pigmentation was enhanced in flowers of two VbDFR transgenic tobacco lines (L1 and L2)
compared with vector control flower; (
PCR and RT-PCR; ( ) absorbance values for anthocyanin extracts were significantly higher from flowers
of VbDFR transgenic tobacco lines (L1 and L2) than from vector control flowers; ( ) TLC profiles show
anthocyanidins from the butanol:HCl hydrolysis of anthocyanins extracts from transgenic tobacco line
L1) and vector control plants; ( ) HPLC profiles show anthocyanidins from butanol:HCl hydrolysis of
b) images show fragments amplified by genomic DNA-based
c
d
(
e
anthocyanins extracted from transgenic tobacco line (e-1) and vector control (e-2) plants. e-3: authorized
standards, Del: delphinidin, Cy: cyanidin, Pel: pelargonidin. * significant difference between transgenic
and wild-type control flowers.

Molecules 2018, 23, 861
8 of 14
To further characterize effects of the VbDFR transgene on anthocyanidin profiles in transgenic
flowers, anthocyanin extracts were hydrolyzed using butanol: HCl boiling. The hydrolyzed products
were subject to TLC profiling and HPLC analysis. The resulting TLC profiles showed that in addition
to a strong spot with the same Rf value as cyanidin, red colors were observed in spots with the
same Rf values as pelargonidin and delphinidin (Figure 5d). To further characterize anthocyanidins
corresponding to these spots, HPLC analysis were performed to compare them with three authentic
standards, cyanidin, pelargonidin, and delphinidin, which have the maximum absorbance value
at 524 nm, 515 nm, and 530 nm, respectively. Based on the retention time and UV spectrum
properties, cyanidin, pelargonidin, and delphinidin were detected in VbDFR transgenic flower
extracts, while only cyanidin was detected from wild-type control flowers (Figure 5e). Moreover,
the peak area of cyanidin from the VbDFR transgenic flowers were significantly bigger than that from
wild type flowers. We noticed that on the TLC plate, the light pink spot at the same retention
time as pelargonidin was obvious, however HPLC only showed a relatively small shouldered
peak (Figure 5e-2). This likely resulted from the overlapping of an unidentified anthocyanidin
and pelargonidin on the TLC plate, two of which were separated by HPLC. These results further
demonstrated that the overexpression of VbDFR in tobacco not only increased cyanidin contents,
but also produced two new tobacco anthocyanidins.
3
. Discussion
The study of more DFR homologs from different Vitis species is necessary in order to appropriately
understand this key gene’s function in the biosynthesis of plant flavonoids for grape agriculture.
Since the VvDFR cDNA sequence was cloned from V. vinifera two decades ago [31], to our knowledge,
no DFR homologs have been characterized from other Vitis species. To date, VvDFR is the only Vitis
DFR homolog that has been appropriately characterized to understand the step from dihydroflavonols
to leucoanthocyanidins in the biosynthetic pathways of anthocyanins and proanthocyanidins in
grape berries [32–36]. Different transcriptional studies have showed that the expression of VvDFR is
regulated by different factors. High temperature during night time was found to inhibit the expression
of VvDFR [34]. Light was found to induce the activation of the DFR promoter [32]. The synthetic
auxin, 2,4-dichlorophynoxyacetic acid, was found to inhibit the expression of VvDFR in anthocyanin
producing cells, which abscisic acid was shown to upregulate the expression of VvDFR [37]. Other
factors such as calcium and sucrose were also demonstrated to induce the expression of VvDFR [32].
A crystal structural study has characterized the NADPH-binding Rossmann domain at the N-terminus
and substrate-binding specificity in the variable C-terminus [36]. The amino acid region from 131–15
has been characterized to be the substrate binding site. In particular, the Asn or Asp residue at position
1
33 has been characterized to associate with substrate recognition although the variant N133D may
not be solely specific to recognize the three hydroxylation patterns in the B-ring of dihydroflavonols
Figure 1) [36]. In summary, on the one hand, these data provide useful information for understanding
(
the regulation of biosynthesis of anthocyanins and proanthocyanidins in grape berries in the field.
On the other hand, the function of VvDFR in planta, such as in transgenic plants, still remains for further
investigation. The present study characterizes the function of VbDFR, a new homolog, to understand
the biosynthesis of plant flavonoids in the Vitis species. It is interesting that VbDFR and VvDFR only
have three different amino acids, revealing the high conservation of sequences. Accordingly, as we
expected, an in vitro assay showed that the recombinant VbDFR used DHK and DHQ as substrates
to produce their corresponding leucopelargonidin and leucocyanidin (Figure 3d,e). Although we
couldn’t find DHM for a substrate assay, VbDFR transgenic but not control tobacco flowers produced
delphinidin, providing evidence that VbDFR uses DHM as substrate. Our confocal analysis showed the
subcellular localization of VbDFR in the cytosol (Figure 4), revealing the in vivo catalytic localization
in cells. To date, the function of VvDFR has not been characterized in transgenic plants. In our
study, we overexpressed VbDFR in tobacco plants to understand this Vitis DFR’s functions in planta.
The ectopic expression of VbDFR increased anthocyanin production (Figure 5a,d). More importantly,

Molecules 2018, 23, 861
9 of 14
transgenic flowers produced pelargonidin and delphinidin (Figure 5c,e), which were not produced
in control flowers, demonstrating that the VbDFR produced new tobacco anthocyanidins. Given
that anthocyanidins characterized from V. vinifera mainly include cyanidin and delphinidin and their
derivatives such as peonidin, petunidin, and malvidin [35], while pelargonidin and pelargonins are
uncommonly identified from this crop, our transgenics data provide new information to understand
the structural diversity of anthocyanidins in Bellula grape plants and suggest that studying more grape
species can enhance the discovery of new anthocyanins for wine and non-alcoholic beverage industries.
4
. Materials and Methods
4
.1. Cloning of VbDFR from Young Leaves of V. bellula
Fifty milligrams of young leaf sample of V. bellula were collected and ground into fine powder in
liquid nitrogen. Total RNA was extracted using a Plant RNA extract Kit (Sangon, Shanghai, China) and
then digested with 1.0 g DNase to remove genomic DNA contamination. The resulting DNA-free RNA
sample was used as a template to synthesize the first strand cDNA with MMLV Reverse transcriptase
µ
(Takara, Japan) and oligo (dT)12 primer. All steps followed those manufacturers’ protocols.
Based on V. vinifera DFR sequences, one pair of primers containing the start and stop codons
was designed to amplify its homolog from V. bellula, namely VbDFR. The forward primer was
0
0
0
0
5
-ATGGGTTCACAAAGTGAAAC-3 , and the reverse primer was 5 -CTAGGTCTTGCCATCTACAG-3 .
Two L of the 1st strand cDNA was used as template for polymerase chain reaction (PCR) to amplify
VbDFR cDNA. Ex-Taq polymerase (Takara, Japan) was used for PCR following this manufacturer’s
µ
◦
◦
◦
◦
protocol. The thermal cycle was composed of 94 C 5 min, 30 cycles of 94 C 45 s, 57 C 45 s, and 72 C
◦
45 s. The final extension step was 10 min at 72 C. The amplified cDNA was separated on an agarose
gel by electrophoresis and visualized using EB dye. The band was excised from gel, from which the
cDNA fragment was purified using a Qiagen DNA purification kit by following the manufacturer’s
protocol. Next, the isolated cDNA was cloned into a T-easy vector (Promega, Madison, WI, USA) to
obtain a T-VbDFR plasmid by following the manufacturer’s protocol. The new plasmid was introduced
into competent cells of E. coli DH5α strain. One single colony was selected for suspension culture.
The resulting E. coli culture was used to isolate the plasmid with QIAprep Spin Miniprep Kit (Qiagin,
Hilden, Germany). The resulting plasmid was used for sequencing.
4
.2. Expression of Recombinant VbDFR in E. coli and Purification
A pair of primers was designed to clone VbDFR to pET28a (+) (Novagen, Madison, WI, USA), a protein
0
0
expression vector. The forward primer was 5 -CGGAATTCATGGGTTCACAAAGTGAAACCG-3 ,
in which the underlined region is an introduced EcoR I restriction site. The reverse primer
0
0
was 5 -CCGCTCGAGTTAGTGATGGTGATGATGGTGGGTCTTGCCATCCTACAGG-3 , in which the
underlined CTCGAG region is an introduced Xhol restriction site and the other is an introduced His-tag
encoding site consisting of 18 nucleotides. Approximately 1.0 ng of the T-VbDFR plasmid was used as
template for PCR, which was carried out using Ex-taq DNA polymerase (Takara, Japan) as described
above. The resulting PCR product was purified as described above and then digested with Xhol and EcoR I
(Takara, Japan) by following the manufacturer’s protocol. The digested products were purified via gel
purification as described above and then ligated into the pET28a (+) vector, which was also digested by
Xhol and EcoR I. Ligated products were introduced into competent cells of BL21 (DE3) plysS E. coli strain,
which were streaked on agar-solidified LB medium plate containing 200 mg/L ampicillin. Single positive
colonies were selected via PCR-based screening and then used for suspension culture to isolate the plasmid.
The resulting plasmid was used for sequencing to obtain a sequence without mutations. The empty vector
was also introduced to E. coli as a control.
A positive colony was identified and then inoculated to 10 mL autoclaved liquid LB medium
supplemented with 200 mg/L ampicillin in a 50 mL tube, which was placed on a rotary shaker
◦
at a speed of 250 rpm at 37 C. After an overnight culture, one mL suspension was inoculated to

Molecules 2018, 23, 861
10 of 14
1
00 mL fresh liquid LB containing 200 mg/L ampicillin in a 500 mL Erlenmeyer flask, which was
◦
placed on the same shaker at speed of 120 rpm at 37 C. When the optical density (OD) of suspension
culture measured at 600 nm reached 0.7, the incubation temperature was reduced to 30 C and
◦
isopropyl-1-thio-β-D-galactopyranoside (IPTG) was added to cell suspension to a final concentration
of 10 mM. Next, cell suspension was continuously cultured 4 h to reach approximately OD6 1.1.
00
◦
Cells were harvested by centrifugation at 6000 rpm 5 min at 4 C. The supernatant was disposed
of to a waste container and the remaining pellet was immediately used for enzyme extraction and
purification described below.
Cell pellets were thoroughly suspended in 10.0 mL extraction buffer consisting of 20 mM pH 8.0
Tris-HCl in a 50.0 mL tube. Lysozyme was added into the mixture to a final concentration of 100
to treat cells 1 min at room temperature. The mixture was sonicated 30 s on ice. The resulting sticky
mixture was configured at 10,000 g 10 min. The upper supernatant containing proteins was used for
protein purification. The purification of recombinant VbDFR was carried out using a Ni-NTA agarose
column. One mL agarose resin (Qiagen, Hilden, Germany) was loaded into a 1 10 cm syringe
diameter height). After the resin had fully sunk to the bottom, it was washed with 10 volumes
µM
×
×
(
×
of extraction buffer (20 mM pH 8.0 Tris-HCl, 10 mM imidazole). Ten mL supernatant cell lysate was
loaded onto the top of the resin and flowed through by gravity. The column was then washed using
extraction buffer until no proteins were detected from elution. Two mL elution buffer (pH 8.0 20 mM
Tris-HCl, 250 mM imidazole) was added to the column to elute recombinant VbDFR. The protein
concentration was estimated by Bradford protein assay and the quality of protein was examined on
a 10% SDS-PAGE.
4
.3. Enzymatic Assay
Enzymatic assay was carried out to examine the catalytic activity of the recombinant VbDFR
in a 500
dihydroquercetin, DHQ) and (
used as co-enzyme. Each reaction was composed of 50 mM pH 6 citrate buffer, 20
µ
L reaction volume in a 1.5 mL tube. Two commercially available metabolites, taxifolin
)-dihydrokaempferol (DHK), were used as substrates. NADPH was
g NADPH, 15
g purified recombinant VbDFR. The reaction time and temperature were 30 min
(
−
µ
µg
substrates, and 50
µ
◦
and 45 C. The reaction was stopped by addition of 1.0 mL ethyl acetate (EA) and vigorously vortexed.
After centrifugation at 10,000 rpm 2 min, the upper EA phase was transferred into a new tube and
evaporated in a speedy vacuum at room temperature. The remaining residue was dissolved in 50
methanol for HPLC analysis.
µL
HPLC analysis of VbDFR products was performed on a Shimadzu LC-20AT instrument equipped
with an SPD-M20A photodiode array detector (Shimadzu, Japan). Metabolites were separated with
a diamonsil C18 reversed phase column and detected at 280 nm. The elution solvent system consisted
of 1% phosphate (solvent A) and methanol (solvent B). For taxifolin assay, a linear gradient program
was developed to elute metabolites, which was composed of three gradient ratios of B:A, 0–8 min:
solvent B from 15% to 60%, 9–15 min: solvent B from 60–15%, and 16–25 min: 15% solvent B at a flow
rate 1.5 mL/min. For DHK assay, a different linear gradient program was developed for metabolite
separation, which was composed of three gradient ratios of B:A, 0–20 min: solvent B from 15–60%,
2
1–28 min: solvent B from 60–15%, and 29–35 min: solvent B 15% at a flow rate of 1 mL/min.
4
.4. GFP Fusion and Transient Expression
The construction of VbDFR-GFP fusion in pBI121 binary vector
out with NEBuilder HiFi DNA Assembly Cloning Kit (NEB, Herts, UK) following the
[1] was carried
®
manufacturer’s protocol.
In detail, two primer pairs were designed for PCR to amplify
VbDFR and GFP cDNA sequences. For VbDFR cDNA amplification, the forward primer was
0
0
5
-
CTATGACCATGATTACGCCAATGGGTTCACAAAGTGAAACCG-3 , in which the underlined
region was overlapped with 20 nucleotides in the 5-terminus of Hind III restrict site in pBI121.
0
0
The reverse primer was 5 -GCTCCTCGCCCTTCGACATGGTCTTGCCATCTACAGG-3 , in which the

Molecules 2018, 23, 861
11 of 14
stop codon of VbDFR was excluded and the underlined region was overlapped with 19 nucleotides
of the 5-terminus of the GFP codon sequence. For GFP amplification, the forward primer was
0
0
5
-
CCTGTAGATGGCAAGACCATGTCGAAGGGCGAGGAGC-3 , in which the underlined region is
overlapped with 19 nucleotides in the 3-terminus of VbDFR cDNA without stop codon. The reverse
0
0
primer was 5 -CGATCGGGGAAATTCGAGCTCTACTTGTACAGCTCGTC-3 , in which the underlined
region was overlapped with 20 nucleotides of the 3-terminus of sac I restrict site in pBI121. The resulting
two DNA fragments were then ligated to Hind III and sac I sites in digested linear pBI121 using DNA
Assembly Cloning Kit. The new binary vector was named as pBI121-VbDFR-GFP, in which VbDFR-GFP
was controlled by a 35 promoter (Figure 4a). In addition, the GFP gene was introduced into pBI121 vector
to create pBI121-GFP construct (Figure 4b) as a positive control.
These two recombinant vectors were introduced into competent cells of E. coli DH5α strain,
respectively. E. coli cells were spread on agar-solidified LB medium plates supplemented with 50 mg/L
kanamycin. One positive clone for each was inoculated to 10 mL liquid LB medium supplemented
with 50 mg/L kanamycin in 50 mL tube, which was placed on a rotary shaker at speed of 250 rpm
◦
at 37 C overnight. E. coli cultures were harvested by centrifugation of tubes at 4000 rpm 10 min.
The resulting E. coli pellets were used to extract plasmids using a QIAprep Spin Miniprep Kit. Plasmids
were coated with gold particles for transient expression as reported previously [28]. Onion epidermis
◦
was pre-cultured on agar-solidified Murashige & Skoog (MS) medium plates overnight at 25 C,
then were bombarded with plasmid-coated gold particles. All epidermises bombarded were incubated
◦
on MS medium plate overnight at 25 C, followed by examination under a confocal laser scanning
microscope (Leica TCS SP2, Leica, Germany). The light wavelength was set at 488 nm to observe GFP
signal. Cell images and GFP signal were photographed to visualize subcellular localization of protein.
4
.5. Overexpression of VbDFR in Tobacco
As reported for two M. trucatula DFRs previously [1], the ORF of VbDFR was cloned to the
pBI121 binary vector by replacing GUS. This cloning generated a new recombinant binary vector,
pBI121-VbDFR, in which VbDFR is controlled a 35S promoter. Both pBI121-VbDFR and pBI121
vectors were introduced into Agrobacterium tumefaciens strain EHA105 for genetic transformation.
MS medium, plant hormones used, and all steps of transformation and selection of transgenic plants
followed our protocols published previously [1]. Leaves of sterile seedling were used as explants for
genetic transformation. VbDFR and vector control transgenic plants were selected using 50 mg/L
kanamycin. Transgenic plantlets and control plants were grown in pot soil and placed side by side
in green house to develop flowers. Total RNA was isolated from young leaves of transgenic and
control plants as described above. RT-PCR were carried out for genotyping with a pair of gene specific
0
0
primers. The forward primer was 5 -ATGGGTTCACAAAGTGAAAC-3 , and the reverse primer was
0
0
◦
5
9
-CTAGGTCTTGCCATCTACAG-3 . The thermal cycle was composed of 94 C 5 min, 30 cycles of
4 C 45 s, 57 C 45 s, and 72 C 45 s. The final extension step was 10 min at 72 C. In addition, ACTIN
◦
◦
◦
◦
gene was used as the control. Seeds from T0 plants were collected and germinated on MS medium
containing 50 mg/L kanamycin. Resistant T1 seedlings were grown in greenhouse to develop flowers
for anthocyanin analysis.
4
.6. Anthocyanin Extraction, Hydrolysis, TLC Assay, and HPLC Analysis
One hundred milligrams of fresh petal tissues were homogenized into fine powder in liquid
nitrogen and transferred into a 1.5 mL tube. One mL extraction buffer (0.5% HCl in methanol:water,
:1) was added into the tube. The powder was thoroughly suspended by vortexing. The tube was
1
placed in the dark 30 min at room temperature, followed by centrifugation at 10,000 rpm 10 min.
The supernatant was pipetted into a new tube that contained 0.2 mL chloroform. The tube was
vortexed 30 s, followed by centrifugation at 10,000 rpm 2 min. The chloroform phase containing
non-polar compounds was pipetted to a waste bottle. This step was repeated once. The resulting upper
methanol and water phase was pipetted into a new tube for estimation of anthocyanins at 530 nm on

Molecules 2018, 23, 861
12 of 14
a UV spectrophotometer (UV-2550, Shimadzu, Kyoto, Japan). Then, 50
µL anthocyanins extract was
mixed with 950 µL butanol:HCl (95:5, v/v) in a 1.5 mL tube. The mixture was boiled 1 h, cooled to
room temperature, and then evaporated in a speed vacuum. The remaining anthocyanidin residue
was suspended in 50 µL of methanol with 0.1% HCl for TLC and HPLC analysis described below.
TLC assay of anthocyanidins was described previously [18]. In brief, 10
µL of methanol extract of
anthocyanidins was loaded onto a cellulose F-200 M plate. Three authentic standards, pelargonidin
µ
chloride, cyanidin chloride, and delphinidin chloride, were also loaded onto TLC plates as positive controls.
The same HPLC instrument and column described above were used to analyze anthocyanidins.
The elution solvent system was composed of 0.1% acetic acid (solvent A) and acetonitrile (solvent B).
The gradient program composed of different ratios of solvent A to solvent B to elute anthocyanidins.
The program consisted of 90:10 to 83:17 (0–5 min), 83:17 to 77:23 (5–10 min), 77:23 to 71:29 (10–15 min),
7
1:29 to 68:32 (15–20 min), 68:32 to 65:35 (20–25 min), 60:35 (25–39 min), 65:35 to 50:50 (39–45 min), 50:50
to 70:30 (45–50 min), and 70:30 to 90:10 (50–55 min), and then followed by 10 min of column washing.
The injection volume and flow rate was 5 L and 1 mL/min, respectively. Chromatograph was recorded
µ
at 530 nm. Three authentic standards, pelargonidin chloride, cyanidin chloride, and delphinidin
chloride, were injected as positive controls.
Acknowledgments: This research was financially supported by the National Natural Science Foundation of China
(No. 31460066).
Author Contributions: Y.Z. performed most of experiments, data analysis, figure preparation, and manuscript
preparation. K.L. was involved in project development and data analysis. Q.P. and D.-Y.X. developed this project,
supervised experiments, involved data analysis, and prepared manuscript.
Conflicts of Interest: The authors declare no conflicts of interest.
References
1
.
Xie, D.-Y.; Jackson, L.A.; Cooper, J.D.; Ferreira, D.; Paiva, N.L. Molecular and biochemical analysis of two
cDNA clones encoding dihydroflavonol-4-reductase from Medicago truncatula. Plant Physiol. 2004, 134,
9
79–994. [CrossRef] [PubMed]
2.
3.
4.
Shirley, B.W.; Hanley, S.; Goodman, H.M. Effects of ionizing radiation on a plant genome: Analysis of two
arabidopsis transparent testa mutations. Plant Cell 1992, 4, 333–347. [CrossRef] [PubMed]
Peer, W.A.; Brown, D.E.; Tague, B.W.; Muday, G.K.; Taiz, L.; Murphy, A.S. Flavonoid accumulation patterns
of transparent testa mutants of Arabidopsis. Plant Physiol. 2001, 126, 536–548. [CrossRef] [PubMed]
Watanabe, K.; Kobayashi, A.; Endo, M.; Sage-Ono, K.; Toki, S.; Ono, M. CRISPR/Cas9-mediated mutagenesis
of the dihydroflavonol-4-reductase-B (DFR-B) locus in the Japanese morning glory Ipomoea (Pharbitis) nil.
Sci. Rep. 2017, 7, 10028. [CrossRef] [PubMed]
5
.
Kim, S.; Yoo, K.S.; Pike, L.M. Development of a PCR-based marker utilizing a deletion mutation in the
dihydroflavonol 4-reductase (DFR) gene responsible for the lack of anthocyanin production in yellow onions
(Allium cepa). Theor. Appl. Genet. 2005, 110, 588–595. [CrossRef] [PubMed]
6
7
8
.
.
.
Shi, M.-Z.; Xie, D.-Y. Biosynthesis and metabolic engineering of anthocyanins in Arabidopsis thaliana.
Recent Pat. Biotechnol. 2014, 8, 47–60. [CrossRef] [PubMed]
Xie, D.-Y.; Dixon, R.A. Proanthocyanidin biosynthesis—Still more questions than answers? Phytochemistry
2
005, 66, 2127–2144. [CrossRef] [PubMed]
Sanchez-Moreno, C.; Cao, G.; Ou, B.; Prior, R.L. Anthocyanin and proanthocyanidin content in selected
white and red Wines. Oxygen radical absorbance capacity comparison with nontraditional wines obtained
from Highbush blueberry. J. Agric. Food Chem. 2003, 51, 4889–4896. [CrossRef] [PubMed]
Demeule, M.; Michaud-Levesque, J.; Annabi, B.; Gingras, D.; Boivin, D.; Jodoin, J.; Lamy, S.; Bertrand, Y.;
Beliveau, R. Green tea catechins as novel antitumor and antiangiogenic compounds. Curr. Med. Chem.
Anti-Cancer Agents 2002, 2, 441–463. [CrossRef] [PubMed]
9
.
1
0. Harborne, J.B.; Baxter, H. (Eds.) The Handbook of Natural Flavonoids; John Wiley & Sons Inc.: Hoboken, NJ,
USA, 1999; Volume I, pp. 1–115.
1
1. Kayesh, E.; Shangguan, L.F.; Korir, N.K.; Sun, X.; Bilkish, N.; Zhang, Y.P.; Han, J.; Song, C.N.; Cheng, Z.M.;
Fang, J.G. Fruit skin color and the role of anthocyanin. Acta Physiol. Plant 2013, 35, 2879–2890. [CrossRef]

Molecules 2018, 23, 861
13 of 14
1
1
1
2. Zhang, Y.; Butelli, E.; Martin, C. Engineering anthocyanin biosynthesis in plants. Curr. Opin. Plant Biol. 2014
,
1
9, 81–90. [CrossRef] [PubMed]
3. Meyer, P.; Heidmann, I.; Forkmann, G.; Saedler, H. A new Petunia flower colour generated by transformation
of a mutant with a maize gene. Nature 1987, 330, 677–678. [CrossRef] [PubMed]
4. Rosati, C.; Simoneau, P.; Treutter, D.; Poupard, P.; Cadot, Y.; Cadic, A.; Duron, M. Engineering of flower color
in forsythia by expression of two independently-transformed dihydroflavonol 4-reductase and anthocyanidin
synthase genes of flavonoid pathway. Mol. Breed. 2003, 12, 197–208. [CrossRef]
1
1
1
1
5. Davies, K.M.; Schwinn, K.E.; Deroles, S.C.; Manson, D.G.; Lewis, D.H.; Bloor, S.J.; Bradley, J.M. Enhancing
anthocyanin production by altering competition for substrate between flavonol synthase and dihydroflavonol
4
-reductase. Euphytica 2003, 131, 259–268. [CrossRef]
6. Bavage, A.D.; Davies, I.G.; Robbins, M.P.; Morris, P. Expression of an Antirrhinum dihydroflavonol reductase
gene results in changes in condensed tannin structure and accumulation in root cultures of Lotus corniculatus
(bird’s foot trefoil). Plant Mol. Biol. 1997, 35, 443–458. [CrossRef] [PubMed]
7. Robbins, M.P.; Bavage, A.D.; Strudwicke, C.; Morris, P. Genetic manipulation of condensed tannins in higher
plants. II. Analysis of birdsfoot trefoil plants harboring antisense dihydroflavonol reductase constructs.
Plant Physiol. 1998, 116, 1133–1144. [CrossRef] [PubMed]
8. Xie, D.-Y.; Sharma, S.B.; Wright, E.; Wang, Z.-Y.; Dixon, R.A. Metabolic engineering of proanthocyanidins
through co-expression of anthocyanidin reductase and the PAP1 MYB transcription factor. Plant J. 2006, 45,
8
95–907. [CrossRef] [PubMed]
1
9. Shi, M.Z.; Xie, D.Y. Engineering of red cells of Arabidopsis thaliana and comparative genome-wide gene
expression analysis of red cells versus wild-type cells. Planta 2011, 233, 787–805. [CrossRef] [PubMed]
0. Zhou, L.-L.; Zeng, H.-N.; Shi, M.-Z.; Xie, D.-Y. Development of tobacco callus cultures over expressing
2
Arabidopsis PAP1/MYB75 transcription factor and characterization of anthocyanin biosynthesis. Planta 2008
29, 37–51. [CrossRef] [PubMed]
1. Zhou, L.L.; Shi, M.Z.; Xie, D.Y. Regulation of anthocyanin biosynthesis by nitrogen in TTG1-GL3/TT8-PAP1
programmed red cells of Arabidopsis thaliana. Planta 2012, 236, 825–837. [CrossRef] [PubMed]
2. Liu, Z.; Shi, M.Z.; Xie, D.Y. Regulation of anthocyanin biosynthesis in Arabidopsis thaliana red pap1-D cells
metabolically programmed by auxins. Planta 2014, 239, 765–781. [CrossRef] [PubMed]
3. Butelli, E.; Titta, L.; Giorgio, M.; Mock, H.-P.; Matros, A.; Peterek, S.; Schijlen, E.G.W.M.; Hall, R.D.; Bovy, A.G.;
Luo, J.; et al. Enrichment of tomato fruit with health-promoting anthocyanins by expression of select
transcription factors. Nat. Biotechnol. 2008, 26, 1301–1308. [CrossRef] [PubMed]
,
2
2
2
2
-
2
2
4. Zuluaga, D.L.; Gonzali, S.; Loreti, E.; Pucciariello, C.; Degl’Innocenti, E.D.; Guidi, L.; Alpi, A.; Perata, P.
Arabidopsis thaliana MYB75/PAP1 transcription factor induces anthocyanin production in transgenic
tomato plants. Funct. Plant Biol. 2008, 35, 606–618. [CrossRef]
5. Deed, R.C.; Fedrizzi, B.; Gardner, R.C. Influence of fermentation temperature, yeast strain, and grape juice on
the aroma chemistry and sensory profile of Sauvignon Blanc wines. J. Agric. Food Chem. 2017, 65, 8902–8912.
[
CrossRef] [PubMed]
6. Sambucci, O.; Alston, J.M. Estimating the value of California wine grapes. J. Wine Econ. 2017, 12, 149–160.
CrossRef]
7. Read, P.E. Grape and wine production in diverse regions. In Proceedings of the Xxix International
Horticultural Congress on Horticulture: Sustaining Lives, Livelihoods and Landscapes, Brisbane, Australia,
2
2
[
2
5 November 2016; Volume 1115, pp. 1–2.
2
8. Zhu, Y.; Peng, Q.Z.; Li, K.G.; Xie, D.Y. Molecular cloning and functional characterization of the anthocyanidin
reductase gene from Vitis bellula. Planta 2014, 240, 381–398. [CrossRef] [PubMed]
2
9. Zhu, Y.; Peng, Q.-Z.; Du, C.; Li, K.-G.; Xie, D.-Y. Characterization of flavan-3-ols and expression of MYB and
late pathway genes involved in proanthocyanidin biosynthesis in foliage of Vitis bellula. Metabolites 2013, 3,
1
85–203. [CrossRef] [PubMed]
3
0. Peng, Q.Z.; Zhu, Y.; Liu, Z.; Du, C.; Li, K.G.; Xie, D.Y. An integrated approach to demonstrating the ANR
pathway of proanthocyanidin biosynthesis in plants. Planta 2012, 236, 901–918. [CrossRef] [PubMed]
1. Sparvoli, F.; Martin, C.; Scienza, A.; Gavazzi, G.; Tonelli, C. Cloning and molecular analysis of structural
genes involved in flavonoid and stilbene biosynthesis in grape (Vitis vinifera L.). Plant Mol. Biol. 1994, 24,
3
7
43–755. [CrossRef] [PubMed]

Molecules 2018, 23, 861
14 of 14
3
2. Gollop, R.; Even, S.; Colova-Tsolova, V.; Perl, A. Expression of the grape dihydroflavonol reductase gene and
analysis of its promoter region. J. Exp. Bot. 2002, 53, 1397–1409. [PubMed]
3
3. El-Kereamy, A.; Chervin, C.; Roustan, J.P.; Cheynier, V.; Souquet, J.M.; Moutounet, M.; Raynal, J.; Ford, C.;
Latche, A.; Pech, J.C.; et al. Exogenous ethylene stimulates the long-term expression of genes related to
anthocyanin biosynthesis in grape berries. Physiol. Plant. 2003, 119, 175–182. [CrossRef]
3
4. Mori, K.; Sugaya, S.; Gemma, H. Decreased anthocyanin biosynthesis in grape berries grown under elevated
night temperature condition. Sci. Hortic. 2005, 105, 319–330. [CrossRef]
3
5. Boss, P.K.; Davies, C.; Robinson, S.P. Analysis of the expression of anthocyanin pathway genes in developing
Vitis vinifera L cv Shiraz grape berries and the implications for pathway regulation. Plant Physiol. 1996, 111,
1
059–1066. [CrossRef] [PubMed]
3
3
6. Petit, P.; Granier, T.; d’Estaintot, B.L.; Manigand, C.; Bathany, K.; Schmitter, J.-M.; Lauvergeat, V.; Hamdi, S.;
Gallois, B. Crystal structure of grape dihydroflavonol 4-reductase, a key enzyme in flavonoid biosynthesis.
J. Mol. Biol. 2007, 368, 1345–1357. [CrossRef] [PubMed]
7. Ban, T.; Ishimaru, M.; Kobayashi, S.; Shiozaki, S.; Goto-Yamamoto, N.; Horiuchi, S. Abscisic acid and
2
,4-dichlorophenoxyacetic acid affect the expression of anthocyanin biosynthetic pathway genes in ‘Kyoho’
grape berries. J. Hortic. Sci. Biotechnol. 2003, 78, 586–589. [CrossRef]
Sample Availability: Samples of the compounds cyanidin, delphinidin, and pelargonidin are available from
the authors.
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
CC BY) license (http://creativecommons.org/licenses/by/4.0/).
(
