Tris(phosphino)borato silver(I) complexes as precursors for metallic silver aerosol-assisted chemical vapor deposition

Article abstract of DOI:10.1021/ic701852x

A series of light- and air-stable tris(phosphino)borato silver(I) complexes has been synthesized, structurally and spectroscopically characterized, and implemented in the growth of low resistivity metallic silver thin films by aerosol-assisted chemical vapor deposition (AACVD). Of the four complexes in the series, [RB(CH₂PR′₂)₃]AgPEt₃ (R = Ph (1, 3), ⁿBu (2, 4); R′ = Ph (1, 2), ⁱPr (3, 4), complexes 1 and 2 have been characterized by single-crystal X-ray diffraction. Complex 2 represents a significant improvement over previously available nonfluorinated Ag precursors, owing to ease of handling and efficient film deposition characteristics. Thermogravimetric analysis (TGA) shows that the thermolytic properties of these complexes can be significantly modified by altering the ligand structure. Polycrystalline cubic-phase Ag thin films were grown on glass, MgO(100), and 52100 steel substrates. Ag films of thicknesses 3 μm, grown at rates of 14-18 nm/min, exhibit low levels of extraneous element contamination by X-ray photoelectron spectroscopy (XPS). Atomic force microscopy (AFM) and scanning electron microscopy (SEM) indicate that film growth proceeds primarily via an island growth (Volmer-Weber) mechanism.

Full text of DOI:10.1021/ic701852x

Inorg. Chem. 2008, 47, 2534-2542
Tris(phosphino)borato Silver(I) Complexes as Precursors for Metallic
Silver Aerosol-Assisted Chemical Vapor Deposition
Matthew N. McCain,† Sven Schneider,‡ Michael R. Salata,† and Tobin J. Marks*,†
Department of Chemistry and the Materials Research Center, Northwestern UniVersity, 2145, Sheridan
Road, EVanston, Illinois 60208-3113
Received September 19, 2007
A series of light- and air-stable tris(phosphino)borato silver(I) complexes has been synthesized, structurally and
spectroscopically characterized, and implemented in the growth of low resistivity metallic silver thin films by aerosol-
assisted chemical vapor deposition (AACVD). Of the four complexes in the series, [RB(CH2PR′2)3]AgPEt3 (R ) Ph
n
i
(1, 3), Bu (2, 4); R′ ) Ph (1, 2), Pr (3, 4), complexes 1 and 2 have been characterized by single-crystal X-ray
diffraction. Complex 2 represents a significant improvement over previously available nonfluorinated Ag precursors,
owing to ease of handling and efficient film deposition characteristics. Thermogravimetric analysis (TGA) shows
that the thermolytic properties of these complexes can be significantly modified by altering the ligand structure.
Polycrystalline cubic-phase Ag thin films were grown on glass, MgO(100), and 52100 steel substrates. Ag films of
thicknesses 3 µm, grown at rates of 14–18 nm/min, exhibit low levels of extraneous element contamination by
X-ray photoelectron spectroscopy (XPS). Atomic force microscopy (AFM) and scanning electron microscopy (SEM)
indicate that film growth proceeds primarily via an island growth (Volmer–Weber) mechanism.
Introduction
thermal evaporation,5 electron-beam evaporation,6 and chemi-
cal vapor deposition (CVD).7 Of these techniques, CVD
processes offer the attraction of conformal surface coverage
at closer to ambient conditions, adaptability to a wide range
of materials and manufacturing scales, simple apparatus, and
the possibility of creating metastable phases. For the deposi-
tion of metallic thin films, metal-organic (MO) CVD has
Metallic silver thin films have importance in a wide range
of applications including microelectronics as advanced
interconnects,1 components of high Tc superconductor struc-
tures for improved stress durability,2 and friction and wear
control via solid lubricant coatings.3 Various methods have
been used to deposit silver thin films, such as sputtering,4
(5) Uchil, J.; Mohan Rao, K.; Pattabi, M. J. Phys. D: Appl. Phys. 1996,
29, 2992–2996.
* E-mail: t-marks@northwestern.edu.
†
Northwestern University.
Current address: Technische Universität München, Anorganisch-
(6) Carter, A. C.; Chang, W.; Qadri, S. B.; Horwitz, J. S.; Leuchtner, R.;
Chrisey, D. B. J. Mater. Res. 1998, 13, 1418–1421.
‡
Chemisches Institut, Lichtenbergstrasse 4, 85747 Garching, Germany.
(1) (a) Gao, L.; Harter, P.; Linsmeier, Ch.; Wiltner, A.; Emling, R.;
Schmitt-Landsiedel, D. Microelectron. Eng. 2005, 82, 296–300. (b)
Shacham-Diamand, Y.; Inberg, A.; Sverdlov, Y.; Croitoru, N. J.
Electrochem. Soc. 2000, 147, 3345–3349. (c) Manepalli, R.; Stepniak,
F.; Bidstrup-Allen, S. A.; Kohl, P. A. IEEE Trans. AdV. Packag. 1999,
22, 4–8.
(7) (a) Grodzicki, A.; Lakomska, I.; Piszczek, P.; Szymanska, I.; Szlyk,
E. Coord. Chem. ReV. 2005, 249, 2232–2258. (b) The Chemistry of
Metal CV; Kodas, T., Hampden-Smith, M., Eds.; VCH: Weinheim,
Germany, 1994.
(8) (a) McCain, M. N.; Metz, A. W.; Yang, Y.; Stern, C. L.; Marks, T. J.
Chem. Vap. Deposition 2005, 11, 291–294. (b) Metz, A. W.; Ireland,
J. R.; Zheng, J.-G.; Lobo, Ricardo P. S. M.; Yang, Y.; Ni, J.; Stern,
C. L.; Dravid, V. P.; Bontemps, N.; Kannewurf, C. R.; Poeppelmeier,
K. R.; Marks, T. J. J. Am. Chem. Soc. 2004, 126, 8477–8492. (c)
Choy, K. L. Prog. Mater. Sci. 2003, 48, 57–170. (d) Samoilenkov,
S.; Stefan, M.; Wahl, G.; Paramonov, S.; Kuzmina, N.; Kaul, A. Chem.
Vap. Deposition 2002, 8, 74–78. (e) Chi, K.-M.; Lu, Y.-H. Chem.
Vap. Deposition 2001, 7, 117–120. (f) Belot, J. A.; Wang, A.;
McNeely, R. J.; Liable-Sands, L.; Rheingold, A. L.; Marks, T. J. Chem.
Vap. Deposition 1999, 5, 65–69. (g) Belot, J. A.; Neumayer, D. A.;
Reedy, C. J.; Studebaker, D. B.; Hinds, B. J.; Stern, C. L.; Marks,
T. J. Chem. Mater. 1997, 9, 1638. (h) Shulz, D. L.; Marks, T. J. CVD
of Non-Metals Rees, W., Ed.; VCH: New York, 1996; Vol. 39, p 150.
(i) Schulz, D. L.; Marks, T. J. AdV. Mater. 1994, 6, 719.
(2) (a) Iida, K.; Kaneko, T.; Katagiri, K.; Sakai, N.; Murakami, M.;
Koshikuza, N. Supercond. Sci. Technol. 2004, 17, S46–S50. (b)
Harnois, C.; Desgardin, G.; Laffez, I.; Chaud, X.; Bourgault, D.
Physica C 2002, 383, 269–278. (c) Kalyanaraman, R.; Oktyabrsky,
S.; Narayan, J. J. Appl. Phys. 1999, 85, 6636–6641.
(3) (a) DellaCorte, C.; Edmonds, B. J. NASA Tech. Memo. 1995, 107056.
(b) DellaCorte, C.; Pepper, S. V.; Honecy, F. S. Surf. Coat. Technol.
1992, 52, 31–37. (c) Erdemir, A.; Fenske, G. R.; Nichols, F. A.; Erck,
R. A. Tribol. Trans. 1990, 33, 511–518. (d) DellaCorte, C.; Sliney,
H. E.; Deadmore, D. L. Tribol. Trans. 1988, 31, 329–334.
(4) Hauder, M.; Hansch, W.; Gstootner, J.; Schmitt-Landsiedel, D. Appl.
Phys. Lett. 2001, 78, 838–840.
2534 Inorganic Chemistry, Vol. 47, No. 7, 2008
10.1021/ic701852x CCC: $40.75  2008 American Chemical Society
Published on Web 02/23/2008

Tris(phosphino)borato Ag(I) as AACVD Precursors
form monometallic silver(I) complexes. However, to date,
no silver tris(phosphino)borato complexes have been re-
ported. In this contribution, we report the synthesis and
structural/spectroscopic characterization of a series of tris-
(phosphino)borato silver(I) complexes which are both air-
and light-stable. The thermal stabilities and decomposition
pathways of these complexes are investigated, and their
implementation as effective precursors for the growth of
metallic silver thin films by AACVD is reported.

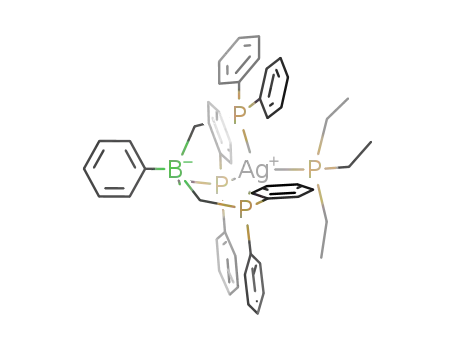

Figure 1. Generalized structure of the family of tris(phosphino)borato low-
valence metal complexes.
been widely established.8 However, a major limitation of
this method is the requirement of highly volatile metal-
organic precursors. Traditionally, the design of silver precur-
sors has focused mainly on ꢀ-diketonates8e,9 or structurally
related ligands,10 as well as carboxylates,7a,8d,11 featuring
tertiary phosphine ancillary ligands. Without the use of
expensive fluorinated substituents, these compounds suffer
from poor volatility, as well as from poor stability under
ambient conditions. Films deposited using complexes with
fluorinated substituents suffer from significant F contamina-
tion. In comparison, aerosol-assisted (AA) CVD has been
recently developed to utilize metal precursors with lower
volatilities, without sacrificing film quality.7b,8c,12 However,
compared to MOCVD, reports of silver thin film growth by
AACVD have been limited,13 with reported precursors also
suffering from instability under ambient conditions.
Peters and co-workers have recently developed a family
of tris(phosphino)borato ligands (Figure 1) that has been
shown to effectively stabilize monomeric complexes of low-
valence late transition metals with particularly interesting
reactivities toward small molecule activation.14 The strong
tendency of the monoanionic chelate ligand to enforce
pseudotetrahedral coordination geometries in combination
with the soft phosphorus donors should be ideally suited to
