New tetraphosphane ligands {(X2P)2NC 6H4N(PX2)2} (X = Cl, F, OMe, OC 6H4OMe-o): Synthesis, derivatization, group 10 and 11 metal complexes and catalytic investigations. DFT calculations on intermolecular P...P interactions in halo-phosphines

Article abstract of DOI:10.1021/ic800724u

The reaction of p-phenylenediamine with excess PCl₃ in the presence of pyridine affords p-C₆H₄[N(PCl ₂)₂]₂ (1) in good yield. Fluorination of 1 with SbF₃ produces p-C₆H₄[N(PF₂) ₂]₂ (2). The aminotetra(phosphonites) p-C ₆H₄[N{P(OC₆H₄OMe-o) ₂}₂]₂ (3) and p-C₆H ₄[N{P(OMe)₂}₂]₂ (4) have been prepared by reacting 1 with appropriate amount of 2-(methoxy)phenol or methanol, respectively, in the presence of triethylamine. The reactions of 3 and 4 with H₂O₂, elemental sulfur, or selenium afforded the tetrachalcogenides, p-C₆H₄[N{P(O)(OC₆H ₄OMe-o)₂}₂]₂ (5), p-C ₆H₄[N{P(S)(OMe)₂}₂]₂ (6), and p-C₆H₄[N{P(Se)(OMe)₂}₂] ₂ (7) in good yield. Reactions of 3 with [M(COD)Cl₂] (M = Pd or Pt) (COD = cycloocta-1,5-diene) resulted in the formation of the chelate complexes, [M₂Cl₄-p-C₆H₄{N{P(OC ₆H₄OMe-o)₂}₂}₂] (8, M = Pd and 9, M = Pt). The reactions of 3 with 4 equiv of CuX (X = Br and I) produce the tetranuclear complexes, [Cu₄(μ₂-X) ₄(NCCH₃)₄-p-C₆H ₄{N(P(OC₆H₄OMe-o)₂) ₂}₂] (10, X = Br; 11, X = I). The molecular structures of 1-3, 6, 7, and 9-11 are confirmed by single-crystal X-ray diffraction studies. The weak intermolecular P...P interactions observed in 1 leads to the formation of a 2D sheetlike structure, which is also examined by DFT calculations. The catalytic activity of the Pd(II) 8 has been investigated in Suzuki-Miyaura cross-coupling reactions.

Full text of DOI:10.1021/ic800724u

Inorg. Chem. 2008, 47, 7035-7047
New Tetraphosphane Ligands {(X2P)2NC6H4N(PX2)2} (X ) Cl, F, OMe,
OC6H4OMe-o): Synthesis, Derivatization, Group 10 and 11 Metal
Complexes and Catalytic Investigations. DFT Calculations on
Intermolecular P· · · P Interactions in Halo-Phosphines
Chelladurai Ganesamoorthy,† Maravanji S. Balakrishna,*,† Joel T. Mague,‡ and Heikki M. Tuononen§
Phosphorus Laboratory, Department of Chemistry, Indian Institute of Technology Bombay,
Mumbai 400 076, India, Department of Chemistry, Tulane UniVersity,
New Orleans, Lousiana 70118, USA, and Department of Chemistry,
P.O. Box 35, FI-40014 UniVersity of JyVa¨skyla¨, Finland
Received April 23, 2008
The reaction of p-phenylenediamine with excess PCl3 in the presence of pyridine affords p-C6H4[N(PCl2)2]2 (1) in
goodyield.Fluorinationof1withSbF3 producesp-C6H4[N(PF2)2]2 (2).Theaminotetra(phosphonites)p-C6H4[N{P(OC6H4OMe-
o)2}2]2 (3) and p-C6H4[N{P(OMe)2}2]2 (4) have been prepared by reacting 1 with appropriate amount of
2-(methoxy)phenol or methanol, respectively, in the presence of triethylamine. The reactions of 3 and 4 with H2O2,
elemental sulfur, or selenium afforded the tetrachalcogenides, p-C6H4[N{P(O)(OC6H4OMe-o)2}2]2 (5),
p-C6H4[N{P(S)(OMe)2}2]2 (6), and p-C6H4[N{P(Se)(OMe)2}2]2 (7) in good yield. Reactions of 3 with [M(COD)Cl2] (M

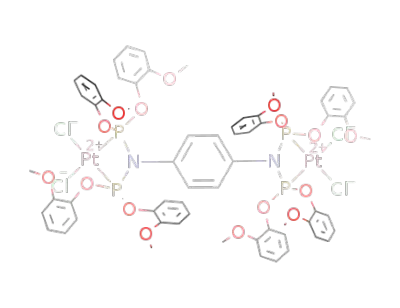

) Pd or Pt) (COD ) cycloocta-1,5-diene) resulted in the formation of the chelate complexes, [M2Cl4-p-
C6H4{N{P(OC6H4OMe-o)2}2}2] (8, M ) Pd and 9, M ) Pt). The reactions of 3 with 4 equiv of CuX (X ) Br and I)
produce the tetranuclear complexes, [Cu4(µ2-X)4(NCCH3)4-p-C6H4{N(P(OC6H4OMe-o)2)2}2] (10, X ) Br; 11, X ) I).
The molecular structures of 1-3, 6, 7, and 9-11 are confirmed by single-crystal X-ray diffraction studies. The
weak intermolecular P · · · P interactions observed in 1 leads to the formation of a 2D sheetlike structure, which is
also examined by DFT calculations. The catalytic activity of the Pd(II) 8 has been investigated in Suzuki-Miyaura
cross-coupling reactions.
Introduction
stability, and unique physical properties.3–5 Preorganized
ligands of this class may readily form di-, tetra-, and/or
polynuclear metal complexes with metals in close proximity
The design and synthesis of polyphosphine ligands has
been an active field of research over several years1,2 as their
metal complexes show structural diversity, high thermal
(2) (a) Airey, A. L.; Swiegers, G. F.; Willis, A. C.; Wild, S. B. J. Chem.
Soc., Chem. Commun. 1995, 695–696. (b) Bianchini, C.; Meli, A.;
Peruzzini, M.; Vizza, F.; Zanobini, F. Coord. Chem. ReV. 1992, 120,
193–208. (c) Cotton, F. A.; Hong, B. Prog. Inorg. Chem. 1992, 40,
179–289. (d) Caminade, A. M.; Majoral, J. P.; Mathieu, R. Chem.
ReV. 1991, 91, 575–612. (e) Barendt, J. M.; Haltiwanger, R. C.; Squier,
C. A.; Norman, A. D. Inorg. Chem. 1991, 30, 2342–2349. (f) Meek,
D. W.; DuBois, D. L.; Tiethof, J. AdV. Chem. Ser. 1976, 150, 335–
357.
* To whom correspondence should be addressed. E-mail: krishna@
chem.iitb.ac.in. Tel.: +91 22 2576 7181. Fax: +91 22 2576 7152/2572
3480.
†
Indian Institute of Technology Bombay.
Tulane University.
University of Jyva¨skyla¨.
‡
§
(1) (a) Pei, Y.; Brule, E.; Moberg, C. Org. Biomol. Chem. 2006, 4, 544–
550. (b) Kongprakaiwoot, N.; Luck, R. L.; Urnezius, E. J. Organomet.
Chem. 2004, 689, 3350–3356. (c) Hierso, J.-C.; Fihri, A.; Ivanov,
V. V.; Hanquet, B.; Pirio, N.; Donnadieu, B.; Rebiere, B.; Amardeil,
R.; Meunier, P. J. Am. Chem. Soc. 2004, 126, 11077–11087. (d) Hierso,
J.-C.; Amardeil, R.; Bentabet, E.; Broussier, R.; Gautheron, B.;
Meunier, P.; Kalck, P. Coord. Chem. ReV. 2003, 236, 143–206. (e)
Gaw, K. G.; Smith, M. B.; Steed, J. W. J. Organomet. Chem. 2002,
664, 294–297. (f) Kuang, S.-M.; Zhang, Z.-Z.; Wang, Q.-G.; Mak,
T. C. W. Inorg. Chem. 1998, 37, 6090–6092.
(3) (a) Morisaki, Y.; Ouchi, Y.; Naka, K.; Chujo, Y. Chem. Asian J. 2007,
2, 1166–1173. (b) Menozzi, E.; Busi, M.; Massera, C.; Ugozzoli, F.;
Zuccaccia, D.; Macchioni, A.; Dalcanale, E. J. Org. Chem. 2006, 71,
2617–2624. (c) Kohl, S. W.; Heinemann, F. W.; Hummert, M.; Bauer,
W.; Grohmann, A. Dalton Trans. 2006, 5583–5592. (d) Kohl, S. W.;
Heinemann, F. W.; Hummert, M.; Bauer, W.; Grohmann, A.
Chem.sEur. J. 2006, 12, 4313–4320. (e) Schrauzer, G. N. Transition
Metals in Homogeneous Catalysis; Marcel Dekker: New York, 1971.
(f) Hierso, J.-C.; Beauperin, M.; Meunier, P. Eur. J. Inorg. Chem.
2007, 3767–3780.
10.1021/ic800724u CCC: $40.75  2008 American Chemical Society
Inorganic Chemistry, Vol. 47, No. 15, 2008 7035
Published on Web 07/08/2008

Ganesamoorthy et al.
Chart 1
to each other, thereby giving rise to strong cooperativity
effects in catalytic reactions.6 Incorporation of other group
5 and/or group 6 donor atoms into these system results in
mixed-multidentate phosphines, which can offer unusual
coordination geometry with remarkable chemical behavior
at the metal center.7 The conformationally rigid polyphos-
phines of good π-acceptor ligands are potential candidates
for designing conducting polymers for effective electronic
coupling through ligands.8 In addition, their chalcogenide
derivatives are more efficient cavitands for the separation
of trivalent lanthanides and actinides by solvent-extraction
processes compared to the most commonly used dithiophos-
phinic acids.9 However, the methods available for the
synthesis of conformationally rigid polyphosphines are
mostly multistep and/or low yielding.10 One of the most
commonly known polyphosphines is the tripod ligand
P(CH2CH2PR2)3 (R ) Me, Ph or cyclohexyl), whose
coordination behavior has been extensively studied.11,2b The
polyphosphines containing non-carbon spacers are less
extensive. The discovery of bis(dihalophosphino)amines,
C12P-N(R)-PC12 (R ) alkyl or aryl) has resulted in the
development of a large number of functionalized bis(phos-
phino)amines of the general formula R′2P-N(R)-PR′2 (R′
) alkoxide or amine).12 However, the same synthetic
methodology is not efficient for the preparation of analogous
tetra- and poly(dihalophosphino)amines from aromatic
polyamines. The only known tetra(dihalophosphino)amine
is p-C6H4[N(PCl2)2]2 (1), which was first synthesized in very
low yield (13%) by Haszeldine et al. in 1973, and there is
no subsequent follow-up either on its derivatization or its
transition-metal chemistry.13 Interestingly, the compounds
of type 1 can adopt several conformations depending upon
the orientation of the P-N-P skeleton with respect to the
phenylene ring. Three major idealized possibilities are: (I)
both phenylene and P-N-P skeletons can be coplanar, (II)
the phenylene ring can be perpendicular to the P-N-P
skeletons, and (III) the phenylene and one P-N-P skeleton
can be in one plane and orthogonal to the other P-N-P
skeleton. Further, the P-N-P moieties in each conformation
can adopt C2V, C2V′, and CS conformations, depending on
the mutual orientation of phosphorus lone pairs with respect
to the P-substituents as shown in Chart 1,14 so there is a
total of 18 possible conformations.
