First Optically Active Phosphapalladacycle Bearing a Phosphorus
Atom in an Axially Chiral Environment
Valery V. Dunina,*,† Pavel A. Zykov,†,‡ Michail V. Livantsov,† Ivan V. Glukhov,‡
Konstantin A. Kochetkov,‡ Igor P. Gloriozov,† and Yuri K. Grishin*,†
Department of Chemistry, M.V. LomonosoV Moscow State UniVersity, 1 Leninskie Gory, 119991 Moscow,
Russian Federation, and A.N. NesmeyanoV Institute of Organoelement Compounds, Russian Academy of
Sciencies, VaViloVa Street 28, 119991 Moscow, Russian Federation
ReceiVed July 10, 2008
Direct C-H bond activation in the (Sa)-BINOL-derived phosphite (HL) afforded the dimeric
cyclopalladated complex (Sa,Sa)-{Pd(η2-L)(µ-Cl)}2 (1), which is the first optically active phosphapal-
ladacycle bearing a phosphorus atom in an axially chiral environment. The ortho-palladated structure
of complex 1 was confirmed by spectral (1H and 31P) investigations of mononuclear derivatives and
the X-ray diffraction study of the phosphane adduct (η2-L)PdCl(PPh3) (3). The enantiomeric purity
of the starting ligand remained unchanged in the PC-palladacycle under the thermal conditions used
for the cyclopalladation (∼110 °C); this fact was confirmed by the 31P NMR spectroscopy after
chiral derivatization of dimer (Sa,Sa)-1 with the (RC)-valinate auxiliary ligand. The trans(N,C)-
configuration of the valinate complex (4) was supported by DFT calculations. The chirality transfer
in the new system was discussed on the basis of X-ray diffraction data for the phosphane adduct
rac-3 and DFT calculations performed for both mononuclear derivatives.
iridium- and palladium-catalyzed processes was established6a,b
or proposed.6c Surprisingly, despite a high catalytic activity of
achiral phosphite PC-palladacycles7 and excellent results achieved
in asymmetric catalysis with BINOL-derived phosphite ligands,
cyclopalladated compounds (CPCs) obtained from the same type
of ligands have remained unknown until now. Recently8 several
pincer PCP-complexes based on bis(phosphites) derived from
binaphthol (Ia) or biphenanthrol (Ib) were reported. In addition,
only two examples of optically active phosphite PC-pallada-
cycles (IIa,b) with rather distant carbon stereocenters9 have also
been described (Chart 1).
Introduction
Coordination complexes of transition metals with mono-1 or
bidentate2 P-donor ligands bearing elements of axial chirality,
including BINOL-derived phosphites3 and phosphoramidites,4,5
are well known as very efficient asymmetric catalysts. Participa-
tion of the corresponding PC-metallacycles in some of the
* Corresponding author. Fax: (495) 932 8846. E-mail: dunina@
org.chem.msu.ru.
† M.V. Lomonosov Moscow State University.
‡ A.N. Nesmeyanov Institute of Organoelement Compounds.
(1) (a) Ansell, J.; Wills, M. Chem. Soc. ReV. 2002, 31, 259. (b) Hayashi,
T. Acc. Chem. Res. 2000, 33, 354. (c) Hayashi, T. J. Organomet. Chem.
1999, 576, 195.
Chart 1
(2) (a) McCarthy, M.; Guiry, P. J. Tetrahedron 2001, 57, 3809. (b) Guiry,
P. J.; McCarthy, M.; Lacey, P. M.; Saunders, C. P.; Kelly, S.; Connolly,
D. J. Curr. Org. Chem. 2000, 4, 821.
(3) (a) Reetz, M. T.; Mehler, G.; Bondarev, O. Chem. Commun. 2006,
2292. (b) Reetz, M. T.; Meiswinkel, A.; Mehler, G.; Angermund, K.; Graf,
M.; Thiel, W.; Mynott, R.; Blackmond, D. G. J. Am. Chem. Soc. 2005,
127, 10305. (c) Gergely, I. G.; Hegedu¨s, C.; Gulya´s, H.; Sco¨llo¨sy, A.;
Monsees, A.; Riermeier, Th.; Bakos, J. Tetrahedron: Asymmetry 2003, 14,
1087. (d) Sturla, Sh. J.; Buchwald, St. L. J. Org. Chem. 2002, 67, 3398.
(e) Reetz, M. T.; Mehler, G.; Meiswinkel, A.; Sell, Th. Tetrahedron Lett.
2002, 43, 7941. (f) Chen, W.; Xiao, J. Tetrahedron Lett. 2001, 42, 2897.
(g) Reetz, M. T.; Mehler, G. Angew. Chem., Int. Ed. 2000, 39, 3889. (h)
Yan, M.; Yang, K.-Y; Chan, A. S. C. Chem. Commun. 1999, 11. (i) Yan,
M.; Chan, A. S. C. Tetrahedron Lett. 1999, 40, 6645.
(4) (a) Kurihara, K.; Sugishita, N.; Oshita, K.; Piao, D.; Yamamoto,
Ya.; Miyaura, N. J. Organomet. Chem. 2007, 692, 428. (b) Zhang, A.;
RajanBabu, T. V. J. Am. Chem. Soc. 2006, 128, 54. (c) Zeng, Q.-H.; Hu,
X.-P.; Duan, Zh.-Ch.; Liang, X.-M.; Zheng, Zh. J. Org. Chem. 2006, 71,
393. (d) Vallianatou, K. A.; Kostas, I. D.; Holz, J.; Bo¨rner, A. Tetrahedron
Lett. 2006, 47, 7947. (e) Welter, C.; Moreno, R. M.; Streiff, St.; Helmchen,
G. Org. Biomol. Chem. 2005, 3, 3266. (f) de Vries, A. H. M.; Boogers,
J. A. F.; van den Berg, M.; Pen˜a, D.; Minnaard, A. J.; Feringa, B. L.; de
Vries, J. G. Pharma Chem. 2003, 33. (g) Zeng, Q.; Liu, H.; Cui, X.; Mi,
A.; Jiang, Ya.; Li, X.; Choi, M. C. K.; Chan, A. S. C. Tetrahedron:
Asymmetry 2002, 13, 115. (h) van den Berg, M.; Minnaard, A. J.; Schudde,
E. P.; van Esch, J.; de Vries, A. H. M.; de Vries, J. G.; Feringa, B. L.
J. Am. Chem. Soc. 2000, 122, 11539. (i) Feringa, B. L. Acc. Chem. Res.
2000, 33, 346. (j) Arnold, L. A.; Imbos, R.; Mandoli, A.; de Vries, A. H. M.;
Naasz, R.; Feringa, B. L. Tetrahedron 2000, 56, 2865.
The aim of this work was to study the possibility of direct
cyclopalladation of BINOL-derived phosphites as a route to
(5) (a) Trost, B. M.; Silverman, St. M.; Stambuli, J. P. J. Am. Chem.
Soc. 2007, 129, 12398. (b) Ohmura, T.; Taniguchi, H.; Suginome, M. J. Am.
Chem. Soc. 2006, 128, 13682. (c) Trost, B. M.; Stambuli, J. P.; Silverman,
St.M.; Schwo¨rer, U. J. Am. Chem. Soc. 2006, 128, 13328. (d) Zhang, A.;
RajanBabu, T. V. J. Am. Chem. Soc. 2006, 128, 5620. (e) Boele, M. D. K.;
Kamer, P. C. J.; Lutz, M.; Spek, A. L.; de Vries, J. G.; van Leeuwen,
P. W. N. M.; van Strijdonck, G. P. F. Chem.-Eur. J. 2004, 10, 6232.
10.1021/om800654r CCC: $40.75
2009 American Chemical Society
Publication on Web 01/05/2009

426 Organometallics, Vol. 28, No. 2, 2009
Dunina et al.
Scheme 1
enantiopure PC-palladacycles and to estimate efficiency of
chirality transfer from an axial chiral environment of the
phosphorus atom.
Results and Discussion
Phosphite Cyclopalladation. For steric promotion of an
intramolecular C-H bond activation10 a rather bulky phosphite
ligand (Sa)-HL was chosen for cyclopalladation. Both racemic
and enantiopure phosphites HL were prepared by a known
route8d,10c,11 that includes a reaction of the in situ obtained
BINOL-derived phosphorochloridite4j with 2,4-di-tert-butylphe-
nol in the presence of a base. Phosphite HL possesses moderate
oxidative and hydrolytic stability: keeping a pure sample in a
chloroform solution in air for a week resulted in 10% decom-
position (31P data). To our knowledge, this ligand is a new
member12 of a large group of the BINOL-derived ArO-
substituted phosphites.3g,i,13-15
Scheme 2
Scheme 3
Two protocols were reported for cyclopalladation of achiral
phosphite ligands (HL′): (i) a two-step procedure through
9a,10b,16,17
intermediate coordination complex Pd(HL′)2Cl2
and
(ii) a one-step synthesis by reaction of PdCl2 with phosphite
HL′ in a 1:1 ratio at heating.10c,11 Typically, the latter method
provides a high yield of CPCs from simple triarylphosphites
(up to 98%10c,18), which may be decreased to 43-53% in the
case of encumbered ligands.8d,11
protocols to our system and to use the more electrophilic reagent
Pd(OAc)2 resulted in palladium black precipitation and forma-
tion of complex mixtures of coordination complexes. However,
the reaction of phosphite HL with PdCl2(NCPh)2 in refluxing
toluene provided racemic and optically active cyclopalladated
dimers, rac-1 and (Sa,Sa)-1a, in 40-43% yield after column
chromatography (Scheme 1). In a similar reaction carried out
in 1,2-dichloroethane (DCE), the yield of rac-1 was slightly
lower, 37%. Attempts to promote C-H bond activation with
Et3N as a base in DCE (cf. ref 8d) resulted in palladium(II)
reduction.
A very low solubility of the racemic dimer 1 complicated its
purification. To overcome this obstacle, dimer rac-1 was
converted into its more soluble mononuclear pyridine derivative
(2) followed by its chromatographic purification (cf. ref 19).
Strong trans-influence of both carbanionic and phosphorus donor
atoms of the PC-palladacycle facilitated elimination of the
auxiliary pyridine ligand from adduct rac-2 with formation of
the pure dimer rac-1 (TLC and NMR data; Scheme 2).
Dynamic mobility of dimeric CPCs20 and their existence as
mixtures of syn/anti and meso/dl isomers prevent their use for
spectral studies; so we converted the dimer rac-1 into its

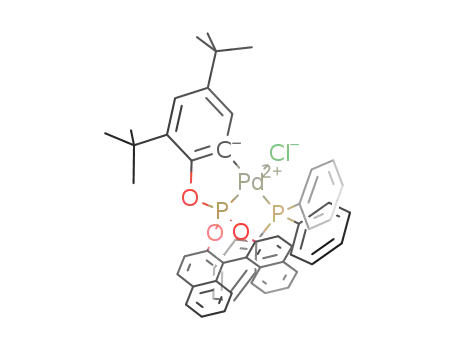

mononuclear phosphane derivative rac-3 by the reaction of
chloride bridge cleavage (Scheme 3).
Cyclopalladation of phosphite HL appeared to be a rather
difficult task. Thus, our attempts to adopt the aforementioned
