Syntheses, Spectroscopic and AFM Characterization of Some
Manganese Porphyrins and Their Hybrid Silica Nanomaterials
Eugenia Fagadar-Cosma 1,*, Marius Constantin Mirica 2, Ionel Balcu 2, Carmen Bucovicean 1,
Carmen Cretu 1, Ileana Armeanu 1 and Gheorghe Fagadar-Cosma 3
1
Institute of Chemistry Timisoara of Romanian Academy, 24 M. Viteazul Ave, 300223-Timisoara,
Romania
2
National Institute of Research for Electrochemistry and Condensed Matter, Timisoara, 144 Aurel
Paunescu Podeanu Street, 300860-Timisoara, Romania
3
"Politehnica" University of Timisoara, 2 T. Lalescu Street, 300223-Timisoara, Romania
* Author to whom correspondence should be addressed; E-mail: efagadar@yahoo.com;
Tel.: +40-0256-491818; Fax: +40-0256-491824.
Received: 23 February 2009; in revised form: 19 March 2009 / Accepted: 26 March 2009 /
Published: 27 March 2009
Abstract: The present work is concerned with the manganese complexes of 5,10,15,20-
tetraphenylporphyrin and of 5,10,15,20-tetra(3-hydroxyphenyl)porphyrin, which were
prepared by metallation of the corresponding porphyrin ligands, and the study of their
spectroscopic and photophysical behavior under strongly acidic and alkaline conditions.
The second objective was to obtain and study some new hybrid materials, with special
optoelectronic and surface properties, by impregnation of silica gels obtained by one step
acid and by two steps acid-base catalysis with these Mn-porphyrins. The resulting
nanomaterials exhibited interesting bathochromic and hyperchromic effects of their second
band in the emission spectra in comparison with the Mn-porphyrins and also they have
distinct orientation of the aggregates on surfaces, as shown by AFM images, making them
useful for applications in medicine, formulation of sensors and for environmental-friendly
catalysts for photodegradation of organic compounds.
Keywords: Porphyrins; Mn(III)-metalloporphyrins; Hybrid silica nanomaterials; AFM;
Spectroscopy.

Molecules 2009, 14
1371
1. Introduction
Free-base porphyrins and their metallic complexes hold a special place in modern chemistry
functioning as reaction catalysts, oxygen transporters, chemical sensors [1,2], anticancer
pharmaceutical drugs [3] or in molecular electronic devices [4]. They are widely distributed in Nature,
being also named pigments of life, and playing crucial roles in many biochemical processes. In
medicine they are suitable for treatments in photodynamic therapy [5], malaria [6] and porphyrias.
The manganese porphyrins represent new molecular designs that achieve redox control [7], while
maintaining low molecular weight and tailored lipophilicity. The stability of metalloporphyrins
compared to other metal chelates has made them an attractive starting point to develop a new series of
Mn(III) porphyrins as superoxide dismutases (SOD) mimetics [8]
Present state-of-the-art research on metal-containing systems of medical importance has developed
the design of manganese porphyrins as therapeutic agents and diagnostics in photodynamic therapy
(PDT) as well as applications such as potential new tools for electron paramagnetic resonance (EPR)
[9], in apoptosis [10], and efficient photosensitizers (with the Q band- λmax = 893 nm- shifted to the
near infrared region) [11].
Mn(III)-porphyrins have been used as catalysts in oxidative degradation of Plasmid Bluescript [12]
and as ionophores in new potentiometric, piezoelectric or fluorimetric sensor devices for the detection
of hydrazine [13] thiocyanate [14] dioxins [15], and salicylate [16].
The present report is related to previously published work regarding multicomponent syntheses of
porphyrins containing meso-3-hydroxyphenyl groups [17,18] as potential photosensitizers for
photodynamic therapy and deals with the manganese complexes of 5,10,15,20-tetraphenylporphyrin
(1a) and of 5,10,15,20-tetra(3-hydroxyphenyl)porphyrin (1b) with the purpose of using them in cell
apoptosis studies and in the design of hybrid nanomaterials with potential applications as new catalysts
and potentiometric or enantioselective sensors. The two Mn(III)-porphyrins were prepared by
metallation of the porphyrin free ligands in either methanol or ethanol at porphyrin: manganese ratios
of 1:20, according to Scheme 1.

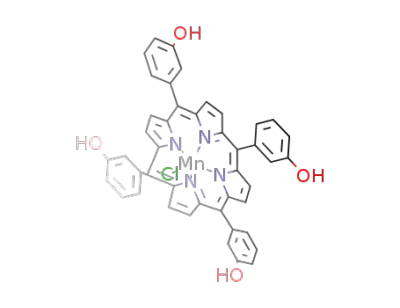

Scheme 1. Syntheses of Mn-porphyrins by metallation reactions (a, R = H; b, R = OH).
R
R
R
R
Cl
N
H
N
N
N
N
N
+ MnCl2 4H2O
Mn
H
N
N
R
R
R
R
2
1

Molecules 2009, 14
1372
The photophysical behavior of the manganese porphyrins was studied by UV-Vis and emission
spectra under strongly acidic and alkaline conditions. The perturbation of pH causes a change in the
shape and intensity of the electronic spectra and in the energetic position of the bands. A comparison
of the effects produced by the nature of the substituents in the porphyrin ligand was carred out.
The increasing demand for catalysts in oxidation reactions under mild conditions has provided the
necessary impulse for research into new efficient systems based on metalloporphyrin catalysts that
mimick natural enzymatic systems. The photoactivity of TiO2 anatase samples impregnated with the
some Mn-porphyrins was studied [19], and based also on our previous results in obtaining hybrid
silica-porphyrin micro- and nano-materials with special optoelectronic properties [20-23], we have
started studying the preparation of some nanomaterials by impregnation of silica gels obtained in one
step acid and in two steps acid-base catalysis with these Mn-porphyrins, in order to obtain
environmental-friendly catalysts or electroactive materials for sensors design.
2. Results and Discussion
Solubility. The two manganese(III) porphyrins examined herein are soluble and stable in
acetonitrile, N,N-dimethylformamide, dimethylsulfoxide, dichloromethane, dichloroethane and THF,
giving intense green solutions.
The absorption spectra of metalloporphyrins are diverse and complex. Depending on the type of
donor–acceptor bonds there are three classes of metalloporphyrin electronic spectra, which have been
called normal, hypso, and hyper, with the hyper spectra being further divided into p-type and d-type
[29,33]. The third type of spectra (d-hyper type) is observed for the Mn(III) complexes of all of the
porphyrins studied. Electronic spectra of the hyper type are observed for metalloporphyrins having
unoccupied orbitals in metals with symmetries eg(d(p)dxz and dyz. The intense band in the range
440–480 nm in the spectra of the above complexes is assigned to the charge transfer from the a1u(π)
and a2u(π) orbitals of porphyrin to the eg(d(π)) orbitals of the metal. The respective band in the
spectrum is called the charge transfer band [35]. A comparison between the porphyrin free–bases 1a,
1b and the two Mn complexes 2a and 2b follows.
Figure 1. The absorption spectrum of 1a in THF, c = 3.24×10-5M.

Molecules 2009, 14
1373
Figure 2. The UV-vis spectrum of 1b in THF.
The UV-vis spectra of 5,10,15,20-tetraphenylporphyrin (1a) and 5,10,15,20-tetrakis(3-hydroxy-
phenyl)porphyrin (1b) in THF are non-associated (Figures 1 and 2). The spectrum contains the high
intensity Soret band, with maximum around 420 nm, followed by four Q bands, Y-polarized bands IV
[Qy(0, 1)] and III [Qy(0, 0)] around 513 and 545 nm respectively, and X-polarized bands II [Qx(0, 1)] and I
[Qx(0, 0)] around 590 and 650 nm, respectively.
According to Boucher [27] the calculated energy levels for the molecular orbitals of a Mn(III)
porphyrin are increasing in the following order: a’2u(π) < b2u(π) < a1u(π) < a2u(π) < b2g(dxy) < eg(dxz, dyz)
2
2
< a1g(dz2) < eg*( π) < b1g(dx -y ). The UV-Vis spectra of the Mn(III) porphyrins display only two Q
bands (III and IV) and the Soret band is in an odd position. Three bands appear between 350-500 nm
(V, Va and VI bands). The QI and QII bands cannot be found in the spectrum because they are shifted
in the infrared region. The band V, named also Soret band, is strongly influenced by the nature of the
counterion and of the axial ligands and arose from a π  π* transition. The eg orbitals of manganese
disturbs the π-electron system of the porphyrin producing unexpected positions of the bands in its UV-
Vis spectrum. The characteristic absorption bands III, IV, V, Va and VI of the Mn(III)–porphyrin core
for 2a and 2b in THF are presented in Figures 3 and 4.
Figure 3. The UV-vis spectrum of 2a in THF.

Molecules 2009, 14
1374
Figure 4. The UV-vis spectrum of 2b in THF.
The stability of the two manganese porphyrins 2a and 2b was studied under strongly acidic and
alkaline conditions. As the acidity increased (lower pH values; Figure 5), the absorption spectra of the
Mn porphyrin complexes in the THF-water system, are characterized by a significant blue shift of the
III, IV, V bands and a bathochromic shift of the Va and VI band in comparison with the spectrum in
THF. The absorption spectra of the porphyrin complexes 2a and 2b in the organic phase were blue
shifted with as the pH in the aqueous phase increased, suggesting the formation of the µ-oxo-dimer
(Figure 5, curve 3) [28]. Another modest difference to be noticed is that the bands Va and VI show the
same absorption intensity.
Figure 5. UV-vis spectra. The influence of pH for 2a in a THF/water system. Curve 1: 2a
in pure THF; curve 2: pH = 1; curve 3: Mn-porphyrin (µ-oxo-dimer) pH = 6.5; Curve 2 is
presented in detail.
The same behavior as in case of 2a is seen for the electronic spectra of 2b, accompanying the
increasing of acidity band III is hypsochromically shifted by almost 22 nm and band IV is blue shifted

Molecules 2009, 14
1375
by almost 17 nm in comparison with the corresponding band from the spectrum in pure THF and a
hyperchromic effect is simultaneously manifested (Figure 6). The band V is also blue shifted by 7 nm
but the bands Va and VI show minor bathochromic shifts. By continuously adding base, the shape of
the spectrum will coincide with the absorption spectrum in pure THF. The only modest differences
consisted of a decrease of the intensity of the V band.
Figure 6. UV-Vis spectra. The influence of pH on the species of 2b in a THF/water
system. Curve a: 2b in pure THF; curve b: pH = 2.5; curve c: pH = 11. Region of III and
IV bands is presented in detail.
The fluorescence emission spectra of 1a and 1b registered in THF and THF-water systems at
different pH were previously discussed [29,30] and the maximum of the emission bands are around
650-660 nm in pure THF. The fluorescence emission spectra of the manganese (III) porphyrins
recorded in THF and THF-water systems, at the same concentration, as the pH conditions vary, are
shown in Figures 7 and 8. The spectra of these porphyrins exhibited two distinct maxima, a strong
fluorescence band near 440 nm, and an emission band of smaller intensity around 490 nm.
In acidic media, the emission spectra of both manganese porphyrins display a weaker emission band
in the 860-873 nm region. All the bands of 2b are slightly shifted to blue and also hypochromic in
comparison with 2a.
In basic medium (pH = 12) the shape of the emission spectra of the two Mn complexes 2a,b is
completely different, only one almost symmetric band is present, having the maximum of absorption
around 523 – 524 nm.
As can be noticed from Figures 7 and 8, a very important increase of the intensity of the emission
bands (especially the first band) accompanies the more acidic solutions, but the positions of the bands
remain unchanged in comparison with the spectra in pure THF. Instead, a higher value of the pH (basic
solution), produces dramatic changes in the shape and position of the emission band and the intensity
display only a minor increase, compared with the same spectra in THF.

Molecules 2009, 14
Figure 7. The influence of pH on the emission spectra of 2a in a THF/water systems (λex =
1376
250 nm-filter 430 nm). Curve 1: pH = 1.0; curve 2: pH = 1.5; curve 3: 2a in THF; curve 4:
pH = 11; in detail: curve 3.
Figure 8. The influence of pH on the emission spectra of 2b in a THF/water system ( λex =
250 nm-filter 430 nm). Curve a: pH = 1; curve b: pH = 1.5; curve c: 2b in THF; curve d:
pH = 11; in detail: curve 3.
Another issue is that the bands are well separated in the case of 2a, but are not well resolved in the
caee of 2b; the cause for this could be a possible aggregation, due to the OH groups.
Based on these spectroscopic data, it can be calculated that negative Stokes shifts, (obtained from
the difference between the values of emission band Q(0, 0) and absorption band B(0, 0)) ocurr. Only in
the case of a basic pH was a positive Stokes shift of approx. 50 nm observed. The emission from the
metal complex occurs with a normal Stokes shift, giving rise to a significant blue shifted emission
relative to the protonated species, as explained by some literature data [31]. If large Stokes shifts (180-

Molecules 2009, 14
1377
230 nm) were observed, as other researchers have reported [32], that could suggested that the structure
of the porphyrin compound in the excited state is different from that in the ground state, which could
indicate a structural reorganization of the porphyrin in the excited state and the distortion of the ligand
and porphyrin plane. Moreover, the largest positive Stokes shift can be observed in the case of free
porphyrins (230-240 nm), while for manganese complexes the values of Stokes shift are significantly
smaller in basic media and negative in the remainder of cases. As other studies have stated [31], a large
Stokes shift is favorable for the fluorescence properties because the shift allows easy separation of the
emission from scattered light, resulting in minimal of the resonance energy transfer.
The UV-vis spectrum of the hybrid silica material 2a-A has all the absorption bands (III, IV and V)
hypsochromically shifted in comparison with that of metalloporphyrin 2a and the V band is wider,
suggesting an aggregation process (Figure 9).
Figure 9. The overlapped UV-vis spectra of 2a (line 1), and of the hybrid silica material
2a-A (line 2-pH = 1.5), in THF.
The electronic spectra of the hybrid silica material 2b-AB suffered no change regarding the position
of the absorption bands, but a significant decrease of the intensity of the absorption (Figure 10).
Figure 10. The overlapped UV-vis spectra of 2b (line a), and of the hybrid silica material
2b-AB (line b-pH = 11 and line c-pH = 12), in THF.

Molecules 2009, 14
1378
The fluorescence spectra of the hybrid silica-Mn-porphyrins 2a-A, 2a-AB, 2b-A and 2b-AB show
some interesting features. In comparison with the emission spectrum of 2a (Figure 11, line 1),
independent of the type of catalysis, both its hybrid-silica materials manifest bathochromic shifts of the
two bands of 5 (2a-AB) to 15 nm (2a-A), but the most interesting aspect worth mentioning is that the
first absorption bands around 443-445 nm are hypochromic, but the second bands in the range 501-505
manifest important hyperchromic effects. The same effects are to be mentioned regarding the emission
spectra of the hybrid materials obtained by impregnation of 2b (Figure 12).
Figure 11. Overlapped emission spectra of hybrid nanomaterials obtained by impregnation
of 2a (line 1) into the silica matrix: 2a-A (line 2); 2a-AB (line 3) in THF, at the same
concentration.
Figure 12. Overlapped emission spectra of hybrid nanomaterials obtained by impregnation
of 2b (line a) into the silica matrix 2b-A (line b); 2b-AB (line c) in THF, at the same
concentration.

Molecules 2009, 14
1379
A comparison between all the hybrid materials revealed a visible hyperchromic effect when 2b was
used (Figure 13). Atomic force microscopy of the hybrid nanomaterials obtained by impregnation of
Mn-porphyrins 2a,b onto the silica matrix synthesized via a two step acid-base sol-gel procedure or via
a one step acid sol-gel procedure (Figures 14-17), revealed a dependence of the dimension of particles
in direct correlation with the structure of the porphyrin-ligand, not as expected, with the type of
catalysis. This odd behavior has not been reported before.
Figure 13. Overlapped emission spectra of hybrid nanomaterials obtained by impregnation
of Mn-porphyrins 2a, b into the silica matrix: line a: 2b-A; line b: 2b-AB; line c: 2a-A;
line d: 2a-AB; in THF, at the same concentration.
Figure 14. 2D (a) and 3D (b) AFM images (1.05×1.06µm) and particle analysis of the
hybrid material 1a-AB .
(a)

Molecules 2009, 14
1380
Figure 14. Cont.
(b)
Figure 15. 2D (a) and 3D (b) AFM images (1.07×1.07µm) and particle analysis of the
hybrid material 1a-A.
(a)
(b)
(b)

Molecules 2009, 14
1381
Figure 16. 2D (a) and 3D (b) AFM images (539×544nm) and particle analysis of the
hybrid material 2b-AB.
(a)
(b)
Figure 17. 2D (a) and 3D (b) AFM images (537×537nm) and particle analysis of the
hybrid material 2b-A.
(a)

Molecules 2009, 14
1382
Figure 17. Cont.
(b)
Thus, when silica matrices were impregnated with 2a, the hybrid nanomaterials 2a-A and 2a-AB
show surface particles of 54-55 nm in diameter with an average height of 60 nm. In the case of silica
matrices impregnated with 2b, the surfaces of 2b-A and 2b-AB present aggregates of 102-122 nm in
diameter and 40 nm in height. The aggregates are of increased dimensions compared with the case of
2a and we assume that the presence of hydroxyl groups and hence of hydrogen bonds resulted in
formation of aggregates [18]. Regardless of the nature of the porphyrin ligand, a small increase of the
diameter of the particles occurred when silica matrix was obtained by two steps acid-base catalysis.
The AFM images shows that these materials have distinct orientation of the aggregates on surfaces,
this being an important condition for nanomaterials used in sensing and catalytic processes, to maintain
continuity.
3. Experimental Section
3.1. General
UV-visible spectra of all reported compounds were recorded on a Perkin Elmer Lambda 12 UV/VIS
spectrometer in THF and in THF-aqueous systems using a 1 cm quartz cuvette. Fluorescence spectra
were recorded in THF and in THF-aqueous systems on a Perkin Elmer Model LS 55 apparatus in a 1
cm cuvette. FT-IR spectra were registered as KBr pellets on a Jasco 430 instrument. The HPLC
analysis were performed at ambient temperature on a Jasco apparatus equipped with a Kromasil SI 100
240 x 4 mm 5 μm polar column and a MD 1510 detector. The samples (20 μL) were analyzed at a flow
rate of 1 mL/min with hexane as eluent. 1H-NMR spectra were registered in CDCl3 on a Bruker DRX
400 apparatus at 400 MHz. Proton chemical shifts, expressed in δ (ppm), were internally referenced to
the residual proton resonance in CDCl3 (δ 7.26).
For the MS analysis of the porphyrin bases a 212 Varian Finnigan Mat mass spectrometer was used.
Mass spectrometric measurements for complexes were performed on a Finnigan LCQ –MS equipped
with electrospray ionization source (ESI) and an ion trap mass analyzer in positive ion mode. The
samples were dissolved in methanol and filtered through fine membranes (0.4-0.5 micron). Manganese
porphyrins gave a molecular ion lacking the chloride counterion.

Molecules 2009, 14
1383
Tetrahydrofuran (THF) was distilled from sodium/benzophenone, and pyridine was distilled from
CaH2. Other reagents were provided of highest purity obtainable from Merck and Fluka and were used
without further purification. All aqueous solutions were prepared with distilled water. Thin-layer
chromatography (TLC) was performed using Merck 60 F254 silica gel. Silica gel 60 (70–230 mesh,
Merck) was used for column chromatography.
3.2. AFM investigations
AFM investigations were carried out with a Nanosurf® EasyScan 2 Advanced Research AFM.
Measurements were made with sample preparation on a silica plate. A stiff (450 μm x 50 μm x 2 μm)
piezoelectric ceramic cantilever (spring constant of 0.2 Nm-1), with an integral tip oscillated near its
resonance frequency of about 13 kHz was used in the measurements. AFM data are quantitative on all
three dimensions, the usual method for displaying them being by color mapping: in a gray scale, for
example, dark and light tones represent the low, respectively high features. All AFM measurements
were done in ambient conditions (temperature: 21±2 °C; relative humidity: 50–70%) in contact mode.
3.3. Spectroscopic studies
Absorption and fluorescence spectra were recorded at ambient temperature. All the fluorescence
spectra were recorded with constant slit widths, 7 for excitation and 3 for emission. To produce basic
and acidic conditions in the THF solvent, stock aqueous solutions of 0.1 M NaOH and 0.1 M HCl were
used. The pH values of the solutions were measured with a Radelkis digital pH meter.
3.4. General procedure for the syntheses of porphyrin bases: 5,10,15,20-tetraphenylporphyrin (1a)
and 5,10,15,20-tetra (3-hydroxyphenyl) porphyrin (1b).
Porphyrin free bases (1a) [33] and (1b) [17] were obtained and characterized by methods previously
described in the literature [29]. 5,10,15,20-Tetraphenylporphyrin (1a), was fully characterized in a
previously published paper [34].
5,10,15,20-Tetrakis(3-hydroxyphenyl)porphyrin (1b): Dark violet solid; yield: 20.4 %; mp > 320oC:
1H-NMR: , ppm: -2.78 (brs, 2H, NH), 2.91 (brs, 4H, OH), 7.20-7.95 (m, 16H, o-Ph, m-Ph and p-Ph),
8.90 (d, 8H, β-Pyr); FT- IR (KBr), cm-1: 781.99 (γ C-H Pyrrol), 1079.94 and 1159.01 (δ C-H Pyrrol),
1271.82 (ν C-O-H), 1349.93 (ν C-N), 1445.39 (ν C = N), 1484.92 (ν C = C Pyrrol), 1591.95 (ν C = C
Pyrrol), 3425.92 (ν N-H); UV-vis, CHCl3 (λmax (log ε): 421.50 (5.47); 517.87 (4.26); 554.20 (3.91);
591.70 (3.70); 649.05 (3.61); TLC (Rf chloroform/dichloromethane/ethylic ether 2/2/1): 0.26; HPLC
(RT , min): 7.23; MS (54 eV):m/e = 678 M]+.(C44O4N4H30]+. Molecular ion).

Molecules 2009, 14
1384
3.5. General procedure for the syntheses of (5,10,15,20-tetraphenyl)porphinato manganese (III)
chloride (2a) and [5,10,15,20-tetra(3-hydroxyphenyl)] porphinato manganese (III) chloride (2b).
These syntheses were based on an adaptation of combined literature methods [18, 19] and [35].
The free base 5,10,15,20-tetraphenylporphyrin (1a, 128 mg, 0.200 mmol) or 5,10,15,20-tetra (3-
hydroxyphenyl) porphyrin (1b, 140 mg, 0.2062 mmol) in EtOH (40 mL) was heated and stirred and
manganese(II) chloride tetrahydrate (816 mg, 4.124 mmol) dissolved in absolute EtOH (10 mL) was
then added and the solution was heated to reflux. The reaction was monitored by UV-Vis
spectroscopy (solvent THF). The metal insertion was complete in 3 h. The solution was cooled to room
temperature under stirring, open to the air and the solvent was evaporated under vacuum, then the
crude product was dissolved in dry CH2Cl2 (400 mL) and a few dark brown powder impurities were
removed by filtration. The filtered solution is three times washed with distilled water (70°C) to remove
excess MnCl2, and the aqueous layer was separated. The organic layer was repeatedly washed with
saturated NaHCO3 solution, dried over anhydrous Na2SO4 and filtered. The solvent was removed
under vacuum and a dark-green solid of 2a or 2b was obtained in 76% or 71% yield, respectively, after
crystallization from a 1:1 mixture of THF/CH2Cl2 or CHCl3/hexane or from isopropanol and drying,
first under vacuum and then in an oven at 100 °C for 12 h. Better yields were obtained when the
solvent was DMF and the MnCl2·4H2O were dissolved in absolute MeOH. Unlike cobalt(II)
tetraphenylporphyrin, solutions of Mn(II)-porphyrins are unstable in the presence of oxygen, and this
is the reason why Mn(III) complexes are obtained by the above methods.
(5,10,15,20-Tetraphenyl)porphinato manganese (III) chloride (2a): dark green crystals, yield: 76 %;
mp over 320oC: TLC (SiO2, CH2Cl2/CH3OH 8/2) Rf = 0.31. FT- IR (KBr), cm-1: 454.15 (ν M-N),
701.96 and 751.13 (γ C-H Ph), 803.2 (γ C-H Pyrrole), 1007.62 (ν C-N Pirrole), 1072.23 and 1174.44 (δ C-H
Ph), 1340.28 (ν C-N), 1438.6 (ν C=N), 1484.92 (ν C=C Ph), 1594.84 (ν C=C Ph), 3021.91 and 3051.8 (ν
C-H Ph). UV-vis, THF, λmax[nm](log ε[M-1cm-1]): 622.41(4.32), 585.97 (4.21), 476.93 (5.16), 393. 92
(4.94), 370.22 (4.99). MS(ESI+): m/z 667.7 [(M-Cl)+] (C44MnN4H28]+.Molecular ion).
[5,10,15,20-Tetra (3-hydroxyphenyl)] porphinato manganese (III) chloride (2b): dark green crystals,
yield: 71 %; mp over 320oC: TLC (SiO2, CH2Cl2/CH3OH 8/2) Rf = 0.4. FT-IR(KBr, cm-1): 452.22 (ν
M-N), 706.76 (γ C-H Ph), 809.95(γ C-H Pyrrole), 1005.7 (ν C-N Pyrrole), 1078.01 and 1167.69 (δ C-H Ph),
1340.28 (ν C-N), 1439.6 (ν C=N), 1587.13 (ν C=C Ph), 3061.44 (ν C-H Ph). UV-vis, THF,
λmax[nm](log ε): 621.30(4.06), 583.38 (4.06), 475.63 (5.09), sh 400, 370.83 (4.89). MS(ESI+): m/z
731.6 [(M-Cl)+] (C44O4 MnN4H28]+. molecular ion).
3.6. General procedure for the preparation of the Mn porphyrin-silica hybrid nanomaterials:
(5,10,15,20-tetraphenyl)porphinato manganese (III) chloride impregnated in silica matrix derived
from one step acid catalysis (2a-A), (5,10,15,20-tetraphenyl)porphinato manganese (III) chloride
impregnated in silica matrix derived from two step acid-base catalysis (2a-AB), [5,10,15,20-tetra (3-
hydroxyphenyl)] porphinato manganese (III) chloride impregnated in silica matrix derived from one
step acid catalysis (2b-A) and [5,10,15,20-tetra (3-hydroxyphenyl)] porphinato manganese (III)
chloride impregnated in silica matrix derived from a two step acid-base catalysis (2b-AB)

Molecules 2009, 14
1385
The samples were prepared by impregnating silica gel materials obtained by acid or acid –base
catalysis with Mn(III)-porphyrins (2a or 2b), according to the following procedure: the corresponding
amount of Mn (III)-porphyrin 2a or 2b was dissolved in THF (5 mL, to give a 10-4 M solution) and the
resulting solution was added in one portion under vigorous mechanical stirring to finely ground silica
gel (5 g) dissolved in the smallest possible volume of THF, until a viscous colloidal dispersed system
was obtained. The mixture was vigorously stirred for 30 min and was left under Parafilm protection
until gelation took place. After several days they gave transparent colored gels and finally glasses: red
(when using acid-base catalyzed silica matrix, AB) and green (when using acid catalyzed silica matrix,
A).
3.7. Common procedures for obtaining the silica matrices derived from one step acid (A*) and two
steps acid/base sol-gel processes (AB**), using TEOS as precursor
*A mixture of H2O (2.40 g, 0.133 mol) and HCl 37% (0.066 g, 0.67 mmol) was slowly added
dropwise under vigorous stirring to a solution of TEOS (6.945 g, 0.033 mol) dissolved into EtOH (6.14
g, 0.133 mol). The following molar ratios were kept constant during the first acidic step: TEOS: EtOH:
H2O: HCl = 1: 4: 4: 0.02. The silica matrix derived from one step acid has a time of gelation of 7 days.
**The silica matrix derived from a two step acid/base sol-gel process was obtained after the first
acid step by using a total amount of 2.04 g solution of NH3 2.5%. A transparent gel was instantly
obtained.
4. Conclusions
Two manganese complexes of 5,10,15,20-tetraphenylporphyrin and of 5,10,15,20-tetra(3-hydroxy-
phenyl)porphyrin were prepared and their spectroscopic and photophysical behavior under strongly
acidic and alkaline conditions was investigated. An important goal of this research was the synthesis of
new hybrid nanomaterials, exhibiting special optoelectronic and surface properties, by impregnation of
silica gels obtained by one step acid and two step acid-base catalysis with these Mn-metalloporphyrins.
Depending on the type of catalysis the resulting nanomaterials display different aggregate dimensions
and interesting bathochromic and hyperchromic effects of their second bands in the emission spectra in
comparison with the Mn-metalloporphyrins. Relying on AFM images, the hybrids have distinct and
continuous orientations of the aggregates on their surfaces, thus making them useful for further
potential applications in medicine, formulation of sensors and as environmentally-friendly catalysts.
Acknowledgements
Authors are grateful to ANCS-Romania for financial support of this work under Romanian National
Research Project No. 11-055/2007.

Molecules 2009, 14
1386
References and Notes
1. Malinowska, E.; Niedziółka, J.; Meyerhoff, M.E. Potentiometric and spectroscopic
characterization of anion selective electrodes based on metal(III) porphyrin ionophores in
polyurethane membranes. Anal. Chim. Acta 2001, 432, 67-78.
2. Vlascici, D.; Fagadar-Cosma, E.; Bizerea-Spiridon, O. A new composition for Co(II)-porphyrin-
based membranes used in thiocyanate-selective electrodes. Sensors 2006, 6, 892-900.
3. Brunner, H.; Schellerer, K.M. Benzoporphyrins, and acetylene-substituted porphyrins as improved
photosensitizers in the photodynamic tumor therapy with porphyrin platinum conjugates. Monat.
Chem.2002, 133, 679-705.
4. Drain, C.M.; Hupp, J.T.; Suslick, K.S.; Wasielewski, M.R.; Chen, X. A perspective on four new
porphyrin-based functional materials and devices. J. Porphy. Phthal. 2002, 6, 243-258.
5. Vicente, M.G.H. Porphyrin-based sensitizers in the detection and treatment of cancer recent
progress. Curr. Med. Chem.-Anti-Cancer Agents 2001, 1, 175-194.
6. Robert, A.; Benoit-Vical, F.; Dechy-Cabaret, O.; Meunier, B. From classical antimalarial drugs to
new compounds based on the mechanism of action of artemisinin. Pure Appl. Chem. 2001, 73,
1173-1188.
7. Lahaye, D.; Muthukumaran, K.; Hung, C.H.; Gryko, D.; Rebouc, J.S.; Spasojevic, I.; Batinic´-
Haberleb, I.; Lindsey, J.S. Design and synthesis of manganese porphyrins with tailored
lipophilicity: Investigation of redox properties and superoxide dismutase activity. Bioorg. Med.
Chem. 2007, 15, 7066-7086.
8. Gauuan, P.J.F; Trova, M.P.; Gregor-Boros, L.; Bocckino, S.B.; Crapo, J.D.; Day, B.J. Superoxide
dismutase mimetics: synthesis and structure–activity relationship study of MnTBAP analogues.
Bioorg. Med. Chem. 2002, 10, 3013-3021.
9. Yan, G.P.; Bischa, D.; Bottle, S.E. Synthesis and properties of novel porphyrin spin probes
containing isoindoline nitroxides. Free Radic. Biol. Med. 2007, 43, 111-116.
10. Dolgachev, V.; Nagy, B.; Taffe, B.; Hanada, K.; Separovic, D. Reactive oxygen species
generation is independent of de novo sphingolipids in apoptotic photosensitized cells. Exp. Cell
Res. 2003, 288, 425-436.
11. Mbambisa, G.; Tau, P.; Antunes, E.; Nyokong, T. Synthesis and electrochemical properties of
purple manganese(III) and red titanium(IV) phthalocyanine complexes. Polyhedron 2007, 26,
5355-5364.
12. Banfi, S.; Cassani, E.; Caruso, E.; Cazzaro, M. Oxidative cleavage of plasmid bluescript by water-
Soluble Mn-Porphyrins and artificial oxidants or molecular oxygen. Bioorg. Med. Chem. 2003,
11, 3595-3605.
13 Quintino, M.S.M.; Araki, K.; Toma, H.E.; Angnes, L. New hydrazine sensors based on
electropolymerized meso-tetra(4-sulphonatephenyl)porphyrinate manganese(III)/silver nano-
material. Talanta 2008, 74, 730-735.
14. Khorasani, J.H.; Amini, M.K.; Motaghi, H.; Tangestaninejad, S.; Moghadam, M. Manganese
porphyrin derivatives as ionophores for thiocyanate-selective electrodes: the influence of
porphyrin substituents and additives on the response properties. Sens. Actuat. B: Chem. 2002, 87,
448-456.

Molecules 2009, 14
1387
15. Mascini, M.; Macagnano, A.; Monti, D.; Carlo, M.D.; Paolesse, R.; Chen, B.; Warner, P.;
D’Amico, A.; di Natale, C.; Compagnone, D. Piezoelectric sensors for dioxins: a biomimetic
approach. Biosens. Bioelect. 2004, 20, 1203-1210.
16. Chaniotakis, N.A.; Chasser, A.M.; Meyerhoff, M.E.; Groves, J.T. Influence of porphyrin structure
on anion selectivities of manganese (III) porphyrin-based membrane electrodes. Anal. Chem.
1988, 60, 185-188.
17. Fagadar-Cosma, E.; Cseh, L.; Badea, V.; Fagadar-Cosma, G.; Vlascici, D. Combinatorial
synthesis and characterization of new asymmetric porphyrins as potential photosensitizers in
photodynamic therapy. Combi. Chem. High Through. Screen. 2007, 10, 466-472.
18. Bhyrappa, P.; Wilson, S.R.; Suslick, K.S. Hydrogen-bonded porphyrinic solids: supramolecular
networks of octahydroxy porphyrins. J. Am. Chem. Soc. 1997, 119, 8492-8502.
19. Mele, G.; Del Sole, R.; Vasapollo, G.; García-López, E.; Palmisano, L.; Li, J.; Słota, R.; Dyrda,
G. TiO2-based photocatalysts impregnated with metallo-porphyrins employed for degradation of
4-nitrophenol in aqueous solutions: role of metal and macrocycle. Res. Chem. Intermed. 2007, 33,
433-448.
20. Fagadar-Cosma, E.; Enache, C.; Armeanu, I.; Dascalu, D.; Fagadar-Cosma, G.; Vasile, M.;
Grozescu, I. The influence of pH over topography and spectroscopic properties of silica hybrid
materials embedding meso-tetratolylporphyrin, Mater. Res. Bull. 2009, 44, 426-431.
21. Fagadar-Cosma, E.; Enache, C.; Vlascici, D.; Fagadar-Cosma, G. Nanomaterials based on 3,4-
dimethoxy-phenyl substituted porphyrin entrapped in silica matrix. J. Porph. Phtalo. 2008, 12,
505.
22. Fagadar-Cosma, E.; Enache, C.; Dascalu, D.; Fagadar-Cosma, G.; Gavrila, R. FT-IR, fluorescence
and electronic spectra for monitoring the aggregation process of tetra-pyridylporphyrine entrapped
in silica matrices. Optoelect. Adv.Mater.– Rapid Commun. 2008, 2, 437-441.
23. Fagadar-Cosma, E.; Enache, C.; Fagadar-Cosma, G.; Savii, C. Design of hybrid nanomaterials
based on silica-porphyrin. AFM characterization. J. Optoelect. Adv. Mater. 2007, 9, 1878-1882.
24. Gouterman M. Spectra of porphyrins. J. Mol. Spectrosc. 1961, 6, 138-163.
25. Suslick, K.S.; Watson, R.A. The photochemistry of chromium, manganese, and iron porphyrin
complexes, New. J. Chem. 1992, 16, 633-642.
26. Lomova, T.N.; Berezin, B.D. Porphyrin Complexes with p, d, and f Metals in High Oxidation
States: Structures, Electronic Absorption, and IR Spectra. Russ. J. Coord. Chem. 2001, 27, 85-
104.
27. Boucher, L.J. Manganese porphyrin complexes. Coord. Chem. Rev. 1972, 7, 289-329.
28. Weiss, R.; Bulach, V.; Gold, A.; Terner, J.; Trautwein, A.X. Valence-tautomerism in high-valent
iron and manganese porphyrins. J. Biol. Inorg. Chem. 2001, 6, 831-845.
29. Cretu, C.; Bucovicean, C.; Armeanu, I.; Lacrama, A.M.; Fagadar-Cosma, E. Synthesis and
spectroscopic characterization of meso-tetra (3-hydroxyphenyl) porphyrin. Rev. Chim. Bucharest
2008, 59, 979-981.
30. Fagadar-Cosma, E.; Enache, C.;Tudose, R.; Armeanu, I.; Mosoarca, E.; Vlascici, D.; Costisor, O.
UV-vis and fluorescence spectra of meso-tetraphenylporphyrin and meso-tetrakis-(4-
methoxyphenyl) porphyrin in THF and THF-water systems. The influence of pH. Rev. Chim.
Bucharest 2007, 58, 451-455.

Molecules 2009, 14
1388
31. Lakowicz, J.R.; Castellano, F.N.; Gryczynski, I.; Gryczynski, Z.; Dattelbaum, J.D. Two-photon
excitation of rhenium metal-ligand complexes. J. Photochem. Photobiol. A: Chem. 1999, 122,
95-101.
32. Makarska-Bialokoza, M.; Pratviel, G.; Radzki, S. The influence of solvent polarity on
spectroscopic
properties
of
5-[4-(5-carboxy-1-butoxy)phenyl]-10,15,20-tris(4-N-methyl-
pyridiniumyl)porphyrin and its complexes with Fe(III) and Mn(III) ions. J. Mol. Struct. 2008, 875,
468-477.
33. Adler, A.D.; Longo, F.R.; Finarelli, J.D.; Goldmacher, J.; Assour, J.; Korsakoff, L. A simplified
synthesis for meso-tetraphenylporphyin. J. Org. Chem. 1967, 32, 476-480.
34. Vlascici, D.; Fagadar-Cosma, E.; Spiridon-Bizerea, O.; Pascariu, A.; Chiriac, A. Caracterizarea
materialului membranei unui electrod tiocianat-selectiv pe bază de clorură de [5,10,15,20-
tetrafenil-21H,23H-porfirinat-N21,N22,N23,N24] rodiu(III). Rev. Chim. Bucharest 2005, 56, 224-
227.
35. Iamamoto, Y.; Assis, M.D.; Ciuffi, K.J.; Prado, C.M.C.; Prellwitz, B.Z.; Moraes, M.; Nascimento,
O.R.; Sacco, H.C. J. Mol. Cat. A – Chem. 1997, 116, 365-374.
Sample Availability: Samples of compounds 1a, 1b, 2a, 2b, 2a-A, 2a-AB, 2b-A, 2b-AB are available
from the authors.
© 2009 by the authors; licensee Molecular Diversity Preservation International, Basel, Switzerland.
This article is an open-access article distributed under the terms and conditions of the Creative
Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
