A seven-membered N,N ′-diamidocarbene

Article abstract of DOI:10.1021/om1007665

Condensation of N,N′-dimesitylformamidine with phthaloyl chloride afforded 1?HCl, which, upon treatment with base, afforded 2,4-dimesitylbenzo[e][1,3]diazepin-1,5-dione-2-ylidene (1), a seven-membered N,N′-diamidocarbene (DAC), in high yield (85%). The free DAC was used to synthesize four new, late transition metal complexes: [Rh(cod)(1)Cl] (2a) (cod = 1,5-cyclooctadiene), [Ir(cod)(1)Cl] (2b), [Rh(CO)₂(1)Cl] (3a), and [1-AuCl] (5). The Tolman electronic parameter (TEP) of 1 was calculated to be 2047 cm^-1 from the IR spectrum of 3a. This TEP value is approximately 10 cm^-1 lower than known DACs and 5 cm^-1 lower than known imidazol-2-ylidenes, indicating that DAC 1 is a relatively strong electron donor. Additionally, electrochemical analyses of 2a and 2b corroborated the IR data obtained on 3a and revealed E_1/2 values that were shifted cathodically by ca. 0.16 V when compared to analogous complexes supported by N-heterocyclic carbenes. The gold complex 5 was found to catalyze the hydration of phenylacetylene, affording acetophenone in yields up to 78% after 12 h at 80 °C at a catalyst loading of 2 mol %. Treatment of 1 with 2,6-dimethylphenylisocyanide afforded N,N′-diamidoketenimine 4 as a thermally robust, crystalline solid.

Full text of DOI:10.1021/om1007665

Organometallics 2010, 29, 4569–4578 4569
DOI: 10.1021/om1007665
A Seven-Membered N,N0-Diamidocarbene
Todd W. Hudnall, Andrew G. Tennyson, and Christopher W. Bielawski*
Department of Chemistry and Biochemistry, The University of Texas at Austin, Austin,
Texas 78712, United States
Received August 6, 2010
Condensation of N,N0-dimesitylformamidine with phthaloyl chloride afforded 1 HCl, which, upon
3
treatment with base, afforded 2,4-dimesitylbenzo[e][1,3]diazepin-1,5-dione-2-ylidene (1), a seven-membered
N,N0-diamidocarbene (DAC), in high yield (85%). The free DAC was used to synthesize four new,
late transition metal complexes: [Rh(cod)(1)Cl] (2a) (cod = 1,5-cyclooctadiene), [Ir(cod)(1)Cl] (2b),
[Rh(CO)2(1)Cl] (3a), and [1-AuCl] (5). The Tolman electronic parameter (TEP) of 1 was calculated
to be 2047 cm-1 from the IR spectrum of 3a. This TEP value is approximately 10 cm-1 lower than
known DACs and 5 cm-1 lower than known imidazol-2-ylidenes, indicating that DAC 1 is a rela-
tively strong electron donor. Additionally, electrochemical analyses of 2a and 2b corroborated the IR
data obtained on 3a and revealed E1/2 values that were shifted cathodically by ca. 0.16 V when com-
pared to analogous complexes supported by N-heterocyclic carbenes. The gold complex 5 was found to
catalyze the hydration of phenylacetylene, affording acetophenone in yields up to 78% after 12 h at
80 °C at a catalyst loading of 2 mol %. Treatment of 1 with 2,6-dimethylphenylisocyanide afforded N,
N0-diamidoketenimine 4 as a thermally robust, crystalline solid.
Introduction
N-Heterocyclic carbenes (NHCs), comprising a divalent carbene
nucleus flanked by one or two nitrogen atoms in particular,3
have led to great advances in synthetic chemistry, especially
in homogeneous catalytic transformations that are mediated
by transition metal complexes4 and organic compounds.5 In
contrast, the utility of NHCs and other stabilized carbenes to
activate industrially important small molecules remains largely
undeveloped.6 Bertrand reported the first examples of splitting
both dihydrogen (H2) and ammonia (NH3) via H-X bond
polarization using alkyl amino carbenes (AACs) I and II
(Figure 1).6a Although likely to be more electrophilic than
NHCs, the remarkable reactivities exhibited by the AACs are
believed to be due to an increased nucleophilic character.6a
Recently, we discovered that N,N0-diamidocarbenes (DACs)
IIIa and IIIb (Figure 1) also display an unusual combination
of electrophilic and nucleophilic characteristics.7 In addition
to their abilities to coordinate a range of transition metals
and couple with electrophilic organic substrates (e.g., CS2),
DACs III were found to engage in reactions atypical of NHCs,
including intramolecular C-H insertion,7a coupling with iso-
cyanides to form ketenimines,7b coupling with carbon mon-
oxide in a reversible manner,6b,7a,8 and activation of NH3.6b
Despite forcing conditions, however, III was unable to activate
Heteroatom-stabilized singlet carbenes were first described
by Breslow and later by Wanzlick as reactive intermediates
more than half a century ago;1 however, the field lay fallow
until Bertrand’s landmark report of a stable, free carbene
several decades later.2 Since then, in the chemistry of these
once-elusive divalent carbon species has entered a renaissance.3
*To whom correspondence should be addressed. E-mail: bielawski@
cm.utexas.edu.
(1) (a) Breslow, R. J. Am. Chem. Soc. 1958, 80, 3719–3726. (b) Wanzlick,
H. W.; Schikora, E. Angew. Chem. 1960, 72, 494.
(2) (a) Igau, A.; Grutzmacher, H.; Baceiredo, A.; Bertrand, G. J. Am.
Chem. Soc. 1988, 110, 6463–6466. (b) Igau, A.; Baceiredo, A.; Trinquier, G.;
Bertrand, G. Angew. Chem., Int. Ed. 1989, 28, 621–622.
(3) (a) Arduengo, A. J., III; Harlow, R. L.; Kline, M. J. Am. Chem. Soc.
1991, 113, 361–363. (b) Bourissou, D.; Guerret, O.; Gabbaï, F. P.; Bertrand, G.
€
Chem. Rev. 2000, 100, 39–91. (c) Ofele, K.; Tosh, E.; Taubmann, C.; Herrmann,
ꢀ
W. A. Chem. Rev. 2009, 109, 3408–3444. (d) Díez-Gonzalez, S.; Marion, N.;
Nolan, S. P. Chem. Rev. 2009, 109, 3612–3676. (e) Arduengo, A. J., III. Acc.
Chem. Res. 1999, 32, 913–921. (f) Crudden, C. M.; Allen, D. P. Coord. Chem.
Rev. 2004, 248, 2247–2273. (g) Hahn, F. E.; Jahnke, M. C. Angew. Chem., Int.
Ed. 2008, 47, 3122–3172. (h) Scott, N. M.; Nolan, S. P. Eur. J. Inorg. Chem.
2005, 10, 1815–1828. (i) Cavallo, L.; Correa, A.; Costabile, C.; Jacobsen, H.
J. Organomet. Chem. 2005, 690, 5407–5413. (j) Marion, N.; Díez-Gonzalez,
S.; Nolan, S. P. Angew. Chem., Int. Ed. 2007, 46, 2988–3000.
ꢀ
(4) For reviews of catalytically active transition metal complexes
containing NHCs, see: (a) Herrmann, W. A. Angew. Chem., Int. Ed.
2002, 41, 1290–1309. (b) Peris, E.; Crabtree, R. H. Coord. Chem. Rev. 2004,
248, 2239–2246. (c) Cavell, K. J.; McGuiness, D. S. Coord. Chem. Rev.
2004, 248, 671–681. (d) Kantchev, E. A. B.; O'Briend, C. J.; Organ, M. G.
Angew. Chem., Int. Ed. 2007, 46, 2768–2813. (e) Colacino, E.; Martinez, J.;
Lamaty, F. Coord. Chem. Rev. 2007, 251, 726–764. (f) Samojzowicz, C.;
Bieniek, M.; Grela, K. Chem. Rev. 2009, 109, 3708–3742.
(6) (a) Frey, G. D.; Lavallo, V.; Donnadieu, B.; Schoeller, W. W.;
Bertrand, G. Science 2007, 316, 439–441. For an example of an N,N0-
diamidocarbene shown to split NH3, see: (b) Hudnall, T. W.; Moerdyk, J. P.;
Bielawski, C. W. Chem. Commun. 2010, 46, 4288–4290.
(7) (a) Hudnall, T. W.; Bielawski, C. W. J. Am. Chem. Soc. 2009, 131,
16039–16041. (b) Hudnall, T. W.; Moorhead, E. J.; Gusev, D. G.; Bielawski,
ꢀ
(5) (a) Jeong, W.; Shin, E. J.; Culkin, D. A.; Hedrick, J. L.; Waymouth,
R. M. J. Am. Chem. Soc. 2009, 131, 4884–4891. (b) Jeong, W.; Hedrick, J. L.;
Waymouth, R. M. J. Am. Chem. Soc. 2007, 129, 8414–8415. (c) Nyce, G. W.;
C. W. J. Org. Chem. 2010, 75, 2763–2766. (c) Cesar, V.; Lugan, N.; Lavigne,
G. Eur. J. Inorg. Chem. 2010, 361–365. (d) For efforts toward five-membered
DACs, see: Hobbs, M. G.; Forster, T. D.; Borau-Garcia, J.; Knapp, C. J.;
Tuononen, H. M.; Roesler, R. New J. Chem. 2010, 34, 1295–1308.
(8) AACs were previously shown to couple to CO to form ketenes that
were stable to temperatures exceeding 96 °C; see: Lavallo, V.; Canac, Y.;
Donnadieu, B.; Schoeller, W. W.; Bertrand, G. Angew. Chem., Int. Ed.
2006, 45, 3488–3491.
€
Glauser, T.; Connor, E. F.; Mock, A.; Waymouth, R. M.; Hedrick, J. L. J. Am.
Chem. Soc. 2003, 125, 3046–3056. (d) Chan, A.; Scheidt, K. A. J. Am. Chem.
Soc. 2008, 130, 2740–2741. (e) Chan, A.; Scheidt, K. A. J. Am. Chem. Soc.
ꢀ
2006, 128, 4558–4559. (e) Marion, N.; Díez-Gonzalez, S.; Nolan, S. P. Angew.
Chem., Int. Ed. 2007, 46, 2988–3000.
r
2010 American Chemical Society
Published on Web 09/29/2010
pubs.acs.org/Organometallics

4570 Organometallics, Vol. 29, No. 20, 2010
Hudnall et al.

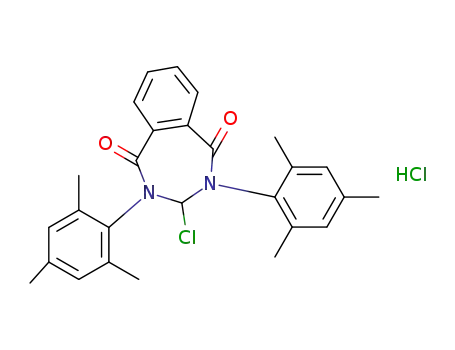

Scheme 1. Synthesis of DAC 1a
