hybrid system 3a was specifically constructed to increase the
anisotropy of the crystal, resulting in a dramatic alteration of
the optical properties of a well-known type of material. The
presence of the guest molecules is essential for ‘‘gluing’’ the
host molecules together and the overall acentricity of the
system is derived from multiple sources—i.e. both components
of the host framework, as well as the guest molecules exhibit
polar alignment. The guest templates the formation of the host
framework, which in turn templates the polar alignment of
the guest.
Notes and references
Fig. 3 Plot of the relationship between the input power of the
fundamental wave (800 nm) and the measured intensity of the second
harmonic wave (400 nm) for 1a to 3a.
z Crystal data for 1a: C109H120Cl4O12, M = 1763.96, colorless block,
3
ꢀ
0.38 ꢂ 0.23 ꢂ 0.11 mm , trigonal, space group R3 (No. 148), a = b =
26.8078(12), c = 10.8706(10) A, V = 6765.6(8) A3, Z = 18,
Dc = 1.299 g cmꢁ3, F000 = 2814, MoKa radiation, l = 0.71073 A,
T = 100(2) K, 2ymax = 56.51, 14 393 reflections collected, 3588 unique
(Rint = 0.0569). Final GooF = 1.037, R1 = 0.0515, wR2 = 0.1288, R
indices based on 2853 reflections with I 4 2s(I) (refinement on F2),
200 parameters, 2 restraints. Lp and absorption corrections applied,
m = 0.196 mmꢁ1. Crystal data for 2a: C110H120Cl8O6S6, M = 2014.08,
and contains a total of two disordered CCl4 guest molecules
(see Fig. 2). In this case, the two components of the disordered
model are not related to each other by the crystallographic
symmetry, although the rationalization of the alignment of the
guest molecules in 3a is similar to that for 2a. That is, owing to
spatial constraints, all of the guest molecules in any given
column are aligned such that they have the same orientation
along [001]. However, the enforced asymmetry of the cavity
introduces a bias such that the disorder no longer represents a
50 : 50 distribution of the overall direction of the polar
alignment of the guest molecules. Refinement against intensity
data yielded a model for CCl4 that is biased 85 : 15 in favor of
alignment of the crystallographically trigonal C–Cl bond in
the direction of the host phenolic moiety (the green guest
molecules in Fig. 1c).
3
ꢀ
light yellow block, 0.30 ꢂ 0.27 ꢂ 0.21 mm , trigonal, space group R3
(No. 148), a = b = 26.6320(19), c = 12.0349(17) A, V = 7392.3(13)
A3, Z = 3, Dc = 1.357 g cmꢁ3, F000 = 3180, MoKa radiation,
l = 0.71073 A, T = 100(2) K, 2ymax = 56.61, 15 611 reflections
collected, 3863 unique (Rint = 0.0602). Final GooF = 1.063,
R1 = 0.0651, wR2 = 0.1855, R indices based on 3220 reflections with
I 4 2s(I) (refinement on F2), 215 parameters, 6 restraints. Lp and
absorption corrections applied, m = 0.412 mmꢁ1. Crystal data for 3a:
C110H120Cl8O9S3, M = 1965.87, colorless block, 0.25 ꢂ 0.21 ꢂ
0.18 mm3, trigonal, space group R3 (No. 146),
a
=
b
=
=
26.6670(16), c = 11.7710(14) A, V = 7249.2(11) A3, Z = 3, Dc
1.351 g cmꢁ3, F000 = 3108, MoKa radiation, l = 0.71073 A,
T = 100(2) K, 2ymax = 56.51, 15 661 reflections collected, 7407 unique
(Rint = 0.0346). Final GooF = 0.976, R1 = 0.0593, wR2 = 0.1375, R
indices based on 5469 reflections with I 4 2s(I) (refinement on F2),
410 parameters, 35 restraints. Lp and absorption corrections applied,
m = 0.358 mmꢁ1. Absolute structure parameter8 = 0.06(7).
It is interesting to note that desolvation of 2a results in the
formation of a polycrystalline powder comprising a mixture of

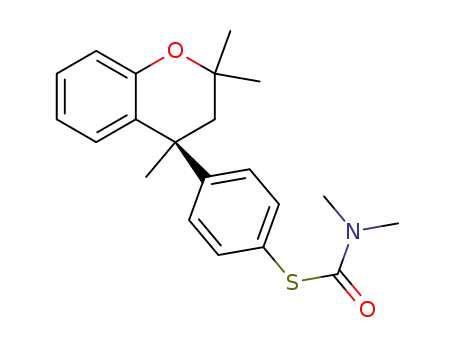

resolved (R)-2 and (S)-2 (see ESIw). Similarly, 3a desolvates to
yield resolved (R)-1 and (S)-2. These experiments imply that
the presence of guest is essential for the formation of the
racemic or quasiracemic host framework.
1 D. Y. Curtin and I. C. Paul, Chem. Rev., 1981, 81, 525.
2 (a) P. J. Langley and J. Hulliger, Chem. Soc. Rev., 1999, 28, 279;
(b) K. D. M. Harris, Chem. Soc. Rev., 1997, 26, 279; (c) D. F. Eaton,
A. G. Anderson, W. Tam and Y. Wang, J. Am. Chem. Soc., 1987,
109, 1886; (d) Y. Wang and D. F. Eaton, Chem. Phys. Lett., 1985,
120, 441; (e) W. Tam, D. F. Eaton, J. C. Calabrese, I. D. Williams,
Y. Wang and A. G. Anderson, Chem. Mater., 1989, 1, 128;
Since 3a is noncentrosymmetric in terms of the arrangement
of both host and guest, the crystals were expected to exhibit
bulk SHG properties. Optical measurements were carried out
on single crystals of 1a, 2a and 3a. Indeed, only 3a exhibited
intense SHG for incident light of wavelength 800 nm (red
laser), whereas 1a and 2a produced no significant second
harmonic response (Fig. 3), even for incident intensities up
(f) O. Konig, H. B. Burgi, T. Armbruster, J. Hulliger and
¨
¨
T. Weber, J. Am. Chem. Soc., 1997, 119, 10632;
(g) V. Ramamurthy and D. F. Eaton, Chem. Mater., 1994, 6, 1128.
3 (a) A. Collet and J. Jacques, Isr. J. Chem., 1977, 15, 82;
(b) J. H. Gall, A. D. U. Hardy, J. J. McKendrick and
D. D. MacNicol, J. Chem. Soc., Perkin Trans. 2, 1979, 376.
4 G. O. Lloyd, J. Alen, M. W. Bredenkamp, E. J. C. de Vries,
C. Esterhuysen and L. J. Barbour, Angew. Chem., Int. Ed., 2006,
45, 5354.
to 88 GW cmꢁ2
.
In summary, we have expanded upon the concept of
utilizing quasiracemates7 in order to sculpt the topology of
the guest-accessible space of a noncentrosymmetric inclusion
compound. Our approach has been to exploit the notion that,
although quasiracemates mimic the structural patterns of their
racemic counterparts, they are devoid of inversion symmetry
in a rigorous sense, owing to stereochemical restrictions. Thus
a rational design strategy has been devised and implemented to
control guest alignment within the well-known Dianin’s host
system by introducing asymmetry. In this contribution we
have rationalized the lack of polar order in the two related
racemic host frameworks 1a and 2a, and have shown that
these materials exhibit no NLO activity. The quasiracemic
5 M. J. Brienne and J. Jacques, Tetrahedron Lett., 1975, 16, 2349.
6 A. D. U. Hardy, J. J. McKendrick, D. D. MacNicol and
D. R. Wilson, J. Chem. Soc., Perkin Trans. 2, 1979, 729.
7 (a) S. L. Fomulu, M. S. Hendi, R. E. Davis and K. A. Wheeler,
Cryst. Growth Des., 2002, 2, 645; (b) S. L. Fomulu, M. Hendi,
R. E. Davis and K. Wheeler, Cryst. Growth Des., 2002, 2, 637;
(c) M. S. Hendi, R. E. Davis, V. M. Lynch and K. A. Wheeler,
Cryst. Eng., 2001, 4, 11; (d) M. S. Hendi, P. Hooter, R. E. Davis,
V. M. Lynch and K. A. Wheeler, Cryst. Growth Des., 2004, 4, 95;
(e) A. M. Lineberry, E. T. Benjamin, R. E. Davis, W. S. Kassel and
K. A. Wheeler, Cryst. Growth Des., 2008, 8, 612; (f) M. E. Breen,
S. L. Tameze, W. G. Dougherty, W. S. Kassel and K. A. Wheeler,
Cryst. Growth Des., 2008, 8, 3863; (g) K. A. Wheeler, R. C. Grove,
R. E. Davis and W. S. Kassel, Angew. Chem., Int. Ed., 2008, 47, 78.
8 H. D. Flack, Acta Crystallogr., Sect. A, 1983, 39, 876.
c
This journal is The Royal Society of Chemistry 2010
Chem. Commun., 2010, 46, 8341–8343 8343
