T.N. Ahipa et al. / Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy 124 (2014) 230–236
231
Table 1
2-methoxy-3-cyanopyridine acts as an electron deficient lumines-
cent core (acceptor) and two substituents, viz. 4-methylphenyl and
4-methoxyphenyl groups attached to 2-methoxy-3-cyanopyridine
core, act as electron donor moieties, leading to a good donor–
acceptor networking. The newly designed compound 2 was syn-
thesized from 1-(4-methoxy-phenyl)-3-p-tolyl-propenone (1) by
reacting it with malononitrile in basic medium. Its structure was
established using 1H NMR, FTIR, mass spectral as well as elemental
analyses and its photophysical properties were investigated by
UV–visible, and fluorescence spectroscopy. Also, the solvatochro-
mic behaviour of the compound was studied in various solvent sys-
tems. Further, its 3-D structure, shape and nature of short contacts
were investigated by single crystal X-ray study. Finally, its DFT cal-
culations were carried out to obtain optimized geometry and the-
oretical IR stretching vibrations.
Crystal and structure refinement data for compound (2).
Compound
2
Formula
C
21H18N2O2
Formula weight
CCDC number
Temperature (K)
Crystal form
Colour
Crystal system
Space group
a (Å)
330.38
933190
296 (2)
Block
Yellow
Monoclinic
P21/c
7.9324(2)
14.7056(5)
14.7951(5)
90
97.340(2)
90
b (Å)
c (Å)
a
(°)
b (°)
(°)
c
Volume (Å3)
Z
97.340(2)
4
1.282
Density (g cmÀ3
)
Experimental details
l
(mmÀ1
)
0.083
F (000)
696
Materials and measurements
hmin,
À9,9
max
kmin,
À18,17
À18,18
3370
max
The infrared spectrum of compound 2 was recorded on a Nicolet
Avatar 5700 FTIR (Thermo Electron Corporation). UV–visible and
fluorescence spectra were taken in GBC Cintra 101 and Perkin
Elmer LS55 fluorescence spectrophotometers in different non-
polar and polar organic solvents. 1H NMR spectrum was recorded
on a Bruker Avance DPX spectrometer at 300 MHz using DMSO-
d6 as the solvent with Tetramethylsilane (TMS) as internal stan-
dard, and data are reported in the order: chemical shift (ppm),
number of protons, multiplicity (s, singlet; d, doublet; dd, doublet
of doublet; t, triplet; q, quartet; m, multiplet; br, broad), approxi-
mate coupling constant (J) in hertz, and assignment of a signal.
Mass spectrum was recorded on Agilent technologies LC/MSD Trap
XCD mass spectrometry. An elemental analysis was performed on a
Flash EA1112 CHNS analyser (Thermo Electron Corporation).
Analytical thin layer chromatography (TLC) was performed on
pre-coated silica gel plates (Merck 60 Kieselgel F 254) and visual-
ised with UV light. DFT calculations were carried out by using
Turbomole software package.
lmin,
max
Reflections collected
Independent reflections
R_all, R_obs
2572
0.0579,0.046
0.1291,0.1182
À0.175,0.222
1.073
wR2_all, wR2_obs
D
qmin, max (e ÅÀ3
)
GOOF
Pyridine is an interesting stable n-type heterocyclic system,
which has attracted attention of many researchers for the design
of new conjugated materials [7–16]. In addition, since pyridine is
a highly electron-deficient heterocycle, it imparts good electron-
transporting ability and brings an excellent optical properties,
when it is present in donor and acceptor (DA) type conjugated sys-
tems. Further, field of pyridine has been of much interest owing to
its high thermal as well as chemical stability. In effect, the presence
of highly electron withdrawing nitrile (CN) substituent on the pyr-
idine ring can further promote its electron-transporting nature
[17]. In view of the observed fact that cyanopyridine is an attrac-
tive molecule with good electron transporting and photophysical
properties, many of its derivatives were shown to possess good
thermal and photochemical stability [18], high luminescence
efficiency and novel optoelectronic properties [18]. Also, it was re-
ported that insertion of an electron withdrawing cyanopyridine
ring in a DA type molecular network lowers its band gap [17].
Against this background, Bagley et al. synthesized various cyano-
pyridine derivatives bearing easily-interchangeable electron-
donating and electron-accepting groups, based on DA concept
and investigated their photoemissive properties [19]. Interestingly,
many cyanopyridine derivatives were found to possess good tune-
able photophysical behaviour and excellent quantum yields.
Motivated by the above findings, and keeping in view of
developing new cyanopyridine based luminescent materials, we

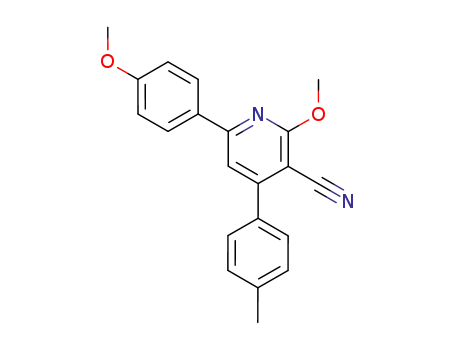

have designed a new DA type compound, viz. 2-methoxy-6-(4-
methoxy-phenyl)-4-p-tolyl-nicotinonitrile (2). In the new design,
Synthesis
1-(4-Methoxy-phenyl)-3-p-tolyl-propenone (1)
The 4-methoxyacetophenone (1 equivalent) and 4-methylbenz-
aldehyde (1 equivalent) were taken in 5 mL of ethanol. To this 1 mL
of aqueous potassium hydroxide (1.2 equivalents) solution was
added slowly. Reaction mixture was then stirred at room temper-
ature for 4 h. The precipitated product was filtered, washed with
water and recrystallized from methanol. White solid, yield 92%,
m.p. 197–198 °C. IR (ATR, cmÀ1): 2917, 2841, 1651, 1253, 1019,
804. Anal. Calcd. For. C17H16O2: C, 80.93; H, 6.39; Found: C.
81.09; H. 6.44.
2-Methoxy-6-(4-methoxy-phenyl)-4-p-tolyl-nicotinonitrile (2)
1-(4-Methoxy-phenyl)-3-p-tolyl-propenone (1) (1 equivalent)
was added slowly to a freshly prepared solution of sodium
OMe
CN
N
O
Malononitrile
NaOMe, rt
MeO
Me
MeO
Me
1
2
Scheme 1. Synthesis of 2-methoxy-6-(4-methoxy-phenyl)-4-p-tolyl-nicotinonitrile.
