Enzymatic desymmetrization of a centrosymmetric diacetate

Article abstract of DOI:10.1016/S0957-4166(02)00787-5

An enantiomerically pure cyclohexanol was synthesized starting from para-xylene 1. The key steps are a stereoselective twofold hydroboration and a pig liver esterase (PLE)-catalyzed desymmetrization of the centrosymmetric cyclohexanediacetate 4.

Full text of DOI:10.1016/S0957-4166(02)00787-5

TETRAHEDRON:
ASYMMETRY
Pergamon
Tetrahedron: Asymmetry 14 (2003) 71–74
Enzymatic desymmetrization of a centrosymmetric diacetate
C. Bo¨hm, W. F. Austin and D. Trauner*
Center for New Directions in Organic Synthesis, Department of Chemistry, University of California, Berkeley, CA 94720, USA
Received 13 August 2002; accepted 2 September 2002
Abstract—An enantiomerically pure cyclohexanol was synthesized starting from para-xylene 1. The key steps are a stereoselective
twofold hydroboration and a pig liver esterase (PLE)-catalyzed desymmetrization of the centrosymmetric cyclohexanediacetate 4.
© 2003 Elsevier Science Ltd. All rights reserved.
1. Introduction
hexanol featuring an enzymatic hydrolysis of the corre-
sponding centrosymmetric diacetate.
The desymmetrization of readily available meso com-
pounds to yield enantiomerically enriched products has
proven to be a valuable synthetic operation.1 While this
strategy has been widely applied to Cs symmetrical
substrates, few examples of the desymmetrization of
molecules belonging to the molecular point group Ci
(=S2), or other centrosymmetric substrates, have been
described. As early as 1958, Prelog et al. reported the
enantiotopos-selective reduction of a centrosymmetric
decalin-dione using baker’s yeast.2 Very recently, the
desymmetrization of a Ci-symmetrical bis-epoxide via
metal-catalyzed epoxide hydrolysis was disclosed.3 We
now report a route to an enantiomerically pure cyclo-
2. Results and discussion
Birch-reduction of para-xylene 14 yielded 1,4-dimethyl-
cyclohexa-1,4-diene 2, which subsequently underwent
hydroboration with excess 9-BBN-H. Oxidative workup
gave the crystalline centrosymmetric diol 3 as the only
isolated diastereomer and regioisomer in 39% overall
yield. No C2-symmetric diol was observed. Presumably,
the high diastereoselectivity of the reaction results from
preferential addition of the second borane molecule to
the side opposite the bulky 9-BBN moiety in the
Scheme 1. Preparation of the centrosymmetric diacetate 4. Reagents and conditions: (a) Na, NH3, MeOH, THF; (b) i. 9-BBN (3
equiv.), THF, ii. H2O2, NaOH, 39%; (c) Ac2O, NEt3, DMAP, CH2Cl2, 98%; (d) n-BuLi (1 equiv.), Ac2O, 54%.
* Corresponding author. E-mail: trauner@cchem.berkeley.edu
0957-4166/03/$ - see front matter © 2003 Elsevier Science Ltd. All rights reserved.
PII: S0957-4166(02)00787-5

72
C. Bo¨hm et al. / Tetrahedron: Asymmetry 14 (2003) 71–74
monoadduct. Upon treatment with Ac2O in the pres-
ence of NEt3 and DMAP, the diol 3 was converted into
the diacetate 4 in 98% yield. Monodeprotonation of the
diol 3 with n-BuLi (1 equiv.) followed by addition of
Ac2O, gave the racemic monoacetate 5 in 54% yield
(Scheme 1).
Arguably, esterases such as pig liver esterase (PLE)
have proven to be the most widely successful enzymes
in asymmetric synthesis.5 They are cheap, stable, do not
require a coenzyme and tolerate a wide variety of
substrates. The PLE-catalyzed hydrolysis of 4 gave rise
to the enantiomerically pure cyclohexanediol monoac-
etate (+)-5 in 95% yield and >99.5% e.e. (Table 1).
Importantly, no further hydrolysis of the second acetate
to afford 3 could be detected (by GC). This implies that
the high e.e. does not result from kinetic resolution
following the initial enantiotopos-discriminating
hydrolysis.6
Scheme 2. Determination of the absolute configuration of
(+)-5.
Table 1. Enzymatic hydrolysis of the diacetate 4
Figure 1. X-Ray structure of (−)-7.
Entry
Additive
–
Conversion
(%)a
React. time E.e.b (%)
(h)
1
2
100
20
17
\99.5
\99.5
3. Conclusion
10% DMSO 100
In summary, we have achieved an asymmetric synthesis
of the cyclohexanol (+)-5 from readily available racemic
starting materials in a highly enantioselective fashion.
Our work demonstrates the usefulness of PLE for the
desymmetrization of centrosymmetric diacetates. Stud-
ies on the scope and limitations of this methodology
and its application to the total synthesis of natural
products are underway and will be reported in due
course.
a Reaction was monitored by GC.
b ee was determined by chiral GC.
It has been reported that the presence of various
organic cosolvents have a dramatic effect on the rate
and selectivity of enzyme-catalyzed reactions.7,8 How-
ever, we observed only moderate rate enhancement for
the hydrolysis of 4 in the presence of 10% DMSO and
no significant impact on the enantioselectivity (Table
1).
4. Experimental
4.1. General
The absolute configuration of our enantiomerically
pure monoacetate (+)-5 was established by X-ray crys-
tallography. Unfortunately, the para-bromo-benzoate
of (+)-5 did not yield high quality single crystals. There-
fore, the camphanic acid ester derivative (−)-7 was
synthesized in 76% yield using standard conditions
(Scheme 2). The latter was crystallized and analyzed by
X-ray diffraction (Fig. 1).9 The X-ray structure shows
that the pro-(R)-acyl group is preferentially hydrolyzed
by PLE. This is in accordance with the results of
Schneider and Laumen, who examined the enzymatic
hydrolysis of Cs-symmetric prochiral diesters.10
Unless otherwise noted, all reagents were purchased
from commercial suppliers and used without further
purification. PLE was purchased from Sigma. Melting
points were measured on a Bu¨chi melting point appara-
tus and are uncorrected. 1H NMR and 13C spectra were
recorded on a Bruker DRX 500 or Bruker AMX 300.
Optical rotations were measured on a Perkin–Elmer
241 polarimeter. Mass spectra were recorded on a VG
ProSpec. Silica gel chromatography was carried out
,
using ICN SiliTech 32–63 D 60 A. Thin-layer chro-
matography (TLC) was performed with Merck Silica

C. Bo¨hm et al. / Tetrahedron: Asymmetry 14 (2003) 71–74
73
Gel 60 plates. Elemental analysis was performed by the
Microanalytical Laboratory operated by the UCB Col-
lege of Chemistry. X-Ray analysis was performed on a
Bruker SMART CCD area-detector diffractometer.
170.8; MS (EI): 228 [M+] (5), 169 [M+−HOAc] (50), 108
(100); IR (KBr): w=3428, 2930, 1731, 1373, 1246, 1108,
1025 cm−1. Anal. calcd for C10H18O3: C, 64.49; H, 9.74.
Found: C, 64.25; H, 10.09%. The e.e. was determined
by GC on a chiral column: HP 6850 Series GC system,
HP 7683 Series Injector, detector: FID, 250°C, column:
Astec 71023, b-cyclodextrin, 30.0 m×250 mm×0.25 mm,
method: 90°C, 5 min; +5°C/min, 135°C, 70 min, −15°C/
min. Retention time: 34.2 min.
4.2. Compounds

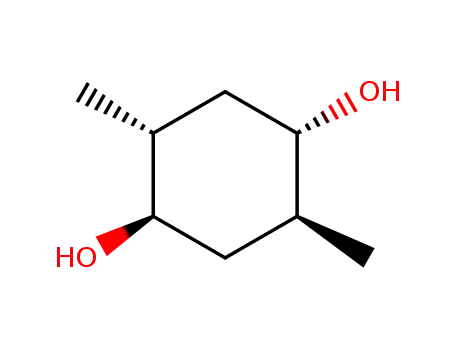

4.2.1. 2,5-Dimethylcyclohexan-1,4-diol, 3. To a nitrogen-
purged reaction flask containing a solution of 9-BBN in
THF (0.5 M, 18 mL, 9.0 mmol, 3 equiv.) was added
diene 2 (324 mg, 3 mmol, 1 equiv.). The solution was
heated to reflux for 24 h. After cooling to 0°C, aqueous
NaOH (2.5 M, 5 mL) and 30% aqueous H2O2 (5 mL)
was added carefully. Upon complete addition, the mix-
ture was heated to reflux for an additional hour, cooled
to 0°C, and satd aq. NaCl (25 mL) and EtOAc (25 mL)
were added. The layers were separated, and the
aqueous layer was extracted with EtOAc (3×20 mL),
dried with MgSO4, filtered, and concentrated. The
crude product was purified by chromatography (hex-
anes/EtOAc, 1:2 v/v) to provide the desired diol 3 as a
colorless solid (170 mg, 39%). Mp 156°C; 1H NMR
(300 MHz, CDCl3): l=1.03 (d, J=6.5 Hz, 3H, CH3),
1.45 (m, 2H), 1.51 (m, 2H), 1.93 (m, 1H), 3.20 (dd,
J=11.0, 4.5 Hz, 1H); 13C NMR (75 MHz, CDCl3):
l=18.1, 38.5, 41.9, 75.3. MS (EI): 144 [M+], 126 [M+−
H2O] (90), 71 (50), 57 (100); IR (KBr): w=3308, 2923,
1453, 1033 cm−1. Anal. calcd for C8H16O2: C, 66.63; H,
11.18. Found: C, 67.01; H, 11.53%.
4.2.4. (−)-Camphanic acid (4-acetoxy-2,5-dimethyl)-
cyclohexyl ester, (−)-7. A solution of alcohol (+)-5 (18.6
mg, 0.1 mmol, 1 equiv.), acid chloride (−)-6 (26.0 mg,
0.12 mmol, 1.2 equiv.), and NEt3 (21 mL, 0.15 mmol,
1.5 equiv.) in dry CH2Cl2 (5 mL) was stirred first at 0°C
for 1 h, then at rt for 15 h. The solvent was evaporated,
and the crude residue purified by chromatography (hex-
anes/EtOAc 1:1 v/v) to provide 27.8 mg (76%) ester
(−)-7 as a colorless solid. Mp 134°C; [h]D=−8.7 (c 0.85,
CH2Cl2); 1H NMR (500 MHz, CDCl3): l=0.92 (d,
J=6.5 Hz, 6H, 2CH3), 0.96 (s, 3H, CH3), 1.05 (s, 3H,
CH3), 1.11 (s, 3H, CH3), 1.16 (m, 1H), 1.22 (m, 1H),
1.66–1.83 (m, 3H), 1.92 (ddd, J=15.3, 10.7, 4.6 Hz,
1H), 2.00–2.10 (m, 3H), 2.05 (s, 3H, CH3), 2.40 (ddd,
J=14.9, 10.7, 4.2 Hz, 1H), 4.42 (dt, J=10.8, 4.3 Hz,
1H), 4.56 (dt, J=10.8, 4.3 Hz, 1H); 13C NMR (125
MHz, CDCl3): l=9.7, 16.8, 16.9, 17.8, 17.9, 29.0, 30.7,
35.2, 35.4, 37.7, 37.8, 54.1, 54.8, 76.2, 78.1, 91.1, 167.2,
170.8, 178.1; MS (FAB pos.): 367 [M+H+] (25), 109
(100); IR (KBr): w=2967, 1789, 1729, 1451, 1375, 1243
cm−1.
4.2.2. 1,4-Diacetoxy-2,5-dimethylcyclohexane, 4. To an
ice-cooled solution of diol 3 (200 mg, 1.4 mmol, 1
equiv.) in dry CH2Cl2 (20 mL) was added NEt3 (870
mL, 6.24 mmol, 4.5 equiv.) followed by Ac2O (590 mL,
6.24 mmol, 4.5 equiv.) and a trace of DMAP. After
stirring at rt for 3 h (TLC) the solution was concen-
trated and the crude material purified by chromatogra-
phy (hexanes/EtOAc, 1:1 v/v) to provide the diacetate 4
Acknowledgements
C.B. is grateful to C. H. Heathcock for financial sup-
port and Dr. Frederick J. Hollander and Dr. Allen G.
Oliver for the crystal structure determination of com-
pound (−)-7.
1
as a colorless solid (310 mg, 98%). Mp 96°C; H NMR
(300 MHz, CDCl3): l=0.90 (d, J=6.5 Hz, 3H, CH3),
1.14 (m, 2H), 1.70 (m, 1H), 2.04 (s, 3H, OAc), 4.41 (dd,
J=11.0, 4.5 Hz, 1H); 13C NMR (75 MHz, CDCl3):
l=17.8, 21.1, 35.4, 37.8, 76.4, 170.8; MS (EI): 228 [M+]
(5), 169 [M+−HOAc] (50), 108 (100); IR (KBr): w=
2957, 1727, 1372, 1243, 1025 cm−1. Anal. calcd for
C12H20O4: C, 63.14; H, 8.83. Found: C, 63.30; H,
9.00%.
References
1. For a review concerning the desymmetrization of meso
molecules, see: Willis, M. C. J. Chem. Soc., Perkin Trans.
1 1999, 1765–1784.
4.2.3.
(+)-(1R,2R,4S,5S)-4-Acetoxy-2,5-dimethyl-1-
2. (a) Baumann, P.; Prelog, V. Helv. Chim. Acta 1958, 1,
2379–2389; (b) Dodds, D. R.; Jones, J. B. J. Chem. Soc.,
Chem. Commun. 1982, 1080–1081; (c) Dodds, D. R.;
Jones, J. B. J. Am. Chem. Soc. 1988, 110, 577–583.
3. Holland, J. M.; Lewis, M.; Nelson, A. Angew. Chem., Int.
Ed. 2001, 40, 4082–4084.
4. Demuth, M.; Schaffner, K. Angew. Chem. 1982, 809–825.
5. For a review concerning the applications of PLE, see:
Zhu, L.-M.; Tedford, M. C. Tetrahedron 1990, 46, 6587–
6611.
cyclohexanol, (+)-5. A 3.2 M suspension of PLE in aq.
(NH4)2SO4 (140 mL, 2 U) followed by 4 (150 mg, 0.66
mmol, 1 equiv.) was added to aq. Tris–HCl (50 mL, pH
7.5) at rt. The reaction was monitored by GC analysis
and TLC and terminated after complete conversion of
the starting material. The mixture was then extracted
with Et2O (5×50 mL) and the combined organic layers
were washed with brine, dried, and concentrated. Chro-
matography of the residue (Et2O/n-pentane 1:1 v/v)
gave (+)-5 as a colorless oil (116 mg, 95%). [h]D=48.0
6. Schreiber, S. L.; Schreiber, T. S.; Smith, D. B. J. Am.
Chem. Soc. 1987, 109, 1525.
1
(c 0.42, CH2Cl2); H NMR (300 MHz, CDCl3): l=0.90
(d, J=6.5 Hz, 3H, CH3), 1.14 (m, 2H), 1.70 (m, 1H),
2.04 (s, 3H, OAc), 4.41 (dd, J=11.0, 4.5 Hz, 1H); 13C
NMR (75 MHz, CDCl3): l=17.8, 21.1, 35.4, 37.8, 76.4,
7. Polla, M.; Frejd, T. Tetrahedron 1991, 47, 5883–5894.
8. For a review of enzymatic reactions in non-aqueous
media, see: Klibanov, A. M. Nature 2001, 409, 241–246.

74
C. Bo¨hm et al. / Tetrahedron: Asymmetry 14 (2003) 71–74
largest diff. peak: 0.70 and −0.55 e A−3. The crystallo-
graphic data for (−)-7 have been deposited with the
Cambridge Crystallographic Data Centre as supplemen-
tary publication number CDCC 186333. Copies of the
data can be obtained, free of charge, on application to
CCDC, 12 Union Road, Cambridge, CB2 1 EZ, UK [fax:
+44(0)-1223-336033 or e-mail: deposit@ccdc.cam.ac.
uk].
,
9. X-Ray analysis for (−)-7 (crystallized from CH2Cl2/hex-
anes). Empirical formula: C20H30O6, colorless plates,
crystal size: 23.0×0.16×0.06 mm, crystal system: triclinic,
space group: P11, unit cell dimensions: a=6.309(1), b=
,
6.668(1), c=12.406(3) A, h=96.895(3), i=102.879(3),
3
,
k=98.669(3)°, V=496.5(2) A , Z=1, density=1.226 g/
cm3, absorption coefficient=0.89 cm−1, F(000)=198.0;
diffractometer used: Bruker SMART CCD, radiation:
,
Mo-Ka (u=0.71069 A), 2Umax=49.7°, unique reflections:
925, int=0.029, R=0.104, wR=0.111, Rall=0.169,
10. Laumen, K.; Schneider, M. Tetrahedron Lett. 1984, 25,
5875–5878.
R
