Discovery of intestinal targeted TGR5 agonists for
the treatment of type 2 diabetes
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Hongliang Duan,† Mengmeng Ning,† Qingan Zou, Yangliang Ye, Ying Feng, Lina Zhang, Ying
Leng,* Jianhua Shen*
State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica (SIMM), Chinese
Academy of Sciences, Shanghai 201203, China
ABSTRACT
Activation of TGR5 stimulates intestinal glucagonꢀlike peptideꢀ1 (GLPꢀ1) release, but
activation of the receptors in gallbladder and heart has been shown to cause severe on target side
effects. A series of lowꢀabsorbed TGR5 agonists was prepared by modifying compound 2 with
polar functional groups to limit systemic exposure and specifically activate TGR5 in the intestine.
Compound 15c, with a molecular weight of 1401, a PSA value of 223 Å2, and low permeability
on Cacoꢀ2 cells, exhibited satisfactory potency both in vitro and in vivo. Low levels of 15c were
detected in blood, bile, and gallbladder tissue, and gallbladder related side effects were
substantially decreased compared to the absorbed smallꢀmolecule TGR5 agonist 2.
INTRODUCTION
TGR5 (GPBAR1, MꢀBAR, GPCR19) is a G proteinꢀcoupled receptor (GPCR) first identified
as a cellꢀsurface bile acid receptor in 2002.1 Activation of TGR5 promotes secretion of glucagonꢀ
like peptideꢀ1 (GLPꢀ1),2 which activates insulin secretion, suppresses glucagon release as well as
1
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 2 of 44
1
2
slows gastric emptying and suppresses appetite.3,4 Elevated GLPꢀ1 concentrations increase
glucose disposal and decrease blood glucose levels. In addition, TGR5 involves in metabolic
regulation in brown fat and skeletal muscle during energy expenditure.5,6 Since obesity and
weight gain are common complications in type 2 diabetes mellitus (T2DM), TGR5 agonists may
provide new treatments forT2DM and associated metabolic diseases.7,8,9
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Human TGR5 shares 83% amino acid sequence identity with TGR5 in mice.10 TGR5 gene
expression is widely distributed, with moderate expression levels in the intestine, spleen, and
placenta, and greater expression level in the gallbladder.11,12 Activation of TGR5 in gallbladder
epithelium causes smooth muscle relaxation, stimulation of gallbladder filling, and an acute
increase in gallbladder volume.13 TGR5 agonists also produce cardiovascular effects, such as
changes in heart rate.14,15 The gallbladder and cardiac side effects are the main obstacles to the
clinical application of TGR5 agonists.
There are two categories of TGR5 agonists at present. The first series includes naturally
occurring bile acids (BAs) such as cholic acid (CA) and lithocholic acid (LCA),1 and their
semisynthetic derivatives such as 6αꢀethylꢀ23(S)ꢀmethylcholic acid (INT777, 1, Figure 1),16
while the second series consists of synthetic small molecules.17ꢀ23 We previously reported a
series of orally efficacious TGR5 agonists based on 4ꢀphenoxynicotinamide, of which one of the
most potent molecules was [4ꢀ(2,5ꢀdichlorophenoxy)ꢀpyridinꢀ3ꢀyl]ꢀ(4ꢀcyclopropylꢀ3,4ꢀdihydroꢀ
2Hꢀquinoxalinꢀ1ꢀyl)ꢀmethanone (2, Figure 1).24 These agonists exhibited nanomolar potency and
were proved to be effective in lowering glucose levels following an oral administration. High
exposure to intestine caused the secretion of GLPꢀ1, but exposure to other tissues such as
gallbladder and heart resulted in unwanted side effects.24 It was well reported that the volume of
the gallbladder would increase after oral administration of TGR5 agonists.13 To minimize the
2
ACS Paragon Plus Environment

Page 3 of 44
Journal of Medicinal Chemistry
1
2
3
4
5
6
side effects, developing nonꢀsystemic TGR5 agonists specially targeting intestinal system
became our strategy.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. Structures of some TGR5 agonists.
Since TGR5 is expressed in the intestinal tract11 and GLPꢀ1 is an intestinal peptide secreted
from colonic L cells as well,25 localized stimulation of TGR5 within the colon to initiate GLPꢀ1
release is possible.9 This hypothesis is also supported by an ex vivo explant study that TGR5
agonists induces GLPꢀ1 secretion in the explanted intestinal tract.26 Therefore, for the TGR5
agonists, the absorption from the intestine to the plasma may be not necessary to activate
intestinal TGR5 receptors, stimulate secretion of GLPꢀ1, and provide the desired antidiabetic
effect. Nonꢀabsorbed molecular therapeutics are usually developed to interact with intestinal
targets selectively, minimize offꢀtarget systemic effects, and reduce toxicity and sideꢀeffects.27
There are several other nonꢀabsorbed antidiabetic agents including the αꢀglucosidase inhibitor
acarbose,28 the apical sodiumꢀdependent bile acid transporter (ASBT) inhibitor 3ꢀ({[(3R,5R)ꢀ3ꢀ
butylꢀ3ꢀethylꢀ7ꢀ(methyloxy)ꢀ1,1ꢀdioxidoꢀ5ꢀphenylꢀ2,3,4,5ꢀtetrahydroꢀ1,4ꢀbenzothiazepinꢀ8ꢀ
yl]methyl}ꢀamino)pentanedioic acid (GSK2330672),29 and the nonꢀsystemic TGR5 agonists
developed by Exelixis, Inc.30 and Ardelyx, Inc..31 We focus our investigations on nonꢀabsorbed
TGR5 agonists with the expectation that these compounds would exert their therapeutic effects
3
ACS Paragon Plus Environment

Journal of Medicinal Chemistry
Page 4 of 44
1
2
3
4
locally in the gastrointestinal (GI) tract rather than in the gallbladder.
5
6
7
8
We sought to develop a series of nonꢀabsorbed TGR5 agonists by incorporating hydrophilic
groups on to the previously described series to reduce intestinal permeability and restrict
activation of TGR5 to the intestine.32 In our previous study of 4ꢀphenoxynicotinamide
derivatives as TGR5 agonists, a wide range of functional groups including chlorine, bromine,
methyl, and ethyl were well tolerated at 4ꢀposition of the phenoxy moiety, suggesting that this
position may fit into a large pocket within the TGR5 receptor (Figure 1).24 We hypothesized that
hydrophilic groups such as amino acids and PEG chains could be incorporated at this position to
minimize systemic exposure while maintaining potency.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The polar surface area (PSA) correlates well with passive molecular transport throuth
membranes and is an effective approach for predicting drug absorption in the GI tract (the Egan
Egg model).33 It incorporates most of Lipinski’s “rule of 5” for oral bioavailability, including
molecular weight, the number of hydrogen bond acceptors and donors within the compound.27,32
Drugs with a PSA < 60 Å2 are often completely absorbed from the intestine, while drugs with a
PSA > 140 Å2 are usually poorly absorbed.34,35 In this report, the calculated PSA was employed
as a predictive parameter to evaluate the gut permeability of TGR5 agonists, and our aim was to
synthesize analogues well outside the normal range for orally bioavailable drugs, e.g. > 140 Å2
PSA.
CHEMISTRY
Our routes for synthesizing amino acid or PEG containing derivatives of 2 are summarized in

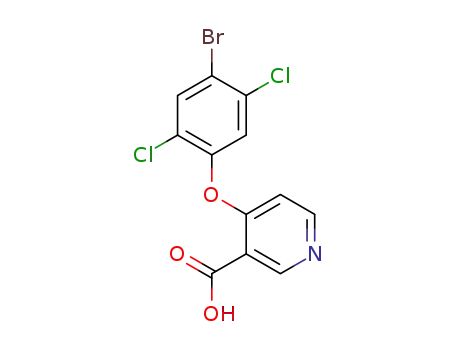

Schemes 1ꢀ3. The key intermediate 4ꢀbromophenoxy derivative 6 was synthesized from the
commercially available 4ꢀchloronicotinic acid as previously reported by our group.24 As shown
in Scheme 1, 4ꢀchloronicotinic acid was converted into the acyl chloride by treatment with
4
ACS Paragon Plus Environment

Page 5 of 44
Journal of Medicinal Chemistry
1
2
3
4
5
6
7
8
9
oxalyl chloride, followed by reaction with ethanol to afford the ester 3. Treatment of intermediate
3 with 4ꢀbromoꢀ2,5ꢀdichlorophenol in the presence of potassium carbonate yielded ester 4, and
subsequent hydrolysis of ester 4 provided acid 5. The aryl bromide intermediate 6 was obtained
by coupling of acid 5 with 1ꢀcyclopropylꢀ1,2,3,4ꢀtetrahydroquinoxaline. Heck reaction of aryl
bromide 6 with ethyl acrylate generated the desired intermediate 7.20 Reduction of the double
bond of olefin 7 with sodium borohydride in the presence of cuprous chloride gave compound 8.
A subsequent hydrolysis with sodium hydroxide yielded the acid 9. This acid was coupled with a
series of amino acid esters using HATU as a coupling reagent to produce the desired compounds
10a-c. Compouds 10d-f were obtained by hydrolysis of esters 10a-c. Compound 12 was
synthesized from intermediate 6 through a Heck reaction with isobutyl butꢀ3ꢀenoate followed by
hydrolysis with sodium hydroxide (Scheme 2). The miniꢀPEG analogues 15a-c were also
prepared from the intermediate 9 (Scheme 3). Coupling of acid 9 with amineꢀPEGꢀazide,
followed by Pd/Cꢀcatalyzed reduction of the azides with hydrogen led to the monoamine
derivatives 14a-c. After a second coupling reaction with acid 9 using HATU as a coupling
reagent, the monoamine derivatives 14a-c were converted into the corresponding dimers 15a-c.
