Synthesis and mesomorphic properties of a series of phenyl 6-(4-alkoxyphenyl)nicotinates

Article abstract of DOI:10.3987/COM-11-12155

A new homologous series of phenyl 6-(4-alkoxyphenyl)nicotinates (nOPNicP, n=3-7) was synthesized. The entire synthetic procedure was completed in a short two-step process. Very good two-step overall yields of 70-80% were obtained and high α-regioselective addition of Grignard reagents to 1-acylnicotinium salts was observed while preparing this series of liquid crystals. Spectral analyses were in accordance with the expected structures. Their thermotropic behaviours were studied using polarizing optical microscopy and further confirmed by differential scanning calorimetry. Smectic A phase was found to be the only mesophase in this series of compounds. The Japan Institute of Heterocyclic Chemistry.

Full text of DOI:10.3987/COM-11-12155

HETEROCYCLES, Vol. 83, No. 5, 2011
1057
HETEROCYCLES, Vol. 83, No. 5, 2011, pp. 1057 - 1065. © The Japan Institute of Heterocyclic Chemistry
Received, 25th January, 2011, Accepted, 22nd March, 2011, Published online, 28th March, 2011
DOI: 10.3987/COM-11-12155
SYNTHESIS AND MESOMORPHIC PROPERTIES OF A SERIES OF
PHENYL 6-(4-ALKOXYPHENYL)NICOTINATES
Win-Long Chia* and Cheng-Yao Tsai
Department of Chemistry, Fu Jen Catholic University, Xinzhuang Dist., New Taipei City
24205, Taiwan, Republic of China. Tel: 2-29053567; Fax: 2-29023209;
E-mail:027087@mail.fju.edu.tw
Abstract — A new homologous series of phenyl 6-(4-alkoxyphenyl)nicotinates
(nOPNicP, n=3-7) was synthesized. The entire synthetic procedure was completed
in a short two-step process. Very good two-step overall yields of 70-80% were
obtained and high –regioselective addition of Grignard reagents to
1-acylnicotinium salts was observed while preparing this series of liquid crystals.
Spectral analyses were in accordance with the expected structures. Their
thermotropic behaviours were studied using polarizing optical microscopy and
further confirmed by differential scanning calorimetry. Smectic A phase was
found to be the only mesophase in this series of compounds.
INTRODUCTION
Advances in the fields such as the applications, the physics, or the theory of liquid crystals depend very
critically upon the organic chemist and his role in synthesizing materials. In studying the effect of
molecular structure on liquid crystalline properties, it is often profitable to examine the effects of making
relatively small changes in the molecular structure of one particular type of liquid crystalline compound,
i.e., retaining the greater part of the molecular skeleton unaltered.1
Although a plethora of pyridine containing liquid crystalline compounds were synthesized before,2-6 only
one Japanese patent concerning nicotine containing liquid crystalline compounds was reported.7
Compounds in the subject patent were claimed to be capable of exhibiting a nematic liquid crystal phase
and useful as a liquid crystal composition for display elements.
Previously, we prepared various 2- or 4-substituted pyridines and alkaloids by regioselective addition of
an organometallic reagent to 1-acylpyridinium salts.8 Recently, we successfully applied this methodology
to prepare some pyridine or quinoline containing liquid crystalline compounds.9 In this paper, we report a
facile and efficient synthesis of
a
homologous series of liquid crystalline phenyl

1058
HETEROCYCLES, Vol. 83, No. 5, 2011

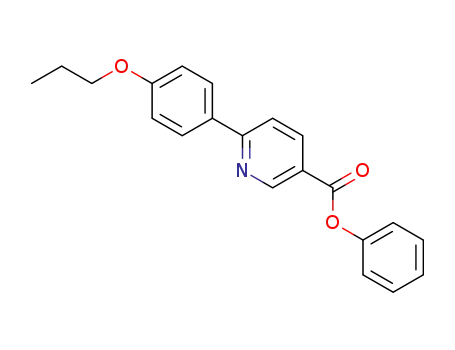

6-(4-alkoxyphenyl)nicotinates (nOPNicP, =3-7) and their mesomorphic studies using differential
scanning calorimetry (DSC) and polarized optical microscopy (POM), respectively. The structure of the
target material is as follows:
O
CnH2n+1
O
N
O
nOPNicP, n=3-7
RESULTS AND DISCUSSION
Synthesis of the phenyl 6-(4-alkoxyphenyl)nicotinates (nOPNicP, n=3-7)
The syntheses of the phenyl 6-(4-alkoxyphenyl)nicotinates (nOPNicP, n=3-7) were carried out in a short
two-step reaction as outlined in Scheme 1.
O
O
O
O
H
THF/N2
< -20 °C
N
N
+
MgBr
CnH2n+1
O
Cl
CnH2n+1
O
O
O
O
O
3
1
2
o-Chloranil
O
O
toluene
CnH2n+1
O
N
4
Scheme 1
First, the Grignard reagents of 4-alkoxyphenylmagnesium bromides (prepared from bromoalkanes and
4-bromophenol) 1 were allowed to react with phenyl N-phenyloxycarbonylnicotinium chloride 2 to afford
a 1,2-dihydronicotinate adducts 3. Then, the 1,2-adducts were oxidized by o-chloranil to afford the
desired products, phenyl 6-(4-alkoxyphenyl)nicotinates (nOPNicP, n = 3-7) 4. Yields of 4 were found to
be excellent in a range of 70-79% (Table 1). This is a valuable approach to synthesizing the phenyl
6-(4-alkoxyphenyl)nicotinates, in which an ester functional group was already built-in in reactant. It is
known that nucleophilic attacking of a Grignard reagent and its regioselectivity on pyridine ring can be
greatly enhanced by phenyl chloroformate.10 Apparently phenyl choloroformate was successfully used in
this experiment not only to enhance the reactivity of pyridine ring but also to prevent the ester group on
the pyridine from being attacked by the Grignard reagent.

HETEROCYCLES, Vol. 83, No. 5, 2011
1059
Table 1. Yields of phenyl 6-(4-alkoxyphenyl)nicotinates (nOPNicP, n = 3-7)
Entry (n)
4a (n=3)
Alkyl
propyl
butyl
Yielda(%)
71
75
79
75
70
4b (n=4)
4c (n=5)
4d (n=6)
4e (n=7)
pentyl
hexyl
heptyl
aIsolated yields by column chromatography (methylene chloride/hexane) on silica gel.
-Regioselectivity of Grignard reagent attacking on the pyridine ring was found to be overwhelmingly
dominant by this synthetic methodology. Trace amounts of -addition product can be easily separated
from those major -addition product using simple liquid chromatography (hexane: methylene choloride =
1: 2.5) due to a high polarity difference in these two compounds.
Thermotropic behaviour of phenyl 6-(4-alkoxyphenyl)nicotinates
Mesophase transition temperatures and their corresponding transition enthalpies were determined by
differential scanning calorimetry (DSC) with heating and cooling rates of 5 ºC min-1 (Table 2). Generally,
even numbers of alkyl chains provide higher isotropic-to-smectic A phase transition temperatures than
those odd-number homologues in the series of nOPNicP compounds. The enthalpies of fusion of phenyl
6-(4-alkoxyphenyl)nicotinates are rather high around 30 KJ mol-1, which could limit the usefulness of
these compounds in forming eutectic mixtures of low melting point.11 The smectic A-to-isotropic
transition enthalpies found in the series of nOPNicP compounds are typically in the range of 4 to 6 KJ
mol-1.
Table 2. Phase transition temperatures (ºC) and corresponding transition enthalpies (KJ mol-1), in
parentheses, for homologous series of nOPNicP, n = 3-7 were determined by the second scans at a
heating and cooling rate of 5 ºC min-1 from differential scanning calorimetry.
Entry(n)
Phase transition temperatures (ºC) and their
corresponding transition enthalpies (KJ mol-1)
Heating
Cooling
4a (n=3)
4b (n=4)
Cr 161.7(38.5) I
Cr 159.4(31.3) I
I 148.5(38.1) Cr
I 149.7(5.1) SA 144.9(28.7) Cr

1060
HETEROCYCLES, Vol. 83, No. 5, 2011
4c (n=5)
4d (n=6)
4e (n=7)
Cr 140.3(33.2) SA 148.8(5.1) I
I 146.9(5.2) SA 102.4(27.6) Cr
I 148.2(4.3) SA 95.34(20.8) Cr
I 147.9(5.6) SA 90.32(23.7) Cr
Cr 128.5(23.7) SA 149.8(4.3) I
Cr 118.3(27.7) SA 149.4(5.7) I
a Cr = crystalline phase, SA = smectic A phase, I = isotropic phase.
A representative DSC thermogram of 5OPNicP is shown in Figure 1. In the cooling process two
exothermic peaks were observed at 146.9 ºC and 102.4 ºC, while two endothermic peaks were observed at
140.3 ºC and 148.8 ºC in the second heating process. This phase transition behaviour was also observed
for the second cooling and third heating processes.
Figure 1. Heating and cooling thermograms of 5OPNicP were determined by the second scans at a rate of
5 ºC min-1 from differential scanning calorimetry
The mesophases of the homologues of phenyl 6-(4-alkoxyphenyl)nicotinates were identified by observing
the optical textures under a polarized optical microscope (POM) with two crossed polarizers. No
mesophase was observed for 3OPNicP, monotropic smectic A phase was observed for 4OPNicP,
enantiotropic smectic A phase was observed for 5OPNicP, 6OPNicP and 7OPNicP. Apparently smectic A
phase, presented in Figure 2, was the only liquid crystalline phase observed in the series of nOPNicP
compounds.

HETEROCYCLES, Vol. 83, No. 5, 2011
1061
Figure 2. Polarized optical micrograph of smectic A texture of phenyl 6-(4-hexoxyphenyl)nicotinate
6OPNicP arises from isotropic phase on cooling to 108.8 ºC with magnification of ×100
In the series of nOPNicP compounds the mesophase-to-crystal transition temperatures were drastically
decreased between n =4 and n =5 and formed an exponentially dropping curve as the series is ascended
whereas the mesophase-to-isotropic transition temperatures varied only slightly at around 150 ºC.
Conversely, an increase in the mesomorphic range was observed as the series is ascended (Figure 3).
During the heating process no smectic phase observed at the lower members can be attributed to their
high melting transition temperatures of 3OPNicP and 4OPNicP.
Figure 3. Plot of transition temperatures as a function of terminal alkyl chain length for compounds of
nOPNicP, n = 3-7 during heating and cooling at 5 ºC min-1
nOPNicP, n=3-7
180
160
140
120
100
80
Sm A
Cr
The
corresponding
benzene
analogues,
especially
those
cyano-substituted
phenyl
4’-alkoxy-[1,1’-biphenyl]-4-carboxylates, present nematic mesophase.11 It is known that in the smectic
layer, dipole moments acting across the long axes of the molecules will reinforce one another and be of
importance in enhancing lateral attraction which retained the smectic phase order.12 Perhaps it is the

1062
HETEROCYCLES, Vol. 83, No. 5, 2011
dipoles from both pyridine and ester functional groups within the nicotine mesogen causing the enhanced
lateral attraction and forming preferably the smectic A phase.
In conclusion, a homologous series of nicotine containing liquid crystalline compounds, phenyl
6-(4-alkoxyphenyl)nicotinates (nOPNicP, n = 3-7), was synthesized. Their phase transition behaviours
were investigated. Smectic A phase was the only liquid crystalline phase observed in the series of
nOPNicP compounds. The nicotinate group in the mesogen provides a strong dipole moment
preferentially in the lateral direction relative to the molecular axis and increases intermolecular lateral
interactions, leading to the generation of solely smectic A phase.
EXPERIMENTAL
All chemicals and solvents were reagent grades from Aldrich Chemical Co. Anhydrous solvents and
chemicals were freshly distilled before use. Silica gel (MN Kieselgel 60, 70-230 mesh) was used for
1
13
column chromatography. The chemical structures of the compounds were analyzed by H and C-NMR
spectra using a Brucker AC 300 spectrometer. Infrared spectra were carried out on a Perkin-Elmer 1600
Series spectrometer. The purity of the compounds was checked by thin-layer chromatography and further
confirmed by elemental analysis.
Mesophases were chiefly identified by examination of the microscopic texture of samples sandwiched
between two glass-plates under a polarizing optical microscope (POM) (Olympus BH-2) equipped with a
Mettler FP90/FP82HT hot stage. Crossed polarizers were used. Phase transition temperatures and their
corresponding transition enthalpies were determined by differential scanning calorimetry (DSC) using a
Perkin-Elmer DSC 7 calorimeter at a scan rate of 5 ºC min-1.
General Procedure for the synthesis of phenyl 6-(4-alkoxyphenyl)nicotinates
For 3d: To a (Grignard) solution of 1-bromo-4-hexoxybenzene (10 mmol) in THF (20 mL) was added
freshly dried magnesium granules (11 mmol) under an inert atmosphere. The Grignard solution 1 was
then slowly added by syringe into a preformed solution of phenyl nicotinium chloride 2, which was
prepared from phenyl chloroformate (10 mmol) and phenyl nicotinate (10 mmol) in dry THF (20 mL) at
-20 ºC, for half an hour. The resulting solution was warmed slowly to rt and stirred for another 8 h. After
evaporating the THF, the residue was extracted with Et2O. The organic layer was further washed once
with 20% aqueous NH4Cl solution and twice with distilled water and brine and dried with magnesium
sulfate. For 4d (6OPNicP): To a solution of dry toluene (20 mL) and crude 3d was added about 1.5eq.
o-chloranil. The reaction mixture was heated to reflux for about 3 h under inert atmosphere and then
quenched by adding 1N NaOH solution (25 mL) and Et2O (25 mL) and filtered through celite. Normal
aqueous work up and isolation with column chromatography (CH2Cl2: hexane = 2.5:1) affords an overall
good yield of phenyl 6-(4-hexoxyphenyl)nicotinate (4d) (75%). The crude 4d, 6OPNicP, was further

HETEROCYCLES, Vol. 83, No. 5, 2011
1063
purified by re-crystallisation several times from EtOAc. Other homologues in nOPNicP series were
synthesized essentially by the same procedure as that described above for the n=6 homologue. Very good
yields (71%-80%) from this short two-step process were obtained (Table 1). All compounds gave
satisfactory data from 1H-NMR, 13C-NMR, ir and elemental analysis as illustrated below.
Phenyl 6-(4-propoxyphenyl)nicotinate (4a)
1H-NMR (CDCl3):  9.40 (d, 1H, J = 1.5 Hz), 8.44 (dd, 1H, J1 = 8.4 Hz, J2 = 2.1 Hz), 8.07 (d, 2H, J = 9.0
Hz), 7.81 (d, 1H, J = 8.4 Hz), 7.46 (t, 2H, J = 7.8 Hz), 7.17-7.37 (m, 3H), 7.03 (d, 2H, J = 8.7 Hz), 4.00 (t,
2H, J = 6.6 Hz), 1.75-1.95 (m, 2H), 1.07 (t, 3H, J = 7.5 Hz). 13C-NMR (CDCl3): ppm 163.9, 161.3, 160.9,
151.1, 150.7, 138.7, 130.0, 129.6, 129.1, 126.2, 123.0, 121.7, 119.2, 115.0, 69.8, 22.6, 10.6. IR (KBr):
cm-1 2984, 2960, 2931, 2874, 1725, 1591, 1490, 1254, 1190, 1015, 836, 771. Anal. Calcd for C21H19NO3:
C, 75.66; H, 5.74; N, 4.20. Found: C, 75.54; H, 5.79; N, 4.14.
Phenyl 6-(4-butoxyphenyl)nicotinate (4b)
1H-NMR (CDCl3):  9.43 (d, 1H, J = 1.8 Hz), 8.50 (dd, 1H, J1 = 8.4 Hz, J2 = 2.1 Hz), 8.10 (d, 2H, J = 9.0
Hz), 7.86 (d, 1H, J = 8.4 Hz), 7.47 (t, 2H, J = 8.1 Hz), 7.17-7.37 (m, 3H), 7.04 (d, 2H, J = 9.0 Hz), 4.05 (t,
2H, J = 6.6 Hz), 1.75-1.95 (m, 2H), 1.45-1.60 (m, 2H), 1.00 (t, 3H, J = 7.5 Hz). 13C-NMR (CDCl3): ppm
163.7, 161.6, 160.5, 150.7, 150.6, 139.2, 129.7, 129.2, 126.3, 123.2, 121.7, 119.6, 115.2, 68.0, 31.3, 19.3,
13.9. IR (KBr): cm-1 2960, 2931, 2870, 1721, 1588, 1463, 1252, 1187, 1015, 830, 773. Anal. Calcd for
C22H21NO3: C, 76.06; H, 6.09; N, 4.03. Found: C, 75.95; H, 6.15; N, 3.96.
Phenyl 6-(4-pentoxyphenyl)nicotinate (4c)
1H-NMR (CDCl3):  9.46 (d, 1H, J = 1.8 Hz), 8.58 (dd, 1H, J1 = 8.4 Hz, J2 = 2.1 Hz), 8.15 (d, 2H, J = 9.0
Hz), 7.91 (d, 1H, J = 8.4Hz), 7.46 (t, 2H, J = 8.1 Hz), 7.17-7.37 (m, 3H), 7.06 (d, 2H, J = 9.0 Hz), 4.05 (t,
2H, J = 6.6 Hz), 1.75-1.95 (m, 2H), 1.35~1.55 (m, 4H), 0.95 (t, 3H, J = 7.2 Hz). 13C-NMR (CDCl3): ppm
160.6, 155.2, 146.8, 137.2, 136.0, 134.5, 130.1, 129.2, 128.4, 128.2, 126.9, 120.1, 115.0, 68.2, 29.0, 28.2,
22.5, 14.0. IR (KBr): cm-1 2963, 2942, 2869, 1726, 1583, 1468, 1247, 1165, 1014, 833, 776. Anal. Calcd
for C23H23NO3: C, 76.43; H, 6.41; N, 3.88. Found: C, 76.47; H, 6.42; N, 3.82.
Phenyl 6-(4-hexoxyphenyl)nicotinate (4d)
1H-NMR (CDCl3):  9.41 (d, 1H, J = 1.8 Hz), 8.46 (dd, 1H, J1 = 8.4 Hz, J2 = 2.1 Hz), 8.08 (d, 2H, J = 9.0
Hz), 7.83 (d, 1H, J = 8.4 Hz), 7.46 (t, 2H, J = 8.1 Hz), 7.17-7.37 (m, 3H), 7.03 (d, 2H, J = 9.0 Hz), 4.04 (t,
2H, J = 6.6 Hz), 1.75-1.90 (m, 2H), 1.30~1.55 (m, 6H), 0.92 (t, 3H, J = 6.9 Hz). 13C-NMR (CDCl3): ppm

1064
HETEROCYCLES, Vol. 83, No. 5, 2011
161.0, 154.6, 145.9, 137.0, 136.7, 134.9, 129.3, 128.9, 128.7, 128.5, 127.0, 120.6, 115.1, 68.3, 31.6, 29.3,
25.8, 22.7, 14.9. IR (KBr): cm-1 2957, 2941, 2871, 1731, 1586, 1471, 1253, 1175, 1015, 833, 775. Anal.
Calcd for C24H25NO3: C, 76.77; H, 6.71; N, 3.73. Found: C, 76.72; H, 6.70; N, 3.65.
Phenyl 6-(4-heptoxyphenyl)nicotinate (4e)
1H-NMR (CDCl3):  9.44 (d, 1H, J = 1.8 Hz), 8.52 (dd, 1H, J1 = 8.4 Hz, J2 = 1.8 Hz), 8.13 (d, 2H, J = 8.7
Hz), 7.88 (d ,1H, J = 8.4 Hz), 7.46 (t, 2H, J = 7.8 Hz), 7.17-7.37 (m, 3H), 7.05 (d, 2H, J = 8.7 Hz), 4.07 (t,
2H, J = 6.6 Hz), 1.75-1.95 (m, 2H), 1.25-1.60 (m, 8H), 0.90 (t, 3H, J = 6.6 Hz). 13C-NMR (CDCl3): ppm
160.7, 155.1, 146.6, 137.1, 136.3, 134.6, 129.8, 129.2, 128.5, 128.3, 127.0, 120.2, 115.0, 68.3, 31.8, 29.3,
29.1, 26.1, 22.7, 14.1. IR (KBr): cm-1 2942, 2922, 2856, 1734, 1591, 1471, 1246, 1165, 1013, 837, 776.
Anal. Calcd for C25H27NO3: C, 77.09; H, 6.99; N, 3.60. Found: C, 77.00; H, 7.00; N, 3.57.
ACKNOWLEDGEMENTS
Financial support of our work by the office of research and development of Fu Jen Catholic University is
gratefully acknowledged.
REFERENCES (AND NOTES)
1. D. Coates, Chemical Structure, Molecular Engineering and Mixture Formulation, in ‘Liquid Crystals:
Applications and Uses’ vol. 1, ed., B. Bahadur, World Scientific, 1990, Chapt. 3, p. 91.
2. (a) J. A. Nash and G. W. Gray, Mol. Cryst. Liq. Cryst., 1974, 25, 299. (b) M. P. Burrow, G. W. Gray,
D. Lacey, and K. J. Toyne, Liquid Crystals, 1988, 3, 1643.
3. (a) L. A. Karamysheva, E. I. Kovshev, A. I. Pavelyuchenko, K. V. Roittman, V. V. Titov, S. I.
Torgova, and M. F. Grebenkin, Mol. Cryst. Liq. Cryst., 1981, 67, 241. (b) M. F. Grebyonkin, V. F.
Petrov, V. V. Belyaev, A. I. Pavelyuchenko, N. I. Smirnova, E. I. Kovshev, and V. V. Titov, Mol.
Cryst. Liq. Cryst., 1985, 129, 245. (c) A. I. Pavelyuchenko, N. I. Smirnova, T. A. Mikhailova, E. I.
Kovshev, and V. V. Titov, Zh. Org. Khim., 1986, 22, 1061. (d) A. I. Pavelyuchenko, V. F. Petrov,
and N. I. Smirnova, Liquid Crystals, 1995, 19, 811.
4. (a) T. Asano, M. Uenoyama, K. Moriya, S. Yano, S. Takatani, and S. Kagabu, Liquid Crystals, 1997,
23, 365. (b) K. Moriya, F. Harada, S. Yano, and S. Kagabu, Liquid Crystals, 1988, 25, 263. (c) K.
Moriya, F. Harada, S. Yano, and S. Kagabu, Liquid Crystals, 2000, 27, 1647.
5. (a) S. M. Kelly, J. Funfschilling, and A. Villiger, Liquid Crystals, 1993, 14, 1169. (b) S. M. Kelly and
J. Funfschilling, Liquid Crystals, 1996, 20, 77.
6. (a) V. Reiffenrath and M. Bremer, Angew. Chem., Int. Ed. Engl., 1994, 33, 1386. (b) Y. A.
Getmanenko, R. J. Twieg, and B. D. Ellman, Liquid Crystals, 2006, 33, 267.

HETEROCYCLES, Vol. 83, No. 5, 2011
1065
7. K. Nigorikawa, T. Isoyama, and Y. Goto, Jpn. Chisso Corp. JP 62175465 (A), 01 Aug 1981.
8. (a) W.-L. Chia and M.-J. Shiao, Tetrahedron Lett., 1991, 32, 2033. (b) T.-L. Shing, W.-L. Chia, M.-J.
Shiao, and T.-Y. Chau, Synthesis, 1991, 849. (c) M.-J. Shiao, W.-L. Chia, C.-L. Peng, and C.-C. Shen,
J. Org. Chem., 1993, 58, 3162. (d) M.-J. Shiao, L.-H. Shih, W.-L. Chia, and T.-Y. Chau,
Heterocycles, 1991, 32, 2111.
9. (a) W.-L. Chia, S.-W. Shen, and H.-C. Lin, Tetrahedron Lett., 2001, 42, 2177. (b) W.-L. Chia and Y.
W. Cheng, Heterocycles, 2008, 75, 375. (c) W.-L. Chia and C. H. Chang, Mol. Cryst. Liq. Cryst.,
2009, 506, 47. (d) W.-L. Chia, K.-H. Liao, and C. I. Ho, Liquid Crystals, 2009, 36, 557. (e) W.-L.
Chia, C.-L. Li, and C.-H. Lin, Liquid Crystals, 2010, 37, 23.
10. (a) D. L. Comins and A. H. Abdullah, J. Org. Chem., 1982, 47, 4315. (b) D. L. Comins, E. D. Stroud,
and J. J. Herrick, Heterocycles, 1984, 22, 151.
11. D. Coates and G. W. Gray, Mol. Cryst. Liq. Cryst., 1975, 31, 275.
12. G. W. Gray, Mol. Cryst. Liq. Cryst., 1966, 1, 333.
