Synthesis and cytotoxic activity of some novel N-pyridinyl-2-(6- phenylimidazo[2,1-b]thiazol-3-yl)acetamide derivatives

Article abstract of DOI:10.3390/molecules17044703

A series of novel compounds bearing imidazo[2,1-b]thiazole scaffolds were designed and synthesized based on the optimization of the virtual screening hit compound N-(6-morpholinopyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl) acetamide (5a), and tested for their cytotoxicity against human cancer cell lines, including HepG2 and MDA-MB-231. The results indicated that the compound 2-(6-(4-chlorophenyl)imidazo [2,1-b]thiazol-3-yl)-N-(6-(4-(4-methoxybenzyl) piperazin-1-yl)pyridin-3-yl)acetamide (5l), with slightly higher inhibition on VEGFR2 than 5a (5.72% and 3.76% inhibitory rate at 20 μM, respectively), was a potential inhibitor against MDA-MB-231 (IC50 = 1.4 μM) compared with sorafenib (IC50 = 5.2 μM), and showed more selectivity against MDA-MB-231 than HepG2 cell line (IC50 = 22.6 μM).

Full text of DOI:10.3390/molecules17044703

Molecules 2012, 17, 4703-4716; doi:10.3390/molecules17044703
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis and Cytotoxic Activity of Some Novel N-Pyridinyl-2-
(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide Derivatives
Huaiwei Ding 1,2, Zhe Chen 2, Cunlong Zhang 2, Tian Xin 2, Yini Wang 2, Hongrui Song 1,
Yuyang Jiang 2,Yuzong Chen 3, Yongnan Xu 1,* and Chunyan Tan 2,*
1
School of Pharmaceutical Engineering, Shenyang Pharmaceutical University, Shenyang 110016,
China; E-Mails: dinghuaiwei627@163.com (H.D.); hongruisong@163.com (H.S.)
2
The Key Laboratory of Chemical Biology, Guangdong Province, Graduate School at Shenzhen,
Tsinghua University, Shenzhen 518055, China; E-Mails: czseasky@yahoo.com.cn (Z.C.);
zhcunl@126.com (C.Z.); xintian0904@163.com (T.X.); yini0403@163.com (Y.W.);
jiangyy@sz.tsinghua.edu.cn (Y.J.)
3
Bioinformatics and Drug Design Group, Department of Computational Science,
National University of Singapore, Blk SOC1, Level 7, 3 Science Drive 2,
Singapore 117543, Singapore; E-Mail: csccyz@nus.edu.sg
* Authors to whom correspondence should be addressed; E-Mails: ynxucn@yahoo.com.cn (Y.X.);
chunyantan@yahoo.com (C.T.); Tel.: +86-24-2398-6445 (Y.X.);
Tel./Fax: +86-755-2603-2094 (C.T.).
Received: 29 February 2012; in revised form: 1 April 2012 / Accepted: 13 April 2012 /
Published: 23 April 2012
Abstract: A series of novel compounds bearing imidazo[2,1-b]thiazole scaffolds were
designed and synthesized based on the optimization of the virtual screening hit compound
N-(6-morpholinopyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide (5a), and
tested for their cytotoxicity against human cancer cell lines, including HepG2 and
MDA-MB-231. The results indicated that the compound 2-(6-(4-chlorophenyl)imidazo
[2,1-b]thiazol-3-yl)-N-(6-(4-(4-methoxybenzyl)piperazin-1-yl)pyridin-3-yl)acetamide (5l),
with slightly higher inhibition on VEGFR2 than 5a (5.72% and 3.76% inhibitory rate at
20 μM, respectively), was a potential inhibitor against MDA-MB-231 (IC50 = 1.4 μM)
compared with sorafenib (IC50 = 5.2 μM), and showed more selectivity against MDA-MB-231
than HepG2 cell line (IC50 = 22.6 μM).
Keywords: imidazo[2,1-b]thiazoles; cytotoxic activity; synthesis

Molecules 2012, 17
4704
1. Introduction
During the last few decades, anticancer therapy has made significantly progress, especially after the
approval of a few small-molecule inhibitors, but the management of malignancies in humans is still
one major concern. Extensive interest is being focused on exploring newly functional scaffolds capable
of being further developed as anticancer agents. Recently, considerable attention has been paid to the
design and the biological activity of compounds bearing imidazo[2,1-b]thiazole scaffolds due to
their broad spectrum of pharmacological activities, such as antifungal [1–3], antibacterial [3–6]
anti-inflammatory [7] and antihypertensive properties [8], as well as being used as cystic fibrosis
transmembrane conductance regulator (CFTR)-selective potentiators [9]. In particular, many
imidazo[2,1-b]thiazole derivatives have been reported to display potential antitumor activities against a
variety of human cancer cell lines [10–16]. The recent studies demonstrated that pyrimidinyl-substituted
imidazo[2,1-b]thiazole derivatives could inhibit Raf kinases [17], and appropriately substituted
imidazo[2,1-b]thiazoles could be developed as dual inhibitors of IGF-IR (insulin-like growth factor
receptor) and EGFR (epidermal growth factor receptor) [18] or P38 kinase inhibitors [19]. However,
there is no report about imidazo[2,1-b]thiazole derivatives as vascular endothelial growth factor
receptor (VEGFR) inhibitors. These observations elicited much interest in this fused ring system and
prompted us to attempt to develop VEGFR inhibitors possessing the imidazo[2,1-b]thiazole core.
Angiogenesis, the formation of new blood vessels from pre-existing ones, plays a central role in the
process of tumor growth and metastasis [20]. Blockade of VEGF/VEGFR signaling pathways, which
regulates proliferation and migration of endothelial cells, has been explored as a highly successful
clinical strategy in cancer treatment [21]. Several VEGFR inhibitors have been approved and many are
under development in clinic. Based on our interest in searching for novel biologically active molecules
as VEGFR inhibitors and consideration of the potent bioactivities of compounds that possess an
imidazo[2,1-b]thiazole scaffold, we searched Ambinter and ChemSpider chemical database using a
SVM (support vector machine) screening model [22,23], and found one hit compound 5a (ChemSpider
ID: 11102329) (Figure 1) bearing an imidazo[2,1-b]thiazole core with potential anticancer activity. As
follow-up to this observation, we have now designed and synthesized a series of novel imidazo[2,1-b]
thiazole acetamide derivatives and assessed their in vitro activities.
2. Results and Discussion
2.1. Chemistry
All the agents, unless mentioned otherwise, are commercially available and were directly used
without further purification. Synthesis of the intermediates and target compounds was accomplished
according to the steps illustrated in Scheme 1. Ethyl 2-(2-aminothiazol-4-yl)acetate (2) reacted with
substituted or nonsubstituted 2-bromoacetophenones 1 to give the crude products 1a–c [12], which
without further purification were refluxed in EtOH-H2O-NaOH (1.5 mol/L), acidified by 2M HCl, to

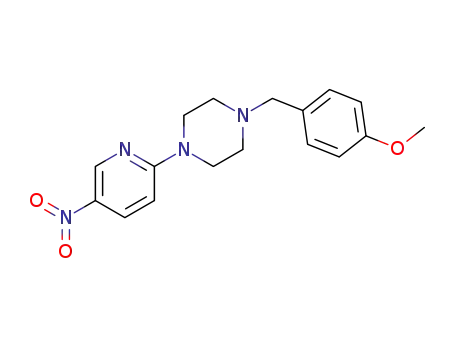

afford 2a–c in good yields (62%–80%) [24]. Compounds 3a–d were prepared by the reaction of
2-chloro-5-nitropyridine (3) with various R2 groups in high yield (96%–99%) [25]. Compounds 4a–d
which were obtained by the reduction of 3a–d [26], along with commercial agents 4e–h, were coupled
with 2a–c to afford the target compounds 5a–p.

Molecules 2012, 17
4705
Figure 1. Structures of hit compound 5a and modification position of target compounds.
N
R2
HN
O
O
1"
N
N
R1
6" N
5"
2"
3"
HN
N
S
NH2
5b-n
4"
O
3' 2'
5' 6'
5
4
N
N
3
1'
6
4'
HN
2
N
7
S
1
8
O
N
5a
R1
N
S
5o-p
Scheme 1. The Synthesis Route of Compounds 5a–p.
COOEt
N
Cl
Br
N
R1
S
O2N
H2N
O
+
R2
3
1
2
a
c
COOEt
3a, 4a: R2
=
R2
N
N
O
N
N
R1
N
S
O2N
N
N
1a-c
b
3b, 4b: R2 =
3a-d
d
N
3c, 4c: R2
=
COOH
O
F
N
R2
N
N
R1
+
N
N
S
3d, 4d: R2 =
H2N
2a-c
4a-d
4e-h
and
1a, 2a: R1 = H
1b, 2b: R1 = Cl
4e: R2 = OCH3
4f: R2 = Cl
4g: R2 = F
1c, 2c: R1 = OCH3
e
NH2
NH2
N
R2
N
N
4h:
H2N
HN
HN
O
O
N
N
R1
R1
N
S
N
S
5a-n
5o-p
Reagents and conditions: (a) acetone, 8 h, r.t.; (b) EtOH-H2O-NaOH (1.5 mol/L), reflux, 0.5 h, then
HCl (2 mol/L); (c) THF, K2CO3, reflux, 4 h; (d) H2, Pd/C, r.t., 12 h; (e) DIPEA, HOBt, EDCI, THF,
12 h, r.t.
2.2. In Vitro Bioactivity
Compound 5a acquired by the SVM screening model was first evaluated for its inhibitory activity
on VEGFR2 kinase and against HepG2 and MDA-MB-231 cell lines. Although 5a at 20 µM exhibited

Molecules 2012, 17
4706
only a 3.76% inhibitory rate on VEGFR2 kinase, it displayed moderate cytotoxic activity against the
HepG2 and MDA-MB-231 cell lines (IC50 = 74.2 and 27.1 μM, respectively), which made it a
potential hit compound for further investigation. The other 15 compounds were also evaluated against
HepG2 and MDA-MB-231 cell lines with sorafenib as the positive control. The IC50 value results are
summarized in Table 1.
Table 1. The substituents and in vitro cytotoxicity of synthesized compounds against
HepG2 and MDA-MB-231 cell lines.
NH2
N
R2
N
HN
HN
O
O
N
R1
N
R1
N
S
N
S
5a-n
5o-p
IC50 * (µM)
HepG2 MDA-MB-231
Compound
5a
R1
R2
H
N
O
74.2 ± 2.5
27.1 ± 0.4
5b
5c
5d
5e
5f
H
Cl
H
OCH3
OCH3
Cl
>100
63.7 ± 0.4
62.0 ± 3.7
>100
>100
40.1 ± 1.3
22.8 ± 4.6
79.0 ± 3.8
13.0 ± 0.2
22.3 ± 1.3
51.8 ± 0.8
H
F
Cl
Cl
Cl
50.0 ± 1.4
53.4 ± 0.5
>100
5g
5h
F
OCH3
Cl
N
N
N
5i
5j
H
71.5 ± 1.7
28.2 ± 0.6
>100
>100
Cl
H
N
N
N
N
N
N
5k
5l
39.4 ± 1.9
22.6 ± 1.5
55.2 ± 1.5
34.7 ± 0.4
6.0 ± 0.7
1.4 ± 0.1
19.8 ± 2.2
12.9 ± 0.2
O
O
N
Cl
H
N
5m
5n
F
N
Cl
F
5o
5p
H
>100
62.6 ± 3.7
35.1 ± 0.5
5.2 ± 0.2
Cl
48.9 ± 1.4
33.7 ± 1.3
sorafenib
* The IC50 values were reported as the average of three independent determinations and expressed
as the mean ± SD.

Molecules 2012, 17
4707
As shown in Table 1, some of the modified compounds showed tantamount or better cytotoxicity
against either HepG2 or MDA-MB-231 cell line compared with hit compound 5a. In particular, 5l
exhibited potent activity against MDA-MB-231 cell line, slightly better than sorafenib, with IC50
values of 1.4 µM and 5.2 µM, respectively, though it displayed only a little increased inhibition on
VEGFR2 kinase (5.72%, inhibitory rate at 20 µM) compared with 5a (3.76%, inhibitory rate at 20 µM);
Compared to the positive control sorafenib, whose activity against the MDA-MB-231 cell line was
7-fold stronger than HepG2, our synthesized compound 5l demonstrated 16-fold stronger inhibition
against MDA-MB-231 than HepG2. Moreover, 5l showed much lower toxicity towards the HL7702
cell line (normal liver cell) with an IC50 value of more than 100 µM, indicating that it may be
considered a lead structure for the design of novel useful anticancer agents with low toxicity.
Besides 5l, 5k with an IC50 value of 6.0 µM also displayed good activity which is equivalent to that
of sorafenib.
The structure-activity relationships (SARs) suggested that all of compounds with Cl substituents at
the R1 position displayed better cytotoxic activities than those substituted by H atom or OCH3 groups
on the same position, including 5c vs. 5b, 5f vs. 5d or 5h, 5g vs. 5e, 5j vs. 5i, 5l vs. 5k, 5n vs. 5m and
5p vs. 5o. When R1 is H atom, morpholine on R2 position replaced by smaller groups, methoxyl or F,
decreased the cytotoxicity against both cell lines, but Cl atom showed similar activity to 5a. Trying
1-methylpiperazine on this position to produce 5j increased the cytotoxic activity against the HepG2
cell line but considerably decreased cytotoxicity against the MDA-MB-231 cell line, with IC50 values
of 28.2 μM and >100 μM, respectively. Compounds 5k and 5m with further substituted piperazine
groups slightly increased the cytotoxic activity, especially 5k increased much more against MDA-MB-231
cell line. The above observation indicates that pyridine substituted by bulk groups is beneficial for the
antitumor activity. Compounds 5o and 5p with N-(6-aminopyridin-2-yl) moieties displayed lower or
similar cytotoxic activity against both cell lines, compared with most of other compounds, which may
indicate that the N position on the pyridine ring is important for the cytotoxic activity, or that
aminopyridine groups with much larger hydrophilicity hamper the activity. More studies need to be
carried out for confirmation of this conjecture.
3. Experimental
3.1. Materials and Reagents
1H-NMR, and 13C-NMR spectra were determined on a Bruker ARX-400 400 MHz spectrometer
with tetramethylsilane (TMS) as the internal standard and DMSO-d6 or CDCl3 as the solvents
(chemical shifts in ppm). Splitting patterns were designated as follows: s: singlet; d: doublet; t: triplet;
m: multiplet. Mass spectra were carried out using a Waters Micromass Q-TOF Premier Mass
Spectrometer. Melting points were determined in open glass capillaries with a SGW X-4 digital
apparatus and were uncorrected. Follow-up of the reactions and checking the homogeneity of the
compounds were made by TLC (thin layer chromatography) on silica gel-protected glass plates and the
spots were detected by exposure to UV-lamp at λ254 and λ365. Unless otherwise noted, all solvents
and reagents were commercially available and used without further purification.

Molecules 2012, 17
4708
3.2. Chemical Synthesis
3.2.1. General Procedure for Preparation of 2-(6-Phenylimidazo[2,1-b]thiazol-3-yl)acetic Acid
Derivatives 2a–c
Ethyl 2-(2-aminothiazol-4-yl) acetate (20 mmol) was dissolved in acetone (50 mL) and treated with
the substituted 2-bromoacetophenone (20 mmol, 1 eq.), the mixture was refluxed for 8 h. and then
concentrated to 20 mL. The resulting solution was cautiously basified with 15% NH4OH to pH 8–9,
then poured into CH2Cl2, separated, washed and concentrated. The crude product was dissolved in
EtOH-H2O-NaOH (1.5 mol/L) and refluxed for another 0.5 h, then acidified to pH 3–4 with 2M HCl to
afford white solid precipitate, following by wash and dry, to afford the desired compounds 2a–c.
2-(6-Phenylimidazo[2,1-b]thiazol-3-yl)acetic acid (2a, C13H10N2O2S; M.W.: 258.0463). Yield: 79%;
1
mp: 221–223 °C; H-NMR (DMSO-d6) δ: 8.72 (s, 1H, imidazole H), 7.91 (d, J = 7.6 Hz, 2H, Ar-H),
13
7.55–7.41 (m, 4H, Ar-H and thiazole H), 4.12 (s, 2H, CH2); C-NMR (DMSO-d6) δ: 169.3, 147.4,
139.3, 129.1, 128.9, 128.7, 127.6, 125.0, 114.5, 110.0, 32.2.
2-(6-(4-Chlorophenyl)imidazo[2,1-b]thiazol-3-yl)acetic acid (2b, C13H9ClN2O2S; M.W.: 292.0073).
Yield: 80%; mp: 236–238 °C; 1H-NMR (DMSO-d6) δ: 8.50 (s, 1H, imidazole H), 7.89 (d, J = 8.4 Hz,
2H, Ar-H), 7.52 (d, J = 8.4 Hz, 2H, Ar-H), 7.30 (s, 1H, thiazole H), 4.04 (s, 2H, CH2); 13C-NMR
(DMSO-d6) δ: 169.4, 148.2, 141.8, 132.3, 130.6, 128.8, 126.7, 126.5, 112.3, 109.6, 32.6.
2-(6-(4-Methoxyphenyl)imidazo[2,1-b]thiazol-3-yl)acetic acid (2c, C14H12N2O3S; M.W.: 288.0569).
Yield: 62%; mp: 231–233 °C; 1H-NMR (DMSO-d6) δ: 8.57 (s, 1H, imidazole H), 7.83 (d, J = 8.4 Hz,
2H, Ar-H), 7.46 (s, 1H, thiazole H), 7.09 (d, J = 8.4 Hz, 2H, Ar-H), 4.10 (s, 2H, CH2), 3.82 (s, 3H, CH3);
13C-NMR (DMSO-d6) δ: 169.2, 159.7, 147.0, 139.7, 127.5, 126.6, 121.3, 114.6, 114.0, 108.7, 55.3, 32.2.
3.2.2. General Procedure for Preparation of Compounds 3a–d
A mixture of morpholine (100 mmol), 2-chloro-5-nitropyridine (50 mmol), and K2CO3 (100 mmol)
in THF (50 mL) were stirred at 80 °C for 4 h, and then concentrated to 20 mL, poured into water (100 mL),
whereby a yellow solid precipitate formed. The precipitate was washed, dried and recrystallized with
CH2Cl2 to afford yellow crystals of 3a. Compounds 3b–d were obtained as the same procedure as 3a.
4-(5-Nitropyridin-2-yl)morpholine (3a, C9H11N3O3; M.W.: 209.0800). Yield: 99%; mp: 141–143 °C;
1H-NMR (CDCl3) δ: 9.04 (d, J = 2.8 Hz, 1H, pyridine H), 8.23 (dd, J = 2.8, 9.6 Hz, 1H, pyridine H),
6.57 (d, J = 9.6 Hz, 1H, pyridine H), 3.82 (t, J = 4.8 Hz, 4H, CH2), 3.75 (t, J = 4.8 Hz, 4H, CH2);
13C-NMR (CDCl3) δ: 160.6, 146.3, 135.5, 133.1, 104.5, 66.5, 45.1.
1-Methyl-4-(5-nitropyridin-2-yl)piperazine (3b, C10H14N4O2; M.W.: 222.1117). Yield: 97%; mp:
97–99 °C; 1H-NMR (DMSO-d6) δ: 9.02 (d, J = 2.4 Hz, 1H, pyridine H), 8.19 (dd, J = 2.4, 9.6 Hz, 1H,
pyridine H), 6.57 (d, J = 9.6 Hz, 1H, pyridine H), 3.79 (t, J = 4.8 Hz, 4H, CH2), 2.52 (t, J = 4.8 Hz, 4H,
CH2), 2.36 (s, 3H, CH3); 13C-NMR (DMSO-d6) δ: 160.4, 146.5, 135.1, 133.0, 104.5, 54.6, 46.5, 44.9.

Molecules 2012, 17
4709
1-(4-Methoxybenzyl)-4-(5-nitropyridin-2-yl)piperazine (3c, C17H20N4O3; M.W.: 328.1535). Yield:
96%; mp: 110–112 °C; 1H-NMR (DMSO-d6) δ: 8.94 (d, J = 2.8 Hz, 1H, pyridine H), 8.20 (dd, J = 2.8,
9.6 Hz, 1H, pyridine H), 7.24 (d, J = 8.4 Hz, 2H, Ar-H), 6.92 (d, J = 9.6 Hz, 1H, pyridine H), 6.90 (d,
J = 8.8 Hz, 2H, Ar-H), 3.74 (brs, 7H, CH2 and CH3), 3.47 (brs, 2H, CH2), 2.45 (brs, 4H, CH2);
13C-NMR (DMSO-d6) δ: 160.0, 158.3, 146.0, 134.1, 132.7, 130.1, 113.5, 105.5, 61.0, 54.9, 51.9, 44.4.
1-(4-Fluorobenzyl)-4-(5-nitropyridin-2-yl)piperazine (3d, C16H17FN4O2; M.W.: 316.1336). Yield:
1
98%; mp: 99–101 °C; H-NMR (CDCl3) δ: 9.00 (d, J = 2.4 Hz, 1H, pyridine H), 8.18–8.15 (m, 1H,
pyridine H), 7.31 (dd, J = 5.2, 8.8 Hz, 2H, Ar-H), 7.03 (d, J = 8.8 Hz, 2H, Ar-H), 6.54 (d, J = 9.6 Hz, 1H,
pyridine H), 3.77 (t, J = 5.2 Hz, 4H, CH2), 3.52 (s, 2H, CH2), 2.53 (t, J = 5.2 Hz, 4H, CH2); 13C-NMR
(CDCl3) δ: 162.2, 160.4, 146.5, 134.9, 133.3, 132.9, 130.6, 115.2, 104.5, 62.0, 52.5, 44.9.
3.2.3. General Procedure for Preparation of Compounds 4a–d
The mixture of 3a–d (20 mmol) and Pd/C (20%, 500 mg) in methanol was hydrogenated at
atmosphere at r.t. for 12 h, followed by filtration and concentration, to afford crude residue 4a–d,
which was purified by recrystallization (ethanol).
6-Morpholinopyridin-3-amine (4a, C9H13N3O; M.W.: 179.1059). Yield: 70%; mp: 119–121 °C;
1H-NMR (CDCl3) δ: 7.79 (d, J = 2.8 Hz, 1H, pyridine H), 7.00 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H),
6.56 (d, J = 8.8 Hz, 1H, pyridine H), 3.83 (t, J = 4.8 Hz, 4H, CH2), 3.33 (t, J = 4.8 Hz, 4H, CH2), 3.26
(brs, H, NH2); 13C-NMR (CDCl3) δ: 154.4, 135.2, 135.1, 126.0, 108.3, 66.8, 47.1.
6-(4-Methylpiperazin-1-yl)pyridin-3-amine (4b, C10H16N4; M.W.: 192.1375). Yield: 76%; mp: 91–93 °C;
1H-NMR (CDCl3) δ: 7.78 (d, J = 2.8 Hz, 1H, pyridine H), 6.98 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H),
6.57 (d, J = 8.8 Hz, 1H, pyridine H), 3.39 (t, J = 4.8 Hz, 4H, CH2), 3.29 (brs, 2H, NH2), 2.54 (t, J = 4.8 Hz,
4H, CH2), 2.34 (s, 3H, CH3); 13C-NMR (CDCl3) δ: 154.4, 135.2, 134.7, 126.1, 108.5, 55.0, 46.7, 46.2.
6-(4-(4-Methoxybenzyl)piperazin-1-yl)pyridin-3-amine (4c, C17H22N4O; M.W.: 298.1794). Yield: 74%;
mp: 104–106 °C; 1H-NMR (CDCl3) δ: 7.78 (d, J = 2.8 Hz, 1H, pyridine H), 7.25 (d, J = 8.4 Hz, 2H, Ar-H),
6.96 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H), 6.87 (dd, J = 2.8, 8.8 Hz, 2H, Ar-H), 6.54 (d, J = 8.8 Hz, 1H,
pyridine H), 3.84 (brs, 2H, NH2), 3.80 (s, 3H, CH3), 3.52 (s, 2H, CH2), 3.37 (t, J = 4.8 Hz, 4H, CH2),
13
2.58 (t, J = 4.8 Hz, 4H, CH2); C-NMR (CDCl3) δ: 158.9, 154.6, 135.4, 134.6, 130.5, 129.7, 126.2,
113.7, 108.4, 62.3, 55.3, 52.7, 46.6.
6-(4-(4-Fluorobenzyl)piperazin-1-yl)pyridin-3-amine (4d, C16H19FN4; M.W.: 286.1594). Yield: 80%;
mp: 94–96 °C; 1H-NMR (CDCl3) δ: 7.76 (d, J = 2.8 Hz, 1H, pyridine H), 7.29 (t, J = 6.8 Hz, 2H, Ar-H),
6.99 (t, J = 8.8 Hz, 2H, Ar-H), 6.92 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H), 6.52 (d, J = 8.8 Hz, 1H,
pyridine H), 3.48 (s, 2H, NH2), 3.35 (t, J = 4.8 Hz, 6H, CH2), 2.53 (t, J = 4.8 Hz, 4H, CH2); 13C-NMR
(CDCl3) δ: 161.9, 154.3, 135.1, 134.8, 133.8, 130.5, 126.0, 115.0, 108.4, 62.2, 52.8, 46.7.

Molecules 2012, 17
4710
3.2.4. General Procedure for Preparation of Compounds 5a–p
A solution of the 2a (1 mmol), 4a (1 mmol), 1-(3-dimethylaminopropyl)-3-ethylcarbodiimide
hydrochloride (EDCI, 1 mmol), N-hydroxybenzotrizole (HOBt, 1 mmol), and N-diisopropylethylamine
(DIPEA, 3 mmol) in anhydrous THF (10 mL) was stirred for 24 h. The reaction was quenched with
1M NaOH (20 mL) and extracted with ethyl acetate (3 × 20 mL), the organic layer was washed with
1M HCl (3 × 20 mL), water (20 mL), dried with Na2SO4 and evaporated to give compound 5a as a
white solid. Other title compounds 5b–p were synthesized using the same procedure.
N-(6-Morpholinopyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide (5a). Yield: 72%; mp:
212–214 °C; 1H-NMR (DMSO-d6) δ: 10.23 (s, 1H, NH), 8.33 (d, J = 2.4 Hz, 1H, pyridine H), 8.24 (s,
1H, imidazole H), 7.84–7.81 (m, 3H, Ar-H and pyridine H), 7.39 (t, J = 7.6 Hz, 2H, Ar-H), 7.25 (t,
J = 7.6 Hz, 1H, Ar-H), 7.08 (s, 1H, thiazole H), 6.83 (d, J = 9.2 Hz, 1H, pyridine H), 3.99 (s, 2H,
CH2), 3.69 (t, J = 4.8 Hz, 4H), 3.36 (t, J = 4.8 Hz, 4H); 13C-NMR (DMSO-d6) δ: 165.4, 156.0, 148.5,
145.9, 139.1, 134.2, 130.0, 128.5, 126.9, 126.7, 126.6, 124.6, 109.9, 108.3, 106.8, 65.8, 45.5, 34.9; MS
(Q-TOF) m/z: 420.1491 [M+H]+ (calc. for C22H21N5O2S, 419.1416).
N-(6-Methoxypyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide (5b). Yield: 76%; mp:
1
184–186 °C; H-NMR (DMSO-d6) δ: 10.48 (s, 1H, NH), 8.42 (s, 1H, pyridine H), 8.31 (s, 1H,
imidazole H), 7.96 (d, J = 1.6 Hz, 1H, Ar-H), 7.94 (s, 1H, Ar-H), 7.86 (d, J = 7.6 Hz, 1H, pyridine H),
7.41 (t, J = 7.2 Hz, 2H, Ar-H), 7.27 (t, J = 7.2 Hz, 1H, Ar-H), 7.14 (s, 1H, thiazole H), 6.83 (d, J = 8.8 Hz,
13
1H, pyridine H), 4.06 (s, 2H, CH2), 3.83 (s, 3H, CH3); C-NMR (DMSO-d6) δ: 165.6, 159.8, 148.5,
145.6, 137.8, 33.9, 131.5, 129.7, 128.6, 127.1, 126.6, 124.7, 110.4, 110.1, 108.5, 53.1, 34.9; MS
(Q-TOF) m/z: 365.1066 [M+H]+ (calc. for C19H16N4O2S, 364.0994).
2-(6-(4-Chlorophenyl)imidazo[2,1-b]thiazol-3-yl)-N-(6-methoxypyridin-3-yl)acetamide (5c). Yield:
75%; mp: 247–249 °C; 1H-NMR (DMSO-d6) δ: 10.39 (s, 1H, NH), 8.39 (d, J = 2.8 Hz, 1H, pyridine H),
8.31 (s, 1H, imidazole H), 7.94 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H), 7.87 (d, J = 8.8 Hz, 2H, Ar-H),
7.45 (d, J = 8.4 Hz, 2H, Ar-H), 7.12 (s, 1H, thiazole H), 6.82 (d, J = 8.8 Hz, 1H, pyridine H), 4.03 (s,
2H, CH2), 3.83 (s, 3H, CH3); 13C-NMR (DMSO-d6) δ: 165.6, 159.8, 148.8, 144.8, 137.7, 133.2, 131.5,
131.3, 129.7, 128.6, 126.5, 126.3, 110.4, 110.1, 108.9, 53.1, 34.9; MS (Q-TOF) m/z: 399.0683 [M+H]+
(calc. for C19H15ClN4O2S, 398.0604).
N-(6-Chloropyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide (5d). Yield: 70%; mp:
1
161–163 °C; H-NMR (DMSO-d6) δ: 11.21 (s, 1H, NH), 8.73 (d, J = 4.0 Hz, 1H, imidazole H), 8.70
(d, J = 2.8 Hz, 1H, pyridine H), 8.14 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H), 7.88 (d, J = 7.2 Hz, 2H, Ar-H),
7.53–7.48 (m, 4H, Ar-H and thiazole H and pyridine H), 7.41 (t, J = 7.2 Hz, 1H, Ar-H), 4.26 (s, 2H, CH2);
13C-NMR (DMSO-d6) δ: 166.1, 147.7, 143.8, 140.7, 140.4, 135.1, 129.8, 129.0, 128.6, 127.5, 127.4, 125.0,
124.1, 113.9, 109.9, 34.4; MS (Q-TOF) m/z: 369.0573 [M+H]+ (calc. for C18H13ClN4OS, 368.0499).
N-(6-Fluoropyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide (5e). Yield: 77%; mp:
1
98–100 °C; H NMR (DMSO-d6) δ: 10.13 (s, 1H, NH), 8.32 (d, J = 1.6 Hz, 1H, imidazole H),
8.22–8.18 (m, 1H, pyridine H), 7.69 (d, J = 7.2 Hz, 2H, Ar-H), 7.57 (s, 1H, pyridine H), 7.34 (t, J = 7.2 Hz,

Molecules 2012, 17
4711
2H, Ar-H), 7.26 (dd, J = 1.6, 7.2 Hz, 1H, Ar-H), 6.87 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H), 6.45 (s, 1H,
thiazole H), 3.68 (s, 2H, CH2); 13C-NMR (DMSO-d6) δ: 165.5, 160.0, 149.7, 147.5, 138.7, 133.5, 133.4,
132.9, 129.0, 128.0, 125.3, 125.2, 110.2, 109.6, 107.3, 36.1; MS (Q-TOF) m/z: 353.0876 [M+H]+
(calc. for C18H13FN4OS, 352.0794).
2-(6-(4-Chlorophenyl)imidazo[2,1-b]thiazol-3-yl)-N-(6-chloropyridin-3-yl)acetamide (5f). Yield: 72%;
mp: 215–217 °C; 1H-NMR (DMSO-d6) δ: 10.73 (s, 1H, NH), 8.62 (d, J = 2.0 Hz, 1H, pyridine H), 8.31
(s, 1H, imidazole H), 8.10 (dd, J = 2.8, 8.4 Hz, 1H, pyridine H), 7.85 (d, J = 8.4 Hz, 2H, Ar-H), 7.50
(d, J = 8.4 Hz, 1H, pyridine H), 7.44 (d, J = 8.4 Hz, 2H, Ar-H), 7.13 (s, 1H, thiazole H), 4.08
13
(s, 2H, CH2); C-NMR (DMSO-d6) δ: 166.3, 148.8, 144.8, 143.8, 140.4, 135.1, 133.1, 131.2, 129.9,
128.5, 126.3, 126.1, 124.2, 110.6, 108.9, 35.0; MS (Q-TOF) m/z: 403.0188 [M+H]+ (calc. for
C18H12Cl2N4OS, 402.0109).
2-(6-(4-Chlorophenyl)imidazo[2,1-b]thiazol-3-yl)-N-(6-fluoropyridin-3-yl)acetamide (5g). Yield:
74%; mp: 211–213 °C; 1H–NMR (DMSO-d6) δ: 10.66 (s, 1H, NH), 8.45 (brs, 1H, pyridine H), 8.31 (s,
1H, imidazole H), 8.21–8.17 (m, 1H, pyridine H), 7.86 (dd, J = 2.0, 6.8 Hz, 2H, Ar-H), 7.45 (dd,
J = 2.0, 6.8 Hz, 2H, Ar-H), 7.19 (dd, J = 3.2, 8.8 Hz, 2H, pyridine H), 7.14 (s, 1H, thiazole H), 4.07 (s,
2H, CH2); 13C-NMR (DMSO-d6) δ: 166.1, 158.7, 148.8, 144.8, 137.8, 133.8, 133.2, 132.9, 131.3,
128.6, 126.3, 126.2, 110.6, 109.3, 108.9, 34.9; MS (Q-TOF) m/z: 387.0480 [M+H]+ (calc. for
C18H12ClFN4OS, 386.04040.
N-(6-Chloropyridin-3-yl)-2-(6-(4-methoxyphenyl)imidazo[2,1-b]thiazol-3-yl)acetamide (5h). Yield:
81%; mp: 108–110 °C; 1H-NMR (CDCl3) δ: 10.24 (s, 1H, NH), 8.52 (d, J = 2.8 Hz, 1H, pyridine H),
8.16 (dd, J = 2.8, 8.8 Hz, 1H, pyridine H), 7.61 (d, J = 8.8 Hz, 2H, Ar-H), 7.43 (s, 1H, imidazole H),
7.25 (d, J = 7.6 Hz, 1H, pyridine H), 6.89 (d, J = 8.8 Hz, 2H, Ar-H), 6.45 (s, 1H, thiazole H), 3.80 (s,
13
3H, CH3), 3.66 (s, 2H, CH2); C-NMR (CDCl3) δ: 165.6, 159.6, 149.5, 147.5, 146.2, 140.8, 134.3,
130.3, 126.5, 126.1, 125.2, 124.5, 114.4, 109.8, 106.2, 55.4, 36.4; MS (Q-TOF) m/z: 399.0683 [M+H]+
(calc. for C19H15ClN4O2S, 398.0604).
N-(6-(4-Methylpiperazin-1-yl)pyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide (5i).
1
Yield: 71%; mp: 132–134 °C; H-NMR (DMSO-d6) δ: 10.27 (s, 1H, NH), 8.31 (d, J = 2.4 Hz, 1H,
pyridine H), 8.24 (s, 1H, imidazole H), 7.83 (d, J = 7.6 Hz, 2H, Ar-H), 7.79 (dd, J = 2.4, 9.2 Hz, 1H,
pyridine H), 7.39 (t, J = 7.6 Hz, 2H, Ar-H), 7.25 (t, J = 7.6 Hz, 1H, Ar-H), 7.08 (s, 1H, thiazole H),
6.82 (d, J = 9.2 Hz, 1H, pyridine H), 3.99 (s, 2H, CH2), 3.40 (t, J = 4.8 Hz, 4H, CH2), 2.37 (t, J = 4.8 Hz,
4H, CH2), 2.20 (s, 3H, CH3); 13C-NMR (DMSO-d6) δ: 165.3, 155.9, 148.6, 146.0, 139.2, 134.2, 130.1,
128.5, 126.9, 126.6, 126.3, 124.6, 109.9, 108.3, 106.8, 54.3, 45.7, 44.9, 34.9; MS (Q-TOF) m/z:
433.1808 [M+H]+ (calc. for C23H24N6OS, 432.1732).
2-(6-(4-Chlorophenyl)imidazo[2,1-b]thiazol-3-yl)-N-(6-(4-methylpiperazin-1-yl)pyridin-3-yl)-acetamide
(5j). Yield: 71%; mp: 118–120 °C; 1H-NMR (DMSO-d6) δ: 10.22 (s, 1H, NH), 8.31 (d, J = 2.4 Hz, 1H,
pyridine H), 8.29 (s, 1H, imidazole H), 7.85(d, J = 8.4 Hz, 2H, Ar-H), 7.79 (dd, J = 2.4, 9.2 Hz, 1H,
pyridine H), 7.45 (d, J = 8.8 Hz, 2H, Ar-H), 7.10 (s,1H, thiazole H), 6.82 (d, J = 9.2 Hz, 1H, pyridine
H), 3.98 (s, 2H, CH2), 3.41 (t, J = 4.8 Hz, 4H, CH2), 2.39 (t, J = 4.8 Hz, 4H, CH2), 2.21(s, 3H, CH3);

Molecules 2012, 17
4712
13C-NMR (DMSO-d6) δ: 165.3, 155.9, 148.8, 144.7, 139.2, 133.1, 131.2, 130.0, 128.6, 126.6, 126.3,
126.2, 110.2, 108.8, 106.8, 54.2, 45.7, 44.9, 34.9; MS (Q-TOF) m/z: 467.1423 [M+H]+ (calc. for
C23H23ClN6OS, 466.1343).
N-(6-(4-(4-Methoxybenzyl)piperazin-1-yl)pyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide
1
(5k). Yield: 78%; mp: 92–94 °C; H-NMR (DMSO-d6) δ: 9.26 (s, 1H, NH), 8.19 (d, J = 2.4 Hz, 1H,
pyridine H), 7.75–7.71 (m, 3H, Ar-H and pyridine H), 7.58 (s, 1H, imidazole H), 7.34 (t, J = 7.6 Hz,
2H, Ar-H), 7.24 (t, J = 8.4 Hz, 3H, Ar-H), 6.85 (d, J = 8.4 Hz, 2H, Ar-H), 6.51 (d, J = 9.2 Hz, 1H,
pyridine H), 6.42 (s, 1H, thiazole H), 3.79 (s, 3H, CH3), 3.60 (s, 2H, CH2), 3.45 (s, 2H, CH2), 3.43 (t,
J = 4.8 Hz, 4H, CH2), 2.47 (t, J = 4.8 Hz, 4H, CH2); 13C-NMR (DMSO-d6) δ: 165.2, 158.8, 157.2, 149.7,
147.6, 140.6, 133.8, 131.4, 130.3, 129.9, 128.8, 127.7, 125.5, 125.2, 125.0, 113.7, 110.0, 107.1, 106.9,
62.4, 55.3, 52.7, 45.5, 36.2; MS (Q-TOF) m/z: 539.2231 [M+H]+ (calc. for C30H30N6O2S, 538.2151).
2-(6-(4-Chlorophenyl)imidazo[2,1-b]thiazol-3-yl)-N-(6-(4-(4-methoxybenzyl)piperazin-1-yl)pyridin-3-yl)
1
acetamide (5l). Yield: 72%; mp: 116–118 °C; H-NMR (DMSO-d6) δ: 8.68 (s, 1H, NH), 8.14 (d,
J = 2.4 Hz, 1H, pyridine H), 7.71 (dd, J = 2.4, 9.2 Hz,1H, pyridine H), 7.66 (s, 1H, imidazole H), 7.63
(d, J = 3.6 Hz, 2H, Ar-H), 7.30 (d, J = 8.4 Hz, 2H, Ar-H), 7.23 (d, J = 8.4 Hz, 2H, Ar-H), 6.86 (d,
J = 8.4 Hz, 2H, Ar-H), 6.53 (s, 1H, thiazole H), 6.52 (d, J = 8.8 Hz, 1H, pyridine H), 3.79 (s, 3H,
CH3), 3.67 (s, 2H, CH2), 3.46 (s, 2H, CH2), 3.44 (t, J = 4.8 Hz, 4H, CH2), 2.48 (t, J = 4.8 Hz, 4H,
13
CH2); C-NMR (DMSO-d6) δ: 164.9, 158.9, 157.4, 149.9, 146.8, 140.7, 133.3, 132.4, 131.6, 130.4,
129.9, 128.9, 126.5, 125.3, 124.5, 113.7, 110.4, 107.1, 106.8, 62.5, 55.3, 52.7, 45.5, 36.4; MS (Q-TOF)
m/z: 573.1841 [M+H]+ (calc. for C30H29ClN6O2S, 572.1761).
N-(6-(4-(4-Fluorobenzyl)piperazin-1-yl)pyridin-3-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide
(5m). Yield: 75%; mp: 80–82 °C; 1H-NMR (DMSO-d6) δ: 10.22 (s, 1H, NH), 8.32 (d, J = 2.4 Hz, 1H,
pyridine H), 8.24 (s, 1H, imidazole H), 7.84 (d, J = 7.6 Hz, 2H, Ar-H), 7.80 (dd, J = 2.4, 8.8 Hz, 1H,
pyridine H), 7.41–7.34 (m, 4H, Ar-H), 7.25 (t, J = 7.2 Hz, 1H, Ar-H), 7.15 (t, J = 9.2 Hz, 2H, Ar-H),
7.09 (s, 1H, thiazole H), 6.80 (d, J = 9.2 Hz, 1H, pyridine H), 3.99 (s, 3H, CH3), 3.48 (s, 2H, CH2),
3.41 (t, J = 4.4 Hz, 4H, CH2), 2.43 (t, J = 4.4 Hz, 4H, CH2); 13C-NMR (DMSO-d6) δ: 165.3, 161.2, 155.9,
148.6, 146.0, 139.2, 134.2, 134.1, 130.6, 130.1, 128.5, 126.9, 126.6, 126.3, 124.6, 114.8, 109.9, 108.3,
106.8, 61.1, 52.2, 45.1, 34.9; MS (Q-TOF) m/z: 527.2030 [M+H]+ (calc. for C29H27FN6OS, 526.1915).
2-(6-(4-Chlorophenyl)imidazo[2,1-b]thiazol-3-yl)-N-(6-(4-(4-fluorobenzyl)piperazin-1-yl)pyridin-3-yl)
acetamide (5n). Yield: 73%; mp: 86–88 °C; 1H-NMR (CDCl3) δ: 9.09 (s, 1H, NH), 8.16 (d, J = 2.4 Hz, 1H,
pyridine H), 7.69 (dd, J = 2.4, 8.8 Hz, 1H, pyridine H), 7.61 (d, J = 8.4 Hz, 2H, Ar-H), 7.60 (s, 1H,
imidazole H), 7.29–7.26 (m, 4H, Ar-H), 6.99 (t, J = 8.8 Hz, 2H, Ar-H), 6.49 (d, J = 9.2 Hz, 1H,
pyridine H), 6.47 (s, 1H, thiazole H), 3.63 (s, 2H, CH2), 3.47 (s, 2H, CH2), 3.42 (t, J = 4.8 Hz, 4H,
13
CH2), 2.46 (t, J = 4.8Hz, 4H, CH2); C-NMR (CDCl3) δ: 165.2, 162.1, 157.2, 149.8, 146.6, 140.6,
133.6, 133.2, 132.3, 131.4, 130.6, 128.9, 126.4, 125.5, 124.9, 115.1, 110.3, 107.3, 106.9, 62.2, 52.7,
45.5, 36.1; MS (Q-TOF) m/z: 561.1640 [M+H]+ (calc. for C29H26ClFN6OS, 560.1561).
N-(6-Aminopyridin-2-yl)-2-(6-phenylimidazo[2,1-b]thiazol-3-yl)acetamide (5o). Yield: 70%; mp:
216–218 °C; 1H-NMR (DMSO-d6) δ: 10.30 (s, 1H, NH), 8.22 (s, 1H, imidazole H), 7.83 (d, J = 7.6 Hz,

Molecules 2012, 17
4713
2H, Ar-H), 7.41–7.32 (m, 3H, pyridine H and Ar-H), 7.27–7.19 (m, 2H, pyridine H and Ar-H), 7.08 (s,
1H, thiazole H), 6.20 (d, J = 8.0 Hz, 1H, pyridine H), 5.82 (s, 2H, NH2), 4.03 (s, 2H, CH2); 13C-NMR
(DMSO-d6) δ: 165.9, 158.5, 150.0,148.6, 145.9, 138.8, 134.2, 128.5, 126.9, 126.6, 124.6, 109.9, 108.3,
103.7, 35.2; MS (Q-TOF) m/z: 350.1075 [M+H]+ (calc. for C18H15ClN5OS, 349.0997).
N-(6-Aminopyridin-2-yl)-2-(6-(4-chlorophenyl)imidazo[2,1-b]thiazol-3-yl)acetamide (5p). Yield: 72%;
1
mp: 228–230 °C; H-NMR (DMSO-d6) δ: 10.29 (s, 1H, NH), 8.27 (s, 1H, imidazole H), 7.84 (d,
J = 8.4 Hz, 2H, Ar-H), 7.44 (d, J = 8.4 Hz, 2H, Ar-H), 7.34 (t, J = 8.0 Hz, 1H, pyridine H), 7.18 (brd,
J = 0.8 Hz, 1H, pyridine H), 7.09 (s, 1H, thiazole H), 6.19 (d, J = 8.4 Hz, 1H, pyridine H), 5.81 (s, 2H,
NH2), 4.02 (s, 2H, CH2); 13C-NMR (DMSO-d6) δ: 165.9, 158.5, 150.0, 148.8, 144.7, 138.8, 133.1,
131.2, 128.6, 126.6, 126.2, 110.2, 108.8, 103.7, 100.8, 35.2; MS (Q-TOF) m/z: 384.0690 [M+H]+
(calc. for C18H14ClN5OS, 383.0608).
3.3. Biological Methods
3.3.1. In Vitro Cytotoxic Assay
The cytotoxic activities of compounds 5a–p were evaluated with HepG2 (liver cancer cell) and
MDA-MB-231(breast cancer cell), as well as the toxicity of 5l towards HL7702 cell line (normal liver
cell) by the MTT (3-(4,5-dimethylthiahiazol-2-y1)-2,5-diphenyltetrazolium bromide) method in vitro,
with sorafenib as positive control. All the cell lines were purchased from the Type Culture Collection
of the Chinese Academy of Sciences, Shanghai, China. Two cancer cell lines were cultured in DMEM
(Dulbecco’s modified Eagle medium), 10% fetal bovine serum (FBS), 100 μg/mL penicillin, and
100 μg/mL streptomycin in humidified air at 37 °C, 5% CO2. HL7702 cell line cultured in RPMI-1640
(Roswell Park Memorial Institute-1640), 10% FBS, and 100 μg/mL streptomycin in humidified air
at 37 °C, 5% CO2. The cells were then seeded in 96-well tissue culture plate and treated with the
synthesized compounds at different concentrations. 48 h later, 15 μL of MTT solution (5 mg/mL) was
added to each well and incubated for another 4 h at 37 °C, 5% CO2. The formazan precipitate was
dissolved in 100 μL DMSO and the absorbance at 495 nm of each well was measured by Multimode
Detector DTX880 (Beckman Coulter). Each assay condition was prepared in triplicate, and the experiments
were carried out three times. IC50 values were obtained by nonlinear regression (Origin 7.5) and
represent the concentration at which cell growth was inhibited by 50% and the SD (standard deviation)
were derived.
3.3.2. In Vitro VEGFR Inhibitory Activity Assay
The assay was tested by HD Biosciences Co., Ltd. (Shanghai, China). General procedures are as
followed: Kinase was incubated with substrate (5-FAM-KKKKEEIYFFF-CONH2), compounds and
ATP (adenosine triphosphate) in a final buffer of 25 mM 4-(2-hydroxyethyl)-1-piperazine-ethanesulfonic
acid (HEPES, pH 7.4), 10 mM MgCl2, 0.01% Triton X-100, 100 µg/mL albumin from bovine serum
(BSA), 2.5 mM DL-dithiothreitol (DTT) in 384-well plate with the total volume of 10 µL. The assay
plate was incubated at 30 °C for 1 h and stopped with the addition of equal volume of kinase-glo plus

Molecules 2012, 17
4714
reagent. The luminescence was read at envision. The signal was correlated with the amount of ATP
present in the reaction and was inversely correlated with the kinase activity [27].
4. Conclusions
In summary, based on the virtual screening hit compound 5a, we designed and synthesized a series
of novel compounds possessing an imidazo[2,1-b]thiazole scaffold, and evaluated them for their
anticancer activity. The results showed that some of the synthesized compounds displayed better
activity than 5a, against either the HepG2 or MDA-MB-231 cell lines. Of these compounds, 5l with
lower inhibition on VEGFR2 kinase was a potent, selective inhibitor against the MDA-MB-231 cell
line compared with the HepG2 cell line. This study may provide valuable information for further
design of imidazo[2,1-b]thiazole derivatives as potential antitumor agents which could specifically
target VEGFR kinase.
Acknowledgments
Authors wish to thank to the National High Technology Research and Development Program of
China (863 Program) (No. 2012AA020305).
References and Notes
1. Dangi, R.R.; Hussain, N.; Talesara, G.L. Synthesis characterization and biological evaluation of
some alkoxyphthalimide derivatives of 3-(4-substituted phenyl)-6,6-diphenyl-3,3a-dihydro-2H-
imidazo[2,1-b]pyrazolo[3,4-d][1,3]thiazol-7(6H)-one. Med. Chem. Res. 2011, 20, 1490–1498.
2. Juspin, T.; Laget, M.; Terme, T.; Azas, N.; Vanelle, P. TDAE-assisted synthesis of new
imidazo[2,1-b]thiazole derivatives as anti-infectious agents. Eur. J. Med. Chem. 2010, 45, 840–845.
3. Atta, K.F.M.; Farahat, O.O.M.; Ahmed, A.Z.A.; Marei, M.G. Synthesis and antibacterial activities
of novel imidazo[2,1-b]-1,3,4-thiadiazoles. Molecules 2011, 16, 5496–5506.
4. Guzeldemirci, N.U.; Kucukbasmaci, O. Synthesis and antimicrobial activity evaluation of new
1,2,4-triazoles and 1,3,4-thiadiazoles bearing imidazo[2,1-b]thiazole moiety. Eur. J. Med. Chem.
2010, 45, 63–68.
5. Shetty, N.S.; Koti, R.S.; Lamani, R.S.; Badiger, N.P.; Khazi, I.A.M. Synthesis and antimicrobial
activities of some ethyl 2-arylthio-6-arylimidazo[2,1-b]thiazole-3-carboxylates and their sulfones.
J. Sulfur. Chem. 2008, 29, 539–547.
6. Lamani, R.S.; Shetty, N.S.; Kamble, R.R.; Khazi, I.A.M. Synthesis and antimicrobial studies of
novel methylene bridged benzisoxazolyl imidazo[2,1-b][1,3,4]thiadiazole derivatives. Eur. J.
Med. Chem. 2009, 44, 2828–2833.
7. Jadhav, V.B.; Kulkarni, M.V.; Rasal, V.P.; Biradar, S.S.; Vinay, M.D. Synthesis and anti-inflammatory
evaluation of methylene bridged benzofuranyl imidazo[2,1-b][1,3,4]thiadiazoles. Eur. J. Med.
Chem. 2008, 43, 1721–1729.
8. Budriesi, R.; Ioan, P.; Locatelli, A.; Cosconati, S.; Leoni, A.; Ugenti, M.P.; Andreani, A.; di Toro, R.;
Bedini, A.; Spampinato, S.; et al. Imidazo[2,1-b]thiazole system: A scaffold endowing
dihydropyridines with selective cardiodepressant activity. J. Med. Chem. 2008, 51, 1592–1600.

Molecules 2012, 17
4715
9. Budriesi, R.; Ioan, P.; Leoni, A.; Pedemonte, N.; Locatelli, A.; Micucci, M.; Chiarini, A.;
Galietta, L.J.V. Cystic fibrosis: A new target for 4-imidazo[2,1-b]thiazole-1,4-dihydropyridines.
J. Med. Chem. 2011, 54, 3885–3894.
10. Noolvi, M.N.; Patel, H.M.; Singh, N.; Gadad, A.K.; Cameotra, S.S.; Badiger, A. Synthesis and
anticancer evaluation of novel 2-cyclopropylimidazo[2,1-b][1,3,4]-thiadiazole derivatives. Eur. J.
Med. Chem. 2011, 46, 4411–4418.
11. Park, J.H.; Oh, C.H. Synthesis of new 6-(4-fluorophenyl)-5-(2-substituted pyrimidin-4-yl)
imidazo[2,1-b] thiazole derivatives and their antiproliferative activity against melanoma cell line.
Bull. Korean Chem. Soc. 2010, 31, 2854–2860.
12. Kamal, A.; Dastagiri, D.; Ramaiah, M.J.; Reddy, J.S.; Bharathi, E.V.; Srinivas, C.;
Pushpavalli, S.N.C.V.L.; Pal, D.; Pal-Bhadra, M. Synthesis of imidazothiazole-chalcone
derivatives as anticancer and apoptosis inducing agents. ChemMedChem 2010, 5, 1937–1947.
13. Meric, A.; Incesu, Z.; Hatipoglu, I. Synthesis of some 3,4-disubstituted-6,7-dihydro-imidazo[2,1-
b][1,3]thiazole and 3,4-disubstituted-7,8-dihydro-6H-imidazo[2,1-b][1,3]thiazine derivatives and
evaluation of their cytotoxicities against F2408 and 5RP7 cells. Med. Chem. Res. 2008, 17, 30–41.
14. Andreani, A.; Burnelli, S.; Granaiola, M.; Leoni, A.; Locatelli, A.; Morigi, R.; Rambaldi, M.;
Varoli, L.; Calonghi, N.; Cappadone, C.; et al. Antitumor activity of new substituted 3-(5-
Imidazo[2,1-b]thiazolylmethylene)-2-indolinones and 3-(5-Imidazo[2,1-b]thiadiazolylmethylene)-
2-indolinones: Selectivity against colon tumor cells and effect on cell cycle-related events.
J. Med. Chem. 2008, 51, 7508–7513.
15. Andreani, A.; Burnelli, S.; Granaiola, M.; Leoni, A.; Locatelli, A.; Morigi, R.; Rambaldi, M.;
Varoli, L.; Calonghi, N.; Cappadone, C.; et al. Potential Antitumor Agents. 42. New antitumor
imidazo[2,1-b]thiazole guanylhydrazones and analogues. J. Med. Chem. 2008, 51, 809–816.
16. Gursoy, E.; Guzeldemirci, N.U. Synthesis and primary cytotoxicity evaluation of new
imidazo[2,1-b]thiazole derivatives. Eur. J. Med. Chem. 2007, 42, 320–326.
17. Lapierre, J.; Liu, Y.; Tandon, M. Inhibiteurs de raf et leurs utilisations. WO Patent
WO/2010/065893, 10 June 2010.
18. Fidanze, S.D.; Erickson, S.A.; Wang, G.T.; Mantei, R.; Clark, R.F.; Sorensen, B.K.; Bamaung, N.Y.;
Kovar, P.; Johnson, E.F.; Swinger, K.K.; et al. Imidazo[2,1-b]thiazoles: Multitargeted inhibitors
of both the insulin-like growth factor receptor and members of the epidermal growth factor family
of receptor tyrosine kinases. Bioorg. Med. Chem. Lett. 2010, 20, 2452–2455.
19. Borhani, D.W.; Calderwood, D.J.; Frank, K.E.; Davis, H.M.; Josephsohn, N.S.; Skinner, B.S.
Novel imidazothiazoles and imidazoxazoles. WO Patent WO/2008/063287, 29 May 2008.
20. Ivy, S.P.; Wick, J.Y.; Kaufman, B.M. An overview of small-molecule inhibitors of VEGFR
signaling. Nat. Rev. Clin. Oncol. 2009, 6, 569–579.
21. Sharma, P.S.; Sharma, R.; Tyagi, T. VEGF/VEGFR Pathway inhibitors as anti-angiogenic agents:
Present and future. Curr. Cancer Drug Targets 2011, 11, 624–653.
22. Han, L.; Ma, X.; Lin, H.; Jia, J.; Zhu, F.; Xue, Y.; Li, Z.; Cao, Z.; Ji, Z.; Chen, Y. A support
vector machines approach for virtual screening of active compounds of single and multiple
mechanisms from large libraries at an improved hit-rate and enrichment factor. J. Mol. Graph.
Model. 2008, 26, 1276–1286.

Molecules 2012, 17
4716
23. Glick, M.; Jenkins, J.L.; Nettles, J.H.; Hitchings, H.; Davies, J.W. Enrichment of high-throughput
screening data with increasing levels of noise using support vector machines, recursive
partitioning, and laplacian-modified naive bayesian classifiers. J. Chem. Inf. Model. 2006, 46,
193–200.
24. Palagiano, F.; Arenare, L.; Luraschi, E.; Decaprariis, P.; Abignente, E.; Damico, M.; Filippelli, W.;
Rossi, F. Research on heterocyclic-compounds. 34. Synthesis and sar study of some
imidazo[2,1,B]thiazole carboxylic and acetic-acids with antiinflammatory and analgesic activities.
Eur. J. Med. Chem. 1995, 30, 901–909.
25. Bolin, D.R.; Michoud, C. Inhibitors of daicylglycerol acyltransferase (DGAT). EP Patent
1,848,687, 31 October 2007.
26. Swanson, D.M.; Shah, C.R.; Lord, B.; Morton, K.; Dvorak, L.K.; Mazur, C.; Apodaca, R.; Xiao, W.;
Boggs, J.D.; Feinstein, M.; et al. Heterocyclic replacement of the central phenyl core of
diamine-based histamine H(3) receptor antagonists. Eur. J. Med. Chem. 2009, 44, 4413–4425.
27. Zegzouti, H.; Zdanovskaia, M.; Hsiao, K.; Goueli, S.A. ADP-Glo: A bioluminescent and
homogeneous ADP monitoring assay for kinases. Assay Drug Dev. Technol. 2009, 7, 560–572.
Sample Availability: Samples of the compounds 5a–p are available from the authors.
© 2012 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
