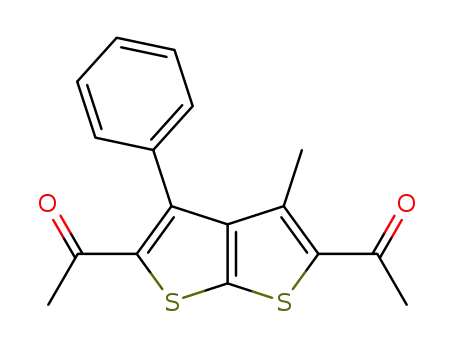

1,1'-(3-methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl)diethanone as a building block in heterocyclic synthesis. novel synthesis of some pyrazole and pyrimidine derivatives

Article abstract of DOI:10.3390/molecules16086502

A series of new bis(heterocycles) featuring thieno[2,3-b]thiophene rings was synthesized in a combinatorial manner. Intramolecular cyclization of enaminone derivatives with appropriate N-nucleophiles afforded the target compounds. All compounds were characterized by ¹H-, ¹³C-NMR, GCMS, IR, and UV-Vis spectrometry. These compounds represent a new class of sulfur- and nitrogen-containing heterocycles that should also be of interest as new materials.

Full text of DOI:10.3390/molecules16086502

Molecules 2011, 16, 6502-6511; doi:10.3390/molecules16086502
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
1,1’-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-
diyl)diethanone as a Building Block in Heterocyclic Synthesis.
Novel Synthesis of Some Pyrazole and Pyrimidine Derivatives
Yahia Nasser Mabkhot 1,* Abdullah Mohammed Al-Majid 1, Assem Barakat 1,*,
Saeed Alshahrani 1 and Yamin Siddiqui 2
1
Department of Chemistry, Faculty of Science, King Saud University, P. O. Box 2455,
Riyadh 11451, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Taibah University, P.O. Box 344, Medina 41411,
Saudi Arabia
* Authors to whom correspondence should be addressed; E-Mails: Yahia@ksu.edu.sa (Y.N.M.);
ambarakat@ksu.edu.sa (A.B.); Tel.: +96614675884; Fax: +96614675992.
Received: 20 June 2011; in revised form: 25 July 2011 / Accepted: 29 July 2011 /
Published: 3 August 2011
Abstract: A series of new bis(heterocycles) featuring thieno[2,3-b]thiophene rings was
synthesized in a combinatorial manner. Intramolecular cyclization of enaminone derivatives
with appropriate N-nucleophiles afforded the target compounds. All compounds were
1
13
characterized by H-, C-NMR, GCMS, IR, and UV-Vis spectrometry. These compounds
represent a new class of sulfur- and nitrogen-containing heterocycles that should also be of
interest as new materials.
Keywords: thienothiophene; enaminones; bis-heterocycles; intramolecular cyclization;
DMF-DMA
1. Introduction
We have recently reported a short and expedient route to various bis(heterocycles) [1,2]. The
method consists of sequential directed nucleophilic addition, side chain deprotonation, nucleophilic
addition, and cyclization using a nitrogen or sulfur moiety as internal nucleophile. The importance of
bis(heterocycles) can be appreciated from the numerous reports in the literature in which the chemistry

Molecules 2011, 16
6503
and biological activities of these compounds were reviewed [3-11]. Thus, thienothiophene derivatives
exhibit biological activities, e.g., antitumor, antiviral [12-18], and as antibiotic, antiglaucoma drugs, or
as inhibitors of platelet aggregation [19-23]. Substituted thienothiophenes have been used as building
blocks in the synthesis of polycondensed systems which include sulfur analogues of electronic devices,
due to their many fundamental advantages over their inorganic counterparts in achieving low-cost,
large area and mechanically flexible electronics [24-27]. More recently thienothiophenes, in particular
the the thieno[2,3-b]thiophene scaffold, have attracted considerable attention as the moieties offer
some significant advantages such as centrosymmetry and higher rigidity, in the design of novel NLO
systems by incorporating this nucleus with in unsymmetrically functionalized cyclophane [13]. On the
other hand, imidazopyrimidine and triazolopyrimidine compounds have been shown antimicrobial
effects [28-32]. Our research has been devoted to the development of new classes of bis(heterocycle)
systems which incorporate the theinothiophene moiety in the hope that they may be biologically
active. We report herein the use of enaminone 3 for the synthesis of new pyrimidine, pyrazole,
triazolopyrimidine and imidazopyrimidine derivatives.
2. Results and Discussion
The starting materials used in the synthesis, for instance, benzolyacetone (1), dimethylformamide
dimethylacetal (DMF-DMA), 4-amino-1,2,4-triazole, and 2-aminobenzimidaole were easily available.
The previously unreported 1,1'-(3-methyl-4-phenylthieno[2,3-b] thiophene-2,5-diyl)diethanone (2) was
synthesized starting from benzoylacetone. Deprotonation of the active methylene proton of the latter
using a K2CO3 in DMF, then trapping with a C-nucleophile such as CS2 and finally reaction with
chloroacetone afforded the product 2 (Scheme 1). The formation of the latter was confirmed by its
1
spectral data (IR, MS, NMR) and elemental analysis. For example, the H-NMR (DMSO-d6) spectra
revealed two singlets signal at δ 1.84, 1.96 assignable to CH3 protons beside multiplet signal at δ 7.55 ppm
assignable for 5H of the benzene ring.
Scheme 1. Synthesis of 1,1'-(3-methyl-4-phenylthieno[2,3-b] thiophene-2,5-diyl)diethanone (2).
i) K2CO3, DMF, CS2
ii) 2 CH3COCH2Cl
O
O
CH3
Ph
O
O
CH3
87%
S
S
H3C
CH3
1
2
Condensation of 2 with dimethylformamide dimethyle acetal (DMF-DMA) under reflux for 10 h in
1
the presence of xylene furnished enaminone 3 (Scheme 2). The H-NMR (DMSO-d6) spectrum of 3
displayed a singlet signal at δ 2.99 pmm due to the N,N-dimethyl group and a singlet at δ 1.96 ppm due
to methyl protons. Two doublets signal at δ 4.53, 5.38 ppm with coupling constant J = 12 Hz were
assignable to olefinic protons (CH=CH) in a trans configuration.

Molecules 2011, 16
6504
Scheme 2. Synthesis of enaminone derivative 3.
CH3
DMF-DMA,
Xylene,
O
O
reflux 10 h
2
S
S
Me2N
3
NMe2
73%
Reaction of enaminone 3 with an N-nucleophile such as urea in dioxane or EtOH/DMF mixture
under reflux for 4–6 h in the presence of a catalytic amount of ZnCl2 as a Lewis acid afforded 4a
(Scheme 3). The structure of the product was confirmed by the 1H-NMR (DMSO-d6) spectrum which
displayed a new pair of doublets signals at δ 5.38, 7.65 with J = 7.8 Hz corresponding to pyrimidinol
besides a singlet peak at δ 6.5 ppm assignable to OH. The formation of compound 4a would involve an
initial addition of the amino group in urea to the activated double bond in enaminone derivative 3,
followed by deamination to an intermediate which then undergoes cyclization and aromatization via
loss of water affording the final isolable product (Scheme 4).
Scheme 3. Synthesis of bis-pyrimidine derivatives 4a–c.
X
CH3
H2N NH2
N
N
3
S
S
N
N
EtOH/DMF
reflux 4-6h
HX
XH
4 a
= X = O, 67%
b = X = S, 68%
= X = NH, 72%
c
Scheme 4. Plausible mechanism of bis-pyrimidine derivatives 4a–c.
X
H2N NH2
XH
H3C
H
O
NMe2
CH3
NMe2
HN NH2
X = O, S, N
NH
X
S
S
O
H2N
3
CH3
H3C
H
NMe2
NH
X
- NHMe2
- H2O
HO
N
S
S
N
HN
XH
4a-c
Next, reaction of enaminone 3 with thiourea in refluxing DMF/Ethanol mixture afforded the
1
corresponding dipyrimidin-2-thiol derivatives 4b (Scheme 3). The H-NMR spectrum (DMSO-d6) of
compound 4b revealed two doublets at δ 5.36 ppm (1H, d) and 7.62 ppm (1H, d) which were readily
assigned to the hydrogen attached at C5 and C4 of the pyrimidine ring respectively, and a singlet at
δ 6.5 pmm (1H, s) assigned to the –SH attached at C2 of the pyrimidine ring. Nevertheless, when
enaminone derivative 3 was reacting with guanidine under similar reaction conditions to give

Molecules 2011, 16
6505
dipyrimidin-2-amine derivative 4c (Scheme 3). The structure of dipyrimidin-2-amine derivatives was
established on the basis of their elemental analysis and spectral data (see Experimental).
Similarly, enaminone derivative 3 cyclized with hydrazine compounds in refluxing absolute ethanol
for 6 h. The novel bispyrazole 5a was assumed to be formed via addition of the amino group in the
hydrazine to the activated double bond of the enamine derivative, followed by deamination,
dehydration and subsequently nucleophilic cyclization to afford the final product (Scheme 5). The IR
spectrum of compound 5a indicated the characteristic absorption band at 3402 cm−1 for the NH group.
In particular, the 1H-NMR spectra (DMSO-d6) of compound 5a revealed two doublets at δ 6.45 (1H, d)
and 7.81 ppm (1H, d) which were readily assigned to the hydrogen attached at C4 and C3 of the
pyrazole ring respectively, and a singlet at δ 13.01 ppm (1H, s) assigned to the –NH attached at C2 of
the pyrazole ring. Nevertheless, when enaminone derivative 3 was reacted with phenyl hydrazine
under similar reaction conditions it gave N-phenyl pyrazole derivative 5b (Scheme 5). The structure
of latter compound was established on the basis of their elemental analysis and spectral data
(see Experimental).
Scheme 5. Synthesis of bis-pyrazole derivatives 5a,b.
CH3
NH2NHR
3
N
N
N
R
N
R
S
S
EtOH/DMF
reflux 4-6h
5 a
= R = H, 62%
b = R = Ph, 64%
The utility of enaminone 3 in the synthesis of annelated heterocycles was further explored via its
reaction with 4-amino-1,2,4-triazole in absolute ethanol under reflux for 7 h in the presence of a
catalytic amount of ZnCl2. It is assumed that the product 6 was formed via initial formation of a
nonisolable hydrazonal followed by elimination of water to give the desired product 6 (Scheme 6).
Spectral data (IR, NMR, MS) and elemental analysis were consistent with isolated product 6. For
1
example, the H-NMR (DMSO-d6) displayed a characteristic a pair of doublets at δ 8.17, 8.99 ppm
assigned to the hydrogen at C5, and C4 of the pyrimidine ring respectively and a singlet at δ 8.67 ppm
assigned to the triazole proton, respectively.
Scheme 6. Synthesis of annelated heterocycles 6,7.
NH2
N
CH3
NH
N
N
N
S
S
EtOH/DMF
reflux 7h, 67%
N
N
N
6
N
N
N
3
CH3
H
N
N
N
NH2
N
S
S
N
N
N
N
EtOH/DMF
reflux 7h, 62%
7

Molecules 2011, 16
6506
The study was extended to investigate the behavior of enaminone deriviatives 3 with different
nucleophiles like 2-aminobenzimidazole with a view to synthesizing various heterocyclic ring systems.
Thus, the reaction of 3 with this compound in refluxing ethanol in the presence of catalytic amount of
ZnCl2 furnished the corresponding product 7 (Scheme 6). The structure of the product was confirmed
1
on the basis of its elemental analysis and spectral data. The H-NMR (DMSO-d6) spectrum of the
compound 7 revealed two doublets signal at δ 8.16, 8.80 assigned to the hydrogen at C5, and C4 of the
pyrimidine ring, respectively.
3. Experimental
3.1. General
All melting points were measured on a Gallenkamp melting point apparatus in open glass capillaries
and are uncorrected. IR spectra were measured as KBr pellets on a Perkin Elmer FT 1000
spectrophotometer. The NMR spectra were recorded on a Varian Mercury Jeol-400 NMR
spectrometer. 1H-NMR (400 MHz) and 13C-NMR (100 MHz) were run in deuterated
dimethylsulphoxide (DMSO-d6). Chemical shifts (δ) are referred in terms of ppm and J-coupling
constants are given in Hz. Abbreviations for multiplicities are as follows: s (singlet), d (doublet),
t (triplet), q (quartet), m (multiplet). Mass spectra were recorded on a Shimadzu GCMS-QP 1000 EX
mass spectrometer at 70 eV. Elemental analysis was carried out on an Elementar Vario EL analyzer.
3.2. 1,1'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl)diethanone (2)
A mixture of benzoylacetone 1 (16.2 g, 0.1 mol) and anhydrous potassium carbonate (25 g) in DMF
(30–40 mL) was stirred vigorously at room temperature for 5 min, then carbon disulfide (7.6 mL, 0.1 mol)
was added with continued stirring for 30 min. The resulting reaction mixture were cooled in ice bath,
then chloroacetone (18.5 mL, 0.2 mol) was added with continued stirring for 15 min, then cooling bath
subsequently removed and the mixture was stirred for further 30 min. The solid product was collected
by filtration and washed with water, dried and the crude product was recrystallized from glacial acetic
acid to give a pale green crystals. Yield: 87%; m.p. 204–206 °C; IR (νmax): 1645 (C=O) cm−1; 1H-NMR δ
(ppm): 1.84 (s, 6H, CH3), 1.96 (s, 3H, CH3), 7.551–7.61 (m, 5H, C6H5); 13C-NMR δ (ppm): 14.49
(CH3), 29.37–30.55 (COCH3), 192.2 (C=O), 129.23, 129.55, 129.87, 134.79, 138.82, 141.84, 147.68
(Ar–C); MS m/z (%): 314 [M+, 70%], 299 (100), 226 (37), 184 (14); Anal. calcd. for C17H14O2S2: C,
64.94; H, 4.49; S, 20.40; Found: C, 64.95; H, 4.44; S, 20.43.
3.3. 1,1'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl)bis(3-(dimethylamino)prop-2-en-1-one) (3)
A mixture of compound 2 (1.75 g, 5 mmol), DMF-DMA (1.19 mL, 0.01 mol) was refluxed in
m-xylene (15 mL) for 10 h. After cooling, the resulting solid product was collected by filtration to give
1
a dark yellow crystals. Yield: 73%; m.p. 250 °C; IR (νmax): 1622 (C=O) cm−1; H-NMR δ (ppm): 1.96
(s, 3H, CH3), 2.99 (s, 12H, CH3), 4.53 (d, 1H, J = 12 Hz, CH), 5.38 (d, 1H, J = 12 Hz, CH), 7.41–7.65
(m, 5H, C6H5); 13C-NMR δ (ppm): 14.9 (–CH3), 44.79 (–N=(CH3)2), 109.8 (–CO–CH=), 153.9 (=CH–N),
180 (C=O); MS m/z (%): 424 [M+, 57%], 380 (51), 336 (18), 309 (18), 98 (100); Anal. calcd. for
C23H24N2O2S2: C, 65.06; H, 5.70; N, 6.60; S, 15.10; Found: C, 65.10; H, 5.68; S, 15.07.

Molecules 2011, 16
6507
3.4. General Procedure for the Synthesis of Compounds 4a–c (GP1)
A mixture of compound 3 (0.212 g, 0.5 mmol), urea dervitives (2 equiv., 1 mmol) refluxed in
dioxane (20 mL) for 4–6 h after in the presence of 0.5 mL of TEA and catalytic amount of ZnCl2.
After cooling, the resulting solid products were filtered off, washed with ethanol, dried and
recrystallized from DMF/EtOH, afford the corresponding derivatives 4a–c, respectively.
4,4'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl) dipyrimidin-2-ol (4a). Compound 4a was
prepared from urea following GP1 as a pale yellow crystalline powder. Yield: 67%; m.p. 248 °C;
IR (νmax): 3444 (OH), 1624 (C=N) cm−1; 1H-NMR δ (ppm): 1.96 (s, 3H, CH3), 5.38 (d, 1H, J = 7.8 Hz,
CH), 6.5 (s, 1H, O–H), 7.65 (d, 1H, J = 7.8 Hz, CH), 7.41–7.65 (m, 5H, C6H5); MS m/z (%): 418
[M+, 2%]; Anal. calcd. for C21H14N4O2S2: C, 60.27; H, 3.37; N, 13.39; O, 7.65; S, 15.32; Found: C,
60.24; H, 3.31; N, 13.38; S, 15.32.
4,4'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl) dipyrimidin-2-thiol (4b). Compound 4b was
prepared from thiourea following GP1 as a pale yellow crystalline powder. Yield: 68%; m.p. 247 °C;
IR (νmax): 1625 (C=N) cm−1; 1H-NMR δ (ppm): 1.96 (s, 3H, CH3), 5.36 (d, 1H, J = 7.8 Hz, CH), 6.5 (s,
1H, S–H), 7.41–7.65 (m, 5H, C6H5), 7.62 (d, 1H, J = 7.8 Hz, CH); MS m/z (%): 450 [M+, 2%]; Anal.
calcd. for C21H14N4S4: C, 55.97; H, 3.13; N, 12.43; S, 28.46; Found: C, 55.98; H, 3.12; N, 12.41; S, 28.41.
4,4'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl) dipyrimidin-2-amine (4c). Compound 4c was
prepared from guanidine following GP1 as a yellow crystaline powder. Yield: 72%; m.p. 246 °C;
1
IR (νmax): 3419 (NH2), 1624 (C=N) cm−1; H-NMR δ (ppm): 1.96 (s, 3H, CH3), 4.50–4.53 (d, 2H,
NH2), 5.39 (d, 1H, J = 11.7 Hz, CH), 7.41–7.52 (m, 5H, C6H5), 7.66 (d, 1H, J = 11.7 Hz, CH);
13C-NMR δ (ppm): 14.99, 19.12, 56.58, 94.12, 108, 128, 129, 130, 136, 154, 179; MS m/z (%): 416
[M+, 2%], 336(100), 324(47), 153(8); Anal. calcd. for C21H16N6S2: C, 60.55; H, 3.87; N, 20.18; S,
15.40; Found: C, 60.58; H, 3.85; N, 20.15; S, 15.38.
3.5. General Procedure for the Synthesis of Compounds 5a–b (GP2)
A mixture of compound 3 (1 mmol), and an excess of hydrazine derivatives (1 mL) refluxed in
EtOH (20 mL) for 6 h. After cooling, the resulting solid products were filtered off, washed with
ethanol, dried and recrystallized from MeOH, afforded the corresponding derivatives 5a,b.
3,3'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl)bis(1H-pyrazole) (5a). Compound 5a was
prepared from hydrazine hydrate following GP2 as white crystals. Yield: 62%; m.p. 177 °C; IR (νmax):
1
3402 (NH), 1624 (C=N) cm−1; H-NMR δ (ppm): 1.87 (s, 3H, CH3), 6.45 (d, 1H, J = 4.5 Hz, CH),
7.53–7.40 (m, 5H, C6H5), 7.81 (d, 1H, J = 4.5 Hz, CH), 13.01 (s, 1H, NH); 13C-NMR δ (ppm):
14.03(CH3), 103(CH), 145 (N=CH), 128.62, 129.13, 129.96, 130.35, 130.54, 136.37, 147.33 (Ar–C);
MS m/z (%): 362 [M+, 43%]; Anal. calcd. for C19H14N4S2: C, 62.96; H, 3.89; N, 15.46; S, 17.69;
Found: C, 62.98; H, 3.86; N, 15.45; S, 15.72.
3,3'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl)bis(1-phenyl-1H-pyrazole) (5b). Compound 5b
was prepared from phenyl hydrazine following GP2 as brown crystals. Yield: 64%; m.p. 199 °C;

Molecules 2011, 16
6508
1
IR (νmax): 1606 (C=N) cm−1; H-NMR δ (ppm): 1.86 (s, 3H, CH3), 6.48 (d, 1H, J = 4.5 Hz, CH),
13
6.53–7.20 (m, 15H, C6H5), 7.55 (d, 1H, J = 4.5 Hz, CH); C-NMR δ (ppm): 14.03 (CH3), 102 (CH),
143 (N=CH), 128.52, 129.23, 129.94, 130.38, 130.54, 136.38, 147.33, 152.84 (Ar–C); MS m/z (%):
514 [M+, 1%]; 169 (5), 107 (100), 92 (55), 90 (35); Anal. calcd. for C31H22N4S2: C, 72.34; H, 4.31; N,
10.89; S, 12.46; Found: C, 72.36; H, 4.29; N, 10.86; S, 12.43.
3.6. General Procedure for the Synthesis of Compounds 6,7 (GP3)
To a solution of compound 3 (212 mg, 0.5 mmol) in DMF (2 mL), substituted amine (2 equiv.,
1 mmol) in EtOH (20 mL, 99.9%) was added, then the resulting reaction mixture was heated under
reflux for 7 h in the presence of catalytic amount of ZnCl2. After cooling, the solid product was
collected by filtration, washed with ethanol, dried and recrystallized from DMF/EtOH, to afford the
corresponding derivatives 6,7, respectively.
7,7'-(3-Methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl)di-[1,2,4]triazolo[1,5-a]pyrimidine
(6).
According to GP3, 6 was obtained from 4-amino-1,2,4-triazole (84 mg) as yellow crystals. Yield: 67%;
1
m.p. 245 °C; IR (νmax): 1624 (C=N) cm−1; H-NMR δ (ppm): 1.96 (s, 3H, CH3), 7.41–7.56 (m, 5H,
C6H5), 8.17 (d, 1H, J = 8.5 Hz, CH, pyrimidyl), 8.67 (s, 1H, CH, triazole), 8.99 (d, 1H, J = 12.5 Hz,
CH, pyrimidyl); 13C-NMR δ (ppm): 14.29 (–CH3), 115.38, 125,129.11, 129.98, 130.21, 132.81, 135.8,
152.8, 154.43, 159.98, 162.88 (Ar–C); MS m/z (%): 466 [M+,45%]; Anal. calcd. for C23H14N8S2: C,
59.21; H, 3.02; N, 24.02; S, 13.75; Found: C, 59.19; H, 3.03; N, 24.04; S, 13.71.
2,2'-(3-methyl-4-phenylthieno[2,3-b]thiophene-2,5-diyl)bis(benzo[4,5]imidazo [1,2-a]pyrimidine) (7).
According to GP3, 7 was obtained from 2-aminobenzimidazole (133 mg) as dark yellow crystals.
Yield: 62%; m.p. 245 °C; IR (νmax): 1622 (C=N) cm−1; 1H-NMR δ (ppm): 1.96 (s, 3H, CH3), 7.42–7.65
(m, 8H, C6H5, benzimidazole), 8.16 (d, 1H, J = 12.5Hz, CH, pyrimidyl), 8.39 (d, 1H, J = 8.5Hz, CH,
13
benzimidazole), 8.80 (d, 1H, J = 12.5 Hz, CH, pyrimidyl); C-NMR δ (ppm): 14.81(–CH3), 112.05,
115.13, 122.5, 127.13, 128.1, 129.9, 131.31, 135.97, 139.1, 142.0, 148.4, 156 (Ar–C); MS m/z (%):
564 [M+, 1%], 488 (1.5), 380 (38), 336 (55), 324 (67), 98 (100); Anal. calcd. for C33H20N6S2: C,
70.19; H, 3.57; N, 14.88; S, 11.36; Found: C, 70.21; H, 3.54; N, 14.85; S, 11.40.
4. Conclusions
In conclusion, the present investigation describes an efficient method for preparing novel
bis(heterocycles), many of which may display potentially interesting biological activity in the field of
medicinal chemistry.
Acknowledgments
The authors extend their appreciation to the Deanship of Scientific Research at King Saud
University for funding the work through the research group project Number RGP- VPP- 007.
Conflict of Interest
The authors declare no conflict of interest.

Molecules 2011, 16
6509
References and Notes
1. Mabkhot, Y.N.; Kheder, N.A.; Al-Majid, A.M. Facile and convenient synthesis of new thieno[2,3-
b]thiophene derivatives. Molecules 2010, 15, 9418-9426.
2. Mabkhot, Y.N. Synthesis and analysis of some bis-heterocyclic compounds containing sulphur.
Molecules 2009, 14, 1904-1914.
3. Boydston, A.J.; Vu, P.D.; Dykhno, O.L.; Chang, V.; Wyatt, A.R.; Stockett, A.S.; Ritschdorff, E.T.;
Shear, J.B.; Bielawski, C.W. Modular fluorescent benzobis(imidazolium) salts: Syntheses,
photophysical analyses, and applications. J. Am. Chem. Soc. 2008, 130, 3143-3156.
4. Coady, D.J.; Khramov, D.M.; Norris, B.C.; Tennyson, A.G.; Bielawski, C.W. Adapting
N-heterocyclic carbene/azide coupling chemistry for polymer synthesis: Enabling access to
aromatic polytriazenes. Angew. Chem. Int. Ed. 2009, 48, 5187-5190.
5. Tang, T.; Coady, D.J.; Boydston, A.J.; Dykhno, O.L.; Bielawski, C.W. Pro-ionomers: An anion
metathesis approach to amphiphilic block ionomers from neutral precursors. Adv. Mater. 2008,
20, 3096-3099.
6. King, W.J.; Nord, F.F. Studies in the thiophene series. V. Wolff-Kishner reductions. J. Org.
Chem. 1949, 14, 638-642.
7. Wu, C.; Decker, E.R.; Blok, N.; Bui, H.; You, T.J.; Wang, J.; Bourgoyne, A.R.; Knowles, V.;
Berens, K.L.; Holland, G.W.; et al. Discovery, modeling, and human pharmacokinetics of N-(2-acetyl-
4,6-dimethylphenyl)-3-(3,4-dimethylisoxazol-5-ylsulfamoyl)-thiophene-2-carboxamide (TBC3711), a
second generation, ETA selective, and orally bioavailable endothelin antagonist. J. Med. Chem.
2004, 47, 1969-1986.
8. Dubus, S.; Levesque, I.; Brunette, M.; Corbeil, G.; Boissinot, M.; Boivin, G.; Bergeron, M.G.;
Boudreau, D.; Leclerc, M. Fluorescent polymeric transducer for the rapid, simple, and specific
detection of nucleic acids at the zeptomole level. J. Am. Chem. Soc. 2004, 126, 4240-4244.
9. Rost, C.; Karg, S.; Riess, W.; Loi, M.A.; Murgia, M.; Muccini, M. Ambipolar light-emitting
organic field-effect transistor. Appl. Phys. Lett. 2004, 85, 1613-1615.
10. Vriezema, D.M.; Hoogboom, J.; Velonia, K.; Takazawa, K.; Christianen, P.C.M.; Maan, J.C.;
Rowan, A.E.; Nolte, R.J. Vesicles and polymerized vesicles from thiophene-containing rod-coil
block copolymers. Angew. Chem. Int. Ed. 2003, 42, 772-776.
11. Pullen, A.E.; Bushel, M.G.; Swager, T.M. Charge-specific interactions in segmented conducting
polymers: An approach to selective ionoresistive responses. Angew. Chem. Int. Ed. 2004, 43,
3700-3703.
12. Heeney, M.; Bailey, C.; Genevicius, K.; Shkunov, M.; Sparrowe, D.; Tierney, S.; Mculloch, I.
Stable polythiophene semiconductors incorporating thieno[2,3-b]thiophene. J. Am. Chem. Soc.
2005, 127, 1078-1079.
13. Mashraqui, S.H; Sangvikar, Y.S. Meetsma, A. Synthesis and structures of thieno[2,3-b]thiophene
incorporated [3.3]dithiacyclophanes. Enhanced first hyperpolarizability in an unsymmetrically
polarized cyclophane. Tetrahedron Lett. 2006, 47, 5599-5602.
14. Mashraqui, S.H.; Sangvikar, Y.S.; Ashraf, M.; Kumar, S.; Daub, E. Dipyridyl/pyridinium
thieno[2,3-b]thiophenes as new atropisomeric systems. Synthesis, conformat-ional analysis and
energy minimization. Tetrahedron 2005, 61, 3507-3513.

Molecules 2011, 16
6510
15. Leriche, P.R.J.; Turbiez, M.M.; Monroche, V.; Allain, M.; Sauvage, F.X.; Roncali, J.; Frere, P.;
Skabara, P.J. Linearly extended tetrathiafulvalene analogues with fused thiophene units as π
conjugated spacers. J. Mater. Chem. 2003, 13, 1324-1327.
16. Lee, B.; Seshadri, V.; Palko, H.; Sotzing, G.A. Ring-sulfonated poly(thienothiophene). J. Adv.
Mater. 2005, 17, 1792-1795.
17. Lim, E.; Jung, B.J.; Lee, J.; Shim, H.K.; Lee, J.I.; Yang, Y.S.; Do, L.M. Thin-film morphologies
and solution-processable field-effect transistor behavior of a fluorine-thieno[3,2-b]thiophene-
based conjugated copolymer. Macromolecules 2005, 38, 4531-4535.
18. Kim, H.S.; Kim, Y.H.; Kim, T.H.; Noh, Y.Y.; Pyo, S.; Yi, M.H.; Kim, D.Y.; Kwon, S.K.
Synthesis and studies on 2-hexylthieno[3,2-b]thiophene end-capped oligomers for OTFTs.
Chem. Mater. 2007, 19, 3561-3567.
19. Jarak, I.; Kralj, M.; Piantanida, I.; Suman, L.; Zinic, M.; Pavelic, K.; Karminski-Zamola, G. Novel
cyano- and amidino-substituted derivatives of thieno[2,3-b]- and thien- o[3,2-b]thiophene-2-
carboxanilides and thieno[30,20:4,5]thieno- and thieno [20,30:4,5] thieno[2,3-c]quinolones:
Synthesis, photochemical synthesis, DNA binding, and antitumor evaluation. Bioorg. Med. Chem.
2006, 14, 2859-2868.
20. Peters, D.; Hornfeldt, A.B.; Gronowitz, S. Synthesis of various 5-substituted uracils.
J. Heterocycl. Chem. 1990, 27, 2165-2173.
21. Kukolja, S.; Draheim, S.E.; Graves, B.J.; Hunden, D.C.; Pfeil, J.L.; Cooper, R.D.G.; Ott, J.L.;
Couter, F.T. Orally absorbable cephalosporin antibiotics. 2. Structure-activity studies of bicyclic
glycine derivatives of 7-aminodeacetoxycephalosporanic acid. J. Med. Chem. 1985, 28, 1896-1903.
22. Prugh, J.D.; Hartman, G.D.; Mallorga, P.J.; McKeever, B.M.; Michelson, S.R.; Murcko, M.A.;
Schwam, H.; Smith, R.L.; Sondey, J.M.; Springer, J.P.; et al. New isomeric classes of topically
active ocular hypotensive carbonic anhydrase inhibitors: 5-substituted thieno[2,3-b]thiophene-2-
sulfonamides and 5-substituted thieno[3,2-b]thiophene-2-sulfonamides. J. Med. Chem. 1991, 34,
1805-1818.
23. Egbertson, M.S.; Cook, J.J.; Bednar, B.; Prugh, J.D.; Bednar, R.A.; Gaul, S.L.; Gould, R.J.;
Hartman, G.D.; Homnick, C.F.; Holahan, M.A.; et al. Centrally constrained thienothiophene
α-sulfonamides are potent, long acting in vivo inhibitors of platelet aggregation. J. Med. Chem.
1999, 42, 2409-2421.
24. Allard, S.; Forster, M.; Souharce, B.; Thiem, H.; Scherf, U. Organic semiconductors for solution-
processable field-effect transistors (OFETs). Angew. Chem. Int. Ed. 2008, 47, 4070-4098.
25. Wu, Z.-Q.; Ono, R.J.; Chen, Z.; Bielawski, C.W. Synthesis of poly(3-alkylthiophene)-block-
poly(arylisocyanide): Two sequential, mechanistically distinct polymerizations using a single
catalyst. J. Am. Chem. Soc. 2010, 132, 14000-14001.
26. Li, Z.; Ono, R.J.; Wu, Z.-Q.; Bielawski, C.W. Synthesis and self-assembly of poly(3-
hexylthiophene)-block-poly(acrylic acid). Chem. Commun. 2011, 47, 197-199.
27. Wu, Z.-Q.; Ono, R.J.; Chen, Z.; Li, Z.; Bielawski, C.W. Polythiophene-block-poly(γ-benzyl L-
glutamate): Synthesis and study of a new rod-rod block copolymer. Polym. Chem. 2011, 2, 300-302.
28. Sirringhaus, H.; Brown, P.J.; Friend, R.H.; Nielsen, M.M.; Bechgaard, K.; Langeveld-Voss, B.M.W.;
Spiering, A.J.H.; Janssen, R.A.J.; Meijer, E.W.; Herwig, P.; et al. Two-dimensional charge
transport in self-organized, high-mobility conjugated polymers. Nature 1999, 401, 685-688.

Molecules 2011, 16
6511
29. Schuett, W.; Raoort, H.S. The paralytic shellfish poison. Degradation to a pyrrolopyrimidine.
J. Am. Chem. Soc. 1962, 84, 2266-2267.
30. Ho, Y.W. 5-(1-Pyrrolyl)-2-phenylthieno[2,3-d]pyrimidine as building block in heterocyclic
synthesis: Novel synthesis of some pyrazoles, pyrimidines, imidazo[1,2-a]pyrimidines,
pyrazolo[1,5-a]pyrimidines, pyrido-(pyrimido)pyrazolo[1,5-a]pyrimidines, 1,2,4-triazolo[1,5-
a]pyrimidine and a 1,2,3,4-Tetrazolo[1,5-a]pyrimidine derivative. J. Chin. Chem. Soc. 2007, 54,
1075-1085.
31. Alexander, S.K.; Smith, L. Novel one pot synthesis of polysubstituted pyrazolo[1,5-a] and
imidazo[1,2-a]pyrimidines. Tetrahedron Lett. 2006, 47, 2611-2614.
32. Riyadh, S.M. Enaminones as building blocks for the synthesis of substituted pyrazoles with
antitumor and antimicrobial activities. Molecules 2011, 16, 1834-1853.
Sample Availability: Samples of the compounds 2–7 are available from the authors.
© 2011 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
