MCR Scaffolds Get Hotter with 18F-Labeling
Tryfon Zarganes-Tzitzikas 1,†, Gonçalo S. Clemente 2,†, Philip H. Elsinga 2,* and
Alexander Dömling 1,
*
1
Department of Drug Design, Groningen Research Institute of Pharmacy, University of Groningen,
9713 AV Groningen, The Netherlands; ttzitzikas@yahoo.com
Department of Nuclear Medicine and Molecular Imaging, University Medical Center Groningen,
University of Groningen, 9713 GZ Groningen, The Netherlands; g.dos.santos.clemente@umcg.nl
Correspondence: p.h.elsinga@umcg.nl (P.H.E); a.s.s.domling@rug.nl (A.D.); Tel.: +31-50-3613247 (P.H.E.);
+31-50-3633307 (A.D.)
2
*
†
These authors contributed equally to this paper.
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Cimarelli Cristina
Received: 13 March 2019; Accepted: 2 April 2019; Published: 4 April 2019
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: Imaging techniques, such as positron emission tomography (PET), represent great progress
in the clinical development of drugs and diagnostics. However, the efficient and timely synthesis
of appropriately labeled compounds is a largely unsolved problem. Numerous small drug-like
molecules with high structural diversity can be synthesized via convergent multicomponent reactions
(MCRs). The combination of PET labeling with MCR synthesis of biologically active compounds
can greatly simplify radioanalytical and imaging-based analysis. In a proof-of-concept study,
we optimized robust on-site radiolabeling conditions that were subsequently applied to several
structurally different drug-like MCR scaffolds (e.g., arenes,
β-lactam, tetrazole, and oxazole).
These labeled scaffolds were synthesized via pinacol-derived aryl boronic esters (arylBPin) by
copper-mediated oxidative 18F-fluorination with radiochemical conversions (RCCs) from 15% to 76%.
Keywords: multicomponent reactions; fluor-18; positron emission tomography; radiochemistry;
boronic pinacol esters
1. Introduction
Recently, the pharmaceutical industry has demonstrated an increasing interest in accelerating
data acquisition using radioanalytical and translational molecular imaging strategies during the early
stages of drug discovery. Molecular imaging uses specific tracers to study cellular or subcellular
processes, ideally without intervening in them or causing a biological response. In the medical
field, it has already shown to have a major impact on health care systems by providing longitudinal
studies with three-dimensional and quantitative images. This facilitates the diagnosis of a wide
range of pathologies and the assessment to treatment response, bringing personalized therapy into
routine clinical practice. The unique capacity of positron emission tomography (PET) techniques
to detect with high sensitivity (10−12 mol/L) nano- to picomolar amounts of analyte, clearly
benefits from efficient use of resources and raised the demand for radiotracers and radiolabeling
techniques. In the clinical field, PET imaging is widely used mainly due to a nonspecific radiotracer
analog of glucose—2-[18F]fluoro-2-deoxy-glucose ([18F]FDG)—that can identify changes in cellular
glucose metabolism during inflammatory processes or related to the hypermetabolism of tumor
cells. Radioanalytical and nuclear imaging techniques can also significantly shorten the temporal
gap between preclinical research and first-in-human clinical trials by facilitating study design and
further submission for regulatory agency approval [
1–3]. PET applications range from the assessment
and mapping of potential therapeutic targets to the characterization, validation, and evaluation of
Molecules 2019, 24, 1327; doi:10.3390/molecules24071327
www.mdpi.com/journal/molecules

Molecules 2019, 24, 1327
2 of 15
toxicology, pharmacokinetic, and pharmacodynamics. However, the efficient and timely synthesis of
appropriately labeled compounds is a major issue.
Multicomponent reactions (MCRs) can help to solve this problem; they generally involve at
least three simple substrates able to react nonsimultaneously, in a one-pot manner, to produce a
single final complex structure that can be an organic material, a natural product, or a bioactive
molecule. The development of small molecules through convergent MCR has been boosted during
the last decade due to the ease of automation and the ability to synthesize numerous small drug-like
molecules with several degrees of structural diversity in high yields [
for the pharmaceutical industry since it provides a quicker, versatile, and more effective way to
generate vast libraries of small organic molecules from common intermediate backbones (Figure 1) [ ].
4]. It became a powerful tool
5,6
This allows for a more efficient and time-saving method to achieve molecular diversity, supporting the
investigation of how small changes in the overall scaffold may influence functional, biological, and
pharmacological activity.
Figure 1. Current and potential multicomponent reaction (MCR) approaches for the generation of
scaffold diversity.
The most established multicomponent assembly processes (e.g., Passerini, Ugi, van Leusen, and
Groebke–Blackburn–Bienaymé reactions) rely on isocyanides. However, hundreds of other scaffolds
are enabled by MCR [
and drug-like compounds is clearly supported by the recent advantageous synthesis of Praziquantel,
Olanzepine, Ivosidenib, Epelsiban, Retosiban, Lacosamide, and Clopidogrel, just to name a few [13 19].
7–12]. The usefulness of MCR in the discovery and/or synthesis of drugs
–
Herein, MCR-based synthetic routes have been developed to address the issue of efficient
access to PET labeled compounds. Amongst the most used PET isotopes, 11C, 13N, 15O, or 18F,
we focus here on 18F due to its convenient physical half-life (109.7 min). Although several late-stage
18F-fluorination strategies have been recently developed (Scheme S1), MCR is underused as a PET
tracer assembly strategy [20,21]. The latent automation potential which is based on the usage of
the same broadly established aqueous [18F]F− pretreatment and [18F]KF postprocessing mechanisms
similarly to conventional radiochemistry modules, allows for the successful translation to a range
of [18F]fluoroarenes, including biologically relevant radiotracers [22
–25]. Additionally, the relatively
simple synthesis of arylboronates by palladium catalyzed coupling reactions allows the development
of arylBPin building blocks that can be further used in MCR [26].

Molecules 2019, 24, 1327
3 of 15
Copper-mediated oxidative 18F-fluorination of aryl boronic esters (arylBPin) (Scheme 1 and
Scheme S2) has been lately revisited and enhanced, showing appropriate tolerance to electron-poor,
neutral and rich arenes, and to various functional groups [22,27–29].
Scheme 1. Copper-mediated oxidative 18F-fluorination of aryl boronic esters (arylBPin).
2. Results
Testing and implementing this 18F-fluorination approach in our lab raised the need for an
extensive optimization to identify the variables, bringing more reliable, reproducible, and robust
results in a conventional radiochemistry research lab. Therefore, our aim was to investigate the
scope and feasibility of this radiolabeling method and specifically use radio-TLC (radio thin-layer
chromatography) as a means to identify all radiolabeled products (Table S1) and their radiochemical
conversions (RCCs). 4-formylphenylboronic acid pinacol ester was used as a reference substrate for all
nonautomated optimization studies. D−ue to the previously known base sensitivity of Cu-complexes,
the standard trapping of aqueous [18F]F to an anion-exchange cartridge was followed by the washout
of [(Krypt-222)K+][18F]F− with an 80% CH3CN solution containing cryptand K222 and a very limited
amount of K2CO3 and K2C2O4. [18F]fluoride was dried azeotropically, redissolved in DMF (N,N
dimethylformamide), transferred to a V-shaped borosilicate reaction vial containing a◦stirring bar,
sealed with a Teflon-lined cap under dry atmospheric air, and placed in an oil bath at 110 C. Different
amounts of [Cu(OTf)2(py)4] and 4-formylphenylboronic acid pinacol ester precursor were added
sequentially to study their influence on the RCC of arylBpin/aryl-18F (Figure 2). The duration of the
reaction was initially evaluated (at 110 ◦C) and an ideal time of 30 min was selected for all further
reactions. During the first 20 min of reaction it was evident (by following through radio-TLC) a gradual
increase of the RCC, reaching a plateau around 30 min, which makes that further prolongation of the
reaction till 60 min only brings a very limited increase to the reaction efficiency (<5%).
Figure 2. Impact of the Cu catalyst and precursor in the radiochemical conversion (RCC) of
4-[18F]fluorobenzaldehyde [18F]1 (assessed by radio-TLC).
Predictably, the conversion of [18F]fluoride into the wanted radiolabeled products is directly
dependent on the amount of catalyst and precursor in the reaction mixture. RCC’s were calculated
by radio-TLC where two radiochemical species were identified: the nonreactive [18F]F− and the
desired 4-[18F]fluorobenzaldehyde ([18F]1) (Figure S1). We opted to proceed for further studies with
a near-optimal proportion of 60 µmol of precursor and 20 µmol of [Cu(OTf)2(py)4] as an indication

Molecules 2019, 24, 1327
4 of 15
and a compromise between precursor to catalyst ratio (3:1). The reaction temperature of Cu-mediat◦ed
◦
oxidative 18F-fluorination in arylBPin has been continuously kept between an optimal 110 C to 120 C
(see Figure S14 for the effect of temperature in the RCC of [18F]1).
The results from our in loco optimization demonstrate that Cu-mediated oxidative 18F-fluorination
tolerates a range of reaction conditions wider than generally described (temperature and
catalyst-to-precursor ratio) [26–28]. This has the potential to open future perspectives, turning it
into a suitable method for a larger range of molecular backbones which may not handle harsh reaction
conditions. Early in the preparation for the optimization studies, it became evident the importance of
having the reaction vial flushed with dry air and also of stirring versus gas bubbling or solely heating.
Without these procedures, RCC can drop by half.
The on-site optimized procedure was equally effective for the radiosynthesis of simple
electron-deficient ([18F]1, [18F]2) and electron-rich fluoroarenes ([18F]3) (Scheme 2, Figures S1–S3).
Cu-mediated oxidative 18F-fluorination was subsequently applied to different, more complex MCR
scaffolds containing biologically and structurally relevant heterocycles with diverse electrophilic
aromatic directing groups. These scaffolds were synthesized to specifically include an aryl boronic
acid pinacol ester into the final structure.
Scheme 2. Cu-mediated late-stage 18F-fluorination of simple arenes.
Despite the emergence of treatment resistance, β-lactams are still among the most successful
classes of antibiotics developed so far. This, associated with the fact that the intrinsic strain of
four-membered heterocycles turns them more susceptible to hydrolysis, makes the 18F-fluorination
of a
more sensitive structures. The synthesis of a
MCR between the 4-formylphenylboronic acid pinacol ester,
β
-lactam scaffold an upright assessment to attest the suitability of the Cu-mediated reaction to
-lactam scaffold was achieved in one step through Ugi’s
-alanine, and an isocyanide (Scheme 3,
β
β
Figures S4 and S5). Radiolabeling these products both in DMF and DMA has reiterated the propensity
for a better conversion efficacy when using DMA in place of DMF. Consistent results were obtained,
indicating that this 18F-fluorination methodology may be considered even for scaffolds containing
groups with some degree of chemical sensitivity.
Next, we synthesized α-amino tetrazoles through the Ugi reaction. As an isosteric substituent of
various functional groups (e.g., carboxylate and cis-amide) the tetrazole moiety is often used to confer
resistance against the metabolic processes and to increase cell permeability [30]. A tetrazole scaffold
containing different complexity in the ring systems involved, which strongly influence the overall
electronic and steric properties, was built via Ugi’s four-component condensation and efficiently
converted to the [18F]fluorinated counterparts (Scheme 4, Figures S6–S8). Interestingly, even the
presence of the mobile hydrogen from a secondary amine, which is known to hamper nucleophilic
fluorination by causing a decrease in the reactivity of [18F]F−, does not seem to greatly affect the
formation of [18F]8. Additionally to the successful conversion of arylBPin derivatives containing a

Molecules 2019, 24, 1327
5 of 15
tetrazole function, Cu-mediated 18F-fluorination of arylboronate esters also showed to be compatible
with the presence of benzodioxoles (antitumoral potential) [31] and morpholines (anti-inflammatory,
antimicrobial, anticancer, anti-hyperlipidemic, and analgesic potential) [32].
Scheme 3. General MCR synthesis and 18F-fluorination of β-lactam scaffold.
Scheme 4. General MCR synthesis and 18F-fluorination of tetrazole scaffold.
Another class of azoles of great interest as building blocks of pharmaceuticals is the
oxazole ring. These can be functional both as synthetic intermediates and as biologically active
products (e.g., antibacterial, antifungal, analgesic, anti-inflammatory, hypoglycemic, antiproliferative,
antituberculosis, muscle relaxant, and HIV inhibitory activity [33–35]). The wide applicability of
oxazoles in the synthesis of drugs also justified the evaluation of the compatibility of these aromatic
heterocycles with the Cu-mediated oxidative 18F-fluorination method. The oxazole scaffold was
prepared by the van Leusen (vL) multicomponent reaction between a 4- or 3-formylphenylboronic
ester and tosylmethyl isocyanide (Scheme 5). Both para and meta position products were successfully

Molecules 2019, 24, 1327
6 of 15
radiolabeled with [18F]9 reaching a maximum RCC of 67% and [18F]10 a maximum RCC of 38%
(Figures S9 and S10).
Scheme 5. General synthesis and 18F-fluorination of oxazole scaffold.
The Passerini reaction is the oldest isocyanide-based MCR (early 1920s), and has been continuously
enhanced being actually a landmark to green chemistry. This versatile three-component reaction of a
carboxylic acid, a carbonyl compound, and an isocyanide, gives direct access to
α acyloxy carboxamide
moieties and has found applications in the field of combinatorial chemistry, natural product and
drug synthesis, e.g., inhibitors of HIV-1 protease, antitumoral agents, and fungicides [36]. The latent
applicability to the development of small drug-like molecules, allied to the need to foresee how the
strong presence of electronegative carboxyl groups and amides, would affect further 18F-fluorinations,
has motivated the development of arylBPin-containing molecules by Passerini MCR (Scheme 6,
Figures S11–S13).
Scheme 6. General MCR synthesis and 18F-fluorination of α-acyloxy carboxamides.
3. Discussion
In summary, radiolabeling with fluor-18 was achieved with volumes (800 µL) and activities
(up to 2 GBq) compatible with most radiochemistry techniques and automatic modules using oxidative
Cu catalysis. 18F-Fluorination of aryl boronic ester derivatives was optimized to reach more robust

Molecules 2019, 24, 1327
7 of 15
and reproducible reaction conditions capable to offer a wider spectrum of radiolabeling options.
These have proved to be successful for a range of temperatures, precursor, and [Cu(OTf)2(py)4] catalyst
amounts, which can be tunable according to the chemical nature of the precursors and to the final
aim of the radiotracer. Moreover, we showed the compatibility to several heterocycles commonly
used in medicinal chemistry (e.g., β-lactams, tetrazoles, oxazoles, morpholines, and benzodioxoles),
which potentiates the 18F-fluorination of several small drug-like molecules synthesized through
one pot convergent multicomponent reactions. Reproducible RCCs from 15% to 76%, depending
on the scaffolds, were achieved, demonstrating the possibility to translate Cu-mediated oxidative
18F-fluorination to biologically active molecules synthesized via MCR, allowing latent access to
18F-fluorinated drugs. As we firmly confirmed the feasibility of the radiolabeling method, future work
will concentrate on the practical aspects of the method including automation and purification.
4. Materials and Methods
4.1. General Information
Reagents were available from commercial suppliers and used without any purification unless
otherwise noted. All isocyanides were made in-house by either performing the Hoffman or Ugi
procedure. Other reagents were purchased from Sigma Aldrich, ABCR, Acros, and AK Scientific, and
were used without further purification.
All microwave irradiation reactions were carried out in a Biotage Initiator
™ Microwave
Synthesizer (Biotage, Uppsala, Sweden) using sealed reaction vessels. The reaction temperature
was monitored with an external surface sensor. Electrospray ionization mass spectra (ESI-MS) were
recorded on a Waters Investigator Semi-prep 15 SFC-MS instrument (Waters, Milford, MA, USA).
HR-MS measurements were recorded on a LTQ-OrbitrapXL at a resolution of 60000 @ m/z 400. Scan
range from 150 to 1000 Da. Nuclear magnetic resonance spectra (NMR) were recorded on a Bruker
Avance 500 spectrometer (1H NMR (500 MHz), 13C{1H} NMR (126 MHz)) (Bruker, Billerica, MA, USA).
Chemical shifts for 1H NMR were reported as
δ values and coupling constants were reported in hertz
(Hz). The following abbreviations were used for spin multiplicity; s = singlet, d = doublet, t = triplet,
dd = double doublet, m = multiplet, bs = broad singlet. Chemical shifts for 13C NMR were reported
in ppm relative to the solvent peak. Thin-layer chromatography was performed on Fluka precoated
silica gel plates (0.20 mm thick, particle size 25 µm). Flash chromatography was performed on a
Teledyne ISCO Combiflash Rf, using RediSep Rf Normal-phase Silica Flash Columns (Silica Gel 60 Å,
230–400 mesh).
All of the procedures involving handling of radioactive substances were carried out in a
radiochemistry laboratory with the standard required conditions of radiological protection and safety.
The use of personal protective equipment and lead shielding, with an appropriate thickness to the
manipulated activities, was equally transversal to all experimental radiochemistry procedures. Fluor-18
used in this work was produced by the 18O(p,n)18F nuclear reaction using an IBA (Louvain-la-Neuve,
Belgium) Cyclone 18/9 cyclotron.
As a final note, all data with standard deviation values presented in this report are the product of
at least a duplicate (n ≥ 2) analysis under the same conditions and methodology.
4.2. General Procedure for the Synthesis of Compounds
A (Ugi-β-lactam): an aldehyde (1 mmol), β-alanine (1 mmol), and an isocyanide (1 mmol) were added
to a sealed microwave reaction vessel. Three milliliters of methanol was added as a solvent and the
reaction mixture was left to react for two hours in the microwave at 100 ◦C. The crude mixture was
evaporated and subjected to column chromatography (petroleum ether/ethyl acetate) affording the
title compounds.
B (Ugi-Tetrazoles): the corresponding aldehyde (1 mmol), amine (1 mmol), isocyanide (1 mmol), and
azidotrimethylsilane (1 mmol) were added to a 5-mL flask along with 3 mL of methanol as a solvent.

Molecules 2019, 24, 1327
8 of 15
The reaction mixture was stirred for 24 h at room temperature. The crude mixture was evaporated and
subjected to column chromatography (petroleum ether/ethyl acetate) affording the title compounds.
C (van Leusen-Oxazoles): an aldehyde (1 mmol), TosMIC (1 mmol), and K2CO3 (2 mmol) were added
and sealed in a microwave reaction vessel. Three milliliters of methanol was added as a solvent and
◦
the reaction mixture was left to react for two hours in the microwave at 100 C. The crude mixture was
evaporated and subjected to column chromatography (petroleum ether/ethyl acetate) affording the
title compounds.
D (Passerini): the corresponding aldehyde (1 mmol), acid (1 mmol), and isocyanide (1 mmol) were
added to a 5-mL flask along with 3 mL of methanol as a solvent. The reaction mixture was stirred for
24 h at room temperature. The crude mixture was evaporated and subjected to column chromatography
(petroleum ether/ethyl acetate) affording the title compounds.
4.3. Characterization Data
4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde (
1): compound 1 (CAS: 128376-64-7) was
purchased from AK Scientific Inc. and was used without further purification.
4-fluorobenzaldehyde ([19F]1): compound [19F]1 (CAS: 459-57-4) was purchased from Sigma Aldrich and
was used without further purification.
4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzonitrile (
2): compound 2 (CAS: 171364-82-2) was
purchased from FluoroChem and was used without further purification.
4-fluorobenzonitrile ([19F]2): compound [19F]2 (CAS: 1194-02-1) was purchased from AK Scientific Inc.
and was used without further purification.
2-(3,4-dimethoxyphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (3): compound 3 (CAS: 365564-10-9) was
purchased from AK Scientific Inc. and was used without further purification.
4-fluoro-1,2-dimethoxybenzene ([19F]3): compound [19F]3 (CAS: 398-62-9) was purchased from FluoroChem
and was used without further purification.
N-(tert-butyl)-2-(2-oxoazetidin-1-yl)-2-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)acetamide (
compound 4 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde
(232.0 mg), -alanine (89.1 mg) and tert-Butyl isocyanide (83.1 mg) following the general protocol A
maintaining the temperature at 100 ◦C. Yield: 301.3 mg (78%), yellow oil, 1H NMR (500 MHz, CDCl3)
7.81 (d, J = 7.8 Hz, 2H), 7.38 (d, J = 7.8 Hz, 2H), 6.67 (s, 1H), 5.54 (s, 1H), 3.70 (td, J = 5.6, 2.7 Hz, 1H),
3.11 (td, J = 5.6, 2.7 Hz, 1H), 2.93 (ddd, J = 14.6, 5.6, 2.7 Hz, 1H), 2.76 (ddd, J = 14.6, 5.6, 2.7 Hz, 1H),
4):
β
δ
1.34 (s, 12H), 1.31 (s, 9H). 13C{1H} NMR (126 MHz, CDCl3)
δ 167.8, 167.5, 137.9, 135.1, 127.2, 83.6, 59.0,
51.3, 38.7, 35.9, 28.3, 24.6; HRMS (ESI): m/z calcd for C21H32BN2O4 [M + H]+ 387.2455, found 387.2452.
N-(tert-butyl)-2-(4-fluorophenyl)-2-(2-oxoazetidin-1-yl)acetamide ([19F]4): compound [19F]4 was prepared
from 4-fluorobenzaldehyde (124.1 mg),
following the general protocol A maintaining the temperature at 100 ◦C. Yield: 225.4 mg (81%), white
solid, m.p.: 133–135 ◦C. 1H NMR (500 MHz, CDCl3)
7.38–7.33 (m, 2H), 7.07 (t, J = 8.6 Hz, 2H), 6.03
(s, 1H), 5.31 (s, 1H), 3.63 (td, J = 5.6, 2.7 Hz, 1H), 3.13 (td, J = 5.6, 2.7 Hz, 1H), 3.00 (ddd, J = 14.8, 5.6,
2.6 Hz, 1H), 2.85 (ddd, J = 14.8, 5.6, 2.6 Hz, 1H), 1.33 (s, 9H). 13C{1H} NMR (126 MHz, CDCl3)
167.8,
β-alanine (89.1 mg), and tert-Butyl isocyanide (83.1 mg)
δ
δ
167.7, 162.7 (d, J = 247.9 Hz), 130.9 (d, J = 3.3 Hz), 130.0 (d, J = 8.3 Hz), 116.0 (d, J = 21.7 Hz), 59.3, 51.9,
38.9, 36.3, 28.6; HRMS (ESI): m/z calcd for C15H20FN2O2 [M + H]+ 279.1509, found 279.1502.
N-(4-bromobenzyl)-2-(2-oxoazetidin-1-yl)-2-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)acetamide
(
5
): compound
(232.0 mg), -alanine (89.1 mg), and 1-bromo-4-(isocyanomethyl)benzene (196.0 mg) following the
general protocol A maintaining the temperature at 100 ◦C. Yield: 404.3 mg (81%), white solid, m.p.:
97–99 ◦C. 1H NMR (500 MHz, CDCl3)
7.80 (d, J = 7.8 Hz, 2H), 7.66 (t, J = 5.7 Hz, 1H), 7.32 (m, 4H),
5 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde
β
δ

Molecules 2019, 24, 1327
9 of 15
6.99 (d, J = 8.2 Hz, 2H), 5.56 (s, 1H), 4.3–4.18 (m, 2H), 3.63–3.57 (m, 1H), 3.08 (td, J = 5.3, 2.4 Hz, 1H),
2.82–2.77 (m, 1H), 2.68–2.63 (m, 1H), 1.34 (s, 12H). 13C{1H} NMR (126 MHz, CDCl3)
168.6, 167.7,
δ
137.1, 136.8, 135.2, 131.3, 129.0, 127.2, 120.9, 83.7, 58.8, 42.5, 38.9, 35.8, 24.7; HRMS (ESI): calcd for
C24H29BBrN2O4 [M + H]+ 499.1404, found 499.1398.
N-(4-bromobenzyl)-2-(4-fluorophenyl)-2-(2-oxoazetidin-1-yl) ([19F]5): compound [19F]5 was prepared from
4-fluorobenzaldehyde (124.1 mg),
(196.0 mg) following the general protocol A maintaining the temperature at 100 ◦C. Yield: 293.4 mg
(75%), white solid, m.p.: 102–104 ◦C. 1H NMR (500 MHz, CDCl3)
7.42 (m, 2H), 7.37–7.32 (m, 2H),
β-alanine (89.1 mg), and 1-bromo-4-(isocyanomethyl)benzene
δ
7.07 (m, 4H), 6.86 (b, 1H), 5.37 (s, 1H), 4.38 (d, J = 5.8 Hz, 2H), 3.58 (td, J = 5.6, 2.7 Hz, 1H), 3.16 (td,
J = 5.6, 2.7 Hz, 1H), 2.96 (ddd, J = 14.8, 5.6, 2.7 Hz, 1H), 2.85 (ddd, J = 14.8, 5.6, 2.7 Hz, 1H). 13C{1H}
NMR (126 MHz, CDCl3) δ 168.7, 168.1, 162.8 (d, J = 248.4 Hz), 136.7, 131.8, 130.1 (d, J = 3.1 Hz), 130.0
(d, J = 8.3 Hz), 129.4, 121.5, 116.2 (d, J = 21.7 Hz), 59.4, 43.1, 39.2, 36.2; HRMS (ESI): m/z calcd for
C18H17BrFN2O2 [M + H]+ 391.0457, found 391.0455.
4-((1-(benzo[d][1,3]dioxol-5-ylmethyl)-1H-tetrazol-5-yl)(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)
methyl)morpholine (6): compound 6 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)
benzaldehyde (232.0 mg), morpholine (87.1 mg), 5-(isocyanomethyl)benzo[d][1,3]dioxole (161.2 mg)
and azidotrimethylsilane (115.2 mg) following the general protocol B. Yield: 353.7 mg (70%), orange
1
oil. H NMR (500 MHz, CDCl3)
δ
7.76 (d, J = 8.0 Hz, 2H), 7.31 (d, J = 8.0 Hz, 2H), 6.72 (d, J = 8.0 Hz,
1H), 6.58 (dd, J = 8.0, 1.1 Hz, 1H), 6.51 (d, J = 1.1 Hz, 1H), 5.95 (s, 2H), 5.50 (d, J = 15.3 Hz, 1H), 5.29
(d, J = 15.3 Hz, 1H), 4.80 (s, 1H), 3.66 (t, J = 4.6 Hz, 4H), 2.53–2.44 (m, 2H), 2.36–2.28 (m, 2H), 1.34
(s, 12H). δ 153.9, 148.2, 147.9, 136.6, 135.0, 128.3, 126.6, 121.2, 108.3,
13C{1H} NMR (126 MHz, CDCl3)
107.8, 101.3, 83.9, 66.6, 65.1, 51.2, 50.9, 24.7; HRMS (ESI): m/z calcd for C26H33BN5O5 [M + H]+ 506.2575,
found 506.2572.
4-((1-(benzo[d][1,3]dioxol-5-ylmethyl)-1H-tetrazol-5-yl)(4-fluorophenyl)methyl)morpholine ([19F]6): compound
[19F]6 was prepared from 4-fluorobenzaldehyde (124.1 mg), morpholine (87.1 mg), 5-(isocyanomethyl)
benzo[d][1,3]dioxole (161.2 mg), and azidotrimethylsilane (115.2 mg) following the general protocol B.
Yield: 357.6 mg (90%), pale white solid, m.p.: 152–154 ◦C. 1H NMR (500 MHz, CDCl3)
δ 7.33–7.27 (m,
2H), 7.05–6.95 (m, 2H), 6.75 (d, J = 8.0 Hz, 1H), 6.60 (dd, J = 8.0, 1.8 Hz, 1H), 6.50 (d, J = 1.8 Hz, 1H),
5.97 (dd, J = 3.8, 1.4 Hz, 2H), 5.52 (d, J = 15.3 Hz, 1H), 5.39 (d, J = 15.3 Hz, 1H), 4.74 (s, 1H), 3.81–3.46
(m, 4H), 2.59–2.37 (m, 2H), 2.30 (m, 2H). 13C{1H} NMR (126 MHz, CDCl3)
δ 162.6 (d, J = 248.5 Hz),
153.9, 148.1 (d, J = 33.5 Hz), 130.9 (d, J = 8.2 Hz), 129.4, 126.7, 121.1, 115.5 (d, J = 21.6 Hz), 108.3, 107.7,
101.4, 66.6, 64.1, 50.9; HRMS (ESI): calcd for C20H21FN5O3 [M + H]+ 398.1628, found 398.1621.
4-((1-(2,6-dimethylphenyl)-1H-tetrazol-5-yl)(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)methyl)
morpholine (7):
Compound 7 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde (232.0 mg),
morpholine (87.1 mg), 2-isocyano-1,3-dimethylbenzene (131.2 mg), and azidotrimethylsila◦ne (115.2 mg)
1
following the general protocol B. Yield: 423.1 mg (89%), white solid, m.p.: 155–157 C. H NMR
(500 MHz, CDCl3)
J = 7.6 Hz, 2H), 7.08 (d, J = 7.6 Hz, 1H), 4.28 (s, 1H), 3.70 (m, 4H), 2.61–2.35 (m, 4H), 2.05 (s, 3H), 1.33 (d,
J = 4.2 Hz, 12H), 1.11 (s, 3H). 13C{1H} NMR (126 MHz, CDCl3)
155.0, 136.9, 136.4, 134.7, 134.5, 131.0,
δ 7.71 (d, J = 7.6 Hz, 2H), 7.39 (t, J = 7.6 Hz, 1H), 7.29 (d, J = 7.7 Hz, 1H), 7.20 (d,
δ
130.8, 128.6, 128.5, 128.4, 83.6, 66.3, 65.3, 51.5, 24.6, 17.2, 16.2; HRMS (ESI): m/z calcd for C26H35BN5O3
[M + H]+ 476.2833, found 476.2831.
4-((1-(2,6-dimethylphenyl)-1H-tetrazol-5-yl)(4-fluorophenyl)methyl)morpholine ([19F]7): compound [19F]7
was prepared from 4-fluorobenzaldehyde (124.1 mg), morpholine (87.1 mg), 2-isocyano-1,3-
dimethylbenzene (131.2 mg), and azidotrimethyl◦silane (115.2 mg) following the general protocol
B. Yield: 323.3 mg (88%), white solid, m.p.: 123–125 C. 1H NMR (500 MHz, CDCl3)
δ 7.41 (t, J = 7.6 Hz,
1H), 7.30 (d, J = 7.6 Hz, 1H), 7.26–7.17 (m, 2H), 7.12 (d, J = 7.6 Hz, 1H), 6.96 (t, J = 8.6 Hz, 2H), 4.30
(s, 1H), 3.74–3.67 (m, 4H), 2.72–2.33 (m, 4H), 2.05 (s, 3H), 1.20 (s, 3H). 13C{1H} NMR (126 MHz, CDCl3)

Molecules 2019, 24, 1327
10 of 15
δ
162.4 (d, J = 248.9 Hz), 155.0, 136.1, 134.6, 131.0, 129.9 (d, J = 3.2 Hz), 128.6 (d, J = 2.7 Hz), 115.3
(d, J = 21.5 Hz), 66.3, 64.4, 51.3, 17.2, 16.2; HRMS (ESI): m/z calcd for C20H23FN5O [M + H]+ 368.1887,
found 368.1883.
1-(1-benzyl-1H-tetrazol-5-yl)-N-(4-chlorobenzyl)-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)
methanamine (8): compound 8 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)
benzaldehyde (232.0 mg), (4-chlorophenyl)methanamine (141.6 mg), (isocyanomethyl)benzene
(117.2 mg), and azidotrimethylsilane (115.2 mg) following the general protocol B. Yield: 366.2 mg
◦
1
(71%), pale yellow solid, m.p.: 111–113 C. H NMR (500 MHz, CDCl3)
7.33–7.27 (m, 1H), 7.26–7.21 (m, 4H), 7.16 (d, J = 8.0 Hz, 2H), 7.08 (d, J = 8.3 Hz, 2H), 6.92 (d, J = 7.2 Hz
2H), 5.38 (d, J = 15.4 Hz, 1H), 5.12 (d, J = 15.4 Hz, 1H), 4.91 (s, 1H), 3.66–3.55 (m, 2H), 1.34 (s, 12H)
δ 7.77 (d, J = 8.0 Hz, 2H),
,
.
13C{1H} NMR (126 MHz, CDCl3)
δ 155.4, 139.9, 137.2, 135.6, 133.0, 129.6, 129.1, 128.8, 128.6, 127.4,
126.9, 84.1, 55.8, 51.0, 50.2, 24.9; HRMS (ESI): m/z calcd for C28H32BClN5O2 [M + H]+ 516.2338,
found 516.2332.
1-(1-benzyl-1H-tetrazol-5-yl)-N-(4-chlorobenzyl)-1-(4-fluorophenyl)methanamine ([19F]8): compound [19F]8
was prepared from 4-fluorobenzaldehyde (124.1 mg), (4-chlorophenyl)methanamine (141.6 mg),
(isocyanomethyl)benzene (117.2 mg), and azidotrimethylsilane (115.2 mg) following the general
◦
1
protocol B. Yield: 322.2 mg (79%), pale yellow solid, m.p.: 73–75 C. H NMR (500 MHz, CDCl3)
7.30 (m, 1H), 7.25 (m, 4H), 7.14–7.07 (m, 4H), 7.02–6.96 (m, 2H), 6.90 (d, J = 7.3 Hz, 2H), 5.40
(d, J = 15.5 Hz, 1H), 5.25 (d, J = 15.5 Hz, 1H), 4.89 (s, 1H), 3.60 (s, 2H). 13C{1H} NMR (126 MHz, CDCl3)
δ
δ
162.7 (d, J = 248.4 Hz), 155.4, 137.0, 133.1 (d, J = 24.2 Hz), 132.9, 129.6, 129.4 (d, J = 8.3 Hz), 129.2, 128.9,
128.7, 127.3, 116.1 (d, J = 21.8 Hz), 55.0, 51.0, 50.3; HRMS (ESI): m/z calcd for C22H20ClFN5 [M + H]+
408.1391, found 408.1386.
5-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)oxazole (9): compound 9 was prepared from
4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde (232.0 mg), p-Toluenesulfonylmethyl
isocyanide (195.2 mg) and K2CO3 (276.4 mg) following the general prot◦ocol C maintaining the
◦
1
temperature at 100 C. Yield: 252.1 mg (93%), white solid, m.p.: 130–132 C. H NMR (500 MHz,
CDCl3)
δ
7.93 (s, 1H), 7.86 (d, J = 8.1 Hz, 2H), 7.66 (d, J = 8.1 Hz, 2H), 7.41 (s, 1H), 1.36 (s, 12H). 13C{1H}
NMR (126 MHz, CDCl3) δ 151.5, 150.7, 135.3, 130.1, 123.5, 122.3, 84.0, 24.9; HRMS (ESI): m/z calcd for
C15H19BNO3 [M + H]+ 272.1458, found 272.1453.
5-(4-fluorophenyl)oxazole ([19F]9): compound [19F]9 was prepared from 4-fluorobenzaldehyde (124.1
mg), p-Toluenesulfonylmethyl isocyanide (195.2 mg), and K2CO3 (276.4 mg) following the general
1
protocol C maintaining the temperature at 100 ◦C. Yield: 145.2 mg (89%), red oil. H NMR (500 MHz,
CDCl3)
(126 MHz, CDCl3)
δ
7.90 (s, 1H), 7.59–7.48 (m, 2H), 7.28 (s, 1H), 7.14–6.97 (t, J = 8.7 Hz, 2H). 13C{1H} NMR
δ
162.2 (d, J = 248.8 Hz), 150.2, 150.0, 125.7 (d, J = 8.2 Hz), 123.6 (d, J = 3.4 Hz), 120.7,
115.5 (d, J = 22.2 Hz); HRMS (ESI): m/z calcd for C9H6FNO [M + H]+ 164.0512, found 164.0508.

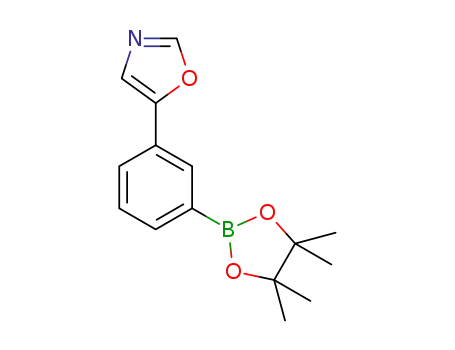

5-(3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)oxazole (10): compound 10 was prepared from
3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde (232.0 mg), p-Toluenesulfonylmethyl
isocyanide (195.2 mg), and K2CO3 (276.4 mg) following the general protocol C maintaining the
1
temperature at 100 ◦C. Yield: 216.8 mg (80%), red oil. H NMR (500 MHz, CDCl3)
δ
8.09 (s, 1H), 7.91
(s, 1H), 7.79 (d, J = 7.6 Hz, 1H), 7.72 (d, J = 7.6 Hz, 1H), 7.42 (t, J = 7.6 Hz, 1H), 7.38 (s, 1H), 1.35 (s, 12H).
13C{1H} NMR (126 MHz, CDCl3)
δ 151.4, 150.4, 134.8, 130.5, 128.2, 127.0, 126.9, 121.3, 83.9, 24.7; HRMS
(ESI): m/z calcd for C15H19BNO3 [M + H]+ 272.1458, found 272.1453.
5-(3-fluorophenyl)oxazole ([19F]10): compound [19F]10 was prepared from 3-fluorobenzaldehyde
(232.0 mg), p-Toluenesulfonylmethyl isocyanide (195.2 mg), and K2CO3 (276.4 mg) following the
1
general protocol C maintaining the temperature at 100 ◦C. Yield: 122.4 mg (75%), red oil. H NMR
(500 MHz, CDCl3)
δ
7.93 (s, 1H), 7.44 (dt, J = 7.8, 1.2 Hz, 1H), 7.42–7.38 (m, 2H), 7.38–7.34 (m, 1H),
163.1 (d, J = 246.4 Hz), 150.9, 130.7 (d, J = 8.5 Hz),
7.07–7.02 (m, 1H)
.
13C{1H} NMR (126 MHz, CDCl3)
δ

Molecules 2019, 24, 1327
11 of 15
129.6 (d, J = 8.5 Hz), 122.3, 120.1 (d, J = 2.8 Hz), 115.6 (d, J = 21.4 Hz), 111.4 (d, J = 23.8 Hz); HRMS
(ESI): m/z calcd for C9H7FNO [M + H]+ 164.0512, found 164.0507.
2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)-2-((3,4,5-trimethoxybenzyl)amino)ethyl
3-bromo-2-methylbenzoate (11): compound 11 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-
dioxaborolan-2-yl)benzaldehyde (232.0 mg), 3-bromo-2-methylbenzoic acid (215.0 mg), and 5-
(isocyanomethyl)-1,2,3-trimethoxybenzene (207.2 mg) following the general protocol D. Yield:
536.6 mg (82%), white solid, m.p.: 137–139 ◦C. 1H NMR (500 MHz, CDCl3)
δ 7.85 (d, J = 8.1 Hz, 2H),
7.79 (dd, J = 8.0, 1.0 Hz, 1H), 7.72 (dd, J = 8.0, 1.1 Hz, 1H), 7.56 (d, J = 8.1 Hz, 2H), 7.11 (t, J = 8.0 Hz,
1H), 6.35 (s, 2H), 6.26 (s, 1H), 4.47–4.37 (m, 2H), 3.80 (s, 3H), 3.73 (s, 6H), 2.60 (s, 3H), 1.34 (s, 12H).
13C{1H} NMR (126 MHz, CDCl3)
δ 168.1, 165.9, 153.4, 139.1, 137.8, 137.2, 136.5, 135.4, 133.5, 131.6, 129.3,
127.2, 126.9, 126.6, 104.1, 84.1, 60.8, 56.0, 43.4, 24.9, 20.7; HRMS (ESI): m/z calcd for C32H38BBrNO8
[M + H]+ 654.1874, found 654.1869.
1-(4-fluorophenyl)-2-oxo-2-((3,4,5-trimethoxybenzyl)amino)ethyl 3-bromo-2-methylbenzoate ([19F]11): compound
[19F]11 was prepared from 4-fluorobenzaldehyde (124.1 mg), 3-bromo-2-methylbenzoic acid (215.0 mg),
and 5-(isocyanomethyl)-1,2,3-trimethoxybenzene (207.2 mg) following the general protocol D. Yield:
459.0 mg (84%), white solid, m.p.: 120–122 ◦C. 1H NMR (500 MHz, CDCl3)
7.70 (d, J = 7.8 Hz, 1H), 7.58–7.52 (m, 2H), 7.07 (m, 3H), 6.83 (t, J = 6.0 Hz, 1H), 6.36 (s, 2H), 6.21 (s, 1H)
δ
7.78 (d, J = 7.8 Hz, 1H)
,
,
4.43 (dd, J = 15.1, 6.0 Hz, 1H), 4.32 (dd, J = 15.1, 6.0 Hz, 1H), 3.79 (s, 3H), 3.73 (s, 6H), 2.59 (s, 3H).
13C{1H} NMR (126 MHz, CDCl3)
δ
168.3, 165.9, 163.1 (d, J = 248.7 Hz), 153.3, 139.0, 136.4, 133.5, 131.4,
131.0 (d, J = 3.3 Hz), 129.4 (d, J = 8.4 Hz), 129.2, 127.2, 126.9, 115.8 (d, J = 21.8 Hz), 104.0, 75.8, 60.7, 55.9,
43.3, 20.5; HRMS (ESI): m/z calcd for C26H26BrFNO6 [M + H]+ 546.0928, found 546.0923.
2-((benzo[d][1,3]dioxol-5-ylmethyl)amino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl
2,4-dimethylbenzoate (12): compound 12 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-
yl)benzaldehyde (232.0 mg), 2,4-dimethylbenzoic acid (150.2 mg), and 5-(isocyanomethyl)benzo[d]
[1,3]dioxole (161.2 mg) following the general protocol D. Yield: 472.7 mg (87%), white solid. M.p.:
◦
134–136 C. 1H NMR (500 MHz, CDCl3)
(m, 3H), 6.36 (t, J = 5.7 Hz, 1H), 6.31 (s, 1H), 5.95–5.92 (m, 2H), 4.38 (d, J = 5.9 Hz, 2H), 2.54 (s, 3H), 2.35
(s, 3H), 1.34 (s, 12H). 13C{1H} NMR (126 MHz, CDCl3)
168.3, 165.5, 148.0, 147.1, 143.4, 141.1, 138.5,
δ 7.85 (m, 3H), 7.53 (d, J = 8.0 Hz, 2H), 7.06 (m, 2H), 6.75–6.65
δ
135.3, 132.8, 131.6, 130.9, 126.7, 126.6, 125.5, 121.0, 108.4, 108.3, 101.1, 84.0, 75.8, 43.3, 24.9, 21.8, 21.5;
HRMS (ESI): m/z calcd for C31H35BNO7 [M + H]+ 544.2507, found 544.2502.
2-((benzo[d][1,3]dioxol-5-ylmethyl)amino)-1-(4-fluorophenyl)-2-oxoethyl 2,4-dimethylbenzoate ([19F]12):
compound [19F]12 was prepared from 4-fluorobenzaldehyde (124.1 mg), 2,4-dimethylbenzoic acid
(150.2 mg), and 5-(isocyanomethyl)benzo[d][1,3]dioxole (161.2 mg) following the general protocol D.
Yield: 374.5 mg (86%), white solid, m.p.: 139–141 ◦C. 1H NMR (500 MHz, CDCl3)
δ
7.84 (d, J = 7.9 Hz
1H), 7.54–7.47 (m, 2H), 7.10–7.05 (m, 4H), 6.76–6.67 (m, 3H), 6.45 (m, 1H), 6.29 (s, 1H), 5.95–5.93 (m, 2H)
4.40 (m, J = 5.9 Hz, 2H), 2.54 (s, 3H), 2.36 (s, 3H). 13C{1H} NMR (126 MHz, CDCl3)
,
,
δ
168.4, 165.5, 163.0
(d, J = 248.0 Hz), 148.0, 147.1, 143.6, 141.2, 132.8, 131.7 (d, J = 3.2 Hz), 131.5, 130.8, 129.3 (d, J = 8.4 Hz),
126.7, 125.3, 121.0, 115.8 (d, J = 21.7 Hz), 108.4, 108.3, 101.1, 75.0, 43.3, 21.8, 21.5; HRMS (ESI): m/z calcd
for C25H23FNO5: [M + H]+ 436.1560, found 436.1558.
2-(benzylamino)-2-oxo-1-(4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)phenyl)ethyl cyclohexanecarboxylate
(13): compound 13 was prepared from 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzaldehyde
(232.0 mg), cyclohexanecarboxylic acid (128.2 mg), and (isocyanomethyl)benzene (117.2 mg) following
1
the general protocol D. Yield: 324.6 mg (68%), transparent oil. H NMR (500 MHz, CDCl3)
δ
7.81 (d,
J = 8.0 Hz, 2H), 7.44 (d, J = 8.0 Hz, 2H), 7.36–7.27 (m, 3H), 7.22 (d, J = 6.9 Hz, 2H), 6.32 (t, J = 5.6 Hz,
1H), 6.13 (s, 1H), 4.47 (d, J = 5.8 Hz, 2H), 2.44–2.38 (m, 1H), 1.96–1.85 (m, 2H), 1.74 (m, 2H), 1.63 (m,1H),
1.43 (m, 3H), 1.34 (s, 12H), 1.31–1.16 (m, 4H). 13C{1H} NMR (126 MHz, CDCl3)
δ 174.1, 168.2, 138.5,
137.7, 135.0, 134.9, 128.5, 127.4, 127.3, 126.3, 125.7, 83.7, 75.0, 72.8, 52.7, 43.1, 42.6, 28.7, 28.6, 25.4, 25.1,
25.0, 24.7; HRMS (ESI): m/z calcd for C28H37BNO5 [M + H]+ 478.2765, found 478.2762.

Molecules 2019, 24, 1327
12 of 15
2-(benzylamino)-1-(4-fluorophenyl)-2-oxoethyl cyclohexanecarboxylate ([19F]13): compound [19F]13 was
prepared from 4-fluorobenzaldehyde (124.1 mg), cyclohexanecarboxylic acid (128.2 mg), and
(isocyanomethyl)benzene (117.2 mg) following the general protocol D. Yield: 255.0 mg (69%), pale
yellow oil. 1H NMR (500 MHz, CDCl3)
δ 7.43–7.37 (m, 2H), 7.31–7.21 (m, 3H), 7.19–7.13 (m, 2H),
7.03–6.97 (m, 2H), 6.84 (t, J = 5.7 Hz, 1H), 6.06 (s, 1H), 4.46–4.31 (m, 2H), 2.41–2.35 (m, 1H), 1.91–1.85
(m, 2H), 1.77–1.66 (m, 2H), 1.61 (dd, J = 11.1, 3.8 Hz, 1H), 1.49–1.33 (m, 2H), 1.32–1.12 (m, 3H). 13C{1H}
NMR (126 MHz, CDCl3) δ 180.3, 174.2, 168.5, 162.8 (d, J = 247.8 Hz), 137.6, 131.5 (d, J = 3.2 Hz), 129.0
(d, J = 8.3 Hz), 128.5, 127.4, 127.3, 115.46 (d, J = 21.5 Hz), 74.3, 43.1, 42.6, 28.7, 28.6, 25.4, 25.1; HRMS
(ESI): m/z calcd for C22H25FNO3 [M + H]+ 370.1818, found 370.1812.
4.4. General Procedure for the Radiolabeling Chemistry
General procedure for the optimization of 18F-labeling of arylBPin derivatives: 18F-fluorination
of boronic acid pinacol esters was first optimized, in a nonautomated manner, using
4-formylphenylboronic acid pinacol ester (
and precursor to be used, as well as the reaction solvent and temperature. Each intended amount
of (3 to 80 mol) and [Cu(OTf)2(py)4] (4 to 40 mol) was dissolved in 150 L of anhydrous DMF
1) in relation to the ideal amount of [Cu(OTf)2(py)4] catalyst
1
µ
µ
µ
(or DMA) and the resulting solutions loaded into 1.0 mL syringes. Aqueous [18F]fluoride from the
cyclotron (≤2 GBq) was loaded onto an anion exchange cartridge (Chromafix PS-HCO3) and then
washed out to a reaction V-vial (containing a stirring bar) with 1 mL of an 80% CH3CN solution of
3.15 mg K222, 0.05 mg K2CO3, and 0.5 mg K2C2O4. The mixture was submitted to evaporation by
azeotropic distillation. Initially 1 mL anhydrous CH3CN was added to the [(Krypt-222)K+][18F]F−
solution recovered from the anion exchange cartridge and left to dry at 110 ◦C with constant stirring
and under a flow of argon (dried with P2O5/ascarite). After total drying, 0.5 mL of anhydrous
CH3CN was added and left to dry to the completion again. This step was repeated four more
times. The reaction V-vial containing dried [(Krypt-222)K+][18F]F− was then purged with 10 mL
of dried atmospheric air (passed through a P2O5 cartridge) and dissolved in 0.5 mL of anhydrous
DMF (or DMA). [(Krypt-222)K+][18F]F− was dissolved in the organic solvent was left (under stirr◦ing,
◦
bubbling with dry air or without a mixing system) at the reaction temperature (22 C to 170 C).
Subsequently, 150
µL of the [Cu(OTf)2(py)4] solution and 150
µL of 1 were added to the reaction vial
(total volume of 800
µL; see Figure 2 for catalyst-to-precursor ratio impact). The reaction was followed
up to 40 min. Product formation was characterized by comparing the retention factors (Rf) of the crude
reaction mixture (in a TLC-SG developed with a 2:1 hexane:ethyl acetate mobile phase) alongside
the authentic, nonradioactive, but UV visible (254 nm), reference sample (4-fluorobenzaldehyde)
spiked after development with a radioactive spot. Radiochemical yields of the conversion to the
18F-fluorinated species (RCC) were also assessed through this chromatographic technique. Radio-TLC’s
were scanned using a Perkin Elmer Packard Cyclone® storage phosphor system and the acquired data
analyzed with the OptiQuant 04.00 software.
Nonautomated procedure for the 18F-labeling of MCR arylBPin derivatives: work-up of aqueous
[18F]fluoride to [(Krypt-222)K+][18F]F− was followed in accordance with the general procedure for
the optimization of 18F-labeling of arylBPin derivatives. The near-optimal method chosen for the
◦
radiolabeling of the MCR scaffolds started with the preparation of a V-vial at 110 C containing a
magnetic stirrer and [(Krypt 222)K+][18F]F−
(
≤
2 GBq) in DMF or DMA (ca. 500
sealed and purged with 10 mL of dried atmospheric air (through a P2O5 cartridge). Subsequently,
150 L of [Cu(OTf)2(py)4] (0.02 mmol in anhydrous DMF or DMA) and 150 L arylBPin precursor
(0.06 mmol in anhydrous DMF or DMA) were added and allowed to stir for 30 min in an oil bath.
The reaction was quenched by addition of water (500 L) and an aliquot was taken for analysis by
µL). This vial was
µ
µ
µ
radio thin-layer chromatography silica gel, developed with hexane:ethyl acetate, to calculate the RCC
and identify the product (UV 254 nm).

Molecules 2019, 24, 1327
13 of 15
Supplementary Materials: The following are available online. Figures S1–S13: Examples of the radio-TLCs;
Table S1: TLC-SG retention factor (Rf) profiles for the tested compounds; Figure S14: Effect of temperature in RCC
of [
18F]1; Scheme S1: Recent late-stage strategies for the 18F-fluorination of (hetero)arenes; Scheme S2: Proposed
mechanism for copper-mediated oxidative 18F-fluorination of aryl boronic esters; Spectra of compounds.
Author Contributions: Conceptualization, T.Z.-T., G.S.C., P.H.E., and A.D.; Methodology, T.Z.-T., G.S.C., P.H.E.,
and A.D.; Synthesis, T.Z.-T.; Radiochemistry, G.S.C.; Analysis, T.Z.-T. and G.S.C.; Writing—Original Draft
Preparation, T.Z.-T. and G.S.C.; Writing—Review and Editing, T.Z.-T., G.S.C., P.H.E., and A.D.; Supervision, P.H.E.
and A.D.; Funding Acquisition, A.D.
Funding: The work in the PI’s laboratory was financially supported from the NIH (NIH 2R01GM097082-05)
and the European Union’s Horizon 2020 research and innovation program under MSC ITN “Accelerated
Early staGe drug dIScovery” (AEGIS, grant agreement No 675555), COFUND ALERT (grant agreement No
665250), KWF Kankerbestrijding grant (grant agreement No 10504), and the Qatar National Research Foundation
(NPRP6-065-3-012). G.S.C. would like to thank the Open Technologieprogramma from NWO STW (project n
º
13547), Netherlands, for the scholarship funding.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Matthews, P.M.; Rabiner, E.A.; Passchier, J.; Gunn, R.N. Positron emission tomography molecular imaging
for drug development. Brit. J. Clin. Pharmacol. 2012, 73, 175–186. [CrossRef]
Fernandes, E.; Barbosa, Z.; Clemente, G.; Alves, F.; Abrunhosa, A.J. Positron emitting tracers in pre-clinical
drug development. Curr. Rad. 2012, 5, 90–98. [CrossRef]
Patel, S.; Schmidt, K.; Hesterman, J.; Hoppin, J. Advancing Drug Discovery and Development Using
Molecular Imaging (ADDMI): An Interest Group of the World Molecular Imaging Society and an Inaugural
Session on Positron Emission Tomography (PET). Mol. Imaging Biol. 2017, 19, 348–356. [CrossRef]
Kalinski, C.; Umkehrer, M.; Weber, L.; Kolb, J.; Burdack, C.; Ross, G. On the industrial applications of MCRs:
Molecular diversity in drug discovery and generic drug synthesis. Mol. Divers. 2010, 14, 513–522. [CrossRef]
Slobbe, P.; Ruijter, E.; Orru, R.V.A. Recent applications of multicomponent reactions in medicinal chemistry.
MedChemComm 2012, 3, 1189–1218. [CrossRef]
Zarganes-Tzitzikas, T.; Domling, A. Modern multicomponent reactions for better drug syntheses. Org. Chem.
Front. 2014, 1, 834–837. [CrossRef]
Ruijter, E.; Scheffelaar, R.; Orru, R.V.A. Multicomponent Reaction Design in the Quest for Molecular
Complexity and Diversity. Angew. Chem. Int. Edit. 2011, 50, 6234–6246. [CrossRef]
4.
5.
6.
7.
8.
9.
Dömling, A.; Wang, W.; Wang, K. Chemistry and Biology Of Multicomponent Reactions. Chem. Rev. 2012
,
112, 3083–3135. [CrossRef]
De Graaff, C.; Ruijter, E.; Orru, R.V.A. Recent developments in asymmetric multicomponent reactions.
Chem. Soc. Rev. 2012, 41, 3969–4009. [CrossRef]
10. Dömling, A.; AlQahtani, A.D. Multicomponent Reactions in Organic Synthesis. In Multicomponent Reactions
in Organic Synthesis, 1st ed.; Zhu, J., Wang, Q., Wang, M., Eds.; Wiley-VCH Verlag GmbH & Co. KgaA:
Weinheim, Germany, 2014; pp. 1–12.
11. Alegre-Requena, J.V.; Marqués-López, E.; Herrera, R.P. Introduction: Multicomponent Startegies.
In Multicomponent Reactions: Concepts and Applications for Design and Synthesis, 1st ed.; Herrera, R.P.,
Marqués-López, E., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; pp. 1–15.
12. Zhu, Q.; Yuan, Q.; Chen, M.; Guo, M.; Huang, H. Multicomponent Reactions with Cyclic Tertiary Amines
Enabled by Facile C−N Bond Cleavage. Angew. Chem. Int. Ed. 2017, 56, 5101–5105. [CrossRef]
13. Wang, K.; Nguyen, K.; Huang, Y.; Dömling, A. Cyanoacetamide Multicomponent Reaction (I): Parallel
Synthesis Of Cyanoacetamides. J. Comb. Chem. 2009, 11, 920–927. [CrossRef]
14. Cao, H.; Liu, H.; Dömling, A. Efficient Multicomponent Reaction Synthesis of the Schistosomiasis Drug
Praziquantel. Chem. Eur. J. 2010, 16, 12296–12298. [CrossRef]
15. Aillaud, I.; Haurena, C.; Gall, E.L.; Martens, T.; Ricci, G. 2-Chlorophenyl Zinc Bromide: A Convenient
Nucleophile for the Mannich-Related Multicomponent Synthesis of Clopidogrel and Ticlopidine. Molecules
2010, 15, 8144–8155. [CrossRef]
16. Liu, H.; William, S.; Herdtweck, E.; Botros, S.; Dömling, A. MCR Synthesis of Praziquantel Derivatives.
Chem. Biol. Drug Des. 2012, 79, 470–477. [CrossRef]

Molecules 2019, 24, 1327
14 of 15
17. Khoury, K.; Sinha, M.K.; Nagashima, T.; Herdtweck, E.; Dömling, A. Efficient assembly of
iminodicarboxamides by a truly four component reaction. Angew. Chem. Int. Ed. 2012, 51, 10280–10283.
[CrossRef]
18. Neochoritis, C.G.; Stotani, S.; Mishra, B.; Dömling, A. Efficient Isocyanide-less Isocyanide-Based
Multicomponent Reactions. Org. Let. 2015, 17, 2002–2005. [CrossRef]
19. Wehlan, H.; Oehme, J.; Schäfer, A.; Rossen, K. Development of Scalable Conditions for the Ugi
Reaction—Application to the Synthesis of (R)-Lacosamide. Org. Process Res. Dev. 2015, 19, 1980–1986.
[CrossRef]
20. Li, L.; Hopkinson, M.N.; Yona, R.L.; Bejot, R.; Gee, A.D.; Gouverneur, V. Convergent 18F radiosynthesis:
A new dimension for radiolabelling. Chem. Sci. 2011, 2, 123–131. [CrossRef]
21. Qu, W.; Zha, Z.; Ploessl, K.; Lieberman, B.P.; Zhu, L.; Wise, D.R.; Thompson, C.B.; Kung, H.F. Synthesis of
Optically Pure 4-Fluoro-Glutamines as Potential Metabolic Imaging Agents for Tumors. J. Am. Chem. Soc.
2011, 133, 1122–1133. [CrossRef]
22. Preshlock, S.; Calderwood, S.; Verhoog, S.; Tredwell, M.; Huiban, M.; Hienzsch, A.; Gruber, S.; Wilson, T.C.;
Taylor, N.J.; Cailly, T.; et al. Enhanced copper-mediated 18F-fluorination of aryl boronic esters provides eight
radiotracers for PET applications. Chem. Commun. 2016, 52, 8361–8364. [CrossRef]
23. Schäfer, D.; Weiß, P.; Ermert, J.; Castillo Meleán, J.; Zarrad, F.; Neumaier, B. Preparation of No-Carrier-Added
6-[18F]Fluoro-l-tryptophan via Cu-Mediated Radiofluorination. Eur. J. Org. Chem. 2016, 2016, 4621–4628.
[CrossRef]
24. Giglio, B.C.; Fei, H.; Wang, M.; Wang, H.; He, L.; Feng, H.; Wu, Z.; Lu, H.; Li, Z. Synthesis of
5-[(18)F]Fluoro-
[CrossRef]
α-methyl Tryptophan: New Trp Based PET Agents. Theranostics 2017, 7, 1524–1530.
25. Taylor, N.J.; Emer, E.; Preshlock, S.; Schedler, M.; Tredwell, M.; Verhoog, S.; Mercier, J.; Genicot, C.;
Gouverneur, V. Derisking the Cu-Mediated 18F-Fluorination of Heterocyclic Positron Emission Tomography
Radioligands. J. Am. Chem. Soc. 2017, 139, 8267–8276. [CrossRef]
26. Lu, J.; Guan, Z.-Z.; Gao, J.-W.; Zhang, Z.-H. An improved procedure for the synthesis of arylboronates by
palladium-catalyzed coupling reaction of aryl halides and bis(pinacolato)diboron in polyethylene glycol.
Appl. Org. Chem. 2011, 25, 537–541. [CrossRef]
27. Tredwell, M.; Preshlock, S.M.; Taylor, N.J.; Gruber, S.; Huiban, M.; Passchier, J.; Mercier, J.; Génicot, C.;
Gouverneur, V. A General Copper-Mediated Nucleophilic 18F Fluorination of Arenes. Angew. Chem. Int. Ed.
2014, 53, 7751–7755. [CrossRef]
28. Zlatopolskiy, B.D.; Zischler, J.; Krapf, P.; Zarrad, F.; Urusova, E.A.; Kordys, E.; Endepols, H.; Neumaier, B.
Copper-Mediated Aromatic Radiofluorination Revisited: Efficient Production of PET Tracers on a Preparative
Scale. Chem. Eur. J. 2015, 21, 5972–5979. [CrossRef] [PubMed]
29. Mossine, A.V.; Brooks, A.F.; Makaravage, K.J.; Miller, J.M.; Ichiishi, N.; Sanford, M.S.; Scott, P.J.H. Synthesis
of [18F]Arenes via the Copper-Mediated [18F]Fluorination of Boronic Acids. Org. Lett. 2015, 17, 5780–5783.
[CrossRef] [PubMed]
30. Vitaku, E.; Smith, D.T.; Njardarson, J.T. Analysis of the Structural Diversity, Substitution Patterns, and
Frequency of Nitrogen Heterocycles among U.S. FDA Approved Pharmaceuticals. J. Med. Chem. 2014
57, 10257–10274. [CrossRef]
,
31. Altıntop, M.D.; Sever, B.; Akalın Çiftçi, G.; Kucukoglu, K.; Özdemir, A.; Soleimani, S.S.; Nadaroglu, H.;
Kaplancıklı, Z.A. Synthesis and evaluation of new benzodioxole-based dithiocarbamate derivatives as
potential anticancer agents and hCA-I and hCA-II inhibitors. Eur. J. Med. Chem. 2017, 125, 190–196.
[CrossRef] [PubMed]
32. Naim, M.J.N.; Alam, O.; Alam, M.J.; Alam, P.; Shrivastava, N. A review on pharmacological profile of
Morpholine derivatives. Int. J. Pharm. Pharm. Sci. 2015, 3, 40–51.
33. Raju, G.N.; Suresh, P.V.; Nadendla, R.R.; Anusha, K. Synthesis, characterization and antimicrobial evaluation
of isoxazole derivatives. Der. Pharm. Chem. 2015, 7, 346–352.
34. Swellmeen, L. 1,3-Oxazole Derivatives: A Review of Biological Activities as Antipathogenic. Der. Pharm.
Chem. 2016, 8, 269–286.
35. Joshi, S.; Bisht, A.S.; Juyal, D. Systematic scientific study of 1, 3-oxazole derivatives as a useful lead for
pharmaceuticals: A review. J. Pharm. Innov. 2017, 6, 109–117.

Molecules 2019, 24, 1327
15 of 15
36. Reza Kazemizadeh, A.; Ramazani, A. Synthetic Applications of Passerini Reaction. Curr. Org. Chem. 2012
16, 418–450. [CrossRef]
,
Sample Availability: Samples of the compounds are available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
