Synthesis of 2-(N-benzoylimino)-N-(9,10-dioxo-9,10-dihydroanthracen-1-yl) thiazoles

Full text of DOI:10.1007/s10593-014-1437-z

Chemistry of Heterocyclic Compounds, Vol. 49, No. 12, March, 2014 (Russian Original Vol. 49, No. 12, December, 2013)
SYNTHESIS OF 2-(N-BENZOYLIMINO)-N-(9,10-DIOXO-
9,10-DIHYDROANTHRACEN-1-YL)THIAZOLES
M. V. Stasevych1*, V. I. Zvarych1, O. V. Stan'ko1, M. V. Vovk2, and V. P. Novikov1
Keywords: 9,10-anthraquinone, anthracenylbenzoyliminothiazoles, N-benzoylthioureas, α-bromoacetone.
N-Aroylthioureas hold a significant promise for the synthesis of such heterocycles as imidazolidine-
2-thiones [1, 2], 2-aroyliminothiazolines [3-5], 1,2,4-triazoles [6], 1,3-thiazines [7], and indeno[1,2-d]-
[1,3]thiazepines [8]. Of particular interest are 2-iminothiazolines, which are characterized by a wide range of
biological properties [9-11]. For example, the thiazol-2-imine fragment is a structural fragment in muscarinic
agonists, as well as antifungal, hypolipidemic, antidiabetic, anti-inflammatory, analgesic, and anti-shistosomiasis
compounds [5]. Thiazoline derivatives are also used as insecticides and plant growth regulators [5].
The reaction of N,N'-disubstituted thioureas with α-bromo ketones has been described in the literature
[5, 12], and it provides access to various N-substituted 2-iminothiazoles. However, 2-iminothiazoles with
9,10-dioxo-9,10-dihydroanthracenyl substituents at position 3 of the heterocycle remain hitherto unknown. The
pronounced biological properties of anthraquinone derivatives [13-15] motivate the search for hybrid structures
that include both anthraquinone and thiazole ring systems.
Based on these considerations, we treated our previously described N-benzoyl-N'-(9,10-dioxo-
9,10-dihydroanthracen-1-yl)thioureas 1а-е [16] with in situ generated α-bromoacetone in the presence of
triethylamine and obtained the 2-(N-benzoylimino)-N-(9,10-dioxo-9,10-dihydroanthracen-1-yl)thiazoles 2а-е in
48-68% yields. The formation of 2-(N-benzoyl)imine type thiazoles through a cyclocondensation with the
participation of aminoanthracene nitrogen atom was in agreement with the recently described reactions of
N-aryl-N'-aroylthioureas with α-halo ketones [4, 12, 13].
1
The Н NMR spectra of compounds 2а-е contained thiazole H-5 proton singlets at 6.89-7.01 ppm and
methyl group singlets at 1.97-2.04 ppm, besides the CH signals of the aromatic rings. The formation of a thiazole
ring was also clearly confirmed by the 13С spectra containing the characteristic С-4 singlets at 106.1-107.2 ppm, С-5
singlets at 139.3-144.9 ppm, and С-2 singlets at 168.2-169.7 ppm. The 13C signals of the thiazole 4-СН3 substituent
were found at 13.7-14.2 ppm, which is typical for 3-aryl-2-benzoylimino-4-methyl-1,3-thiazolines [4, 5].
Thus, we have prepared new 2-(N-benzoylimino)-N-(9,10-dioxo-9,10-dihydroanthracen-1-yl)thiazoles
by a novel route, starting from N-benzoyl-N'-(9,10-dioxo-9,10-dihydroanthracen-1-yl)thioureas.
_______
*To whom correspondence should be addressed, e-mail: vnovikov@polynet.lviv.ua.
1Lviv'ska Polytechnica National University, 12 S. Bandery St., Lviv 79013, Ukraine.
2Institute of Organic Chemistry, National Academy of Sciences of Ukraine, 5 Murmanska St., Kyiv 02094,
Ukraine; e-mail: mvovk@ioch.kiev.ua.
_________________________________________________________________________________________
Translated from Khimiya Geterotsiklicheskikh Soedinenii, No. 12, pp. 1976-1978, December, 2013.
Original article submitted November 7, 2013.
0009-3122/14/4912-1831©2014 Springer Science+Business Media New York
1831

S
O
S
Me
O
N
H
O
O
O
HN
N
Ph
N
R1
Br2, Me2CO
Et3N, 2 h
R1
Ph
R2
1a–e
R3
O
R2
2a–e
R3
a R1 = R2 = R3 = H; b R1 = Me, R2 = R3 = H; c R1 = R3 = H, R2 = NH2;
d R1 = R2 = H, R3 = NH2; e R1 = R3 = H, R2 = NHCOPh
IR spectra were recorded on a Specord М80 spectrometer in KBr pellets. 1Н and 13С NMR spectra were
acquired on a Varian Mercury 400 instrument (400 and 100 MHz, respectively) at 25°C in DMSO-d6, with TMS
as internal standard. Chromatography with mass spectrometry was performed on an Agilent 1100 Series
chromatograph, equipped with an Agilent LC/MSDSL mass selective detector. A Zorbax SB-C18 column (1.8 μ,
4.6×15 mm) was used with a mobile phase gradient from acetonitrile–water–0.1% TFA (system A) to water–0.1%
TFA (system B). Chemical ionization was used at ambient pressure. The reaction progress was monitored by
TLC on Silufol UV-254 plates with a 6:1 benzene–acetonitrile mobile phase. The elemental analysis was
performed on a Thermo Finnigan Flash EA 1112 instrument.
Preparation of N-[3-(9,10-Dioxo-9,10-dihydroanthracen-1-yl)-4-methyl-1,3-thiazol-2(3H)-ylidene]-
benzamides 2а-е (General Method). A solution of bromine (0.0384 ml, 0.749 mmol) in acetone (10 ml) was
added with stirring over 15 min to a suspension of N-benzoylthiourea 1а-е (0.749 mmol) and triethylamine
(0.104 ml, 0.749 mmol) in acetone (30 ml). The reaction mixture was maintained at the room temperature for
2 h, the precipitate that formed was filtered off, washed with acetone, then with water, dried, and crystallized
from toluene.
N-[3-(9,10-Dioxo-9,10-dihydroanthracen-1-yl)-4-methyl-1,3-thiazol-2(3H)-ylidene]benzamide (2а).
Yield 68%; mp 210-211°C. IR spectrum, ν, cm-1: 1680, 1631 (С=О quinone), 1685 (С=О amide), 1471 (C=N).
1H NMR spectrum, δ, ppm (J, Hz): 1.99 (3Н, s, СН3); 6.92 (1Н, s, СН=); 6.94-7.02 (3Н, m, H Ar); 7.68-7.70
(3Н, m, H Ph); 7.91-8.05 (2Н, m, H Ph); 8.15-8.28 (3Н, m, H Ar); 8.53 (1Н, d, J = 8.4, H Ar). 13C NMR
spectrum, δ, ppm: 14.2 (CH3СН=); 106.7 (CН=); 126.8, 127.3, 127.5, 128.4 (C Ar); 128.7, 129.1, 129.3,
(C Ph); 131.5 (С Ar); 132.4 (C Ph); 133.5, 133.6, 134.4, 134.9, 135.2 (C Ar); 135.8 (C Ph); 137.8 (C–N);
143.3 (CH3СН=); 168.5 (C=N); 173.5 (COPh); 181.8 (CO); 182.5 (CO). Mass spectrum, m/z (Irel, %): 425
[M+H]+ (69). Found, %: С 70.64; Н 3.87; N 6.71; S 7.59. C25H16N2O3S. Calculated, %: С 70.74; Н 3.80;
N 6.60; S 7.55.
N-[4-Methyl-3-(2-methyl-9,10-dioxo-9,10-dihydroanthracen-1-yl)-1,3-thiazol-2(3H)-ylidene]benzami-
de (2b). Yield 51%; mp 206-207°C. IR spectrum, ν, cm-1: 1681, 1623 (С=О quinone), 1670 (С=О amide), 1397
1
(C=N). H NMR spectrum, δ, ppm (J, Hz): 1.99 (3Н, s, СН3); 2.17 (3Н, s, СН3); 7.01 (1Н, s, СН=); 7.24-7.27
(2Н, m, H Ph); 7.31-7.40 (1Н, m, H Ph); 7.67-7.74 (2Н, m, H Ph); 7.85-7.90 (2Н, m, H Ar); 8.02 (1Н, d,
13
J = 7.5, H Ar); 8.14 (1Н, d, J = 7.5, H Ar); 8.21 (1Н, d, J = 7.5, H Ar); 8.44 (1Н, d, J = 7.6, H Ar). C NMR
spectrum, δ, ppm: 13.9 (CH3СН=); 17.7 (CH3); 106.1 (CН=); 126.8, 127.3, 127.6, 128.5 (C Ar); 128.8, 128.9,
129.0, 129.1 (C Ph); 131.8 (С Ar); 132.8 (C Ph); 133.7, 133.9, 134.0, 135.0, 135.1 (C Ar); 135.2 (C Ph); 137.1
(C Ar); 137.3 (C–N); 144.9 (CH3СН=); 168.7 (C=N); 173.1 (COPh); 182.1 (CO); 182.4 (CO). Mass spectrum, m/z
(Irel, %): 439 [M+H]+ (97). Found, %: С 71.31; Н 4.01; N 6.41; S 7.59. C26H18N2O3S. Calculated, %: С 71.22;
Н 4.14; N 6.39; S 7.31.
N-[3-(4-Amino-9,10-dioxo-9,10-dihydroanthracen-1-yl)-4-methyl-1,3-thiazol-2(3H)-ylidene]benz-
amide (2с). Yield 50%; mp 296-297°С. IR spectrum, ν, cm-1: 3365, 3307 (NH2), 1683, 1625 (С=О quinone),
1
1650 (С=О amide), 1450 (C=N). H NMR spectrum, δ, ppm (J, Hz): 1.98 (3Н, s, СН3); 6.89 (1Н, s, СН=);
7.20-7.31 (3Н, m, H Ar, NH2); 7.38-7.41 (2Н, m, H Ar); 7.49-7.57 (3Н, m, H Ph); 7.73-7.81 (2Н, m,
1832

H Ph); 7.87-7.91 (2Н, m, H Ar); 8.23 (1Н, d, J = 7.6, H Ar). 13C NMR spectrum, δ, ppm: 13.7 (CH3СН=); 107.2
(CН=); 114.5, 125.3, 126.1, 127.2 (C Ar); 128.1, 128.2, 129.3, 129.4 (C Ph); 130.1 (C–N); 130.9, 131.3 (C Ar);
132.3 (C Ph); 133.1, 133.2, 133.5, 133.8 (C Ar); 136.1 (C Ph); 139.8 (CH3СН=); 147.8 (C–NH2); 169.7 (C=N);
174.5 (COPh); 183.1 (CO); 184.3 (CO). Mass spectrum, m/z (Irel, %): 440 [M+H]+ (73). Found, %: С 68.41;
Н 4.01; N 9.69; S 7.37. C25H17N3O3S. Calculated, %: С 68.32; Н 3.90; N 9.56; S 7.30.

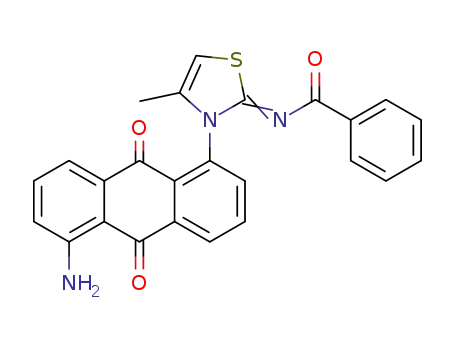

N-[3-(5-Amino-9,10-dioxo-9,10-dihydroanthracen-1-yl)-4-methyl-1,3-thiazol-2(3H)-ylidene]benz-
1
amide (2d). Yield 69%; mp 232-233°С. H NMR spectrum, δ, ppm (J, Hz): 1.97 (3Н, s, СН3); 6.92 (1Н, s,
СН=); 7.15-7.26 (5Н, m, H Ar); 7.34-7.46 (2Н, m, H Ph); 7.63-7.72 (3Н, m, H Ph, NH2); 7.83-7.91(1Н, m,
H Ar); 8.13-8.16 (1Н, m, H Ar); 8.53 (1Н, d, J = 8.4, H Ar). 13C NMR spectrum, δ, ppm: 13.8 (CH3СН=); 106.8
(CН=); 111.9, 115.4, 120.1, 122.2, 123.7 (C Ar); 128.1, 129.2, 129.3, 129.4, 132.4 (C Ph); 132.9, 133.4, 135.0,
135.3, 135.7 (C Ar); 136.1 (C Ph); 138.2 (C–N); 139.3 (CH3СН=); 151.8 (C–NH2); 168.2 (C=N); 174.5
(COPh); 183.6 (CO); 184.4 (CO). Mass spectrum, m/z (Irel, %): 440 [M+H]+ (82). Found, %: С 68.38; Н 3.95;
N 9.62; S 7.35. C25H17N3O3S. Calculated, %: С 68.32; Н 3.90; N 9.56; S 7.30.
N-[3-(4-Benzamido-9,10-dioxo-9,10-dihydroanthracen-1-yl)-4-methyl-1,3-thiazol-2(3H)-ylidene]benz-
amide (2е). Yield 48%; mp 198°С. IR spectrum, ν, cm-1: 3345 (N–H), 1683, 1625 (С=О quinone), 1650, 1661
(С=О amide), 1450 (C=N). 1H NMR spectrum, δ, ppm (J, Hz): 2.04 (3Н, s, СН3); 6.95 (1Н, s, СН=); 7.31-7.40
(1Н, m, H Ar); 7.72-8.27 (11Н, m, H Ph, H Ar); 8.83-8.92 (2Н, m, H Ar); 9.29-9.41 (2Н, m, H Ar); 13.30 (1Н,
13
s, NH). C NMR spectrum, δ, ppm: 14.1 (CH3СН=); 106.3 (CН=); 118.2, 125.1, 126.5 (C Ar); 127.2, 127.3,
128.0, 128.1, 128.8, 128.9, 129.3, 129.4 (C Ph); 129.5, 130.3 (C Ar); 132.4, 132.5 (C Ph); 133.0 (C Ar); 133.2
(C–NH); 133.3 (C Ph); 133.4, 133.7, 134.3, 136.2 (C Ar); 136.0 (C Ph); 138.2 (C–N); 138.8 (CH3СН=); 165.7
(CO); 167.8 (C=N); 174.4 (COPh); 182.6 (CO); 184.5 (CO). Found, %: С 70.76; Н 3.96; N 7.68; S 5.87.
C32H21N3O4S. Calculated, %: С 70.70; Н 3.89; N 7.73; S 5.90.
REFERENCES
1.
2.
3.
4.
5.
6.
7.
8.
J. Hartung, K. Rosenbaum, L. Beyer, and V. J. Fernandes, J. Prakt. Chem., 333, 537 (1991).
R.-S. Zeng, J.-P. Zou, S.-J. Zhi, J. Chen, and Q. Shen, Org. Lett., 5, 1657 (2003).
A. Manaka, T. Ishii, and K. Takahashi, Tetrahedron Lett., 46, 419 (2005).
X. Wang, F. Wang, Z. Quan, Z. Zhang, and M. Wang, Synth. Commun., 36, 2453 (2006).
S. Murru, C.B. Singh, V. Kalava, and B. K. Patel, Tetrahedron, 64, 1931 (2008).
M. Kodomari, M. Suzuki, and K. Tanigawa, Tetrahedron Lett., 46, 5841 (2005).
A. A. Aly, E. K. Ahmed, and K. M. El-Mokadam, J. Heterocycl. Chem., 44, 1431 (2007).
A. A. Aly, A. B. Brown, M. Ramadan, M. Abdel-Aziz, G. Abuo-Rahma, M. F. Radwan, and A. M. Gamal-
Eldeen, J. Heterocycl. Chem., 47, 503 (2010).
9.
10.
11.
12.
13.
G. Wu, X.-L. Qui, L. Zhou, J. Zhu, J. Lau, P.-L. Chen, and W.-H. Lee, Cancer Res., 68, 8393 (2008).
M. Tomizawa, S. Kagabu, I. Ohno, and K. A. Durkin, J. Med. Chem., 51, 4213 (2008).
N. Zhang, M. Tomizawa, and J. E. Casida, J. Med. Chem., 45, 2832 (2002).
C. B. Singh, S. Murru, V. Kavala, and B. K. Patel, Org. Lett., 8, 5397 (2006).
J. W. Lown, Anthracycline and Anthracenedione-Based Anticancer Agents, Elsevier, Amsterdam
(1988).
14.
15.
16.
L. Delmulle and K. Demeyer, Anthraquinones in Plants: Source, Safety and Applications in
Gastrointestinal Health, Nottingham University Press (2010).
V. Ya. Fain, 9,10-Anthraquinones and Their Application [in Russian], Photochemistry Center, Russian
Academy of Sciences, Moscow (1999).
M. Stasevych, V. Zvarych, R. Musyanovych, M. Vovk, and V. Novikov, in 5th International
Symposium ''Methods and Application of Computational Chemistry МАСС-5'', Kharkov, Ukraine
(2013), р. 106.
1833
