Synthesis, characterization and crystal structure of nickel complex (dppv)Ni(C7H4NS2)2

Article abstract of DOI:10.14233/ajchem.2014.15478

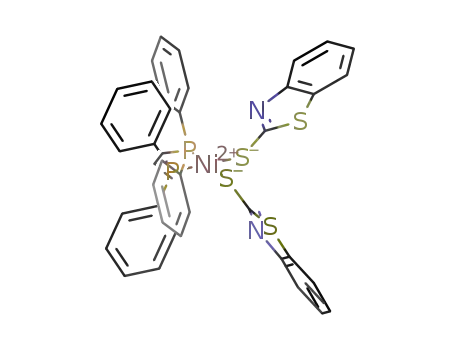

Reaction of 2-mercaptobenzothiazole with (dppv)NiCl2 (dppv: Ph2PCH=CHPPh2) in the presence of Et3N affords the title complex (dppv)Ni(C₇H ₄NS₂)2 in 92 % yield. The new complex was fully characterized by elemental analysis, TGA, IR and 1H (13C, 31P) NMR spectroscopies. In addition, the molecular structure of the title complex was established by X-ray crystallography. The crystal of (dppv)Ni(C ₇H₄NS₂)2?CH2Cl2 crystallizes in monoclinic, space group P2/n with a = 15.927(9), b = 8.3553(5), c = 16.3728(8) ?, a = 90.00, b = 112.417(4), g = 90.00°, V = 2014.22(19) ?3, Z = 2, C40H30N2NiP2S4?CH2Cl2, Mr = 872.48, Dc = 1.439 g/cm3, F(000) = 896 and μ(MoKa) = 0.934 mm-1. The final R = 0.0920 and wR = 0.2220 for 2572 observed reflections with I > 2s(I) and R = 0.1171 and wR = 0.2434 for all data. The geometry at the Ni centre in the title complex is square-planar with the NiP2S2 chromophore.

Full text of DOI:10.14233/ajchem.2014.15478

Asian Journal of Chemistry; Vol. 27, No. 4 (2015), 1555-1556
A
SIAN
J
OURNAL OF HEMISTRY
C
http://dx.doi.org/10.14233/ajchem.2015.17168
NOTE
Synthesis and Structural Characterization of Diiron
Azadithiolate Complex [(µ-SCH2)2NCH2CO2Me]Fe2(CO)4(CN-tert-Bu)2
*
HUI LI , QIAOJUAN GONG, XIAOCHUAN CHAI, CHENZHONG YAO and QIUPING HAN
Department of Applied Chemistry, Yuncheng University, Yuncheng 044000, Shanxi Province, P.R. China
*Corresponding author: E-mail: lihuiwangf@163.com
Received: 5 February 2014;
Accepted: 4 May 2014;
Published online: 4 February 2015;
AJC-16838
A diiron azadithiolate complex [(µ-SCH2)2NCH2CO2Me]Fe2(CO)4(CN-tert-Bu)2 (1), as the active site of [FeFe]-hydrogenases, has
been prepared by carbonyl substitution and structurally characterized. The title complex was prepared by reaction of
[(µ-SCH2)2NCH2CO2Me]Fe2(CO)6 (A) with tert-BuNC in CH2Cl2 in 46 % yield. The new complex was characterized by IR, 1H NMR and
13C NMR spectroscopy.
Keywords: Diiron azadithiolate, Isocyanide.
Over the past decades, research on iron-sulfur has attracted
great attention due to their close relationship with the active
site of [FeFe]-hydrogenases1-5. [FeFe]-hydrogenases are metallo-
enzymes which can catalyze hydrogen metabolism in several
microorganism6-8. The well-established structure of the active
site of [FeFe]-hydrogenases has provoked chemists to design
and prepared a great number of [FeFe]-hydrogenases model
complexes9-12. In this paper, we report the synthesis and struc-
tural characterization of diiron azadithiolate complex [(µ-
SCH2)2NCH2CO2Me]Fe2(CO)4(CN-tert-Bu)2 containing a iso-
cyanide ligand relevant to the active site of [FeFe]-hydrogenases.
Reaction and operation was carried out under a dry, oxygen
free nitrogen atmosphere with standard Schlenk and vacuum
line techniques. Dichloromethane was distilled with CaH2
under nitrogen atmosphere. Me3NO·2H2O, tert-BuNC and
other materials were commercially available and used as
received. Complex A13 was prepared according to the literature
procedures. IR spectra were recorded on a Nicolet 670 FTIR
spectrometer. NMR spectra were obtained on a BrukerAvance
500 MHz spectrometer.
red band afforded 0.056 g (46 %) of 1 as a red solid. IR (KBr
disk, cm-1): ν(C≡N) 2143 (s); ν(C≡O) 2002 (vs), 1968 (vs),
1951 (vs), 1928 (vs); ν(C=O) 1736 (s). 1H NMR (500 MHz,
CDCl3): 3.64, 3.61 (2s, 9 H, 3SCH2 and CH3), 1.45 (s, 18 H,
2C(CH3)3) ppm. 13C NMR (125 MHz, CDCl3): 213.53 (C≡O),
171.23 (C=O), 158.14 (NC), 57.44 (C(CH3)3), 57.16 (OCH3),
52.19 (NCH2S), 51.78 (NCH2), 30.83 (CH3) ppm.
As shown in Scheme-I, treatment of complex A with 2
equivelents of tert-BuNC in CH2Cl2 afforded the title complex
in 46 % yield. The title complex 1 was air-stable red solids,
which has been characterized by IR, 1H NMR and 13C NMR
spectroscopy.
NCH2CO2Me
NCH2CO2Me
S
S
S
S
tBuNC
CH2Cl2
CO
CO
OC
OC
Fe
Fe
Fe
Fe
OC
OC
OC
CO
CO
CO
CNBu
t
t
BuNC
1
A
Scheme-I: Synthesis of the title complex 1
Synthesis:A solution of [(µ-SCH2)2NCH2CO2Me]Fe2(CO)6
(0.100 g, 0.22 mmol) in MeCN (10 mL) was added a solution
of Me3NO·2H2O (0.024 g, 0.22 mmol) in MeCN (5 mL). The
mixture was stirred at room temperature for 15 min and then
was added tert-BuNC (0.048 mL, 0.44 mmol). The new mixture
was stirred for 1 h to give a red solution. The solvent was reduced
in vacuo and the residue was subjected to TLC separation using
CH2Cl2/petroleum ether (v/v = 1:2) as eluent. From the main
Infrared spectrum: The IR spectrum of 1 showed one
absorption band at 2143 cm-1 for isocyanide group, one
absorption band at 1736 cm-1 for ester carbonyls and four
absorption bands in the range of 2002-1828 cm-1 for the
terminal carbonyls and the ν(C≡O) values are shifted toward
lower frequencies relative to the parent complex A (2073, 2025,
1994, 1965 cm-1)13.

1556 Li et al.
Asian J. Chem.
1H NMR spectrum:The 1H NMR spectrum of 1 displayed
(c) X.F. Liu and H.Q. Gao, Polyhedron, 65, 1 (2013); (d) G. Durgaprasad,
R. Bolligarla and S.K. Das, J. Organomet. Chem., 706-707, 37 (2012);
(e) X.F. Liu, Polyhedron, 72, 66 (2014).
two singlets at δ 3.64 and 3.61 ppm for its methylene and
methyl protons and a singlet at d 1.45 ppm for methyl protons
of tert-Bu.
5. (a) P.H. Zhao, Y.F. Liu, K.K. Xiong and Y.Q. Liu, J. Clust. Sci., 25,
1061 (2014); (b) X.F. Liu, Z.Q. Jiang and Z.J. Jia, Polyhedron, 33, 166
(2012); (c) W.M. Gao and J.M. Li, Acta Crystallogr., E68, m118 (2012).
6. (a) L.J. Luo, X.F. Liu and H.Q. Gao, J. Coord. Chem., 66, 1077 (2013);
(b) X.F. Liu, M.Y. Chen and H.Q. Gao, J. Coord. Chem., 67, 57 (2014).
7. (a) Y.L. Li, B. Xie, L.K. Zou, X. Lin and L. Wang, Chinese J. Struct.
Chem., 32, 1105 (2013); (b) Y.L. Li, B. Xie, L.K. Zou, X. Lin and S.S.
Zhu, Z. Anorg. Allg. Chem., 639, 1011 (2013); (c)Y.L. Li, B. Xie, L.K.
Zou, X. Lin and S.S. Zhu, Asian J. Chem., 26, 183 (2014).
8. (a) C.G. Li,Y. Zhu, X.X. Jiao and X.Q. Fu, Polyhedron, 67, 416 (2014);
(b) B.S. Yin, T.B. Li and M.S. Yang, J. Coord. Chem., 64, 2066 (2011);
(c) X.F. Liu, X.W. Xiao and L.J. Shen, Transition Met. Chem., 36, 465
(2011).
13C NMR spectrum: The 13C NMR spectrum of 1
demonstrated a singlet at δ 213.53 ppm for the terminal
carbonyls, a singlet at δ 171.23 ppm for ester carbonyl and a
singlet at δ 158.14 ppm for isocyanide.
ACKNOWLEDGEMENTS
The authors gratefully acknowledge to the Natural Science
Foundations of China (51101138).
9. (a) X.F. Liu and H.Q. Gao, J. Clust. Sci., 25, 367 (2014); (b) X.F. Liu
and H.Q. Gao, J. Clust. Sci., 25, 495 (2014).
REFERENCES
10. (a) X.F. Liu, J. Organomet. Chem., 750, 117 (2014); (b) X.F. Liu and
X.W. Xiao, J. Organomet. Chem., 696, 2767 (2011); (c) Y.L. Li, B.
Xie, L.K. Zou, X. Lin, Y. Yang, S.S. Zhu and T. Wang, Polyhedron, 67,
490 (2014).
1. (a) R. Cammack, Nature, 397, 214 (1999); (b) J.W. Peters, W.N.
Lanzilotta, B.J. Lemon and L.C. Seefeldt, Science, 282, 1853 (1998);
(c)Y. Nicolet, C. Piras, P. Legrand, C.E. Hatchikian and J.C. Fontecilla-
Camps, Structure, 7, 13 (1999).
11. (a) P.H. Zhao, Y.Q. Liu and X.A. Li, Asian J. Chem., 25, 5428 (2013);
(b) M. El-Khateeb, M. Harb, Q. Abu-Salem, H. Görls and W. Weigand,
Polyhedron, 61, 1 (2013); (c) X.F. Liu and B.S. Yin, J. Coord. Chem.,
63, 4061 (2010); (d) X.F. Liu, Inorg. Chim. Acta, 378, 338 (2011).
12. Y.L. Li, B. Xie, L.K. Zou, X.L. Zhang and X. Lin, J. Organomet. Chem.,
718, 74 (2012).
2. A.L. De Lacey, C. Stadler, C. Cavazza, E.C. Hatchikian and V.M.
Fernandez, J. Am. Chem. Soc., 122, 11232 (2000).
3. (a) X. Wang, Z. Wei, X. Jiang, J. Zhao and X. Liu, Inorg. Chim. Acta,
392, 112 (2012); (b) Y.N. Feng, F.F. Xu, R.P. Chen, N. Wen, Z.H. Li
and S.W. Du, J. Organomet. Chem., 717, 211 (2012); (c) G. Durgaprasad
and S.K. Das, J. Organomet. Chem., 717, 29 (2012).
13. X.F. Liu, X.W. Xiao and L.J. Shen, J. Coord. Chem., 64, 1023 (2011).
4. (a) P.H. Zhao, Y.Q. Liu and G.Z. Zhao, Polyhedron, 53, 144 (2013);
(b) C.A. Mebi, D.S. Karr and B.C. Noll, Polyhedron, 50, 164 (2013);
