GALKINA et al.
802
EXPERIMENTAL
Cl
N
The IR spectra were recorded on Specord M-80 and
Thermo Avatar 360 FT-IR spectrometers from samples
dispersed in mineral oil. The purity and thermal stabil-
ity of the products were studied by simultaneous TG–
DSC using a NETZSCH STA 449C TGA/S6TA85/E
instrument (temperature range 20–400°C, heating rate
10 deg/min, argon atmosphere). The solvents used
were purified according to standard procedures [5]. All
initial reactants were distilled and purified just before
use; their purity was checked by comparing their
physical constants with published data.
N
N
O
O
N
O
O
O
N
Cl
Cl
O
N
O
N
O
Cl

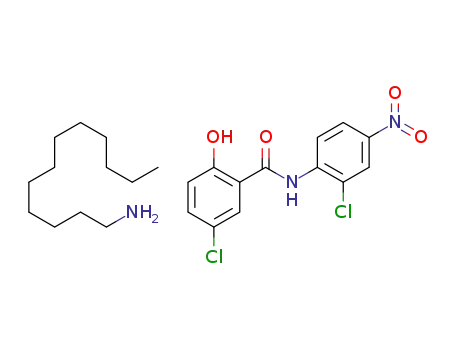

Dodecan-1-aminium 4-chloro-2-[(2-chloro-4-
nitrophenyl)carbamoyl]phenoxide (IV). A solution
of 0.370 g (2 mmol) of amine II in 30 mL of
anhydrous ethanol was added at 20°C to a solution of
0.327 g (1 mmol) of amide I in 30 mL of the same
solvent, and the resulting red mixture was left to stand
for 14 days to complete the reaction. The red crystals
were filtered off and repeatedly washed with anhy-
drous ethanol and diethyl ether. Yield 0.43 g (84%),
mp 148°C. IR spectrum, ν, cm–1: 3366–2800 (NH);
1650 (C=O); 1510, 1250 (NO2); 740 (C–Cl). Found,
%: C 58.37; H 7.12; N 8.27. C25H35Cl2N3O4. Calculat-
ed, %: C 58.59; H 6.84; N 8.20.
Fig. 3. Structure of the molecule of 4-(2-ammonioethyl)-
piperazin-1-ium bis{4-chloro-2-[(2-chloro-4-nitrophenyl)-
carbamoyl]phenoxide} (VII) according to the X-ray diffrac-
tion data.
ture we obtained 74% of bisammonium salt VII con-
sisting of one molecule of VI (dication) and two mole-
cules of I (anion; Scheme 2). The IR spectrum of VII
contained absorption bands typical of functional
groups present therein. The purity and thermal stability
of VII (up to 228°C) were determined by simultaneous
TG–DSC analysis.
The formation of water-soluble bis-ammonium salt
VII with retention of pharmacophoric groups was con-
firmed by X-ray analysis (Fig. 3).
Hexadecan-1-aminium 4-chloro-2-[(2-chloro-4-
nitrophenyl)carbamoyl]phenoxide (V). A solution of
0.482 g (2 mmol) of amine III in 30 mL of anhydrous
ethanol was added at 20°C to a solution of 0.327 g
(1 mmol) of amide I in 40 mL of the same solvent.
After 14 days, the product was isolated as described
above for salt IV. Yield 0.46 g (81%), mp 167.7°C. IR
spectrum, ν, cm–1: 3366–2800 (NH); 1650 (C=O);
1510, 1250 (NO2); 740 (C–Cl). Found, %: C 61.30;
H 7.62; N 7.38. C29H43Cl2N3O4. Calculated, %:
C 61.27; H 7.54; N 7.39.
The Phenasal anions in the crystal structures of IV,
V, and VII are almost planar, as in parent molecule I
[2]. Deprotonation of the phenolic hydroxy group leads
to shortening of the C–O bond to 1.306–1.318(3) Å
against 1.354(3) Å in the neutral molecule. The ammo-
nium groups in all crystalline salts IV, V, and VII are
involved in numerous hydrogen bonds with oxygen
atoms, the strongest bonds being those formed with the
anionic oxygen atom; the N···O– distance ranges from
2.58 to 2.71 Å, and the distance between the ammoni-
um nitrogen atoms and oxygen atoms in the carbonyl
and nitro groups varies within 2.96–3.01 Å.
4-(2-Ammonioethyl)piperazin-1-ium bis-
{4-chloro-2-[(2-chloro-4-nitrophenyl)carbamoyl]-
phenoxide} (VII). A solution of 0.129 g (1 mmol) of
diamine VI in 10 mL of anhydrous ethanol was added
dropwise under stirring at 20°C to a solution of 0.654 g
(2 mmol) of amide I in 20 mL of the same solvent. The
red mixture was stirred for 2 h and was left to stand for
14 days to complete the reaction. The orange crystals
were filtered off and washed with ethanol and diethyl
ether. Recrystallization from chloroform–hexane gave
an oily material which was kept for 2 months in
a crystallizer; orange crystal druses were formed. Yield
0.577 g (74%), mp 228°C. IR spectrum, ν, cm–1: 3370–
The crystal packing of ammonium salts IV and V
with higher alkyl substituents on the nitrogen is
characterized by alternation of hydrophilic and hydro-
phobic layers. In the crystal structure of salt IV with
dodecyl substituent transoid conformation in the
middle of the hydrocarbon chain is distorted, and the
ammonium group is oriented gauche, which favors
intermolecular hydrogen bonding. The long-chain
alkyl substituent in V in crystal has an ideal transoid
conformation.
