4344
Organometallics 1999, 18, 4344-4353
Syn th esis of Bi- a n d Tr in u clea r Bis(a lk yn yl) Com p lexes
[P tM (M ) Rh , Ir ), P tRh 2] Sta r tin g fr om
[cis-P t(C6F 5)2(CtCR)2]2-
Irene Ara,† J esu´s R. Berenguer,‡ Eduardo Eguiza´bal,‡ J uan Fornie´s,*,†
Elena Lalinde,*,‡ and Francisco Mart´ınez†
Departamento de Quı´mica Inorga´nica, Instituto de Ciencia de Materiales de Arago´n,
Universidad de Zaragoza-Consejo Superior de Investigaciones Cientı´ficas, 50009 Zaragoza,
Spain, and Departamento de Quı´mica, Universidad de La Rioja, 26001 Logron˜o, Spain
Received April 29, 1999
The course of the reactions of Q2[cis-Pt(C6F5)2(CtCR)2] (Q ) PPh3Me, R ) Ph 1a ; Q )
t
NBu4, R ) Bu 1b, SiMe3 1c) with [M(µ-Cl)(COD)]2 (M ) Rh, Ir) is strongly influenced by
the metal and the substituents, as well as the stoichiometry. Thus, whereas treatment of
1a with either 0.5 or 1 equiv of [Rh(µ-Cl)(COD)]2 gives the chelating-type binuclear highly
polar compound (PPh3Me)[cis-Pt(C6F5)2(µ-1κCR:η2-CtCPh)2Rh(COD)], 2a , analogous reactions

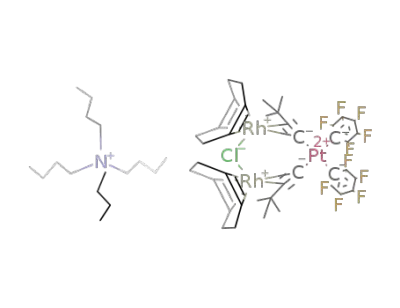

using 1b as the precursor afford only the trinuclear complex (NBu4)[{cis-Pt(C6F5)2(µ-1κCR:
η2-CtCtBu)2}{Rh2(µ-Cl)(COD)2}], 4b. On the other hand, related bi- and trinuclear SiMe3
derivatives (NBu4)[cis-Pt(C6F5)2(µ-1κCR:η2-CtCSiMe3)2Rh(COD)], 2c, and (NBu4)[{cis-Pt-
(C6F5)2(µ-1κCR:η2-CtCSiMe3)2}{Rh2(µ-Cl)(COD)2}], 4c, are easily obtained by treating 1c with
the binuclear rhodium substrate in the adequate molar ratio [1:0.5 for 2c; 1:1 for 4c]. Complex
2b and, alternatively, 2a ,c derivatives can be produced by reacting 1 with the cationic
solvento species [Rh(COD)(Et2O)x]+ (prepared in situ). The molecular structures of 2a and
4b have been confirmed by X-ray diffraction. By contrast, whereas the reactions of 1a ,b
with [Ir(µ-Cl)(COD)]2 lead to the formation of undefined products, the heterobinuclear σ,π
double-alkynyl-bridged complex (NBu4)[cis-Pt(C6F5)2(µ-1κCR:η2-CtCSiMe3)(µ-η2:2κCR-Ct
CSiMe3)Ir(COD)], 3c, (X-ray) is isolated from reaction of 1c with the dimer iridium complex
regardless of the molar ratio used (1:0.5 or 1:1).
In tr od u ction
ally, in the resulting complexes, the LnM(CtCR)2
compound used as the starting material acts as a
chelating ligand toward the second metal center, form-
ing planar (tweezer-like) or hinged (V-shaped) M2C4
central cores (B, Scheme 1).2c,4,7 However, monoalkynyl
transfer processes yielding type C symmetrical or
The chemistry of metal alkynyl complexes is an
intensely researched area, particularly due to the
versatile reactivity of the unsaturated fragment and its
wide variety of modes of interaction with transition
metals.1-3 In this area, homo and hetero double-alkynyl-
bridged complexes4-7 have gained particular signifi-
cance as frozen structures at various points on the
reaction paths for either C-C bond coupling alkynide
processes6a,8 or C-C bond cleavage on butadiynes6b-f,7a,9
mediated by metal centers (Scheme 1).10,11
Binuclear M(µ-CtCR)2M′ compounds have been pre-
pared through the activation and cleavage of the central
C-C single bond of R-CtC-CtC-R with “Cp2M” (M
) Ti, Zr) fragments,6b-f,7a,9 but the most widely used
route is based on the addition of a second metal
fragment “LnM′” to a M-σ-bis(alkynyl) compound. Usu-
