Diazo Complexes of Rhenium: Preparations and Crystal Structures of the Bis(dinitrogen),

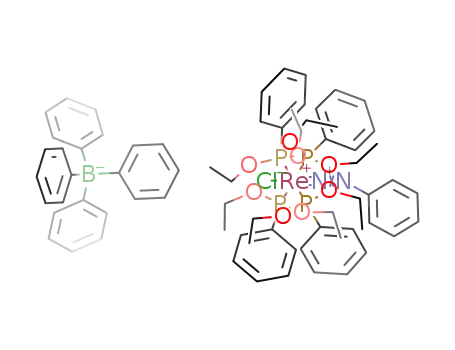

[Re(N2)2{PPh(OEt)2}4][BPh4] and Methyldiazenido
[ReCl(CH3N2)(CH3NHNH2){PPh(OEt)2}3][BPh4] Derivatives
Gabriele Albertin,*,† Stefano Antoniutti,† Alessia Bacchi,‡ Emilio Bordignon,†
Francesca Miani,† and Giancarlo Pelizzi‡
Dipartimento di Chimica, Universita` Ca’Foscari di Venezia, Dorsoduro 2137, 30123 Venezia, Italy, and
Dipartimento di Chimica Generale ed Inorganica, Chimica Analitica, Chimica Fisica, Centro CNR di
Strutturistica Diffrattometrica, Universita` di Parma,Viale delle Scienze, 43100 Parma, Italy
ReceiVed August 11, 1999
Depending on experimental conditions and the nature of the hydrazine, the reactions of ReCl3P3 [P ) PPh(OEt)2]
t
with RNHNH2 (R ) H, CH3, Bu) afford the bis(dinitrogen) [Re(N2)2P4]+ (2+), dinitrogen ReClN2P4 (3), and
methyldiazenido [ReCl(CH3N2)(CH3NHNH2)P3]+ (1+) derivatives. In contrast, reactions of ReCl3P3 [P ) PPh-
(OEt)2, PPh2OEt] with arylhydrazines ArNHNH2 (Ar ) Ph, p-tolyl) give the aryldiazenido cations [ReCl(ArN2)-
(ArNHNH2)P3]+ (4+) and [ReCl(ArN2)P4]+ (7+) and the bis(aryldiazenido) cations [Re(ArN2)2P3]+ (5+, 6+). These
complexes were characterized spectroscopically (IR; 1H and 31P NMR), and the BPh4 complexes 1, 2, and 7 were
characterized crystallographically. The methyldiazenido derivative [ReCl(CH3N2)(CH3NHNH2){PPh(OEt)2}3][BPh4]
(1) crystallizes in space group P1h with a ) 15.396(5) Å, b ) 16.986(5) Å, c ) 11.560(5) Å, R ) 93.96(5)°, â
) 93.99(5)°, γ ) 93.09(5)°, and Z ) 2 and contains a singly bent CH3N2, group bonded to an octahedral central
metal. One methylhydrazine ligand, one Cl- trans to the CH3N2, and three PPh(OEt)2 ligands complete the
coordination. The complex [Re(N2)2{PPh(OEt)2}4][BPh4] (2) crystallizes in space group Pbaa with a ) 23.008-
(5) Å, b ) 23.367(5) Å, c ) 12.863(3) Å, and Z ) 4. The structure displays octahedral coordination with two
end-on N2 ligands in mutually trans positions. [ReCl(PhN2){PPh(OEt)2}4][BPh4] (7) crystallizes in space group
P21/n with a ) 19.613(5) Å, b ) 20.101(5) Å, c ) 19.918(5) Å, â ) 115.12(2)°, and Z ) 4. The structure shows
a singly bent phenyldiazenido group trans to the Cl- ligand in an octahedral environment. The dinitrogen complex
ReClN2P4 (3) reacts with CF3SO3CH3 to give the unstable methyldiazenido derivative [ReCl(CH3N2)P4][BPh4].
Reaction of the methylhydrazine complex [ReCl(CH3N2)(CH3NHNH2)P3][BPh4] (1) with Pb(OAc)4 at -30 °C
results in selective oxidation of the hydrazine, affording the corresponding methyldiazene derivative [ReCl(CH3Nd
NH)(CH3N2)P3][BPh4] (8). In contrast, treatment with Pb(OAc)4 of the related arylhydrazines [ReCl(ArN2)-
(ArNHNH2)P3][BPh4] (4) [P ) PPh(OEt)2] gives the bis(aryldiazenido) complexes [Re(ArN2)2P3][BPh4] (5).
Possible protonation reactions of Brønsted acids HX with all diazenides, 1, 4, 5, 6, and 8, were investigated and
found to proceed only in the cases of the bis(aryldiazenido) complexes 5 and 6, affording, with HCl, the octahedral
[ReCl(ArNdNH)(ArN2)P3][BPh4] or [ReCl{Ar(H)NN}(ArN2)P3][BPh4] (10) (Ar ) Ph; P ) PPh2OEt) derivative.
Introduction
the aim of obtaining insight into N2 binding and activation
through metal complexation.
Complexes containing partially reduced dinitrogen ligands
such as diazene, NHdNH, diazenides, RNtN+, or hydrazide,
NHNH2-, were also prepared and studied as models for the
intermediates of N2 reduction.21-24 The goal of these studies
Dinitrogen complexes1-3 are an important class of compounds
which continue to attract interest because of their relevance to
nitrogen fixation processes.4-11 A number of N2 complexes have
been synthesized,1-3,12-20 and several studies on their chemical,
electronic, and structural properties have been carried out, with
† Universita` Ca’Foscari di Venezia.
(13) Nishibayashi, Y.; Iwai, S.; Hidai, M. J. Am. Chem. Soc. 1998, 120,
10559.
‡ Universita` di Parma.
(1) Hidai, M.; Mizobe, Y. Chem. ReV. 1995, 95, 1115.
(2) Leigh, G. J. New J. Chem. 1994, 18, 157.
(14) Odom, A. L.; Arnold, P. L.; Cummins, C. C. J. Am. Chem. Soc. 1998,
120, 5836.
(3) Chatt, J.; Dilworth, J. R.; Richards, R. L. Chem. ReV. 1978, 78, 589.
(4) Shilov, A. E. Metal Complexes in Biomimetic Chemical Reactions;
CRC: Boca Raton, FL, 1997.
(5) Sellmann, D.; Sutter, J. Acc. Chem. Res. 1997, 30, 460.
(6) Richards, R. L. Coord. Chem. ReV. 1996, 154, 83.
(7) Leigh, G. J. Science 1995, 268, 827.
(15) Zanotti-Gerosa, A.; Solari, E.; Giannini, L.; Floriani, C.; Chiesi-Villa,
A.; Rizzoli, C. J. Am. Chem. Soc. 1998, 120, 437.
(16) Roussel, P.; Scott, P. J. Am. Chem. Soc. 1998, 120, 1070.
(17) O’Donoghue, M. B.; Zanetti, N. C.; Davis, W. M.; Schrock, R. R. J.
Am. Chem. Soc. 1997, 119, 2753.
(18) Hahn, J.; Landis, C. R.; Nasluzov, V. A.; Neyman, K. M.; Ro¨sch, N.
Inorg. Chem. 1997, 36, 3947.
(19) Hirano, M.; Akita, M.; Morikita, T.; Kubo, H.; Fukuoka, A.; Komiya,
S. J. Chem. Soc., Dalton Trans. 1997, 3453.
(20) Laplaza, C. E.; Johnson, M. J. A.; Peters, J. C.; Odom, A. L.; Kim,
E.; Cummins, C. C.; George, G. N.; Pickering, I. J. J. Am. Chem.
Soc. 1996, 118, 8623 and references therein.
(8) Eady, R. R. Chem. ReV. 1996, 96, 3013.
(9) Howard, J. B.; Rees, D. C. Chem. ReV. 1996, 96, 2965.
(10) Burgess, B. K.; Lowe, D. J. Chem. ReV. 1996, 96, 2983.
(11) Dilworth, M. J., Glenn, A. R., Eds. Biology and Biochemistry of
Nitrogen Fixation; Elsevier: New York, 1991.
(12) Fryzuk, M. D.; Johnson, S. A.; Rettig, S. J. J. Am. Chem. Soc. 1998,
120, 11024.
(21) Zollinger, H. Diazo Chemistry II; VCH: Weinheim, Germany, 1995.
10.1021/ic990970r CCC: $19.00 © 2000 American Chemical Society
Published on Web 07/01/2000

3284 Inorganic Chemistry, Vol. 39, No. 15, 2000
Albertin et al.
on diazo complexes was not only to provide insight into the N2
fixation mechanism and the nature of the intermediate but also
to design a dinitrogen reduction process operating under mild
conditions. Development of synthetic methods for obtaining
organonitrogen compounds directly from N2 as the nitrogen
source under mild conditions was a further target of these
studies. Despite the number of research studies, none of these
goals have yet been achieved, but it is generally believed that
systematic in-depth studies on dinitrogen and diazo transition
metal complexes will soon lead to the activation of N2 and its
exploitation to produce NH3 under milder conditions than those
of the Haber-Bosch process.
(PR3)49 (Cp ) η5-C5H5, Cp* ) η5-C5Me5), have been reported.
Except for ReCl(PPhMe2)4(µ-N2)MoCl4(OMe)50 and Tp(CO)2-
Re(µ-N2)Re(CO)2Tp (Tp ) hydridotris(pyrazolyl)borate),51 the
reported compounds are all mononuclear and are often obtained
by reactions of aryldiazenido [Re]-N2COPh and [Re]-N2Ar
species. They contain only one molecule of N2; bis(dinitrogen)-
rhenium derivatives are still without precedent.
Diazo complexes of rhenium are also known21-24 and mainly
include aryldiazenide species,52-62 as hydrazine63-65 and
diazene66-70 complexes are rather rare. No example of a
methyldiazenido complex has ever been reported.
New studies on diazo complexes of rhenium are therefore of
interest not only for their importance in nitrogen fixation
processes, but also because of their diverse reactivity modes
and structural properties.21-24,52-70 This paper reports a sys-
tematic investigation of reactions of ReCl3P3 complexes with
hydrazines that afford a series of new diazo derivatives.
As part of our contribution25-33 to this field, we report here
the syntheses, crystal structures and reactivity studies both of
the first bis(dinitrogen) complexes of rhenium and of other diazo
derivatives, including a rare example of a methyldiazenido
complex.
(Dinitrogen)rhenium complexes with tertiary phosphine and
carbonyl groups as ancillary ligands, of the types ReX(N2)P4,34,35
ReX(CO)2(N2)P2,35,36 ReX(N2)(P-P)2,34,35,37 [ReCl(N2)(P-P)2]-
[FeCl4],38 and Re(S2CNR2)(N2)(PPhMe2)339 (X ) Cl-, Br-, H-;
P ) monodentate phosphine; P-P ) bidentate phosphine),40-44
and with cyclopentadienyl groups as ligands, of the types CpRe-
(CO)2(N2),45,46 Cp*Re(CO)2(N2),47,48 and Cp*Re(CO)(N2)-
Experimental Section
