Synthesis of a bone-targeted bortezomib with in vivo anti-myeloma effects in mice

Article abstract of DOI:10.3390/pharmaceutics10030154

Multiple myeloma (MM) is the most common cancer affecting the bone and bone marrow and remains incurable for most patients; novel therapies are therefore needed. Bortezomib (Btz) is an FDA-approved drug for the treatment of patients with MM. However, its severe side effects require a dose reduction or the potential discontinuation of treatment. To overcome this limitation, we conjugated Btz to a bisphosphonate (BP) residue lacking anti-osteoclastic activity using a novel chemical linker and generated a new bone-targeted Btz-based (BP-Btz) proteasome inhibitor. We demonstrated that BP-Btz, but not Btz, bound to bone slices and inhibited the growth of MM cells in vitro. In a mouse model of MM, BP-Btz more effectively reduced tumor burden and bone loss with less systemic side effects than Btz. Thus, BP-Btz may represent a novel therapeutic approach to treat patients with MM.

Full text of DOI:10.3390/pharmaceutics10030154

pharmaceutics
Article
Synthesis of a Bone-Targeted Bortezomib with In
Vivo Anti-Myeloma Effects in Mice
Hua Wang 1,2,† , Lifeng Xiao 3,†, Jianguo Tao 1, Venkat Srinivasan 3, Brendan F. Boyce 1,4
,
Frank H. Ebetino 3,5, Babatunde O. Oyajobi 6, Robert K. Boeckman Jr. 3,* and Lianping Xing 1,4,
*
1
Department of Pathology and Laboratory Medicine, University of Rochester Medical Center, Box 626,
601 Elmwood Ave, Rochester, NY 14642, USA; huawang@njmu.edu.cn (H.W.);
Jianguo_Tao@URMC.Rochester.edu (J.T.); Brendan_Boyce@URMC.Rochester.edu (B.F.B.)
Institute of Stomatology, Nanjing Medical University, Jiangsu Key Laboratory of Oral Diseases,
2
Nanjing 210029, China
3
Department of Chemistry, University of Rochester, P.O. Box 270216, Rochester, NY 14627-0216, USA;
lxiao2@ur.rochester.edu (L.X.); Srinivasan@URMC.Rochester.edu (V.S.); febetino@UR.Rochester.edu (F.H.E.)
Center for Musculoskeletal Research, University of Rochester, Rochester, NY 14627-0216, USA
BioVinc, Pasadena, CA 91107, USA
Department of Cell Systems & Anatomy, Mays Cancer Center, University of Texas Health Science Center at
San Antonio, San Antonio, TX 78229, USA; oyajobi@uthscsa.edu
4
5
6
*
Correspondence: rkb@rkbmac.chem.rochester.edu (R.K.B.J.); Lianping_xing@urmc.rochester.edu (L.X.);
Tel.: +1-585-275-4229 (R.K.B.J.); +1-585-273-4090 (L.X.); Fax: +1-585-756-0210 or +1-585-276-0205 (R.K.B.J.);
+1-585-756-4468 (L.X.)
†
These authors contributed equally to this work.
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 3 August 2018; Accepted: 2 September 2018; Published: 10 September 2018
Abstract: Multiple myeloma (MM) is the most common cancer affecting the bone and bone marrow
and remains incurable for most patients; novel therapies are therefore needed. Bortezomib (Btz)
is an FDA-approved drug for the treatment of patients with MM. However, its severe side effects
require a dose reduction or the potential discontinuation of treatment. To overcome this limitation,
we conjugated Btz to a bisphosphonate (BP) residue lacking anti-osteoclastic activity using a
novel chemical linker and generated a new bone-targeted Btz-based (BP-Btz) proteasome inhibitor.
We demonstrated that BP-Btz, but not Btz, bound to bone slices and inhibited the growth of MM cells
in vitro. In a mouse model of MM, BP-Btz more effectively reduced tumor burden and bone loss with
less systemic side effects than Btz. Thus, BP-Btz may represent a novel therapeutic approach to treat
patients with MM.
Keywords: drug delivery; bortezomib; velcade; bone targeting; multiple myeloma
1. Introduction
Multiple myeloma (MM) is a plasma cell malignancy and the 2nd most common adult hematologic
malignancy in the US. The 5-year survival rate is ~45% [1], and the disease remains incurable. Myeloma
cells originate in the bone marrow (BM) where they destroy healthy BM cells, and eventually cause
osteolytic lesions, which lead to bone pain and fractures. Current treatment for MM includes drugs,
radiotherapy and eventually bone marrow transplantation, with chemotherapy being the first line
treatment for newly diagnosed patients. Medication typically consists of 3 classes of drugs, including
chemotherapy drugs that kill rapidly growing cells non-specifically, proteasome inhibitors that mainly
target cancer cells, and corticosteroids that control inflammation caused by chemotherapy [2,3].
Bortezomib (Btz, marketed as VELCADE) is the first proteasome inhibitor used to treat MM
and mantle cell lymphoma. It induces myeloma cell apoptosis by promoting excessive protein
Pharmaceutics 2018, 10, 154; doi:10.3390/pharmaceutics10030154
www.mdpi.com/journal/pharmaceutics

Pharmaceutics 2018, 10, 154
2 of 13
accumulation [
other types of cancer cells because they produce large amounts of immunoglobulin that induces a
cell stress-unfolded protein response [ ]. Btz prolongs the unfolded protein response by inhibiting
proteasomal degradation of unfolded proteins, leading to cell cycle arrest and apoptosis [ ]. Btz is
given by intravenous or subcutaneous injection. It goes to all tissues of the body and often causes
off-target effects, such as peripheral neuropathy and thrombocytopenia [ ], which limits its utility
4]. Myeloma cells are much more sensitive to Btz-induced cell death than normal or
5
5–7
8
or prevents the administration of effective doses. Because myeloma cells initially develop in the BM,
delivering anti-MM drugs to the bone is an attractive approach to increase local drug concentrations
and to reduce adverse effects on non-bone tissues.
The concept of bone-targeting pharmaceutical agents derives from bisphosphonates (BPs) based
on their high binding affinity for hydroxyapatite in the bone matrix and their therapeutic efficacy in the
treatment of bone disorders characterized by increased bone resorption. Bone-targeted BP conjugates
have a high propensity to localize to the bone in vivo, typically at sites of active bone remodeling where
the mineral component of the bone is exposed. As such, targeting small molecules to the bone offers
the potential for significantly modifying the bio-distribution, both at the cellular level and in vivo
BPs with high bone-binding activity and minimal pharmacological activities should therefore be ideal
carriers to deliver desired drugs to the bone [ ]. In 2013, Agyin et al. synthesized several permanently
.
9
linked BP-conjugated proteasome inhibitors, including Btz, and demonstrated that these conjugates
killed MM cells in vitro at a similar dose range as their non-bone targeted counterparts [10]. However,
no information has been reported as to whether these conjugates bind to the bone and provide any
anticipated beneficial effect in vivo.
In this study, we designed and synthesized a new form of bone-targeted Btz (referred to as BP-Btz)
by linking it to a BP residue using a boronate ester that was designed to release Btz from the BP at
remodeling bone surfaces. We demonstrated, in a mouse model of MM, that BP-Btz binds to bone
slices and has sustained and better efficacy than Btz.
2. Materials and Methods
2.1. Preparation of BP-Btz
2.1.1. 2-(bis(2-hydroxyethyl)amino)ethyl (bis(diethoxyphosphoryl)methyl)carbamate (BP-Linker
Tetraester)

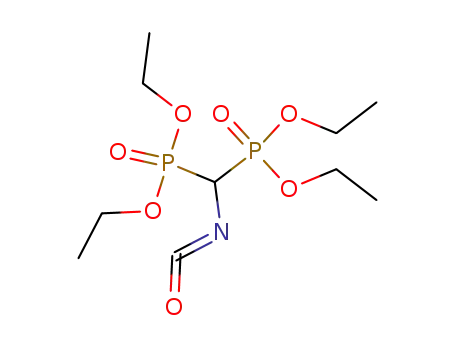

A dry 10 mL round bottom flask at 0 ◦C under Ar was charged with 200 mg of tetraethyl amino-
methylenediphosphonate (BP-tetraester) (0.66 mmol, 1 equiv), and triphosgene (78 mg, 0.264 mmol,
0.4 equiv) in 3 mL of dry CH2Cl2. Triethylamine, (67 mg, 0.66 mmol, 1 equiv) was added to the reaction
mixture. The resulting reaction mixture was allowed to warm to rt and stir overnight. The reaction
mixture was quenched by the addition of 25 mL of 1 M aq HCl. After the separation of the phases, the
aqueous layer was extracted with CH2Cl2 (3
×
30 mL). The combined organic layers were washed
with sat aq NaCl solution (15 mL), dried over Na2SO4, filtered, and concentrated under vacuum to
obtain a yellow oil (190 mg). A dry 5 mL round bottom flask was charged with the preceding crude
product mixture (190 mg), followed by dibutyltin dilaurate (DBTDL) (36.6 mg, 0.058 mmol, 0.1 equiv),
and 77.5 mg (0.52 mmol, 0.9 equiv) triethanolamine (TEOA) in 1.2 mL of dry CH2Cl2. The resulting
reaction mixture was allowed to stir at rt for 2 days. The reaction mixture was then filtered through a
celite pad and the pad was washed with additional CH2Cl2 (15 mL). The filtrate was concentrated under
vacuum, and the residue was purified by column chromatography (CH3OH-CH2Cl2 gradient, 5:95 to
2:8) to afford 126 mg (50%) of the BP-Linker-Tetraester as a colorless oil. Rf = 0.45 (CH3OH-CH2Cl2,
2:8); KMnO4 active.
1H NMR (500 MHz, D6 DMSO):
9H), 3.48 (s, 5H), 3.28 (s, 4H), 1.23 (m, 13H) 13C NMR (400 MHz, CDCl3):
56.03, 53.68, 46.17 (t), 16.37 31P NMR (400 MHz, CDCl3): 13.085. IR cm−1: 3427, 2981, 2927, 1714, 1537.
HRMS (ESI) m/z (M + H) Calcd for C16H37N2O10P2: 479.1917. Found: 479.1923.
δ
8.21 (d, J = 10 Hz, 1H), 5.27 (s, 2H), 4.43–4.32 (m, 3H), 4.07 (s,
115.36, 63.98, 59.63, 56.64,
δ
δ

Pharmaceutics 2018, 10, 154
3 of 13
2.1.2. (((2-(8-((R)-3-methyl-1-((S)-3-phenyl-2-(pyrazine-2-carboxamido)propanamido)butyl)
tetrahydro-8H-4I4,8I4-[1,3,2]oxazaborolo[2,3-b]-[1,3,2]oxazaborol-4-yl)ethoxy)carbonyl)amino)
methylene)bis(phosphonic acid (BP-Btz)
◦
A dry 10 mL round bottom flask was charged with pre-activated (at 120 C) powdered 3Å
molecular sieves (1 g) and a solution of BP-Linker-Tetraester (125 mg, 0.26 mmol) and (120.5 mg
of Bortezomib (Btz) (0.31 mmol, 1.2 equiv) in dry THF (5 mL). The reaction mixture was stirred at
rt for 3 days. The mixture was filtered through glass wood, then a celite pad, and concentrated in
vacuo. The crude product was washed with Et2O (10 mL
×
2) to remove the unreacted Btz affording
215 mg of crude product as a brown solid. Crude material was characterized by mass spectroscopy
and exhibited no ion at m/z 385.2 corresponding to Btz: Thermo-MS (ESI) m/z (M + H) Calcd for
C35H58BN6O12P2: 827.3. Found: 827.4. m/z (M + Na) Calcd for C35H57BN6O12P2Na: 849.35. Found:
849.4. m/z (M + K) Calcd for C35H57BN6O12P2K: 865.32. Found: 865.3. A dry 10 mL round bottom
flask was charged with a solution of the above crude product (215 mg = 26 mmol) in dry CH2Cl2
(8 mL) under Ar at 0 ◦C. Trimethylsilyl bromide (TMSBr) (239.7 mg, 0.156 mmol, 6 equiv) was added
dropwise with magnetic stirring. After the addition was complete, the reaction mixture was allowed
to stir and warm to rt overnight. The reaction mixture was then concentrated in vacuo and kept under
high vacuum for 10 min to afford a brown solid. Then, methanol (5 mL) was added to dissolve the
solid, and the resulting solution was concentrated in vacuo. This procedure was repeated 3 additional
times. The resulting solid was dissolved in EtOH (0.5 mL), and this was followed by the addition
of 10 mL of Et2O, resulting in the formation of a brownish-white precipitate. The solid was isolated
by filtration and dried under high vacuum at 90 ◦C affording 170 mg of
solid (91%). Characterization Data for BP-Btz: H NMR (500 MHz, CDCl3):
3
(BP-Btz) as a light brown
8.95 (s, 1H), 8.68 (s,
1
δ
1H), 8.62 (s, 1H), 7.37 (s, 4H), 7.16 (s, 1H), 4.71 (t, J = 10 Hz, 1H), 4.30 (s, 2H), 3.94 (t, J = 20 Hz, 1H),
3.74 (s, 4H), 3.47 (s, 2H), 3.28 (s, 4H), 3.08 (m, 1H), 2.97 (m, 1H), 2.78 (m, 1H), 1.32–1.24 (m, 2H), 1.16
(m, 1H), 0.72 (m, 6H). 13C NMR (400 MHz, CDCl3):
δ 177.38, 163.85, 155.7, 148.34, 144.34, 144.14,
143.88, 135.23, 129.72, 128.77, 127.31, 59.59, 55.81, 55.68, 52.67, 50.67, 48.74, 47.88, 36.39, 24.83, 23.85,
21.99. 31P NMR (400 MHz, CDCl3): δ −1.43,
−
4.81. IR cm−1: 3275, 3055, 2954, 2146, 1716, 1701, 1676,
1629, 1521. TOF-MS (ES+) m/z (M + 3H) Calcd for C27H44BN6O12P2: 717.26. Found: 717.55. m/z
(M + 2H + Na) Calcd for C27H43BN6O12P2Na: 739.24. Found: 739.64. m/z (M + H + 2Na) Calcd for
C27H42BN6O12P2Na2: 761.22. Found: 761.59. HRMS (ESI) m/z (M + Na) Calcd for C27H41BN6O12P2Na:
737.2241. Found: 737.2248.
2.1.3. 2-(bis(2-hydroxyethyl)amino)ethyl (bis(dihydroxyphosphoryl)methyl)carbamate (1 BP-Linker)
An oven dried round bottom flask was charged with
a solution of 0.1 g of
2-(bis(2-hydroxyethyl)amino)ethyl(bis(diethoxyphosphoryl)methyl)carbamate (BP-Linker-) (0.209 mmol)
in 1 mL anh CH2Cl2. After cooling to 0 ◦C, neat bromotrimethyl silane (0.17 mL, 1.25 mmol) was added
dropwise and the content was gradually warmed to room temperature and stirred for 16 h. The reaction
mixture was concentrated under reduced pressure and treated with 5 mL of anh methanol. The alcoholic
solution was concentrated and the procedure was repeated three times to yield a pale brown waxy solid.
The crude mixture was dissolved in a methanol/water mixture and added to diethyl ether, whereupon 47
mg (62%) of 2-(((diphosphonomethyl)carbamoyl)oxy)N,N-bis(2-hydroxyethyl) ethan-1-amin- ium bromide
(BP-Linker) precipitated as a white waxy solid.
Characterization data for BP-Linker: 1H-NMR (400 MHz, CD3OD/D2O)
2H), 4.30 (t, J = 2.4 Hz, 1H), 4.03–3.89 (m, 4H), 3.72–3.61 (m, 2H), 3.59–3.41 (m, 4H); 31P-NMR
δ 4.59–4.41 (m,
(400 MHz, CD3OD/D2O)
δ δ 156.69, 59.49, 55.38, 55.02, 52.87,
14.99; 13C-NMR (100 MHz, D2O)
48.36 (t, J = 137 Hz).
2.2. Animal Experiments
6-week-old female NIH-III nude (NIH-Lystbg-JFoxn1nuBtkxid) were purchased from Charles
River (Wilmington, MA, USA). 5TGM1-GFP mouse myeloma cells have been described in detail by

Pharmaceutics 2018, 10, 154
4 of 13
Babatunde O. Oyajobi (University of Texas Health Science Center at San Antonio, San Antonio, TX,
USA) [11 13]. The mice received 5TGM1-GFP MM cells (0.5
106 in 10 microliter volume) via a tail
–
×
vein injection. The mice were randomized into PBS Veh, Btz and BP-Btz groups (n = 6–8 mice/group)
based on body weight on day 1 after the tumor cell inoculation and were treated with the molar
equivalent dose of Btz (0.6 mg/kg, intraperitoneal injection) and BP-Btz (1.2 mg/kg) 3 times/week for
2 weeks. The drugs were dissolved in DMSO to make 50 mM stock solution and were then diluted
with PBS. The mice were sacrificed one week later (at 3 weeks post-tumor cell injection). The end-point
outcome measures included serum IgG2b levels, tumor burden, bone volume, routine blood counts
and osteoblast differentiation. A group of mice with no tumor cell injection were used as control
mice. All animal use in this study has been approved by the Animal Care and Use Committee at the
University of Rochester (UCAR#2001-121, 100661).
2.2.1. Enzyme Linked Immunosorbent Assay (ELISA)
Blood was collected by a facial vein puncture on the day when the mice were sacrificed. The serum
◦
was stored at
−
80 C. The levels of 5TGM1-specific monoclonal paraprotein (IgG2b kappa) were
assayed using a specific ELISA kit (IGG-1-2B, Life Diagnostics, West Chester, PA, USA).
2.2.2. IVIS Imaging
Following the administration of an inhalation anesthetic, the mice were subjected to an IVIS®
SpectrumCT preclinical in vivo imaging system (PerkinElmer, Waltham, MA, USA) to measure GFP
fluorescence before they were sacrificed. To support absolute quantitation, the system measures dark
charge during down-time and runs a self-calibration during initialization. To start imaging, the IVIS
system was initialized (one click) and the imaging parameters for the experiment were set. The GFP
signal intensity in the tibia, whole body, and head was analyzed using IVIS spectrum imaging system
software and presented as photons per second.
2.2.3. MicroCT
Femurs were dissected free of soft tissue, fixed overnight in 10% buffered formalin, and scanned
at high resolution (10.5
µm) on a VivaCT40
µCT scanner (Scanco Medical, Bassersdorf, Switzerland)
using 300 ms integration time, 55 kVp energy, and 145
µA intensity. 3D images were generated using a
constant threshold of 275 for all samples. Trabecular bone parameters were assessed, including BV/TV,
Tb.Th, Tb.N and Tb.Sp.
2.2.4. Histology and Histomorphometric Analysis
The legs including femora and tibiae were fixed in 10% buffered formalin, decalcified in 10%
EDTA, and embedded in paraffin for sectioning or Tissue-Tek for frozen sectioning. (1) Paraffin
sections (4 µm) were stained with H&E and converted to digital images using an Olympus VS120
whole slide imaging system (Olympus, Center Valley, PA, USA). Histomorphometric analyses were
performed on sections cut at 3 representative levels in each bone. The percentage of trabecular bone
(BV/TV) was analyzed using the automated algorithm we developed with the Visiopharm Image
Analysis System [14]. (2) The frozen sections (8 µm) were cut using a Leica CM1850 cryostat (Leica,
German) and mounted with a mounting medium containing DAPI (Vector Lab., Burlingame, CA,
USA). The slides were scanned using the VS120 whole slide scanner. Analyses were performed on
sections cut at 3 representative levels in each bone. GFP+ areas in tibiae and femora were analyzed
using Image Pro-Plus version 6.0 software (Media Cybernetics, Rockville, MD, USA).
2.2.5. Cell Cultures
(1) Bone binding assay. Bone slices were prepared from samples of cow femoral cortical bone
that had been cut transversely into roughly 20
×
10 mm columns using a band saw. We cut 1.5 mm

Pharmaceutics 2018, 10, 154
5 of 13
thick sections from the bone columns using a Buehler IsoMet Low Speed saw (Buehler, Lake Bluff,
IL, USA) and then used a round 4.8 mm diameter hole puncher to make circular slices that could
be dropped into wells in 96-well plates. Bone slices were pre-incubated with Veh, BP, Btz or BP-Btz
for 24 h, washed extensively with PBS, and transferred to new culture plates. 5TGM1-GFP MM cells
(3.2 × 104 cells/slice) were seeded on drug pre-incubated bone slices for 24 h. The number of living
cells was determined using a Cell Counting Kit-8 (Dojindo Molecular Technologies, Inc., Rockville,
MD, USA). (2) Cell survival assays. 5TGM1-GFP MM cells were plated on 12-well plastic culture
plates and treated with different amounts of testing agents for 24 h. The number of living cells was
counted using a Trypan Blue exclusion method. (3) Osteoblast differentiation. Bone-derived stromal
cells were generated using a recently published protocol [15]. Cells were cultured in 60-mm dishes
at 2 × 106 cells/dish in a
α
-MEM culture medium containing 10% FCS with or without 50
µg/mL
ascorbic acid and 10 mM
β-glycerophosphate. Media were changed every 4 days for 12 days. At the
end of the culture period, cells were fixed in formalin and stained for Alkaline Phosphatase (ALP)
activity. The ALP+ area was assessed.
2.2.6. Routine Blood Counting
Blood was collected via retro-orbital sinus and stored in a microtainer (BD, 365974) for less than
1 h before analysis. Complete blood count values were acquired using 20–30 µL of whole blood using
the scil Vet ABC Plus hematology analyzer (Scil Animal Care Company, Gurnee, IL, USA).
2.3. Statistical Analysis
All results are given as mean
±
SD. The statistical analysis was performed using GraphPad
Prism 5 software (GraphPad Software Inc., San Diego, CA, USA). Comparisons between the 2 groups
were analyzed using the 2-tailed unpaired Student’s t test. One way ANOVA and Dunnett’s post-hoc
multiple comparisons were used for comparisons among 3 or more groups. p values under 0.05 were
considered statistically significant.
3. Results
Design and synthesize bone targeted Bortezomib. To generate a bone-targeted Btz, we selected a
BP as a targeting moiety based on its high bone affinity property [16,17] (Figure 1A) and its potential to
release this proteasome inhibitor at the bone surface due to the lower pH and enzymatic environment
of high turnover sites. Because BPs have an anti-osteoclast activity that might directly affect cancer cell
growth in the BM, we purposely chose a simple non-bioactive BP that has little effect on osteoclasts to
avoid potential confusion on data interpretation. The synthesis of BP-Btz was outlined in Figure 1B.
The design of the BP-Btz conjugate entailed the identification of a linker to which a biologically inactive
bis-phosphonic acid, such as (aminomethylene)bisphosphonic acid, could be attached, leaving a
diethanolamine fragment available to generate a 1,3,2-dioxazaboroyl fragment upon coupling with
Btz. The dioxaborolyl release group was identified as having the necessary stability at pH 7.4 for
transport to the bone but sufficient acid liability to be cleaved at the low pH (pH
≈
4–5) present under
the ruffled border of osteoclasts and release Btz. The synthesis of the BP-linker tetraester diol began
with the generation of the intermediate isocyanate from tetraethyl (aminomethylene)bisphosponate
upon treatment with triphosgene followed by the addition of triethanolamine and a catalytic amount
of dibutyltin dilaurate (DBTDL) affording the diol (BP-linker tetraester) in a 50% yield over two
steps, as shown in Figure 1B. The desired BP-Btz conjugate was then obtained by dioxazaboroxane
formation from BP-linker tetraester and Btz boronic acid in methylene chloride in the presence of
3 Å molecular sieves over 3 days at room temperature (85–90% conversion, 95% yield based upon
conversion), followed by the direct treatment of the crude solution of the BP-Btz tetraethyl esters with
TMSBr. The removal of unreacted starting materials was possible via the precipitation of the BP-Btz
conjugate from a mixture of ethanol and diethyl ether. Figure 1C shows the molecular weight and
chemical formulation of BP-Btz, Btz, and BP-linker.

Pharmaceutics 2018, 10, 154
6 of 13
Figure 1. Generation of Bisphosphonate-Bortezomib (BP-Btz) conjugate. (A) Diagram showing the
principle of our bone targeting strategy, including a bisphosphonate, a linker, and a payload that
usually is a drug or other pharmacological inhibitor. ( ) Steps of the BP-Btz synthesis. ( ) Molecular
weight and chemical formulation of BP-Btz, Btz or BP-linker.
B
C
BP-Btz binds to bone matrix and maintains its bioactivity to kill myeloma cells. Our overall
hypothesis is that BP-Btz binds to the bone where Btz is released and exhibits its bioactivity locally.
To test this, we developed a bone binding assay, in which we pre-incubated the bone slices with
1 µM BP-Btz, Btz or BP-linker overnight, removed the drug solutions, washed bone slices with PBS
extensively, seeded MM cells onto the bone slices for 24 h, and then examined the surviving cell
numbers on the bone slices (Figure 2A). The prediction is that MM cells will die off when they are
seeded on the bone slices that are pre-incubated with BP-Btz, but will survive if they are seeded
on the bone slices that are pre-incubated with Btz, BP-linker or PBS because the Btz or PBS will be
washed away leaving no inhibitor on the slices, and because BP-linker itself has no anti-MM activity.
As expected, we found that MM cells died when we cultured them on bone slices that had been
pre-incubated with BP-Btz, but not when Btz or BP-linker was used (Figure 2B). We treated 5TGM1
cells with different doses of BP-Btz, Btz or BP-linker and demonstrated that BP-Btz and Btz had a
similar efficacy to kill them in vitro while BP-linker had no such effect (Figure 2C).

Pharmaceutics 2018, 10, 154
7 of 13
Figure 2. BP-Btz binds to bone matrix and maintains its bioactivity to kill myeloma cells. (A) Diagram
showing the bone binding assay. (
and then washed with PBS. 5TGM1-GFP myeloma cells were cultured with bone slices for 24 h and cells
survival was measured using a Cell Counting Kit-8. Data are means SD of 6 wells. 3 experimental
repeats. One way ANOVA with Dunnett’s test. * p < 0.05. ( ) Cells were treated with different doses of
B) Bone slices were pre-incubated with PBS, Btz, BP-Btz overnight
±
C
drugs for 24 h. The number of living cells was counted using a Trypan Blue exclusion method. Data are
means + SD. N = 4 wells. 3 experimental repeats. One way ANOVA with Dunnett’s test. * p < 0.05
vs. PBS.
BP-Btz reduces the tumor burden and bone destruction more effectively than Btz in a mouse
model of MM. Btz is a first line treatment for patients with MM. We hypothesized that BP-Btz would
be more effective at reducing the tumor burden and myeloma-induced bone destruction than Btz
in vivo. We used the 5TGM mouse model of MM, in which mouse 5TGM myeloma cells carry a
green fluorescence protein (GFP) that allows the measurement of the distribution of GFP+ myeloma
cells. In this model, myeloma cells entered the BM and spleen after tail vein administration [11].
We randomized the NIH-III nude mice into 4 groups based on their body weight (n = 6–8 mice/group).
The mice in group 1 received a PBS injection as non-MM control. The mice in groups 2–4 received MM
cells via the tail vein injection. The mice were treated one day post-MM cell inoculation with a saline
vehicle (Veh), or the molar equivalent dose of Btz (0.6 mg/kg) and BP-Btz (1.2 mg/kg), once every
2 days for 2 weeks, and were sacrificed one week later as outlined in Figure 3A (Supplementary Table
S1). In this study, we used a short dosing regimen to determine if BP-Btz has better efficacy than Btz to
reduce the tumor burden. The tumor burden was measured as a GFP signal intensity by IVIS imaging,
GFP+ area on frozen sections, and serum idiotypic IgG2b levels by ELISA. The MM-associated bone
loss (bone volume) was assessed by µCT and by histomorphometric analysis on H&E-stained sections.
The effect of MM cells on osteoblast function was assessed by an ALP+ colony forming assay using BM
stromal cells from the mice. As expected, MM-bearing mice treated with Veh developed multiple tumor
masses in the skeleton including the long bones, vertebrae, and skull, and in the spleen as indicated by
the GFP intensity (Figure 3B and Supplementary Figure S1). Using this sub-optimal dosing regimen,
Btz failed to significantly reduce the GFP intensity, while BP-Btz significantly decreased the GFP
intensity (Figure 3B). This was further confirmed by measuring the GFP+ area on frozen sections
(Figure 3C) and serum IgG2b levels (Figure 3D).

Pharmaceutics 2018, 10, 154
8 of 13
Figure 3. BP-Btz reduces tumor burden in a mouse model of MM. (A) Mice injected with
5TGM1-GFP cells were treated with Veh, Btz, or BP-Btz for 2 weeks and subjected to outcome
measures 1 week post-treatment. ) Distribution and signal intensity of GFP+ cells by IVIS
imaging. ( ) GFP+ area on frozen sections of femoral bone. ( ) Serum levels of mouse IgG2b
(
B
C
D
by ELISA. Data are means ±SD of 5–6 mice. One way ANOVA with Dunnett’s test for comparison of
MM + Veh, MM + Btz, and MM + BP-Btz groups. * p < 0.05.
MM develops primarily in the BM and it is associated with severe bone loss. Results from
CT (Figure 4A) and histomorphometric analysis (Figure 4B) revealed a marked bone loss in
µ
Veh-treated MM-bearing mice. Similar to the tumor burden shown in Figure 3B–D, Btz failed to
prevent bone loss, while BP-Btz-treated mice had normal bone volume values, similar to the levels
in non-MM-bearing mice. One of the mechanisms by which MM cells cause bone loss is to inhibit
osteoblast differentiation [18]. Btz directly promotes osteoblast differentiation in the absence of MM
cells [19]. Thus, it is likely that cells from BP-Btz-treated mice have a higher osteoblast differentiation
potential than cells from Btz-treated mice because BP-Btz kills more MM cells and perhaps has
stronger effects on osteoblast precursors due its delivery of a higher local concentration of Btz. To test
this, we performed an ALP+ colony assay using BM stromal cells from Btz- or BP-Btz treated mice.

Pharmaceutics 2018, 10, 154
9 of 13
Cells from Veh-treated MM mice had obviously reduced ALP+ colonies. Cells from BP-Btz-treated
mice formed significantly more ALP+ colonies than cells from Btz-treated and Veh-treated MM
mice (Figure 4C). Consistent with the above results, at the time the experiments were terminated all
MM-bearing mice treated with Veh had developed paralysis, whereas there was a 40% decrease in the
incidence of paralysis in tumor-bearing mice treated with Btz. Even more dramatically, none of the
mice treated with BP-Btz exhibited paralysis (Figure 4D).
Figure 4. BP-Btz reduces bone loss and osteoblast inhibition in a mouse model of MM. Mice were
described in Figure 3A. (
H&E-stained sections and femoral bone volume by histomorphometric analysis. (
cultured in the OB-inducing medium for 12 days. CFU-ALP+ colonies were identified by ALP
staining. Data are means SD of 5–6 mice. One way ANOVA with Dunnett’s test for comparison
A
) Micro-CT images and data analysis of femoral bones. (
B) Images of
C) BM cells were
±
of PBS + Veh, MM + Veh, MM + Btz, and MM + BP-Btz groups. * p < 0.05. (D) Number of paralyzed
mice in each group.
BP-Btz induces less severe pancytopenia than Btz in MM mice. Pancytopenia is a common
systemic side effect of anti-cancer drugs, including Btz. Specifically, thrombocytopenia is one of the
major and commonly-observed Btz-related toxic effects seen in MM patients [20]. Because BP-Btz
is designed to only deliver “free” Btz locally after the BP moiety binds to the bone and the Btz is
released as a consequence of the local acidic environment, we anticipated that BP-Btz would cause
less severe pancytopenia or thrombocytopenia than Btz. To test this, we compared body weights
before and after the drug treatment and performed routine blood counts at the end of the experiment
in MM-bearing mice described in Figures 3 and 4. There was a small, but significant decrease in
body weight in Veh-treated MM-bearing mice, but not in Btz- and BP-Btz-treated mice (Figure 5A).
Compared to the control mice that had no-MM cell inoculation, Veh-treated MM-bearing mice had

Pharmaceutics 2018, 10, 154
10 of 13
markedly decreased numbers of white blood cells and platelets. Btz-treated MM-bearing mice had a
further reduction in platelet numbers. Impressively, BP-Btz-treated mice had white blood cell numbers
similar to those in non-MM mice, and significantly higher numbers of platelets than both Veh- and
Btz-treated MM-bearing mice. BP-Btz also had a similar beneficial effect on red blood cell parameters
(Figure 5B).
Figure 5. BP-Btz causes less severe pancytopenia in MM mice than Btz. Mice described in Figure 3A
were used. (
A
) Body weight. (
B
) Routine blood testing was performed. Data are means
±
SD of
5–6 mice. One way ANOVA with Dunnett’s test for comparison of PBS + Veh, MM + Veh, MM + Btz,
and MM + BP-Btz groups. * p < 0.05.
4. Discussion
Btz is a first-line drug used to treat MM with high response rates in patients with both
relapsed/refractory and newly diagnosed MM [21]. It acts as a proteasome inhibitor and reversibly
inhibits the mammalian 26S proteasome [22]. Btz induces misfolded protein accumulation in myeloma
cells followed by endoplasmic reticulum stress-associated apoptosis [23]. However, Btz has off–target
adverse effects following its systemic administration, limiting the amount of drug that can be
administered in patients. MM cells reside mainly in the BM and directly affect adjacent bones.
BPs have a high bone-binding activity and can thus be used as carriers to deliver desired drugs to the
bone [9]. In this study, we designed and synthesized a bone-targeted form of Btz and demonstrated for
the first time that a bone-targeted Btz-based conjugate has a significant anti-MM effect in mice.
Bone-targeting anti-cancer drugs to the bone have been proposed for decades due to the potential
benefits of lower systemic toxicity, lower dosage requirement and increased efficacy. For example, in
2008, scientists in ARIAD Pharmaceuticals, Inc., synthesized a bone-targeted Src tyrosine kinase
inhibitor. We characterized it and demonstrated its anti-resorptive activity [24] and anti-tumor
effects [25], but the lead compound was not developed into a drug. Btz is an ideal candidate for
bone targeting because MM cells grow predominantly in the BM. In 2013, Agyin et al. made a BP

Pharmaceutics 2018, 10, 154
11 of 13
(alendronate) linked Btz and other proteasome inhibitors and reported that these BP conjugates kill MM
cells in a similar dose range to Btz [10]. However, the authors did not test if these BP-Btz conjugates
bind to the bone, and more importantly if they have anti-cancer activity in vivo. Another issue is that
they used an active BP residue (alendronate), potentially making it difficult to separate the BP’s effect
from Btz’s effects on osteoclasts.
Our drug design has 2 features that distinguish it from previous published BP-Btz conjugates [10].
The first is that we used a form of BP that does not have an anti-resorptive activity, allowing us to test
the effect of Btz alone. Another is that we used a chemical linker that is stable in the bloodstream, but
is likely cleaved by hydrolysis in the acidic microenvironment under the osteoclast ruffled border in
resorption sites to release the active drug from bone surfaces. We demonstrated that our BP-Btz bound
to bone matrix and reduced MM burden and bone loss with higher efficacy than Btz, indicating that
the bone-targeting of Btz does not affect its anti-cancer bioactivity.
This is the first description of a BP-Btz conjugate that exhibits an in vivo efficacy superior to Btz
alone in a prevention protocol. We are currently pursuing an intervention regimen in similar mouse
models carrying human MM cells. One of the clinical adverse effects of Btz is peripheral neuropathy,
which is assessed primarily based on neurologic clinical examination and neurophysiologic methods [8].
Current knowledge of the mechanism underlying Btz-induced neurotoxicity is very limited [26].
Mitochondrial and endoplasmic reticulum damage seems to play a key role since Btz is able to activate
the mitochondrial-based apoptotic pathway [27], which will be examined in future studies. The current
paper focused on one example of BP-Btz conjugates; conjugates with different release rates may impact
efficacy and are being evaluated. Furthermore, for bone-targeting purposes, to allow a clear separation
of the bioactivity of the BP-Btz conjugate from any bioactivity of the BP, we used a BP without an
anti-resorptive activity. In future studies, we can consider making drug conjugates with active BPs to
determine if this increases efficacy without adverse BP effects. We are performing pharmacokinetic
and pharmacodynamic studies to confirm that the Btz is indeed released on the bone from the BP-Btz
conjugate. Finally, we only used a single dose of BP-Btz and have not performed the dose-limiting
toxicity (DLT) study. It is therefore possible that DLT is higher (or lower) for the conjugate. Thus, a DLT
study using different doses of BP-Btz will be needed to conclude that the BP-Btz is more effective
that Btz.
In summary, we synthesized a new conjugate form of Btz (BP-Btz) and demonstrated its efficacy
in vivo. Overall, BP-Btz may represent a novel therapeutic approach to treat patients with MM with
overall improved efficacy and potentially less systemic adverse effects.
Supplementary Materials: The following are available online at http://www.mdpi.com/1999-4923/10/3/154/s1,
Figure S1: Mouse injected with 5TGM1-GFP cells via the tail vein and subjected to IVIS imaging at 3 weeks
post-MM cell inoculation. The IVIS image from a MM mouse (right) showing GFP+ MM cells in skull, vertebrae,
spleen and legs and from a mouse given no MM cells (left); Table S1: Dosing information of BP-Btz in MM mice.
Author Contributions: L.X. (Lianping Xing) and R.K.B.J. have full access to all of the data in the study and take
responsibility for the integrity of the data and the accuracy of the data analysis. Study design. Acquisition of data.
H.W., L.X. (Lifeng Xiao), J.T., V.S. Analysis and interpretation of data. H.W., L.X. (Lifeng Xiao), J.T., V.S., B.F.B.,
F.H.E., B.O., R.K.B.J., L.X. (Lianping Xing). Manuscript preparation. H.W., L.X. (Lifeng Xiao), J.T., V.S., B.F.B.,
F.H.E., B.O., R.K.B.J., L.X. (Lianping Xing). Statistical analysis. H.W., J.T.
Funding: This research work was funded by grants from [National Institute of Health USA] AR063650, AR069789,
AR43510, AR069655, 1S10RR027340-01, [NYSTEM] C029548), [University of Rochester] Technology Development
Fund, and [National Natural Science Foundation of China] 81500815.
Acknowledgments: We thank Michelle A. Lawson (University of Sheffield, Sheffield, UK) and David G. Roodman
(Indiana University, Bloomington, IN, USA) for their very valuable suggestions and advices on this work.
Conflicts of Interest: Frank H. Ebetino is a stockholder of BioVinc LLC. All other authors declare no conflicts
of interest.

Pharmaceutics 2018, 10, 154
12 of 13
References
1.
2.
3.
San Miguel, J.; Blade, J.; Boccadoro, M.; Cavenagh, J.; Glasmacher, A.; Jagannath, S.; Lonial, S.; Orlowski, R.Z.;
Sonneveld, P.; Ludwig, H. A practical update on the use of bortezomib in the management of multiple
myeloma. Oncologist 2006, 11, 51–61. [CrossRef] [PubMed]
Shaji, K.; Kumar, N.S.C. National Comprehensive Cancer Network (nccn) clinical practice guidelines in
oncology. In Multiple Myeloma; V.4.2018; National Comprehensive Cancer Network: Fort Washington, PA,
USA, 2018.
Dingli, D.; Ailawadhi, S.; Bergsagel, P.L.; Buadi, F.K.; Dispenzieri, A.; Fonseca, R.; Gertz, M.A.;
Gonsalves, W.I.; Hayman, S.R.; Kapoor, P.; et al. Therapy for relapsed multiple myeloma: Guidelines
from the mayo stratification for myeloma and risk-adapted therapy. Mayo Clin. Proc. 2017, 92, 578–598.
[CrossRef] [PubMed]
4.
5.
6.
Hideshima, T.; Richardson, P.G.; Anderson, K.C. Mechanism of action of proteasome inhibitors and
deacetylase inhibitors and the biological basis of synergy in multiple myeloma. Mol. Cancer Ther. 2011, 10,
2034–2042. [CrossRef] [PubMed]
Obeng, E.A.; Carlson, L.M.; Gutman, D.M.; Harrington, W.J., Jr.; Lee, K.P.; Boise, L.H. Proteasome inhibitors
induce a terminal unfolded protein response in multiple myeloma cells. Blood 2006, 107, 4907–4916.
[CrossRef] [PubMed]
Zinszner, H.; Kuroda, M.; Wang, X.; Batchvarova, N.; Lightfoot, R.T.; Remotti, H.; Stevens, J.L.; Ron, D.
Chop is implicated in programmed cell death in response to impaired function of the endoplasmic reticulum.
Genes. Dev. 1998, 12, 982–995. [CrossRef] [PubMed]
7.
8.
Brewer, J.W.; Diehl, J.A. Perk mediates cell-cycle exit during the mammalian unfolded protein response.
Proc. Natl. Acad. Sci. USA 2000, 97, 12625–12630. [CrossRef] [PubMed]
Mohty, B.; El-Cheikh, J.; Yakoub-Agha, I.; Moreau, P.; Harousseau, J.L.; Mohty, M. Peripheral neuropathy
and new treatments for multiple myeloma: Background and practical recommendations. Haematologica 2010
95, 311–319. [CrossRef] [PubMed]
,
9.
Cole, L.E.; Vargo-Gogola, T.; Roeder, R.K. Targeted delivery to bone and mineral deposits using
bisphosphonate ligands. Adv. Drug Deliv. Rev. 2016, 99, 12–27. [CrossRef] [PubMed]
10. Agyin, J.K.; Santhamma, B.; Roy, S.S. Design, synthesis, and biological evaluation of bone-targeted
proteasome inhibitors for multiple myeloma. Bioorg. Med. Chem. Lett. 2013, 23, 6455–6458. [CrossRef]
[PubMed]
11. Dallas, S.L.; Garrett, I.R.; Oyajobi, B.O.; Dallas, M.R.; Boyce, B.F.; Bauss, F.; Radl, J.; Mundy, G.R. Ibandronate
reduces osteolytic lesions but not tumor burden in a murine model of myeloma bone disease. Blood 1999, 93,
1697–1706. [PubMed]
12. Oyajobi, B.O.; Munoz, S.; Kakonen, R.; Williams, P.J.; Gupta, A.; Wideman, C.L.; Story, B.; Grubbs, B.;
Armstrong, A.; Dougall, W.C.; et al. Detection of myeloma in skeleton of mice by whole-body optical
fluorescence imaging. Mol. Cancer Ther. 2007, 6, 1701–1708. [CrossRef] [PubMed]
13. Oyajobi, B.O.; Franchin, G.; Williams, P.J.; Pulkrabek, D.; Gupta, A.; Munoz, S.; Grubbs, B.; Zhao, M.;
Chen, D.; Sherry, B.; et al. Dual effects of macrophage inflammatory protein-1alpha on osteolysis and tumor
burden in the murine 5tgm1 model of myeloma bone disease. Blood 2003, 102, 311–319. [CrossRef] [PubMed]
14. Li, X.; Sun, W.; Li, J.; Wang, M.; Zhang, H.; Pei, L.; Boyce, B.F.; Wang, Z.; Xing, L. Clomipramine causes
osteoporosis by promoting osteoclastogenesis via e3 ligase itch, which is prevented by zoledronic acid. Sci.
Rep. 2017, 7, 41358. [CrossRef] [PubMed]
15. Zhang, H.; Hilton, M.J.; Anolik, J.H.; Welle, S.L.; Zhao, C.; Yao, Z.; Li, X.; Wang, Z.; Boyce, B.F.; Xing, L.
Notch inhibits osteoblast formation in inflammatory arthritis via noncanonical nf-kappab. J. Clin. Investig.
2014, 124, 3200–3214. [CrossRef] [PubMed]
16. Zhang, S.; Gangal, G.; Uludag, H. ‘Magic bullets’ for bone diseases: Progress in rational design of
bone-seeking medicinal agents. Chem. Soc. Rev. 2007, 36, 507–531. [CrossRef] [PubMed]
17. Tanaka, K.S.; Houghton, T.J.; Kang, T.; Dietrich, E.; Delorme, D.; Ferreira, S.S.; Caron, L.; Viens, F.; Arhin, F.F.;
Sarmiento, I.; et al. Bisphosphonated fluoroquinolone esters as osteotropic prodrugs for the prevention of
osteomyelitis. Bioorg. Med. Chem. 2008, 16, 9217–9229. [CrossRef] [PubMed]

Pharmaceutics 2018, 10, 154
13 of 13
18. Terpos, E.; Heath, D.J.; Rahemtulla, A.; Zervas, K.; Chantry, A.; Anagnostopoulos, A.; Pouli, A.; Katodritou, E.;
Verrou, E.; Vervessou, E.C.; et al. Bortezomib reduces serum dickkopf-1 and receptor activator of nuclear
factor-kappab ligand concentrations and normalises indices of bone remodelling in patients with relapsed
multiple myeloma. Br. J. Haematol. 2006, 135, 688–692. [CrossRef] [PubMed]
19. Roodman, G.D. Bone building with bortezomib. J. Clin. Investig. 2008, 118, 462–464. [CrossRef] [PubMed]
20. Weathington, N.M.; Mallampalli, R.K. Emerging therapies targeting the ubiquitin proteasome system in
cancer. J. Clin. Investig. 2014, 124, 6–12. [CrossRef] [PubMed]
21. Richardson, P.G.; Sonneveld, P.; Schuster, M.W.; Irwin, D.; Stadtmauer, E.A.; Facon, T.; Harousseau, J.L.;
Ben-Yehuda, D.; Lonial, S.; Goldschmidt, H.; et al. Bortezomib or high-dose dexamethasone for relapsed
multiple myeloma. N. Engl. J. Med. 2005, 352, 2487–2498. [CrossRef] [PubMed]
22. Bonvini, P.; Zorzi, E.; Basso, G.; Rosolen, A. Bortezomib-mediated 26s proteasome inhibition causes cell-cycle
arrest and induces apoptosis in cd-30+ anaplastic large cell lymphoma. Leukemia 2007, 21, 838–842. [CrossRef]
[PubMed]
23. Nawrocki, S.T.; Carew, J.S.; Pino, M.S.; Highshaw, R.A.; Dunner, K., Jr.; Huang, P.; Abbruzzese, J.L.;
McConkey, D.J. Bortezomib sensitizes pancreatic cancer cells to endoplasmic reticulum stress-mediated
apoptosis. Cancer Res. 2005, 65, 11658–11666. [CrossRef] [PubMed]
24. Shakespeare, W.C.; Wang, Y.; Bohacek, R.; Keenan, T.; Sundaramoorthi, R.; Metcalf, C., 3rd; Dilauro, A.;
Roeloffzen, S.; Liu, S.; Saltmarsh, J.; et al. Sar of carbon-linked, 2-substituted purines: Synthesis
and characterization of ap23451 as a novel bone-targeted inhibitor of src tyrosine kinase with in vivo
anti-resorptive activity. Chem. Biol. Drug Des. 2008, 71, 97–105. [CrossRef] [PubMed]
25. Boyce, B.; Shakespeare, W.C.; Xing, L.; Wang, Y.; Sundaramoorthi, R.; Keenan, T.; Metcalf, C.; Bohacek, R.; van
Schravendijk, M.R.; Dalgarno, D.; et al. Development of a novel bone-targeted src tyrosine kinase inhibitor
ap23451 having potental in vitro and in vivo anti-resorptive properties. J. Bone Miner. Res. 2002, S159.
26. Argyriou, A.A.; Cavaletti, G.; Bruna, J.; Kyritsis, A.P.; Kalofonos, H.P. Bortezomib-induced peripheral
neurotoxicity: An update. Arch. Toxicol. 2014, 88, 1669–1679. [CrossRef] [PubMed]
27. Cavaletti, G.; Gilardini, A.; Canta, A.; Rigamonti, L.; Rodriguez-Menendez, V.; Ceresa, C.;
Marmiroli, P.; Bossi, M.; Oggioni, N.; D’Incalci, M.; et al. Bortezomib-induced peripheral neurotoxicity:
A neurophysiological and pathological study in the rat. Exp. Neurol. 2007, 204, 317–325. [CrossRef] [PubMed]
©
2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
